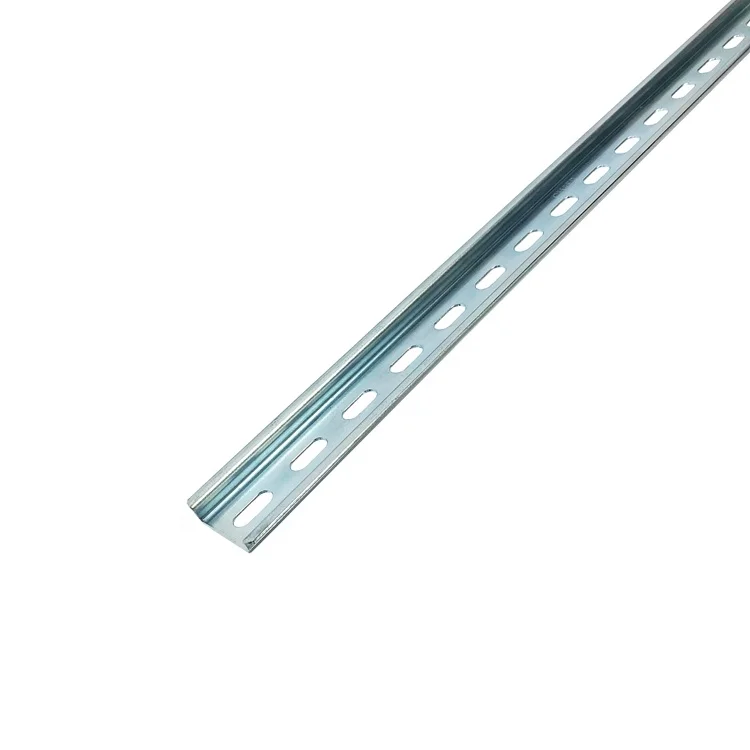

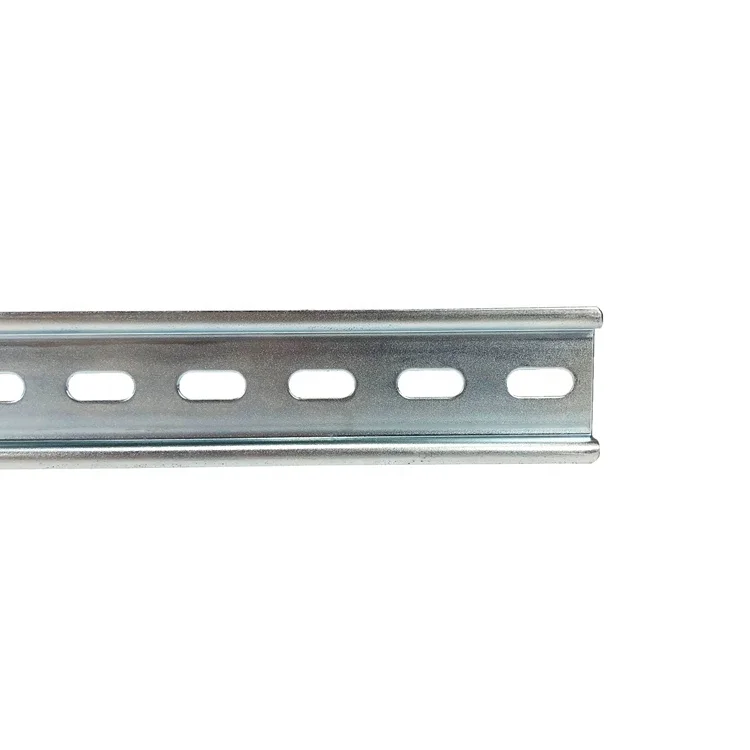

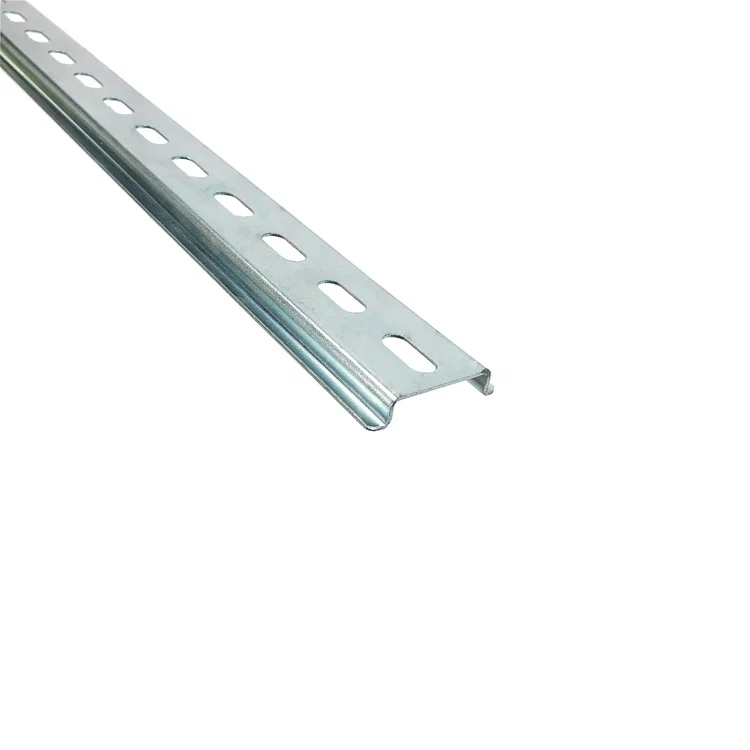

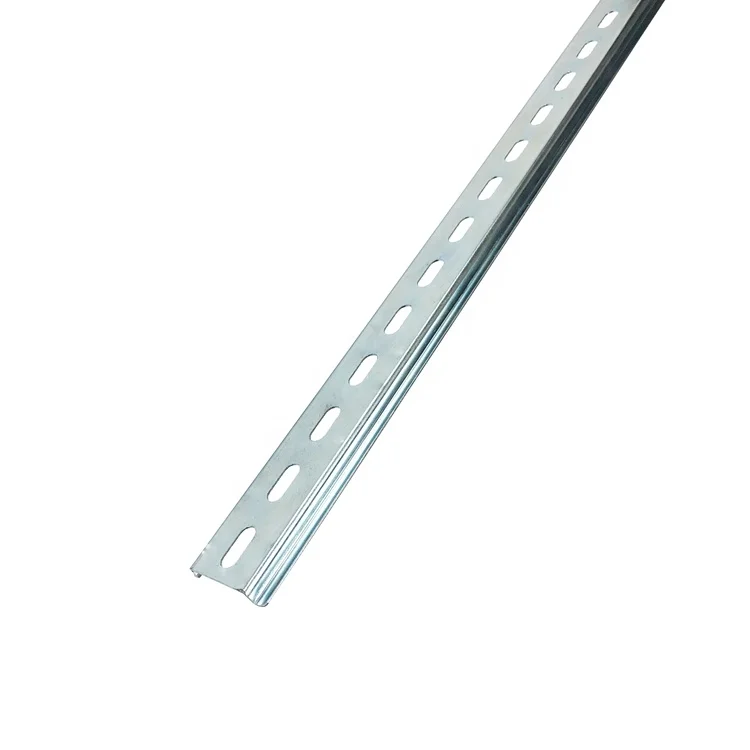

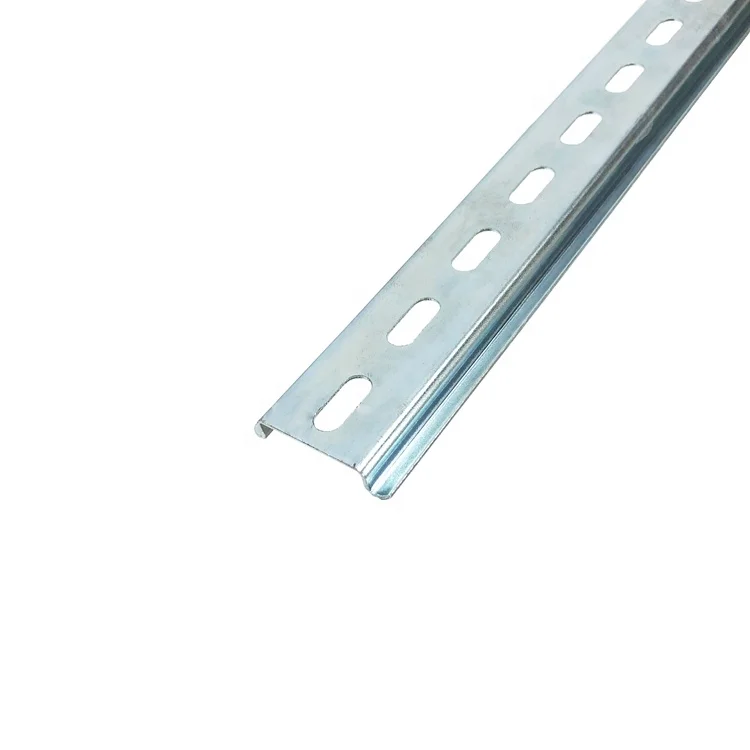

35mmx7.5mm Standard Steel Din Rail 1.0mm For Mcb Enclosure
- Category: >>>
- Supplier: Kaer Technology Co. Ltd
Share on (1600622918303):
Product Overview
Description
Arrival
Top Hat Section Mounting Rail
IEC/EN 60715
General
| Material: | Steel | Neutral Salt Spray test: | 48 or 72 hours |
| LOGO: | CHAER | Appearance: | Colorful |
| Common length: | 1,000mm | Special lengths: | Customized |
| Weight/1,000mm | 0.32kg | Packing unit: | Carton |
| Height: | 7.5mm | Width: | 35mm |
| Mounting hole: | 6.2mm X 15mm | Thickness: | 1.0mm |

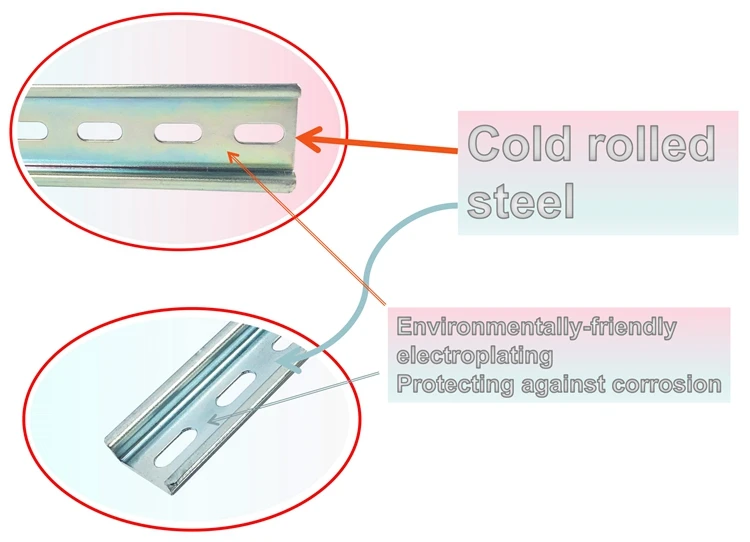

| Features: | Large load support, corrosion protection | ||
| Equipment: | Automated rolling-punching machine, electroplating system | ||
| Application: | Mounting miniature circuit breakers or meters | ||
Mounting Rail Series
| Model | Section | Width(mm) | Height(mm) | Material |
| GB-10 | Top hat | 35 | 7.5 | Steel |

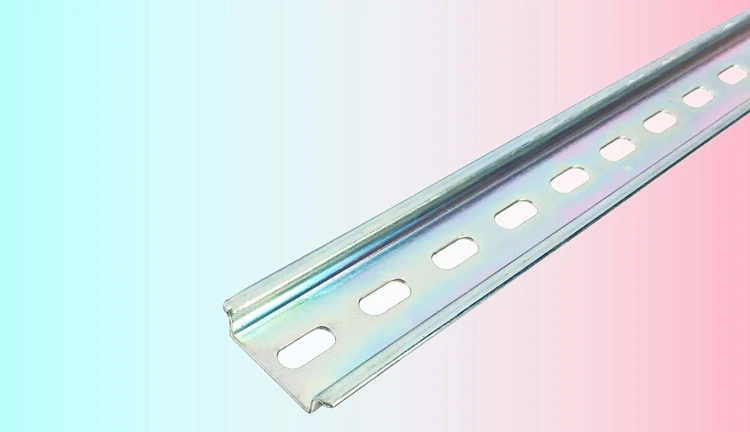

| K-8500 | Top hat | 35 | 7.5 | Steel |
| K-8500BW | Top hat | 35 | 7.5 | Steel |
| K-8700 | Top hat | 35 | 15 | Steel |
| K-1500 | Top hat | 15 | 5.5 | Steel |
| K-3600 | G section | 32 | 15/9 | Steel |
| K-5600 | Top hat | 35 | 7.5 | Aluminum |
| K-6800 | Top hat | 35 | 7.5 | Aluminum |

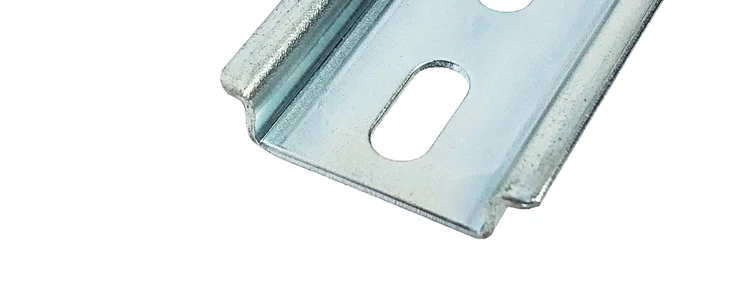

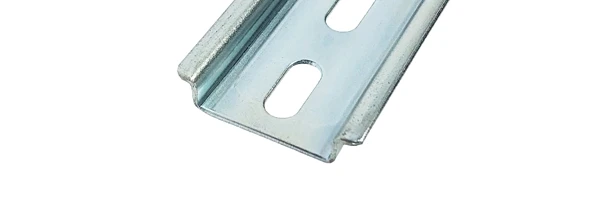

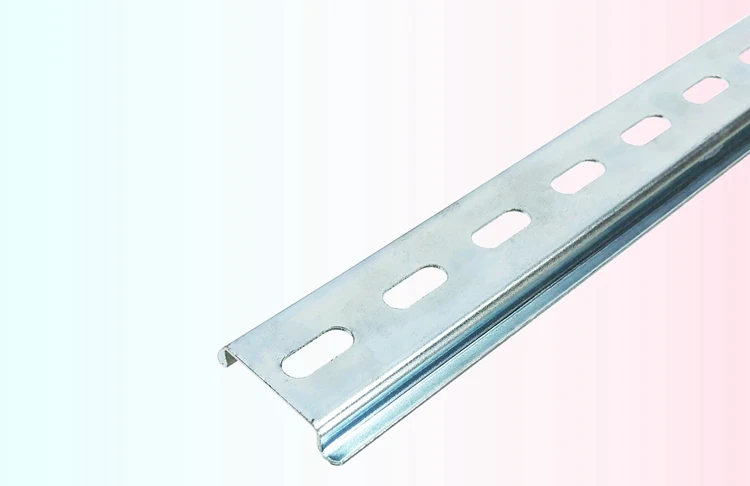

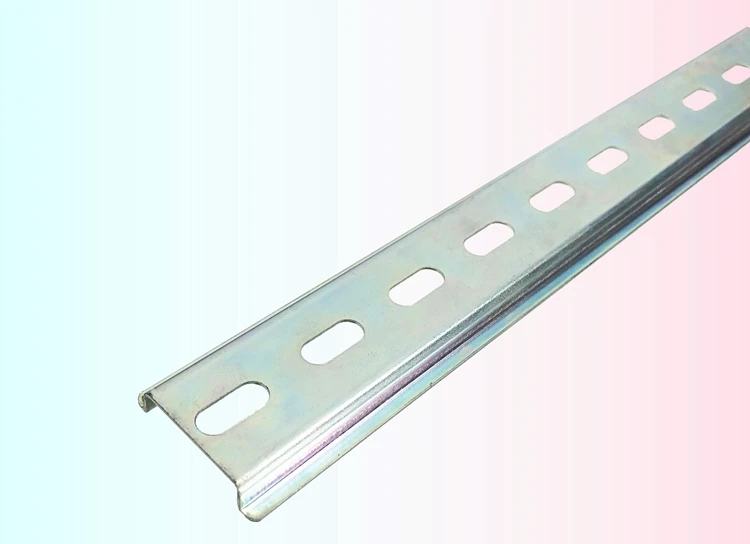

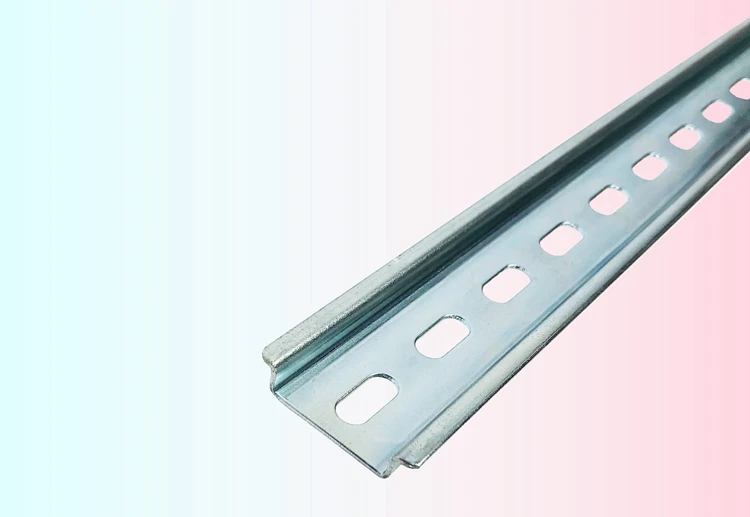

Shot demonstration
Get it
- Factory advantages: price + quality + delivery
- Follow-up
- Customs pass assistance
- Local logistics coordinationtion

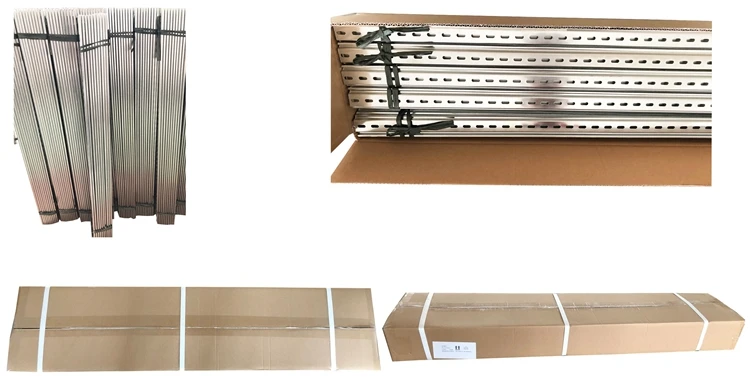

Shipping support
- Local logistics: designated addresses in China
- Courier's service: major international express service providers
- International sea shipping: departure port Ningbo or Shanghai (preferred)
- International air shipping: departure port Wenzhou (preferred), also Hangzhou, Shanghai and other airports
