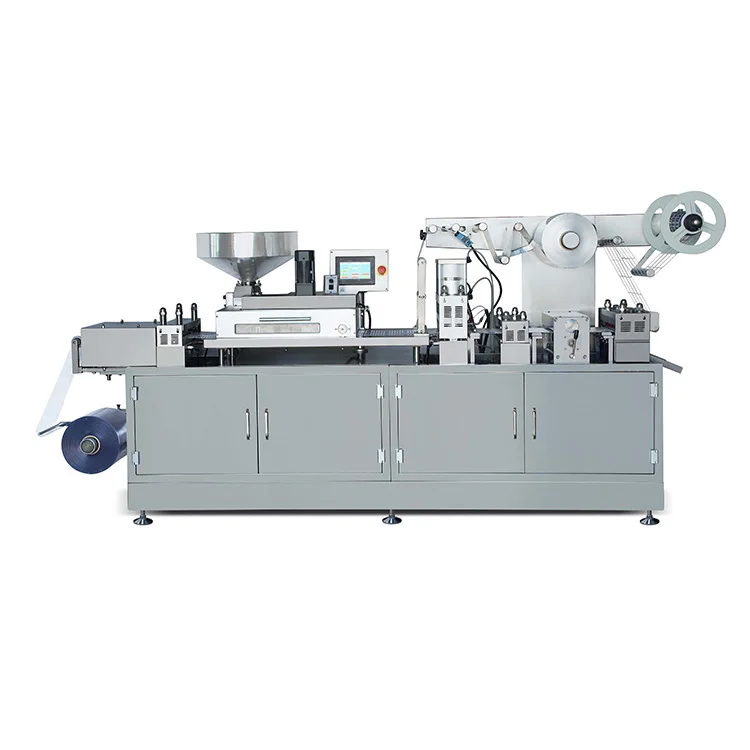

High Safety Level Automatic Capsule Blister Pack Packaging Machine
- Category: >>>
- Supplier: Hangzhou SED Imp.And Exp.Co. Ltd.
Share on (1600622935842):
Product Overview
Description
Recommend Products
Products Description

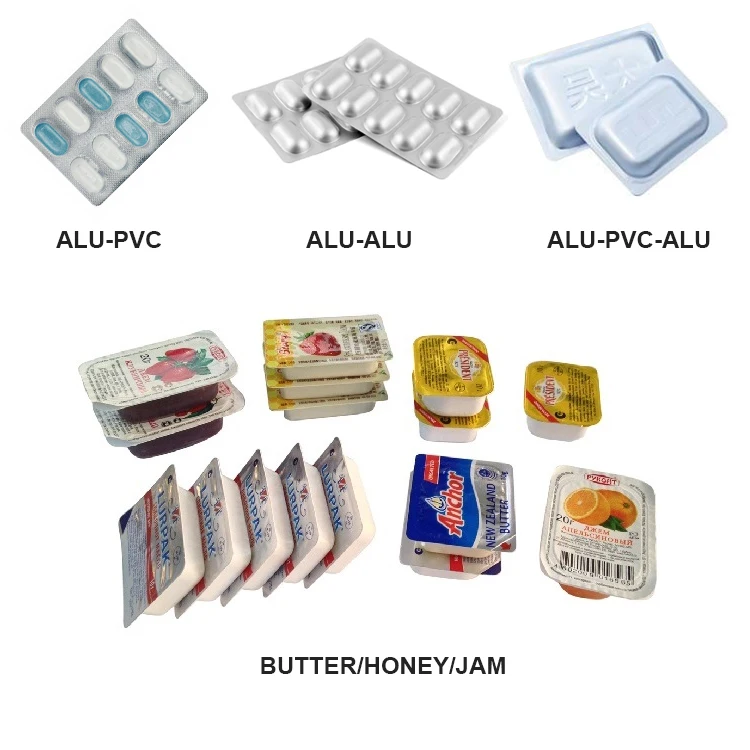

The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in large & medium hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce large quality and single product.
Main Technical Data
Product Name | SED-350P-A Blister Packaging machine |
Total power supply | 380V/220V 50Hz 12Kw |
Mould cooling | Tap water or Recycling water Consumption 60-100L/h |
Overall Dimension | 4000x1000x2000 mm(LxWxH) |
Weight | 2300KGS |
Noise index | <75dBA |
Production capacity | 3000-9500 Blisters/hour (According to blister size) |
Max. Forming area & Depth | 350X130X50mm(Alu-PVC) 350X130X12mm(Alu-Alu) |
Packaging material | PVC hard Film:（0.15～0.4）X 350X(Φ400)mm PTP Aluminum film:（0.02～0.15）X 350 X(Φ300)mm Dialysis Paper:(50-100)g/㎡X350X(Φ300)mm Alu-Alu Foil:0.16-0.2）X 350 X(Φ400)mm |
Standard Stroke range | 30-140mm (can be designed as per user’s required) |
Standard blister size | 80x57mm (can be designed as per user’s required) |
1.Travel scope can be adjusted.
2.Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
3.The material is fed automatically. The mould and feeder can be designed as user’s requirements.
4.Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
5.Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
6.Stepping motor drives and tow materials.
7.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
2.Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
3.The material is fed automatically. The mould and feeder can be designed as user’s requirements.
4.Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
5.Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
6.Stepping motor drives and tow materials.
7.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
Electric Parts List
(The electronic parts can be also required by you.)
Name | Model | Qty | Remark | ||
Touch-screen | MT506MV | 1 | WENVIEW | ||
PLC | DVP32ES00T2 | 1 | MITSUBISHI | ||
Temperature controller | DVP4848V1 | 3 | MITSUBISHI | ||
Transducer | B TYPE 1.5KW | 1 | DELTA | ||
Encoder | ZLB3806-G-500BM | 1 | |||
Stepping driver | HB-B3C | 1 | |||
Stepping motor | 110BYG350A(200Nm) | 1 | |||
Air breaker | BKN-3P/32A | 1 | LG | ||
BKN-1P/16A | 1 | ||||
BKN-1P/10A | 3 | ||||
BKN-1P/3A | 1 | ||||
AC contactor | GMC-32 | 1 | LG(AC220V) | ||
Relay | MY2NT | 1 | OMRON(DC24V) | ||
MY4NT | |||||
Proximity switch | TL-Q5MC1 | 2 | |||
Proximity switch with delayer | J6-D7NK | 3 | |||
Urgent stop switch | ZB2-BS54C | 1 | |||
Thermocouple | Model K,3m | 3 | 3M | ||
Switch power adapter | S-30W | 1 | 24V-5V | ||
Solid state relay | 25DA | 3 | |||
Details Images

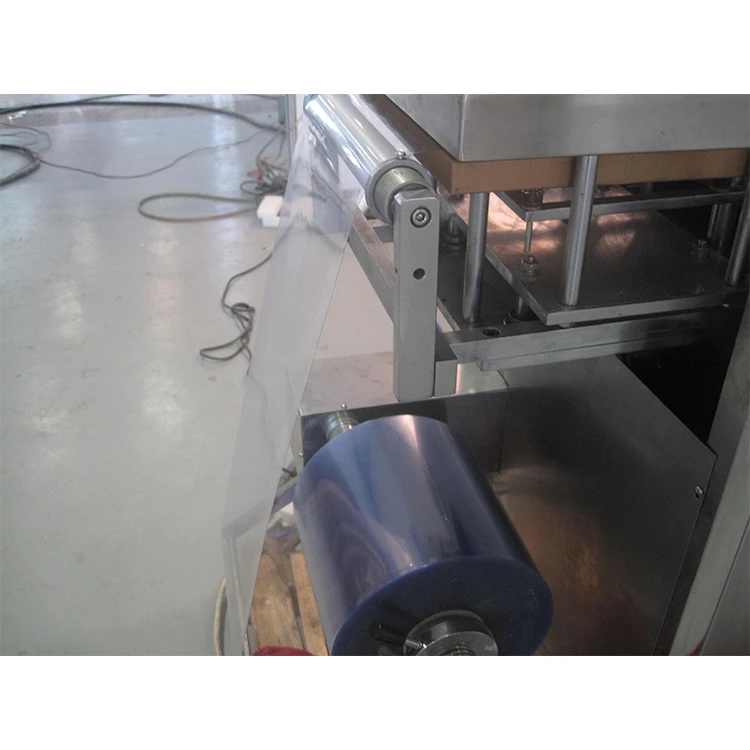

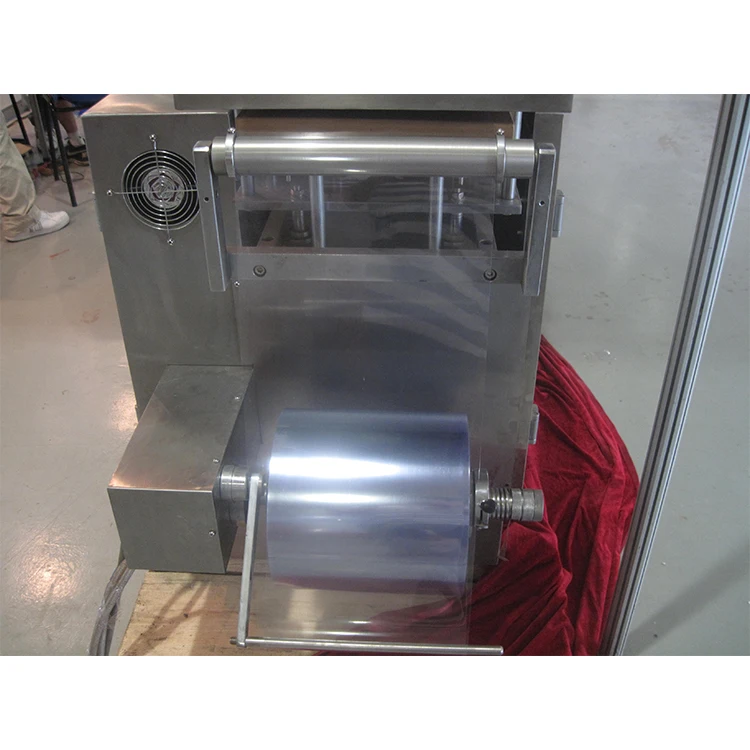

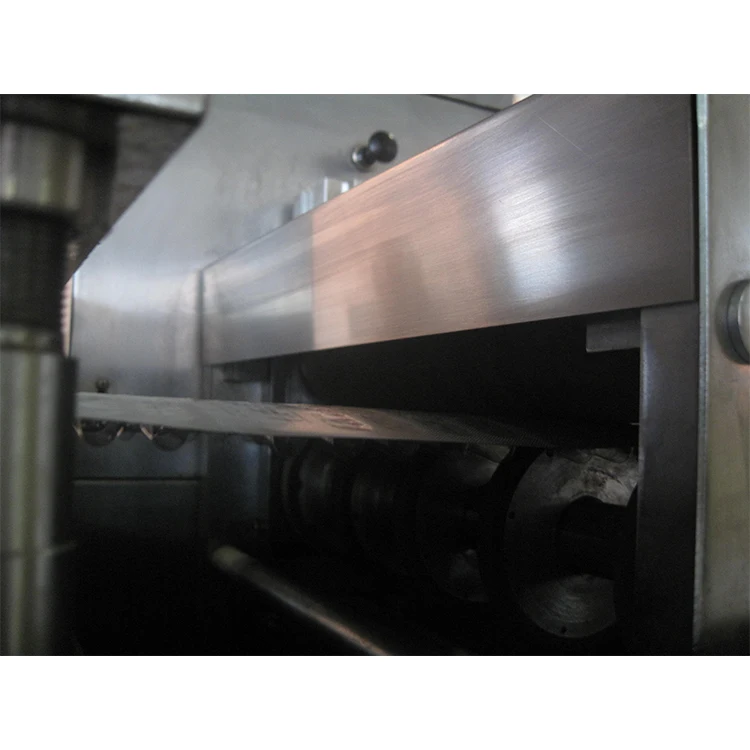

Plastic preheating and unwind

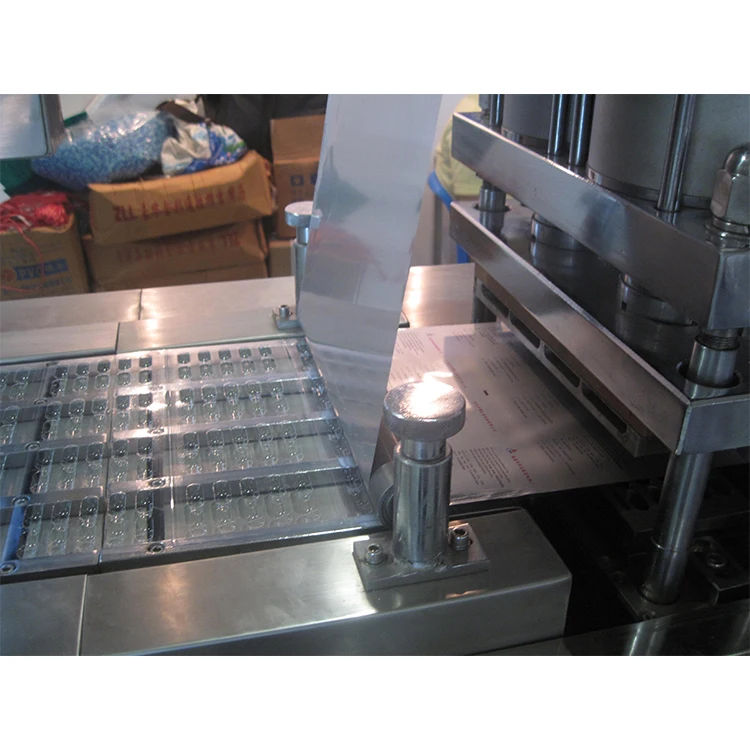

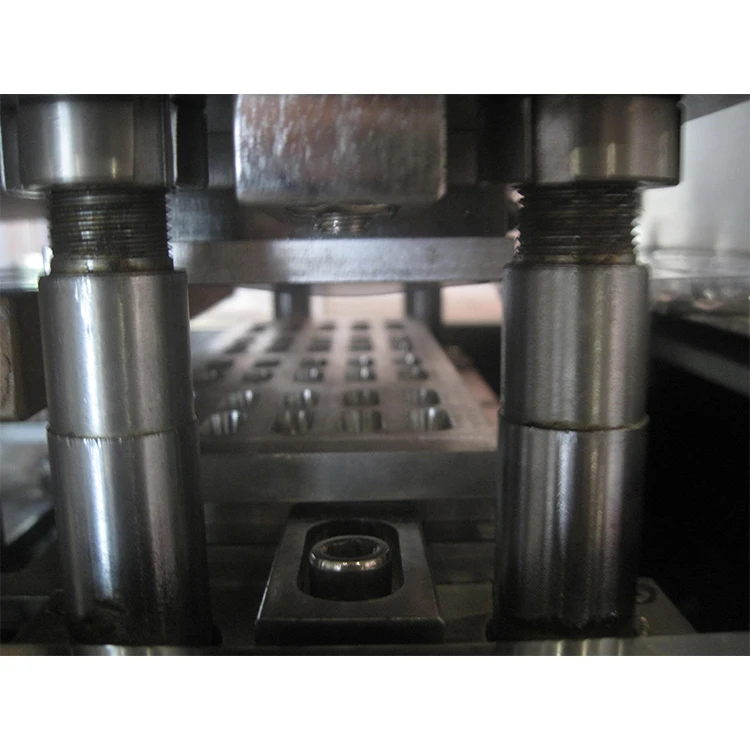

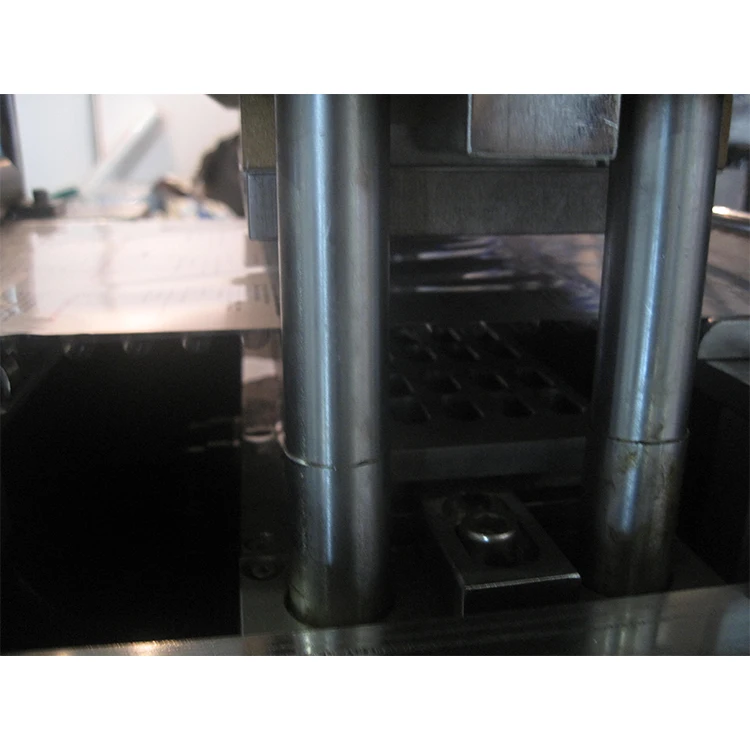

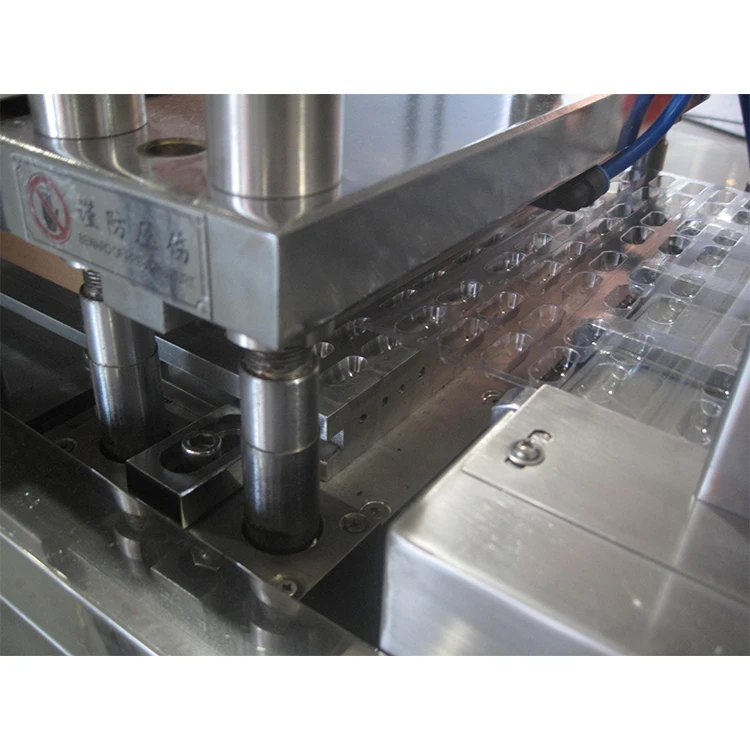

Plastic blister forming station

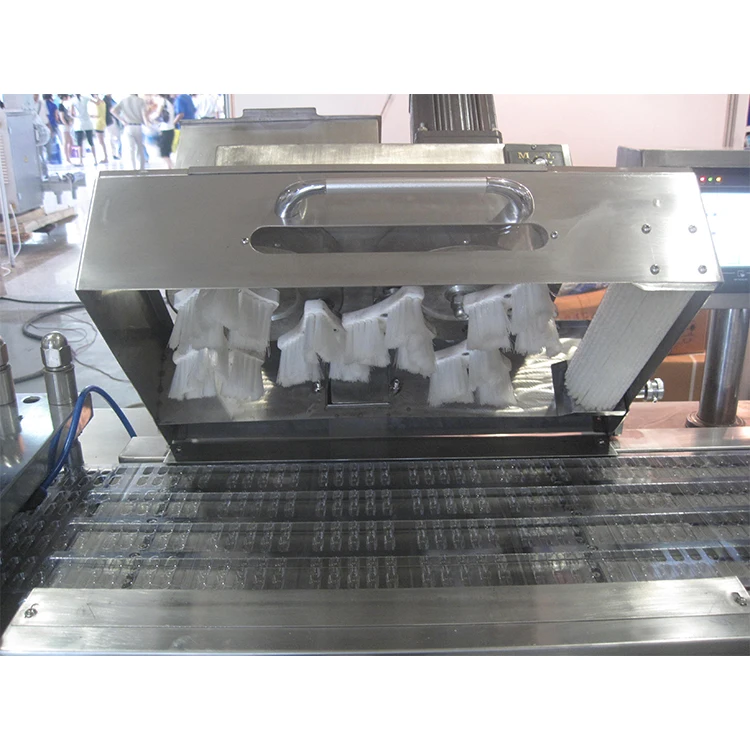

Brash feeder

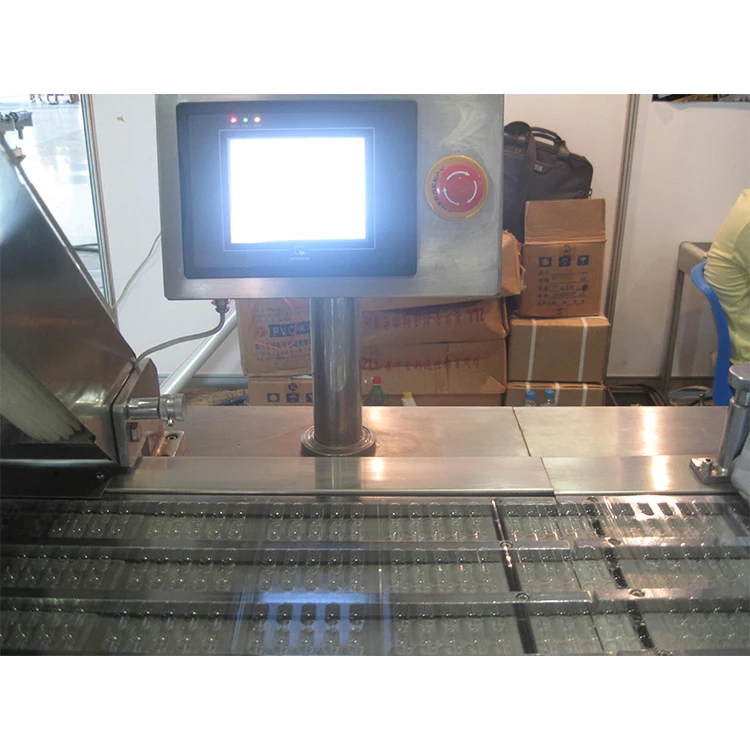

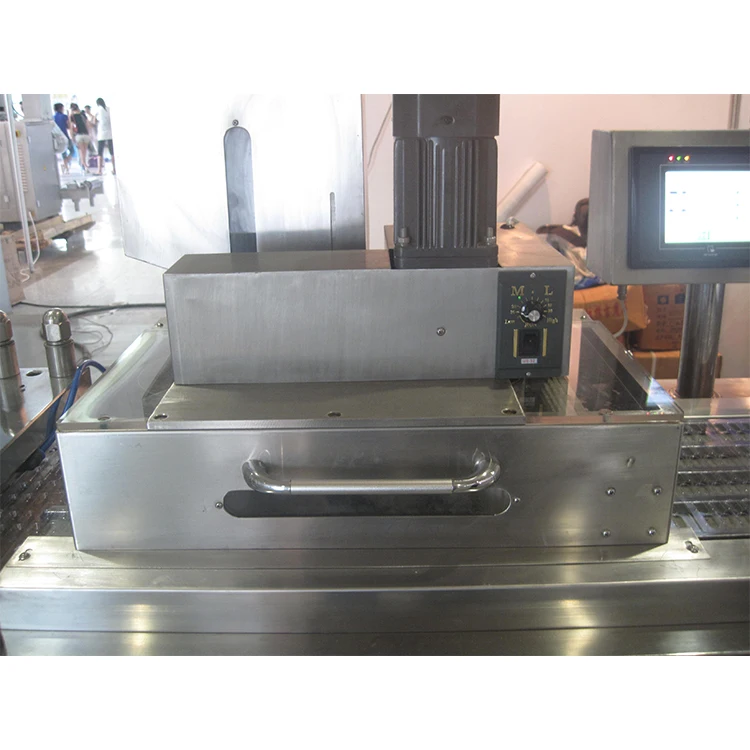

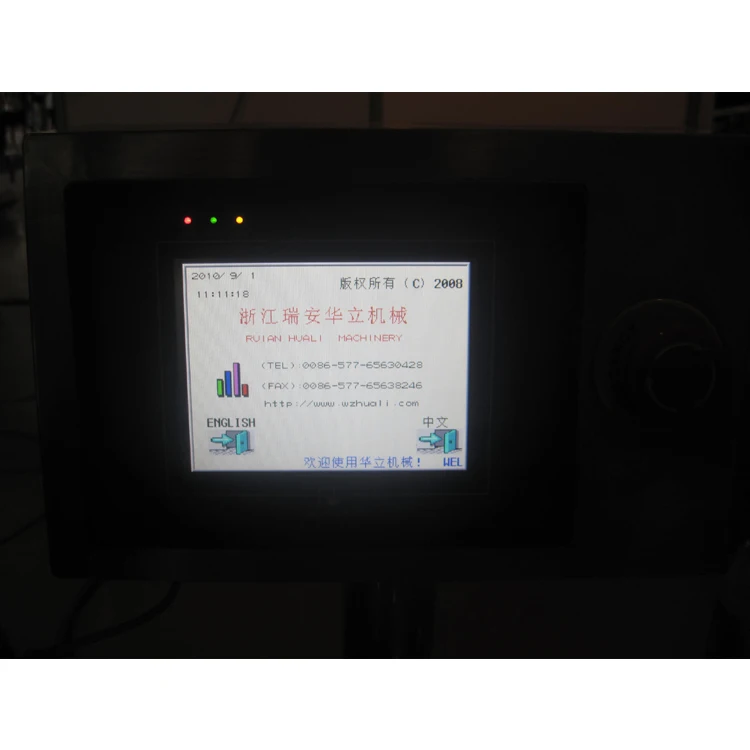

Touch screen

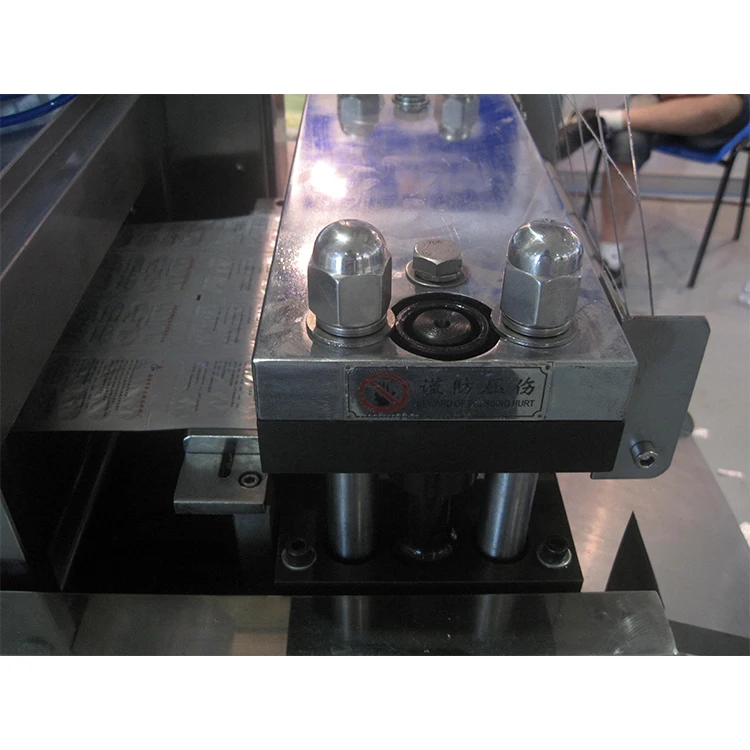

Aluminum and plastic sealing station
Step motor for towing material

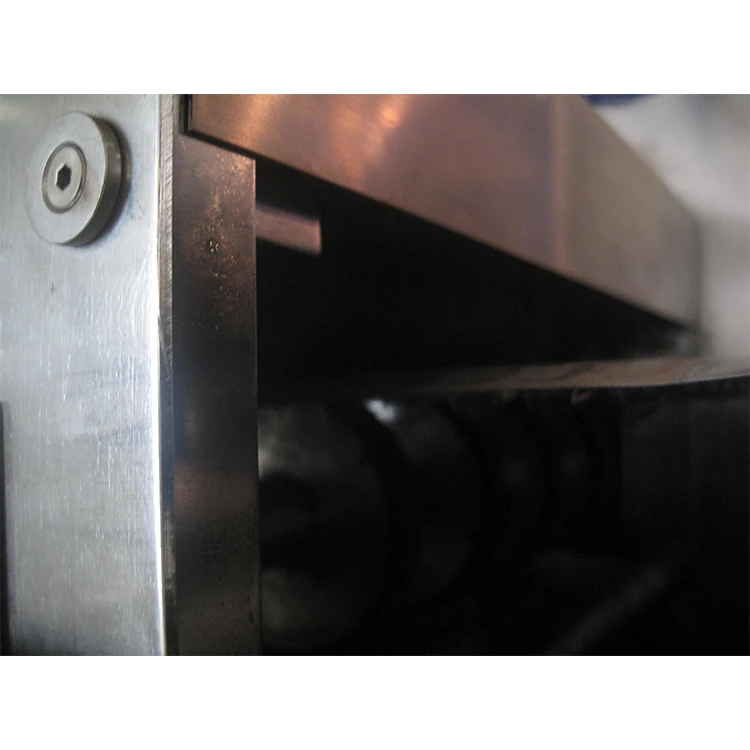

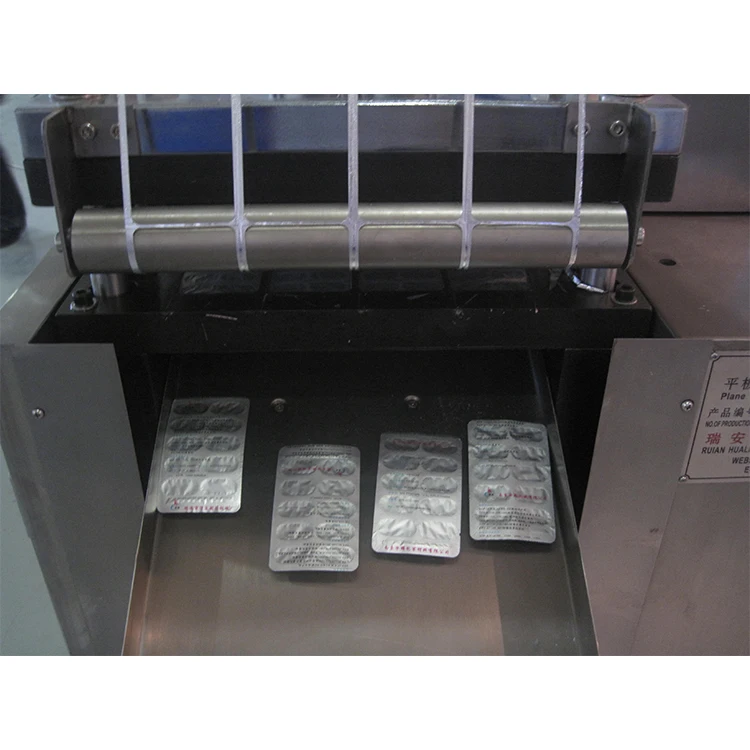

Aluminum plastic blister cutting station

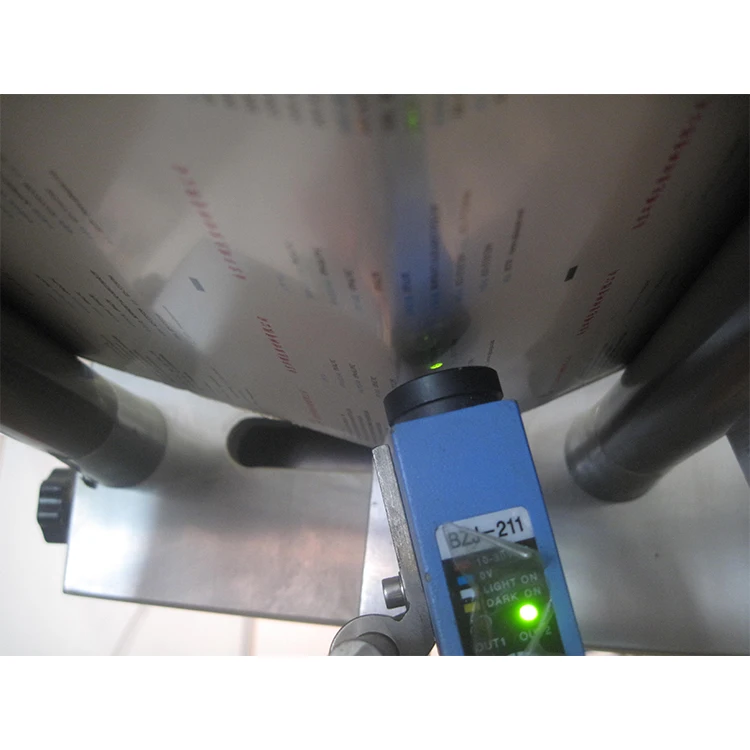

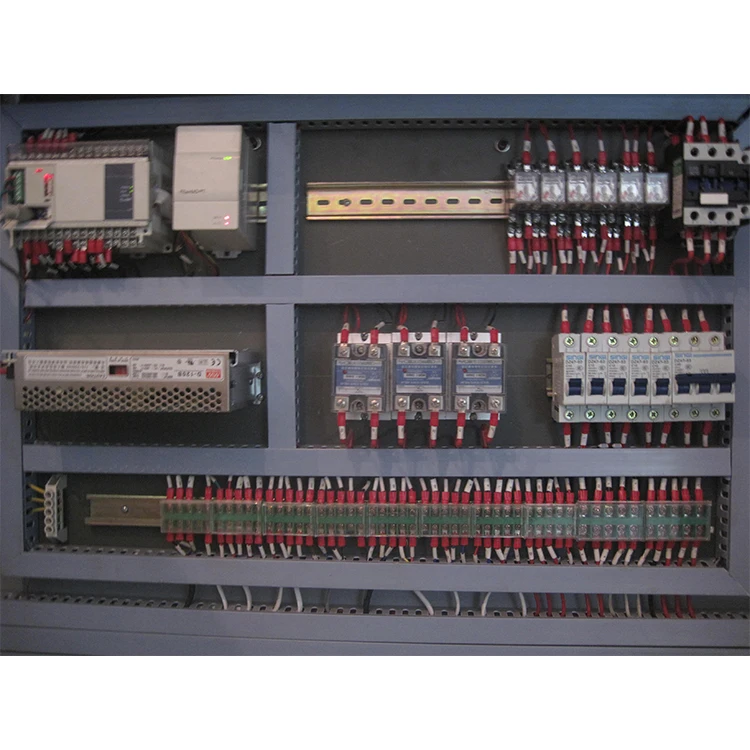

Electronic box and color point sensor
