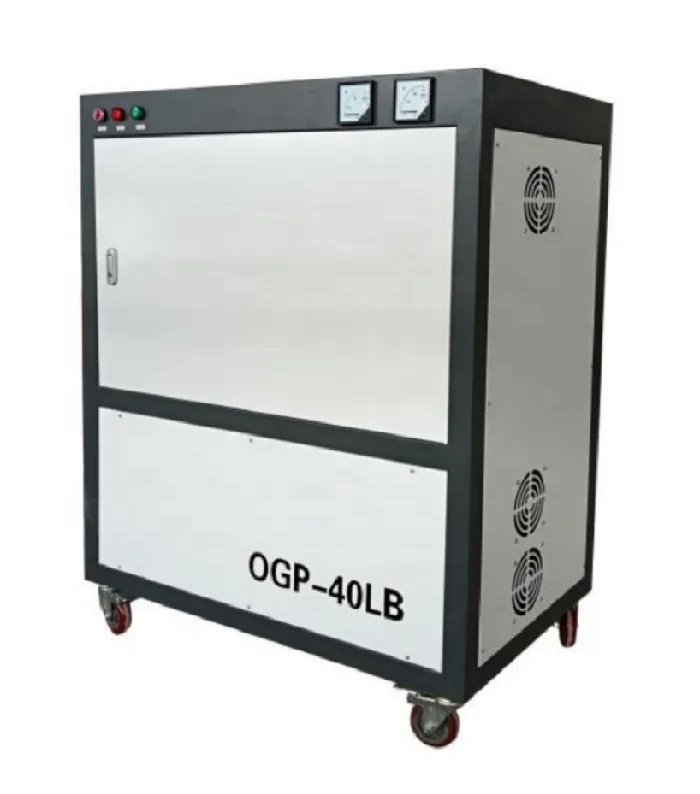

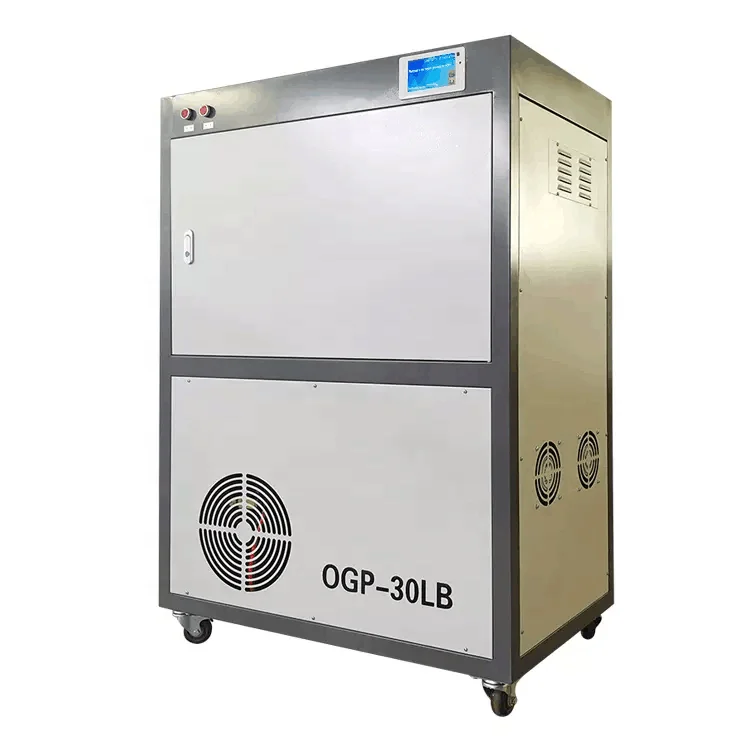

Industrial Hyperbaric Oxygen Chamber 10L to 70LPM PSA Oxygen Generator Hydrogen Usage Used Pump Engine Manufacturing Plants
- Category: >>>
- Supplier: Shenzhen Ozonegreenplant Technology Co. Ltd.
Share on (1600622952280):
Product Overview
Description
Product Overview

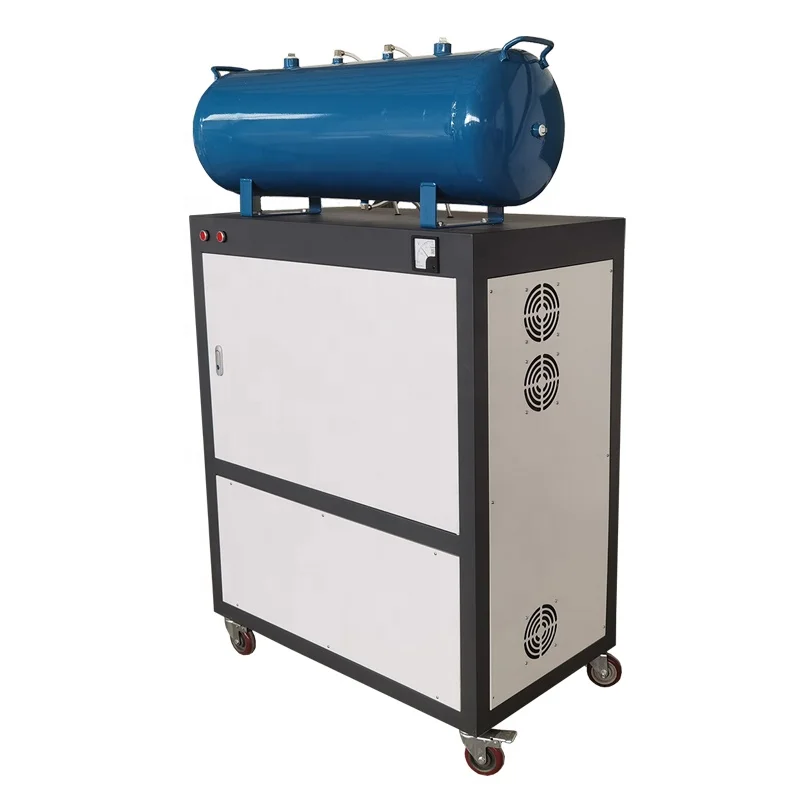

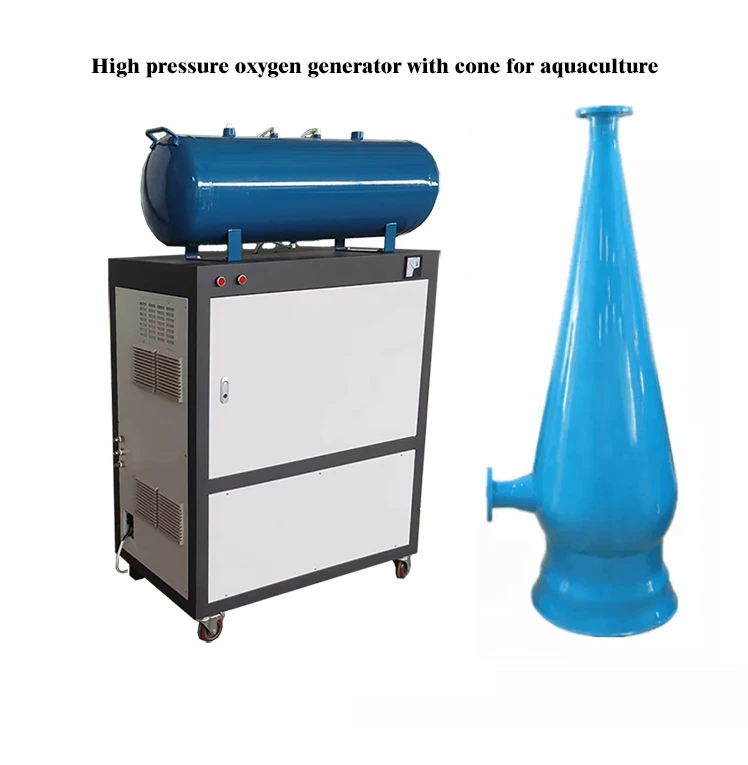

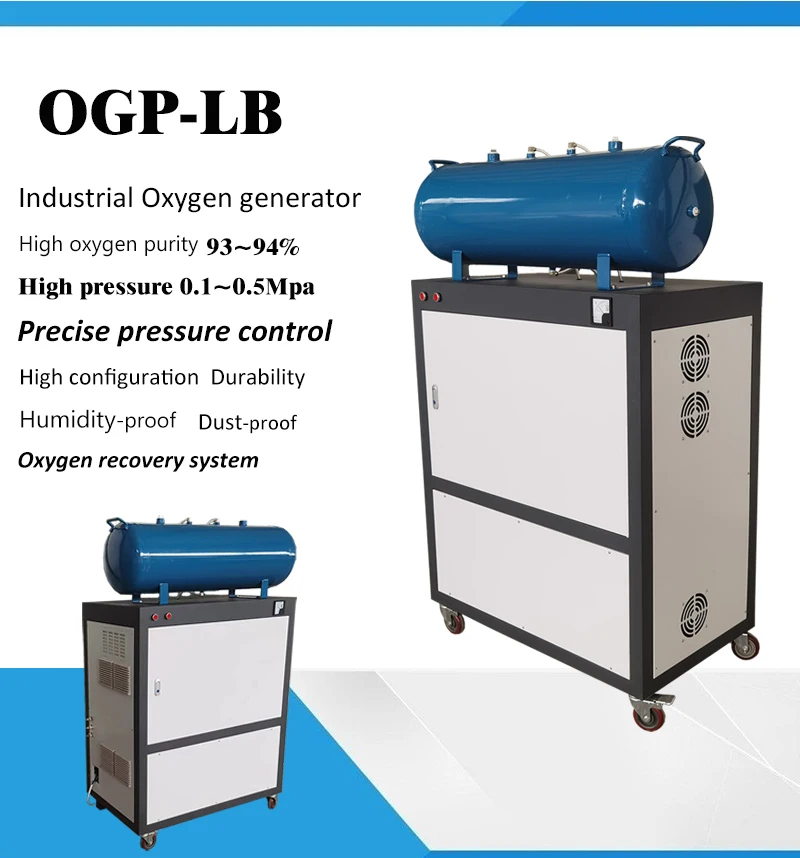

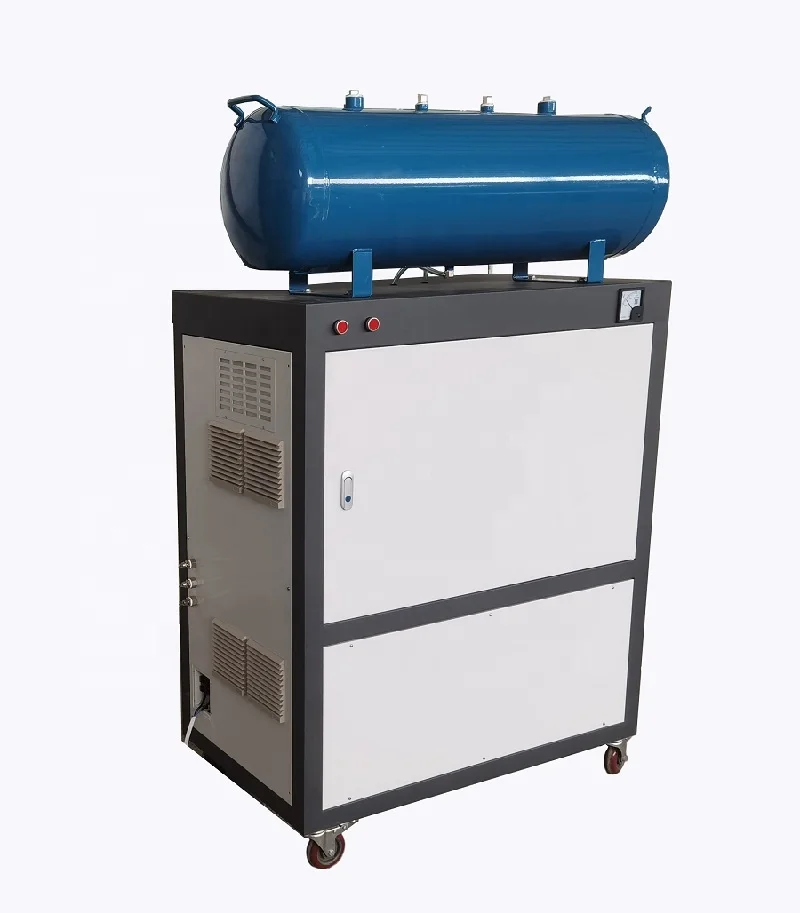

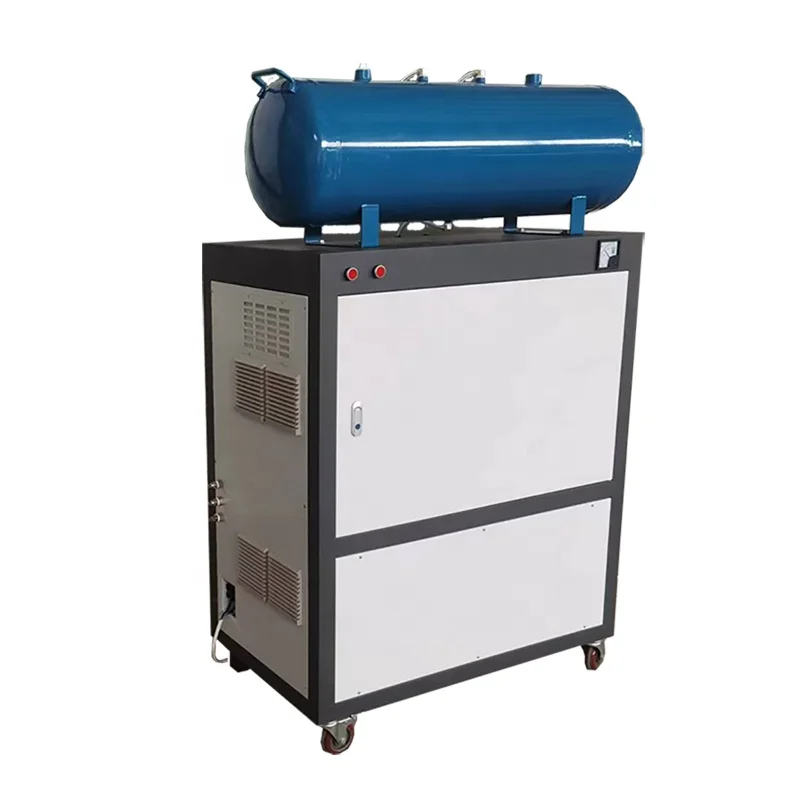

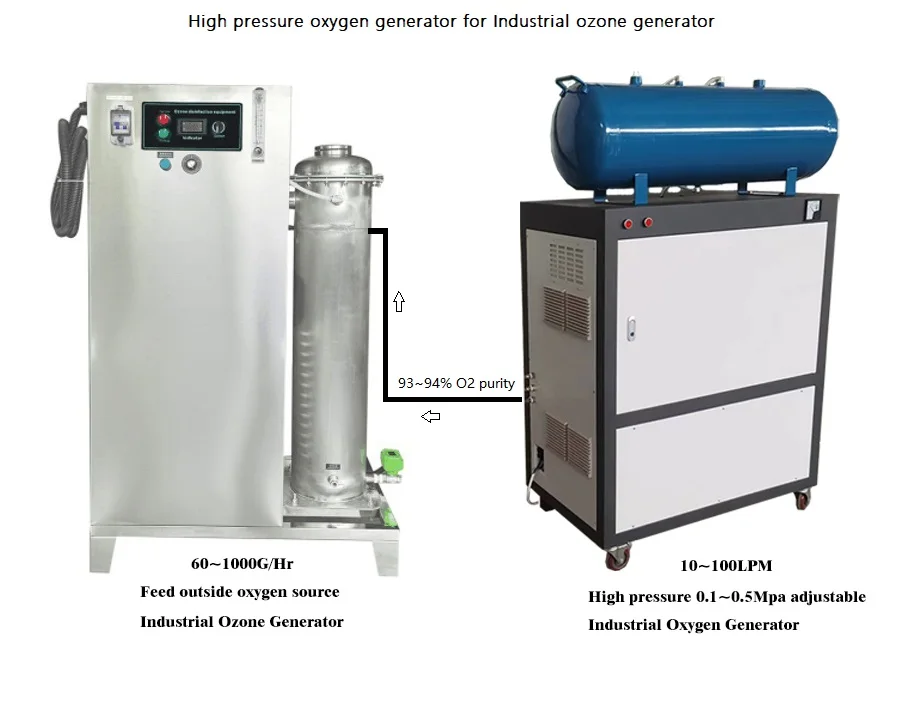

High oxygen pressure 0.1~0.5Mpa OGP-10~100LPM oxygen generator with storage tank
Product Feature:
1.Use air as raw material, no need any additional material, thus low cost.2.Use efficient imported CECA oxygen molecular sieve, long and durable life.
3.Oxygen generator has a simple and compact construction, easy to operate and maintain.
4.The oxygen generator produce oxygen rapidly and continuously.
5.High stable oxygen purity from 93~94% (95% customized)

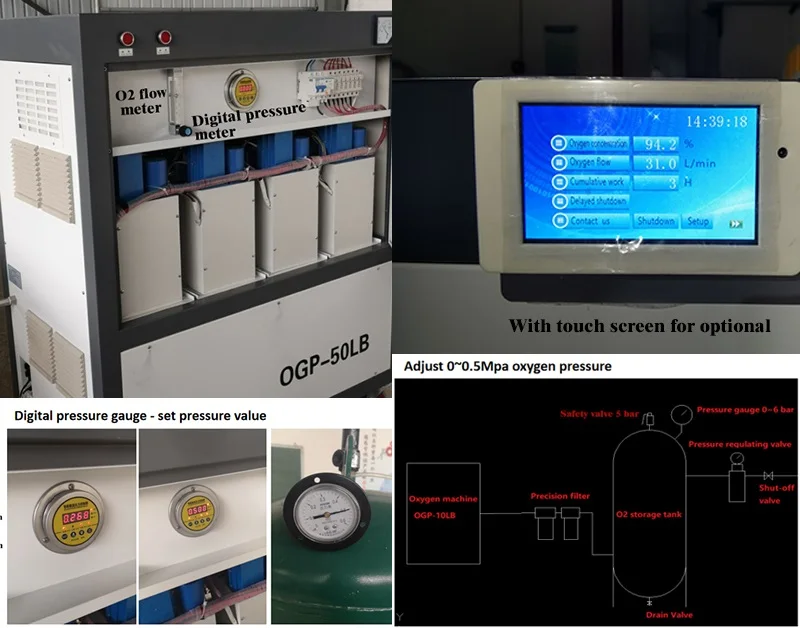

6.Oxygen outlet pressure from 0.1~0.5Mpa adjustable
7.The machine can work under humidity environment.

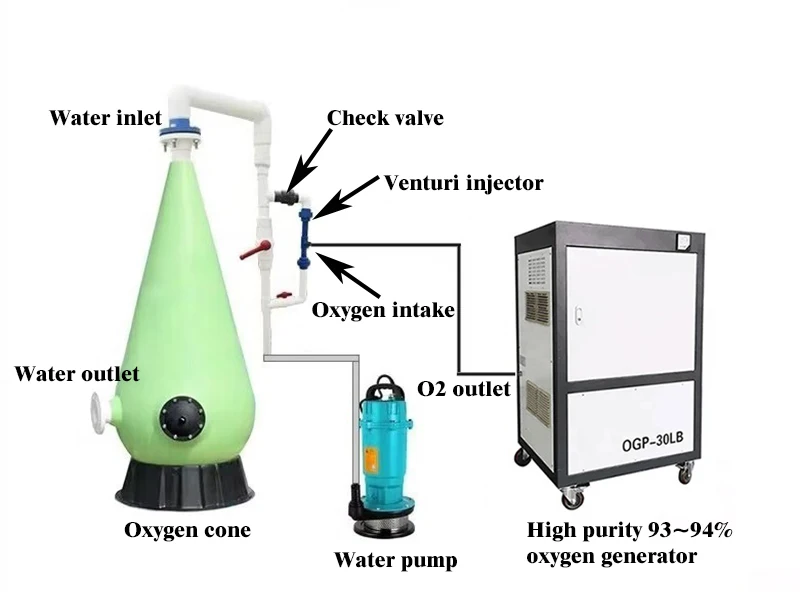

8.Oxygen recovery system (optional) : to reuse the excess oxygen that has not been mixed with water during aquaculture oxygen aeration.

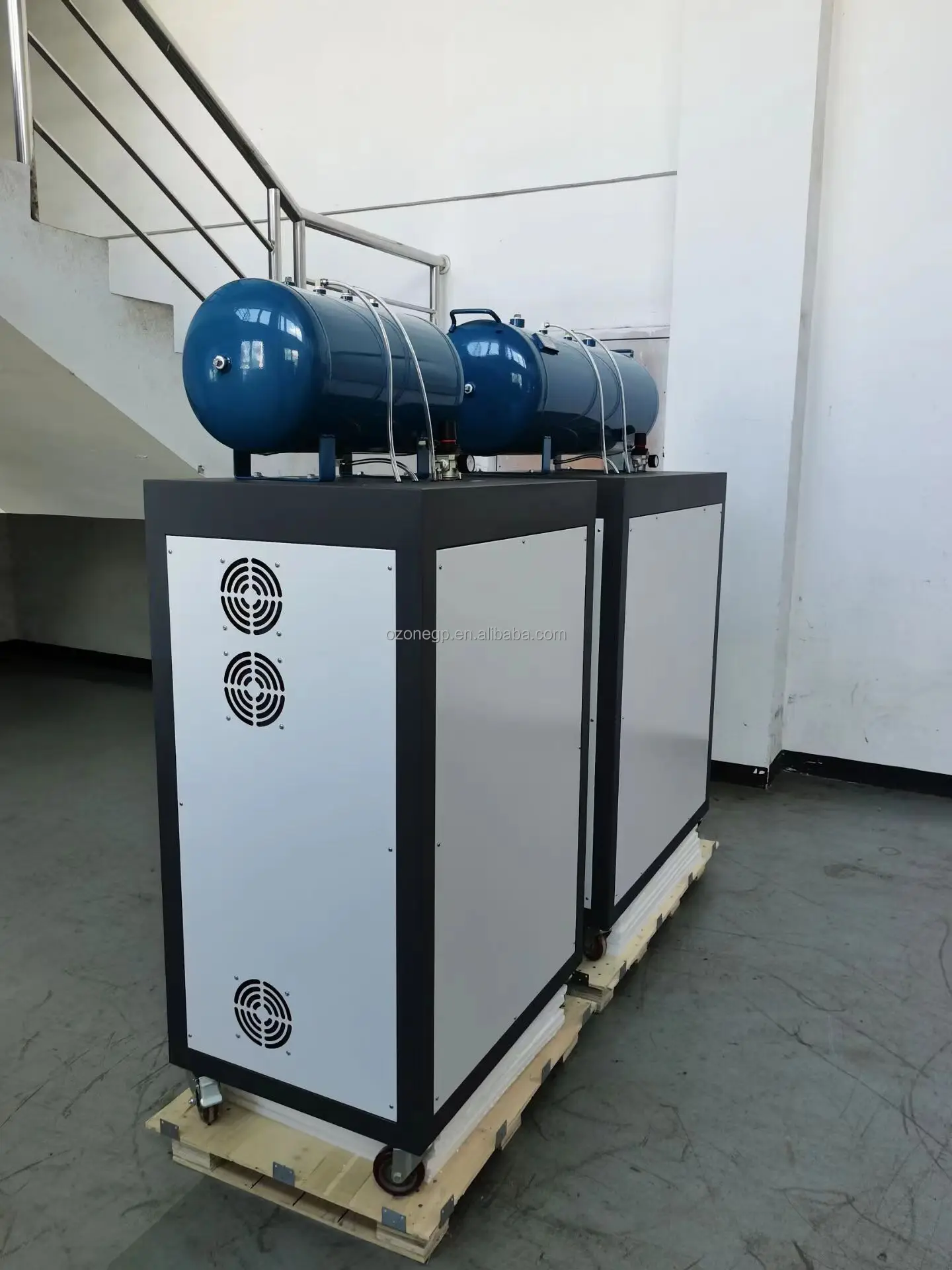

9.Storage tank : with oxygen storage tank to adjust and control the oxygen pressure.
Product configuration:
1.Built in oil free air compressor.
2.Built in chiller, filters.
3.Built in refrigerant dryer ( or outside for option)
4.Built in PSA oxygen generator.
5.Built in pressure booster
6.Control panel: Intelligent LCD touch screen control
or manual control (optional)
Product Application:
1.Aquaculture Fish Ponds
2.Ozone industrial
3.Waste water treatment
4.Animal hospital
5.Gymnasium
6.Glass blowing
7.Cutting metal
8.Hyperbaric chamber
1.Built in oil free air compressor.
2.Built in chiller, filters.
3.Built in refrigerant dryer ( or outside for option)
4.Built in PSA oxygen generator.
5.Built in pressure booster
6.Control panel: Intelligent LCD touch screen control
or manual control (optional)
Product Application:
1.Aquaculture Fish Ponds
2.Ozone industrial
3.Waste water treatment
4.Animal hospital
5.Gymnasium
6.Glass blowing
7.Cutting metal
8.Hyperbaric chamber
PRODUCT SPECIFICATIONS
No | Item | Unit | OGP-10LB | OGP-15LB | OGP-20LB | OGP-30LB | OGP-40LB | ||||
1 | Oxygen output | LPM | 10 | 15 | 20 | 30 | 40 | ||||
2 | Oxygen purity | % | 93±3% | 93±3% | 93±3% | 93±3% | 93±3% | ||||
3 | Power | KW | 1.3 | 1.8 | 2.1 | 2.5 | 3.5 | ||||
4 | Oxygen pressure | Mpa | 0.1~0.5Mpa adjustable | 0.05~0.08 | |||||||
5 | Working voltage | Volt | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V | ||||
6 | Relative humidity | % | ≤70%±10% | ≤70%±10% | ≤70%±10% | ≤70%±10% | ≤70%±10% | ||||
7 | Noise | Db | ≤ 65Db | ≤ 65Db | ≤ 65Db | ≤ 65Db | ≤ 65Db | ||||
8 | Size | cm | 40*80*115 | 56*96* 115 | 60*80*125 | 60*100*125 | 60*100*125 | ||||
9 | NW | kg | 55 | 80 | 100 | 145 | 190 | ||||
No | Item | Unit | OGP-50LB | OGP-60LB | OGP-70LB | OGP-80LB | OGP-100LB | ||||
1 | Oxygen output | LPM | 50 | 60 | 70 | 80 | 100 | ||||
2 | Oxygen purity | % | 93±3% | 93±3% | 93±3% | 93±3% | 93±3% | ||||
3 | Power | KW | 4.1 | 4.6 | 5.3 | 6 | 7.7 | ||||
4 | Oxygen pressure | Mpa | 0.1~0.5 adjustable | 0.05~0.08 | |||||||
5 | Working voltage | Volt | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V | ||||
6 | Relative humidity | % | ≤70%±10% | ≤70%±10% | ≤70%±10% | ≤70%±10% | ≤70%±10% | ||||
7 | Noise | Db | ≤ 65Db | ≤ 65Db | ≤ 65Db | ≤ 65Db | ≤ 65Db | ||||

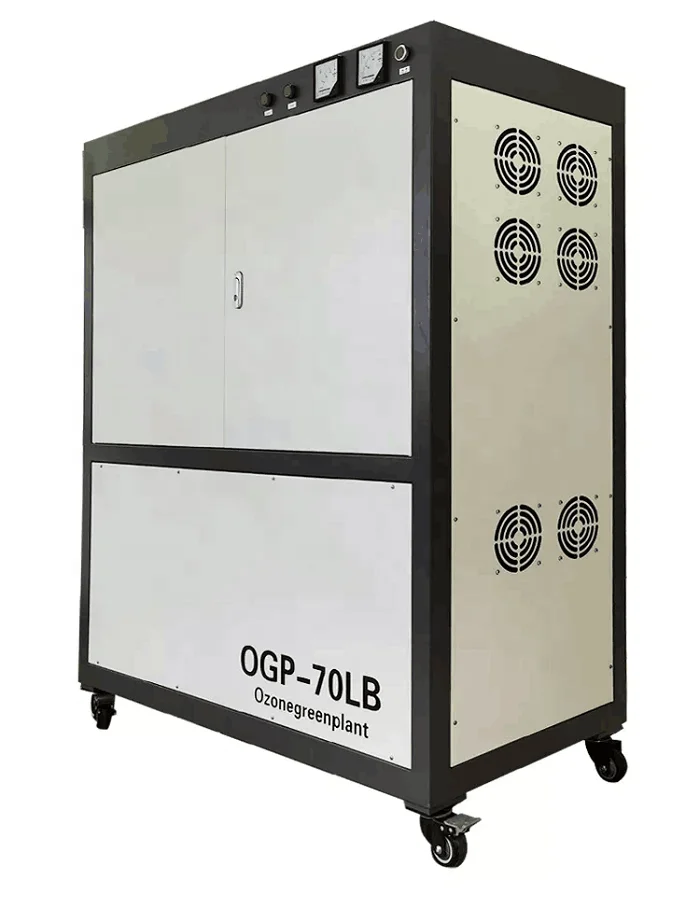

8 | Size | cm | 60*100*125 | 60*100*125 | 136*66*175 | 137*67*177 | 160*120*170 | ||||
9 | NW | kg | 210 | 230 | 316 | 336 | 370 | ||||

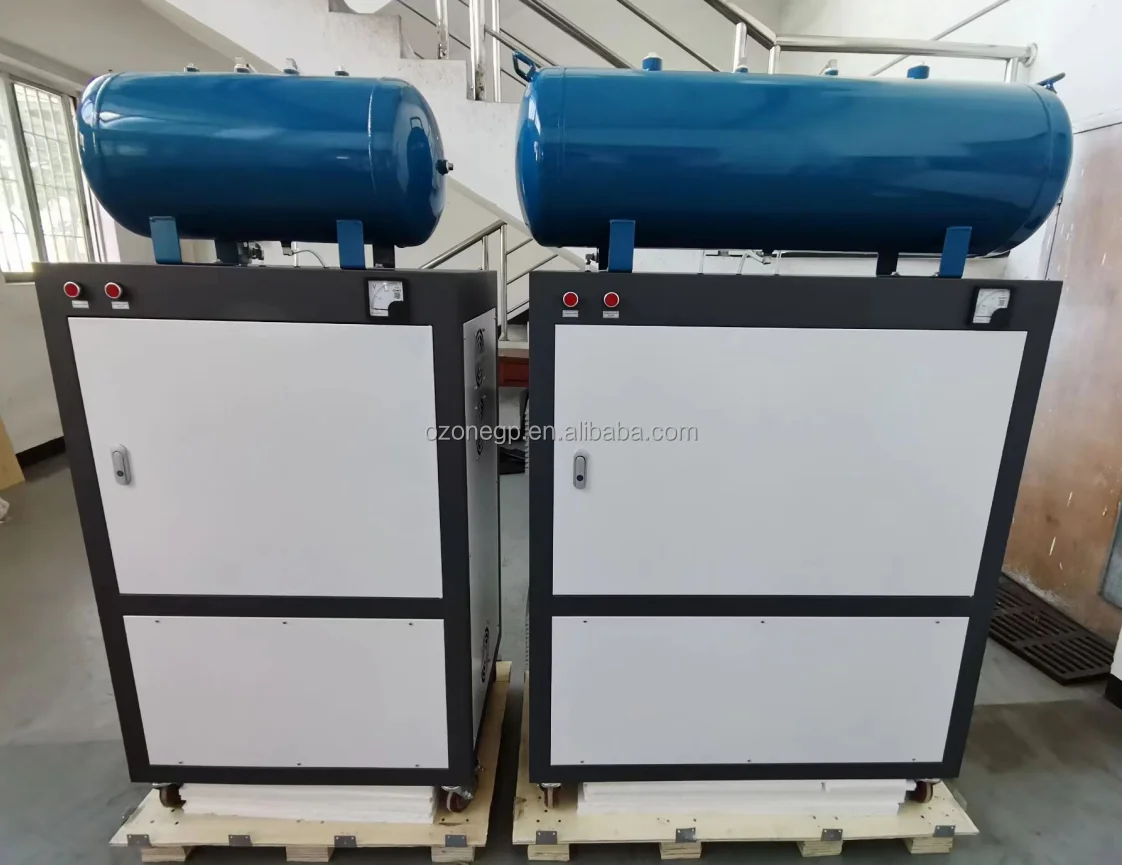

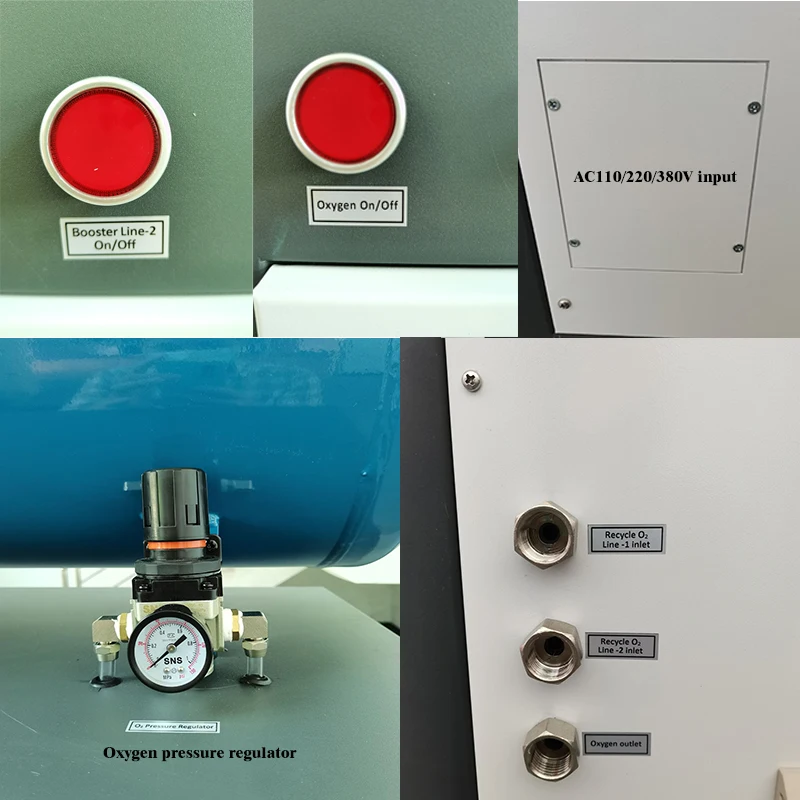

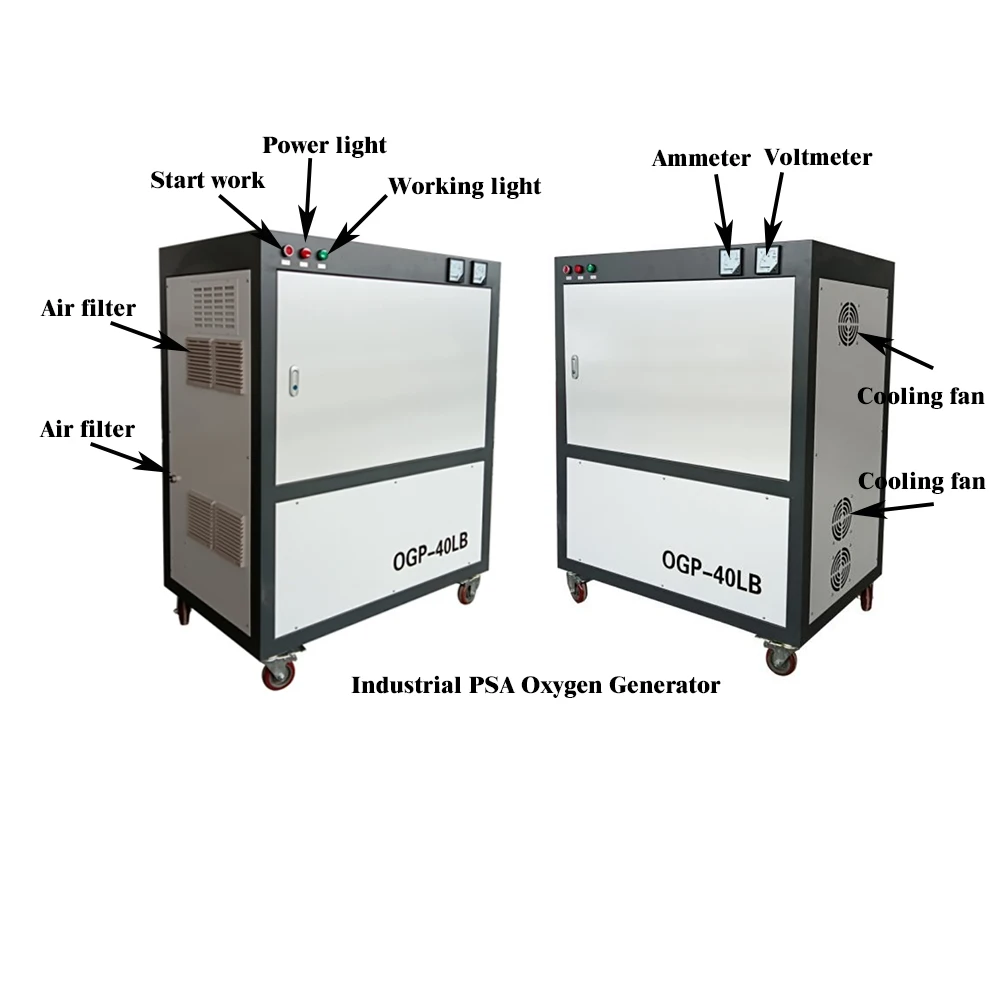

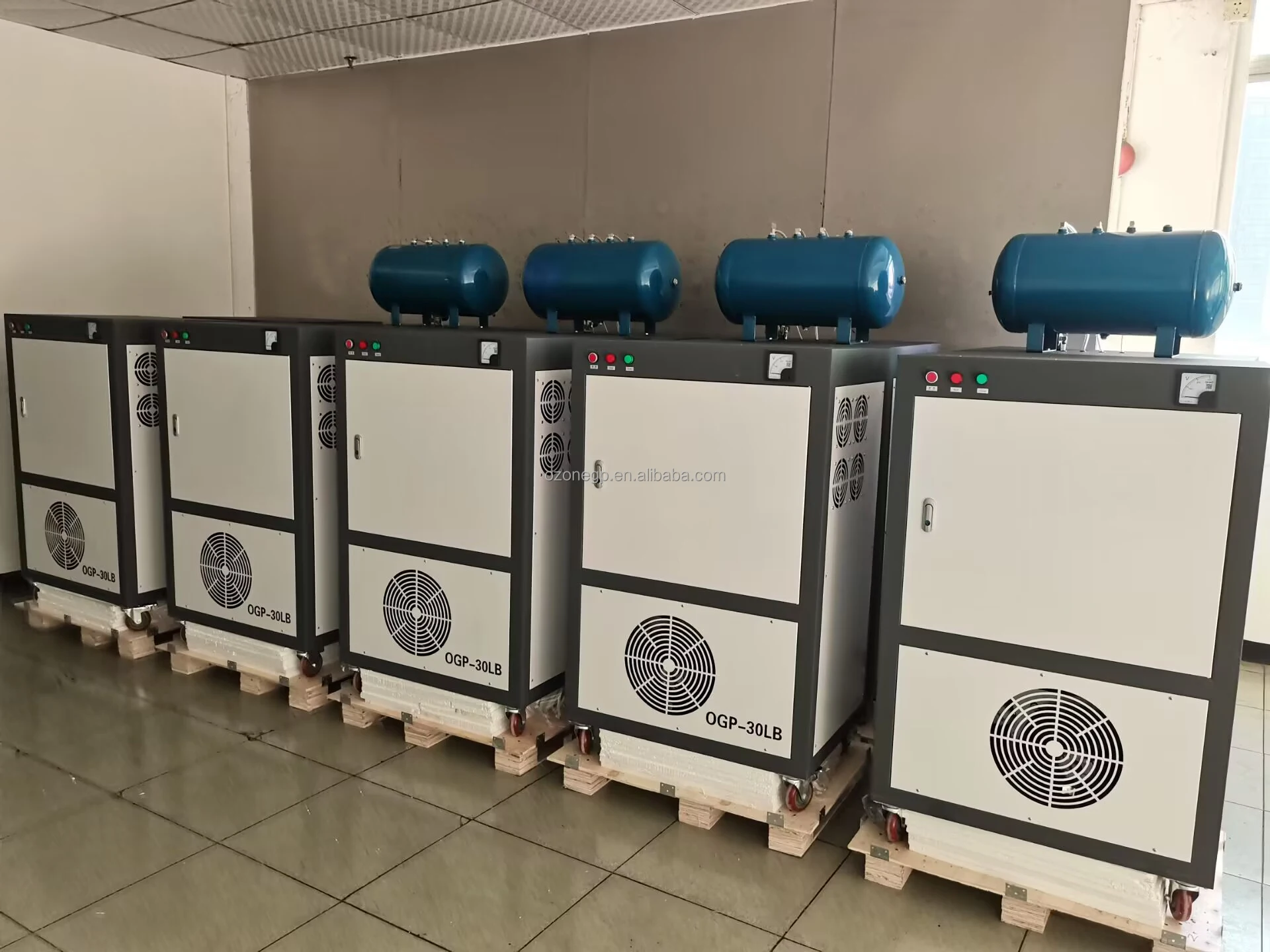

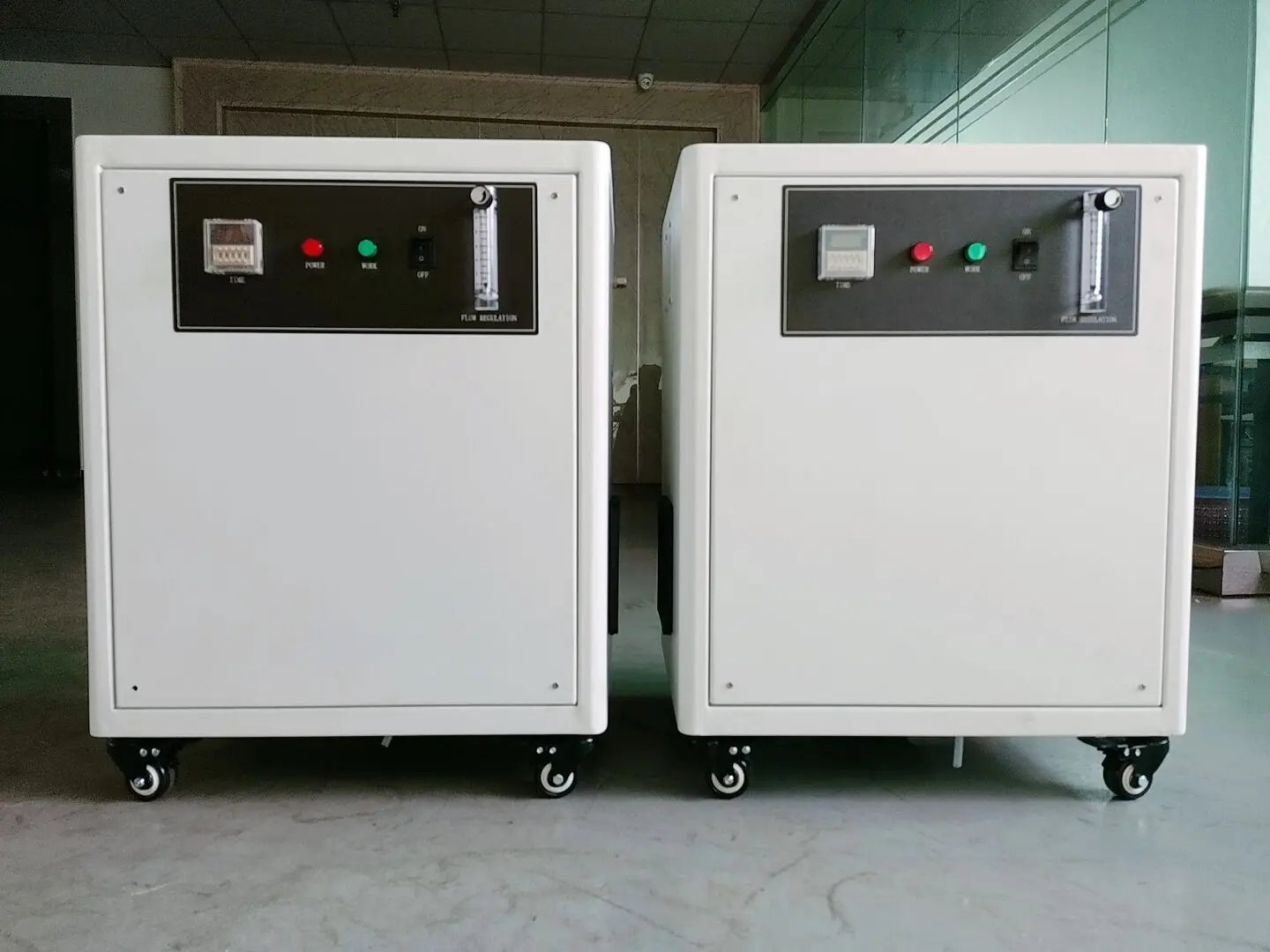

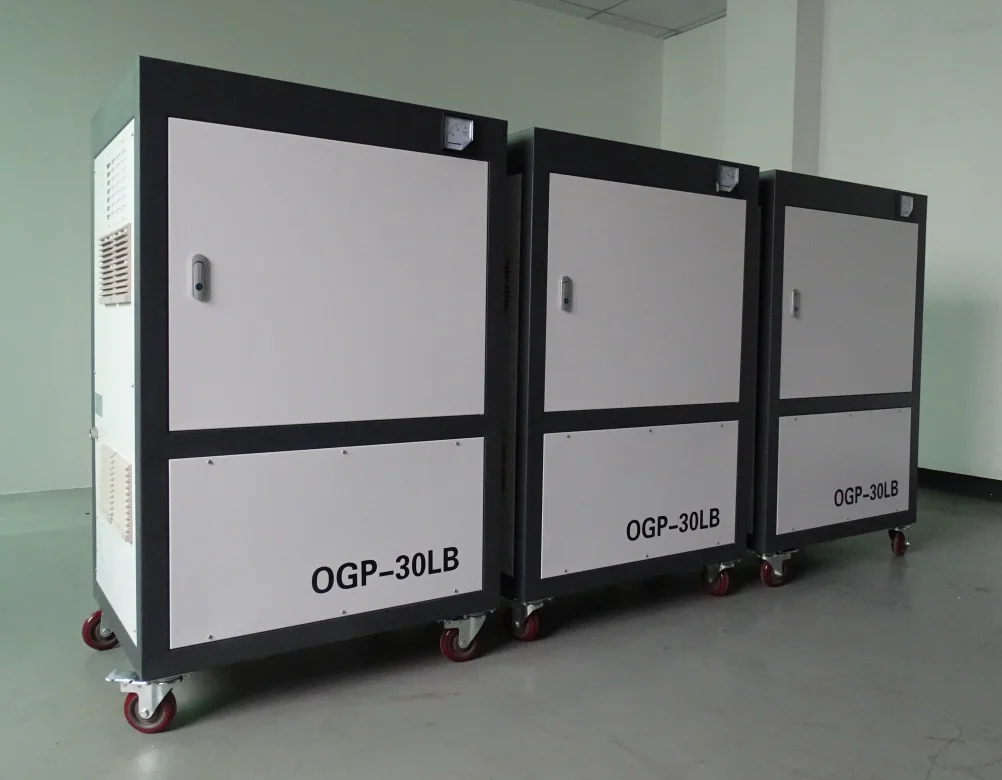

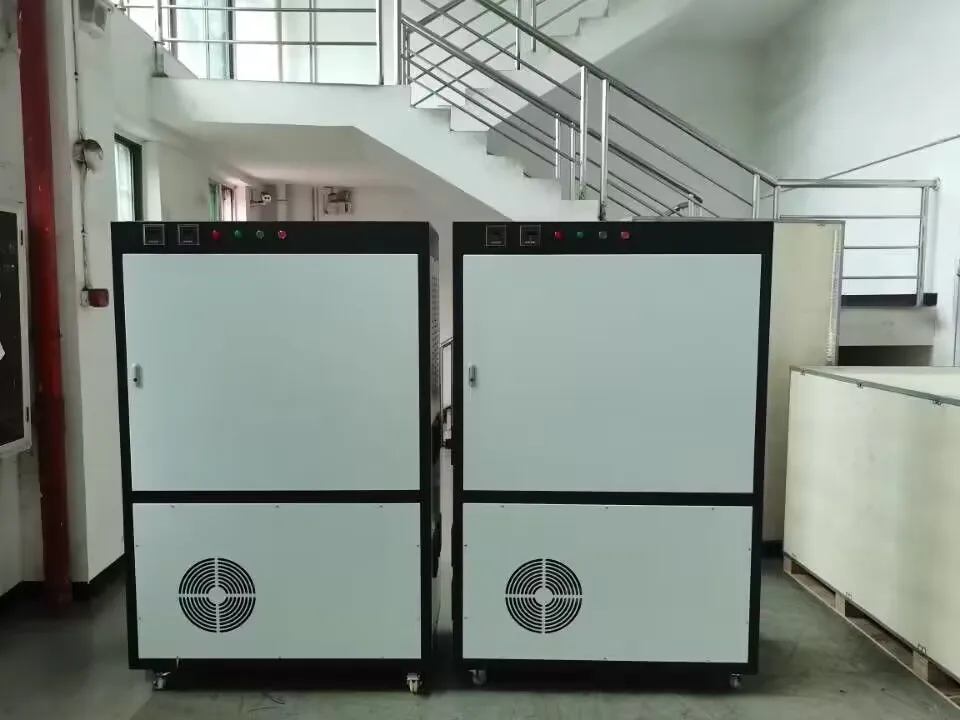

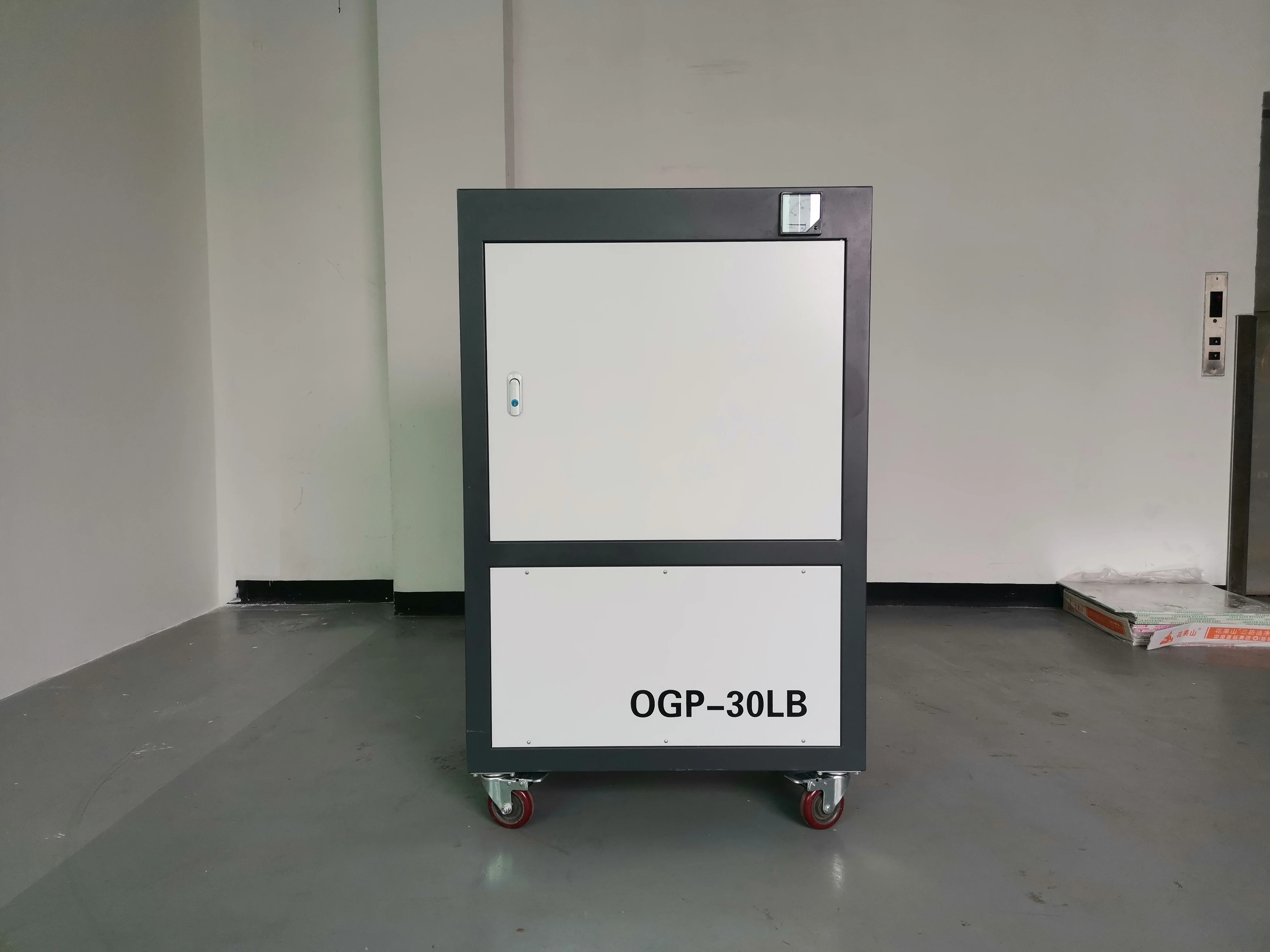

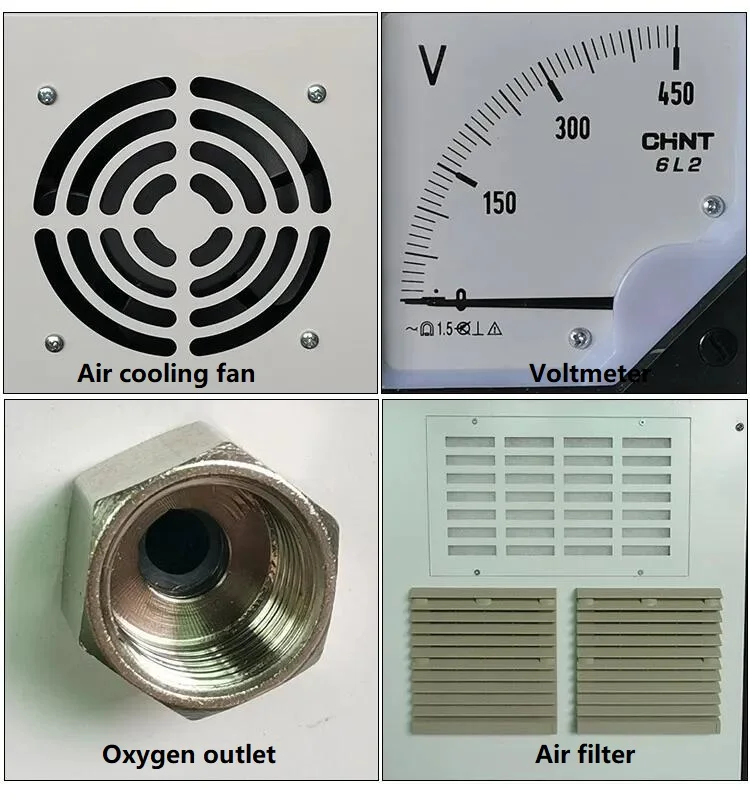

Details Images

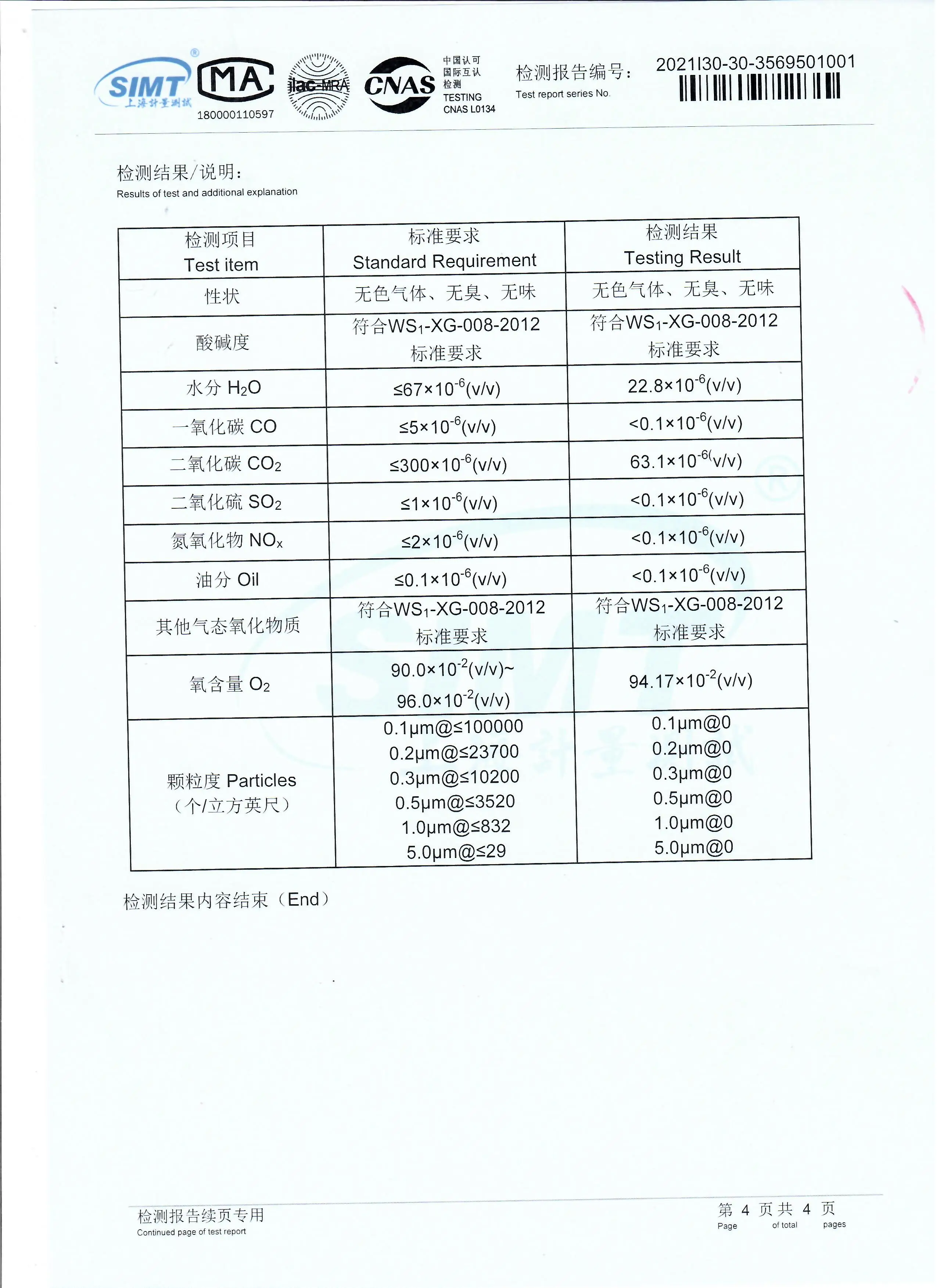

Certifications

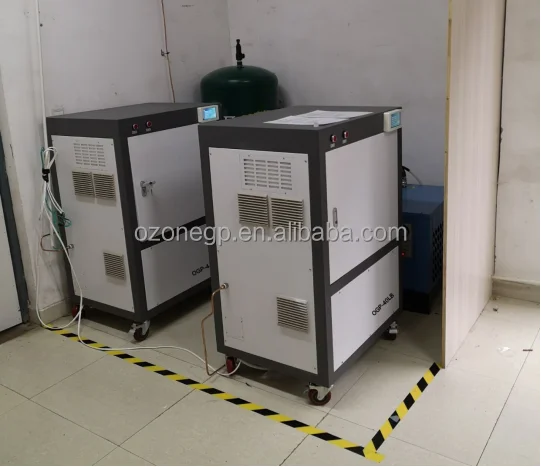

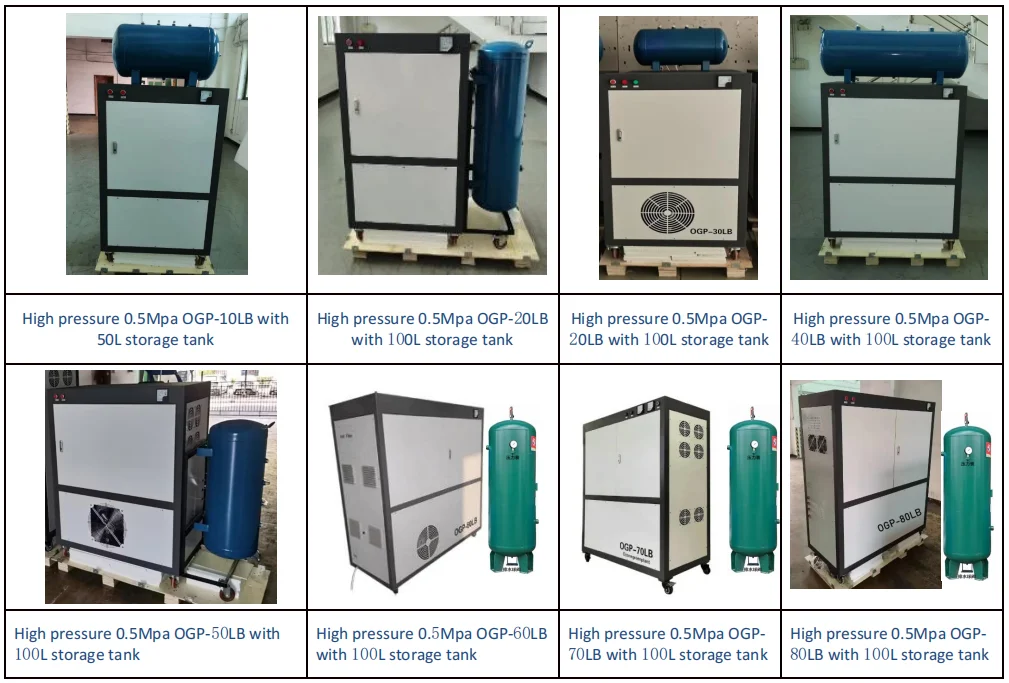

Successful Project
Installation Instructions
Company Profile

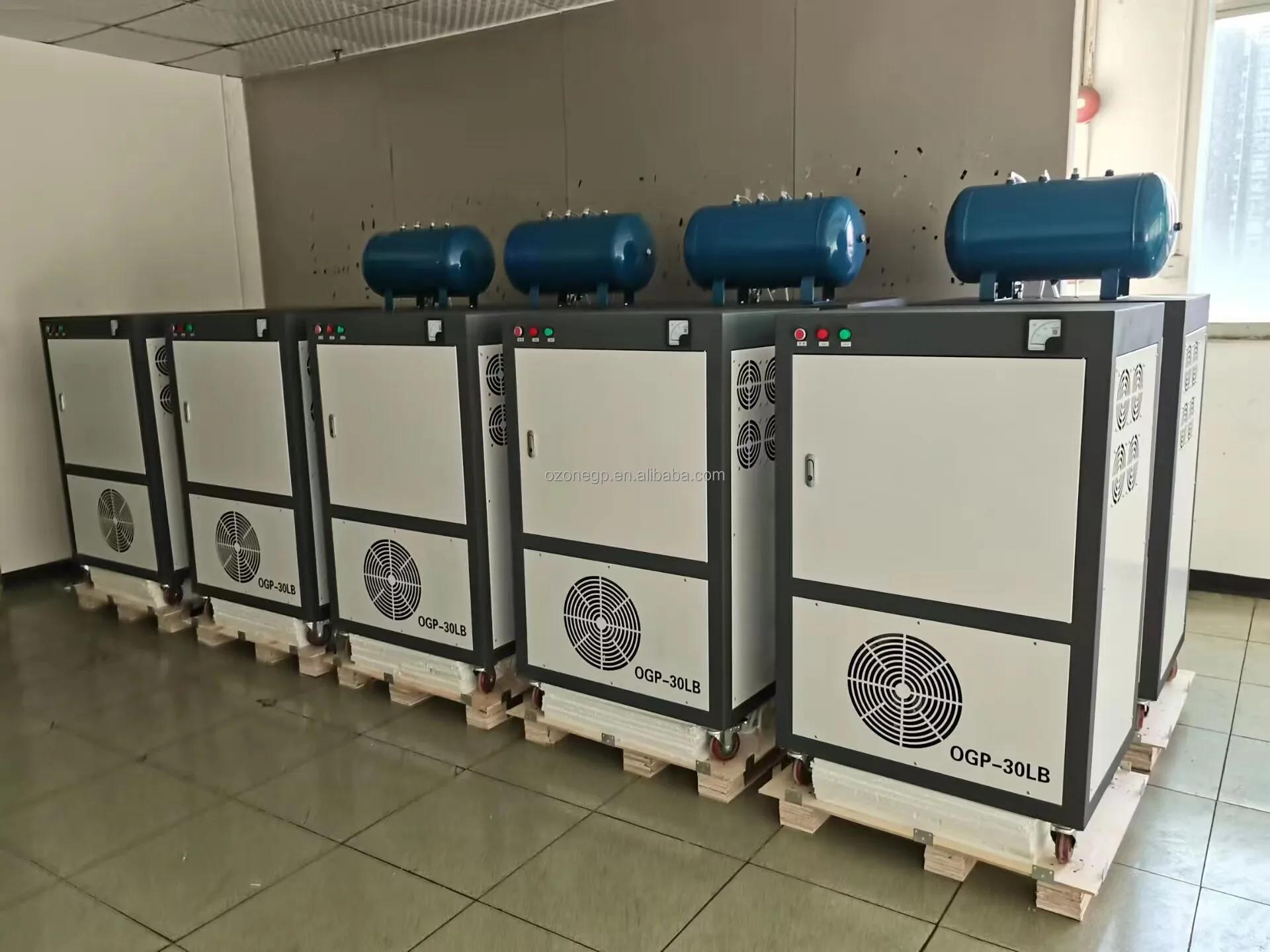

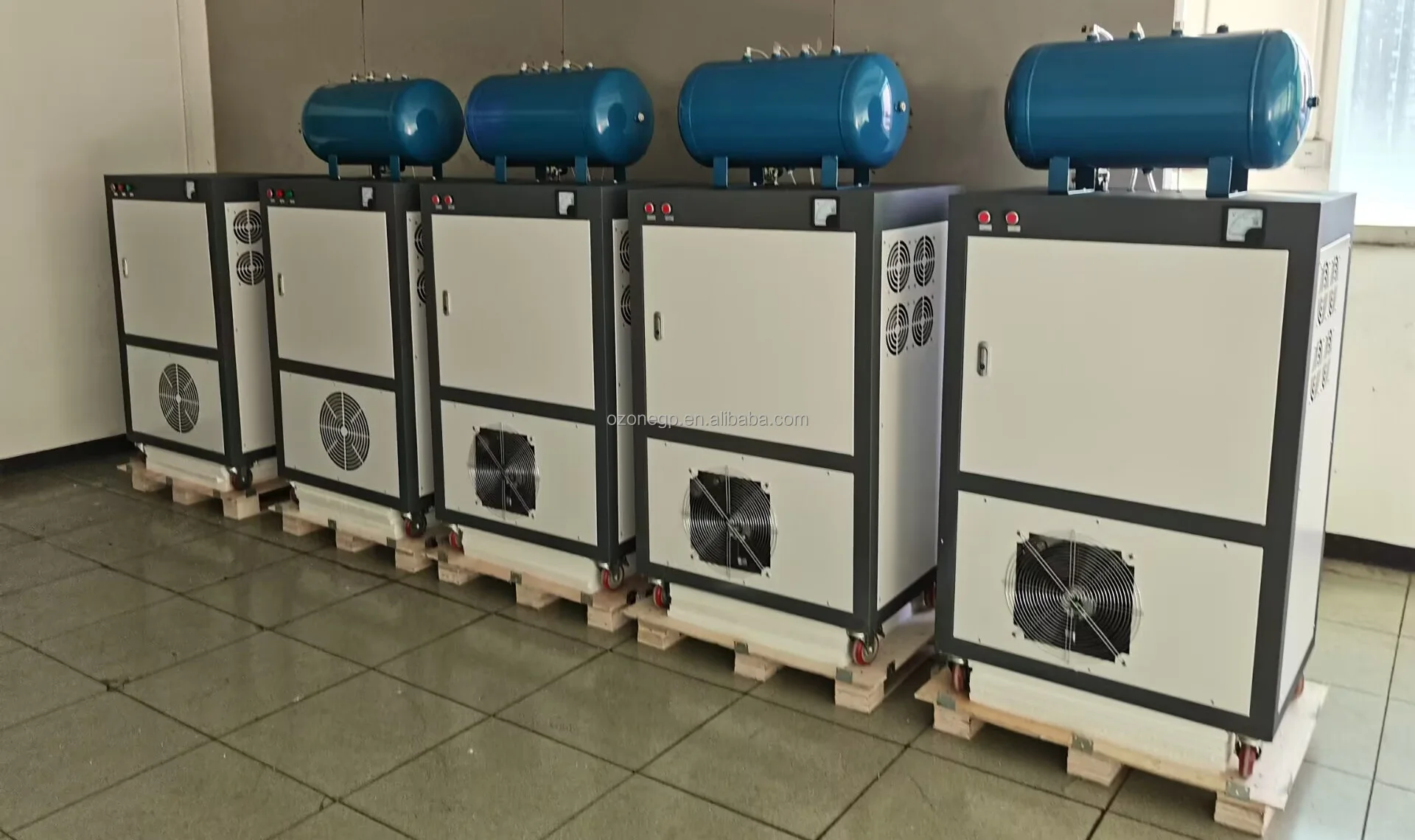

OUR FACTORY
Ozone Green Plant is specialized in the research of ozone production mechanism, design and manufacture of ozone equipment, design of ozone application engineering scheme, and the installation, debugging, running and maintenance of ozone system equipment. As the representative enterprise of domestic ozone industry, the company is gradually becoming a global ozone system supplier. We always make our best efforts to meet the requirements of customers with our many years' experience, continuing research and technical innovation in Ozone industry. We ensure the product with good quality, sufficient quantity and diversification.all the customer appeals can be deal with quickly and effectively provide the most perfect service to all customers. We are confident that our products can get your one hundred percent of trust and help you to achieve your success with our great efforts.
OUR SERVICE
1.Your inquiry related to our products or prices will be replied in 24 hours
2.Well-trained and experienced staffs to answer all your inquiries in fluent English
3.We can follow your design to produce
4.Protect your sales area,ideas of design and all your private information
5.We have Technical staff with 10 years of ozone experience.
6.Products passed CE certification.
1.Your inquiry related to our products or prices will be replied in 24 hours
2.Well-trained and experienced staffs to answer all your inquiries in fluent English
3.We can follow your design to produce
4.Protect your sales area,ideas of design and all your private information
5.We have Technical staff with 10 years of ozone experience.
6.Products passed CE certification.
