LANBOO 2822 series economical 2 speed/3 speed 2NO2NC with light multi color optional IP65 waterproof metal rocker switch
LANBOO 2822 series economical 2-speed/3-speed 2NO2NC with light multi-color optional IP65 waterproof metal rocker switch
LANBOO 2822 series economical 2-speed/3-speed 2NO2NC with light multi-color optional IP65 waterproof metal rocker switch
LANBOO 2822 series economical 2-speed/3-speed 2NO2NC with light multi-color optional IP65 waterproof metal rocker switch
LANBOO 2822 series economical 2-speed/3-speed 2NO2NC with light multi-color optional IP65 waterproof metal rocker switch
LANBOO 2822 series economical 2-speed/3-speed 2NO2NC with light multi-color optional IP65 waterproof metal rocker switch
LANBOO 2822 series economical 2-speed/3-speed 2NO2NC with light multi-color optional IP65 waterproof metal rocker switch

LANBOO 2822 series economical 2 speed/3 speed 2NO2NC with light multi color optional IP65 waterproof metal rocker switch

Share on (1600622952389):


Price:$2.00 - $2.30

Quantity:


Product Overview

Description


lantian

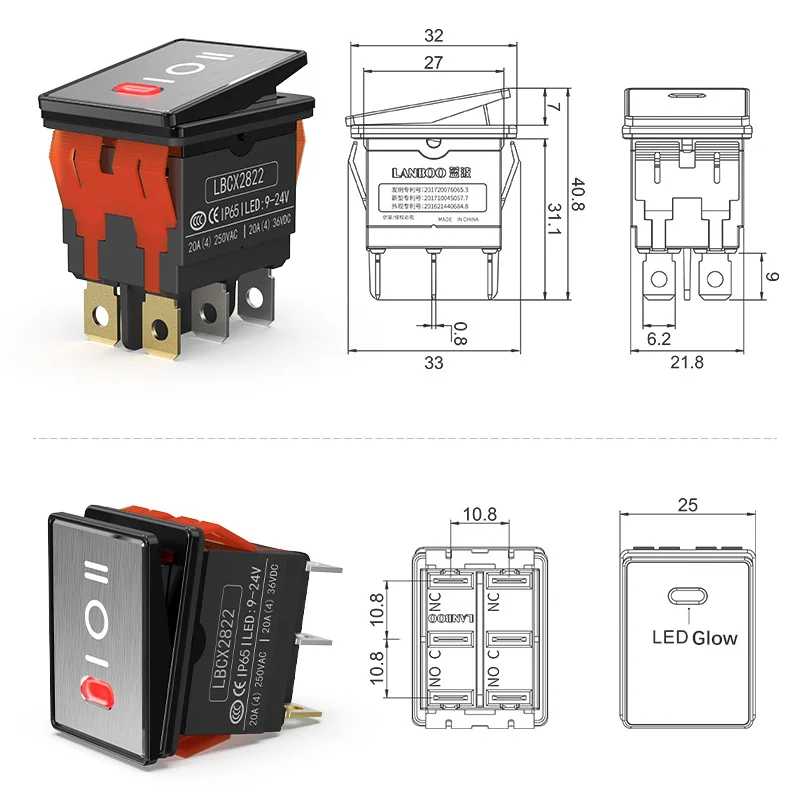

Mounting Aperture28*22mm
Serial NumberCX Ship type metal switch
Head ShapeRocker

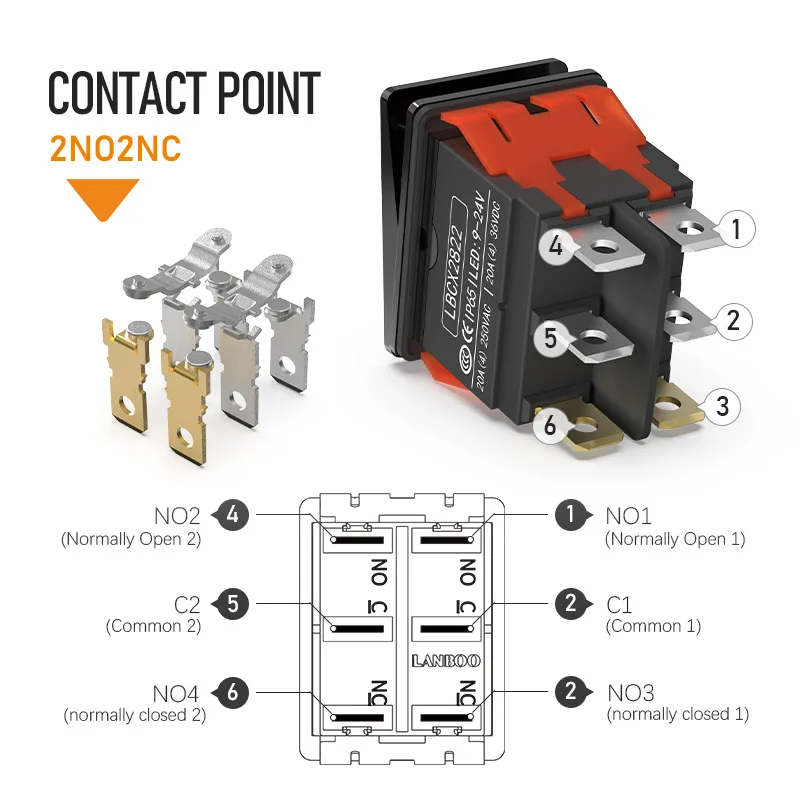

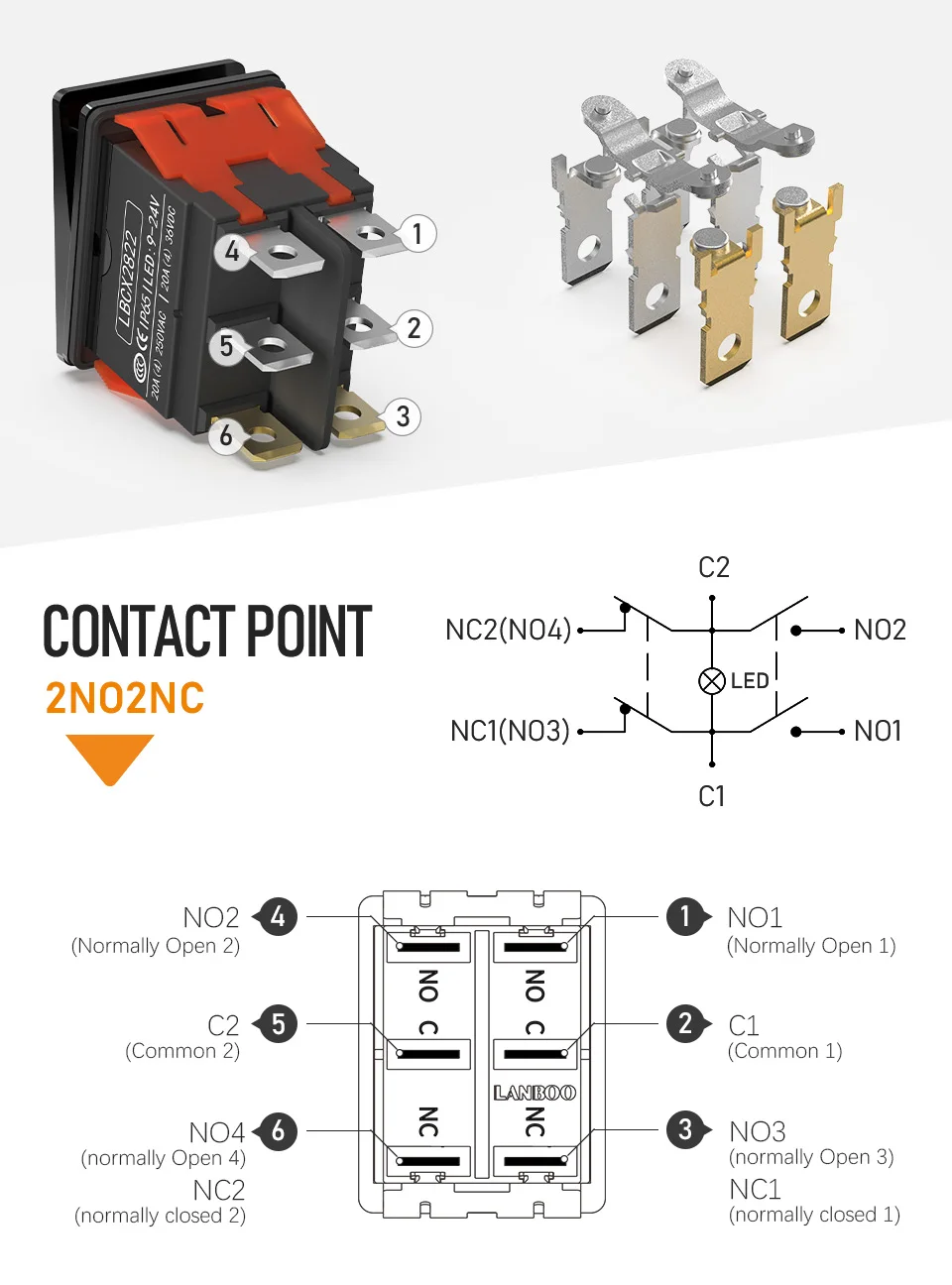

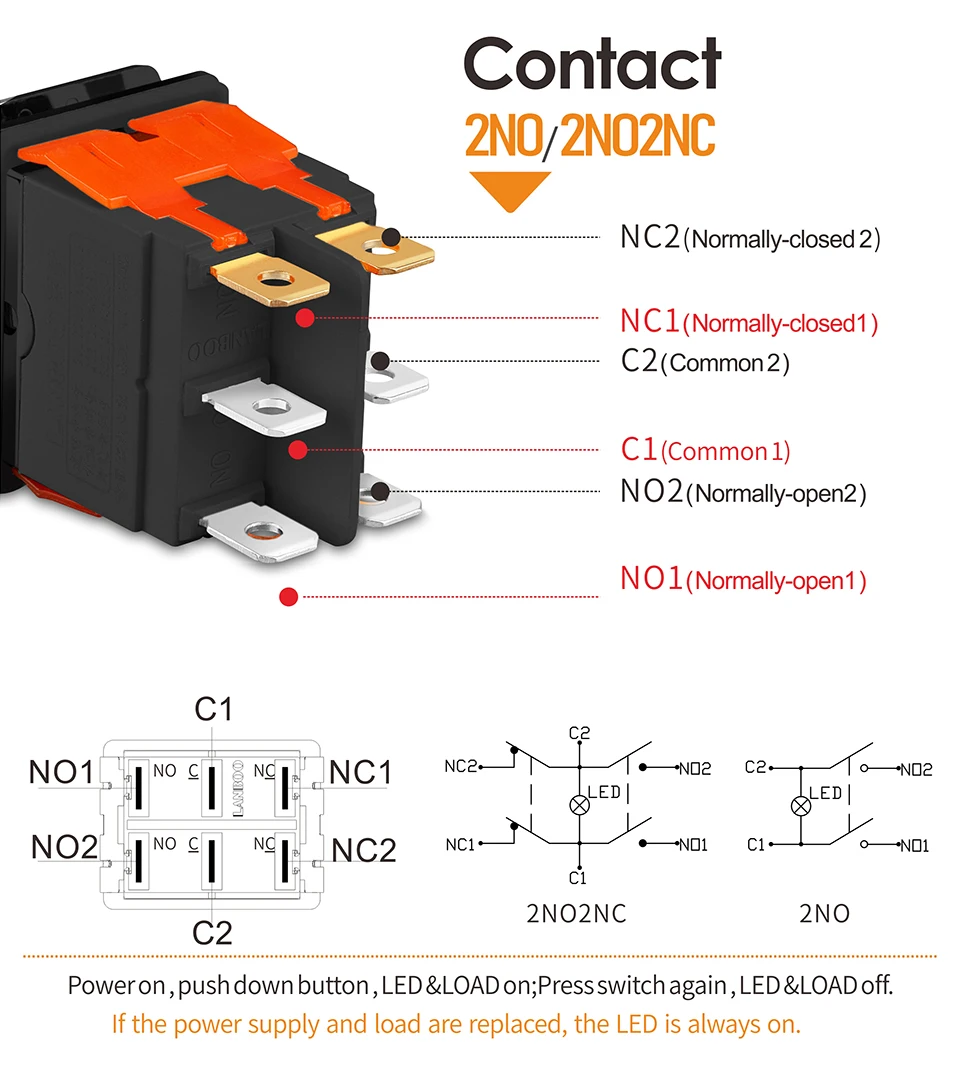

Switch Combination2NO2NC,Slow action double contact
gear:3-3 gears

Waterproof Level

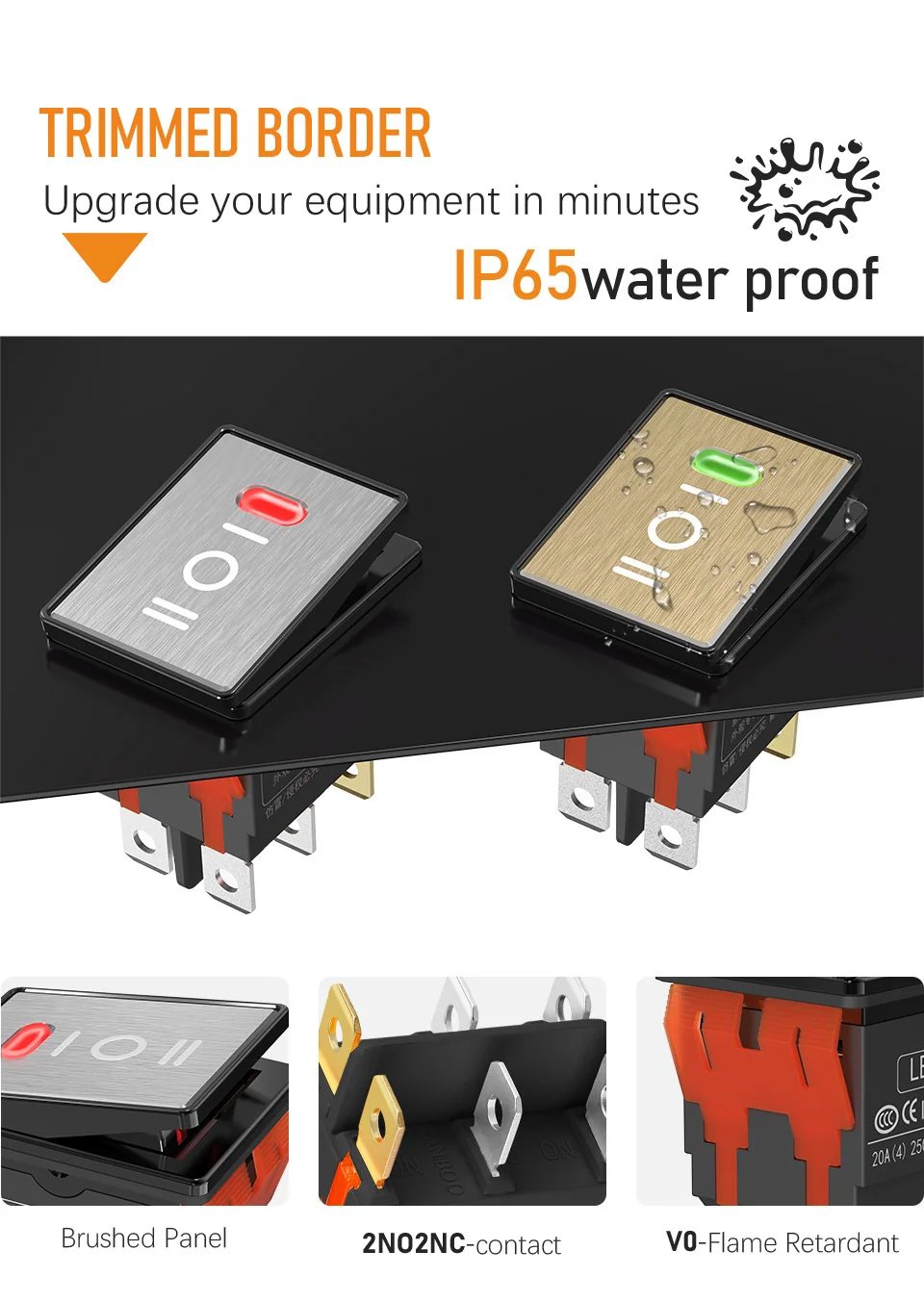

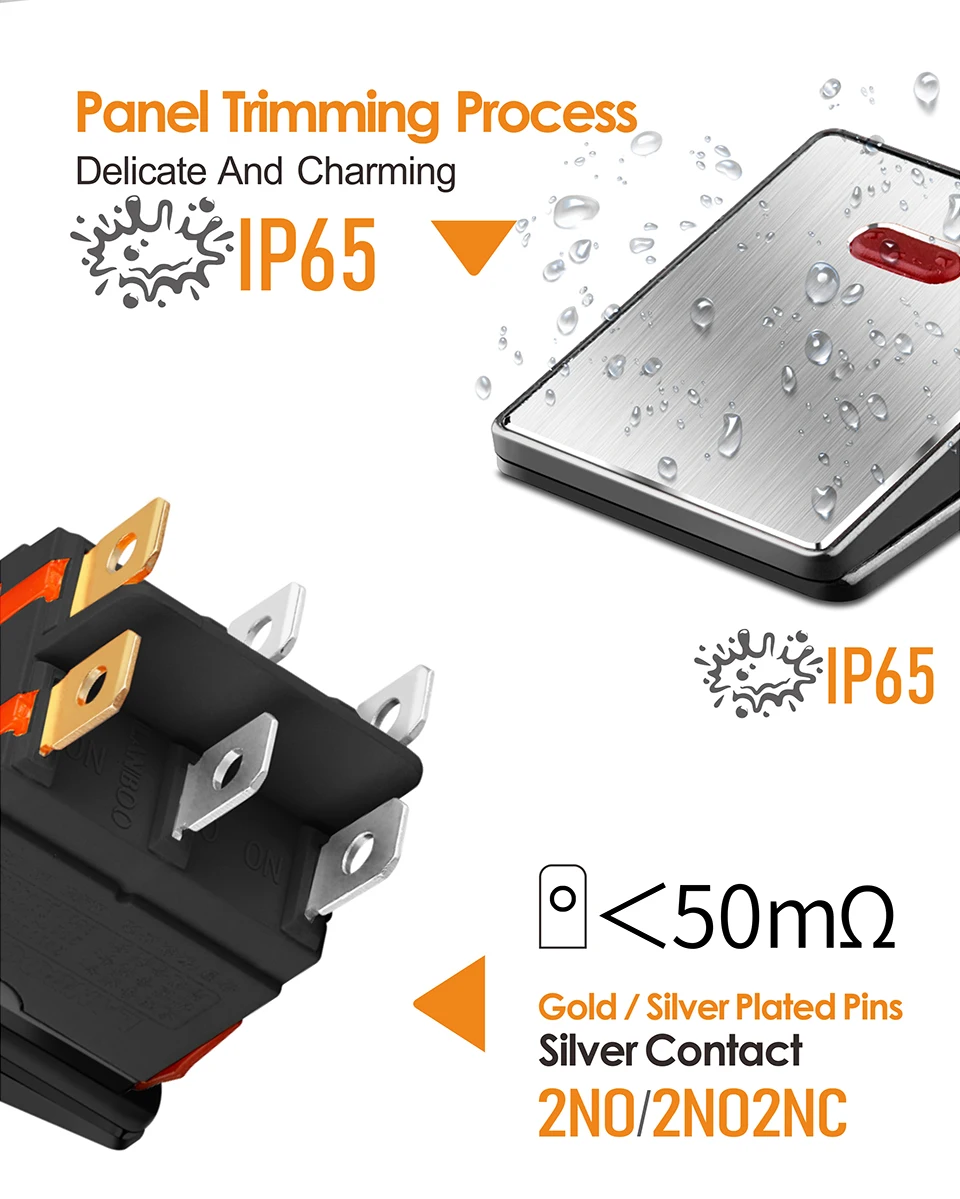

IP65,IK10(Refer to GB/T 20138)

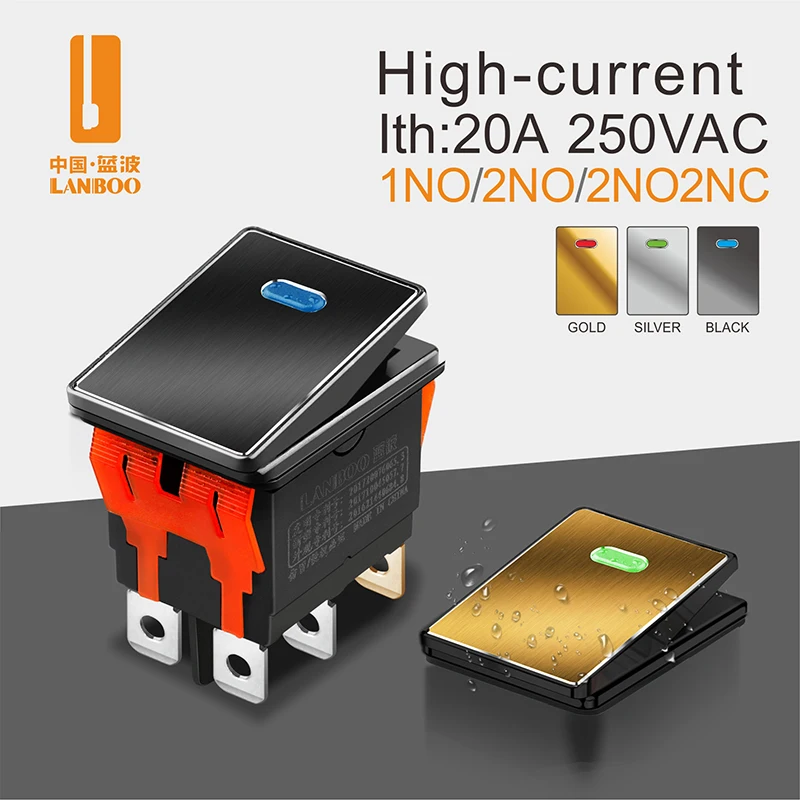

Heating CurrentIth:20A  250VAC
Working Environment -40°C~+80°C (Non-vacuum state, without icing)
Insulation Resistance≥1000MΩ

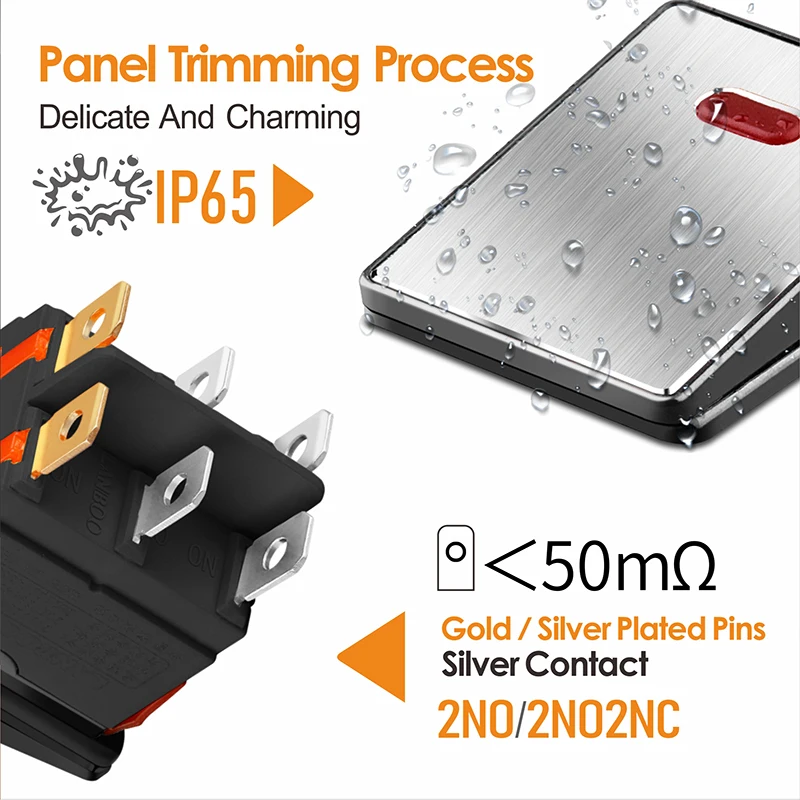

Contact Resistance ≤50mΩ

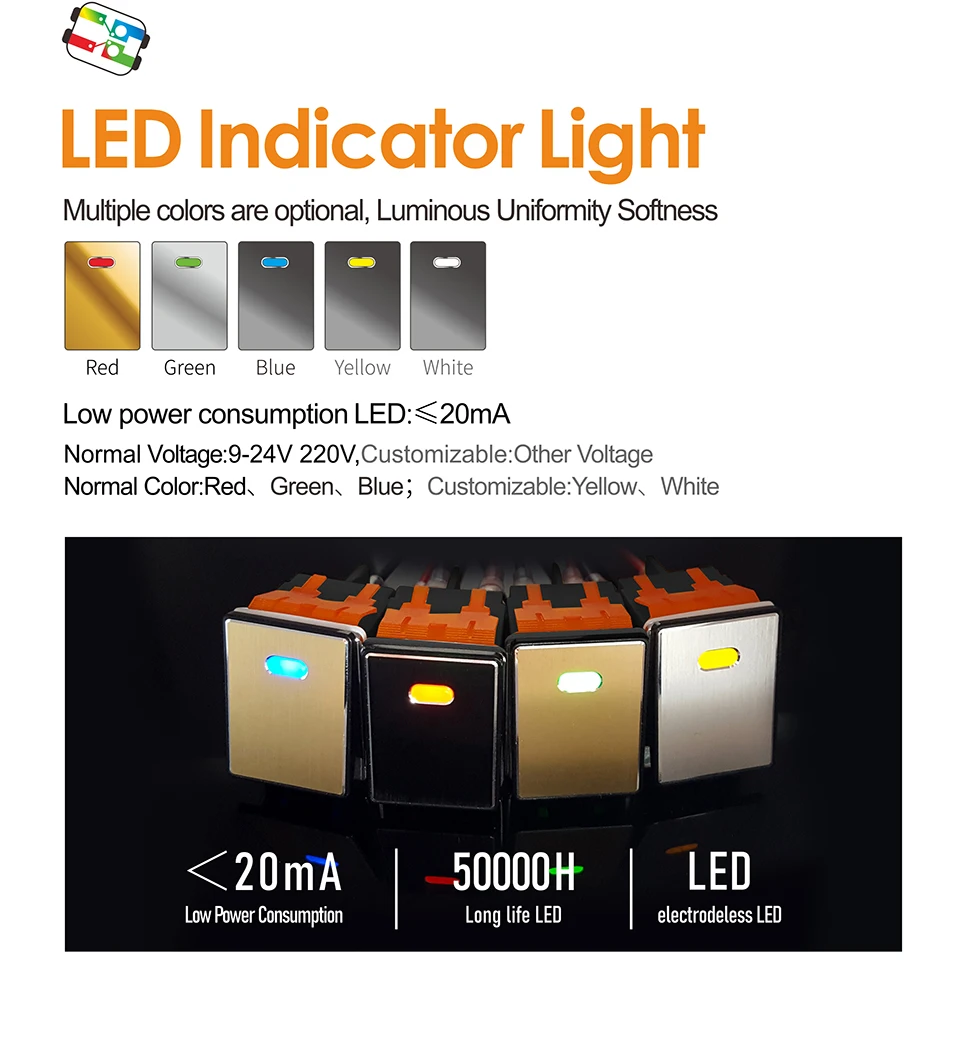

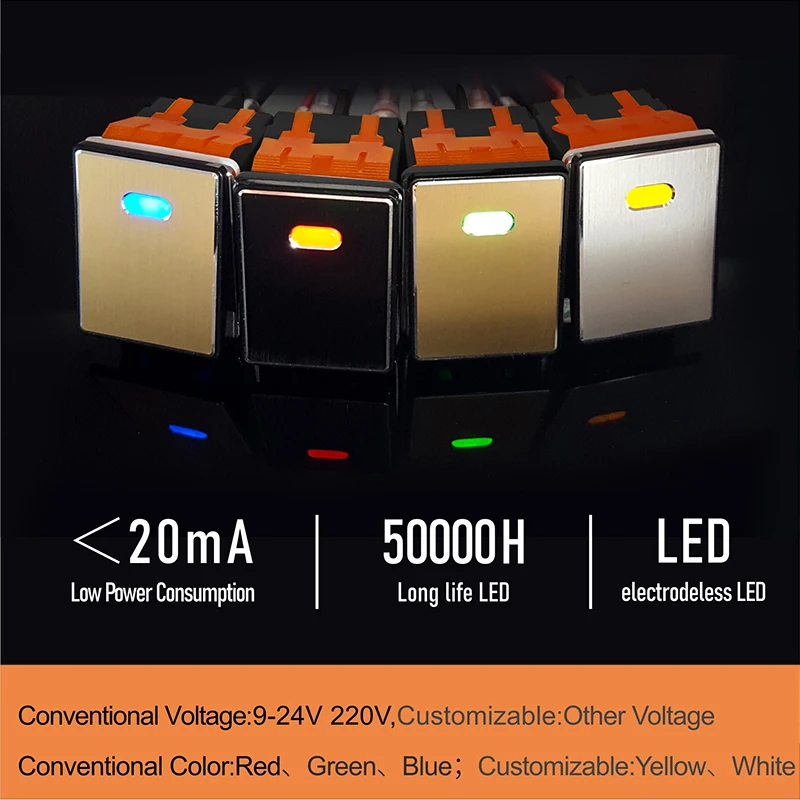

LED Voltage 9-24V,220V
Rated CurrentResistive Load:AC-15:110V/220V:15A   DC-13:12V/24:15A
Inductive LoadAC-15:110V/220V:4A    DC-13/110V:4A
Glow ColorRed, Green, Blue / Custo Mized: Yellow, White

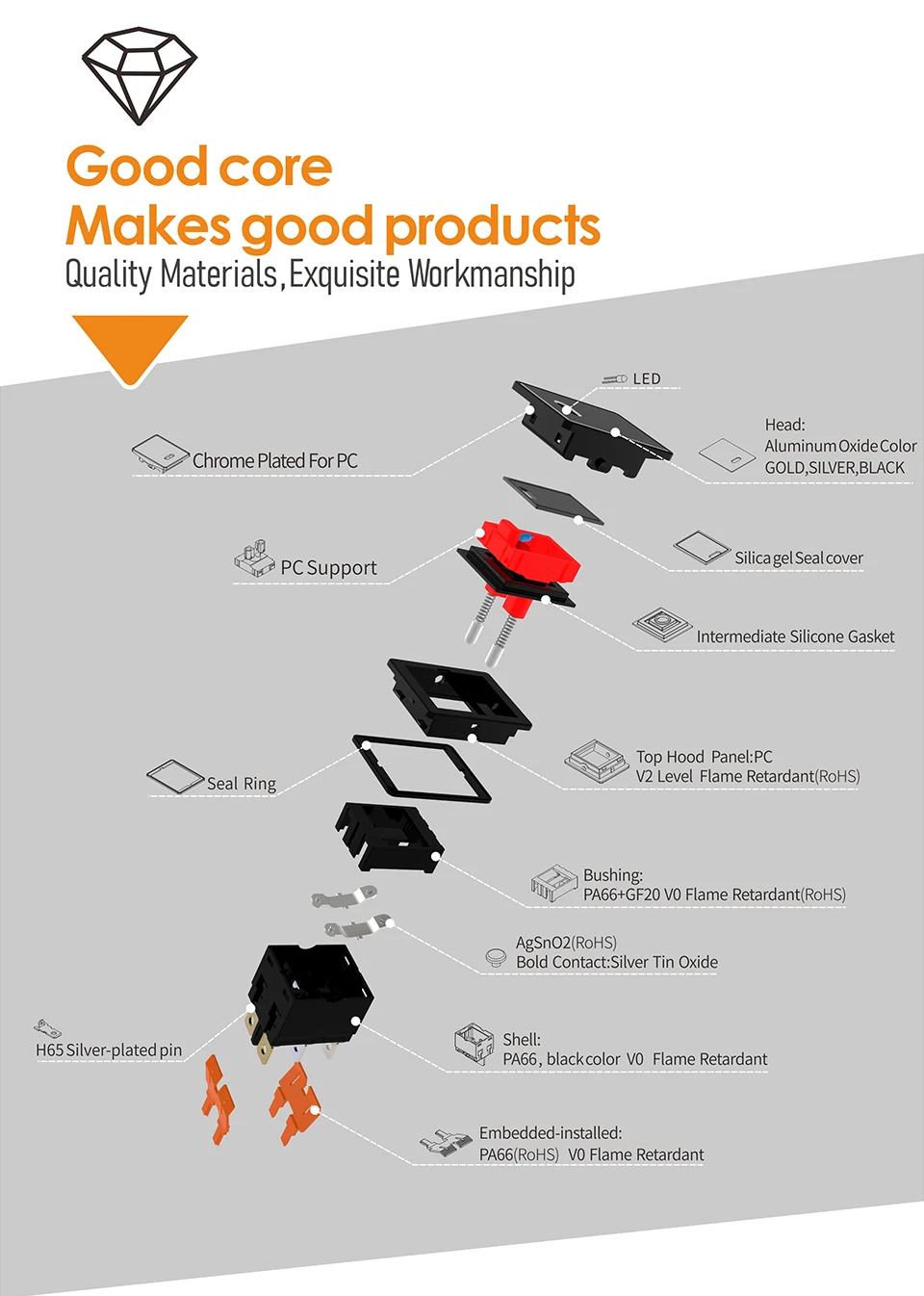

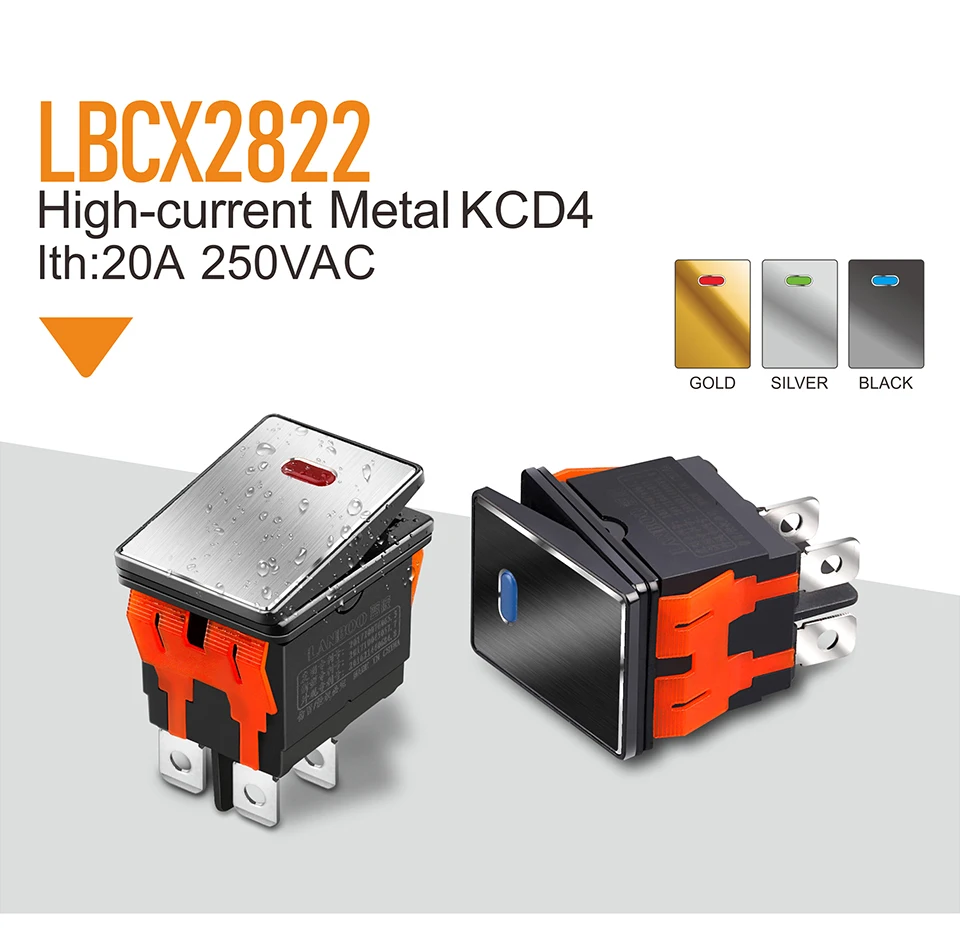

_01_02GJZ-SUMT_03_04960.jpg_07_08-960_09.jpg_11.jpg_12_132822-2 (1).jpg2822-2 (2).jpg2822-2 (3).jpg2822-2-(4).jpg2822-2 (5).jpg2822-2 (6).jpg2822-2 (7).jpg2822-2 (8).jpg2822-2 (9).jpg
