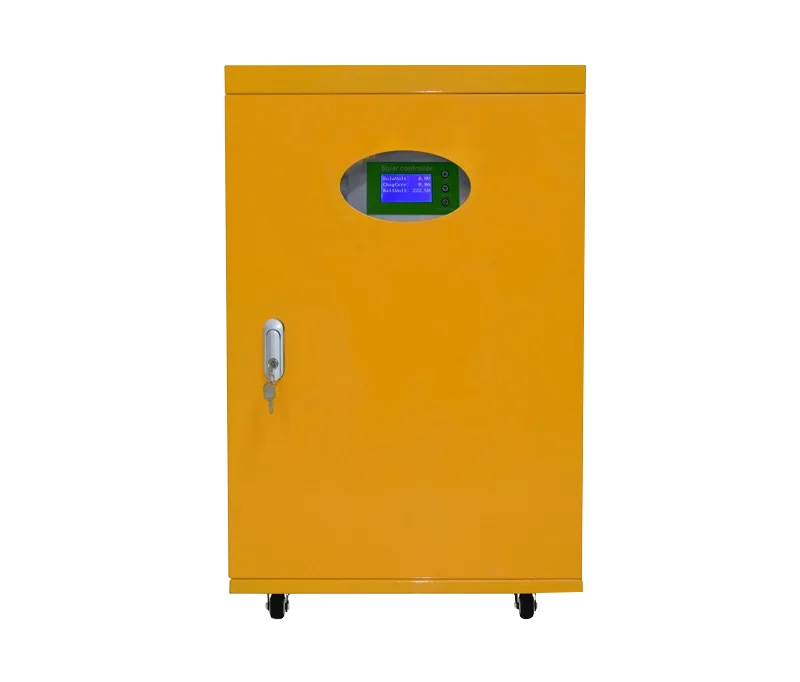

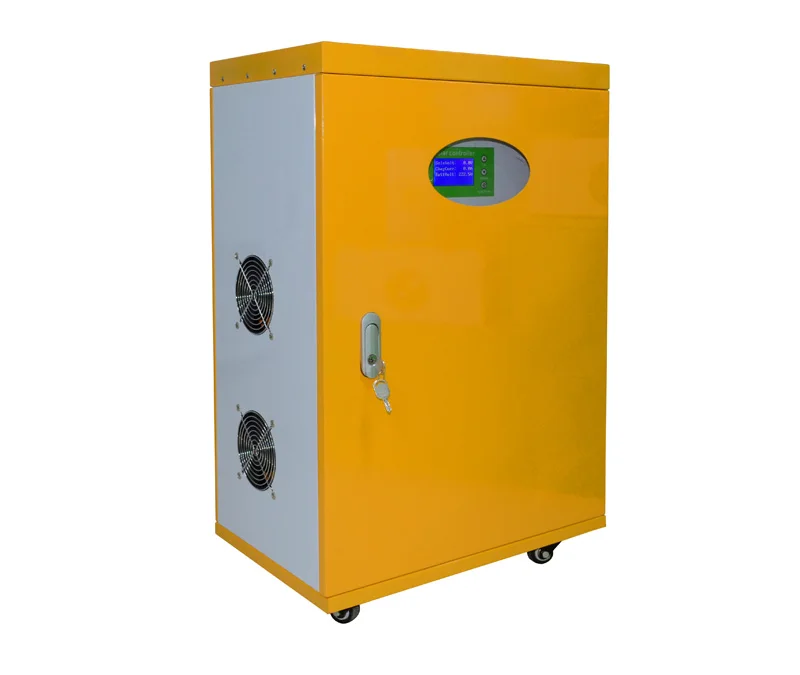

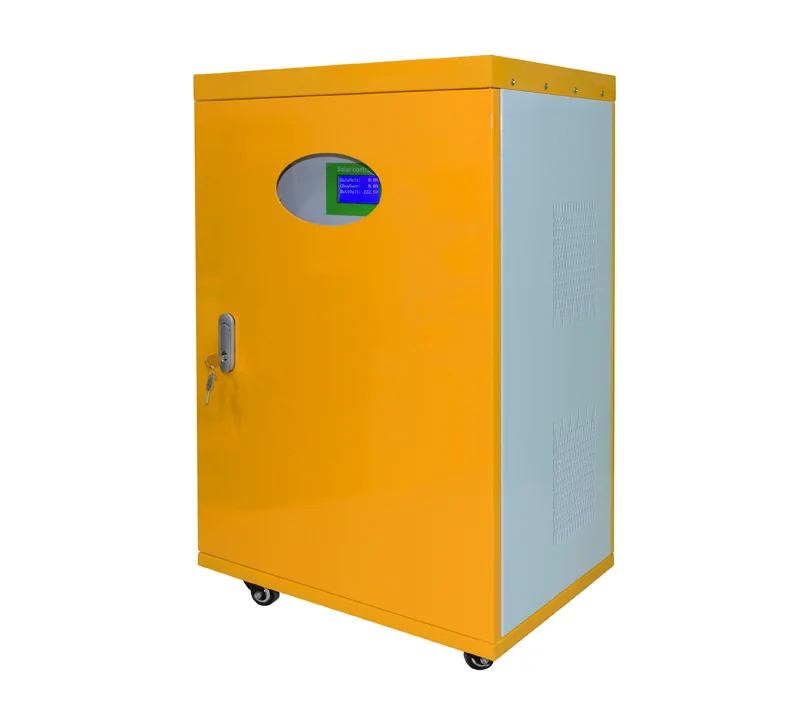

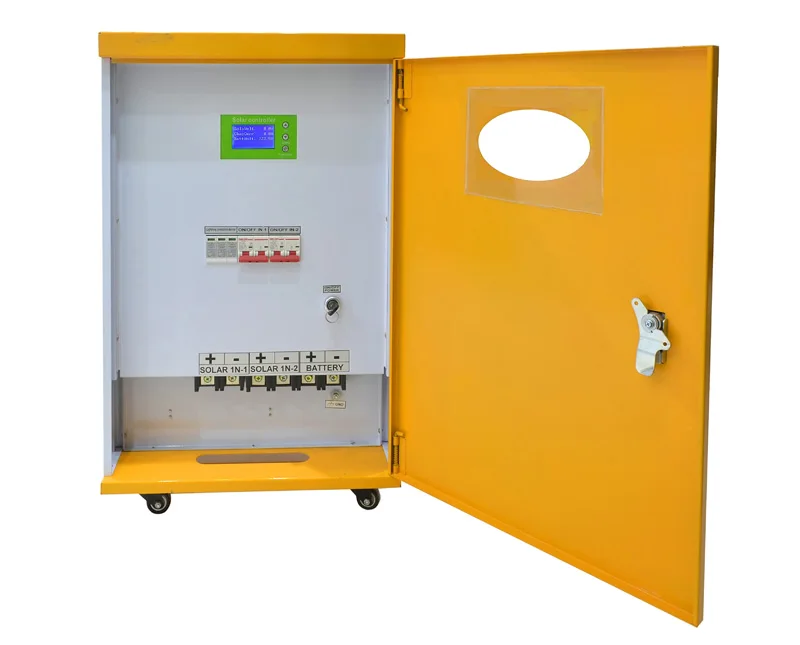

200A 400V intelligent pwm built in solar charge controller, 50A/100A/150A/200A Optional
- Category: >>>
- Supplier: COREPLUS INDUSTRIAL COMPANY LIMITED
Share on (1600622958790):
Product Overview
Description
Product Description
1. Intelligent control with micro-processor to manage and a dedicated PWM to control.
2. Parameter recovery function even after power cut
3. Segmented charging management of battery
4. High-precious sensor for temperature compensation
5. Lcd shows battery voltage,solar charging voltage,charging current,total charging power,heat attention,language setting,and the system has self setting function and unique anti-reverse and short circuit protection
6. IGBT,PWM charging mode to control the charging circuit,higher charging efficiency
7. Built-in lightning protection devices,to protect the equipment from lightning damage,more reliable and more safe
8. Digital display screen use icon menu,three button operates the whole checking and setting
9. Intelligent control,Digital LCD display,TUV and CE certificates
Product Details
Product Parameters
| KY1 Parameter | ||
| Rated charging current | 150A | 200A |
| Rated system voltage | 96V/192V/216V/240V/384V | |
| PV input voltage range | 96V System:120V-176V; 192V System:240V-352V;216V System:270V-396V;240V System:300V-440V;384V System:480V-704V | |
| Max PV Input Voltage(At 25℃) | 96V System:200V; 192V System:400V;216V System:450V;240V System:500V;384V System:750V | |

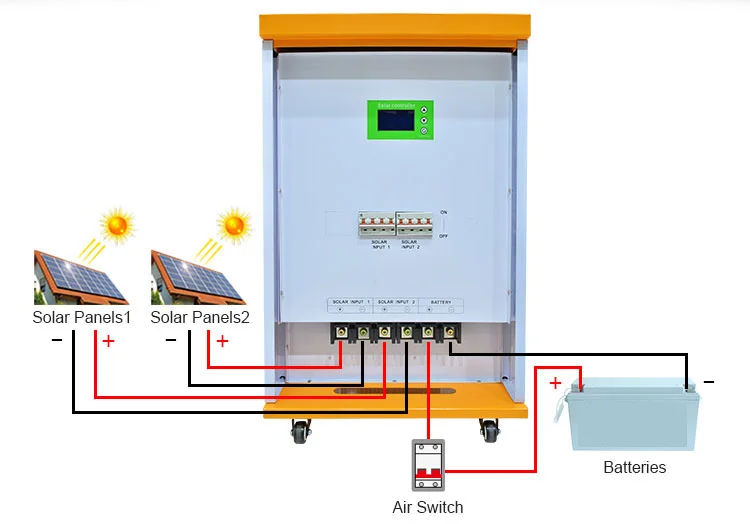

| Number of PV array input routes | 2 | |
| PV Array Maximum Power | 8.4KW*2/16.8KW*2/18.9KW*2/21KW*2/33.6KW*2 | 11.2KW*2/22.4KW*2/25.2KW*2/28KW*2/44.8 KW *2 |
| Battery type | Lead acid battery, deep cycle battery, gel battery etc(Battery type base on user charge specification) | |
| Floating voltage | 13.8V/Single battery | |
| Charge voltage | 14.2V/Single battery | |
| Charging protection voltage | 15V/Single battery | |
| Temperature compensation coefficient | -3mV / ℃ / 2V (25℃ is base line )(Optional) | |
| Charging mode | PWM pulse width control | |
| Charging method | Three stages :constant current; constant voltage; floating charge | |
| Efficiency | >95% | |
| Display | LCD | |
| Cooling method | Cooling fan in intelligent control | |
| Type of mechanical protection | IP20 | |
| Operating temperature | -20℃~+60℃ | |
| Storage temperature | -20℃~+70℃ | |
| Elevation | <5000m,(Less solar panel when exceed 2000m) | |
| Humidity | 5~95%(No condense) | |
| Protect the circuit | RS232/RS485(Optional) | |
| Machine size (L*W*Hmm) | 500*330*805 | |
| Package size (L*W*Hmm) | 565*395*870 | |
| N.W (Kg) | 32 | 33 |
| G.W (Kg) | 37 | 38 |
| Note: All specifications are subject to change without prior notice | ||

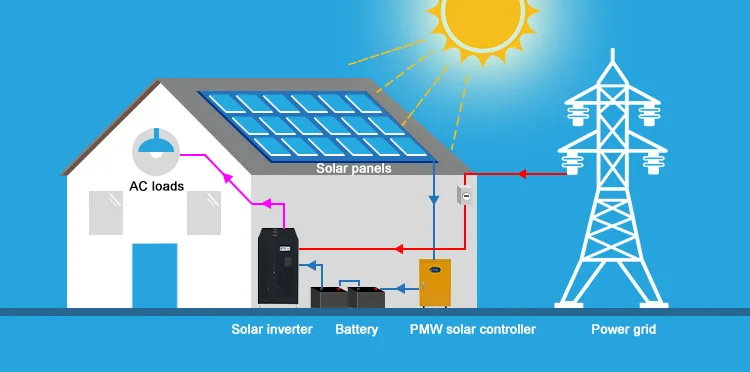

Product Uses
Packing & Shipping
Packing:
1. Attach the color sticker and label of the controller.
2. Put the controller and instruction manual into the color box.
3. Put into export carton.
4. Enter the warehouse and wait for shipment.
Kraft box packaging, Chinese and English manual, screwdriver, transparent bag, PE bags, OPP bags, Foam Cotton, Custom bags+carton case+carton box or as your requirement.
Main port:
Guangzhou/Shenzhen/Hongkong or as required.
Express Company:
DHL, TNT, UPS, FedEx, etc.
FAQ
Q1: Do you support Ready To Ship OEM&ODM?
A1: Yes, we are a powerful factory, one piece can also be shipped, and we can also customize products for you,the MOQ is much lower than many factories.\\
Q2. What is our advantage ?
A2.We have professional R&D team, can customized the products you want. We have 10,000 square meters and more than 100 staffs. Pass ISO9001.
Q3. How can we guarantee quality?
A3. Always a pre-production sample before mass production; and 38 quality inspections before packing. All of our products have passed certification of CE,CCC,UL PSE and RoHS. Supply MSDS shipping documents.
Q4. What can you buy from us?

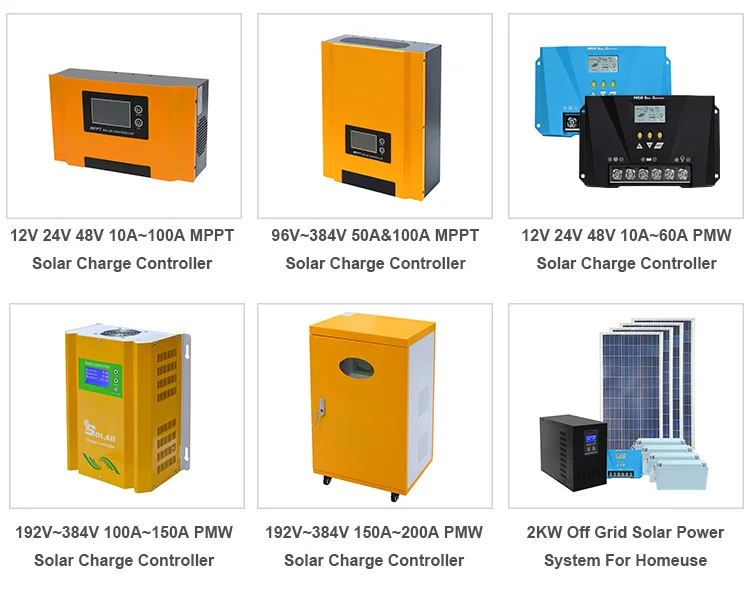

A4. Solar tied inverter, Solar off grid hybrid inverter, Pure sine wave inverter, Modified sine wave inverter, MPPT/PWM solar controller, Battery charger, Solar lighting system, Power converter and so on.
Q5. How to select a suitable products?
A5. Visit our website and do not hesitate to contact with our sales, we will supply free technology info and competitive price.
