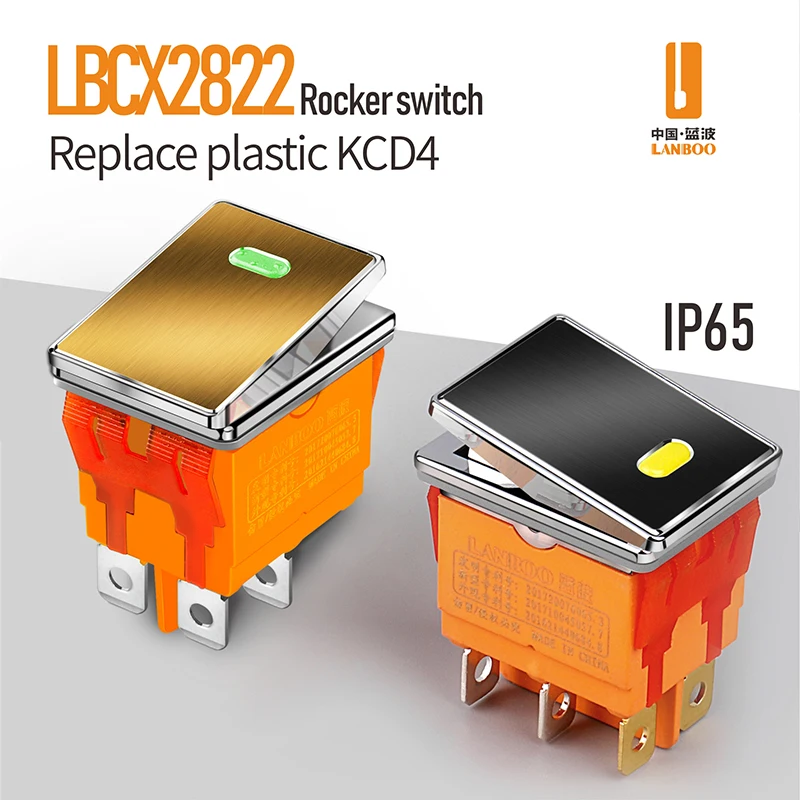

LANBOO 2822 2nd/3rd gear high end 20A high current with red, green and blue luminous IP65 metal rocker button switch
LANBOO 2822 2nd/3rd gear high-end 20A high current with red, green and blue luminous IP65 metal rocker button switch
LANBOO 2822 2nd/3rd gear high-end 20A high current with red, green and blue luminous IP65 metal rocker button switch
LANBOO 2822 2nd/3rd gear high-end 20A high current with red, green and blue luminous IP65 metal rocker button switch
LANBOO 2822 2nd/3rd gear high-end 20A high current with red, green and blue luminous IP65 metal rocker button switch
LANBOO 2822 2nd/3rd gear high-end 20A high current with red, green and blue luminous IP65 metal rocker button switch
LANBOO 2822 2nd/3rd gear high-end 20A high current with red, green and blue luminous IP65 metal rocker button switch

LANBOO 2822 2nd/3rd gear high end 20A high current with red, green and blue luminous IP65 metal rocker button switch

Share on (1600622962256):


Price:$3.30 - $3.80

Quantity:


Product Overview

Description

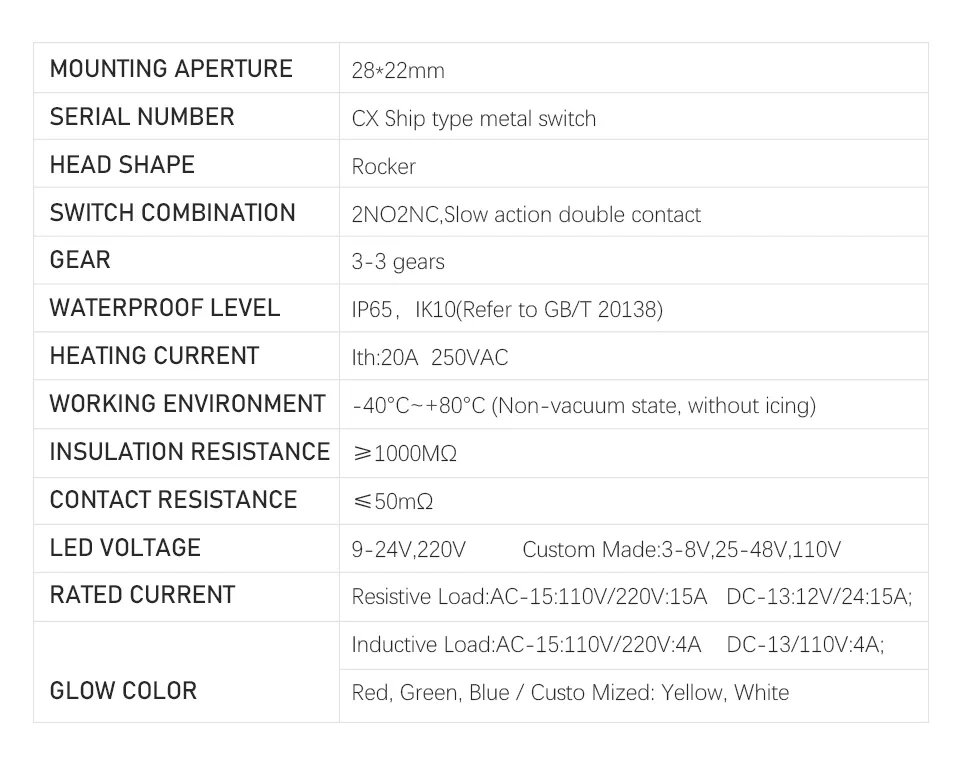

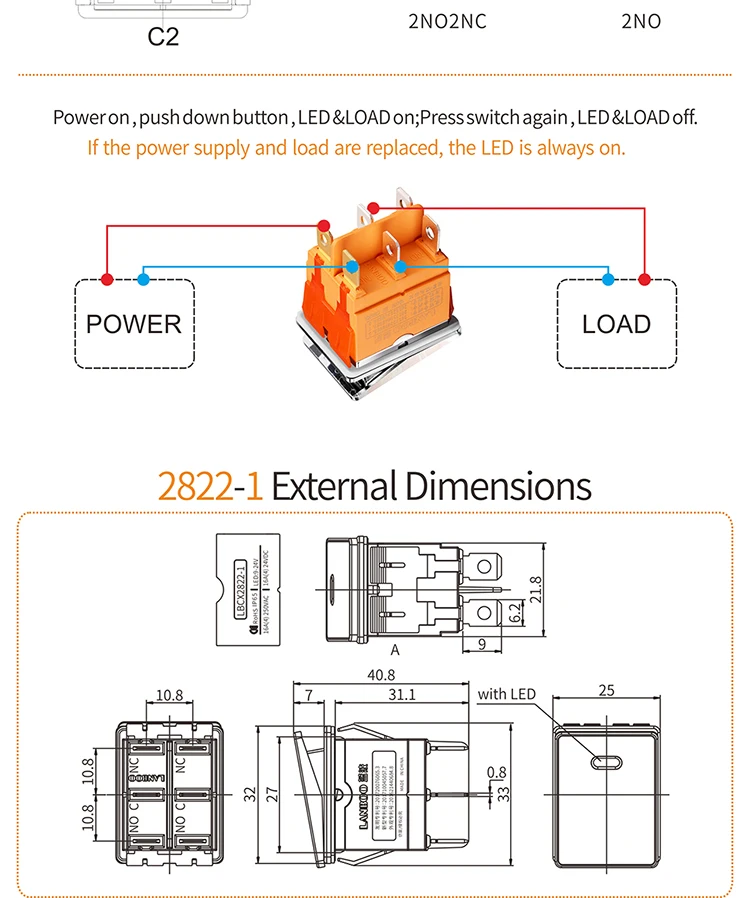

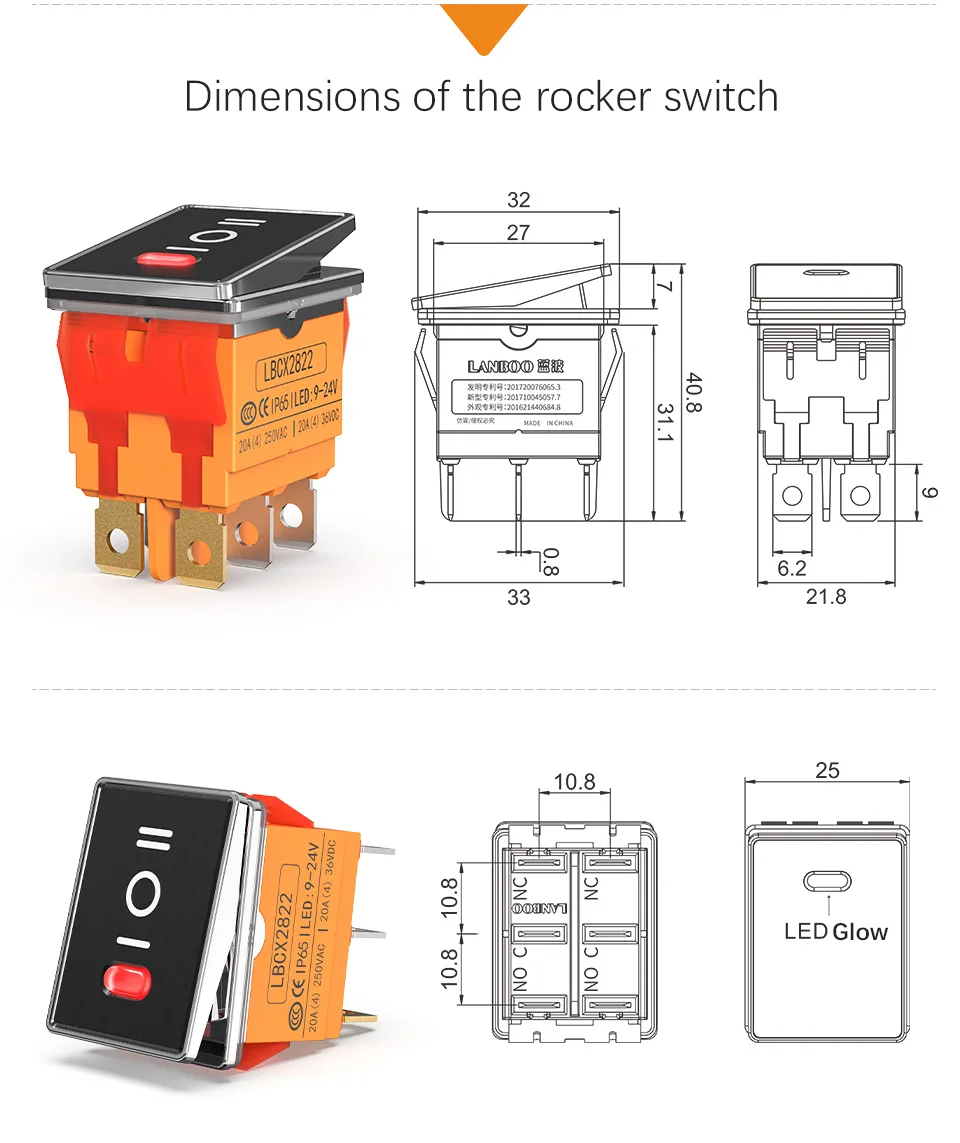

Mounting Aperture28*22mm
Serial NumberCX Ship type metal switch
Head ShapeRocker

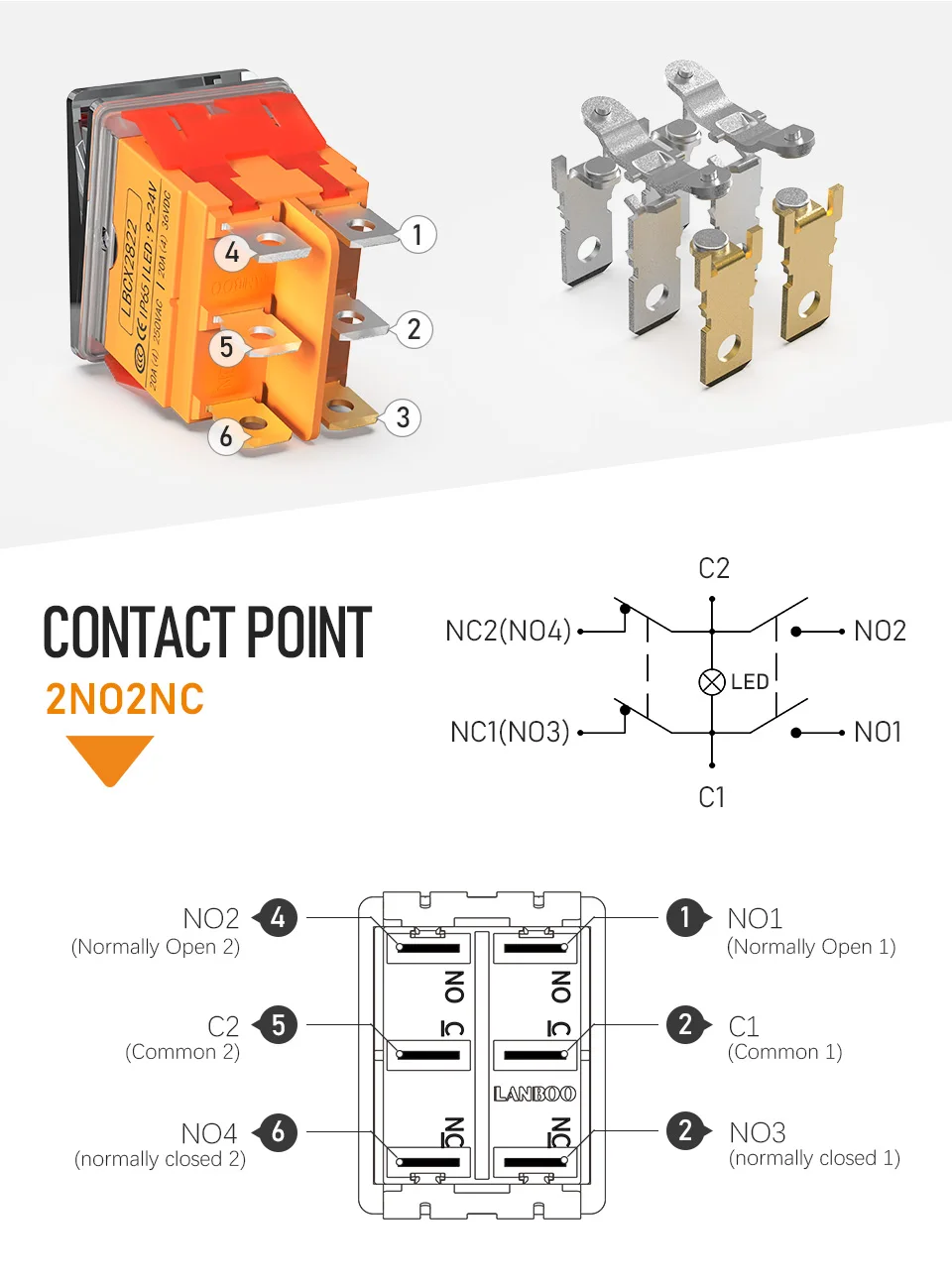

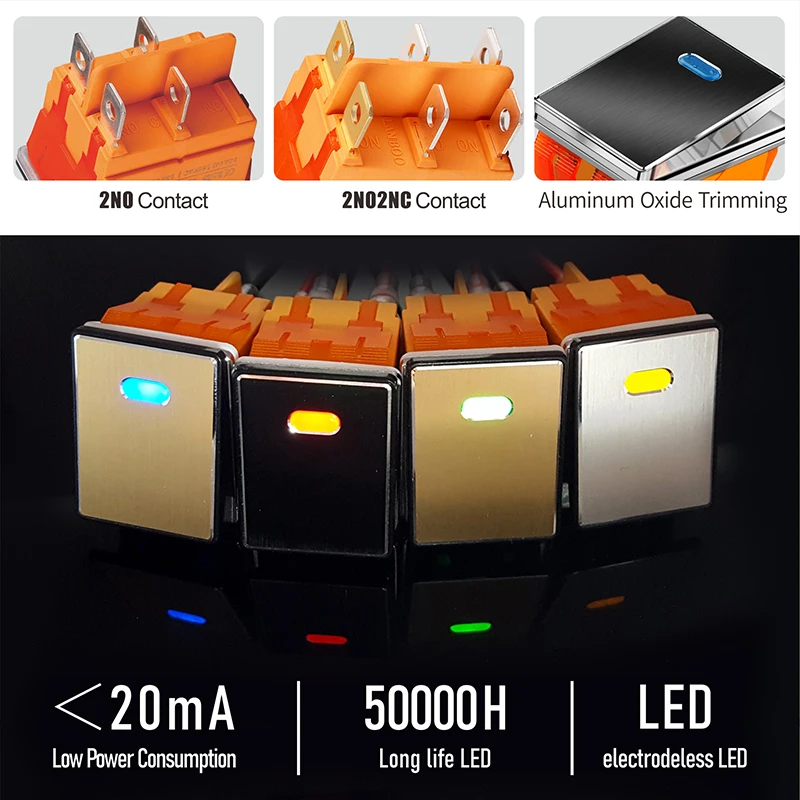

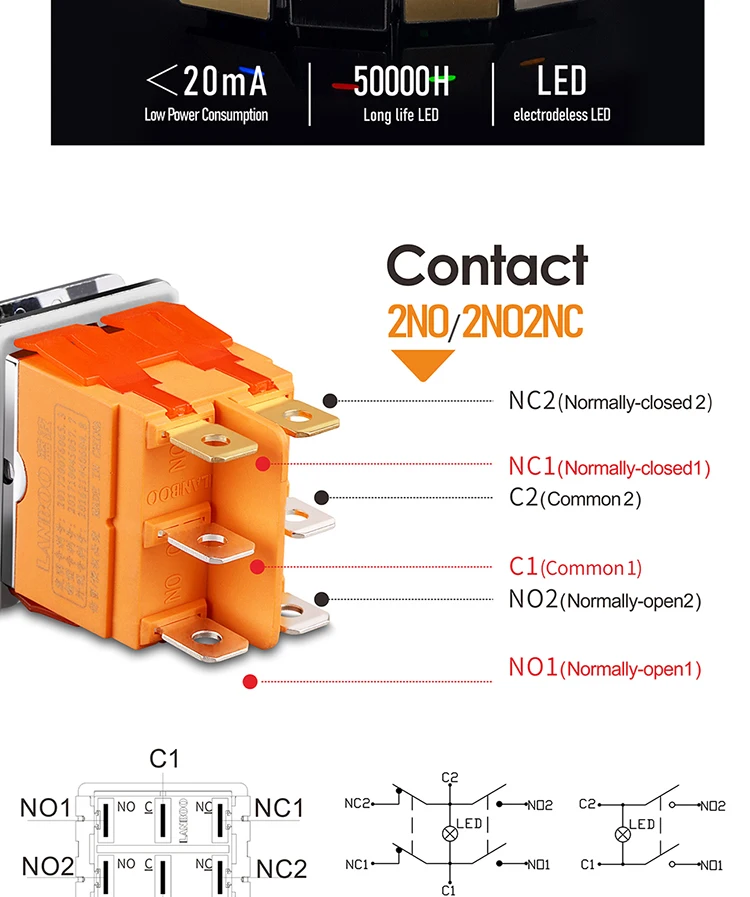

Switch Combination2NO2NC,Slow action double contact

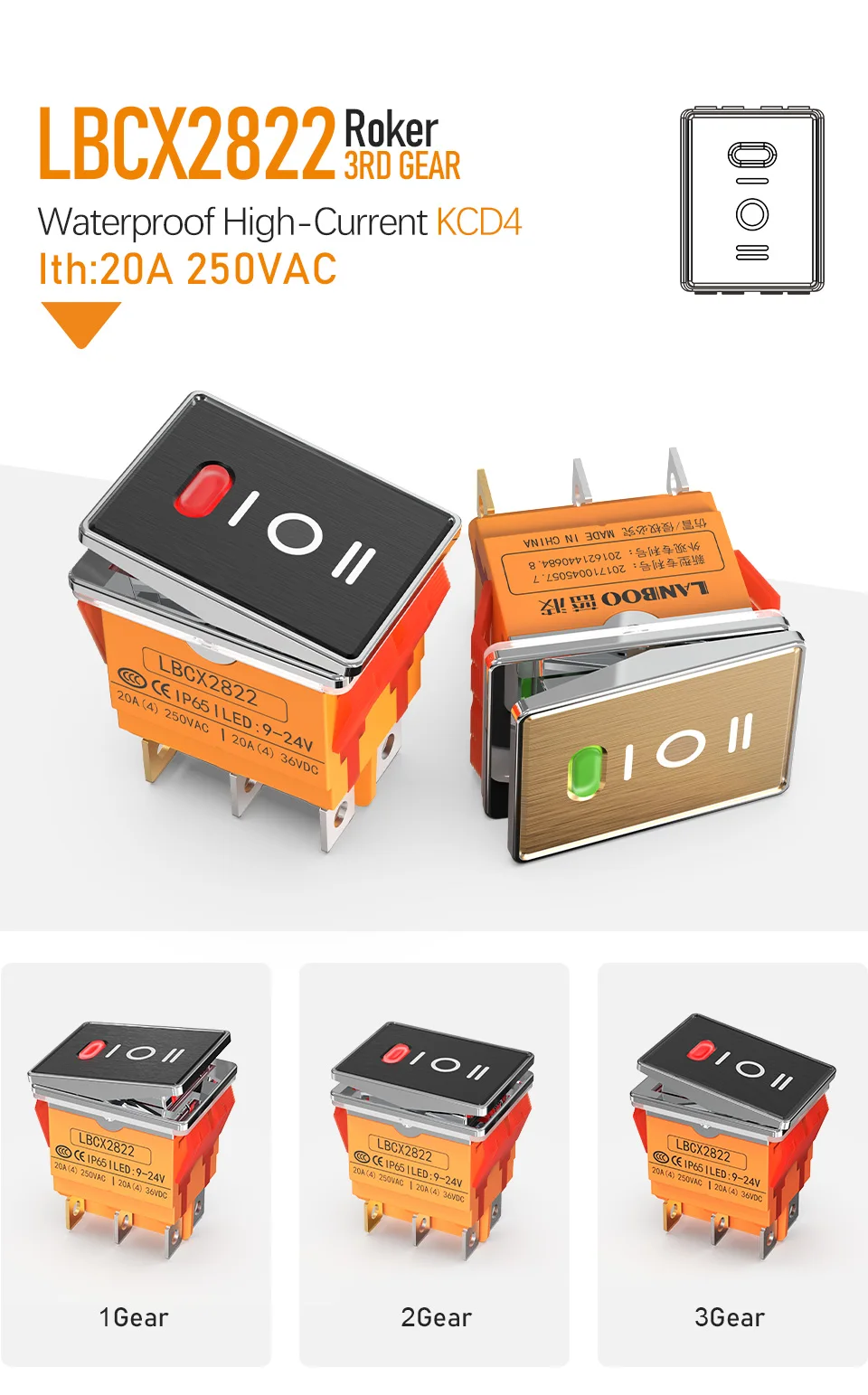

gear:3-3 gears

Waterproof Level


IP65,IK10(Refer to GB/T 20138)
Heating CurrentIth:20A  250VAC
Working Environment -40°C~+80°C (Non-vacuum state, without icing)
Insulation Resistance≥1000MΩ

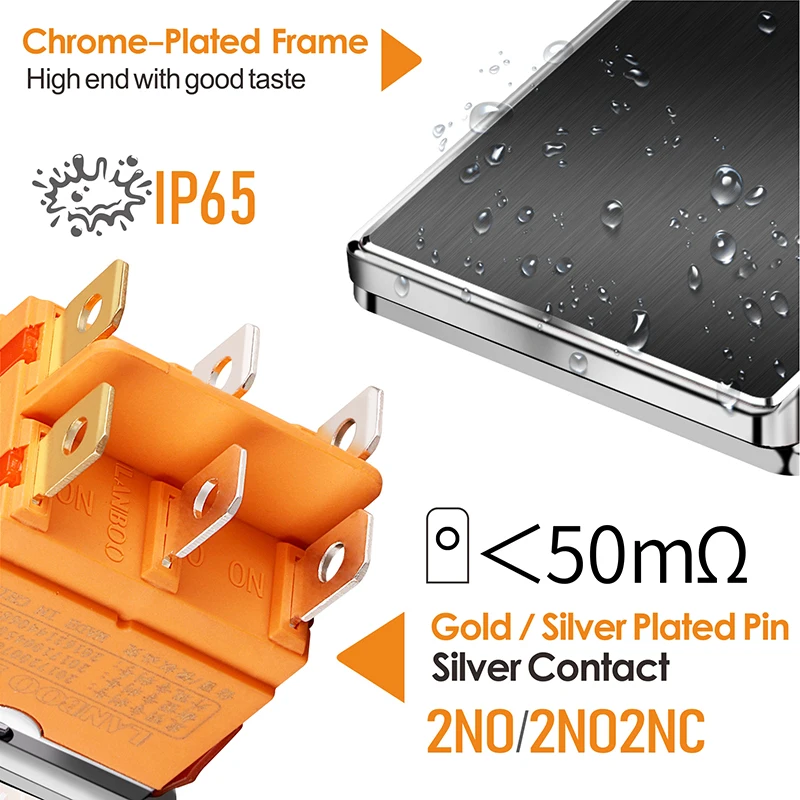

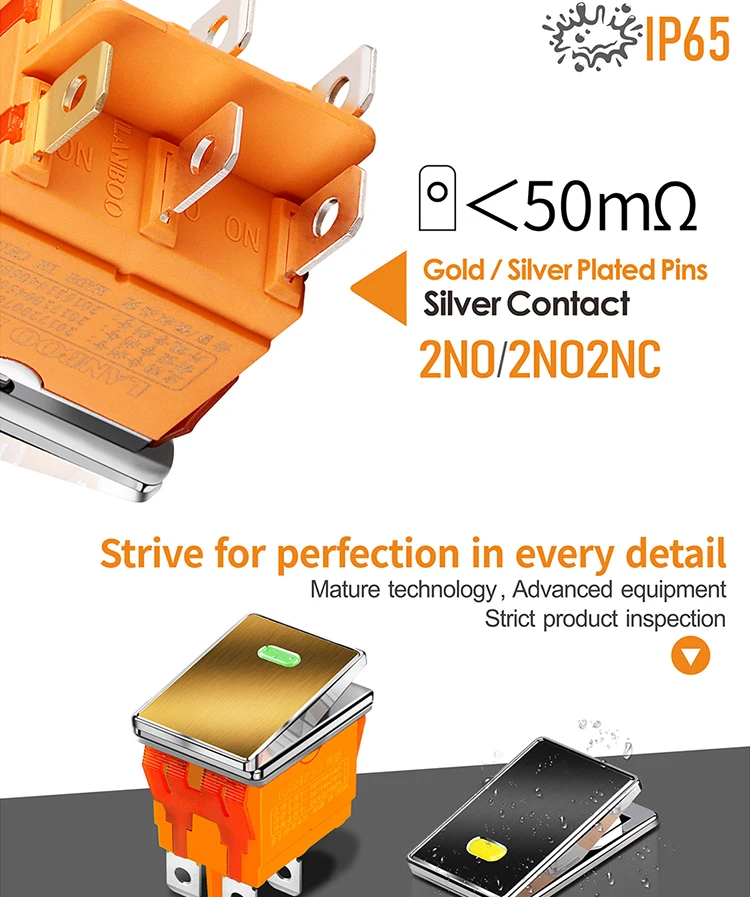

Contact Resistance ≤50mΩ

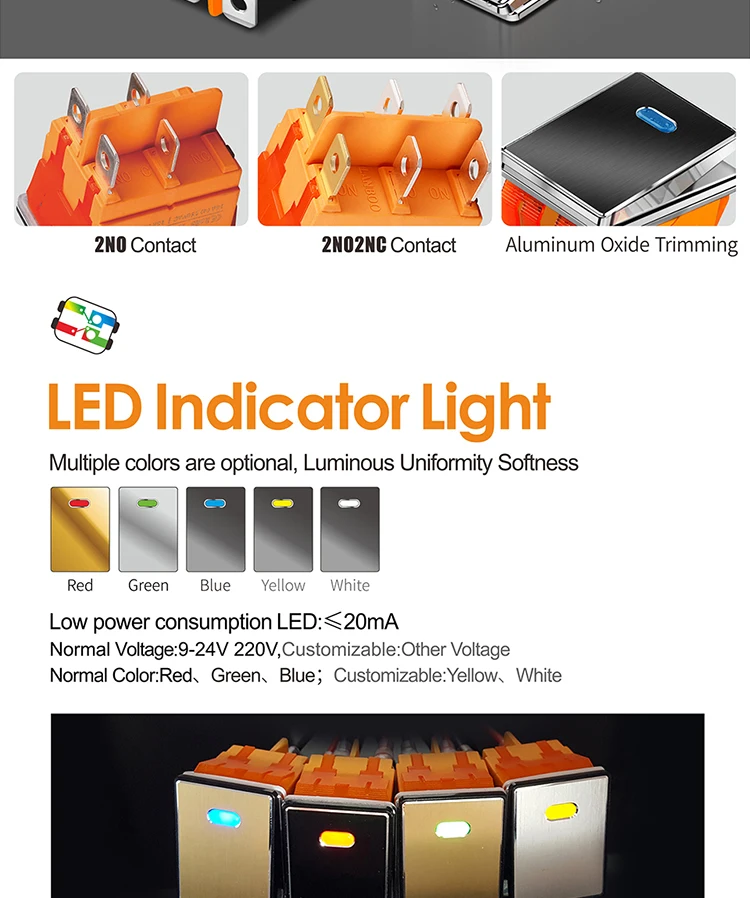

LED Voltage 9-24V,220V
Rated CurrentResistive Load:AC-15:110V/220V:15A   DC-13:12V/24:15A
Inductive LoadAC-15:110V/220V:4A    DC-13/110V:4A

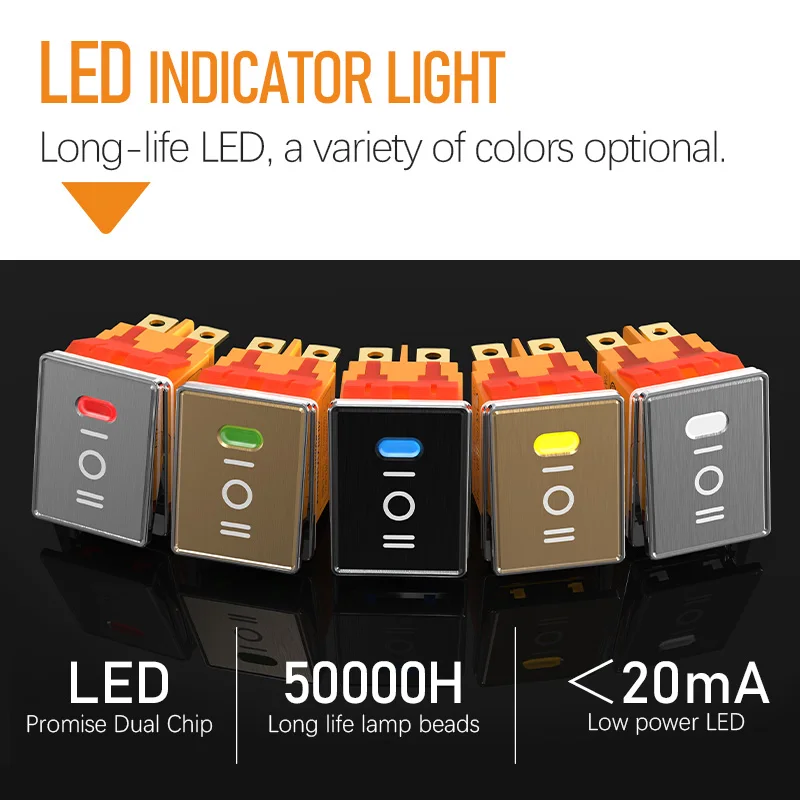

Glow ColorRed, Green, Blue / Custo Mized: Yellow, White










950en950-960_01-960_02-960_03-960_04-960_05-960_06-960_07.jpg-960_09-960_10-960_11-960_122822-1 (2)2822-1 (2)2822-1 (3)2822-1 (4)2822-1 (5)2822-1 (6)2822-1 (7)2822-1 (8)2822-1 (9)
