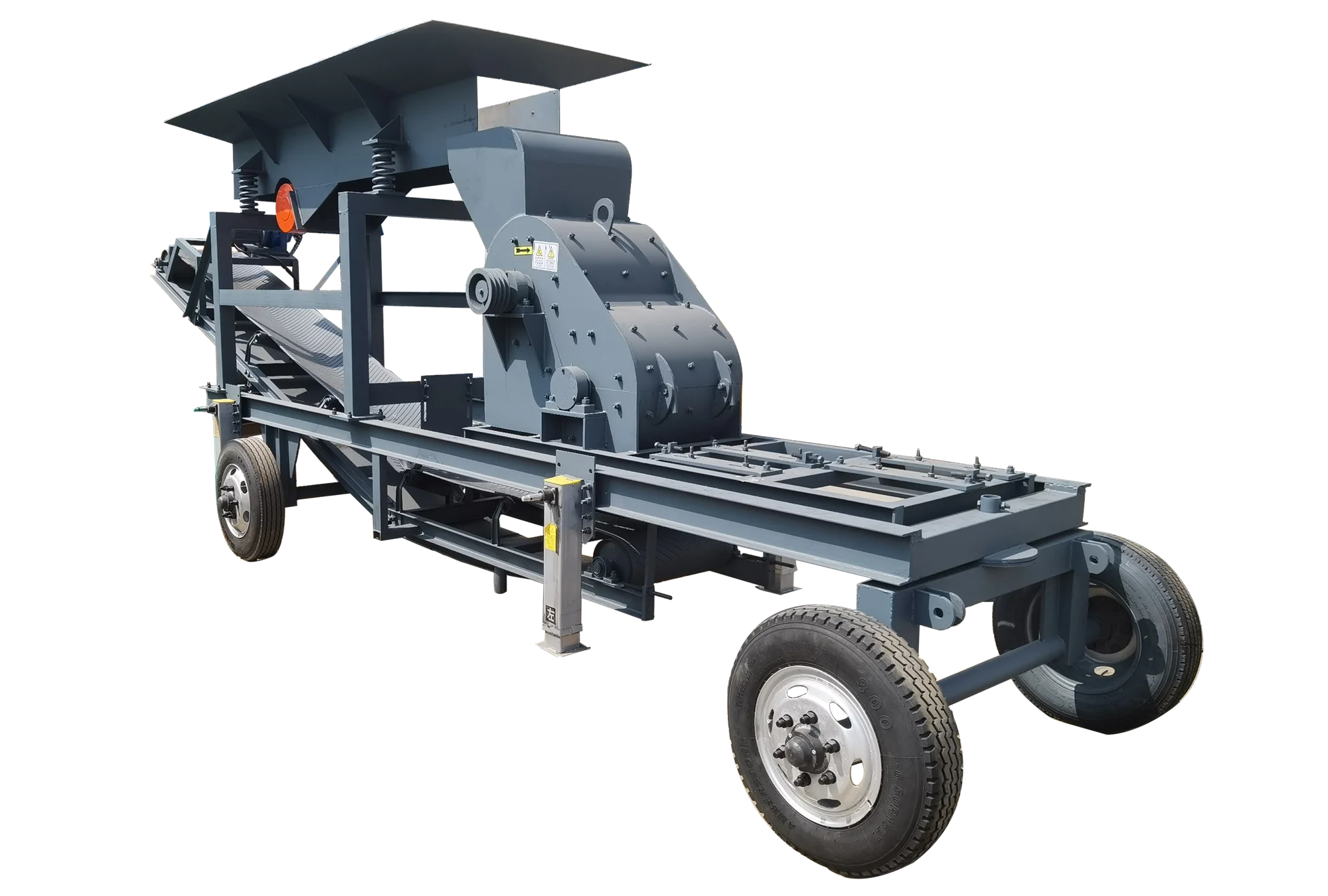

diesel mobile hammer mill crusher sand making machine fine impact price
- Category: >>>
- Supplier: Gongyi Jintai Industrial Co. Ltd.
Share on (1600622967308):
Product Overview
Description
Product Introduction

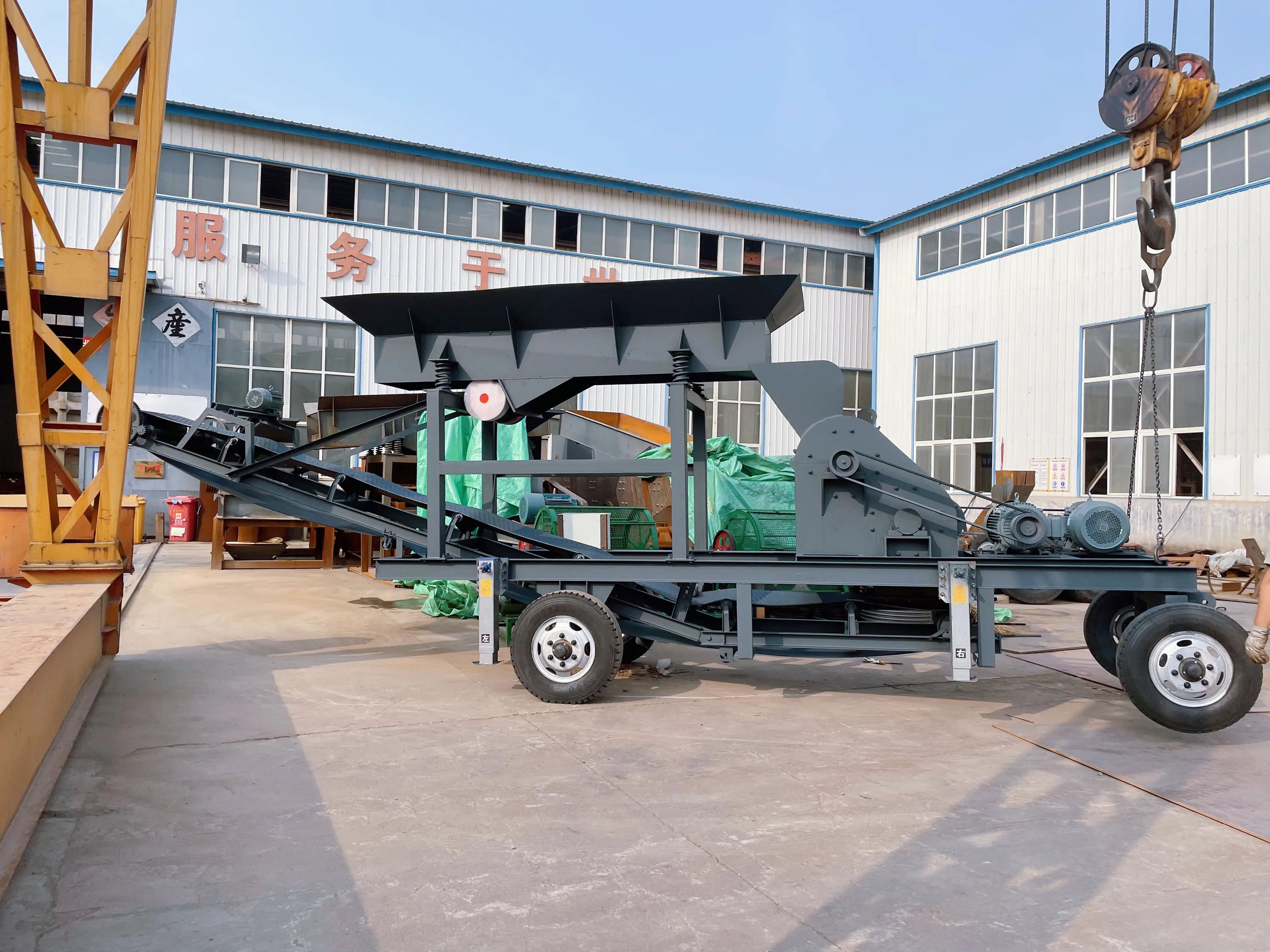

diesel mobile hammer mill crusher sand making machine fine impact price

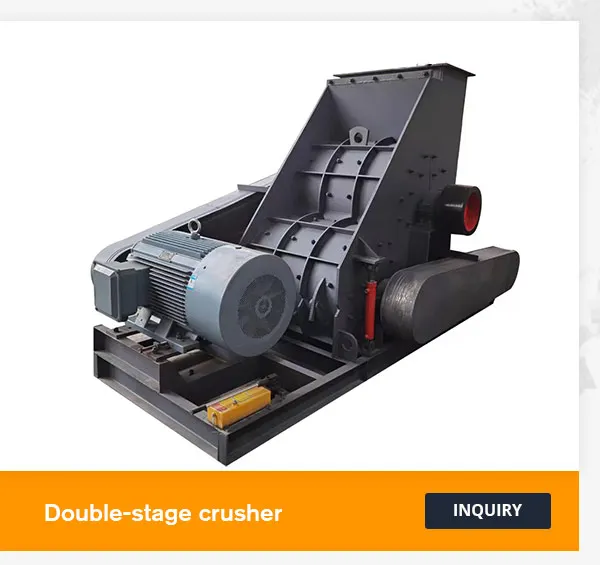

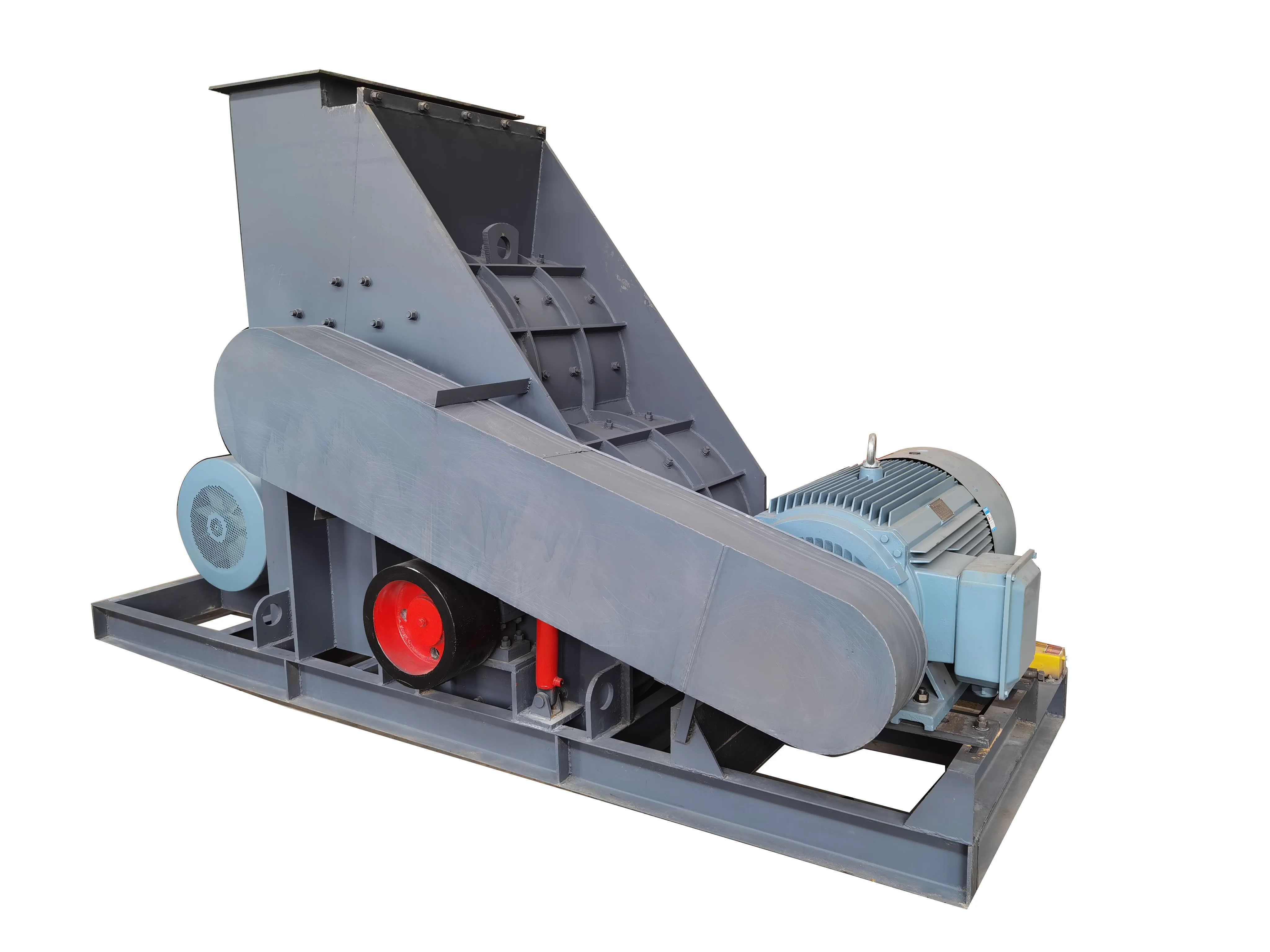

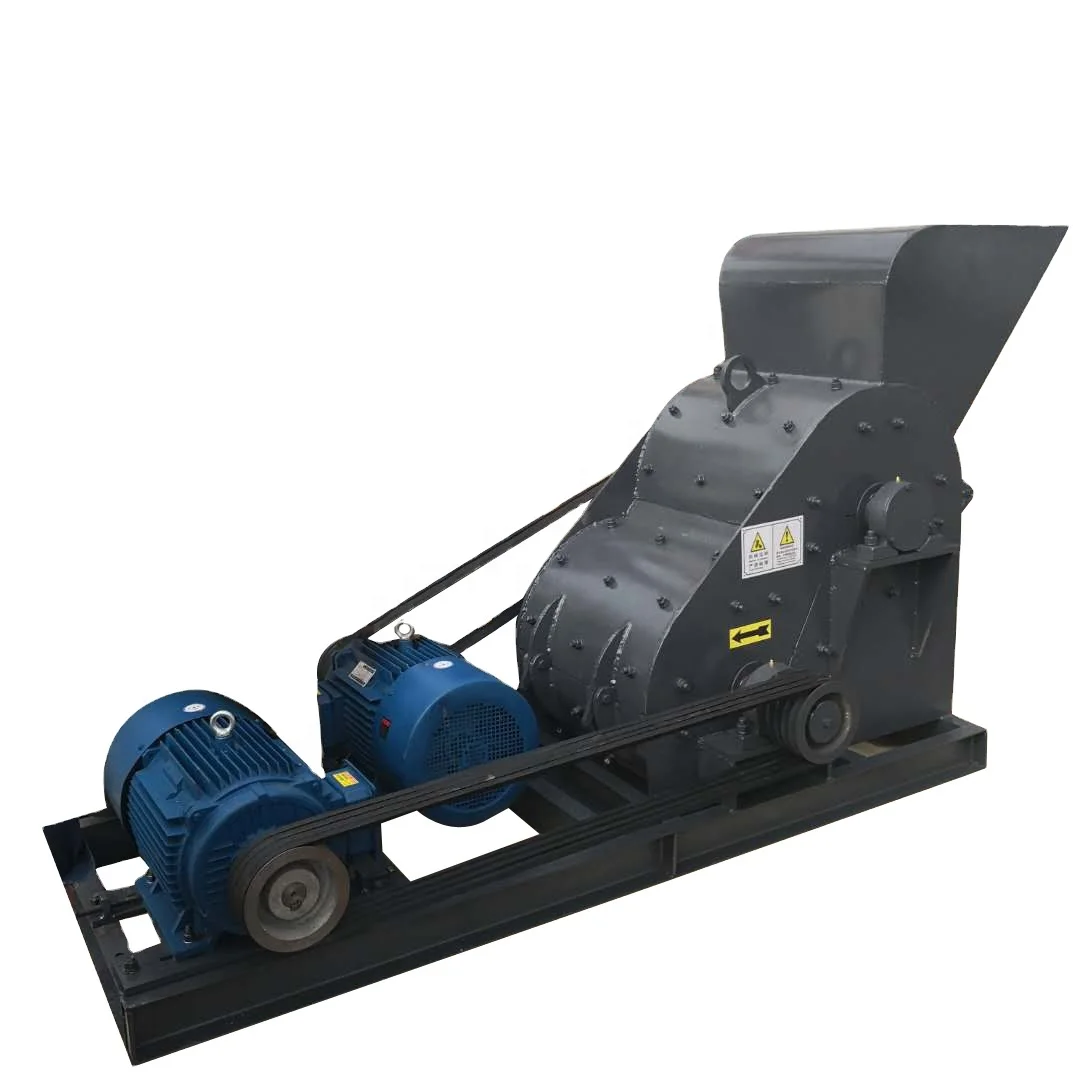

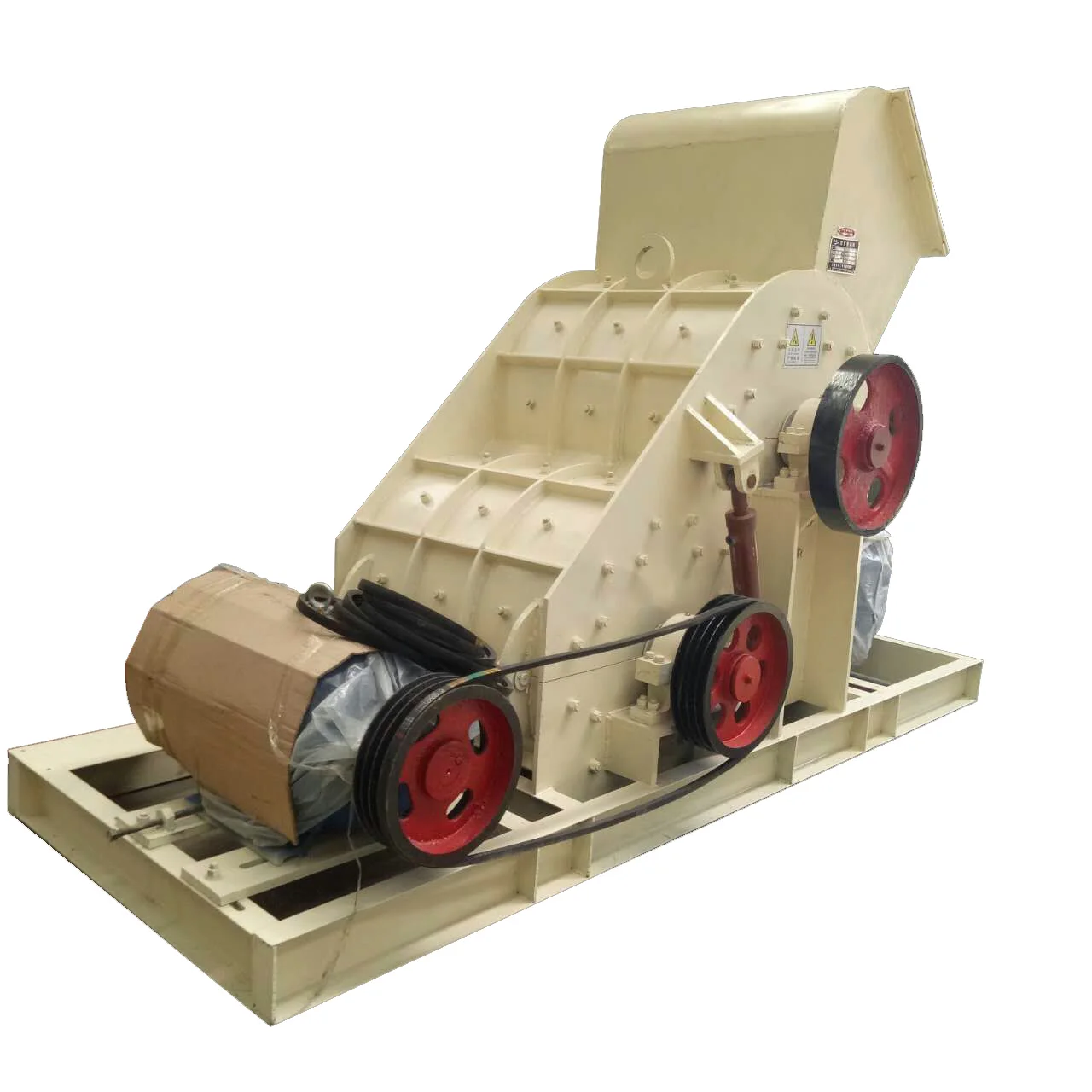

Two-stage Crusher is mainly composed of silos, conveying devices, high-speed hammers, motors, brackets and other parts. Two-stage Crusher has a wide range of applications. It is mainly applied to the crushing of coal gangue, carbon mud, coal slime, coal, and clean coal. Two-stage Crusher has no screen, no residual residue, 100% yield. There is no limit on material humidity and feed particle size. Slime regardless of the shape can be directly into the machine crushing.
River pebbles Iron ore Marble
Characteristics
1.The output particle size below 3 mm and below 2 mm accounts for more than 90%. Uniform particle adjustable, especially suitable
for the production of porous brick, thin-walled brick.2.Double - rotor two - stage grinding, not grate mesh, wet material does not plug.
3.Hammer head, liner bidirectional clearance, at any time to control the size of the discharge.
4.Double shaft and double flying wheel, stable operation, high inertia, power saving more than 20%.
5.With its own hydraulic lifting device, the replacement of hammerhead maintenance saves time and effort.

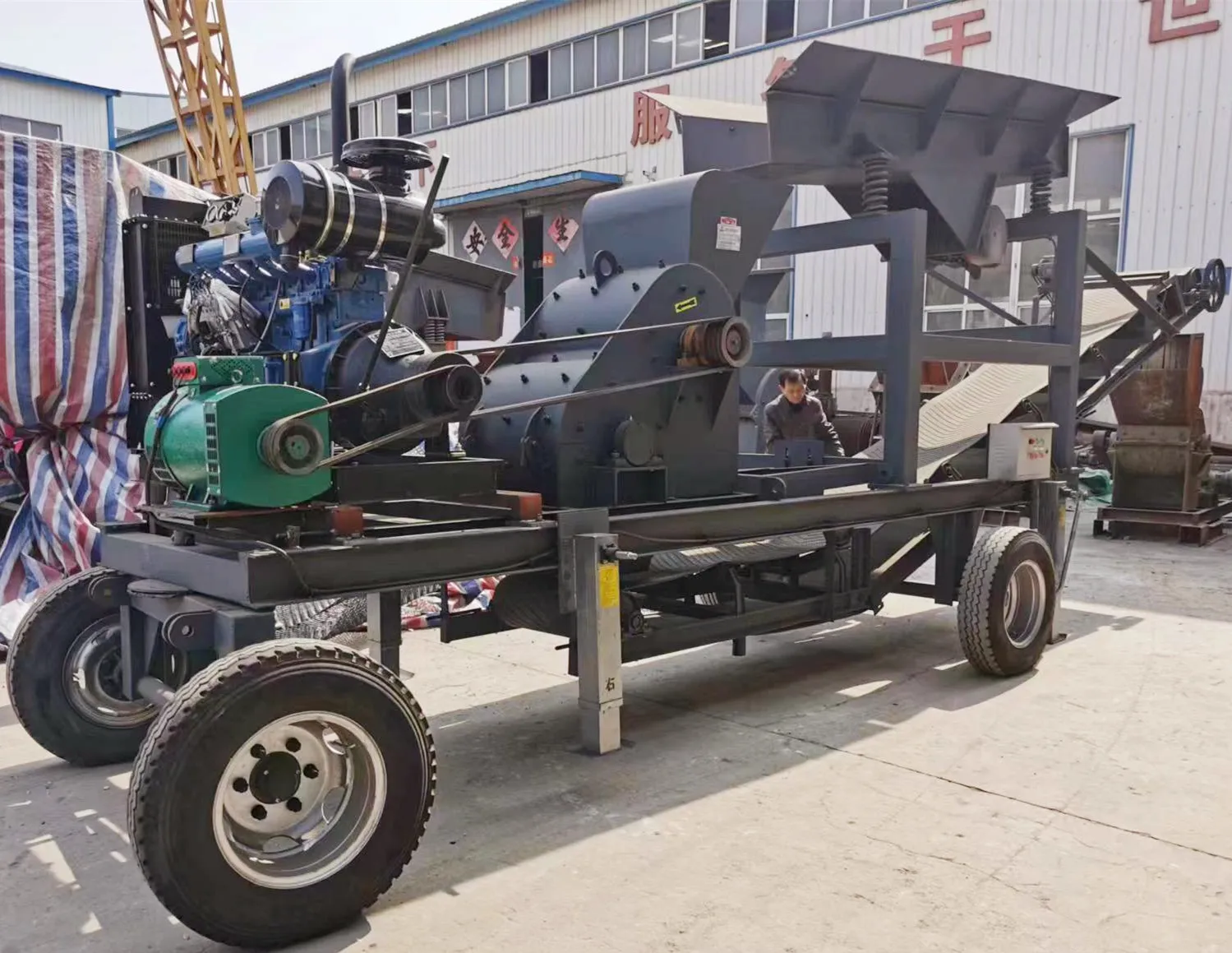

diesel mobile hammer mill crusher sand making machine fine impact price
Product specification and display
Type specification | Weight(T) | Output(t/h) | The number of hammerhead(PCS) | The hammerhead weight(KG/PC) | Motor type(KW) | Disharging granularity(mm) |
2PC-600*400 | 1 | 10-15 | 24 | 3.5 | 18.5+18.5 | 2-3 |
2PC-600*600 | 1.3 | 15-20 | 40 | 3.5 | 22+22 | 2-3 |
2PC-600*800 | 1.8 | 20-30 | 48 | 3.5 | 30+22 | 2-3 |
2PC-800*600 | 3 | 30-40 | 40 | 7 | 45+37 | 2-3 |
2PC-800*800 | 3.5 | 40-50 | 48 | 7 | 55+45 | 2-3 |
2PC-1000*800 | 5.5 | 50-60 | 48 | 8 | 55+75 | 2-3 |
2PC-1000*1000 | 7 | 60-90 | 52 | 8 | 90+75 | 2-3 |
2PC-1000*1200 | 8 | 70-90 | 56 | 8 | 110+90 | 2-3 |
2PC-1000*1400 | 8.5 | 100-120 | 60 | 10 | 110+132 | 2-3 |
2PC-1200*1400 | 9 | 120-130 | 60 | 12 | 132+160 | 2-3 |
2PC-1400*1600 | 13 | 130-180 | 72 | 20 | 160+200 | 2-3 |
The rotor disc
the rotor
Motor wheel and counterweight wheel
lining plate
bearing box
hammerhead
mainshaft bearing
integral construction
Counterattack plate
Product advantages and application fields
Company introduction and certificate display
Introduction
Gongyi Jintai Trading Co., Ltd was established on August 6, 2001. It is specialized in producing and manufacturing various types of automatic oil presses, hydraulic oil presses, ore crushers, metal crushers, shredders, magnetic separators, and counter rolls. Crusher, professional manufacturer of brick making machine, the company has export rights and has a professional R & D team and technical assurance department. Every Gongyi Jintai Trading Co., Ltd equipment is tested by the test machine. The quality warranty is one year. Welcome new and old customers to order machinery equipment! We will win your recognition with the best quality!
Customer feedback display

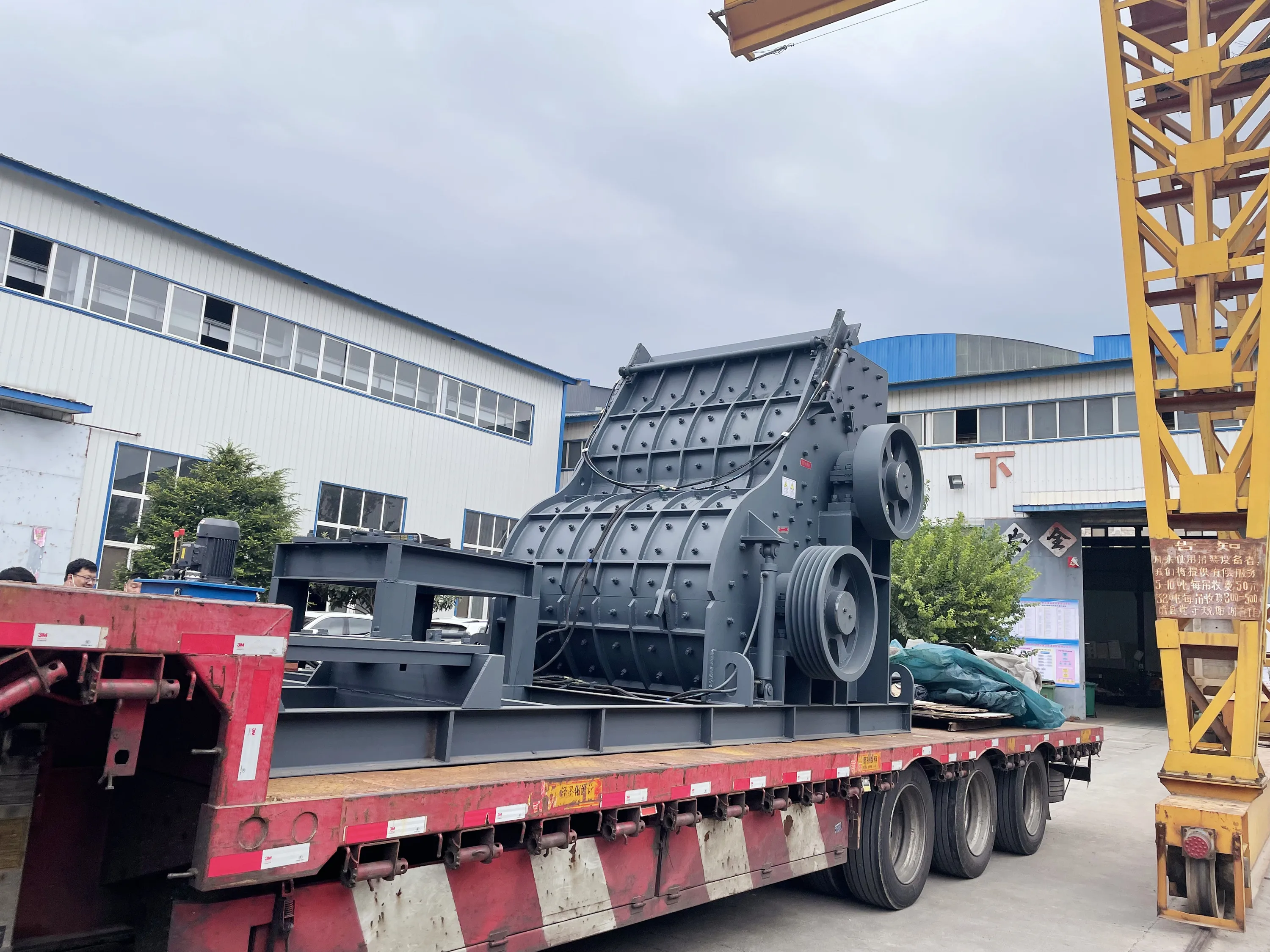

Packaging and logistics display
FAQ
What about the quality of your products? What is it made of?
The quality of our products is very good. The product is made of manganese steel forging material.It's very strong and durable.
Can the factory send special technicians to the site to guide the installation?
Yes, we can.
Do you have a factory of your own?
Yes, we have our own factory, which is a direct selling factory. And the price is relatively cheaper.
Does your factory sell parts for your products?
Yes, we do.
How long is the warranty period?
The warranty period is generally 1 year.
