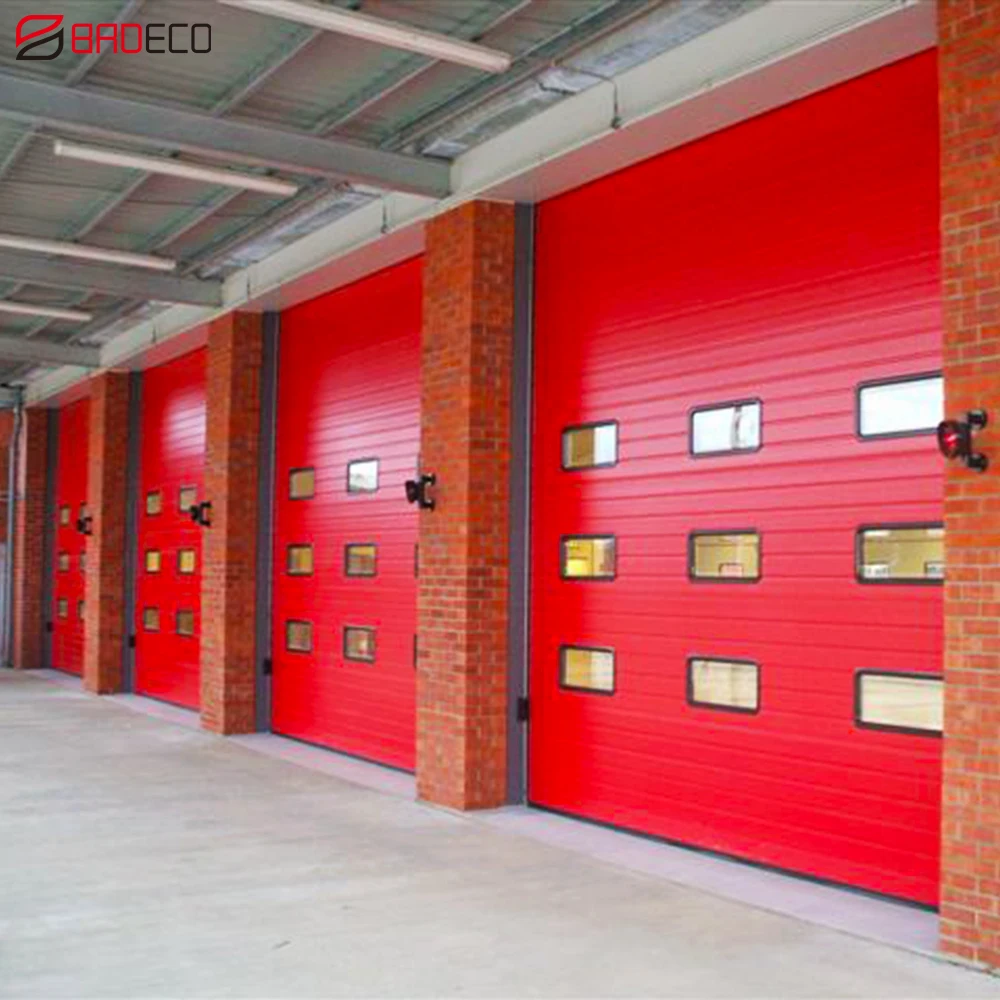

Industrial Doors Industrial Sectional Door Industrial Lift Door For Warehouse
- Category: >>>
- Supplier: Brd New Materials Tech Co. Ltd.
Share on (1600622973688):
Product Overview
Description
Product Description

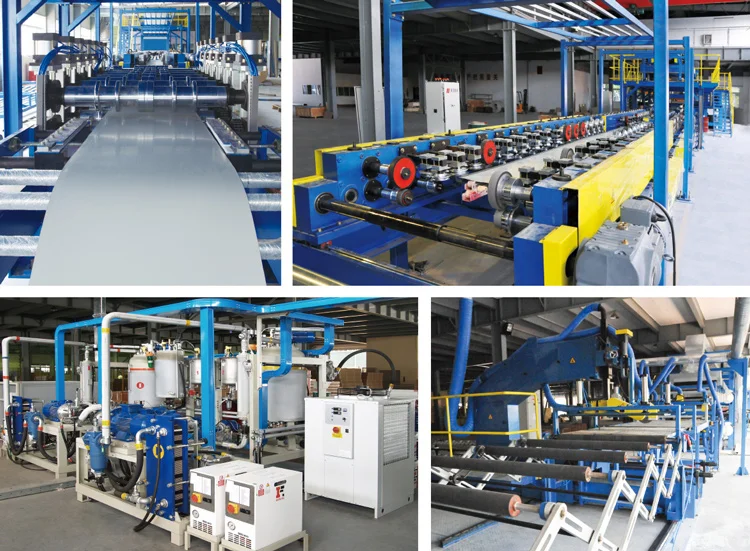

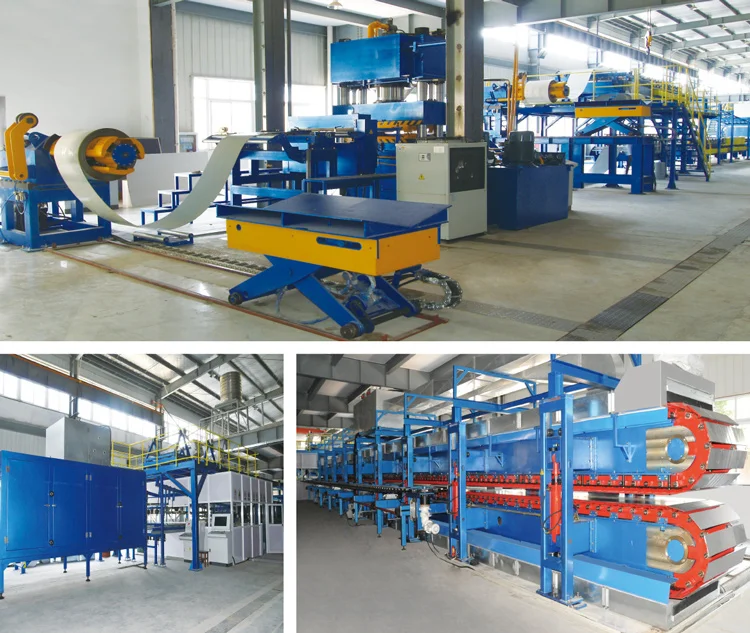

Industrial sectional door is made up of high quality panel, hardware and motor. And the panel is made by continuous line. The annual production ability 50,000sets. We strictly control all details to ensure outputting high quality products. We had cooperated many customers from over 70 countries. And OEM for CASTCORMA, OBI, LORRYMERILIN, RONA and so on.
Specification
Product Type | Insulation industrial door |
Application | Industrial ware house, Logistic warehouse |

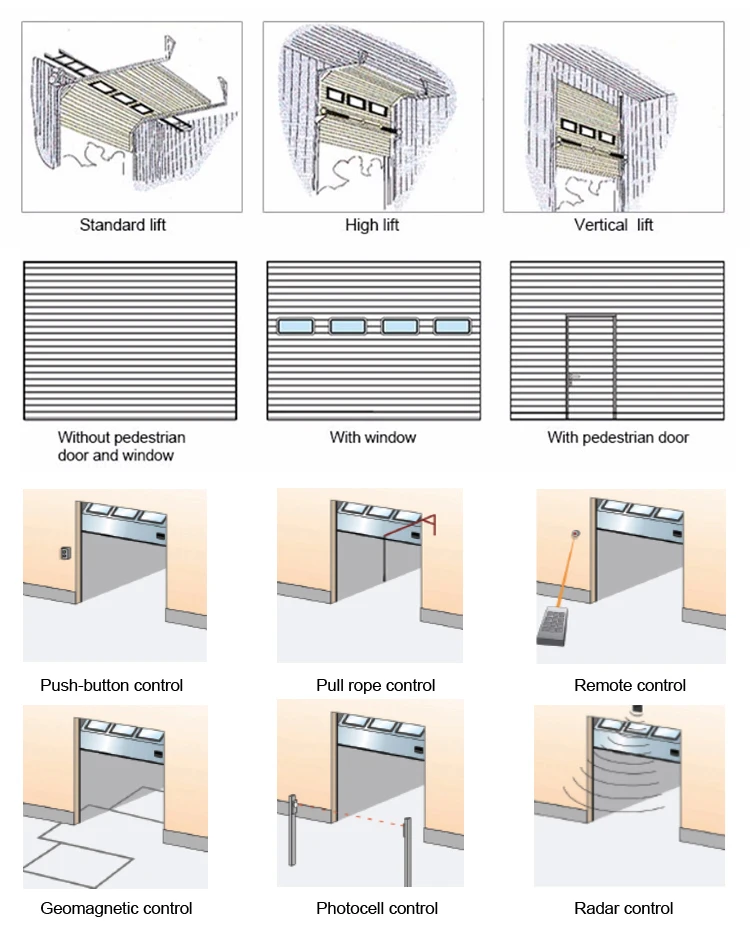

Open Style | Standard overhead lift, High lift, Vertical lift |

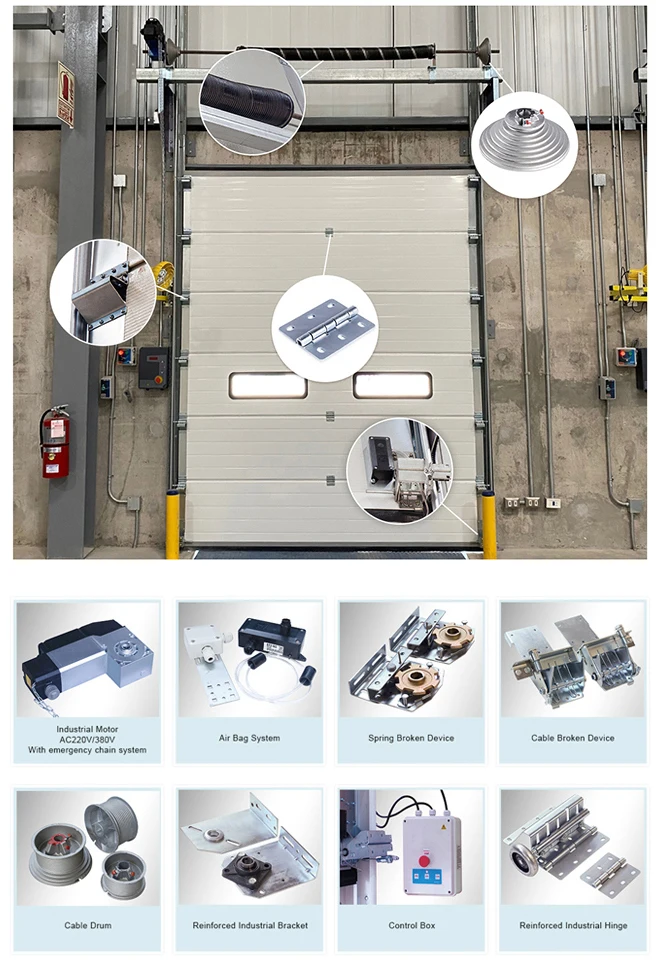

Including | 2" galvanised hardware, 3" galvanised hardware, Torsion spring |
Safety optional | Spring broken device, Cable broken device, Photocell, Radar, Geomagnetic, Pull rope, Wall switch |
Material | Glavanised steel, B3 grade PU foam (DOW) CFC free or B2 grade PU foam ( DOW) CFC free, PE protective film |
Steel Thickness | 0.326mm, 0.45mm thickness |
1.0mm thickness reinforcement sheet | |
Panel Color | Standard: RAL9002 Offwhite |
Panel Design | Finger-protection |
Panel Weight | 9.2kg/m2-11.2kg/m2 |
Thickness | 40+2mm |
Density | 45±2kg/m3 |
Max. Length | 11.8m for 40HQ |
Panel width | 500mm |
Surface treatment | Finished |
Opener | Side industrial motor |
Voltage | 110V/220V/380V |
Warranty | 3-5years |
Certificate | ISO9001:2015 CE TUV |
Packing | Exported standard carton |
Port | Shanghai port |
Devliery time | 15-25 Days |

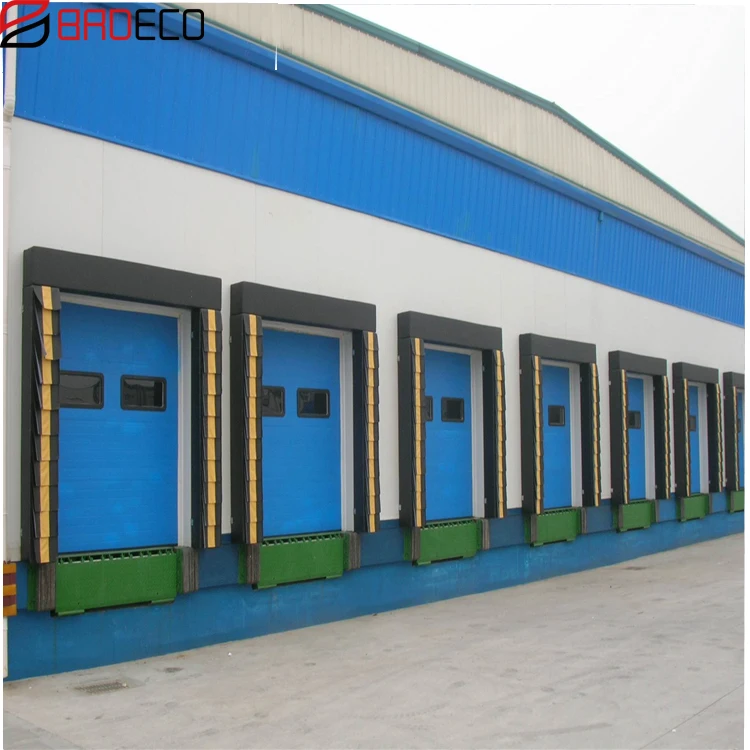

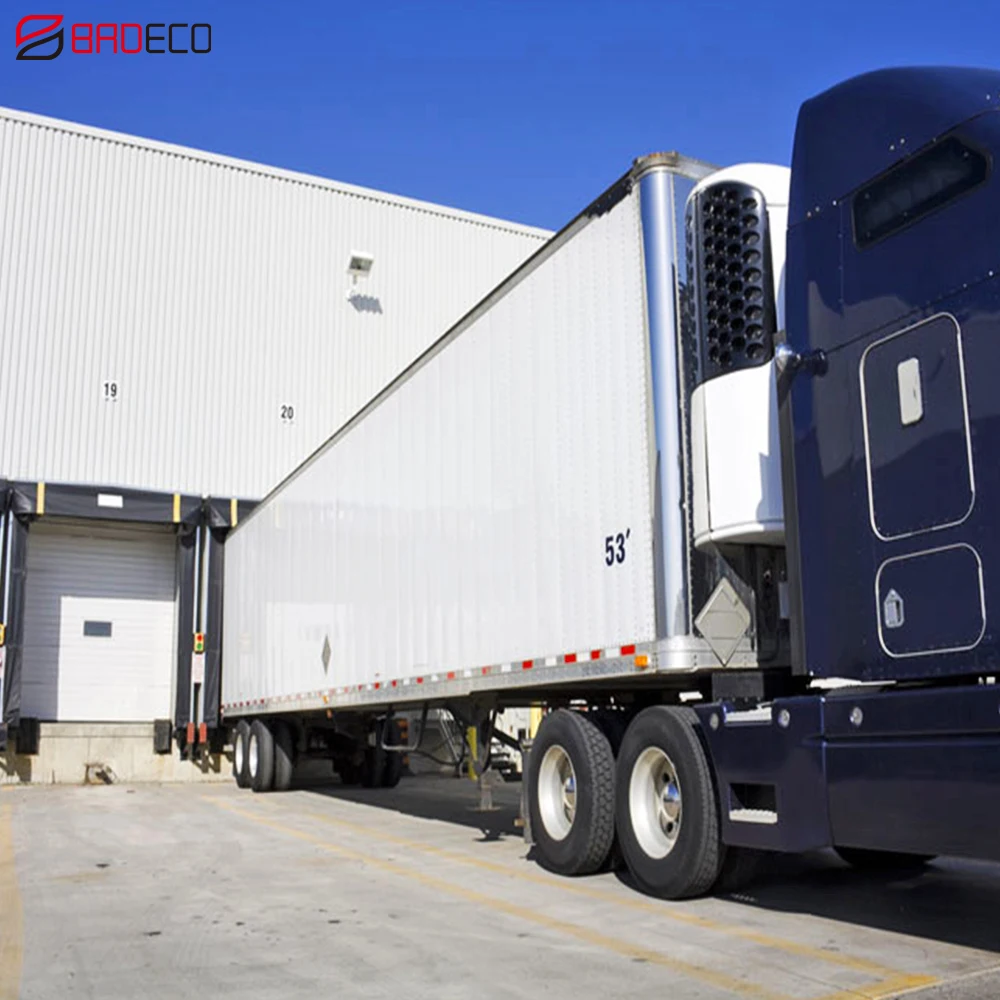

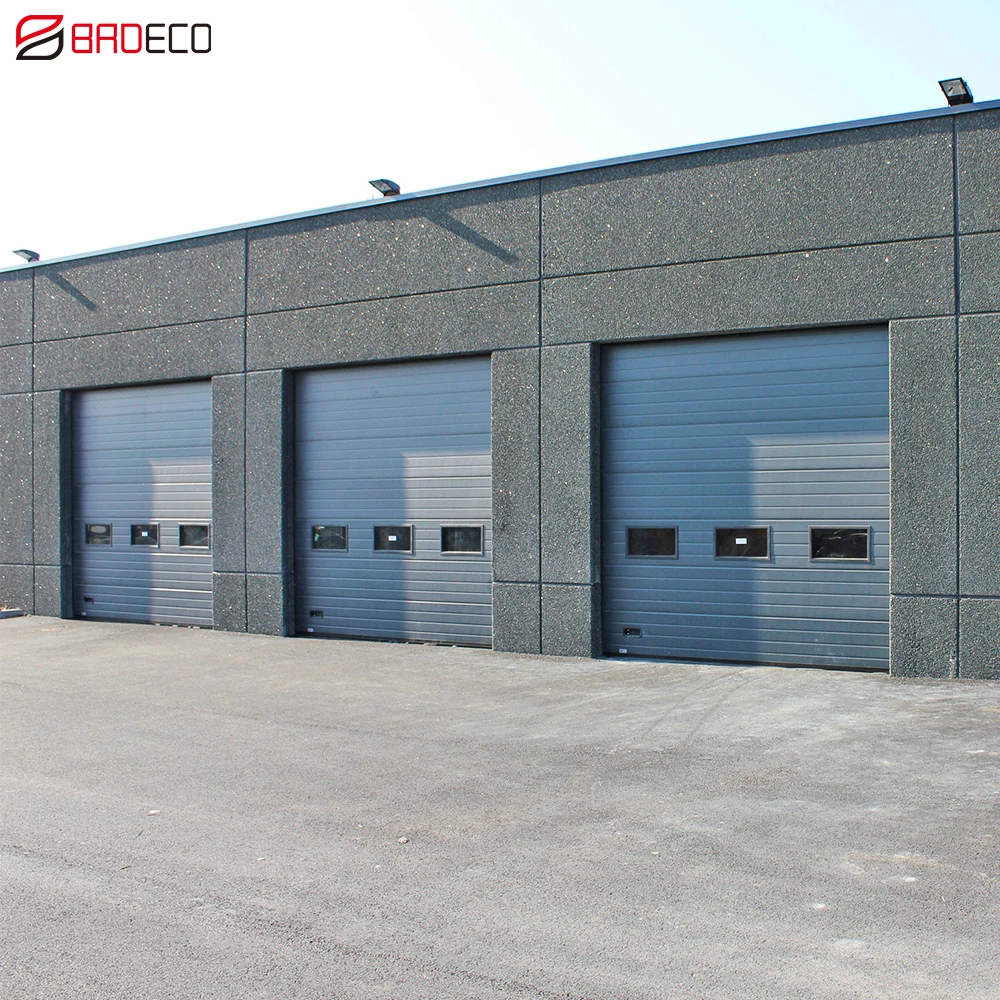

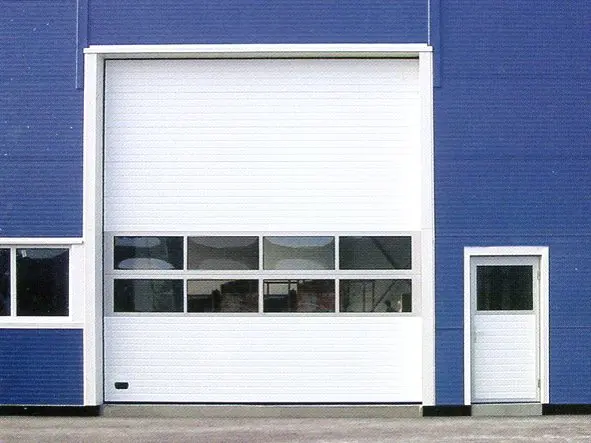

Product Display
Why Choose Us
installation and Details

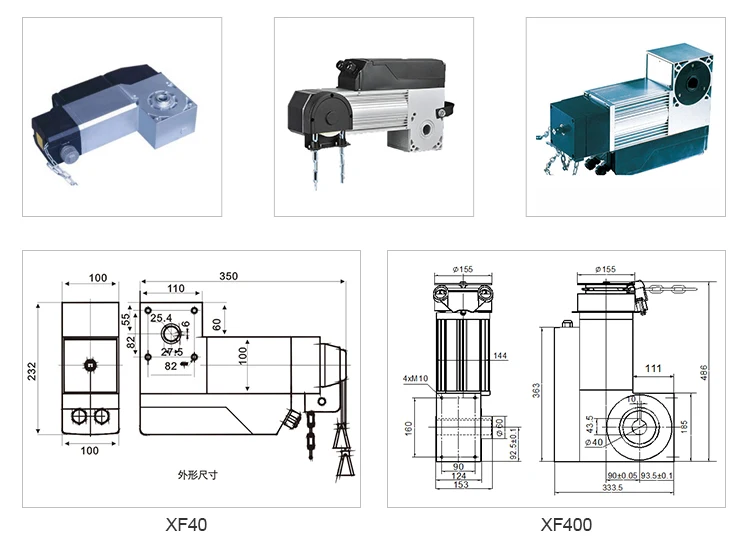

Type | XF40 | XF50 | XF60 | XF120S | XF200S | XF400 | |||||
Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz | 380V/50Hz | 380V/50Hz | 220V/50Hz | |||||
Motor Rotaion Speed | 1400rpm | 1400rpm | 1400rpm | 1400rpm | 1400rpm | 960rpm | |||||
Output Rotaion Speed | 24r/min | 32r/min | 24r/min | 24r/min | 24r/min | 9r/min | |||||
Output Torque | 40N.m | 30N.m | 60N.m | 120N.m | 200N.m | 200N.m | |||||
Motor Power | 300W | 300W | 500W | 700W | 800W | 800W | |||||
Max Continuous Working Time | 10min | 10min | 10MIN | 20min | 15min | 10min | |||||
Barrel Diameter | Ø25.4mm | Ø25.4mm | Ø25.4mm | Ø25.4mm/Ø31.8mm | Ø25.4mm/Ø31.8mm | Ø40mm | |||||
Flat Key | 6×5×70 | 6×5×70 | 6×6×100 | 6×6×100 | 6×6×100 | 10×8×100 | |||||
Thermal Protection | 120℃ | ||||||||||
Max Rotation | 28cycles | 28cycles | 18cycles | 18cycles | 18cycles | 20cycles | |||||
Working Temperature | -20℃～+45℃（-40℃ customized） | ||||||||||
Dimensions | 100×233×350 | 100×233×360 | 120×290×447 | 120×290×447 | 120×290×447 | 153×334×480 | |||||
Net Weight | 12kg | 12kg | 22kg | 22kg | 22kg | 45kg | |||||
Door | ＜20m² | ＜18m² | ＜30m² | ＜45m² | ＜55m² | ＜50m² | |||||
Main Function
● The unique built-in braking system can furthest reduce the inertial stroke of industrial doors and make stop positions of doors accurate;
● The safe and reliable disengaging wrench facilitates the installation of users, the adjustment and maintenance of balancing springs and use during power outage;
● Having a thermal protection function, and high safety and reliability;
● Above IP54 of safety protection class;
● The low-temperature lubricating oil ensures that the machine runs stably, has low noise and a long service life, and is suitable for working in cold areas;
Packing & Delivery

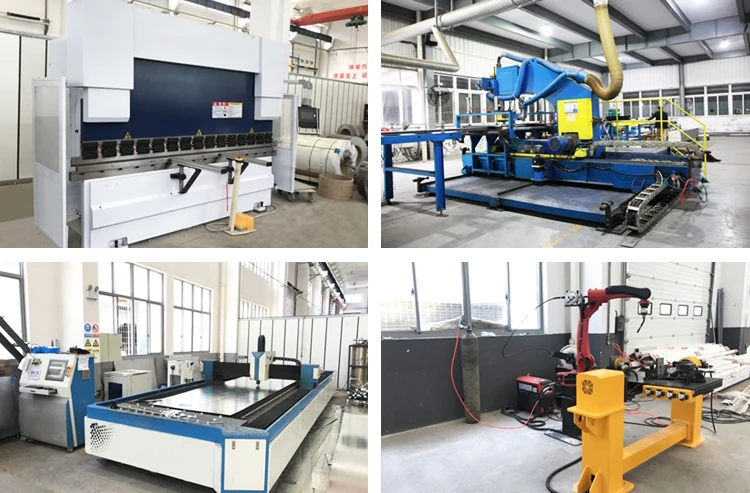

Company Profile
BRDECO is established in 1995, is a listed company in Central China and one of the earliest construction materials manufacturers. With years of efforts in R&D and innovation, we successfully produced and applied PUR and PIR sandwich panels, Rock wool panels, Garage Doors, Decorative insulation Panel, Wall cladding System, Steel frame structure, and other energy saving building materials. With production area in 3000 thousand square meters and staff over 500, BRDECO is committed to making the buildings more environmentally friendly and energy saving. Advanced technical thought and modern technology allows us to create products that fully meet the needs of today's investor.
BRDECO has got ISO9001 and TUV certification, and our products have got CE certification. The distributor covers more than 21 cities in the world. BRD Group export sales channel has covered over 35 countries and places, such as America, United Kingdom, Canada, Russia, Peru, Vietnam, Trinidad and Tobago, Australia, Sweden, and some other countries in Europe, Southeast Asia, Southern Africa and other places.
Our consulting and sales services are provided through our own network of regional branches, distributors and a team of professional sales advisors.
We sincerely hope to cooperate with you to create a double win game.
BRDECO has got ISO9001 and TUV certification, and our products have got CE certification. The distributor covers more than 21 cities in the world. BRD Group export sales channel has covered over 35 countries and places, such as America, United Kingdom, Canada, Russia, Peru, Vietnam, Trinidad and Tobago, Australia, Sweden, and some other countries in Europe, Southeast Asia, Southern Africa and other places.
Our consulting and sales services are provided through our own network of regional branches, distributors and a team of professional sales advisors.
We sincerely hope to cooperate with you to create a double win game.
FAQ
Q1:What is your MOQ?
Re:Our automatic continous line required 200m for B3 grade, 400m for B2 grade.Also accept sample order
Q2:What is the delivery time?
Q2:What is the delivery time?
Re:About 15-30days, need check stocked raw material spec is enough or not.
Q3:What is the Max.available size of the panels?
Re:The max. length of panel can be 11.8m. Standard width 500mm.
Q4:What about your package?
Re:Carton box for full container order, Polywood box for sample order
Re:Carton box for full container order, Polywood box for sample order
Q5:What kind of payment terms would you accept?
Re:Usually we accept T/T, L/C, Western Union, Credit Card etc. If you prefer other payment terms, please feel free to discuss with us.
Q6:We want to be your agent of our area. How to apply for this?
Re:Please send your idea and your profile to us. Let's cooperate.
Q7:Can I get a sample to check your quality?
Re:Sample panel is available.
Q8:How can I know the price exactly?
Re:Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.
Q9:Is it difficult to install your door?
Re:Easy to install. We have manual book and installation video for your reference.We also provide support for training your staff in our factory or let our engineer go to your city provide techinical support.
Q10:Do you produce other products? What about your export experience?
Re. Except for sectional garage door, we also produce industrial door, roll shutter door, high speed door, hangar door etc.We had export since 2003 year, we have cooperated with Low'es, RONA etc.Had designed and produced for Maldives airport. Mongolia airport, Nepal airport, Romania airport etc.
