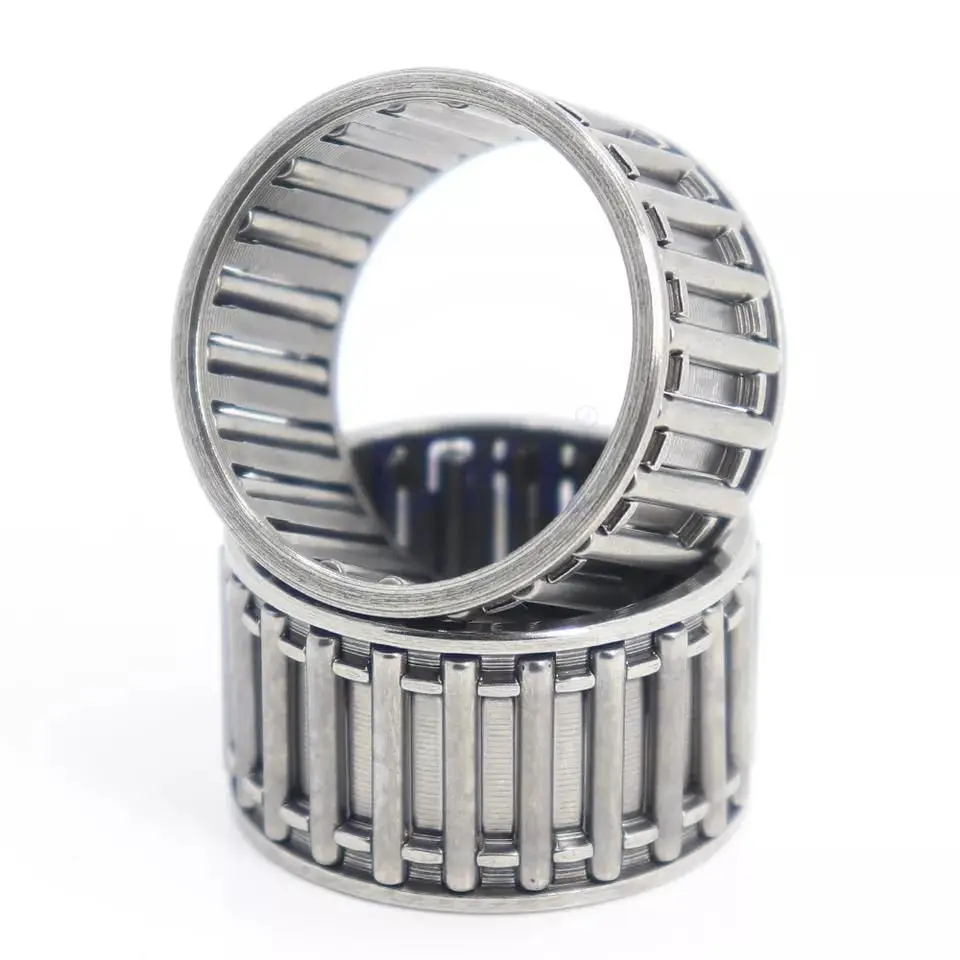

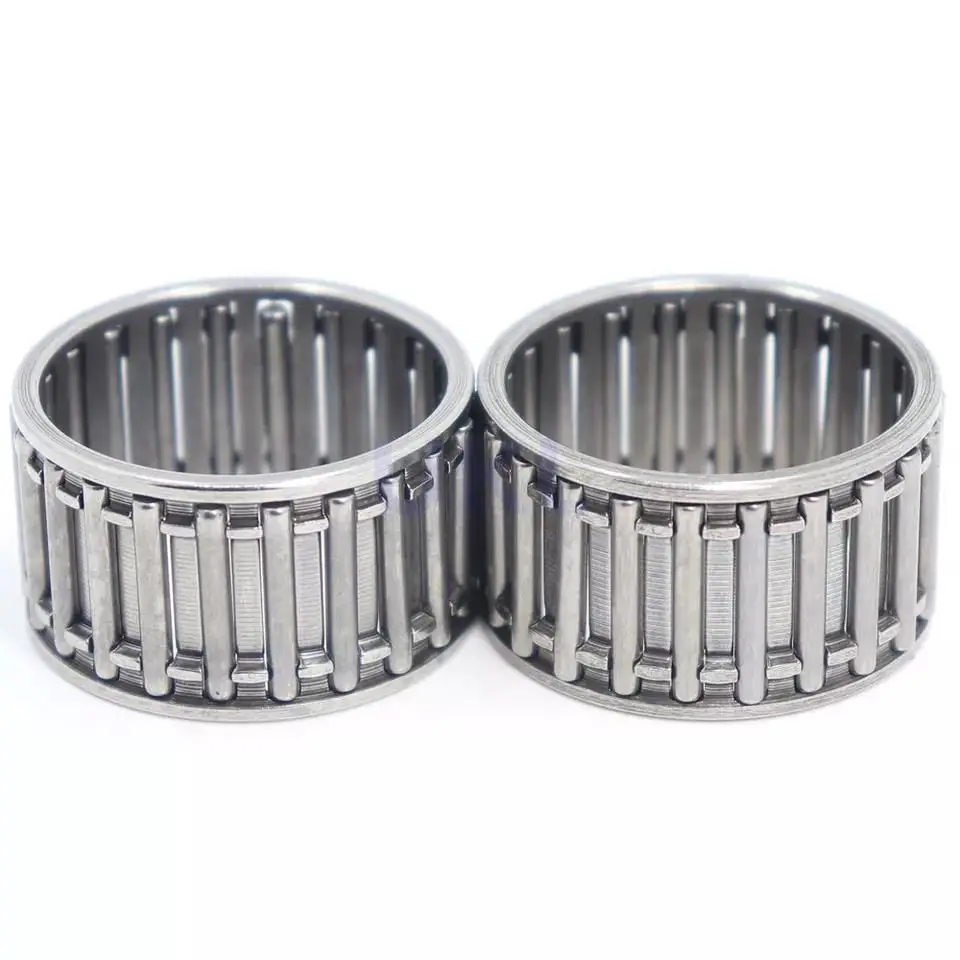

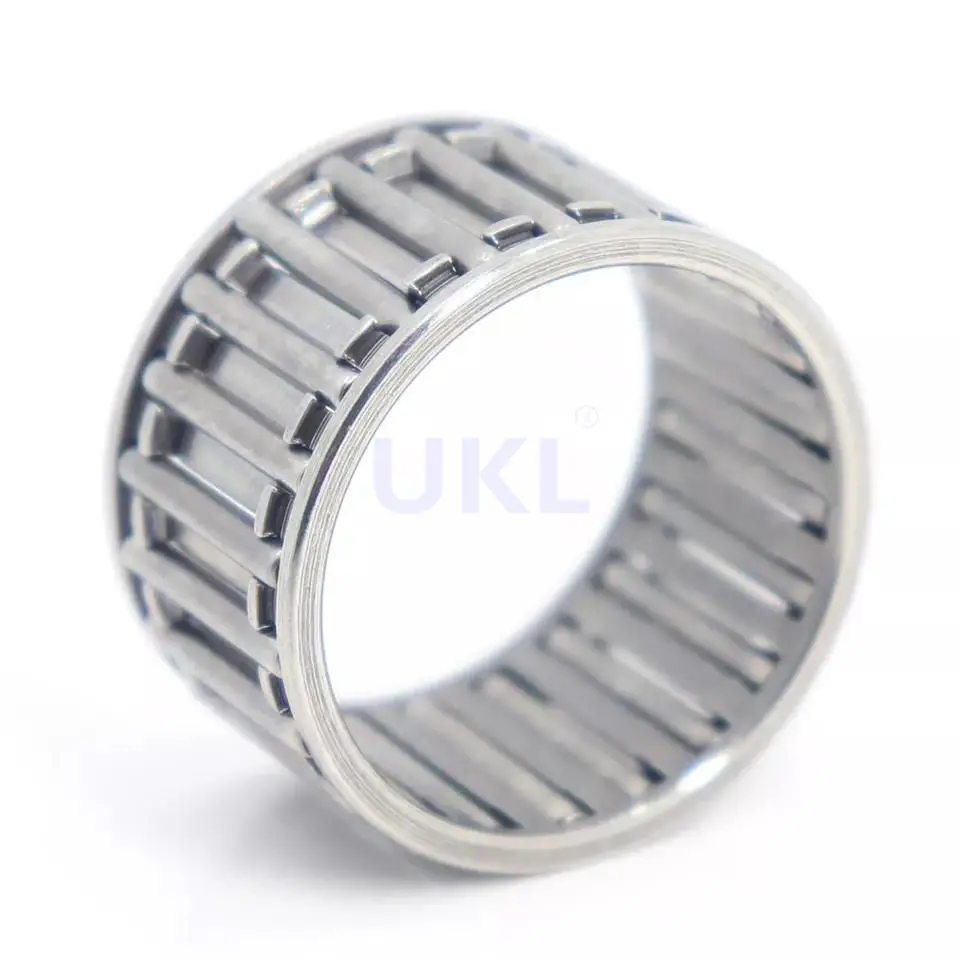

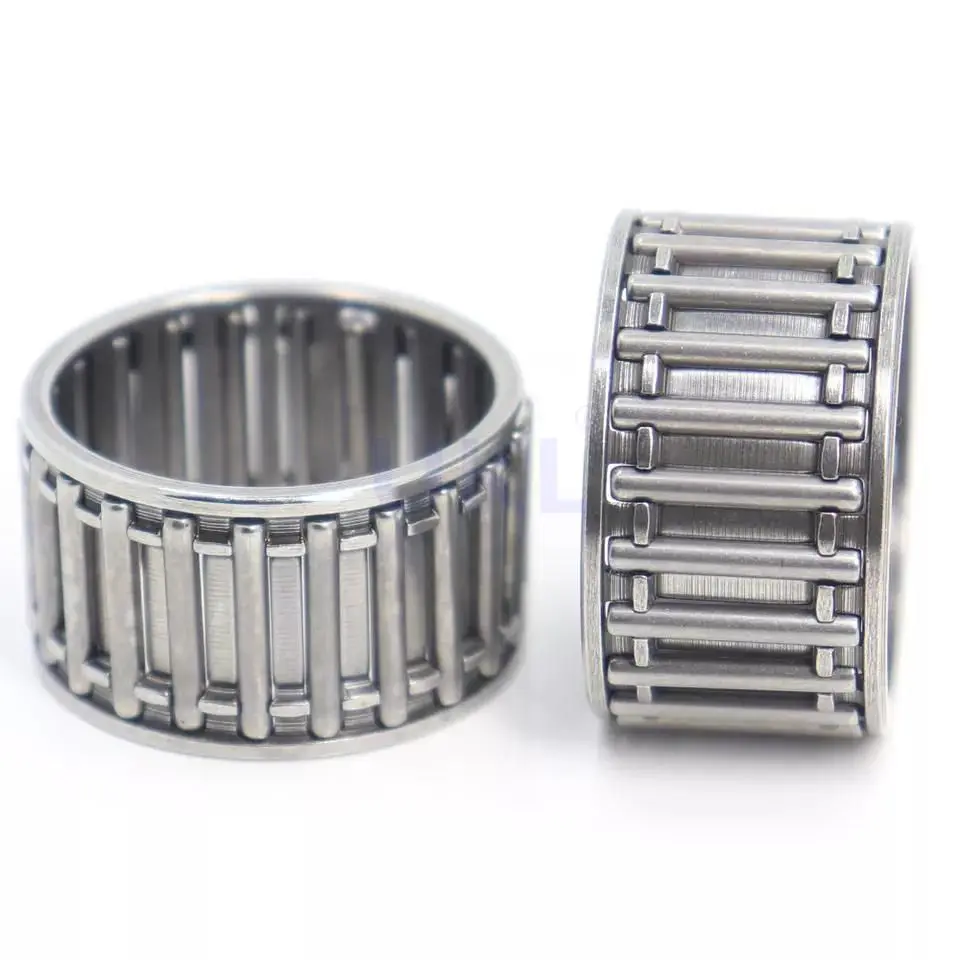

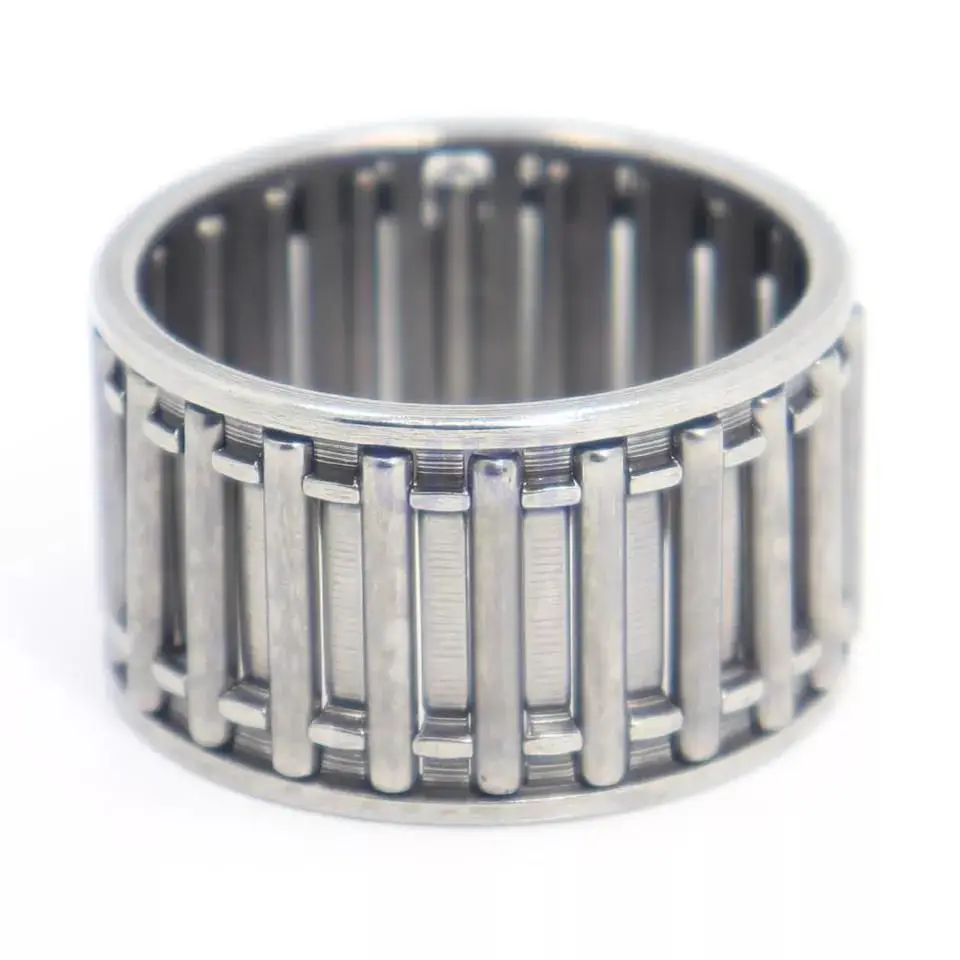

UKL Brand K 45X59X32 47X52X17 47X52X27 50X55X13.5 50X55X20 50X55X30 Needle Roller and Cage Assemblies
- Category: >>>
- Supplier: Ukl Bearing Manufacturing Co. Ltd.
Share on (1600623019019):
Product Overview
Description
Products Description
Product Name | Needle Roller Bearing |
Bearing Material | Carbon steel |
Precision Grade | P0 P6 P5 P4 P2 |
Bearing Size | Customize |
Clearance | C0 C2 C3 C4 C5 |
Bearing Sample | Available |
Payment Terms | TT or Alibaba Trade Assurance |
Packing | Oppbag+box |
Shipping Method | By air or by sea |
Product Details

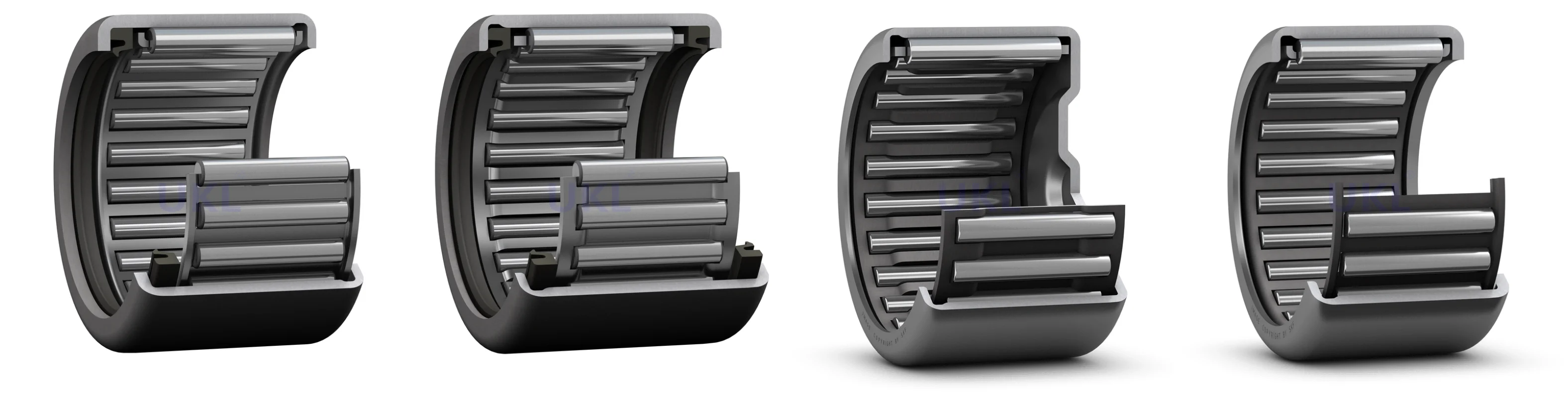

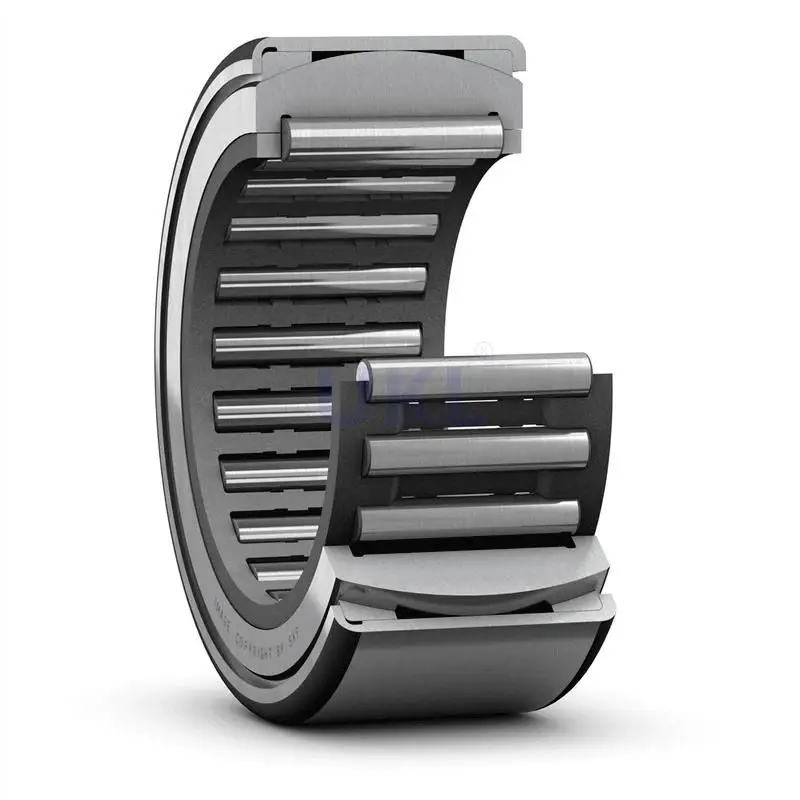

Drawn cup needle roller bearings
UKL drawn cup needle roller bearings have a deep drawn, thin-walled outer ring. Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. These bearings are mounted with a tight interference fit in the housing.
That enables a simple and economic design of the housing bore, as shoulders or snap rings are not required to locate the bearing axially.
The drawn cup of hardened steel and the needle roller and cage assembly of these bearings form a non-separable unit.
That enables a simple and economic design of the housing bore, as shoulders or snap rings are not required to locate the bearing axially.
The drawn cup of hardened steel and the needle roller and cage assembly of these bearings form a non-separable unit.

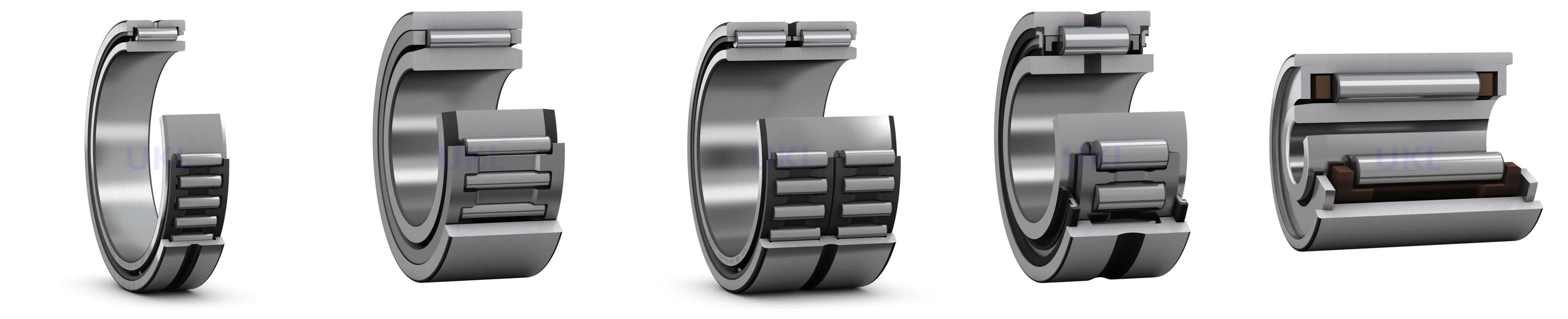

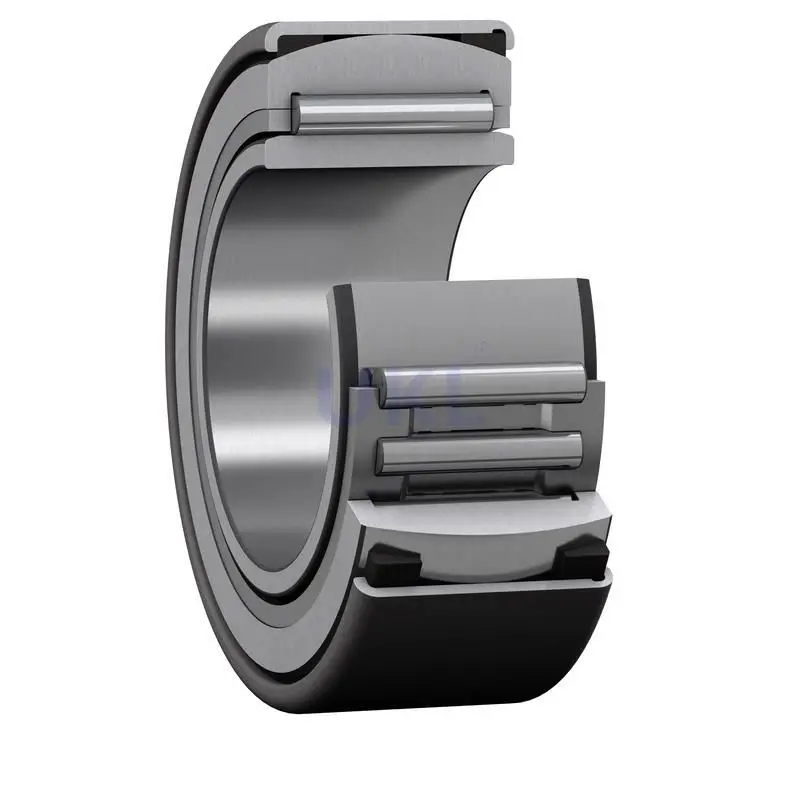

Needle roller bearings with machined rings, with an inner ring
UKL needle roller bearings with machined rings are made of carbon chromium bearing steel. UKL supplies these bearings with or without flanges on the outer ring, in a wide range of series and sizes. UKL also supplies them with or without an inner ring.
Alignment needle roller bearings
UKL alignment needle roller bearings have an outer ring with a sphered (convex) outside surface. Two polymer seating rings with asphered (concave) inside surface are encased in a drawn sheet steel sleeve and fitted over the outer ring.
Combined needle roller bearings
UKL combined needle roller bearings consist of a radial needle roller bearing combined with a thrust bearing. They can accommodate both radial and axial loads. They are particularly suitable for applications where other types of locating bearing arrangements occupy too much space, or where the axial loads are too heavy, the speeds are too high, or the lubricant is inadequate for arrangements with simple thrust washers.
UKL supplies combined needle roller bearings in three basic designs:
* Needle roller / angular contact ball bearings
* Needle roller / thrust ball bearings
* Needle roller / cylindrical roller thrust bearings

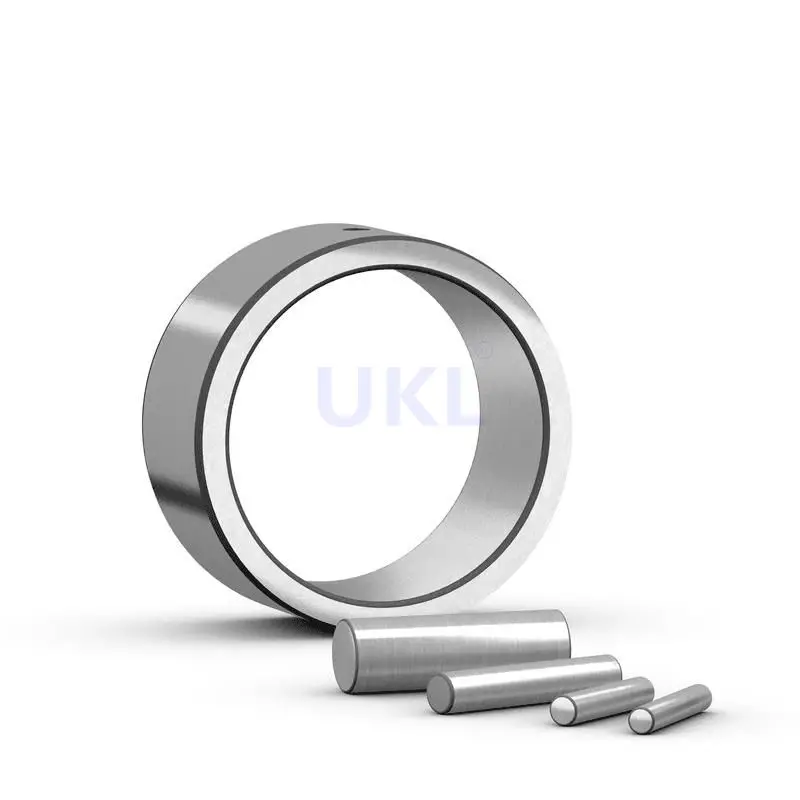

Needle roller bearing components

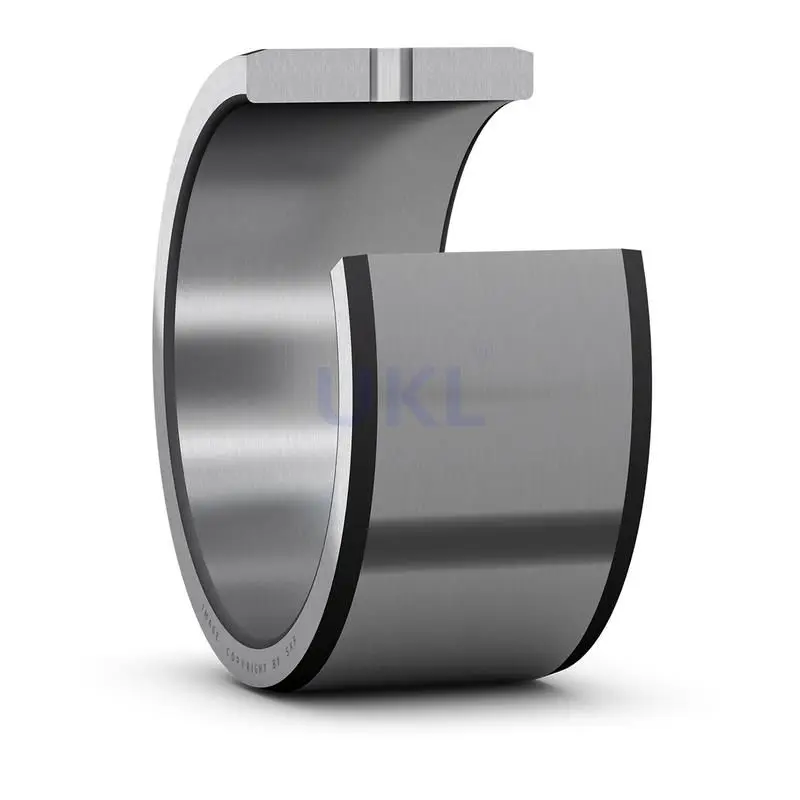

UKL supplies both inner rings for needle roller bearings and needle rollers as separate needle roller bearing components.
Inner rings are typically combined with needle roller and cage assemblies or drawn cup needle roller bearings in applications where the shaft cannot be hardened and ground.

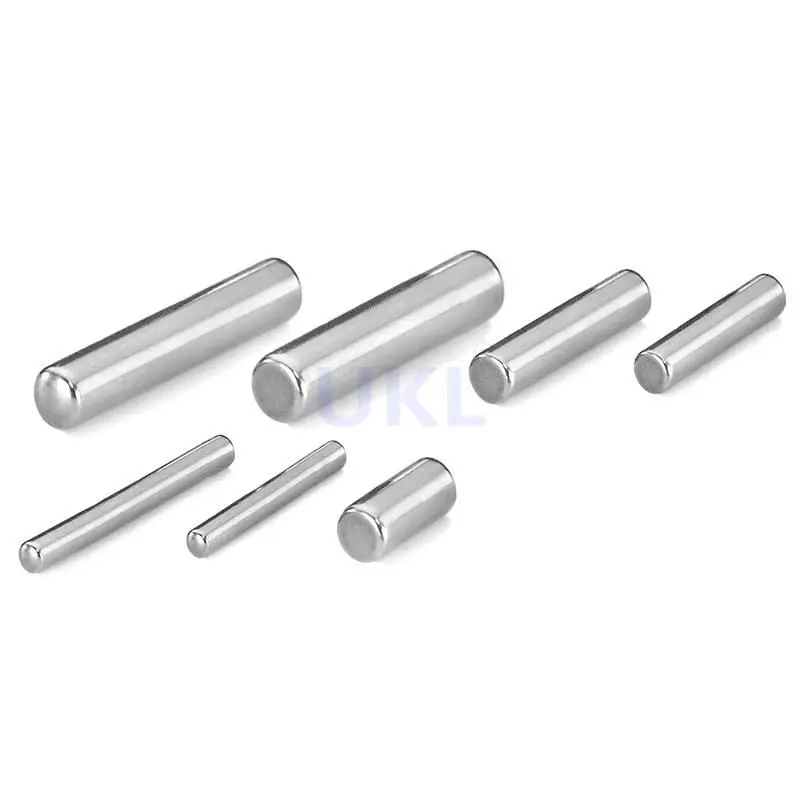

Needle rollers can be used to design full complement bearing arrangements for low-speed or oscillating applications. These compact bearing arrangements have a very high load carrying capacity when compared to bearings with a cage and are economical, provided the shaft and housing bore can serve as raceways (Raceways on shafts and in housings).
Inner rings are typically combined with needle roller and cage assemblies or drawn cup needle roller bearings in applications where the shaft cannot be hardened and ground.
Needle rollers can be used to design full complement bearing arrangements for low-speed or oscillating applications. These compact bearing arrangements have a very high load carrying capacity when compared to bearings with a cage and are economical, provided the shaft and housing bore can serve as raceways (Raceways on shafts and in housings).

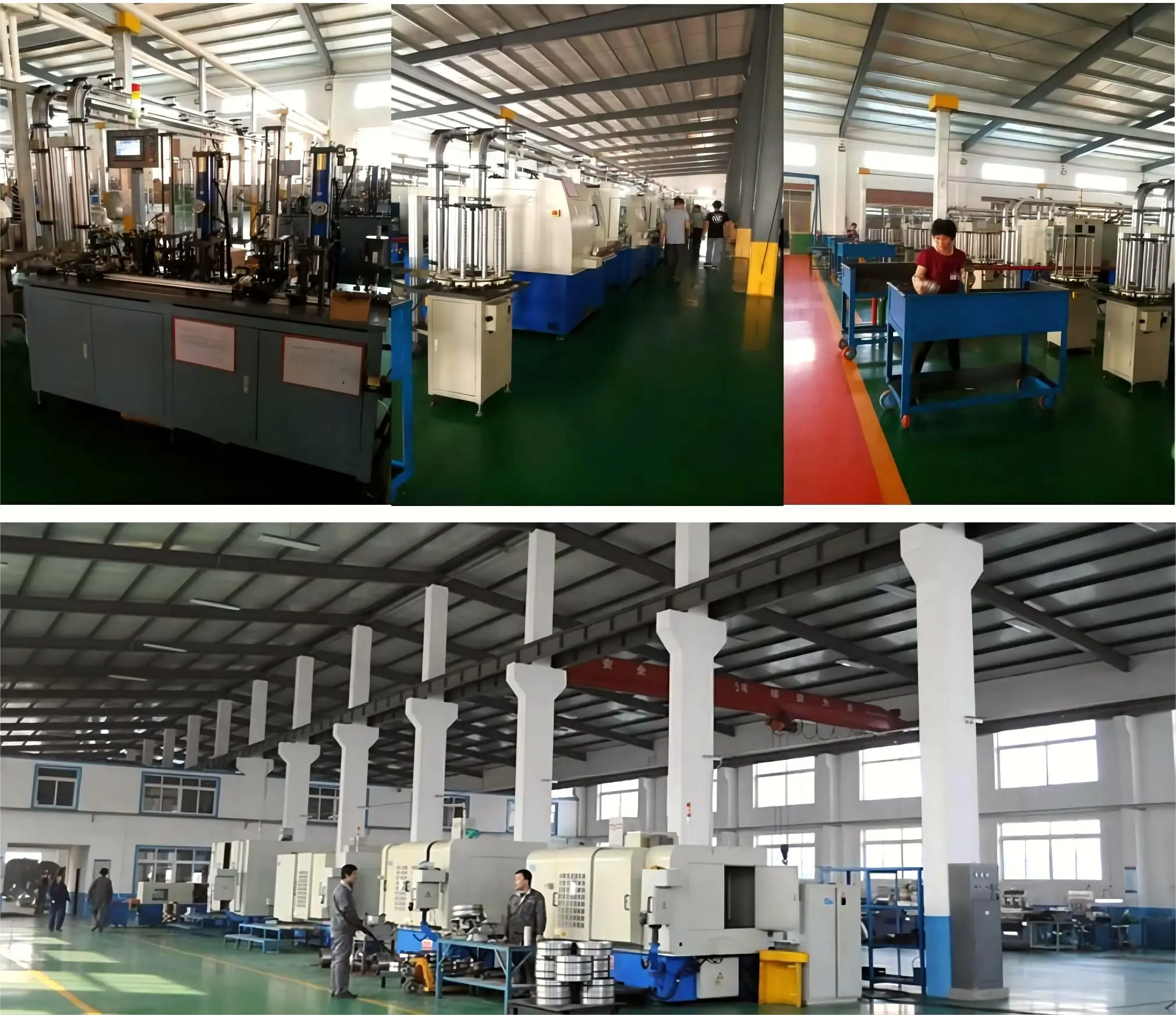

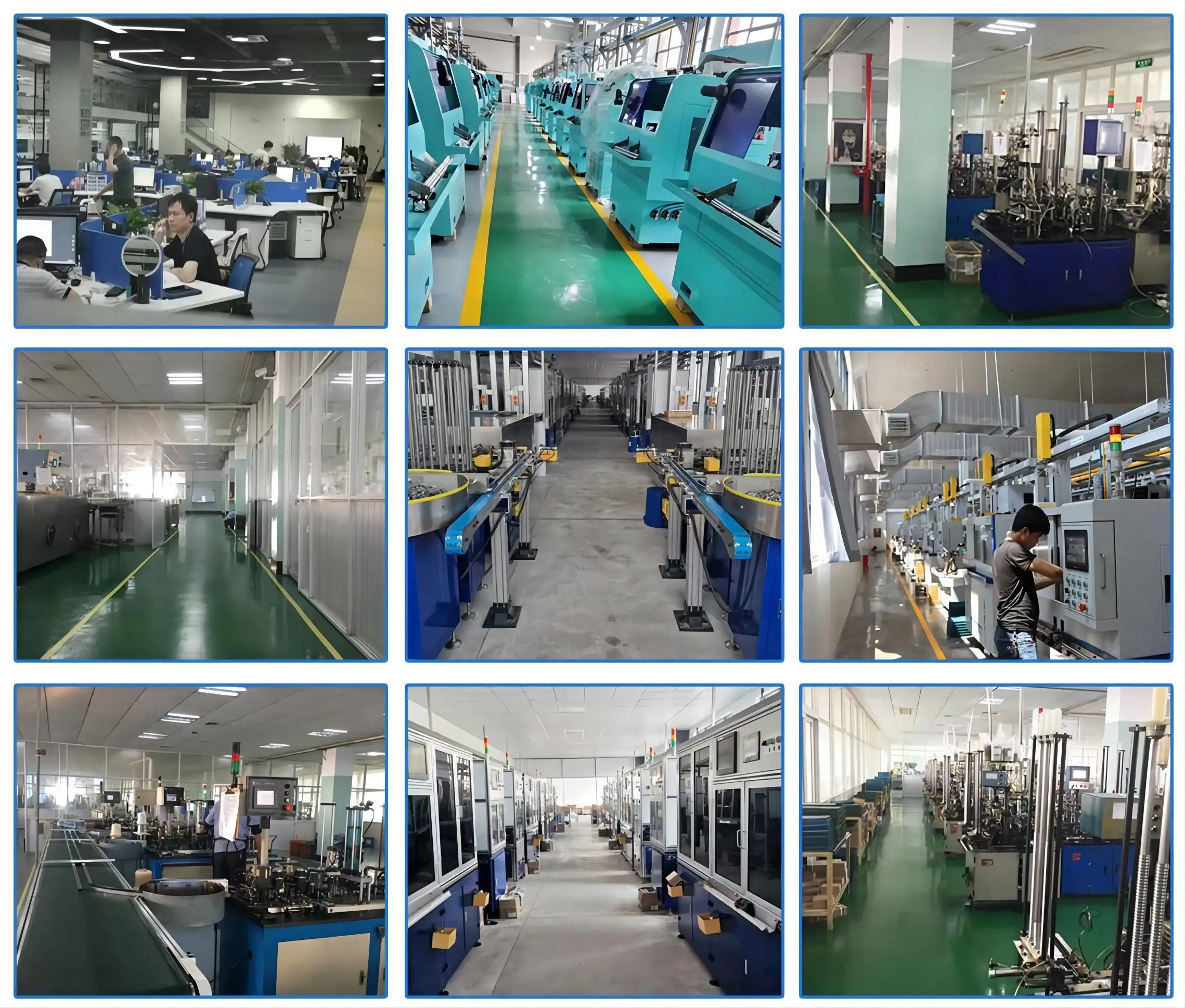

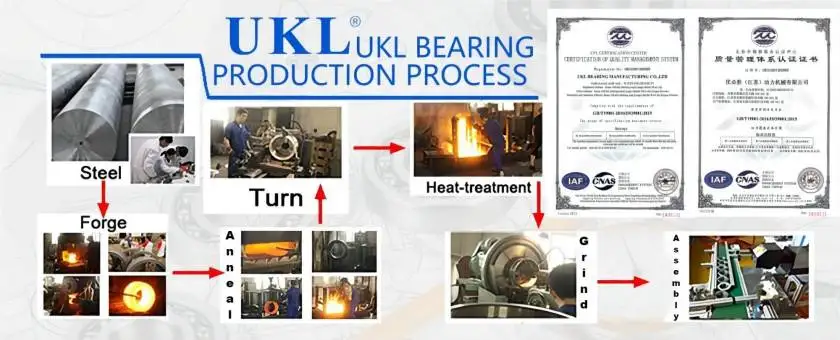

Factory & Equipment
Inspection & Packaging
Application Scenario
Certifications
FAQ
1.Q:What the MOQ of your company?
A:MOQ is 1pc.
2.Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
3.Q:Could you supply sample for free?
A:Yes,we can supply sample for free,do you mind to buy her a ticket?
4.Q:IS you company factory or Trade Company?
A:We have our own factory ;our type is factory +trade.
5.Q:Could you tell me the material of your bearing?
A:We have chrome steel,carbon steel and staninless steel,ceramic and plastic material.
6.Q:Could you offer door to door service?
A:Yes,by express(DHL,FEDEX,TNT,EMS,4-10 days to your city.)
7.Q:Coould you tell me the payment term of your company can accept?
A:T/T.L/C,Western Union,PayPal
8.Q:Could you tell me the delivery time of your doods?
A:If stock,in 7days or base on your order quantity.
A:MOQ is 1pc.
2.Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
3.Q:Could you supply sample for free?
A:Yes,we can supply sample for free,do you mind to buy her a ticket?
4.Q:IS you company factory or Trade Company?
A:We have our own factory ;our type is factory +trade.
5.Q:Could you tell me the material of your bearing?
A:We have chrome steel,carbon steel and staninless steel,ceramic and plastic material.
6.Q:Could you offer door to door service?
A:Yes,by express(DHL,FEDEX,TNT,EMS,4-10 days to your city.)
7.Q:Coould you tell me the payment term of your company can accept?
A:T/T.L/C,Western Union,PayPal
8.Q:Could you tell me the delivery time of your doods?
A:If stock,in 7days or base on your order quantity.
