Product Overview


Product Description

Plastic Laboratory Extruder/ Lab Twin Screw Extruder always be used for test or lab research with small capacity and low energy consumption.

used for powder, granules raw material or mixed.. for many type plastic such peek,pvc,plb,pha,pla abs etc.................

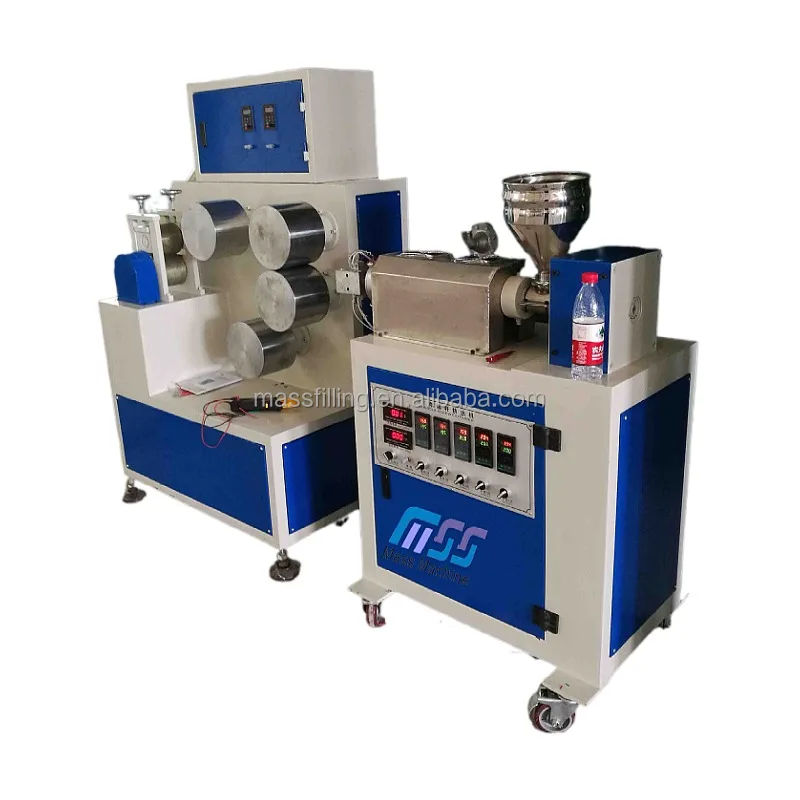

This Plastic Laboratory Extruder/ Lab Twin Screw Extruder can be used to plastic modification test,filament extrusion test, pipe extrusion text and granulation test with different moulds. It is an essential equipment of the chemical enterprise, scientific research institution, college and university lab.

Plastic Laboratory Extruder/ Lab Twin Screw Extruder is mainly used in lab experiment.small volume, and very good price. It has very small cacpity about so will very suitable for lab use and small scale production.

Main Features

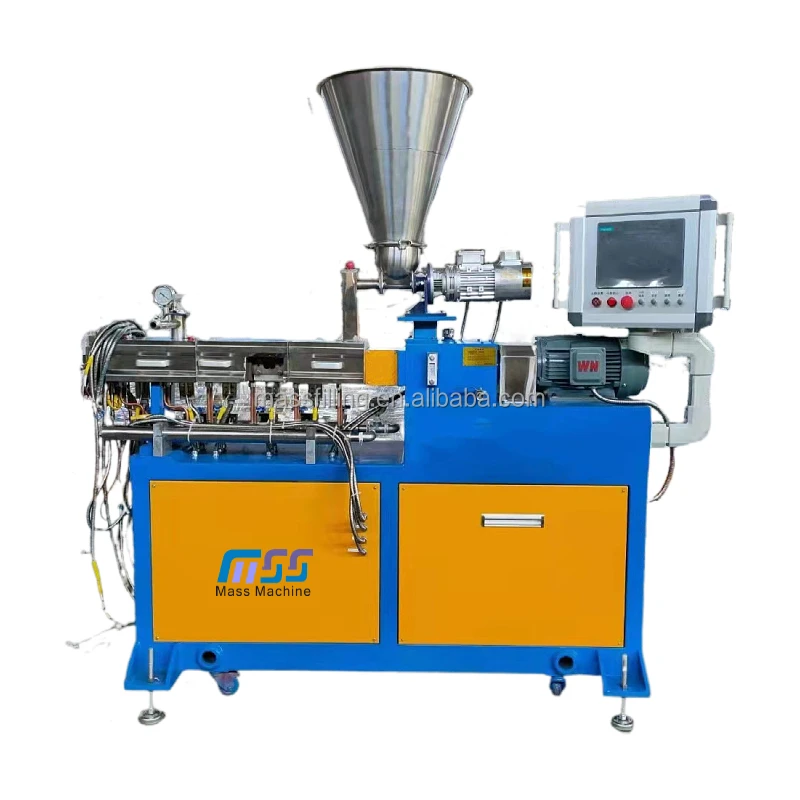

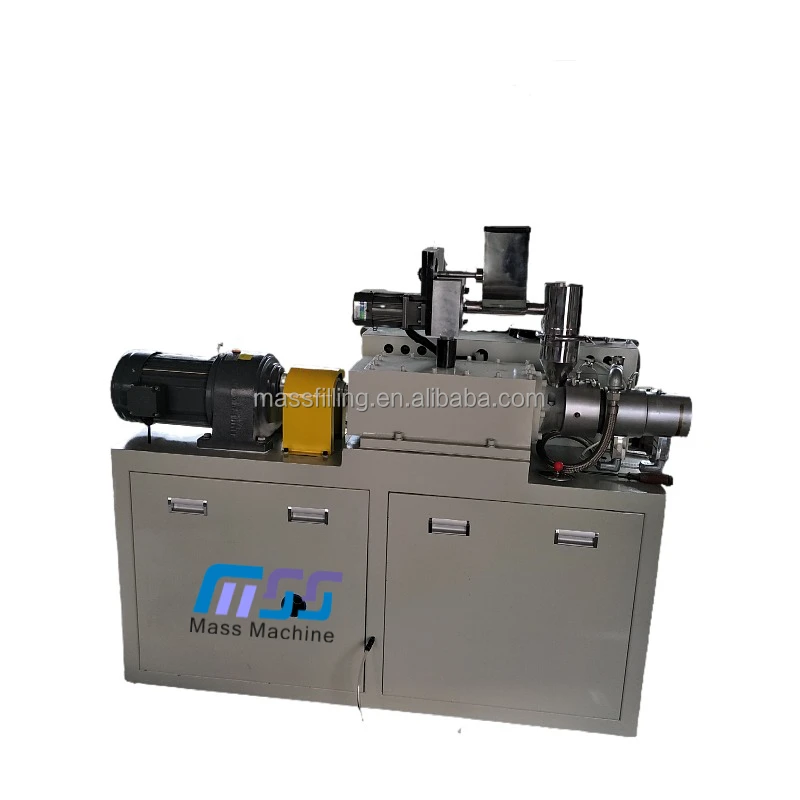

Lab Scale Mini Twin Screw Plastic Extruder

Lab Scale Mini Twin Screw Plastic Extruder specially be used for university , school , factory laboratory use . minimum capacity 2kg per hour.

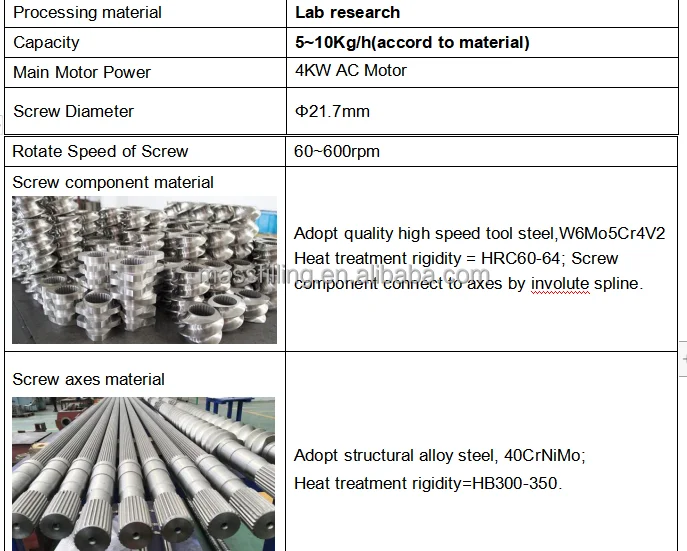

a. screw element diameter: Φ20mm, L/D=20, suitable for various polymer modification and reaction extrusion;

b. screw element and spline shaft adopts involute to connect, of high transfer torque and easy to assembly;

c. main motor is 3kw AC motor, with YASKAWA frequency inverter; spline shaft rotating speed is 50-600rpm;

d. barrel and screw element adopt high quality nitride steel, the combination of different type of screw element can be used for different material processing;

e. barrel heating system is electric heater. No. 2 barrel and the extrusion head are cast copper heaters, the rest are cast aluminium heaters, heating power is about 6.6kw.

f. No. 1 barrel: feeding barrel(L/D=4); No.2-4 barrel: standard barrels(L/D=8 for each); No.5 barrel: standard barrel(L/D=4),No.6 barrel: vacuum exhaust barrel(L/D=8);

g. use embedded screen exchanger, simple and effective;

h. the gearbox combines speed reduction section with distribution section, with parallel triple axle design, all bearings are SKF brand except one set of thrust bearing;

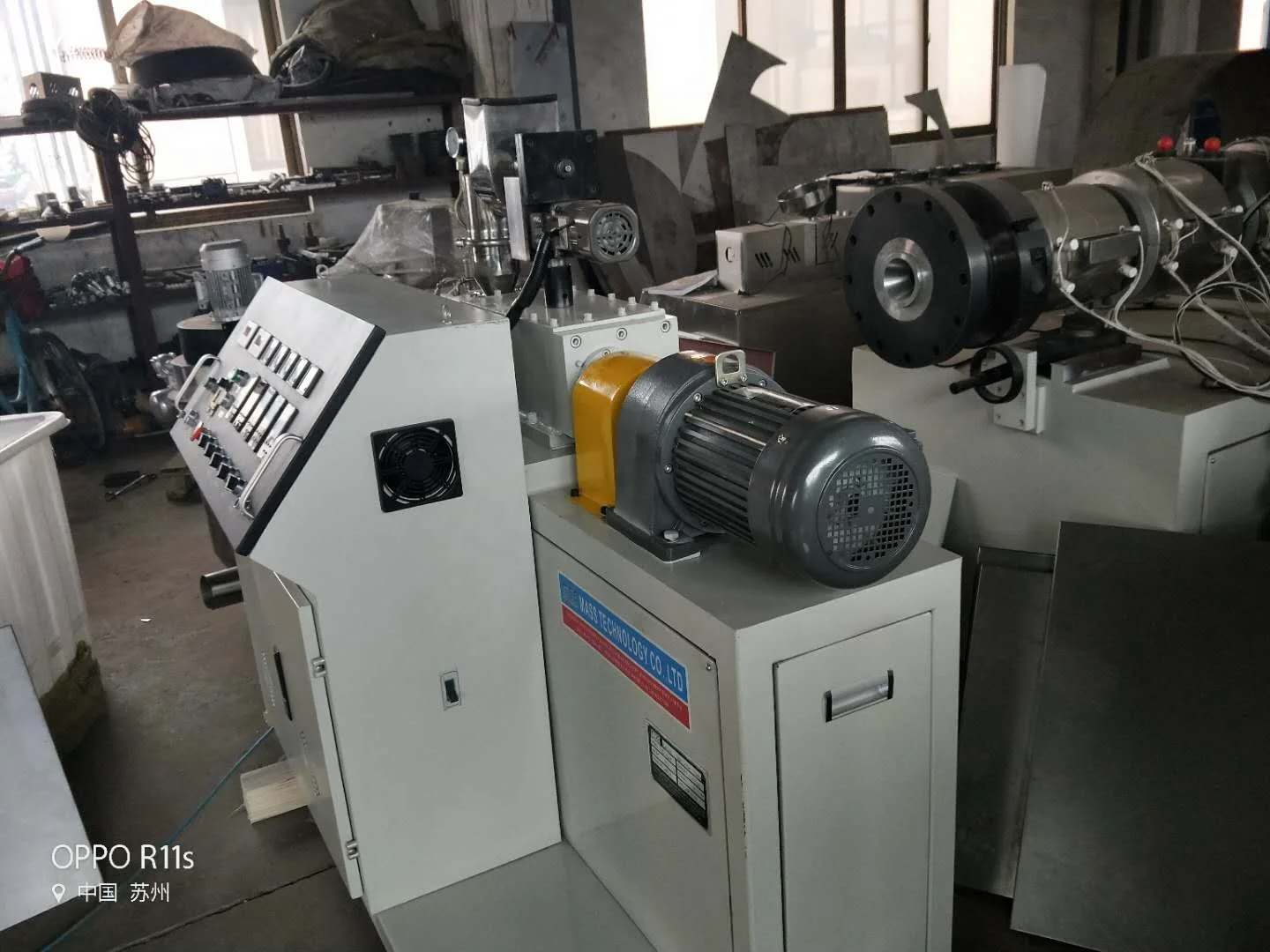

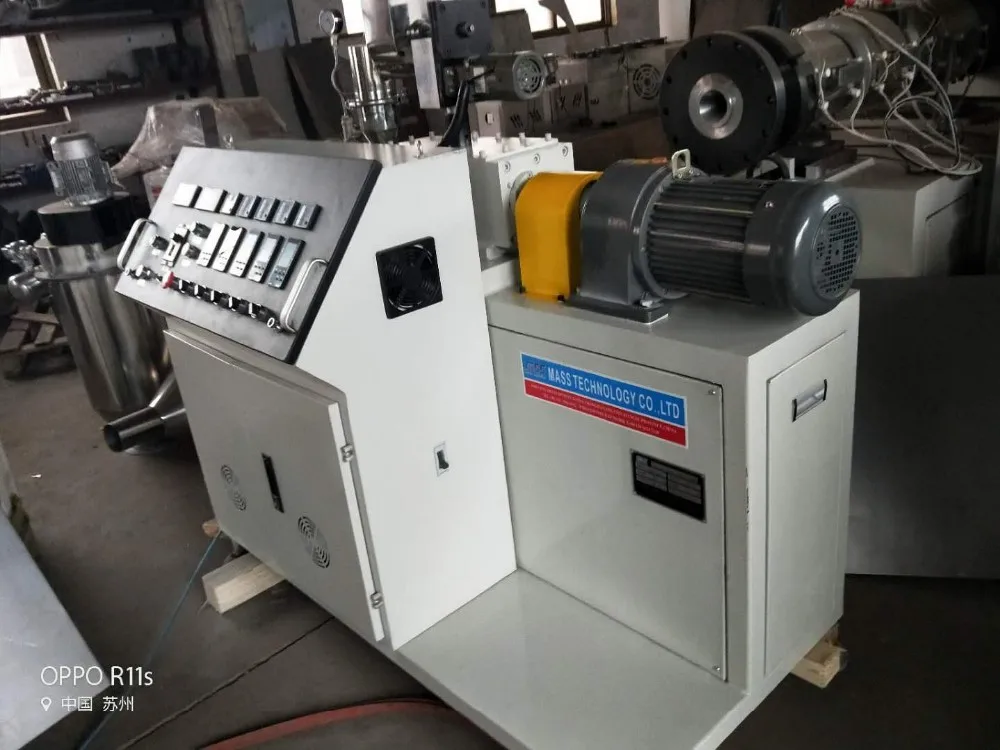

Detailed Images

Machine Parts

Name: feeder


Original: China

Main Features

Name: heating
Brand: MASS
Original: China

heating barrel

Machine Parts

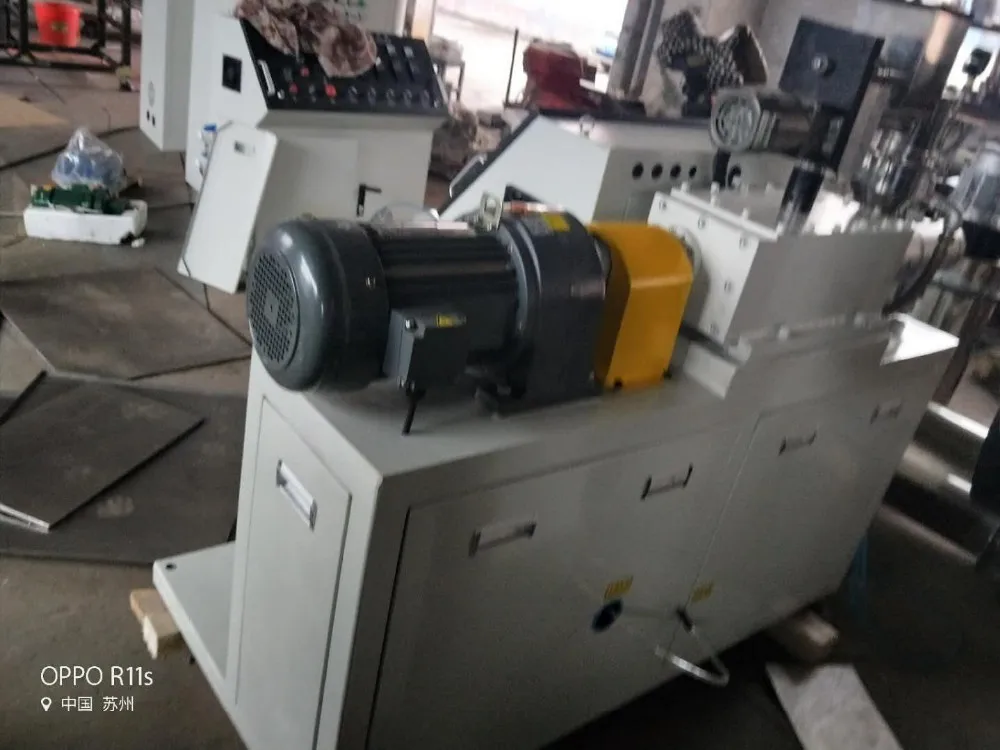

Name: reduction box
Brand: taiwang
Original: China

Main Features

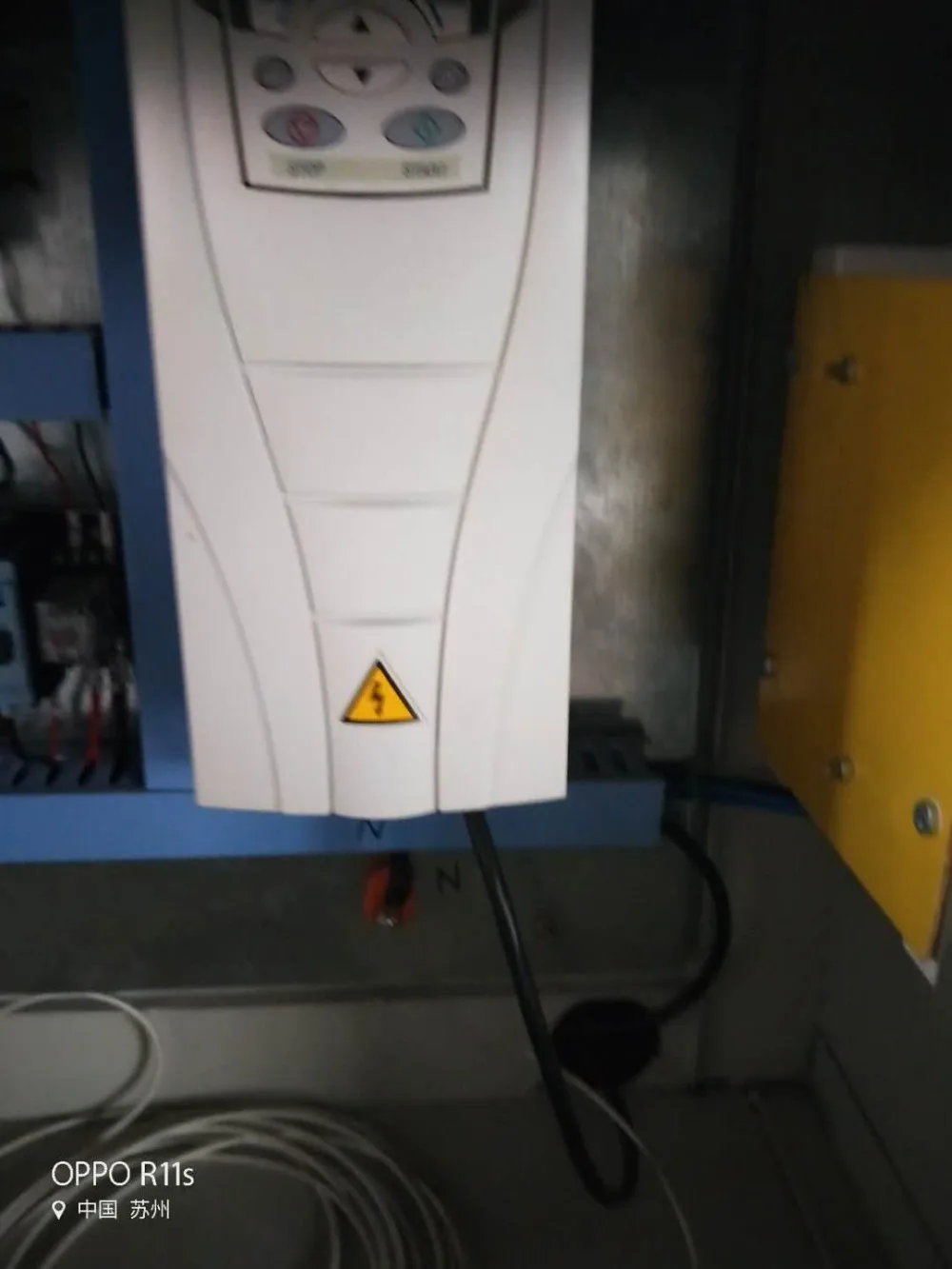

Name: frequency changer
Brand: ABB
Original: China
adjust screw speed
