2020 Hot sale Mini 80 HP tractors with front loader backhoe four in one bucket
- Category: >>>
- Supplier: Dezhou Panda Machinery Co. Ltd.
Share on (1600623144772):
Product Overview
Description
Product Description
Specification
Model | TB904 | ||||
Type | 4×4 | ||||
Overall Dimension （mm） | L×W×H | 3900×1795×2700 | |||
Tread | Front Wheel | 1300 | |||
Rear Wheel | 1300 (usual),1400, 1500 | ||||
Wheel Base | 2072 | ||||
Min. Ground Base | 390 (the bottom of steering horizontal pulling rod) | ||||
Min. Usage Mass （kg） | 3000 | ||||
Engine | Model | Quanchai 4C6-90C33 | |||
Type | Vertical, water cooled and 4-stroke | ||||
Rated Power（kw） | 66.2 | ||||
Rated Rev.（r/min） | 2300 | ||||
Fuel | Diesel Oil | ||||
Tire | Front Wheel | 8.3-24 | |||
Rear Wheel | 14.9-30 | ||||
Clutch | dry-friction, dual stage | ||||
Steering | Hydraulic type | ||||
Transmission Box | 12F+12R Shuttle Shift | ||||
Suspension Type | Post Positioned Three-point Suspension Catalogue II | ||||
PTO | Type and Rev.（r/min） | Post-position, independent, 540/760 or 540/1000 | |||
Spline Size | I35 Rectangle Spline with 6 teeth | ||||

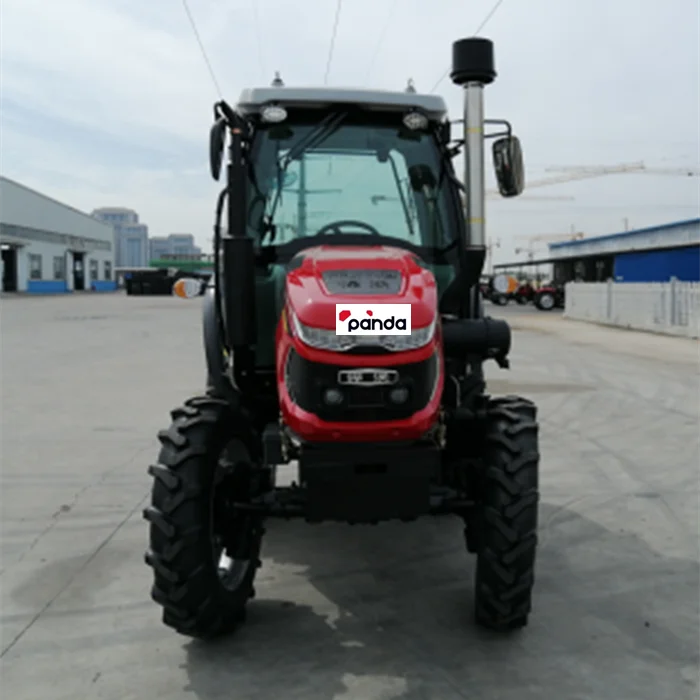

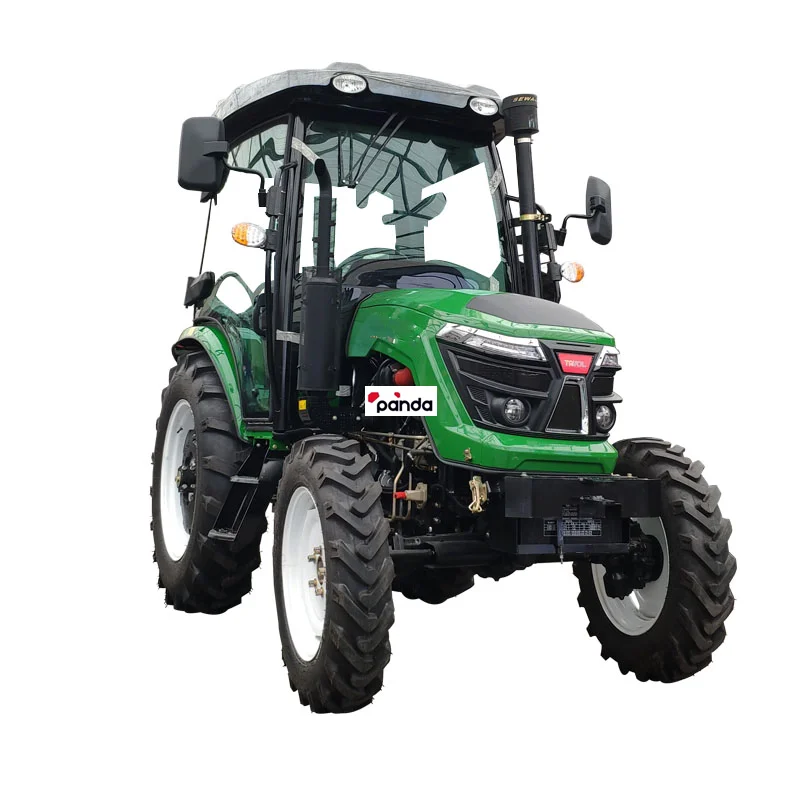

Product show
Features
1.Famous brand diesel engine
2.Increase 30% efficience,Save 25% fuel
3.4 wheel drive, Shuttle shift 12F+12R, High Ground clearance.
4.Stable performance in Mountain Area with low maintenance rate.
5.Rear 3 point hitch, can equipped different farm implements easily.
6.PTO according international standard 540/1000.
7. Equipped Hydraulic steering and Shock absorption seat.
1.Famous brand diesel engine
2.Increase 30% efficience,Save 25% fuel
3.4 wheel drive, Shuttle shift 12F+12R, High Ground clearance.
4.Stable performance in Mountain Area with low maintenance rate.
5.Rear 3 point hitch, can equipped different farm implements easily.
6.PTO according international standard 540/1000.
7. Equipped Hydraulic steering and Shock absorption seat.

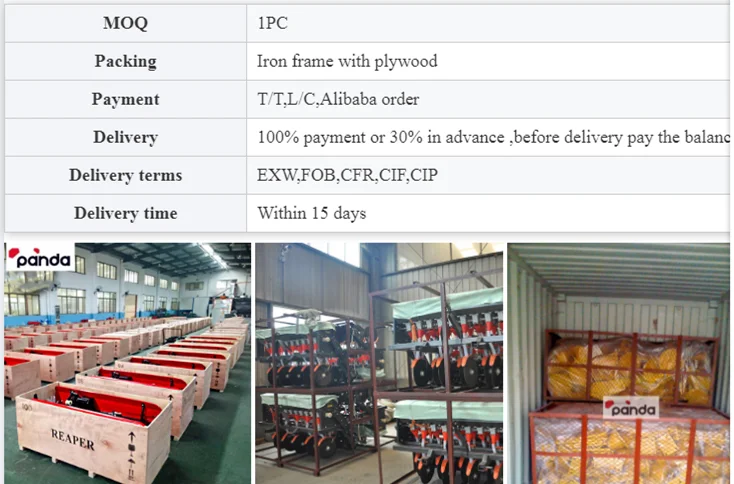

Packing & Delivery
