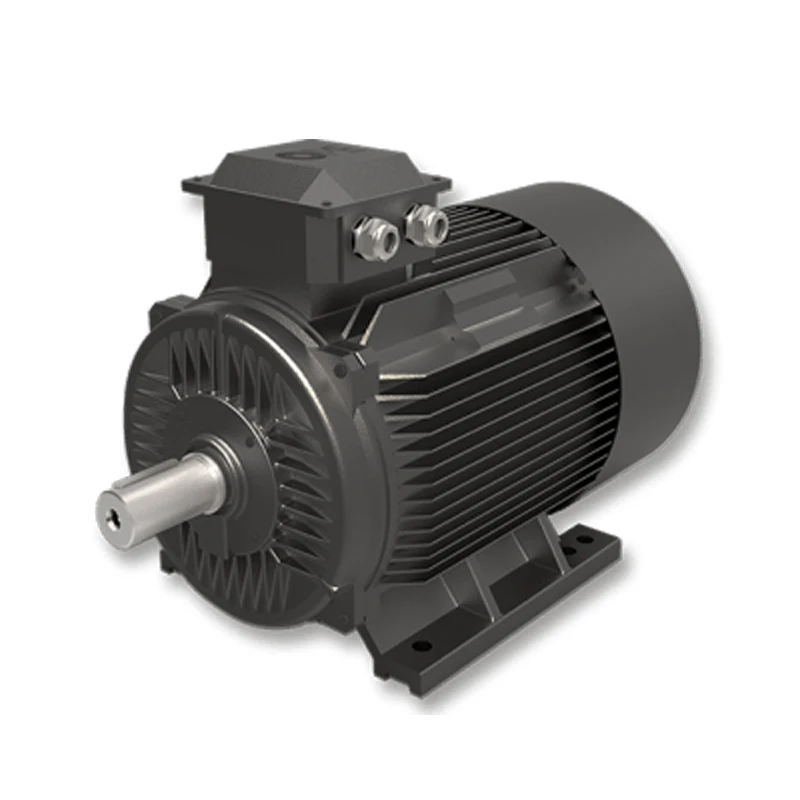

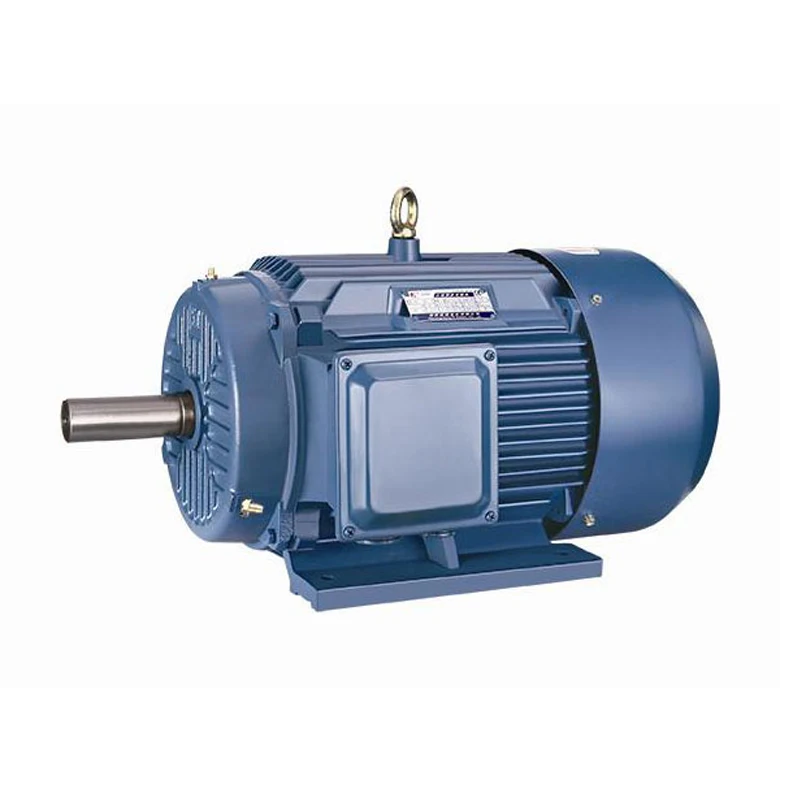

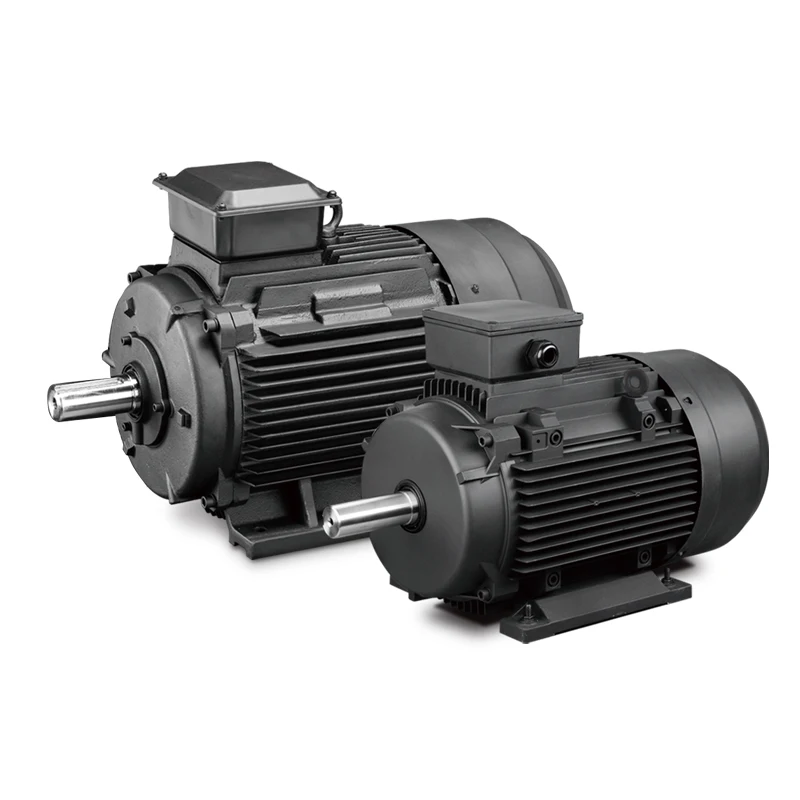

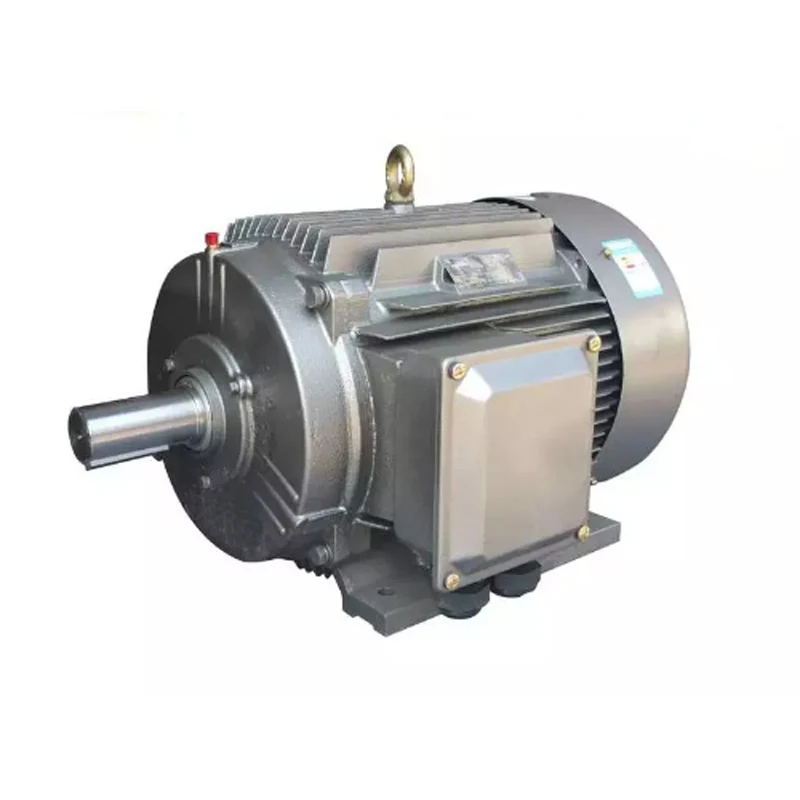

30kw 45kw Large power PM AC 3 Phase synchronous reluctance motor for Compressor
- Category: >>>
- Supplier: Ningbo Biote Mechanical Electrical Co. Ltd
Share on (1600623175397):
Product Overview
Description
What is a Permanent Magnet Synchronous Motor?
The permanent magnet synchronous motors are one of the types of AC synchronous motors, where the field is excited by permanent magnets that generate sinusoidal back EMF. It contains a rotor and stator same as that of an induction motor, but a permanent magnet is used as a rotor to create a magnetic field. Hence there is no need to wound field winding on the rotor. It is also known as a 3-phase brushless permanent sine wave motor. The permanent magnet synchronous motor diagram is shown below.
The permanent magnet synchronous motors are one of the types of AC synchronous motors, where the field is excited by permanent magnets that generate sinusoidal back EMF. It contains a rotor and stator same as that of an induction motor, but a permanent magnet is used as a rotor to create a magnetic field. Hence there is no need to wound field winding on the rotor. It is also known as a 3-phase brushless permanent sine wave motor. The permanent magnet synchronous motor diagram is shown below.
YB-Industrial Permanent Magnet Synchronous Motor
Industrial permanent magnet efficient 3 phase synchronous motor adopts advanced rare earth material excitation method, Significantly improve efficiency, power factor, etc., with low-temperature rise, small size, and weight lightweight, reliable operation and other advantages. Motor protection class IP55, insulation class H, The cooling method is IC0141, and the installation size is the same as that of Y series motors. Interchangeability, the rated power of the motor can be 4kW~480kW, and the rated speed can be achieved 500rpm~5000rpm. bldc motor vs pmsm
Industrial permanent magnet efficient 3 phase synchronous motor adopts advanced rare earth material excitation method, Significantly improve efficiency, power factor, etc., with low-temperature rise, small size, and weight lightweight, reliable operation and other advantages. Motor protection class IP55, insulation class H, The cooling method is IC0141, and the installation size is the same as that of Y series motors. Interchangeability, the rated power of the motor can be 4kW~480kW, and the rated speed can be achieved 500rpm~5000rpm. bldc motor vs pmsm
We custom high efficiency IE4. IE5.
PMSM motor compare with Asynchronous motor | pmsm vs asynchronous motor | |||
Material compare | PMSM Motor | Asynchronous motor | ||
Silicon: 35WW300 | Silicon: 50DW600 | |||
Material compare | Frequency conversion enameled wire temperature resistant 200℃ | Electromagnetic wire 62880 temperature resistant 155℃ | ||
40CrM | 45# | |||
Rare earth permanent magnet: UH | Pure aluminium 17074 | |||
Bearing: working temperature -20℃ - 180℃（car） | General Bearing: -20℃ - 120℃ | |||
Product Details
Name | Industrial Permanent Magnet Synchronous Motor |
Power Range | 4kw~480kw |
Rated Voltage | 380V |
Rated Speed | 750rpm, 1000rpm. 1500rpm, 3000rpm |
Rated Frequency | 75Hz, 66.7hZ, 100Hz, 120Hz, 1500Hz, 300Hz |
Insulation Class | Class H |
Cooling type | IC411/IC416 |
Service Temperature | -20℃～40℃ |
Altitude | Lower then 1000m |
Protection | IP55 |
Model | Power (KW) | voltage (V) | Current (A) | Speed (rpm) | Frequency (Hz) | Torque (Nm) | Effectiveness (%) | Power factor |
YB160L-15-750 | 15 | 380 | 25.5 | 750 | 50 | 191 | 94 | 0.95 |
YB160L-18.5-750 | 18.5 | 380 | 31.3 | 750 | 50 | 235.6 | 94.6 | 0.95 |
YB160L-22-790 | 22 | 380 | 37.1 | 750 | 50 | 280.1 | 94.9 | 0.95 |
YB160L-30-750 | 30 | 380 | 50.7 | 750 | 50 | 382 | 94.6 | 0.95 |
YB160L-37-750 | 37 | 380 | 62.3 | 750 | 50 | 471.1 | 95 | 0.95 |
YB160L-18.5-1000 | 18.5 | 380 | 31.2 | 1000 | 66.7 | 176.6 | 94.8 | 0.95 |
YB160L-22-1000 | 22 | 380 | 37 | 1000 | 66.7 | 210.1 | 95 | 0.95 |
YB160L-30-1000 | 30 | 380 | 50.4 | 1000 | 66.7 | 286.5 | 95.2 | 0.95 |
YB160L-30-1500 | 30 | 380 | 50.5 | 1500 | 100 | 191 | 95 | 0.95 |
YB160L-37-1500 | 37 | 380 | 62.1 | 1500 | 100 | 235.6 | 95.3 | 0.95 |
YB160L-45-1500 | 45 | 380 | 75.4 | 1500 | 100 | 286.5 | 95.4 | 0.95 |
YB160L-45-3000 | 45 | 380 | 75.9 | 3000 | 200 | 143.3 | 94.8 | 0.95 |
YB160L-55-3000 | 55 | 380 | 92.6 | 3000 | 200 | 175.1 | 95 | 0.95 |
YB160L-75-3000 | 75 | 380 | 126 | 3000 | 200 | 238.8 | 95.2 | 0.95 |
YB160L-90-3000 | 90 | 380 | 150.6 | 3000 | 200 | 286.5 | 95.6 | 0.95 |
Company Information
Automatic production Equipment
Comprehensive test validation
Workshop Production Line
Applications
The permanent magnet synchronous motors applications are
* Air conditioners
* Refrigerators
* AC compressors
* Direct-drive washing machines
* Automotive electrical power steering
* Machine tools
* Control of traction
* Data storage units
* Servo drives
* Electric vehicle drivetrain
* Large power systems to improve leading, and lagging power factor
* Industrial applications like robotics, aerospace, and many more.
* Air conditioners
* Refrigerators
* AC compressors
* Direct-drive washing machines
* Automotive electrical power steering
* Machine tools
* Control of traction
* Data storage units
* Servo drives
* Electric vehicle drivetrain
* Large power systems to improve leading, and lagging power factor
* Industrial applications like robotics, aerospace, and many more.
FAQ
Q1: What kind motors you can provide?
A1: We supply Pool pump motor, Compressor motor. General purpose motor. SPA Pump motor. Air blower motor, clean water pump motor. PM AC Motor, Stainless steel motor and so on
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style. after batch oder. we will refund this differentce
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, type etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.
Q4: Can you OEM for us?
A4: Yes, OEM is available. Package, label, power plug can be customized. we have our own design team and mold developing department.
Q5: Do you have any certifications?
A5: We have CE , North America certificates
Q6:How about your delivery time?
A6: Usually the leading time is 30-45 days. If the products you ordered is in stock, they might be shipped immediately. You'd better contact us to check if it is available in our warehouse.
A1: We supply Pool pump motor, Compressor motor. General purpose motor. SPA Pump motor. Air blower motor, clean water pump motor. PM AC Motor, Stainless steel motor and so on
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style. after batch oder. we will refund this differentce
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, type etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.
Q4: Can you OEM for us?
A4: Yes, OEM is available. Package, label, power plug can be customized. we have our own design team and mold developing department.
Q5: Do you have any certifications?
A5: We have CE , North America certificates
Q6:How about your delivery time?
A6: Usually the leading time is 30-45 days. If the products you ordered is in stock, they might be shipped immediately. You'd better contact us to check if it is available in our warehouse.
