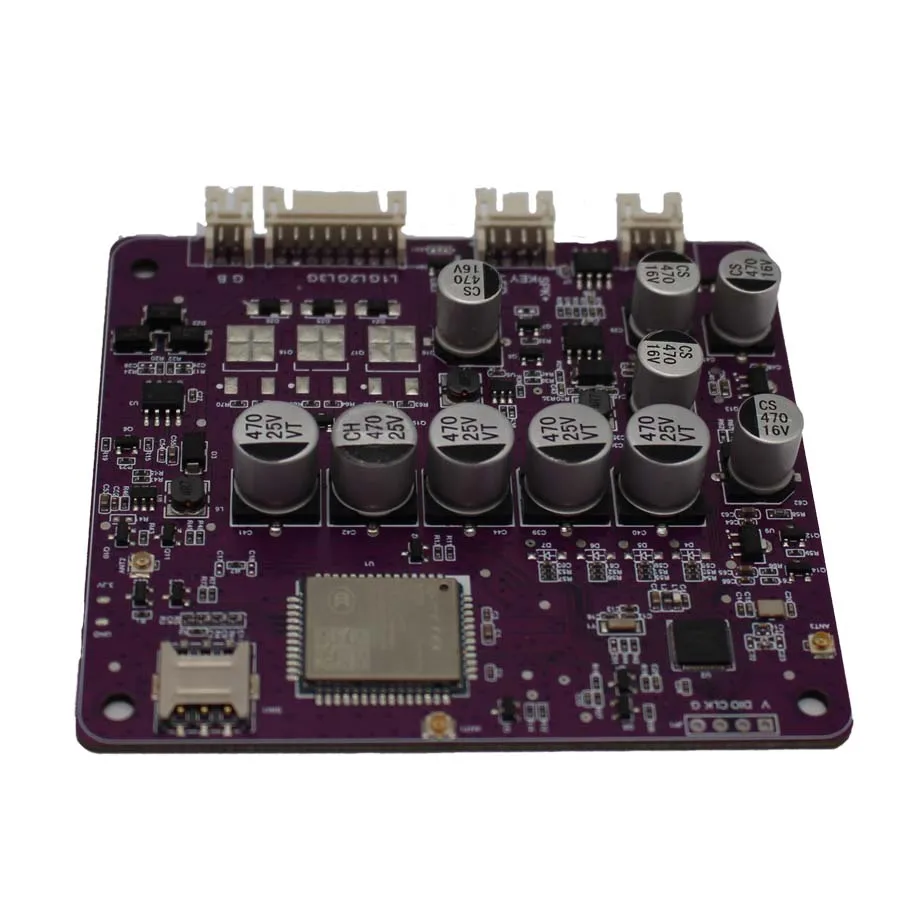

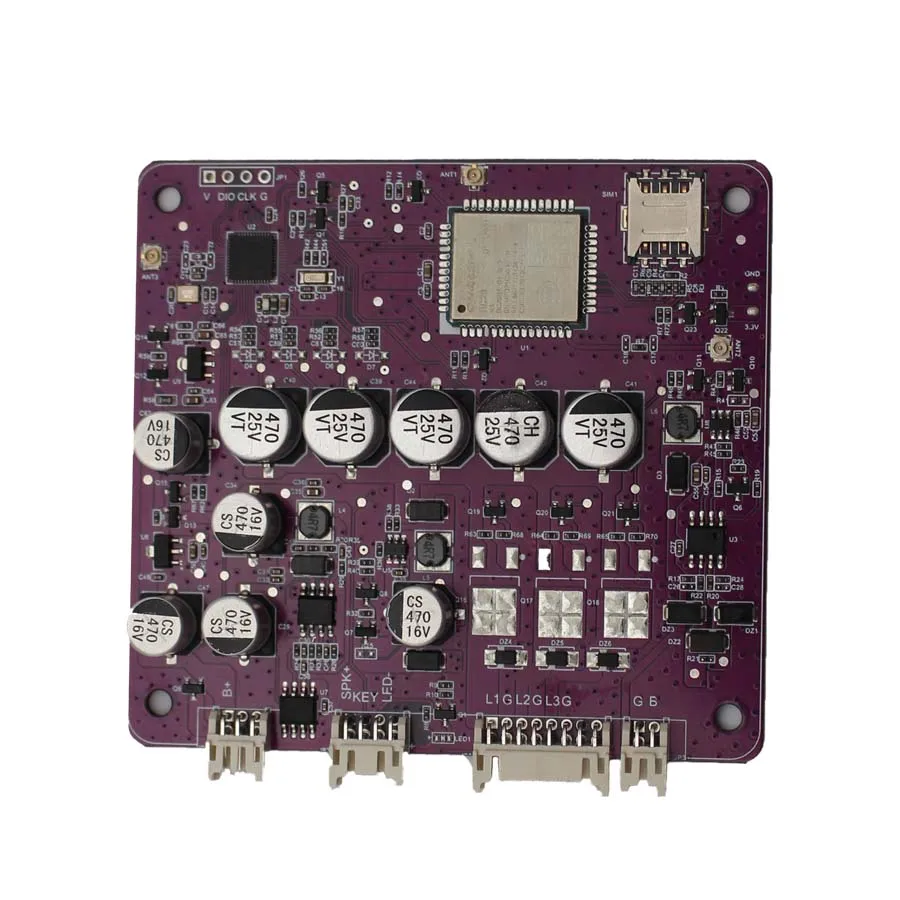

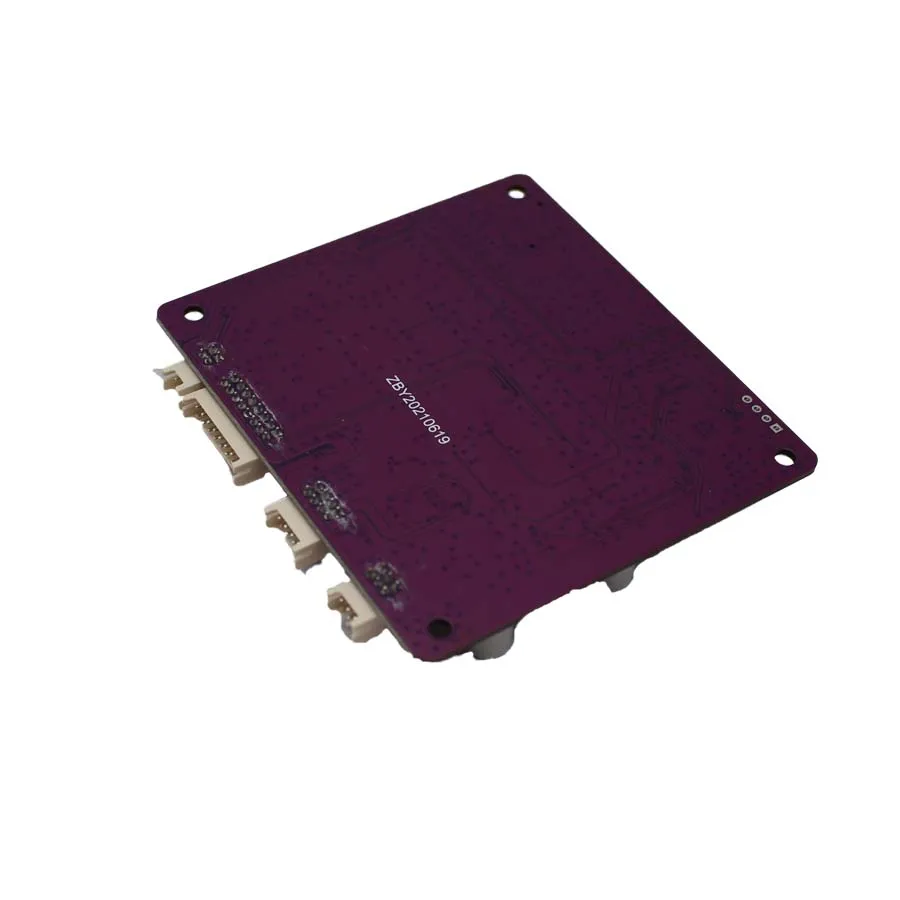

TI CC2530 ZigBee 3.0 Module ZigBee module NB MZA24A / Zigbee Wireless Receiver Module Low Energy Consumption
- Category: >>>
- Supplier: Shenzhen Second Technology Co. Ltd.
Share on (1600623201871):
Product Overview
Description
Product Description
Product Name | TI CC2530 ZigBee 3.0 Module ZigBee module NB-MZA24A / Zigbee Wireless Receiver Module Low Energy Consumption |
Material | PCB+ zinc alloy |
Features | Bluetooth lock and RFID switch lock detection |
Operating temperature | -40 degrees to +80 degrees |
Product performance description
You can use both transparent and command modes. You can change the modes freely
The serial port command modification mode is supported. The default baud rate is 9600bpsSupport serial port command to modify bluetooth broadcast cycle and Bluetooth connection interval You can modify the Bluetooth module name using a serial port command A SERIAL port command is used to change the Bluetooth pairing password. The default module password is 123456
Restore the factory Settings of the modules through the serial port or the main terminal
Obtain the Bluetooth MAC address (physical address) of the module through the port.
Under the setting, the bluetooth transmitting power of the module can be set through a serial port or the host terminal
The serial port command modification mode is supported. The default baud rate is 9600bpsSupport serial port command to modify bluetooth broadcast cycle and Bluetooth connection interval You can modify the Bluetooth module name using a serial port command A SERIAL port command is used to change the Bluetooth pairing password. The default module password is 123456
Restore the factory Settings of the modules through the serial port or the main terminal
Obtain the Bluetooth MAC address (physical address) of the module through the port.
Under the setting, the bluetooth transmitting power of the module can be set through a serial port or the host terminal
Product Usage
Product usage introduction
This product is used in aromatherapy machines, as well as some water pump controls.Bluetooth low power consumption mode. 1.Modulation method: GFSK; 2. Frequency range: 2400~2483.5MHZ (2.4GISM frequency band);Power consumption mode 1 current consumption:
(MCU standby mode, wake-up time=4uS): I=270uA (typical value); 3. Power consumption mode 2 current consumption: (sleep mode timer activation/enable, wake-up time can be set by programming software): I=1uA (typ.); 4. Power consumption mode 3 current consumption: (low power deep sleep mode, hardware active wake-up): I=0.5uA (typical value); 5. The average working current of the module is less than 500uA, the standby current is less than 100uA, and the sleep current is less than 1uA.
(MCU standby mode, wake-up time=4uS): I=270uA (typical value); 3. Power consumption mode 2 current consumption: (sleep mode timer activation/enable, wake-up time can be set by programming software): I=1uA (typ.); 4. Power consumption mode 3 current consumption: (low power deep sleep mode, hardware active wake-up): I=0.5uA (typical value); 5. The average working current of the module is less than 500uA, the standby current is less than 100uA, and the sleep current is less than 1uA.
Description of product use effect
This module is designed based on Bluetooth Low Energy standard issued by Bluetooth SIG. This module through the serial port, IC,
SPI control, but also support wireless control through the host side, users do not need to pay attention to the complex Bluetooth
protocol application software can be developed in a short time Standard Low Power Bluetooth (BLE) products. After the connection
is established through serial control, two-way data transmission can be realized between the BLE host and slave.in all shapes.
SPI control, but also support wireless control through the host side, users do not need to pay attention to the complex Bluetooth
protocol application software can be developed in a short time Standard Low Power Bluetooth (BLE) products. After the connection
is established through serial control, two-way data transmission can be realized between the BLE host and slave.in all shapes.
