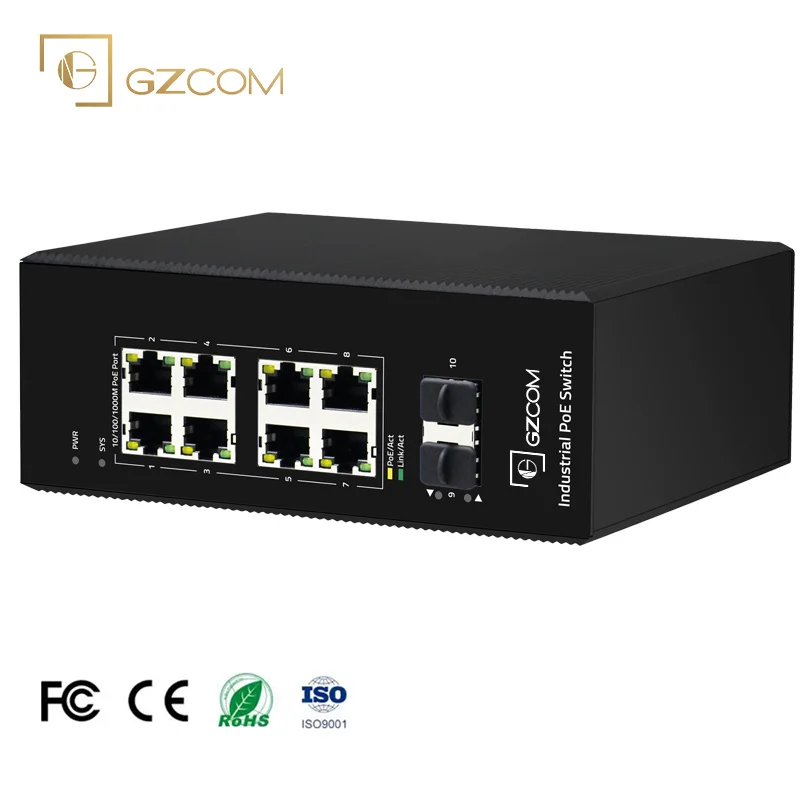

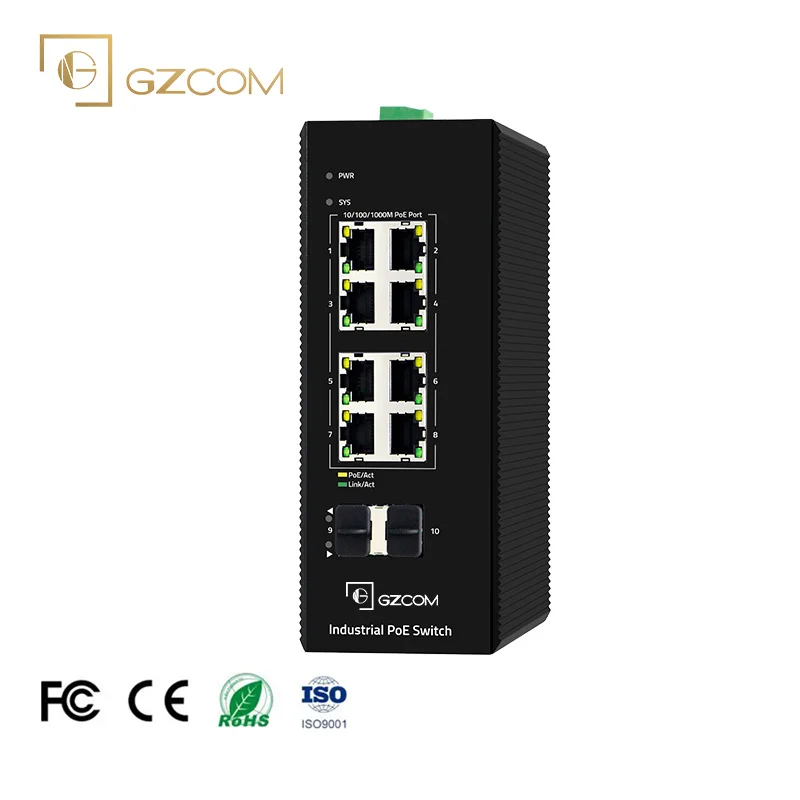

Hot Sale PoE Switch 8 Ports Gigabit L2 Managed Industrial Network PoE Switch with 2 2.5G SFP
- Category: >>>
- Supplier: Shenzhen Gzcom Communication Co. Ltd.
Share on (1600623217609):
Product Overview
Description
Product Description

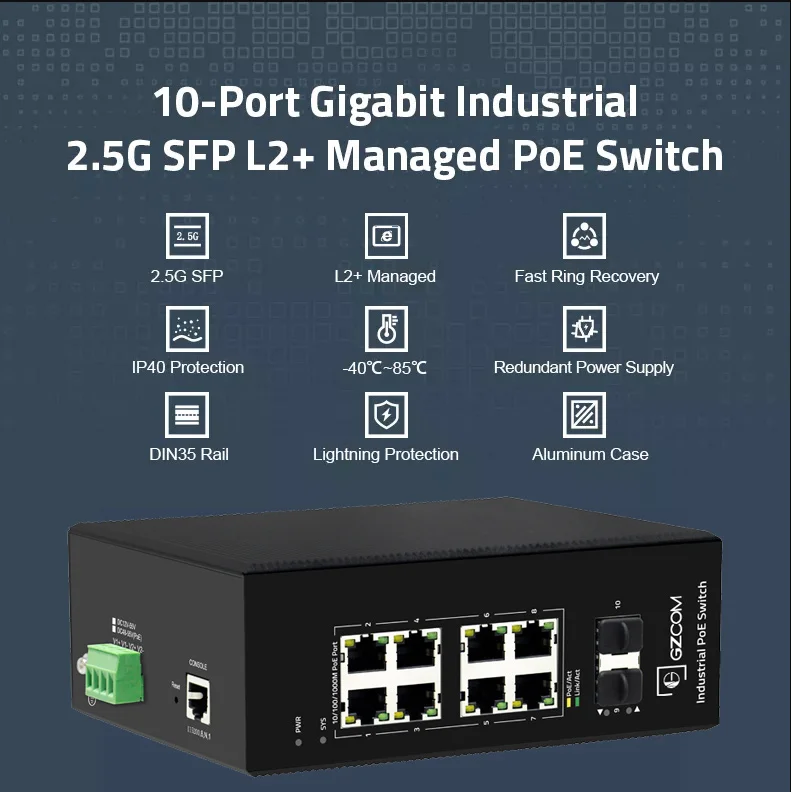

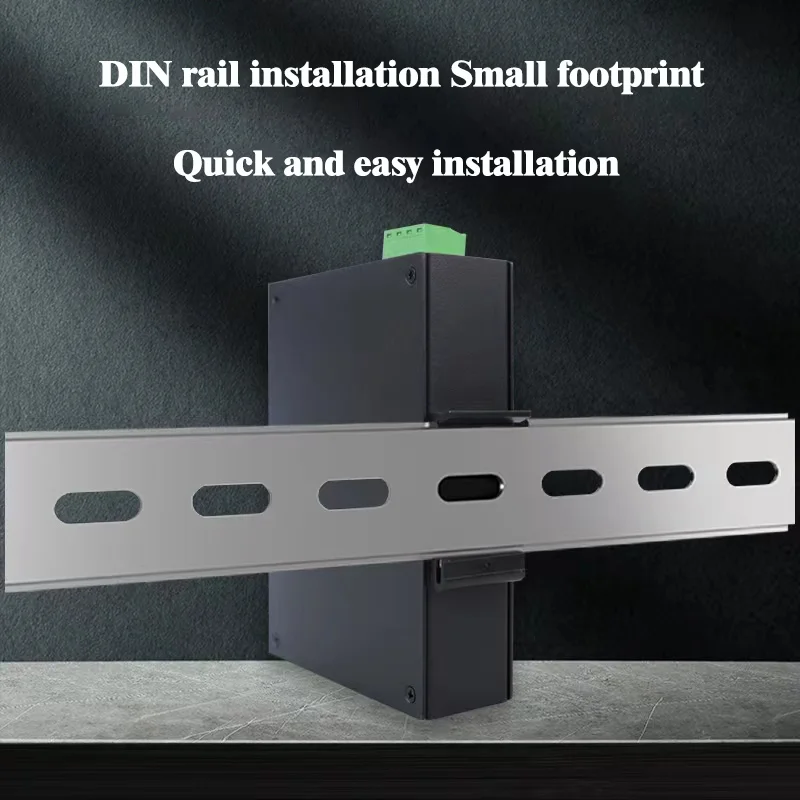

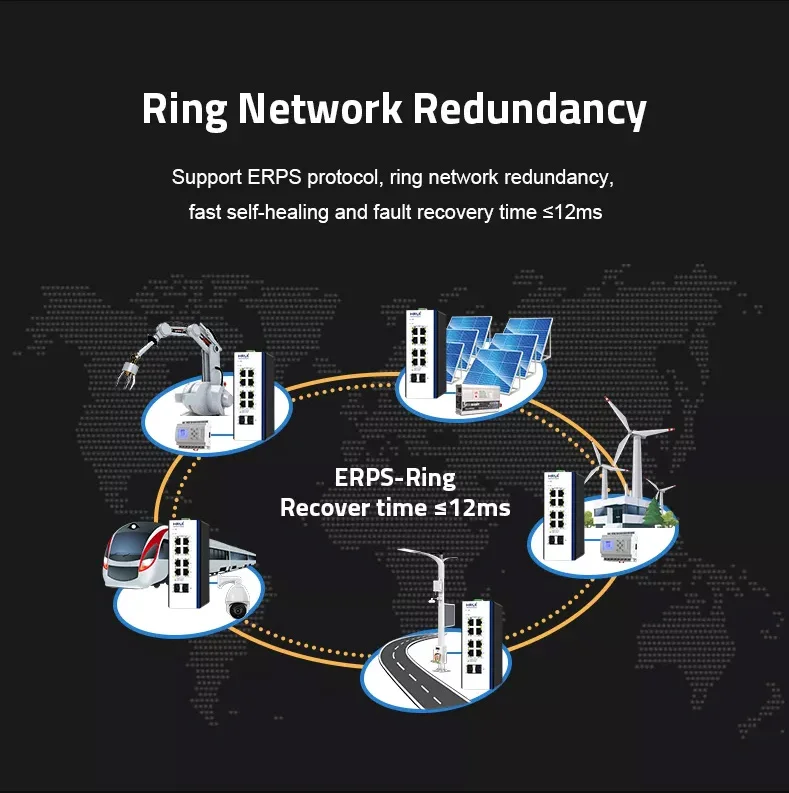

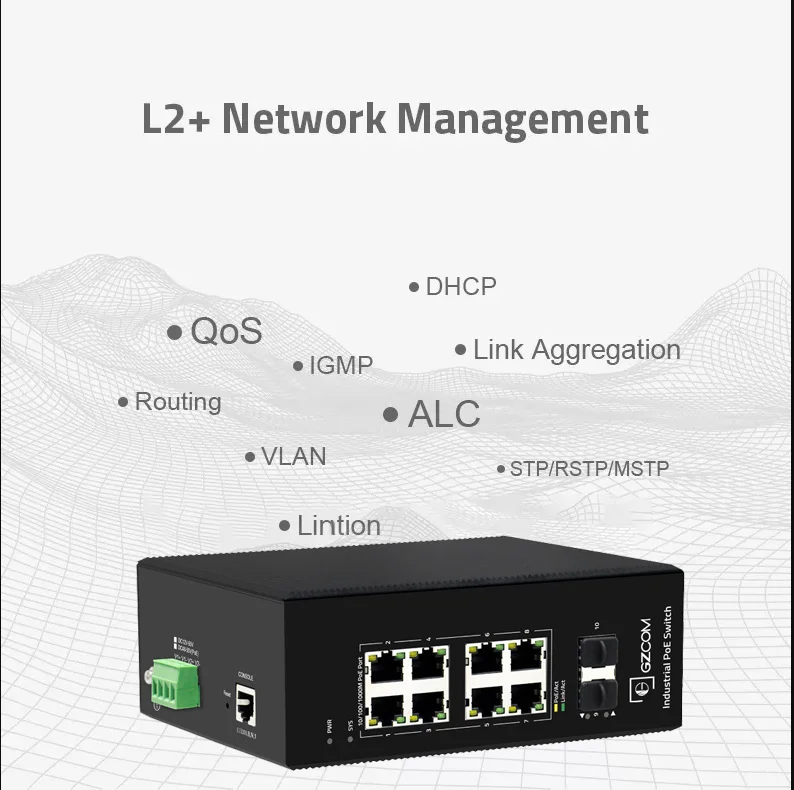

High performance and cost-effective industrial managed ethernet switch with 8*Gigabit RJ45 Ports + 2*2.5G SFP Slots (compatible with 1.25G/155M) + 1*Console Port, L2+ Managed, providing advanced network management capabilities, redundant ring network, recover time ≤12ms, lightning protection, Surge 6KV, ESD 15KV, rugged high-strength aluminum shell, IP40 protection, DIN35 rail mounting, DC12-55V dual power supply, -40℃ to 85℃ wide operating temperature range, suitable for various industrial networks scenarios with ethernet access.
Product Paramenters
I/O Interface | |||||||
Power Supply | Input Voltage: DC 12～55V Type of input: 4 PIN Industrial Terminal Block(V1+ V1- V2+ V2-) | ||||||
Interface | 8*Gigabit RJ45 Ports 2*2.5G SFP Ports(Compatible with 1.25G/155M) 1*Console Port | ||||||
Performance | |||||||
Switching Capacity | 26Gbps | ||||||
Throughput | 19.34Mpps | ||||||
Packet Buffer | 4M | ||||||
MAC Address | 8K | ||||||
Jumbo Frame | 9.6Kbytes | ||||||
VLAN | 4096 | ||||||
Flash | 16MB | ||||||
RAM | 128MB | ||||||
Transfer Mode | Store and forward | ||||||
Standard | |||||||
Network Protocols | IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.1d IEEE802.1w | ||||||
Industry Standard | EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) | ||||||
Network Medium | 10BASE-T: Cat3,4,5UTP(≤100 M) 100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M) | ||||||
Fiber Media | Multi-mode: 850nm, 1310nm Transmission Distance: 550m/2Km Single-mode: 1310nm, 1550nm Transmission Distance: 20/40/60/80/100/120Km | ||||||
Protection | |||||||
Security Certificae | CE、FCC、RoHS | ||||||
Environment | |||||||
Environment | Operating temperature: -40～85℃ Storage temperature: -40～85℃ Humidity: 5%~95 % ( No condensation) | ||||||
Physical Features | |||||||
Dimension | Product Dimension(L*W*H): 165×130×65mm Package Dimension(L*W*H): 242×207×86mm N.W: 0.8kg G.W: 1.1kg | ||||||
Packing Info | Carton MEAS: 445mm×445mm×510mm Packing Qty: 20units Packing Weight: 21KG | ||||||
Package List | Industrial grade switch: 1 Set Instruction manual: 1 PCS Certificate, warranty card: 1 PCS Serial cable: 1PCS | ||||||
LED Indicator | |||||||
PWR | Lighting: Powered Un-Light: No Power | ||||||
SYS | Lighting: System is operating normally Un-Light: System is not running | ||||||
Yellow light | Lighting: 1000M Link Un-Light: 10/100M Link | ||||||
Green light | Slow Flashing: 10/100/1000 Link normallyUn-Light: Link disconnect Flashing: Link data transmission | ||||||
G9-G10 | Lighting: Fiber Connection is Normal Un-Light: Disconnect Flashing: Link data transmission | ||||||
