Product Overview
Description

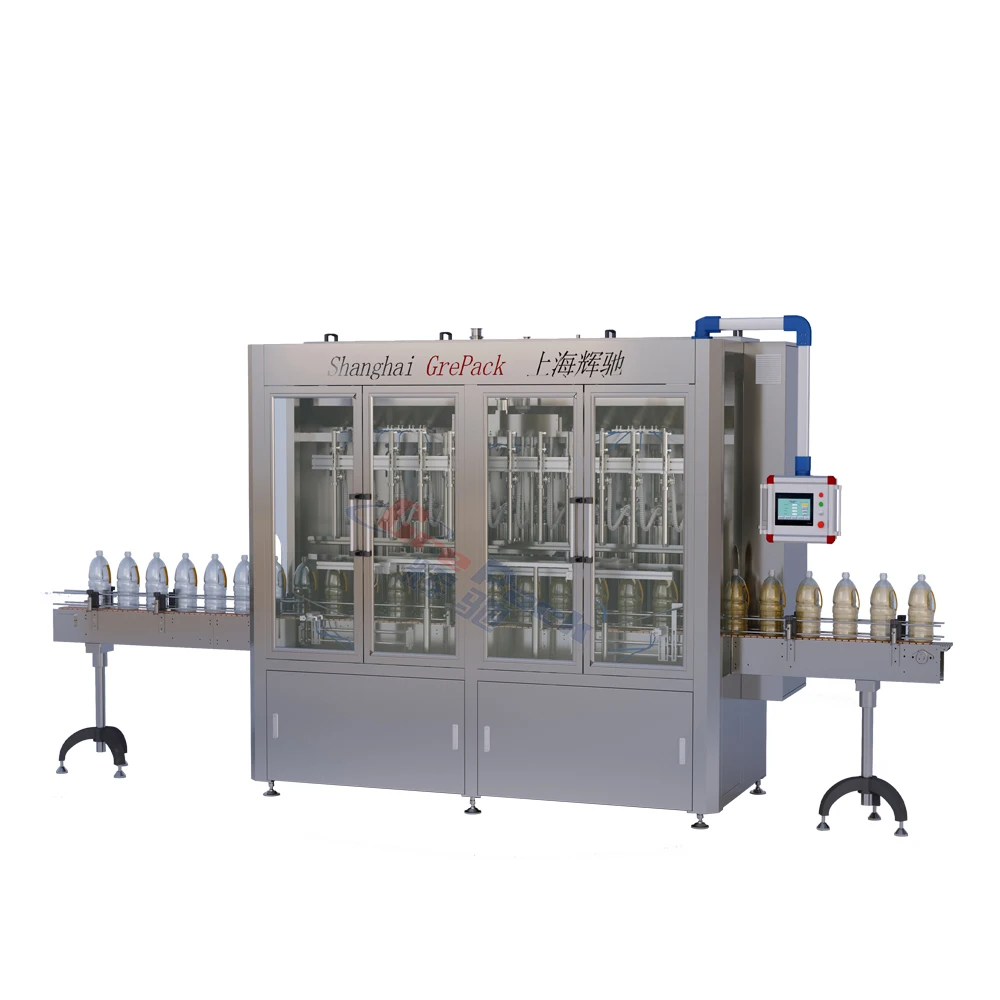

Automatic Edible Oil Filling Machine

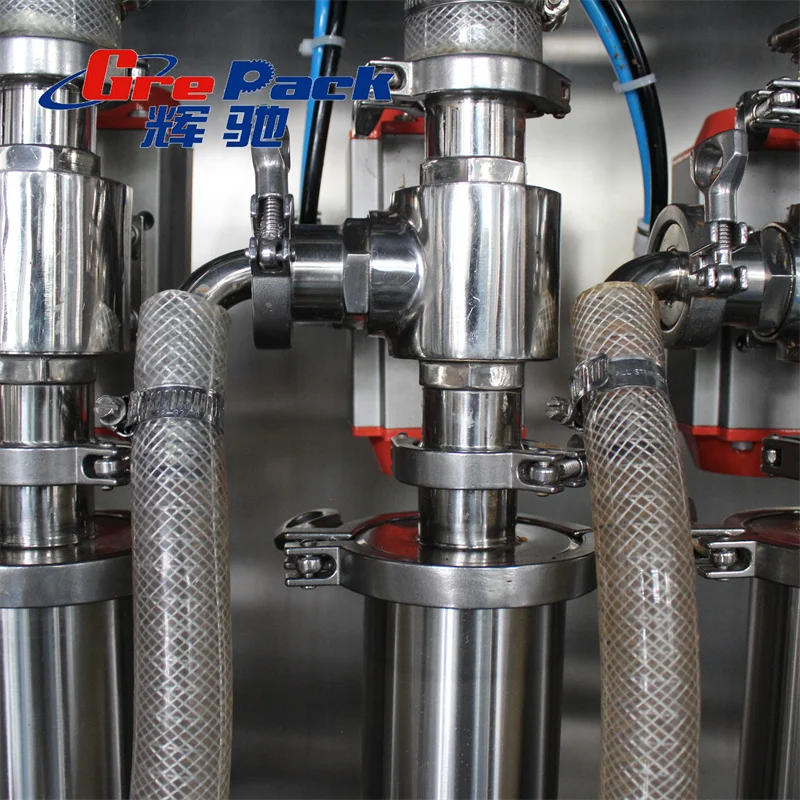

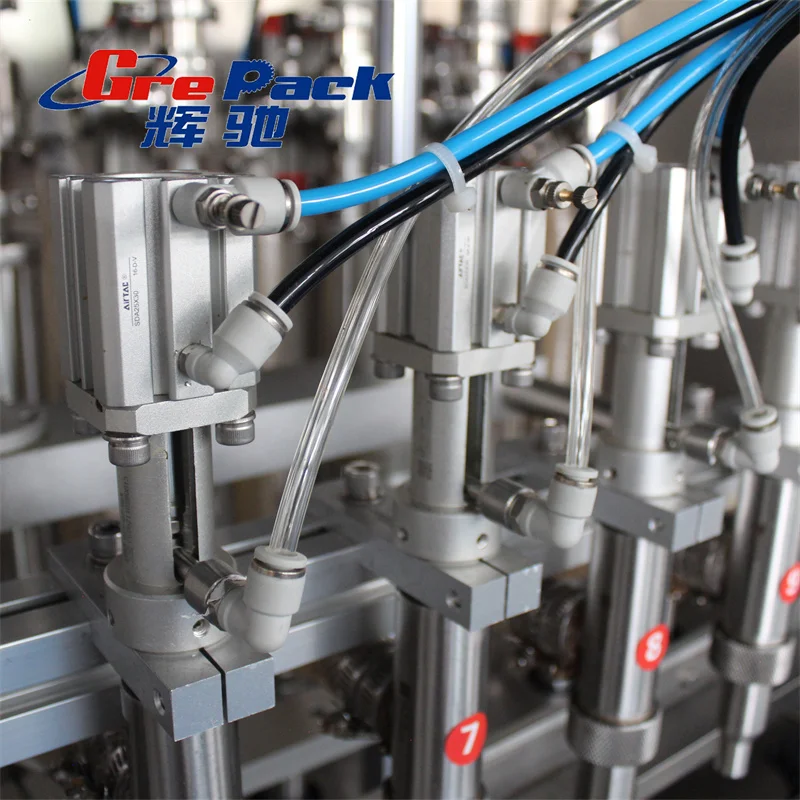

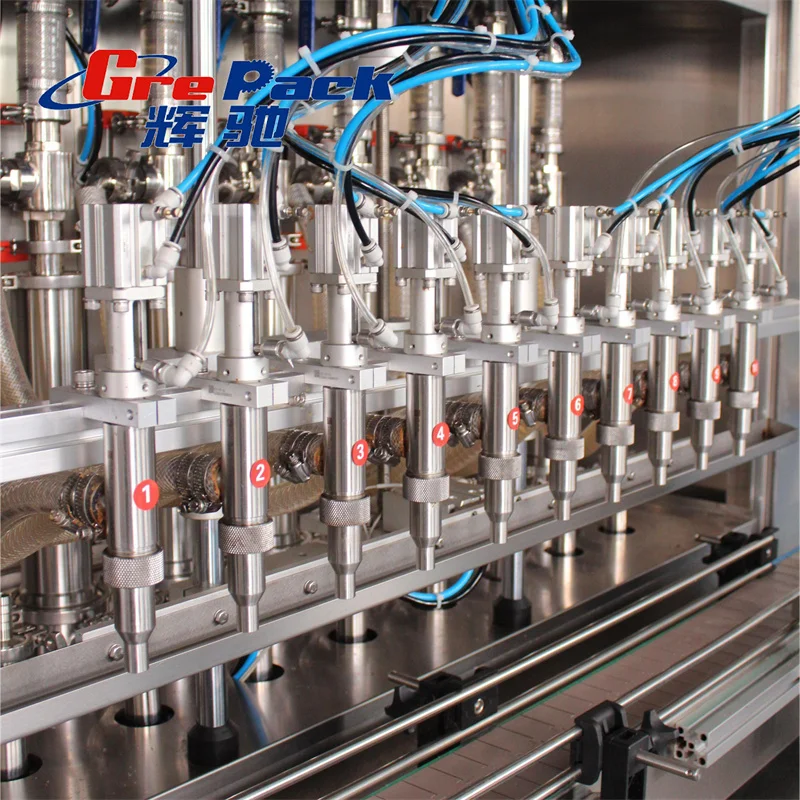

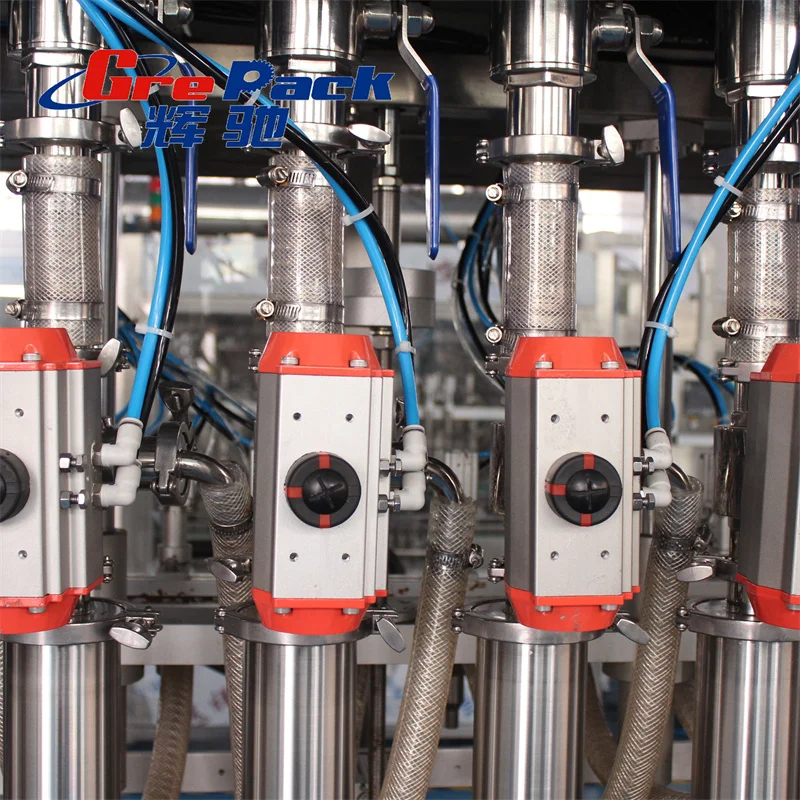

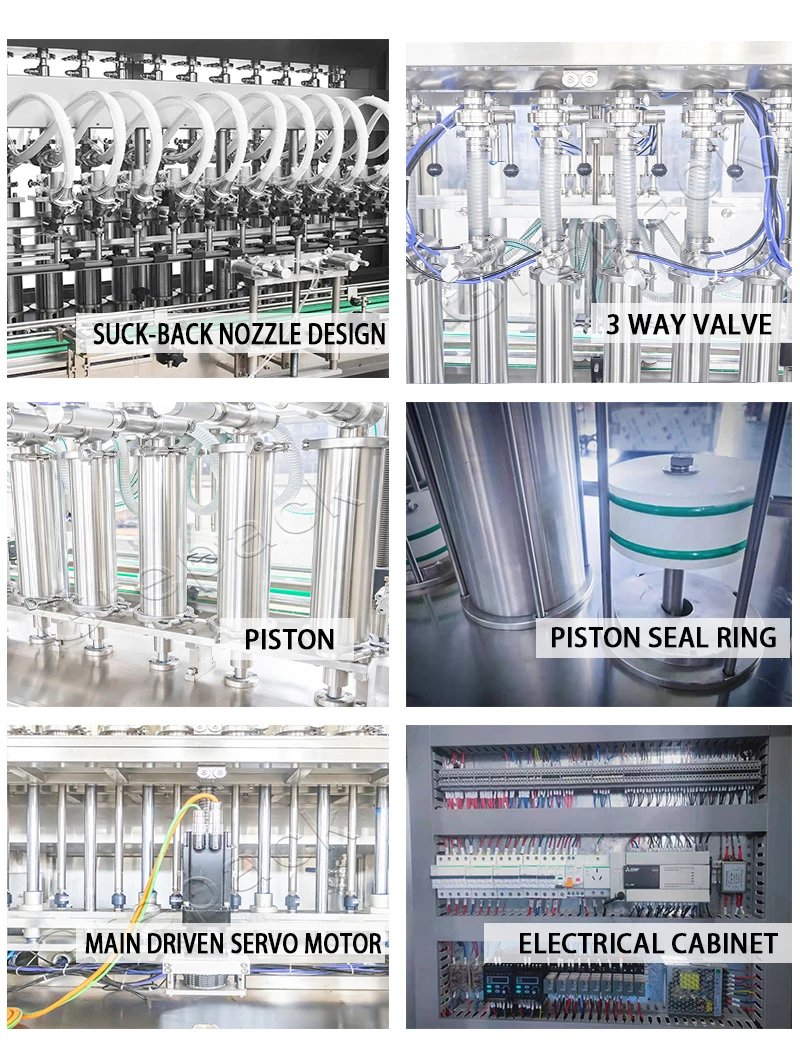

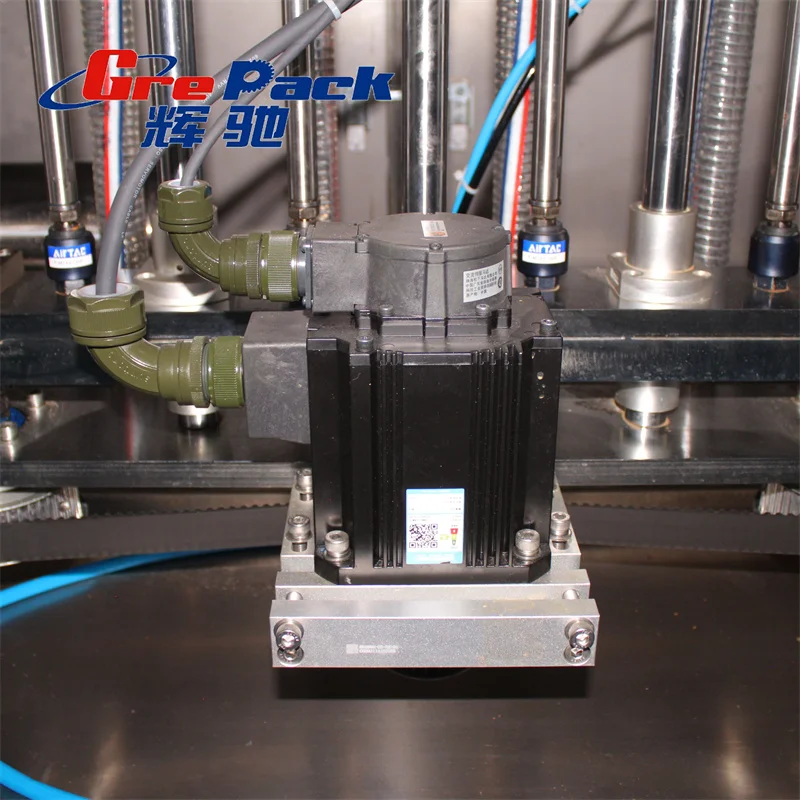

Automatic edible oil filling machine which is specially designed & used at oil filling machine, each of machine technical details based on edible oil property. Adopt Suck-back nozzle deisgn to guarantee no-dripping issue. Piston driven by servo motor allows filling accuracy & stability.
Model | Unit | GP5000（1000-5000ml）GP3000（500-3000ml）GP1000(100-1000ml) GP500(100-500ml) GP125(50-125ml) | ||||||||
Nozzle | PCS | 4 | 6 | 8 | 10 | 12 | ||||
capacity（Base On One Litre) | B/h | 960-1200 | 1440-1800 | 1920-2400 | 2400-3000 | 2880-3600 | ||||
Tolerance | % | ≤+-0.5% | ||||||||
voltage | V | 220V 1P 50Hz or customized | ||||||||
power | KW | 4KW | 4KW | 5KW | 5KW | 6KW | ||||
Air pressure | MPA | 0.5-0.7Mpa | 0.5-0.7Mpa | 0.5-0.7Mpa | 0.5-0.7Mpa | 0.5-0.7Mpa | ||||
Air consume | M3/min | 0.03 | 0.04 | 0.05 | 0.06 | 0.06 | ||||
