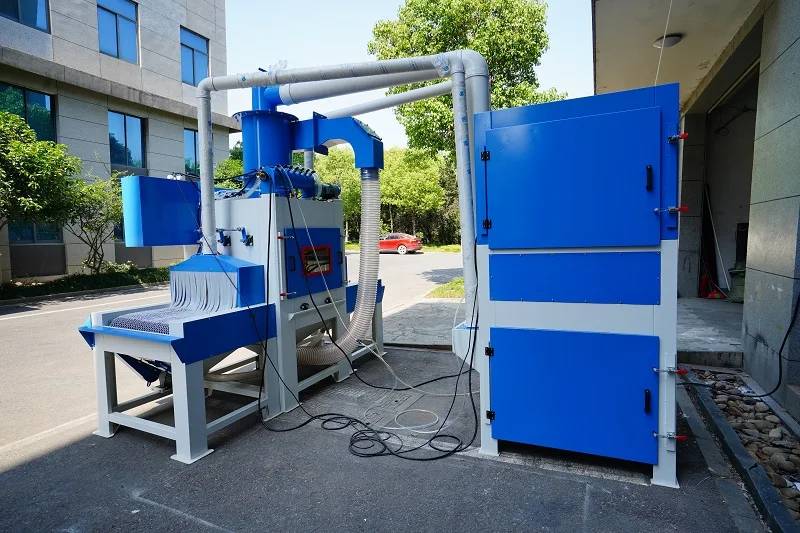

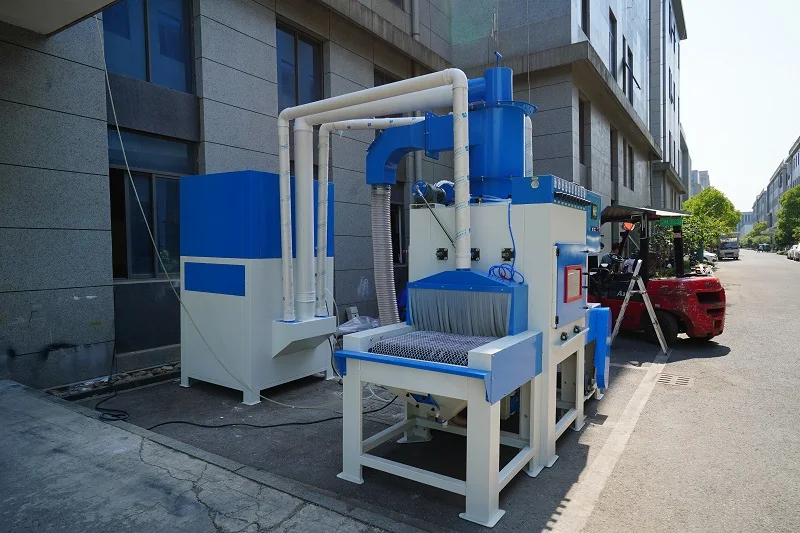

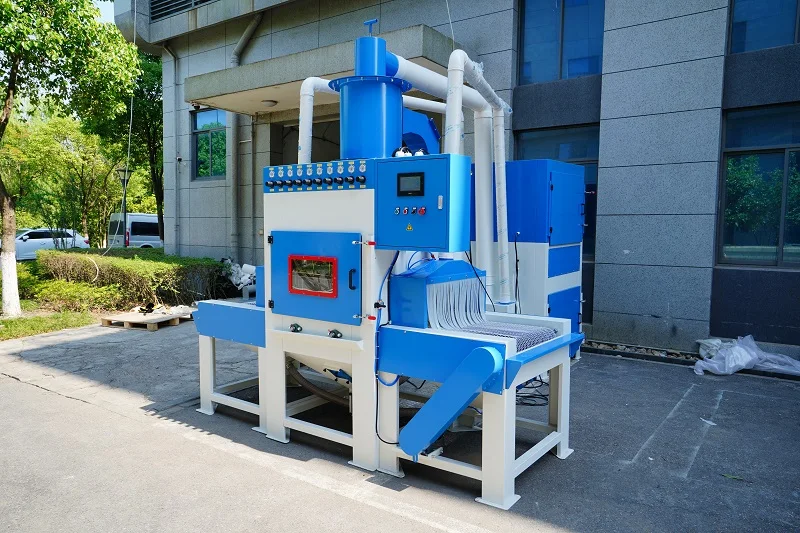

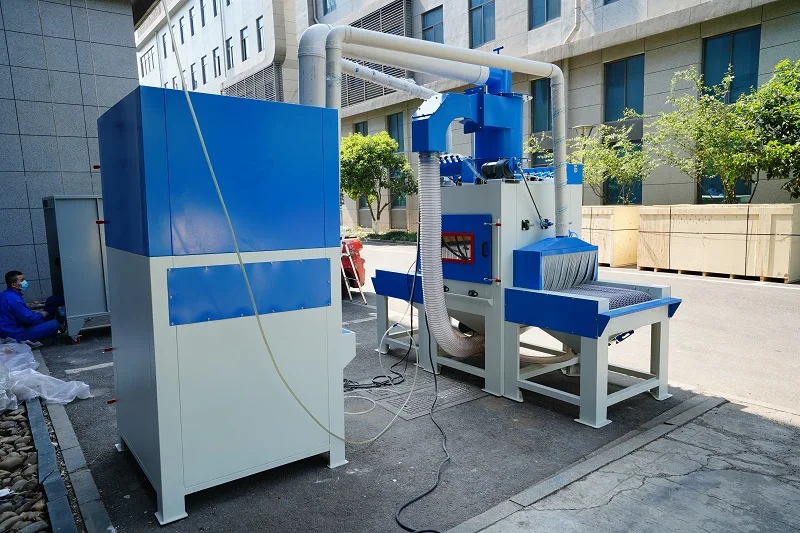

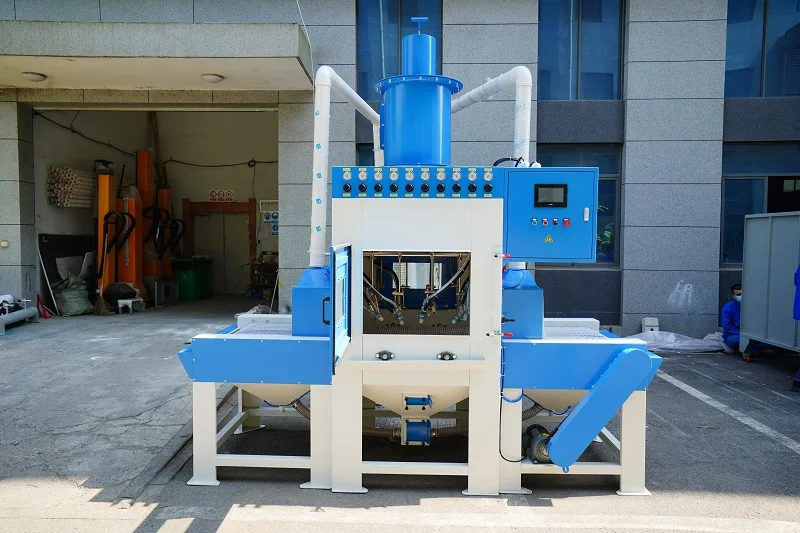

Automatic roller conveyor sand blasting machine
- Category: >>>
- Supplier: Hangzhou Color Powder Coating Equipment Co. Ltd.
Share on (1600623249405):
Product Overview
Description
Product Description
Automatic roller conveyor belt sand blasting machine
Automatic roller conveyor belt sandblasting machine features high processing efficiency, whose belt conveyor transports a batch of parts to working chamber thus getting automatically blasted.

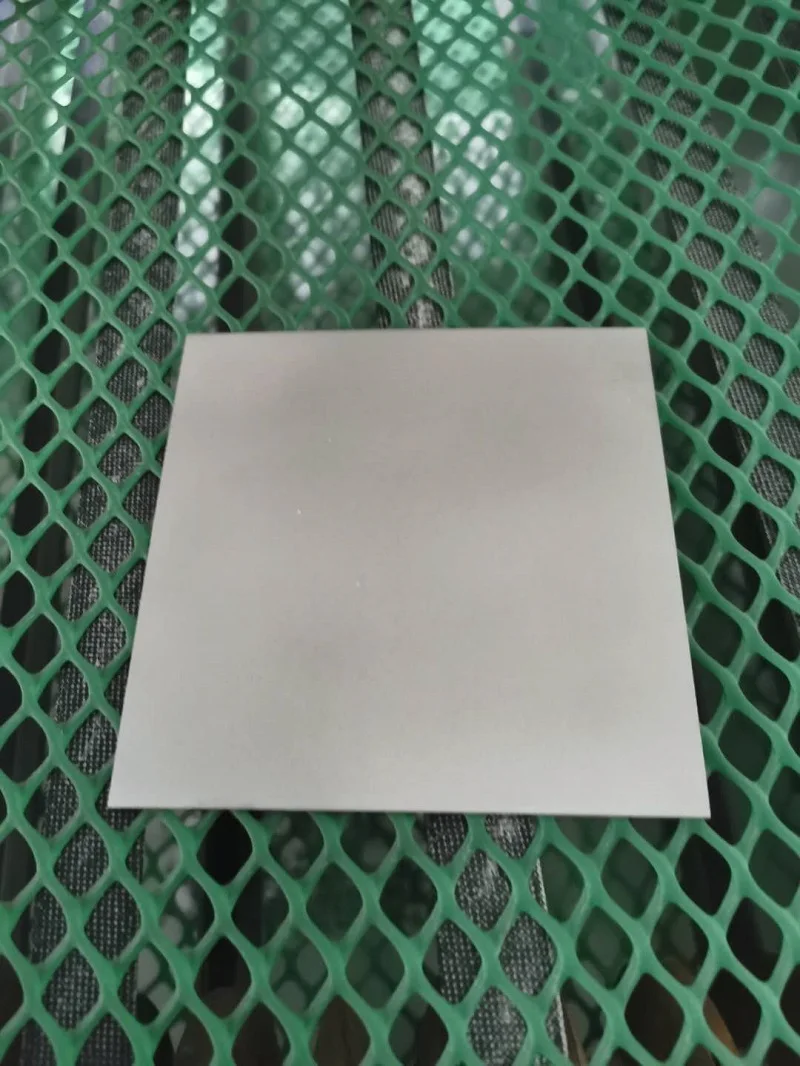

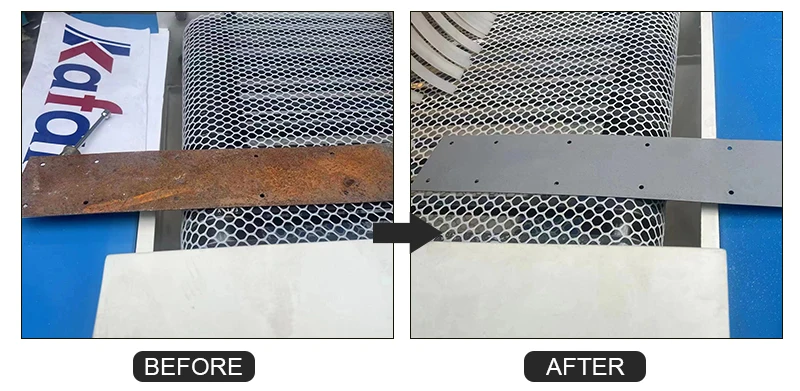

The finished surface of the product is clean without sticky debris. In particular, automatic sandblasting avoids the uneven blasting effect, chromatic aberration and quality problem.
Details Images
Conveyor Belt Sandblasting Working Principle
The operators put or fix the workparts on the conveyor belt.

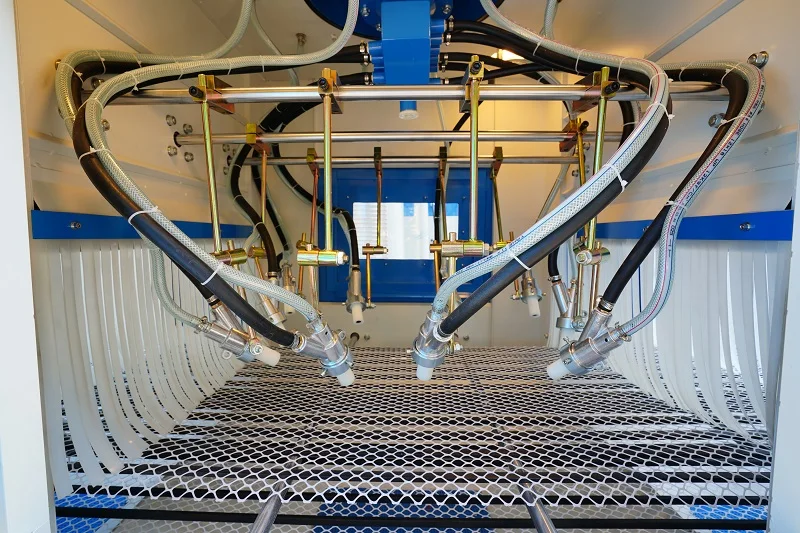

When the workpiece is transported into the sandblasting chamber, the blasting guns automatically swinging and blasting, ensures
the products is blasted entirely.
Finally the workparts comes out from
the other side of the conveyor to be discharged.
When the workpiece is transported into the sandblasting chamber, the blasting guns automatically swinging and blasting, ensures
the products is blasted entirely.
Finally the workparts comes out from
the other side of the conveyor to be discharged.
Operation Panel
Dust Collector
PLC Controller
Air Compressors
Conveyor Belt
Sandblasting Gun
1. Using PLC control system, the operation is simple and efficient.
2. The machine can be customized with 4, 6, 8, 10, 12, 16pcs guns, and each blasting gun can be independently controlled.
3. Blasting cabinet can be customized according to the size of the work-piece.
4. The blasting speed can be adjusted, the adjustment range is 0-5 m /s.
5. Abrasives can be recycled and reused through the cyclone recycling system, saving costs.
Specification
Model： | KF-6010-10A |
Machine dimensions: | Length3200 * Width1400 * Height2400 mm |
Working Space size: | Length1000 * Width1300 * Height1000 mm |
Through Size | Length800 * Width300 mm |
Dust collector size: | Length1200 * Width700 * Height1900mm |
Dust Collector Filter Qty | 6pcs |
Dust fan motor power: | 5.5kw |
Blast gun swing motor: | 370W 380V 50HZ |
Lighting: | 18W fluorescent lamps, 2pcs |
The number of blast nozzles: | 10pcs ( boron carbide nozzle) |
Machine Shell: | 2.5mm-6mm cold-rolled steel plate welded |
Perspective window: | 2 frames |
Abrasive funnel | 3pcs |
Pressure | 5-8 bar (kg / cm2) |
Air compressor | 6.8 cubic meter |
Conveyor loading capacity: | 300 kg |
Total power: | 8.8KW |
Total weight: | 1.55 tons |
Application

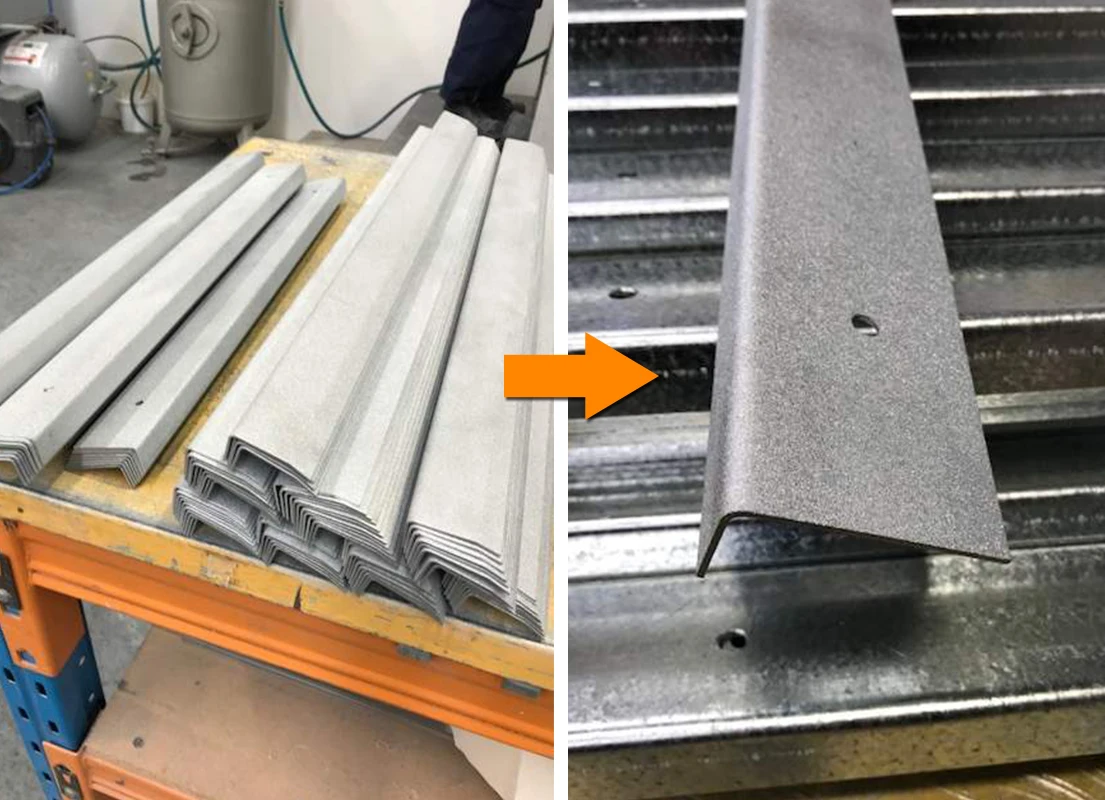

Conveyor belt automatic sand blasting is recommended for batch processing flat shape workpieces like steel plate, glass plate, phone shell, notebook mainboard, decorative pieces, aluminum profiles, etc.
Recommend Products
Packing & Delivery
Company Profile
HANGZHOU COLOR POWDER COATING EQUIPMENT CO., LTD is a leading manufacturer of electrostatic powder coating equipment since year 2009. Over the past 10+ years we COLO have been recognized as the Top brand in the world industry thanks to our rich experience in the design, manufacture, installation, commissioning and ongoing support of the powder coating equipment.
We export the products to a wide range of industrial users from more than 100 countries, and build a broad network including international wholesalers from US, UK, Canada, Austrialia, Mexico, Malaysia, Thailand, Vietnam, Poland, Peru, Brazil, etc.
FAQ
1. Q: Do you have the powder coating machines in stock?
A: Yes, almost we have in stock, if no stock, we can also arrange production to you within 3 work days.
2. Q: How long is the delivery time?
A: Normally It takes about 3 days to deliver, and 3-7 days to get to your places.
3. Q: How will you pack the powder coating machine?
A: If for international express (air delivery), We will wrap them with thick PE foam inside and sturdy carton for packages . If for sea delivery, we will wrap with thick PE foam inside and wooden case for packages.
4. Q: What is the voltage of powder coating machines?
A: 110V/220V, single phase, we can customize the your local voltage from 100-240V
5. Q: How to operate this powder coating machine, any video or instructions?
A: We have operation video and using manual to teach you how to use the machine.
6. Q: Do you deliver powder coating machine assembled?
A: Mostly we delivery the machine by separated parts in order to reduce the package size to save the shipping freight,but we have machine video and diagram to teach you how to assemble the machine.
7. Q: Do you supply spare parts for the powder coating machine?
A: Sure, all the spare parts are available.
8. Q: How can we be your distributor on COLO brand in our country?
A: if you want to be our agent, we will consider your company market sales ability and whether it meets the conditions of the dealer. Generally, the standard is 100 sets per model per year, and the quantity should be increased in the second year.
9. Q: Can we use ourself brand and change the design of control panel ?
A: Yes, we can customize brand and change the design of control panel.
