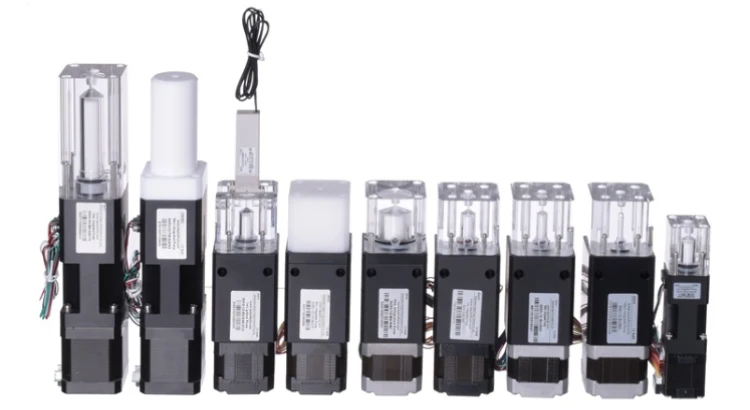

Professional production High Efficiency Syringe Automatic Pump Oem
- Category: >>>
- Supplier: Shenzhen Keyto Fluid Control Co. Ltd.
Share on (1600623283045):
Product Overview
Description
Product Paramenters
Motor step angle | 1.8° | ||||||||||||||||
Connection | M6、1/4-28 UNF | ||||||||||||||||
Coefficient of variationCV | <1.2%(Accurate At Not Less Than 2% To Full Dispense Volume) <1%(Accurate At Not Less Than 10% To Full Dispense Volume) | ||||||||||||||||
Stroke(mm) | 12.7 | 12.7 | 25.4 | 50.8 | |||||||||||||
Motor current(A ) | 0.5/1 | 1.2 | 2 | 2 | |||||||||||||
Piston Height(mm) | 120.4 | 136 | 173.3 | 217.7 | |||||||||||||
Motor Max. speed(r/s) | 8 | 12 | 8 12 | ||||||||||||||
Volume | 100uL | 250uL | 500uL | 1mL | 2.5mL | 5mL | 50uL | 10mL | 20mL | ||||||||
Piston Diameter(mm) | 3.17 | 5.01 | 7.08 | 10.01 | 15.84 | 22.39 | 2.24 | 22.39 | 22.39 | ||||||||
Volume per stroke(ul/step) | 0.05 | 0.125 | 0.25 | 0.5 | 1.25 | 2.5 | 0.025 | 2.5 | 2.5 | ||||||||
Products Description

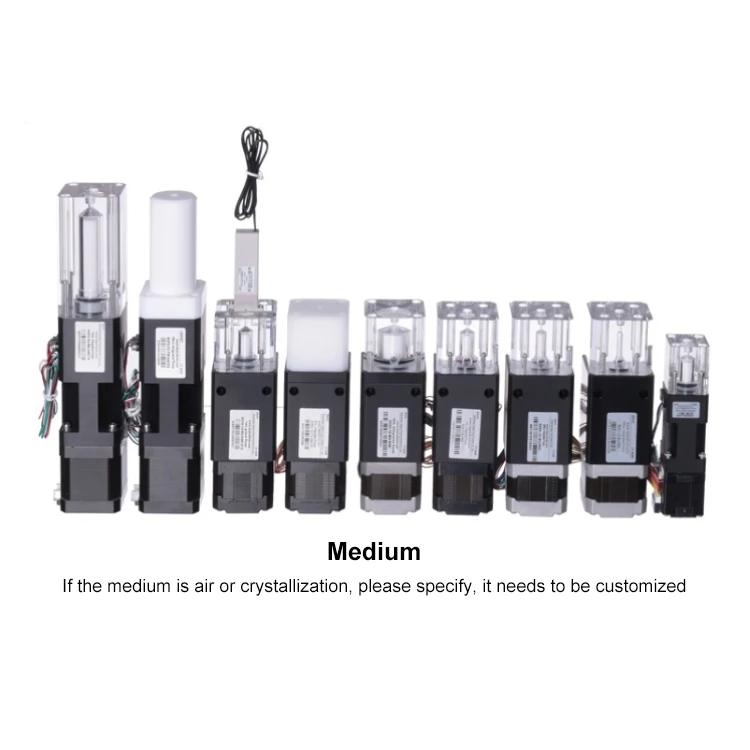

Medium
If the medium is air or crystallization, please specify, it needs to be customized

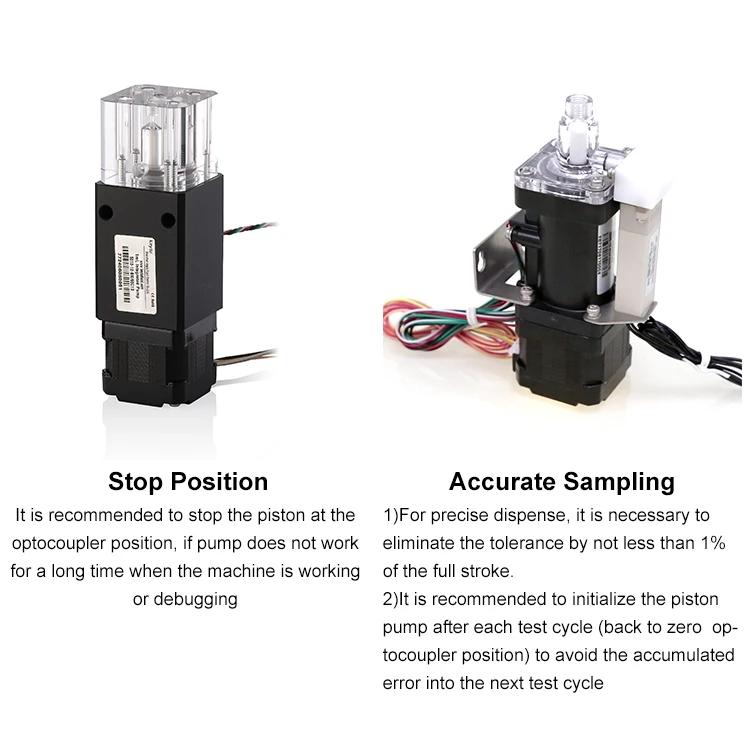

Stop Position
It is recommended to stop the piston at the
optocoupler position, if pump does not work
for a long time when the machine is working
or debugging
optocoupler position, if pump does not work
for a long time when the machine is working
or debugging
Accurate Sampling
1)For precise dispense, it is necessary to
eliminate the tolerance by not less than 1%
of the full stroke.
2)It is recommended to initialize the piston
pump after each test cycle (back to zero op-
tocoupler position) to avoid the accumulated
error into the next test cycle
eliminate the tolerance by not less than 1%
of the full stroke.
2)It is recommended to initialize the piston
pump after each test cycle (back to zero op-
tocoupler position) to avoid the accumulated
error into the next test cycle

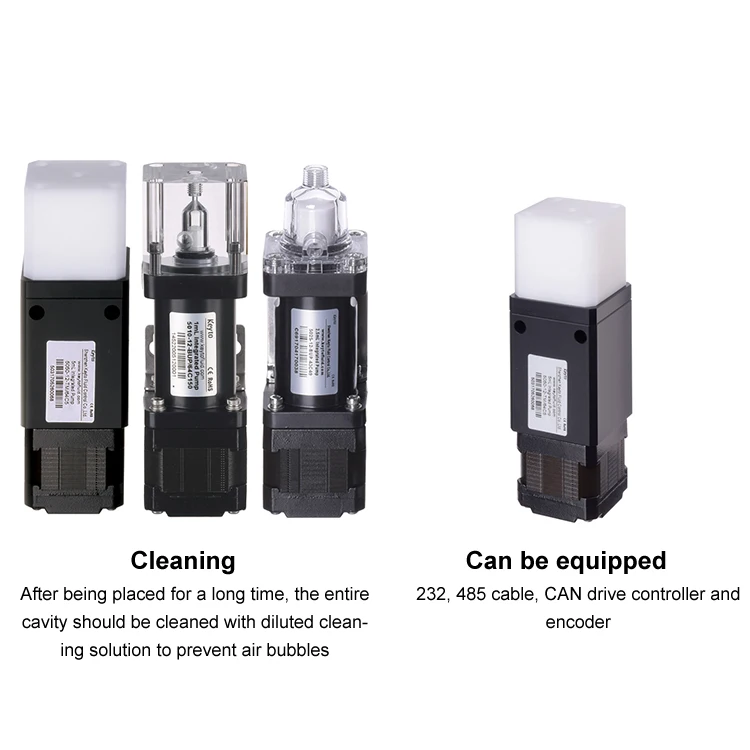

Cleaning
After being placed for a long time, the entire
cavity should be cleaned with diluted clean-
ing solution to prevent air bubbles
cavity should be cleaned with diluted clean-
ing solution to prevent air bubbles
Can be equipped
232, 485 cable, CAN drive controller and
encoder
Main Products
Company Profile
Certification & Exhibition

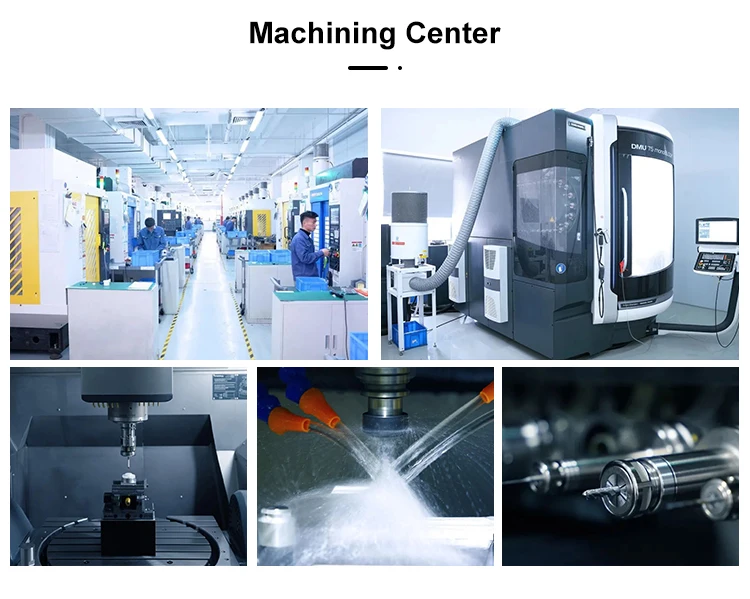

Production Process
Packaging & Shipping
FAQ
1.How can I customize my products?
Attach your drawings with details(Suface treatment,material,quantity and special requirements etc).
2.How long I can get the quaotation?
We will offer the quotation within 48 hours(Considering the time difference).
3.Are there any other requirements for the order?
OEM&ODM are welcomed.
4.Can I get a sample for testing?
We will offer free or charged samples depends on the products.
5.How long will you produce the parts?
Normally three weeks
6.What's your payment terms?
T/T
7.How about the transportation?
By sea or by air
Attach your drawings with details(Suface treatment,material,quantity and special requirements etc).
2.How long I can get the quaotation?
We will offer the quotation within 48 hours(Considering the time difference).
3.Are there any other requirements for the order?
OEM&ODM are welcomed.
4.Can I get a sample for testing?
We will offer free or charged samples depends on the products.
5.How long will you produce the parts?
Normally three weeks
6.What's your payment terms?
T/T
7.How about the transportation?
By sea or by air
