Applicable for iphone OTG card reader with 3.5mm mobile phone iPhone five in one card reader SD TF card charging
- Category: >>>
- Supplier: Shenzhen Hoveyo Technology Co. Ltd.
Share on (1600623294105):
Product Overview
Description
Specification
Product name | 5 in 1 type c hub |
Material | Aluminum Alloy |
Color | Gray,Silver |
Data Transfer Rate | 5Gbps |
Compatible | U disk, mouse keyboard, etc. |
Certification | CE ROHS |
Application | Family/Office/Personal |
Audio mode: realize the conversion of Lightning to 3.5mm audio master;

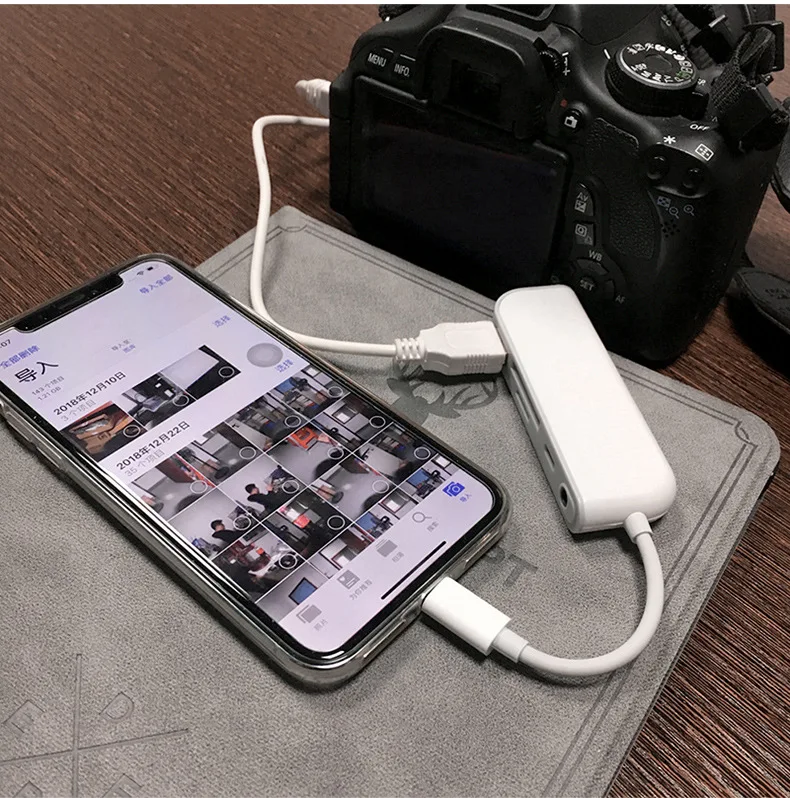

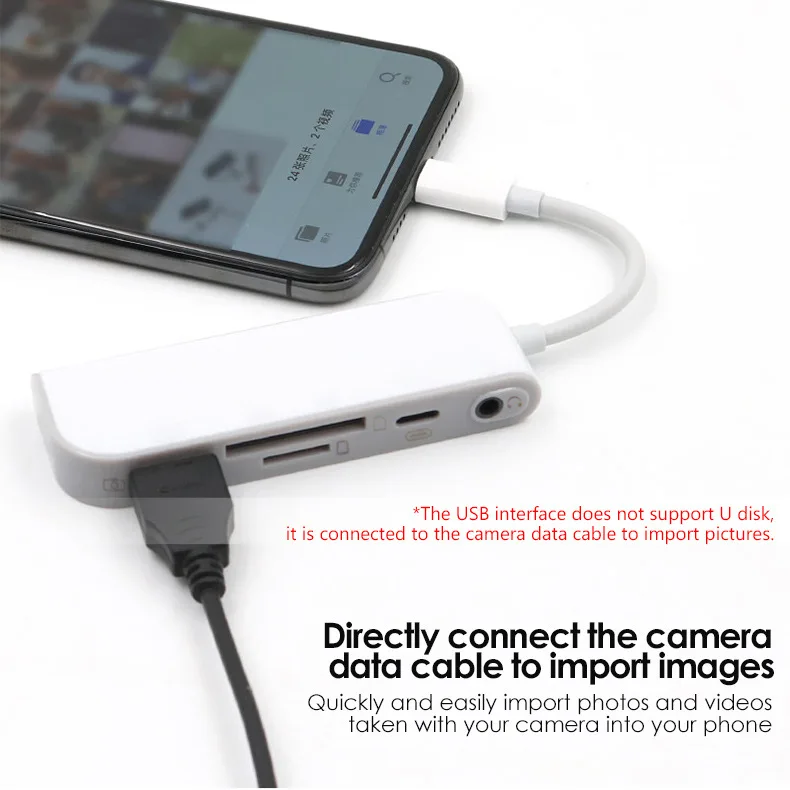

Camera Mode: Directly import camera photos to iPhone/iPad/iPod Touch through camera data cable;
iFlash Device APP mode: Two-way transmission between the adapter and iPhone/iPad/iPod Touch is realized through APP.
Basic parameters
Working voltage: 3.3V-4.0V
Working current: ≤100mA
Interface: Lightning charging port Charging current: 500-2100mA
3.5mm audio female
USB female transfer rate 14M/S-16M/S
SD/TF interface Write: 3.3M/S Read: 6.4M/S
Compatibility
Compatible with ios9.1 and higher systems
The USB port only supports devices with an operating current of less than 100mA
Advantage
Camera Mode: Directly import camera photos to iPhone/iPad/iPod Touch through camera data cable;
iFlash Device APP mode: Two-way transmission between the adapter and iPhone/iPad/iPod Touch is realized through APP.
Basic parameters
Working voltage: 3.3V-4.0V
Working current: ≤100mA
Interface: Lightning charging port Charging current: 500-2100mA
3.5mm audio female
USB female transfer rate 14M/S-16M/S
SD/TF interface Write: 3.3M/S Read: 6.4M/S
Compatibility
Compatible with ios9.1 and higher systems
The USB port only supports devices with an operating current of less than 100mA
Advantage
1: Solve the trouble of not being able to listen to songs and charge at the same time without a 3.5mm audio interface device;
2: Direct import of digital camera photos to iPhone/iPad/iPod Touch without the help of a computer and APP;
3: Through the iFlash Device APP mode, it can realize address book backup, file encryption two-way transmission, video and music playback, office file browsing and other operations, which can easily solve the problem of large files occupying memory;
2: Direct import of digital camera photos to iPhone/iPad/iPod Touch without the help of a computer and APP;
3: Through the iFlash Device APP mode, it can realize address book backup, file encryption two-way transmission, video and music playback, office file browsing and other operations, which can easily solve the problem of large files occupying memory;
Mode Operation Instructions
1: iFlash Device APP mode: (For APP operation, please refer to the operation instructions in the APP)
1.1 After inserting the SD/TF, connect the product to the iPhone/iPad/iPod Touch device. At this time, the device will pop up an APP installation prompt box, click Install, and the installation is complete to enter the APP. frame);
1.2: After entering the APP, two-way data transmission between SD/TF and the device can be realized, address book backup, file encryption, music copy transmission, movie copy and direct reading and playback, and direct viewing of office files;
2: Audio charging/Camera import charging mode:
2.1 Inserting 3.5mm connector devices (headphones, speakers and other audio devices) can realize audio transmission of iPhone/iPad/iPod Touch; at this time, you can insert Lightning-USB charging cable to realize audio output and charging of the device at the same time;
2.2, the USB female end can be connected to digital cameras or USB peripheral devices with current less than 100mA, such as: USB headset, U disk, card reader and keyboard; at this time, you can plug in the Lightning-USB charging cable to directly import and charge camera photos. simultaneously;
The camera is imported into the charging mode using the U disk/card reader map naming rules: The photos in the U disk/card reader must be placed in a folder with the specified name in strict accordance with the naming rules, and the iPhone/iPad/iPod Touch device can automatically recognize and import :
Photos and videos must be renamed in the format of "MVI_XXXX" (XXXX is a number), otherwise the device cannot read the photos; the renamed photos must be placed in the "DCIM" folder; the above two operations are indispensable; The memory card taken out of the digital camera has automatically created a "DCIM" folder and named files according to this naming convention, so it can be imported directly through a card reader.
Precautions
1: The product does not support charging and iFlash Device APP mode at the same time;
2: Insert the memory card into the SD TF card slot in the audio charging/camera charging mode, the product will not work normally;
3: The USB port of the product supports and only supports USB accessories whose working current is lower than 100mA;
4: The product does not support the simultaneous operation of the 3.5mm audio port and the USB socket while charging.
1: iFlash Device APP mode: (For APP operation, please refer to the operation instructions in the APP)
1.1 After inserting the SD/TF, connect the product to the iPhone/iPad/iPod Touch device. At this time, the device will pop up an APP installation prompt box, click Install, and the installation is complete to enter the APP. frame);
1.2: After entering the APP, two-way data transmission between SD/TF and the device can be realized, address book backup, file encryption, music copy transmission, movie copy and direct reading and playback, and direct viewing of office files;
2: Audio charging/Camera import charging mode:
2.1 Inserting 3.5mm connector devices (headphones, speakers and other audio devices) can realize audio transmission of iPhone/iPad/iPod Touch; at this time, you can insert Lightning-USB charging cable to realize audio output and charging of the device at the same time;
2.2, the USB female end can be connected to digital cameras or USB peripheral devices with current less than 100mA, such as: USB headset, U disk, card reader and keyboard; at this time, you can plug in the Lightning-USB charging cable to directly import and charge camera photos. simultaneously;
The camera is imported into the charging mode using the U disk/card reader map naming rules: The photos in the U disk/card reader must be placed in a folder with the specified name in strict accordance with the naming rules, and the iPhone/iPad/iPod Touch device can automatically recognize and import :
Photos and videos must be renamed in the format of "MVI_XXXX" (XXXX is a number), otherwise the device cannot read the photos; the renamed photos must be placed in the "DCIM" folder; the above two operations are indispensable; The memory card taken out of the digital camera has automatically created a "DCIM" folder and named files according to this naming convention, so it can be imported directly through a card reader.
Precautions
1: The product does not support charging and iFlash Device APP mode at the same time;
2: Insert the memory card into the SD TF card slot in the audio charging/camera charging mode, the product will not work normally;
3: The USB port of the product supports and only supports USB accessories whose working current is lower than 100mA;
4: The product does not support the simultaneous operation of the 3.5mm audio port and the USB socket while charging.
