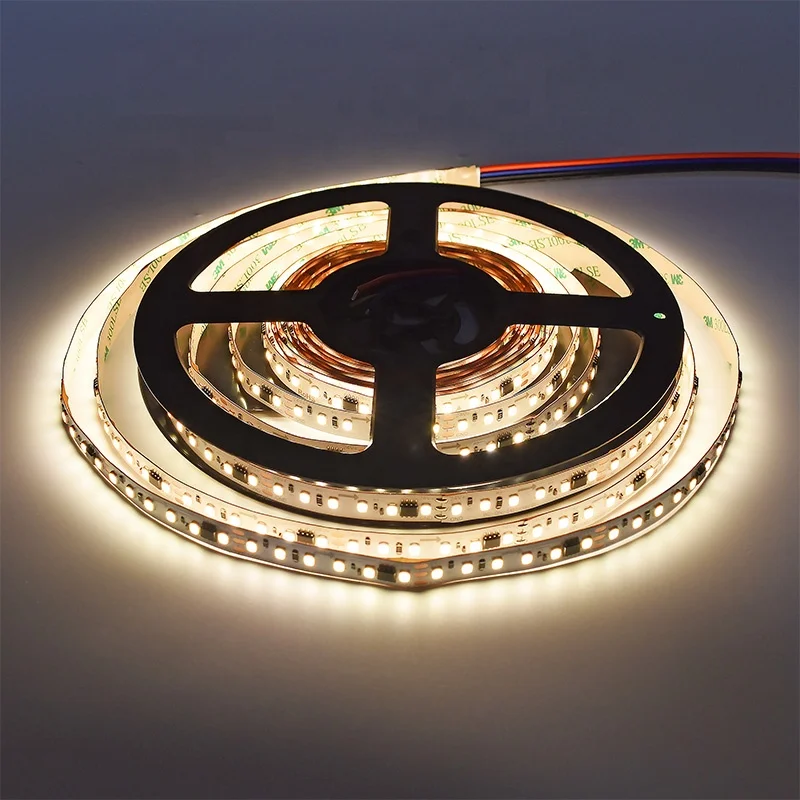

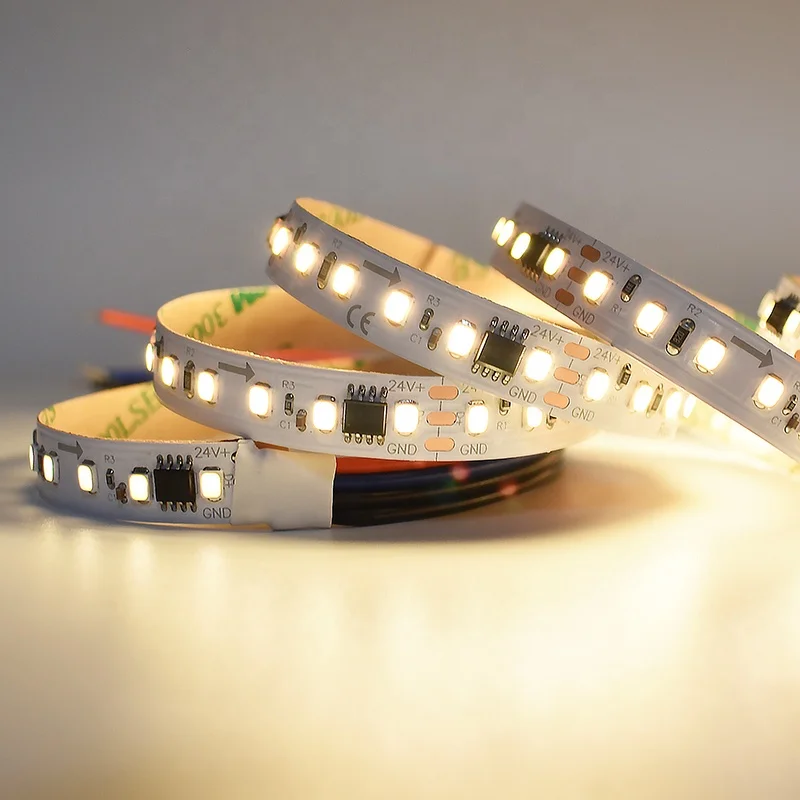

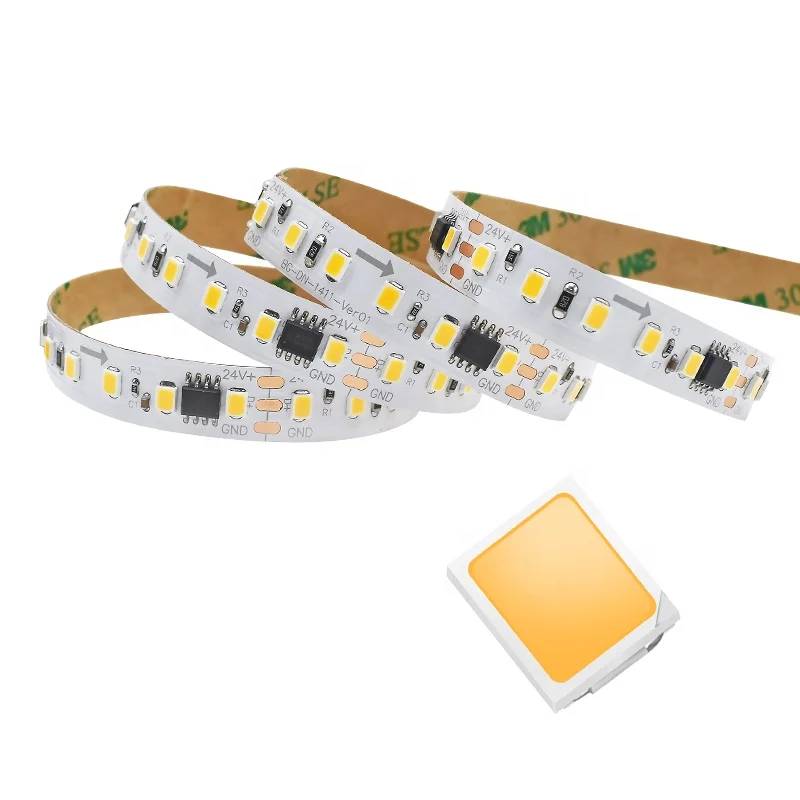

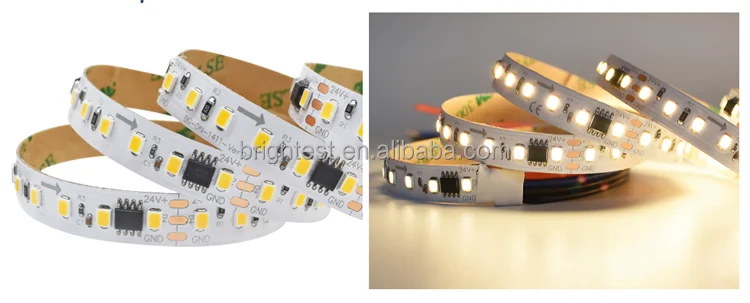

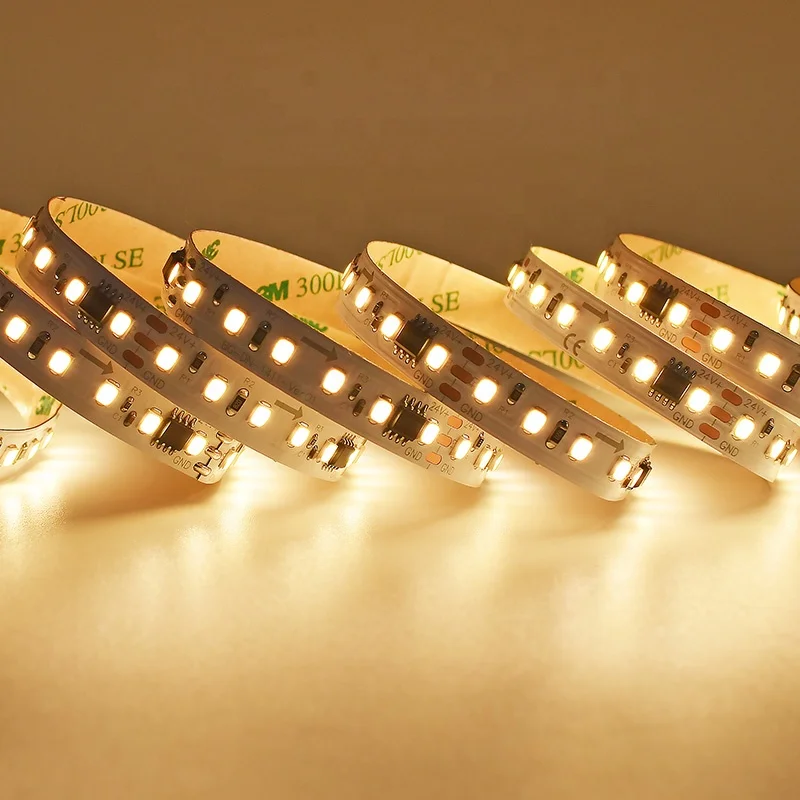

New SMD2835 DC24V 120leds White pixel light digital UCS1903 WS2811 led strip 6leds per pixel addressable smart led strip light
Different IP grade led strip, IP20, 66, 68

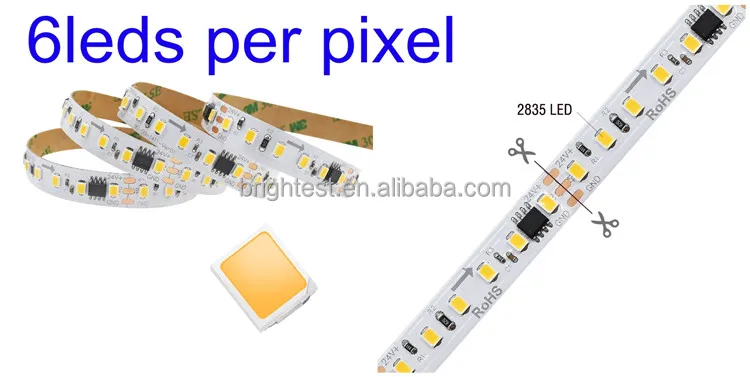

6leds per pixel, 50mm per unit
Light Color | White single color(SPI) |
LED Quantity | SMD2835 120pcs/m |
Pixel qty | 20 pixels/m (6leds per pixel) |
Input Voltage | 24V DC |
Operating Current | 0.75A |
Input Power | 18 W |
Water Proof | IP20, IP65, IP66, IP68 |
Size | 5000mmX10mm |
Cut Length | 50mm |
View Angle | 120° |
Illumination range | 0.5-1.5 m |
Storage Temperature | -40℃----+60℃ |
Operating emperature | -40℃----+60℃ |

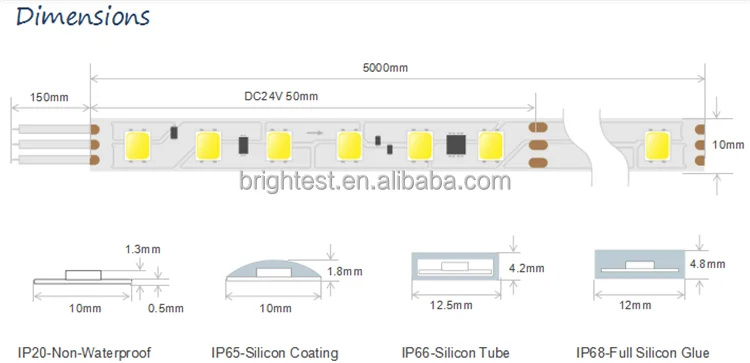

Dimension:

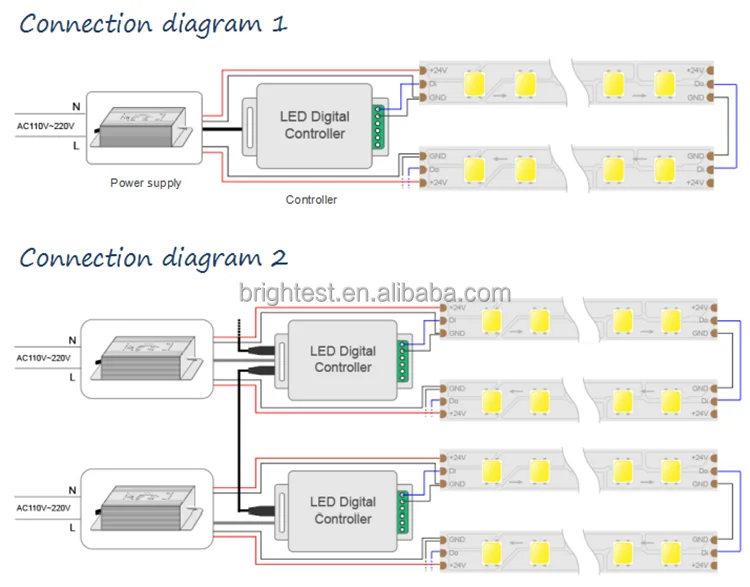

White single color digital led strip connetcion drawing:

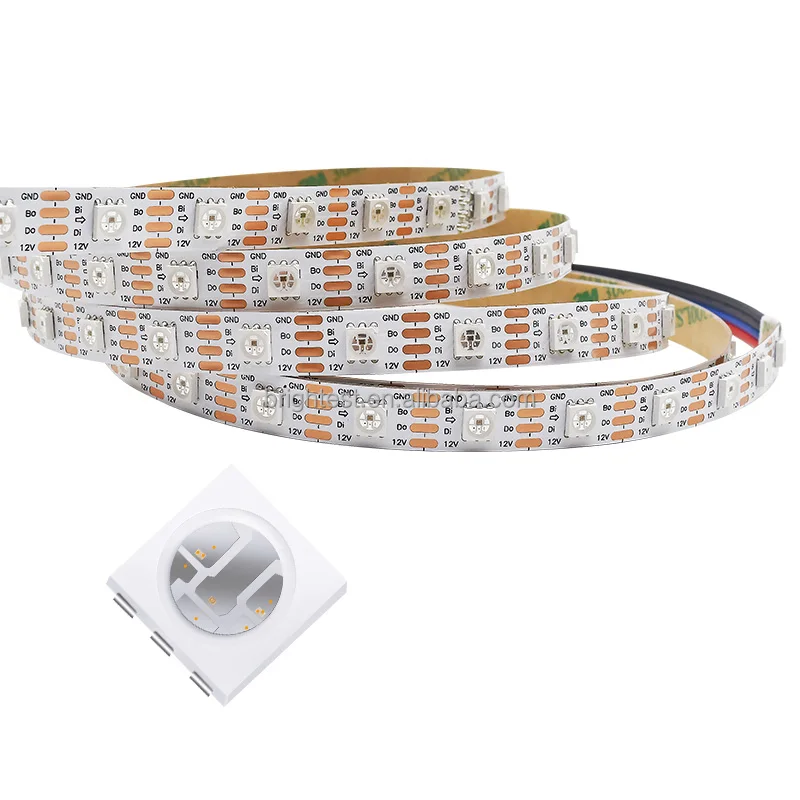

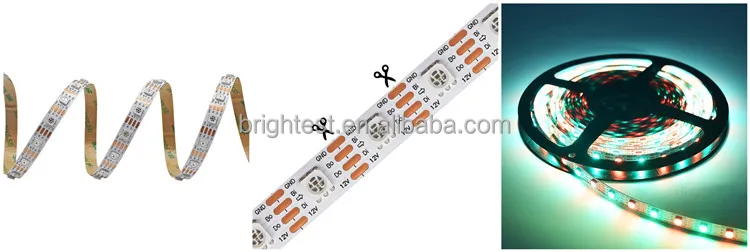

Other type RGB digital led strip:

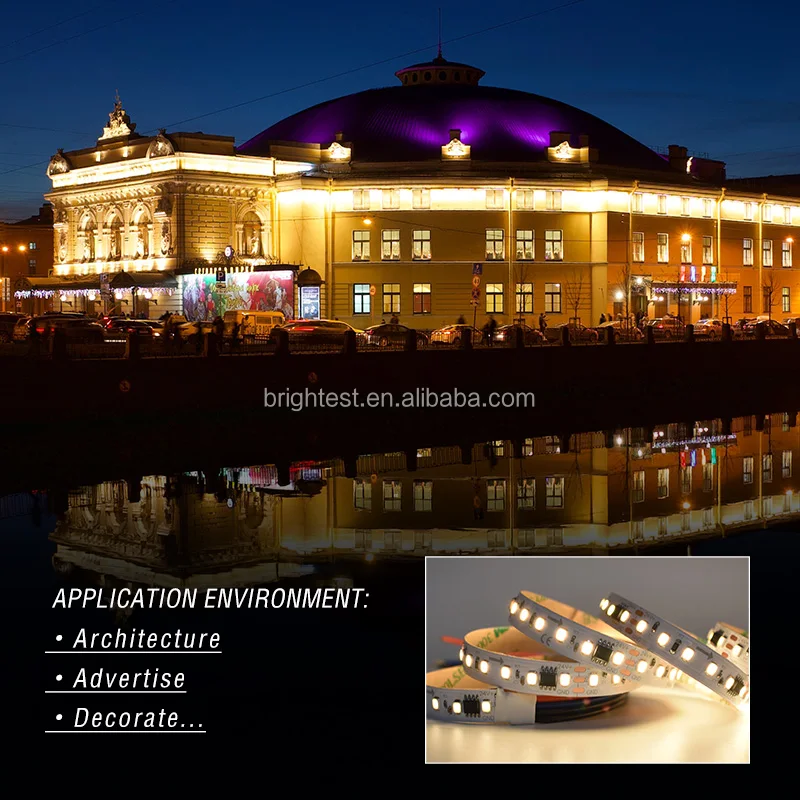

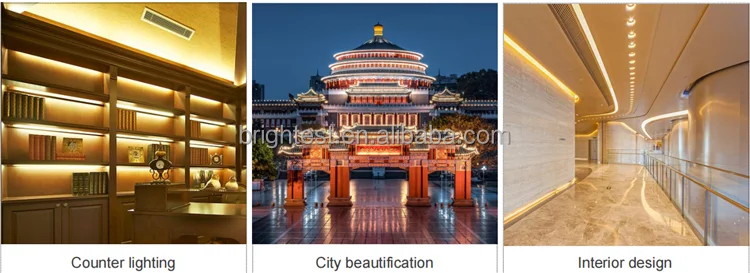

1. Indoor and outdoor decorative lighting and backlighting
2. Emergency hallway lighting
3. Auditorium walkway lighting
4. Outdoor illuminated signs and advertisements
