New 10/100Mbps 2 sfp ethernet bord poe switch 4 port

Product Overview

Description

New 4 port 10/100Mbps PoE IEEE802.3af/at PoE Watchdog HiPoE 60W PoE Switch





Product Description:



Automatically detecting and supplying power for powered devices conformed to IEEEE 802. 3af/at PoE++/HiPoE, unmanaged PoE switch (Ai-version) supports first port output HiPoE_ 60W.  Having the function of PoEdog and HiPoE, Port 1-4can support the watchdog function. When the port communication failure corresponds to the port POE will automatically restart, self-recover network communication, reducing manual intervention and maintenance, it can solve the problems that restart the machine annually on the spot and installation requirements on multiple switches.



Features

*   Ai Version: PoE dog (automagical real-time detection of powered devices status; when the device is abnormal, the switch automatically sets the port and restores PoE power supply to realize no duty.

*   PoE Standard:IEEE802.3af/at PoE++/HiPoE, support all ports standard detection.

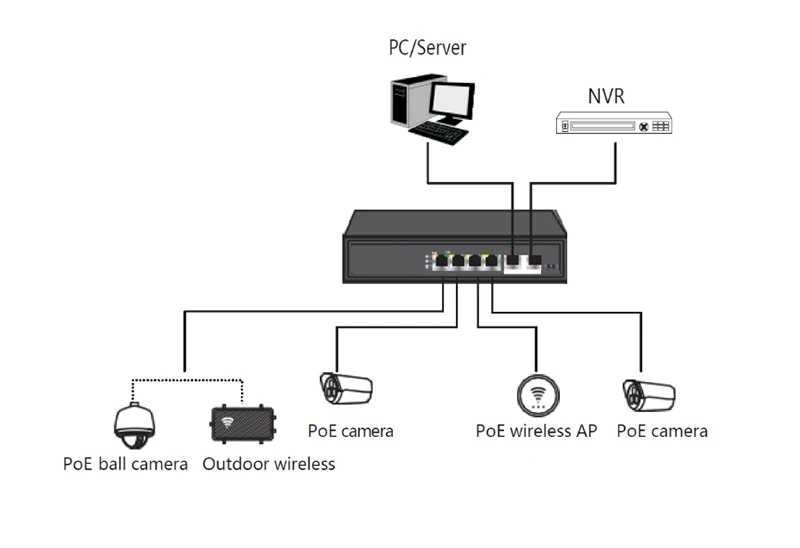

*   Support power supply for PoE devices such as AP and network monitoring cameras connected by

Cat5/6 ethernet cables.

*   Flow control method: full duplex adopts IEEE 802.3x, half duplex adopts Back pressure.

*   Port supports Auto MDI/MDIX.

*   Port supports lightning protection(secondary level requirements).

*   Single port supports PoE power:30W (first port outputs HiPoE_60W).

*   Exchanging Mechanism: Store and forward.

*   All ports support exchange at wire speed.

*   Zero-configuration: automatically supply for adaptive devices.

*   Panel indicator monitors operating status and helps fault analysis.



Specification

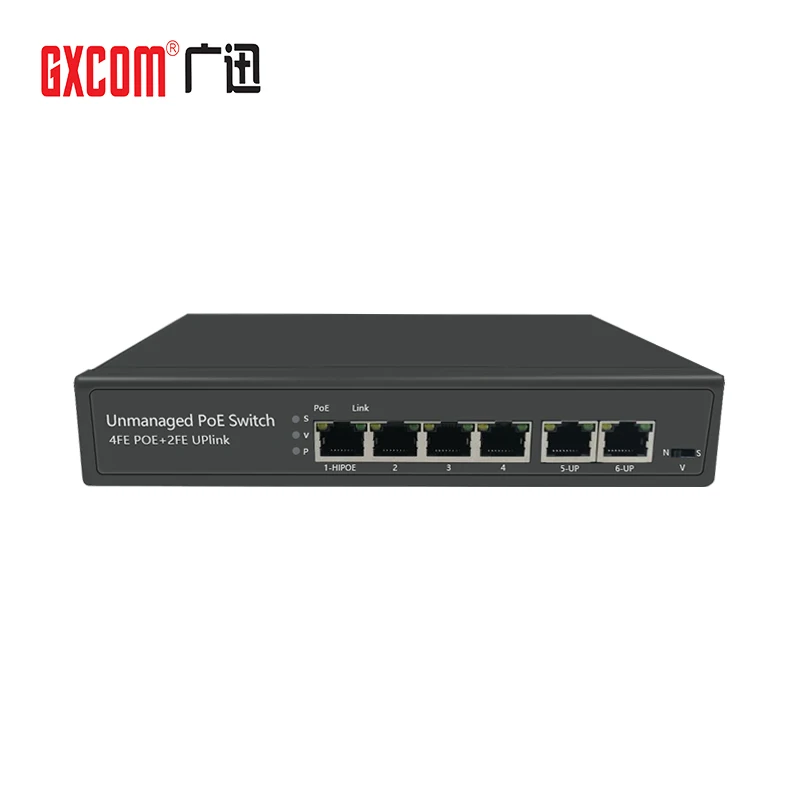

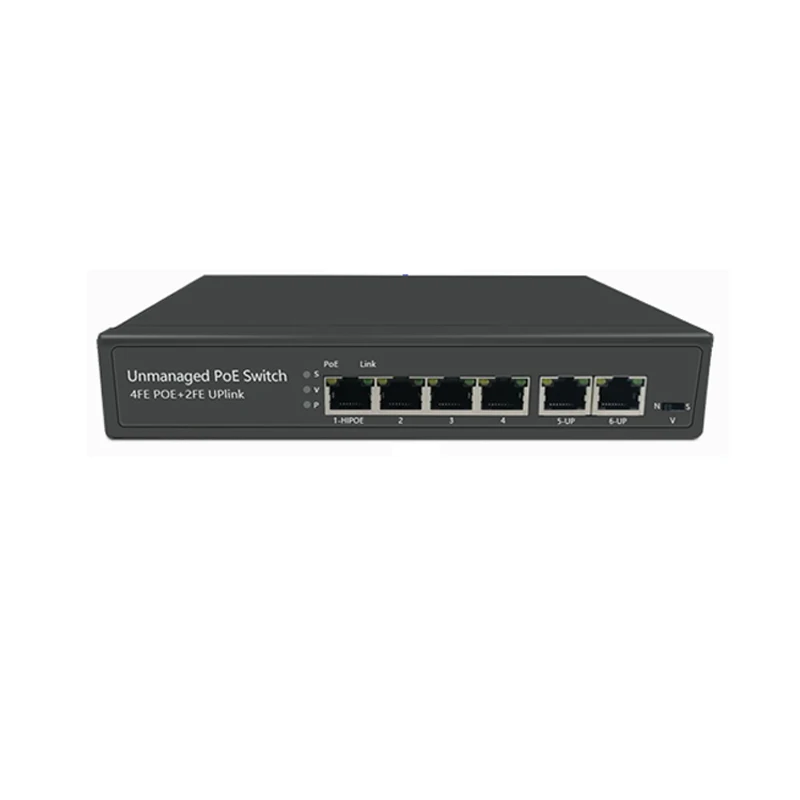

Model	TS6204P-2FE-AI
Product	6- port Fast Ethernet AiPoE Switch
Port	4*10/100Base-TX PoE port (Data/Power) 2*10/100Base-TX uplink RJ45 port (Data) 1-4 port support PoE (first port supports HiPoE_60W)
Function Switch	N:(Standard Normal) All ports communicate freely, adapting to common data transmission environment
	V:(Port Isolation) Switch to VLAN mode; downlink isolating from each other, uploads and downloads data through uplink; suppress network failure like broadcast storm and virus attack
	S:(Extend PoE mode) port 1-4 can support long-distance transmission 10M/250meters
Network Protocol	IEEE802.3 IEEE802.3i 10BASE-T IEEE802.3u100BASE-TX IEEE802.3x IEEE802.3af/at//PoE++
PoE Standard	IEEE802.3af/at
Port Specification	10/100BaseT(X)Auto
Transmission Mode	Store and Forward (full wire speed)
Bandwidth	1.6Gbps
Packet Forwarding	1.15Mpps
MAC Address	1K
Buffer	768K
Transmission Distance	10BASE-T : Cat3,4,5 UTP(≤250 meter) 100BASE-TX : Cat5 or later UTP(150 meter)
Power Pin	Default1/2(+), 3/6(-); Optional 4/5(+); 7/8(-)
Single port power	Average15.4W; MAX 30W (Ai version: MAX 60W)
Total Power/Input Voltage	MAX 65W (AC100-240V)
Watt	Standby Power Consumption≤3W; Full-loaded Power Consumption: <65w
LED Indicator	P: Power LED (Over-power LED) Uplnik: (Green=10/100M LED+Orange=1000M LED) Port:(Green=Link LED+Orange=PoE LED) V:(Port Isolation LED) S:(Ultral-far Mode LED)
Power	Built-in powerAC:100~240V 50-60Hz 1A
Operating Temperature/ Humidity	-10~+55°C;5%~90% RH Non coagulation
Storage Temperature/ Humidity	-40~+75°C;5%~95% RH Non coagulation
Product size /Packing size (L*W*H)	190mm*130mm*35mm / 305mm*205mm*55mm
N.W/G.W(kg)	0.6kg/0.9kg
