Product Overview

Description



High Stability Competitive Price Full Led Bulb Lamp Assembly Line Led TV Assembly Line SMT Production Line

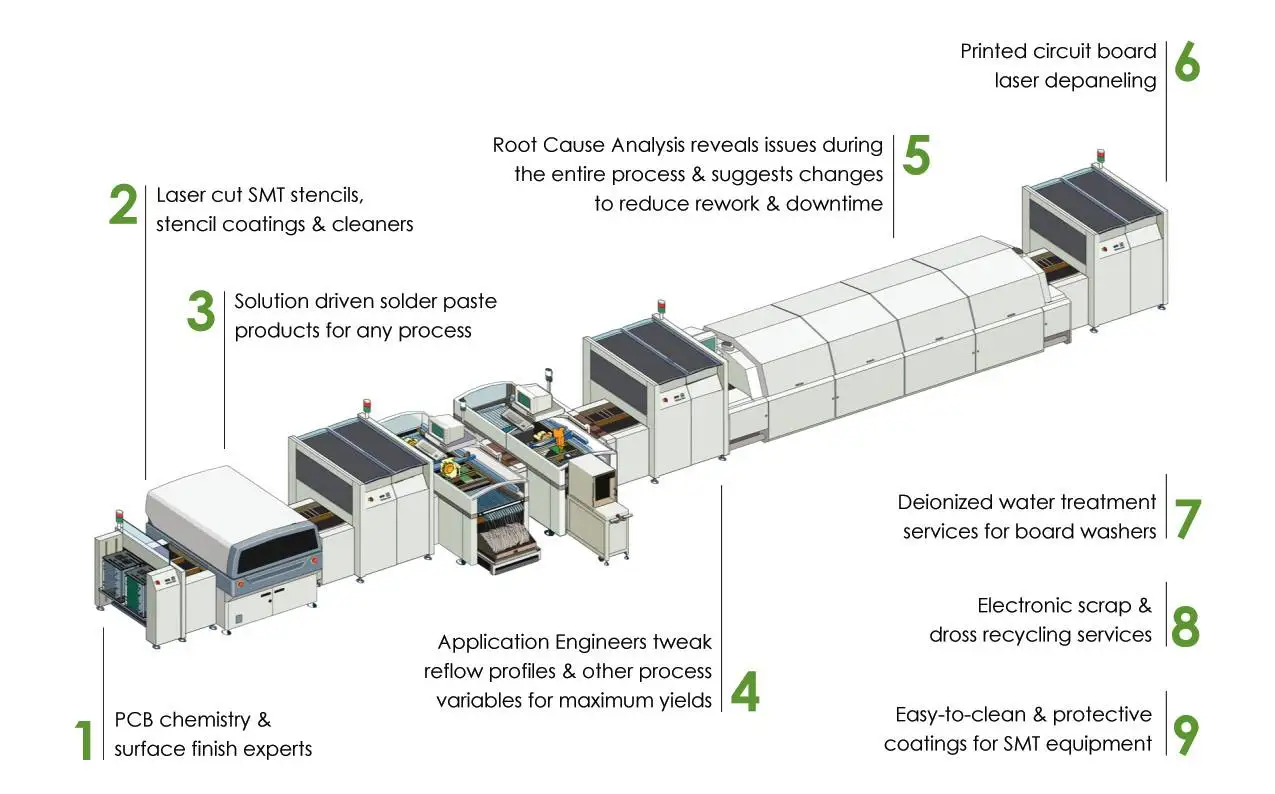

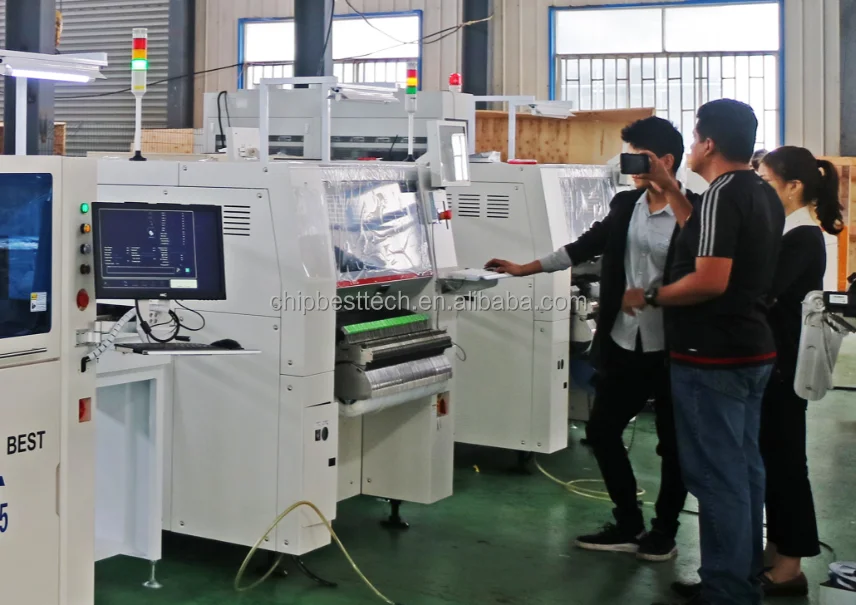

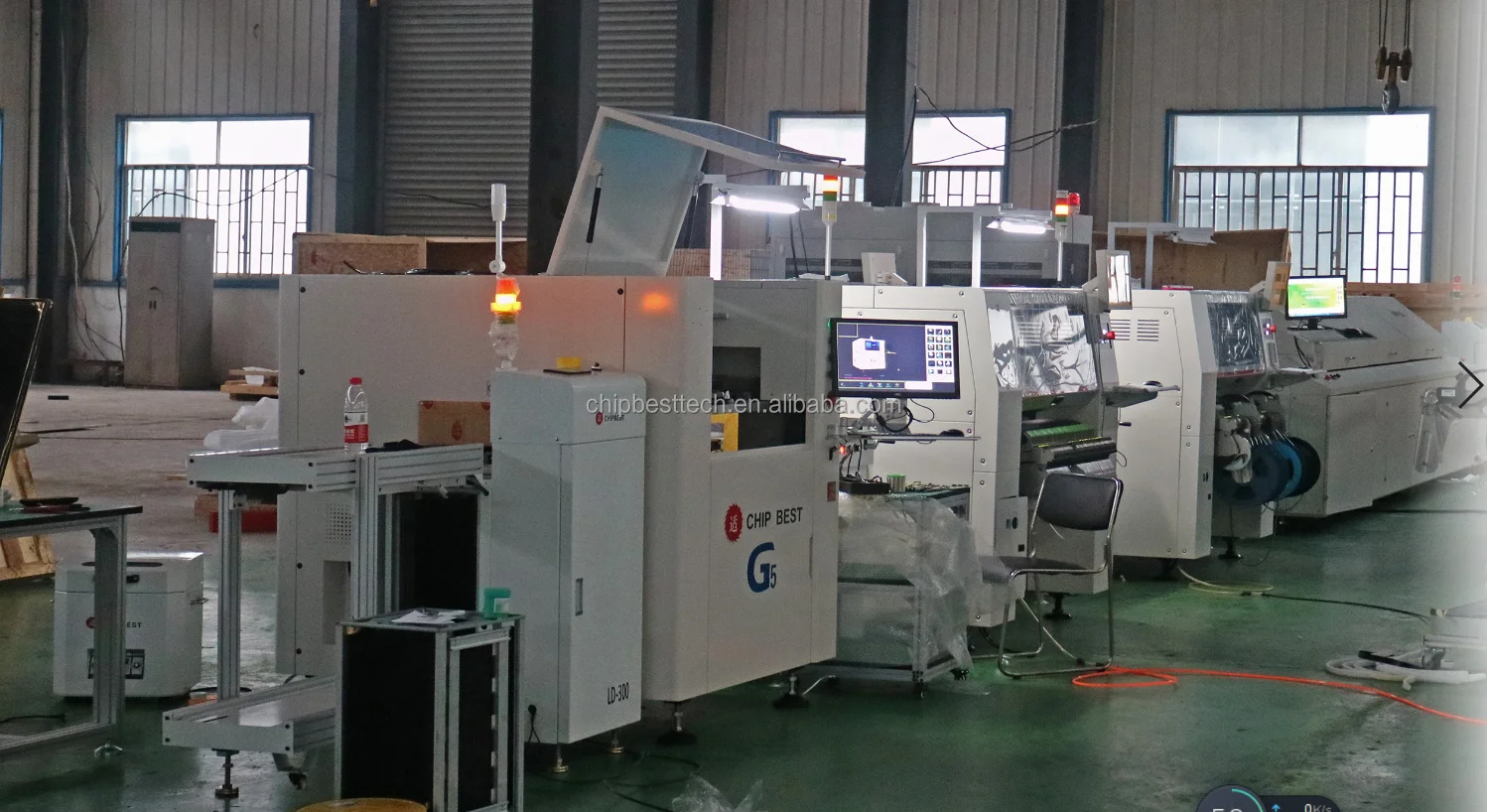

SMT Line Solution Picture :

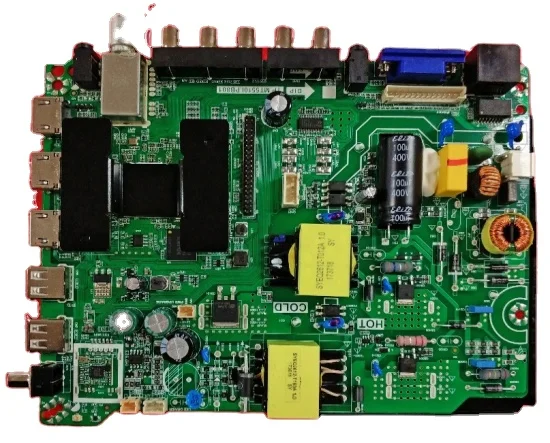

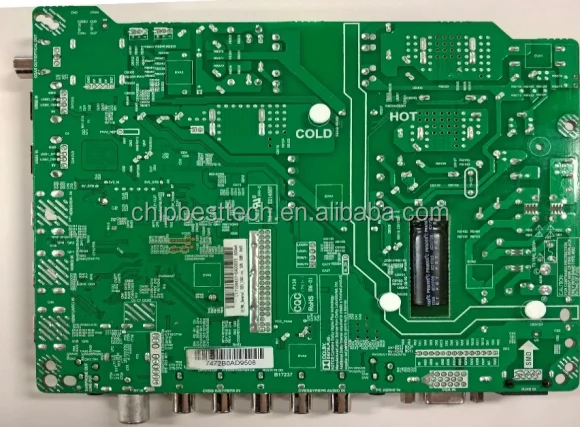

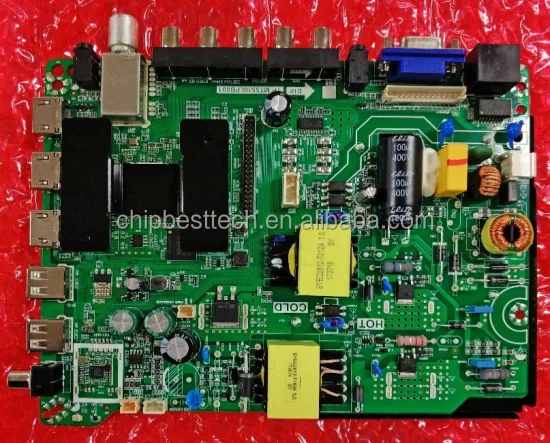

Apply in LED TV PCB Products :

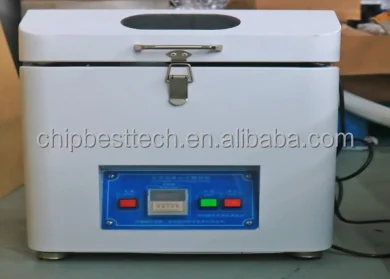

Welding Paste Mixer :

(Applications:For Wedling Paste mixing)

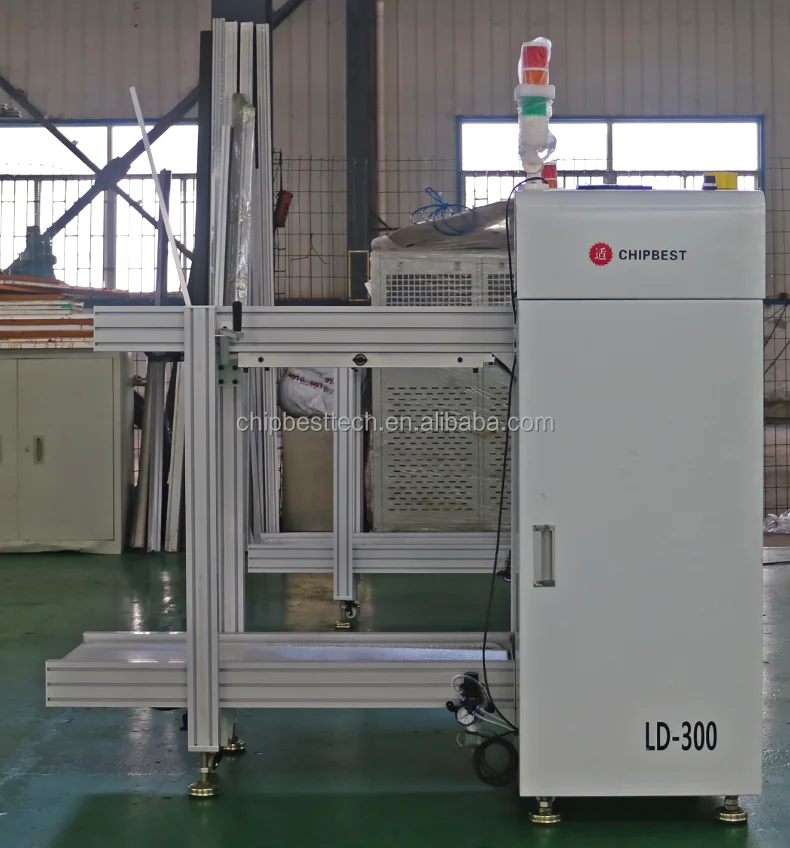

PCB Loader :

Model No: LD-300

PLC control system

LED Display

Touch Screen Control

Self-Diagnosis

PCB positioning:

High-accurancy Motor

Available PCB size: Min: 50x50mm Max: 350x250mm

Operating Table Height: 900±20mm

PCB Frame Size: L335*W320*H563mm

Auto PCB Frame Replacement

Power Supply: AC:220V-Single Phase ,50Hz

Compressed air:0.4-0.6Mpa

Out size:L1400xW700xH1250mm

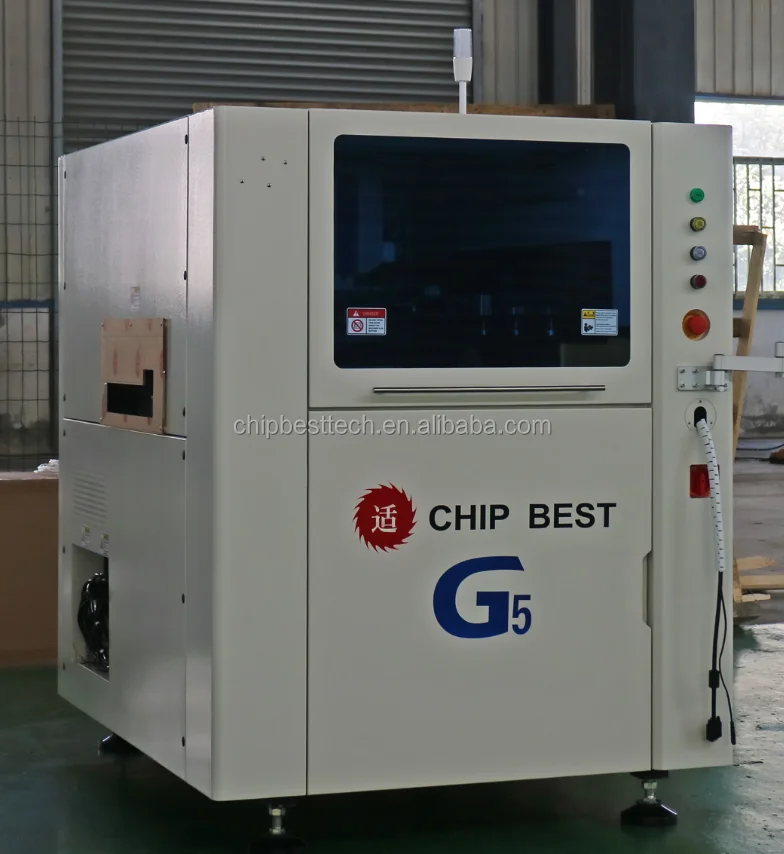

Paste Printer :

Model No:G5  (Latest Model,higher accurancy)
High Stability
Available Screen Frame size (PCB+Frame):
Min: L370 × W470mm      Max:L737 x W737mm
Available PCB Size:
Min:L50 × W50mm           Max:L450 x W350mm
Available PCB Thickness:
Min:0.6mm                       Max:14mm
Available PCB Warpage: 1% (corner-corner)
Transportation Speed:
Max:1500mm/s        Adjustable
Support System:Magnetic Pin Manual Up-down table
Squeegee Pressure:0~10Kg  (Program Control)
Clean Mode:Dry/Wet/Vacuum
View Area: 6.4*4.8mm
X/Y/θ Adjusting Range: X/Y:±7mm        θ:±2°
View System:
Two channges (Up-Down) Optics Imaging
Hitachi Camera
Geometry Matching
Print Accurancy :±0.025mm
Repeat Accurancy : ±0.01mm
Cycle Time ≤7.0S
Display-control: full color LED screen
Compressed Air: 4-6Kgf/cm2
Power Supply:380V 50Hz
Power  Consumption:2.5KW
Machine Dimension:L1140×W1400×H1480mm
Machine Weight:1000Kg
Windows Platform
Industry PC Control

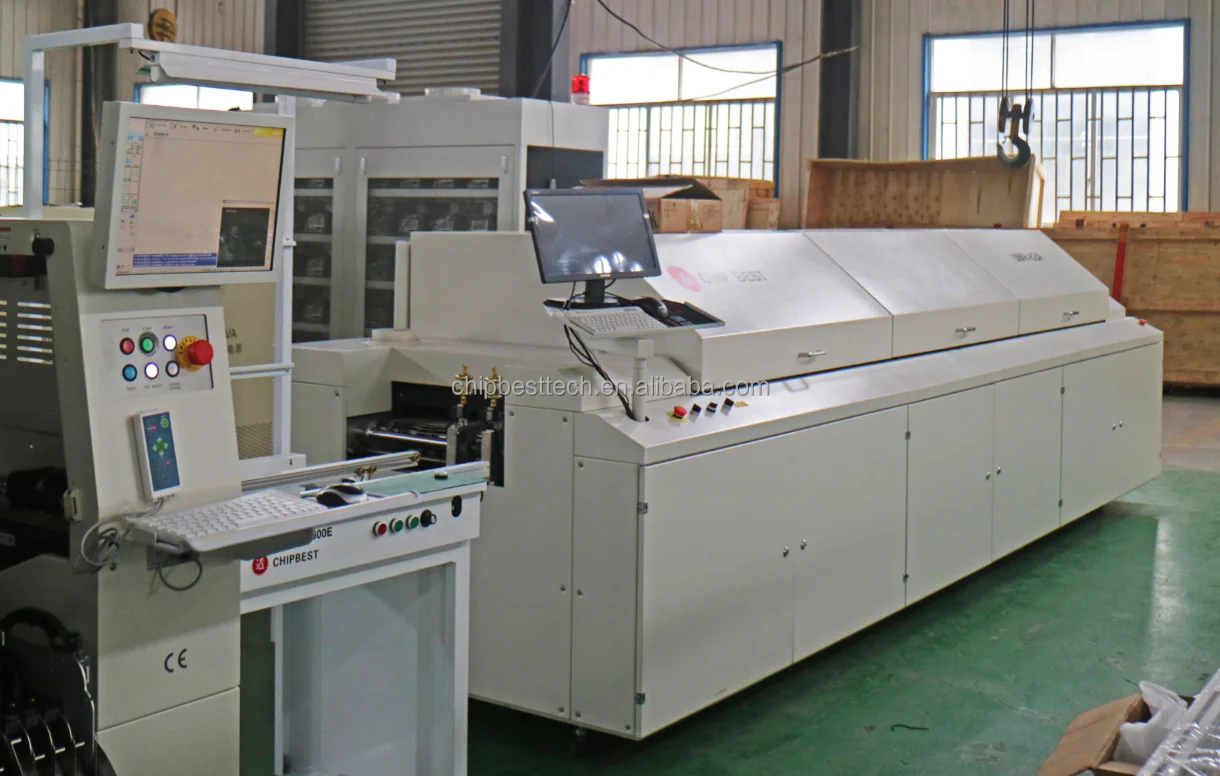

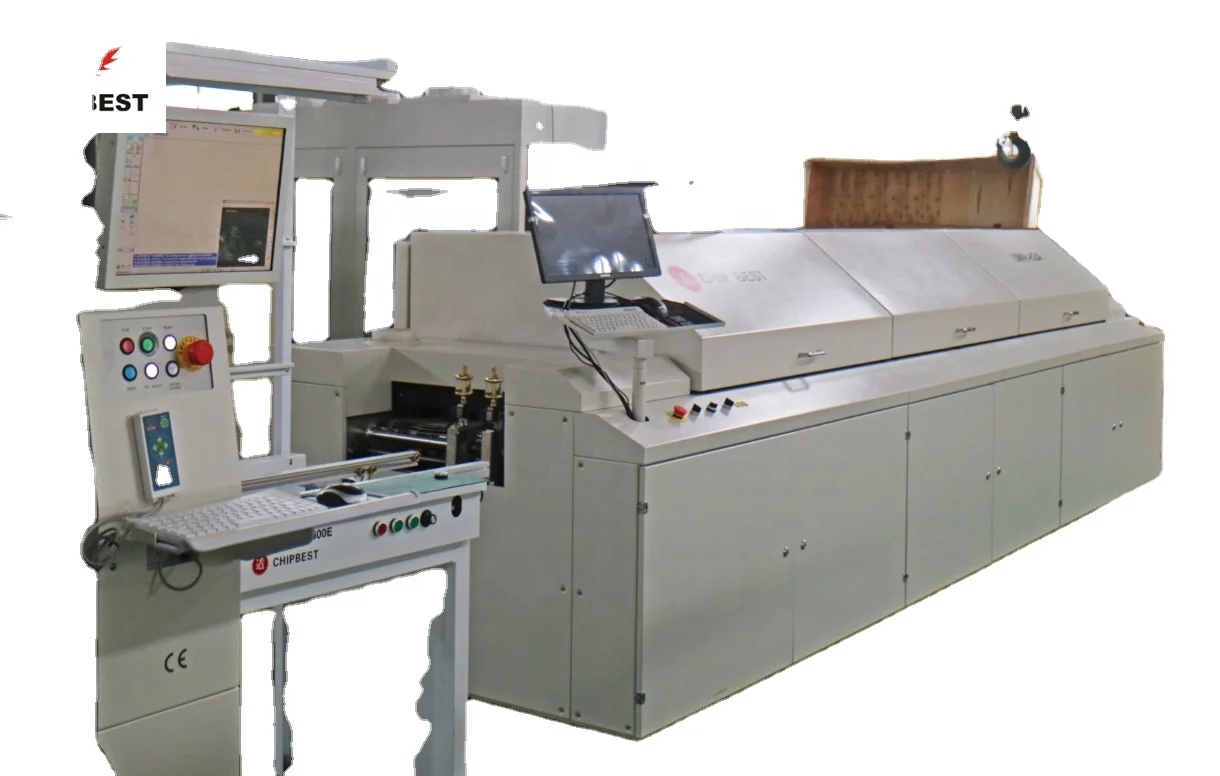

Lead free Reflow Welding Oven :

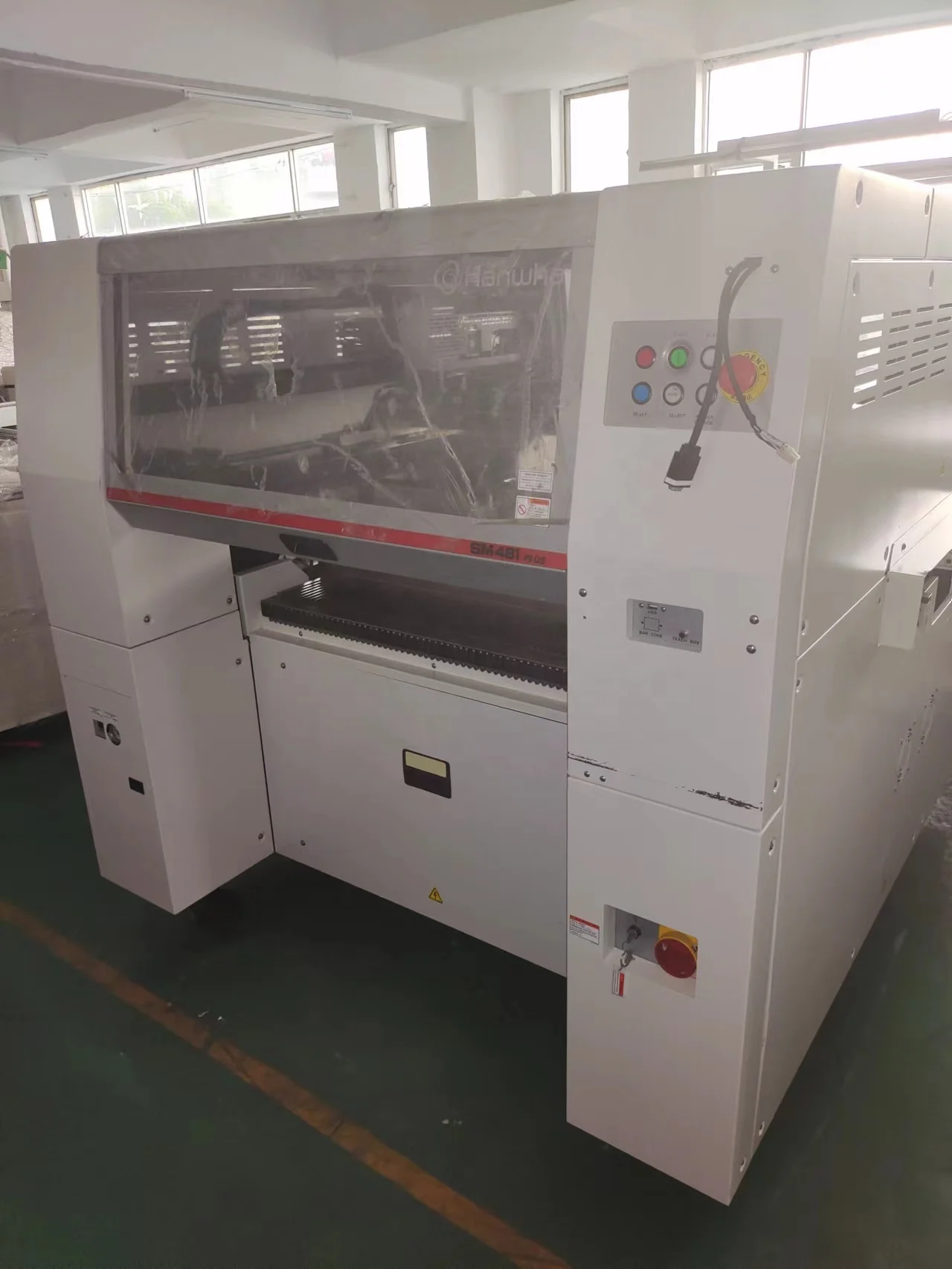

HANWHA COMPONENT PLACER SM481 PLUS :

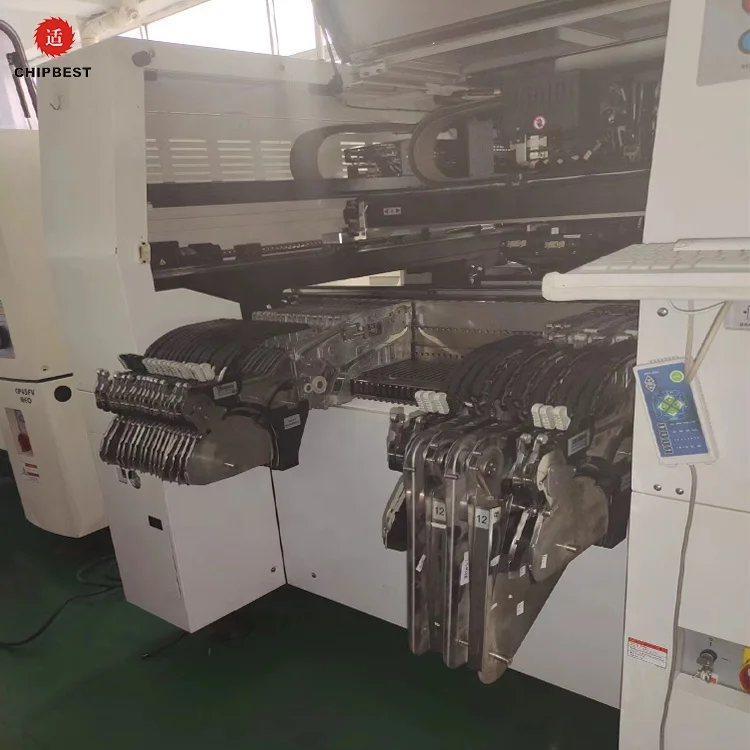

Feeders:





STF-100N 2-layer non-stop multi-tray feeders:

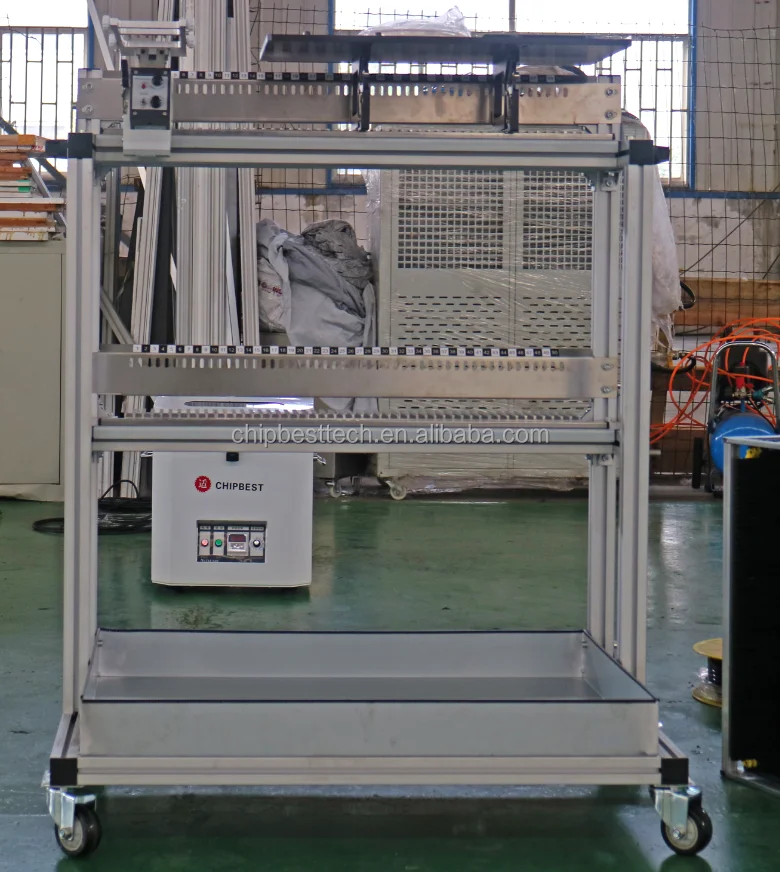

Feeder Storage Frame :

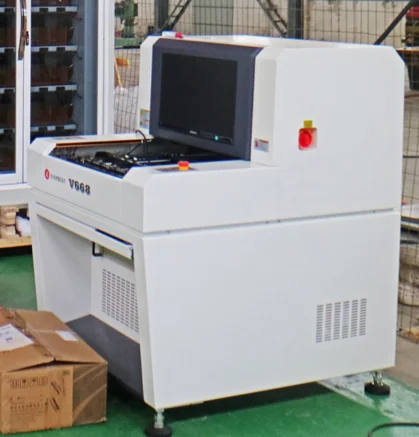

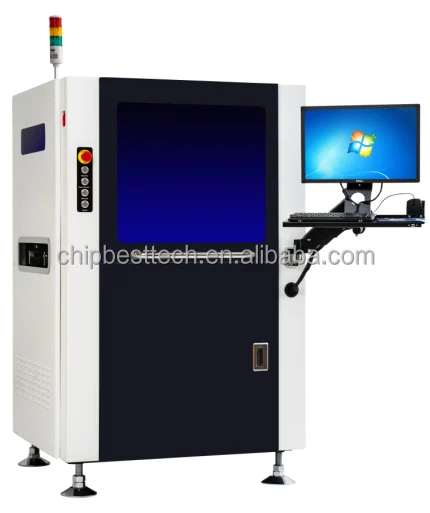

On-Line AOI Model No:AOI 18

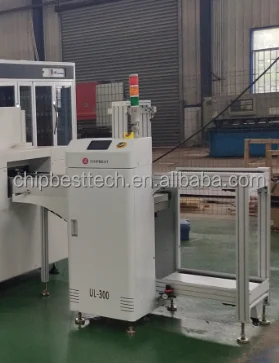

PCB Unloader :



AOI : off-line  (Recommended ):
