Product Overview
Description
Product Description

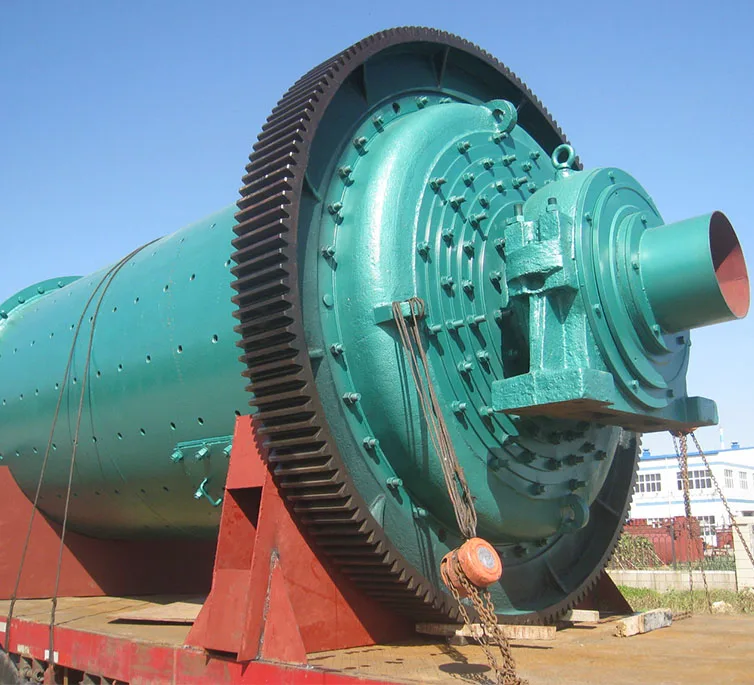

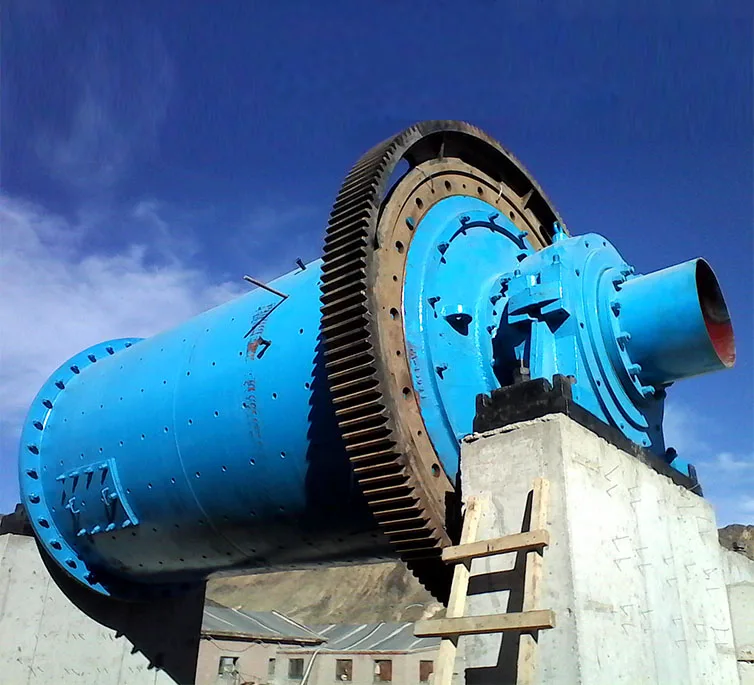

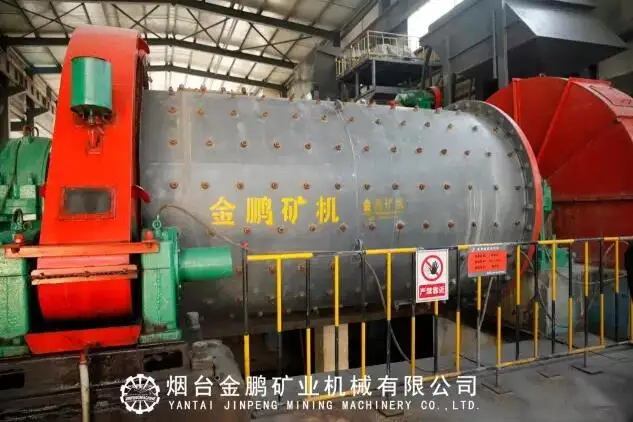

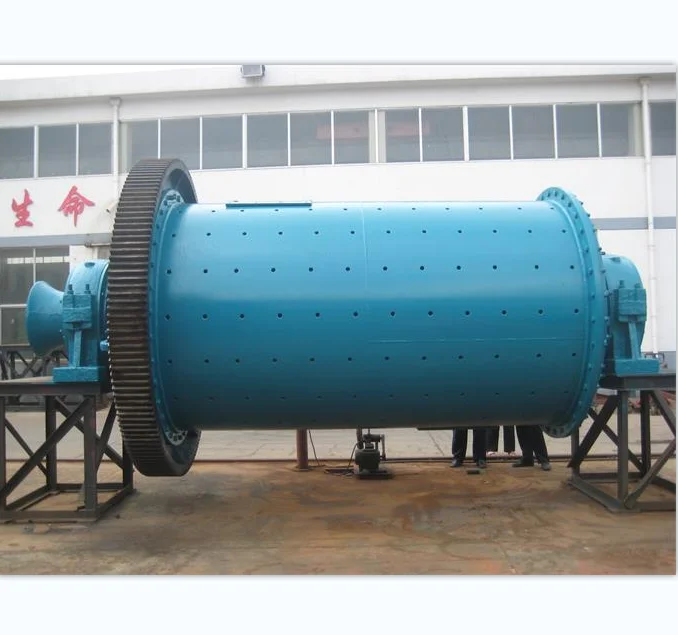

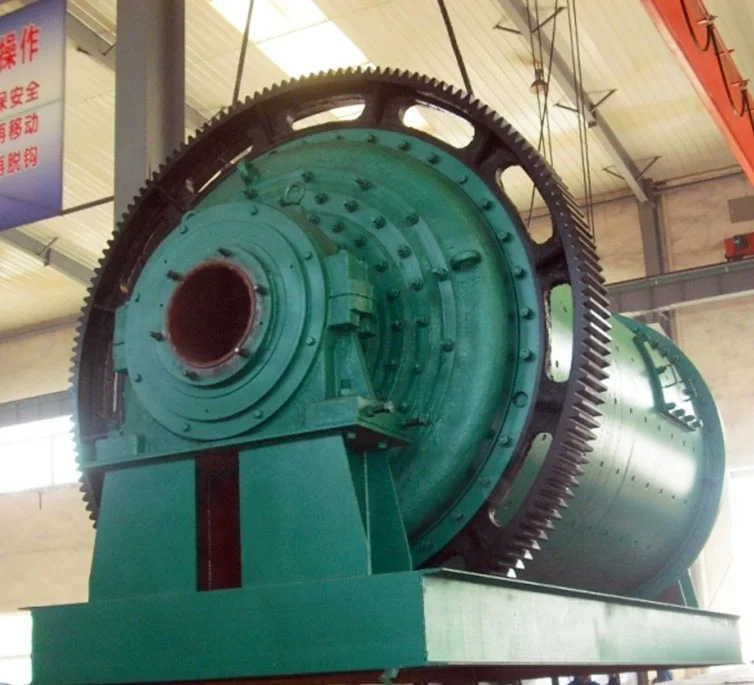

Ball mill is widely used in mining, smelting,road,building material and chemical. It is the key equipment for grinding after the crush process.The mill consists of feeding device, driving assembly, rotating assembly, bearing unit,discharging assembly and foundation unit.Scope of Application : Metallurgy, mining, building materials, chemical industry, etc
Effective volume : 0.45-87m³
Effective volume : 0.45-87m³
STRUCTURE
1.Joint feeder 2. feed inlet 3. Barrel 4. discharge hole 5. Power Train 6. Bearing 7. Slow speed transmission device 8.
intermediate shaft 9. air clutch 10. electric motor 11. jack system 12. Spray lubricating device.
intermediate shaft 9. air clutch 10. electric motor 11. jack system 12. Spray lubricating device.
Technical parameters.
Model | barrel | Motor | Effective volume(m3) | Max loading ball t | weight kg | ||||||
digmeter(mm) | length(mm) | speed(r/min) | Model | Power(kw) | |||||||
MQG 0918 | 900 | 1800 | 39.2 | Y225M-8 | 22 | 0.9 | 1.92 | 5340 | |||
MQG 1212 | 1200 | 1200 | 31.3 | Y250M-8 | 30 | 1.1 | 2.4 | 11438 | |||
MQG 1224 | 1200 | 2400 | 31.3 | Y280M-8 | 45 | 2.4 | 4.6 | 13200 | |||
MQG 1515 | 1500 | 1500 | 30.9 | JR115-8 | 60 | 2.5 | 5 | 13120 | |||
MQG 1530 | 1500 | 3000 | 30.9 | JR117-8 | 80 | 5.08 | 8.6 | 19166 | |||
MQG 1545 | 1500 | 4500 | 30.9 | JR127-8 | 130 | 6.57 | 11.3 | 22147 | |||
MQG 2122 | 2100 | 2200 | 24.05 | JR128-8 | 155 | 6.6 | 16 | 42500 | |||
MQG 2130 | 2100 | 3000 | 24.05 | JR137-8 | 210 | 9 | 20 | 44260 | |||
MQG 2145 | 2100 | 4500 | 24.05 | JR138-8 | 245 | 13 | 23.5 | 50348 | |||
MQG 2430 | 2400 | 3000 | 22.5 | JR138-8A | 280 | 12.1 | 22.5 | 58328 | |||
MQG 2436 | 2400 | 3600 | 22.5 | JR138-8B | 320 | 14.5 | 26 | 61308 | |||
MQG 2727 | 2700 | 2700 | 21.6 | JR138-8B | 320 | 15.3 | 30 | 83145 | |||
MQG 2736 | 2700 | 3600 | 21.6 | JR1510-8 | 400 | 18.4 | 36 | 89120 | |||
MQG 2745 | 2700 | 4500 | 21.6 | TDMK500-32 | 500 | 23 | 45 | 109318 | |||
MQG 3236 | 3200 | 3600 | 18.5 | TDMK630-36 | 630 | 25.6 | 51 | 144241 | |||
MQG 3245 | 3200 | 4500 | 18.5 | TDMK800-36 | 800 | 32.8 | 65 | 153390 | |||
MQG 3639 | 3600 | 3900 | 17.3 | TDMK1000-40 | 1000 | 36.2 | 75 | 168800 | |||
MQG 3645 | 3600 | 4500 | 17.3 | TDMK1250-40 | 1250 | 41.8 | 90 | 179900 | |||
MQG 3650 | 3600 | 5000 | 17.3 | TDMK1400-40 | 1400 | 46.4 | 96 | 183000 | |||
MQG 3660 | 3600 | 6000 | 17.3 | TDMK1600-40 | 1600 | 55.7 | 120 | 204000 | |||
MQG 4060 | 4000 | 6000 | 16.2 | TDMK1700-30 | 1700 | 69.8 | 137 | 214000 | |||
MQG 4560 | 4500 | 6000 | 15..3 | TDMK2300-30 | 2300 | 87 | 158 | 294000 | |||
Customer Case
HUNAN 12,000 TPD LEAD & ZINC
PLANT
PLANT
Location: China
Ore type: Lead and Zinc
Design capacity: 12,000 tons per day
Main process:
Crushing: One stage Jaw crusher with one stage Impact
crusher
Grinding: One stage grinding with 3 sets of 3645 ball mill
Rougher+ Scavenger flotation- 69 sets 16 m³ flotation cells
Cleaner flotation- 21 sets 10 m³ flotation cells
Ore type: Lead and Zinc
Design capacity: 12,000 tons per day
Main process:
Crushing: One stage Jaw crusher with one stage Impact
crusher
Grinding: One stage grinding with 3 sets of 3645 ball mill
Rougher+ Scavenger flotation- 69 sets 16 m³ flotation cells
Cleaner flotation- 21 sets 10 m³ flotation cells
