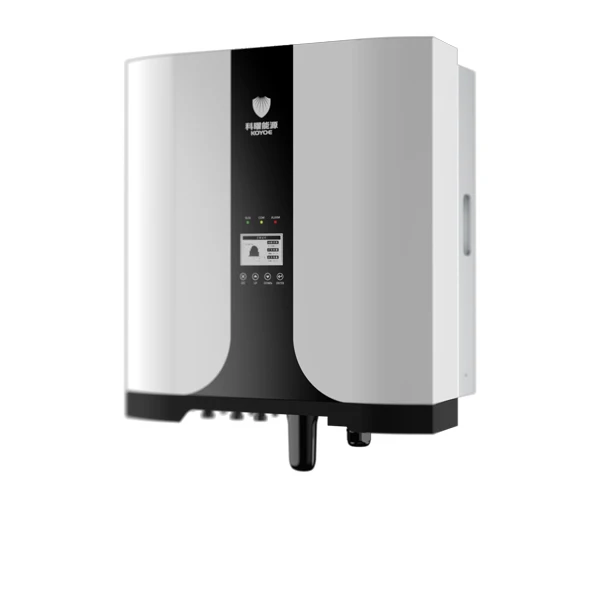

6KW 8KW 10KW On Off Grid 3 Phase Hybrid Three phase Solar Inverter with MPPT Charge Controller
6KW 8KW 10KW On Off Grid 3 Phase Hybrid Three-phase Solar Inverter with MPPT Charge Controller
6KW 8KW 10KW On Off Grid 3 Phase Hybrid Three-phase Solar Inverter with MPPT Charge Controller
6KW 8KW 10KW On Off Grid 3 Phase Hybrid Three-phase Solar Inverter with MPPT Charge Controller
6KW 8KW 10KW On Off Grid 3 Phase Hybrid Three-phase Solar Inverter with MPPT Charge Controller
6KW 8KW 10KW On Off Grid 3 Phase Hybrid Three-phase Solar Inverter with MPPT Charge Controller
6KW 8KW 10KW On Off Grid 3 Phase Hybrid Three-phase Solar Inverter with MPPT Charge Controller

6KW 8KW 10KW On Off Grid 3 Phase Hybrid Three phase Solar Inverter with MPPT Charge Controller

Share on (1600623748731):


Price:$1,914.00 - $1,915.00

Quantity:


Product Overview

Description





Product Description








Product Details


Model
KY-EST06KH
KY-EST08KH
KY-EST10KH
Input Voltage(DC)
180-550V
Nominal Voltage
380Vac,3L/N/PE
Rated Power
6000W
8000W
10000W
Waveform
Pure Sine Wave
Battery Type
VRLA / GEL /GEL DEEP CYCLE/LITHIUM
Frequency Range
50/60Hz
PV Input Voltage Range(MPPT Controller)
180-950V
Maximum solar charging current
12.5A
Maximum AC charging current
10A
12A
15A
Transfer Time
<10ms
Protection Degree
IP65
Protections
Over-load, Over-discharge, Short Circuit, High Temperature, Reverse Polarity
Temperature
-25℃~60℃
Display
LCD
Dimension(L*W*H)mm
505*570*220
Weight(kg)
21
23
23

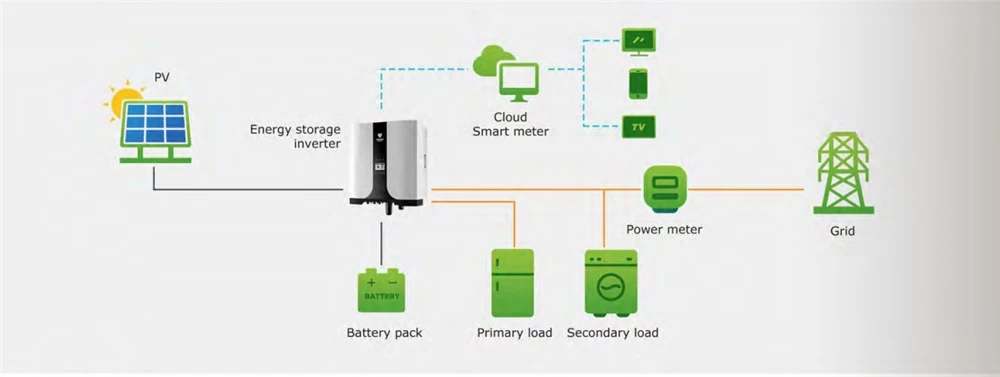

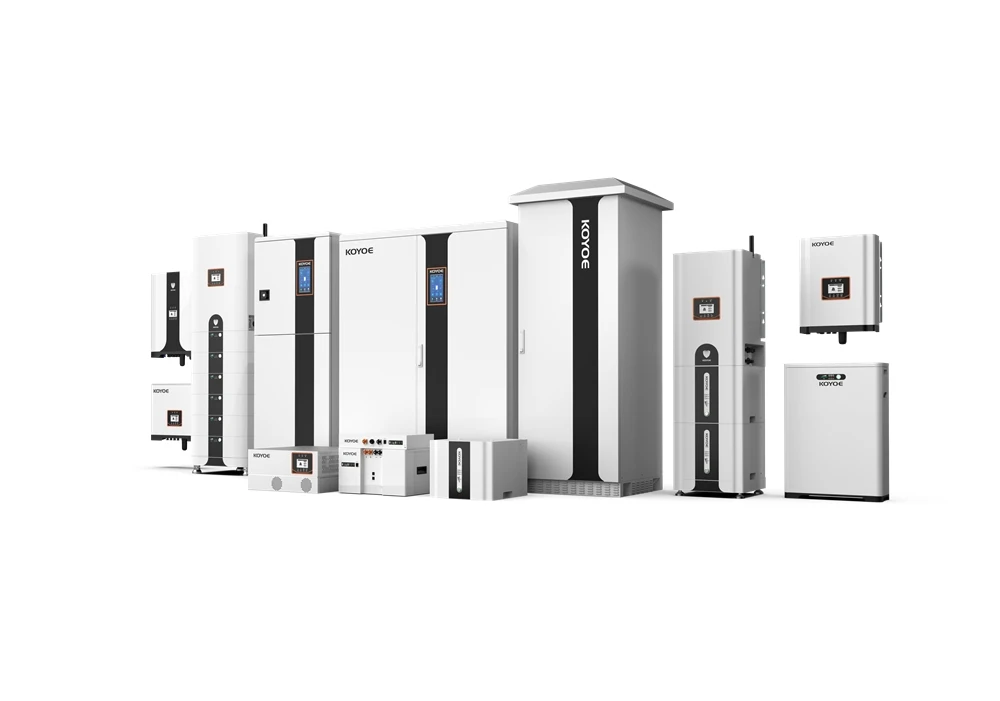

KOYOE Hybrid solar system

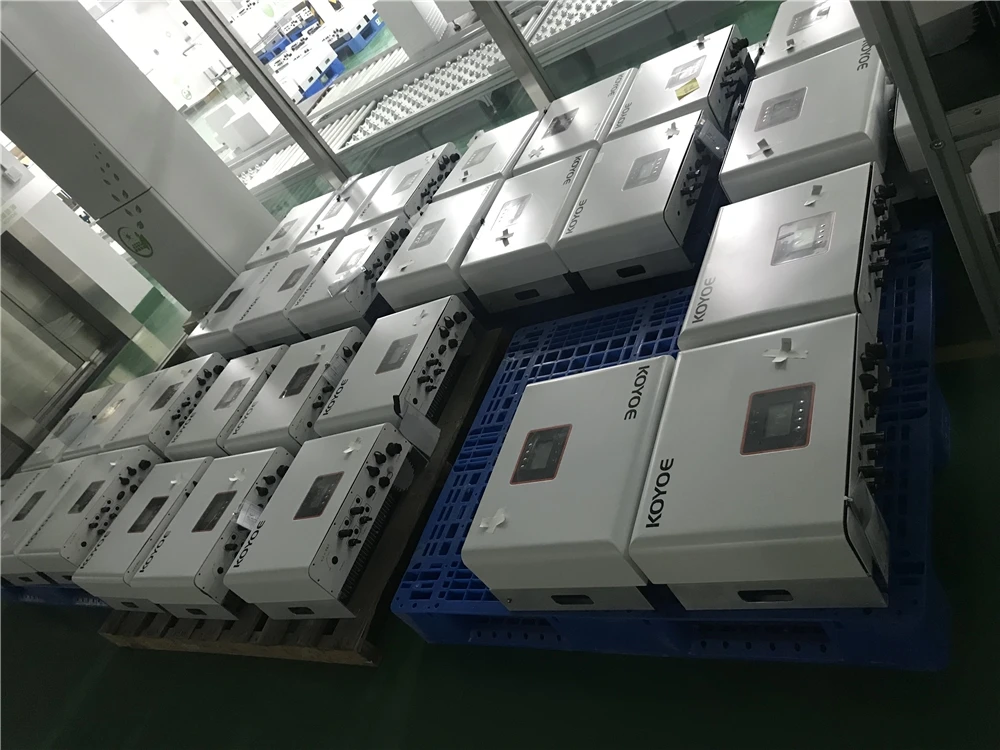

Details Images
