Nature Stone Spitting Machine Mushroom Wall Making Nature Face Stone Splitting Machine for Granite Cobblestones Paving Stone

Product Overview

Description

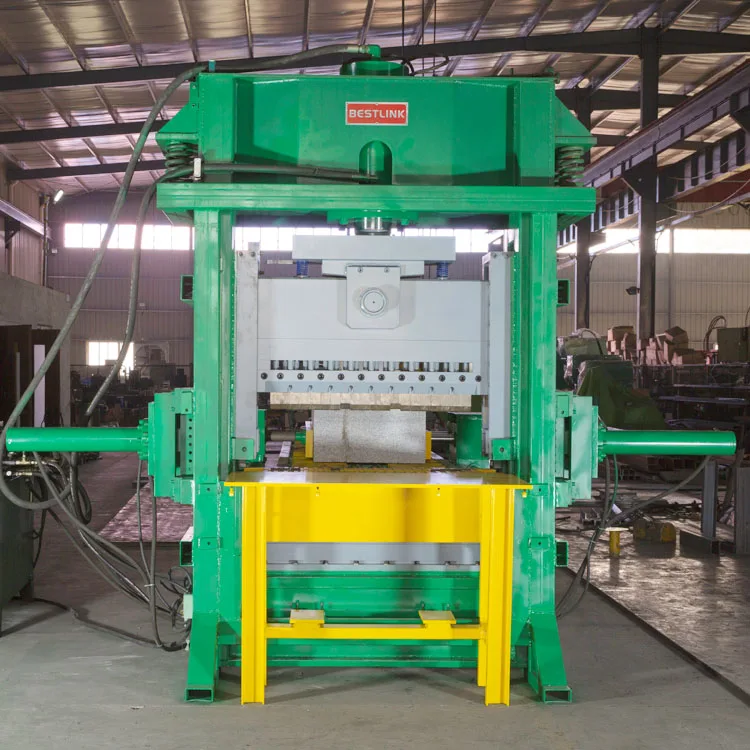

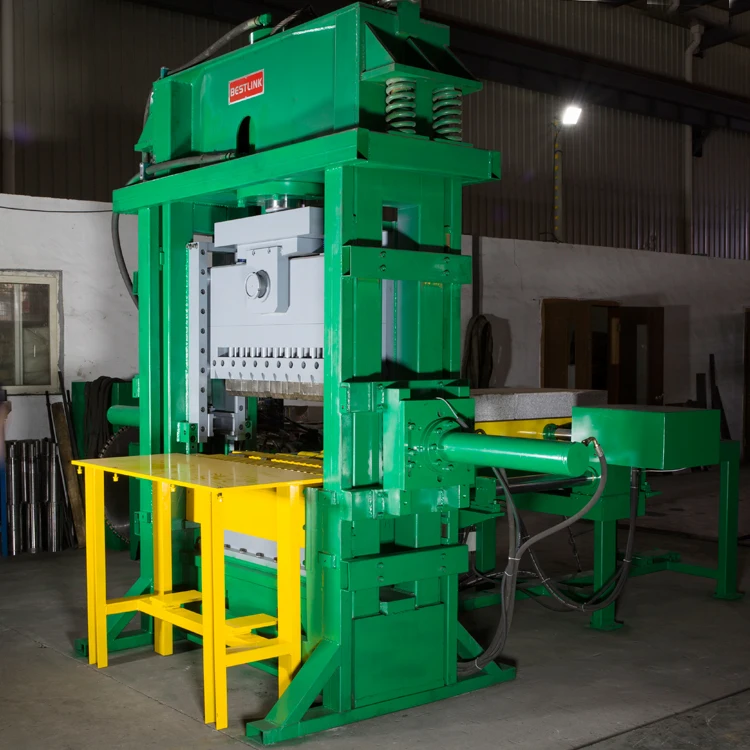

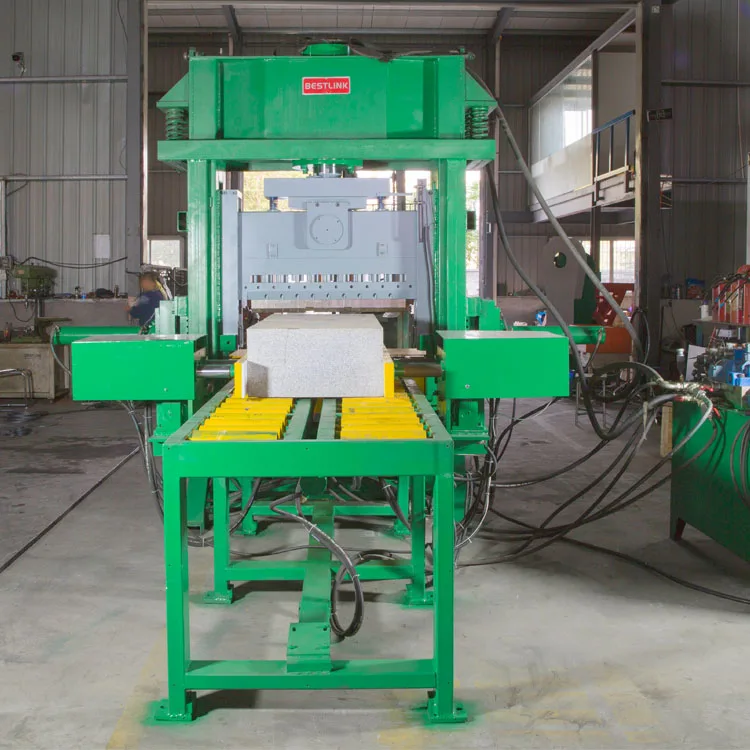

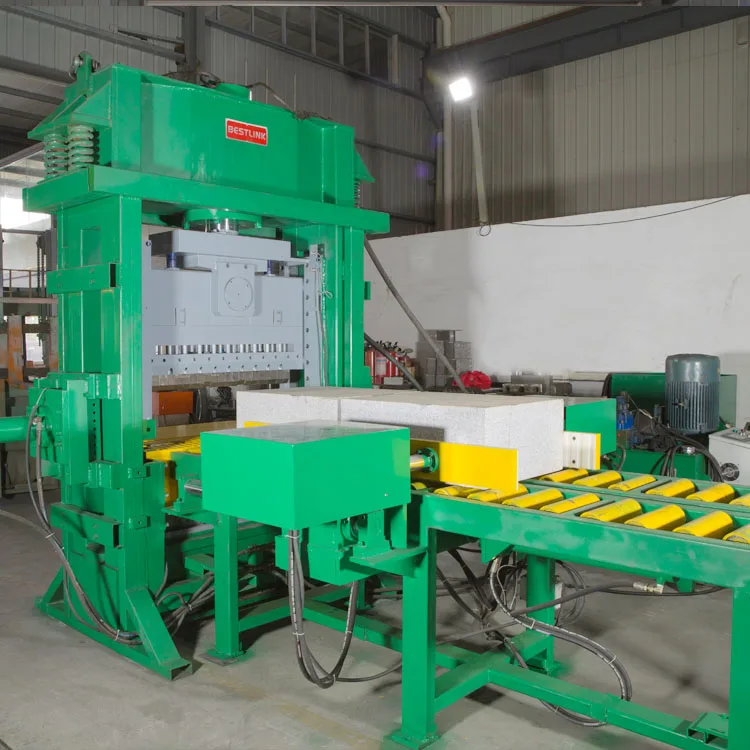

Multi Functional Laser Stone Splitting Machine

The "MF" series splitting machinery are widely used in automatic splitting lines for both concrete and saw cut face stone, it's equipped with four blades to ensure a perfect split every time on all four sides of the products.



Model	BRT20T 600*300 MF	BRT50T  400*200 MF	BRT70T  600*300 MF	BRT100T  600*300 MF	BRT120T  1000*300 MF
Splitting force(tons)	20	50	70	100	120
Max splitting width(mm)	600	400	600	600	1000
Max splitting height(mm)	300	200	300	300	300
Electric power(kw)	7.5	11	11	11	15
Electric current (A)	15	22	22	22	30
Oil flux (L/min.)	61	160	185	192	210
Oil tank cubage (L)	320	450	550	550	780
Overall size(L*W*H)	1750*3200*1960	2570*1140*2490	2770*1140*2490	2770*1140*2490	3300*1200*2850
Weight(kg)	1200	2500	3200	3800	4200
