Medium frequency iron steel induction melting furnace
- Category: >>>
- Supplier: Foshan Nanhai Hengyang Electric Furnace Co. Ltd.
Share on (1600623763759):
Product Overview
Description

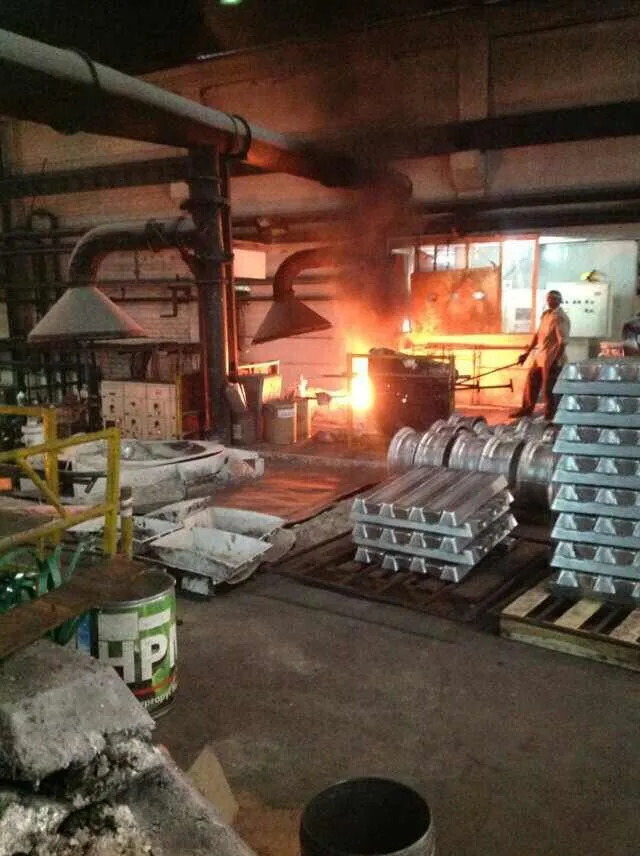

APPLICATION
How the furnace working ?
The intermediate frequency melting furnace is mainly composed of a power supply, an furnace body with a induction coil and a crucible. Aluminium material will be put in the crucible built with refractory cement. After turned on power, an alternating magnetic field is generated in the induction coil, and then a induced eddy current is created to heat and melt aluminium material.
Furnace feature
1.Electric fuel, various capacity 0.05T-30T
2.Rapid melting speed,40-60 minutes /pot, 24 hours continuously working
3.Zero-voltage scaning soft start, can start or stop anytime;
4.Low energy consumption, melting aluminium can less than 430KW.H/T
5.Less burning loss,less slag,save raw material.Precise temperature control to ensure the quality and capacity.
6.Environmental friendl.No harmful gases and bright light.
7.Easy to maintain,safe and stability, long working life.
2.Rapid melting speed,40-60 minutes /pot, 24 hours continuously working
3.Zero-voltage scaning soft start, can start or stop anytime;
4.Low energy consumption, melting aluminium can less than 430KW.H/T
5.Less burning loss,less slag,save raw material.Precise temperature control to ensure the quality and capacity.
6.Environmental friendl.No harmful gases and bright light.
7.Easy to maintain,safe and stability, long working life.
Parameters | Unite | Datas |
rated capacity | t | 1.5 |
iron output | t | 1.5 |
working temperature | ºC | 0-1500 |
highest temperature | ºC | 1800 |
transformer capacity | KVA | 1250 |
no-load voltage | V | 776 |
grid-side voltage | V | 10 |
Power factor | 0.9 | |
rated power | KW | 1000 |
rated input current | A | 1600 |
rated input voltage | V | 380 |
IF voltage | V | 750 |
startup success rate | % | 100 |
rated working frequency | KHZ | 1-2.5 |
working noise | db | ≤75 |
melting rate | T/h | 1.5 |
power consumption | KW.h/T | 580 |
water consumption | T/h | 35 |
Remark
The paramters can be customized according to your national grid parameters.More details ,please contact us.

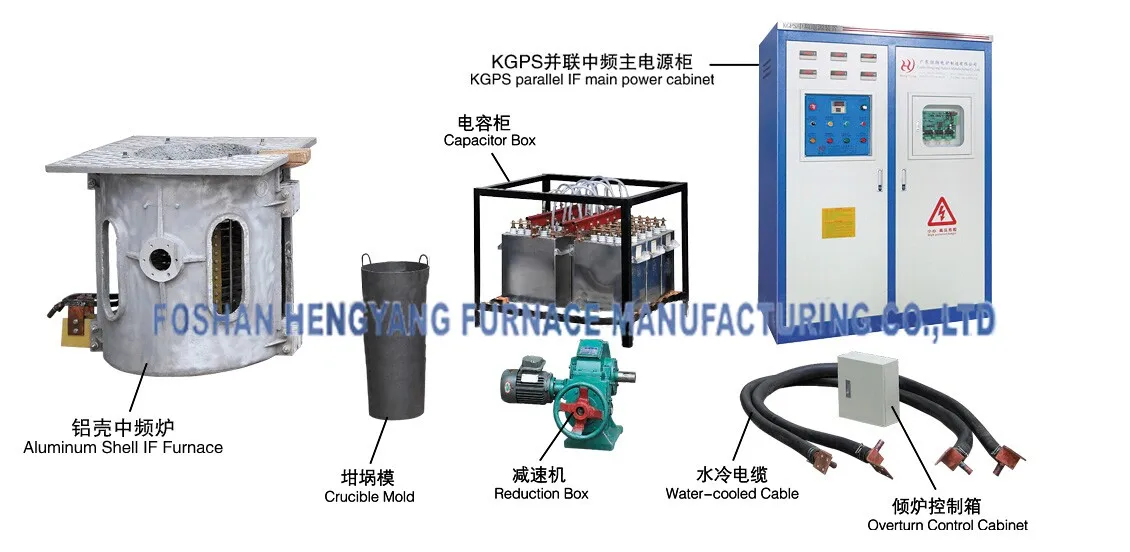

WHOLE SET DISPLAY

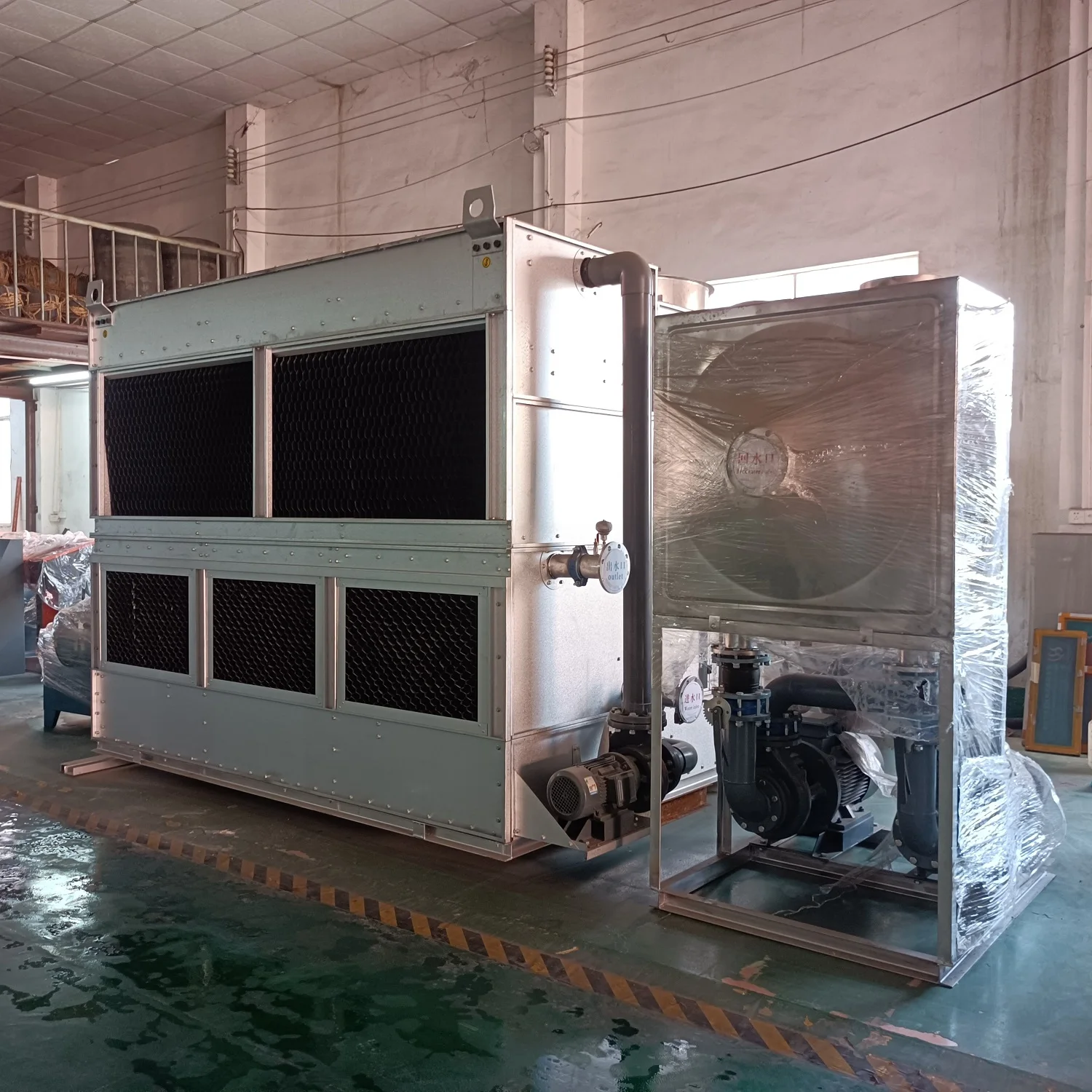

Besides furnace parts, we can also provide you with some other associate products, such as cooling tower, lining material, and transformer, crucible and so on.
Model (Furnace capacity) | Input power 50Hz | ||||||
(Furnace capacity) | Rated Power ( KW ) | Rated Voltage ( V ) | Rated Current ( A ) | Transformer capacity ( KVA ) | |||
GW-0.05T | 50 | 380 | 80 | 65 | |||
GW-0.1T | 100 | 380 | 160 | 120 | |||
GW-0.15T | 160 | 380 | 256 | 250 | |||
GW-0.2T | 160 | 380 | 256 | 250 | |||
GW-0.25T | 200 | 380 | 320 | 250 | |||
GW-0.35T | 250 | 380 | 400 | 315 | |||
GW-0.5T | 350 | 380 | 560 | 400 | |||
GW-0.75T | 500 | 380 | 800 | 630 | |||
GW-1T | 750 | 380 | 1200 | 800 | |||
GW-1.5T | 1000 | 380 | 1600 | 1250 | |||
GW-2T | 1400 | 750 | 1078 | 1600 | |||
GW-3T | 2000 | 750 | 770*2 | 2500 | |||
GW-5T | 3000 | 950 | 912*2 | 4000 | |||
Remark
1. Furnace capacity is designed based on the density of steel (7.8g/cm³).

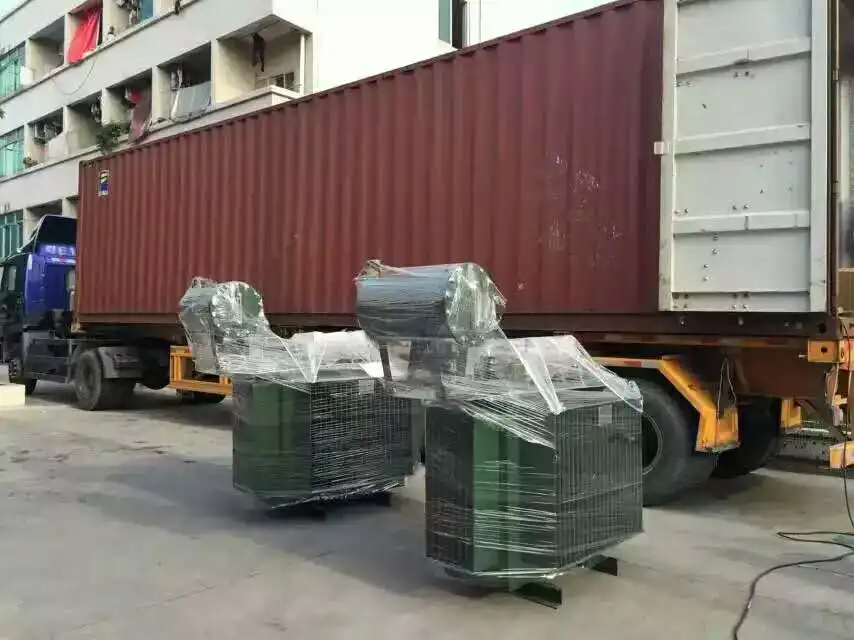

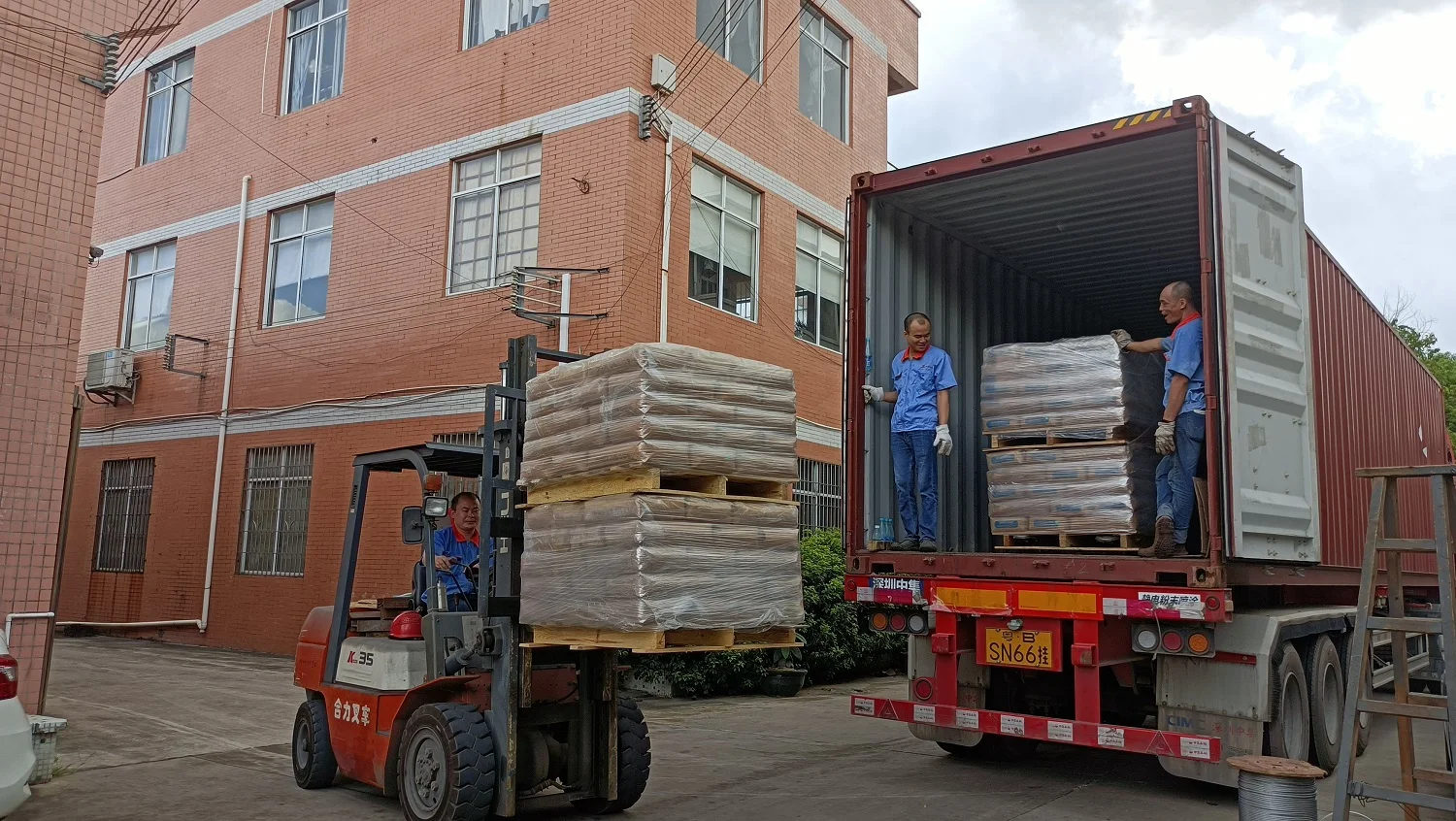

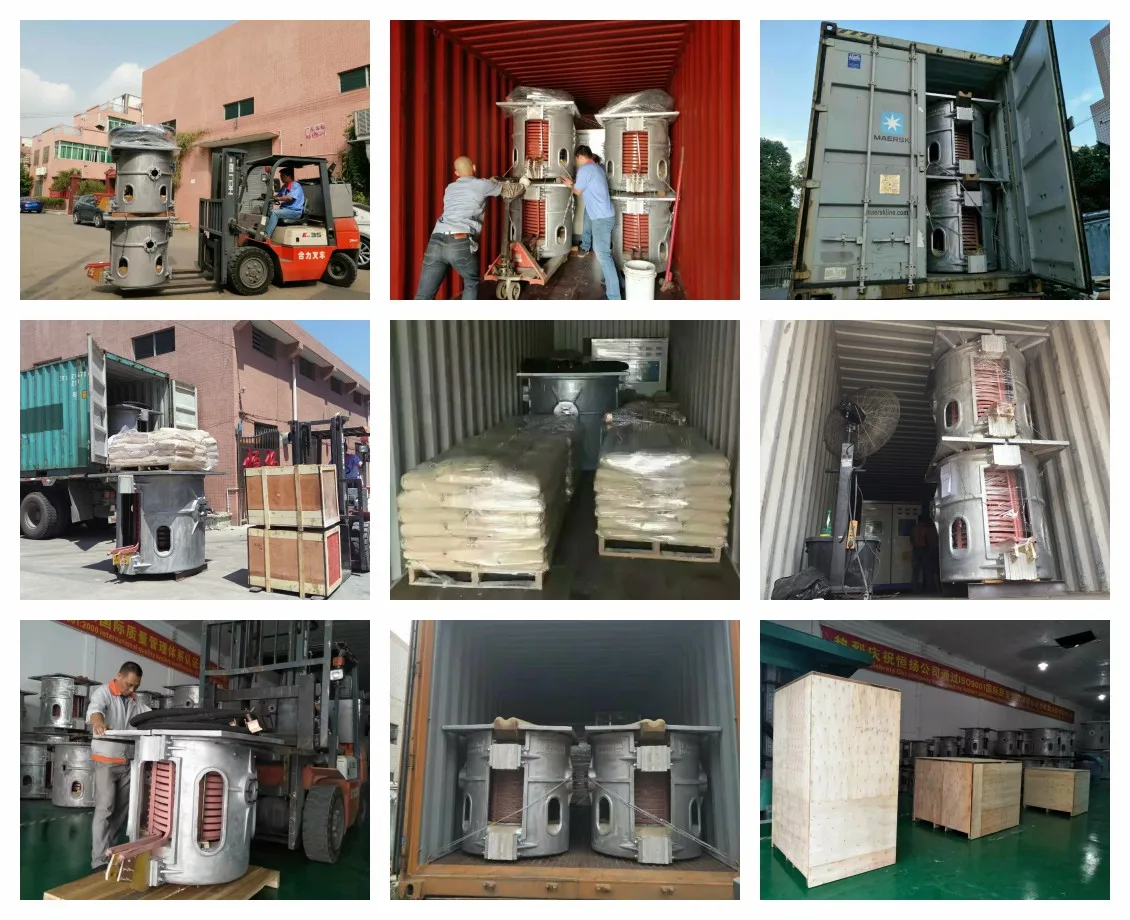

PACKAGE & SHIPPING
When by LCL. (less than container load ). All products are packed in wooden cases；
When by FCL(in a full container load ). Except reducer packed in wooden boxes, and furnace control device packed in carton, others are packed in waterproof plastic film. Other protection measures. Nail thick planks to prevent movement, Bundle the wire rope to prevent shaking. Use cardboard to prevent friction.
When by FCL(in a full container load ). Except reducer packed in wooden boxes, and furnace control device packed in carton, others are packed in waterproof plastic film. Other protection measures. Nail thick planks to prevent movement, Bundle the wire rope to prevent shaking. Use cardboard to prevent friction.
Remarks: Since 2010, we have exported to more than 70 countries. Facts have proved that this installation method is safe and effective and is in line with international standards and. Of course, it can be customized if you have any other requirements.

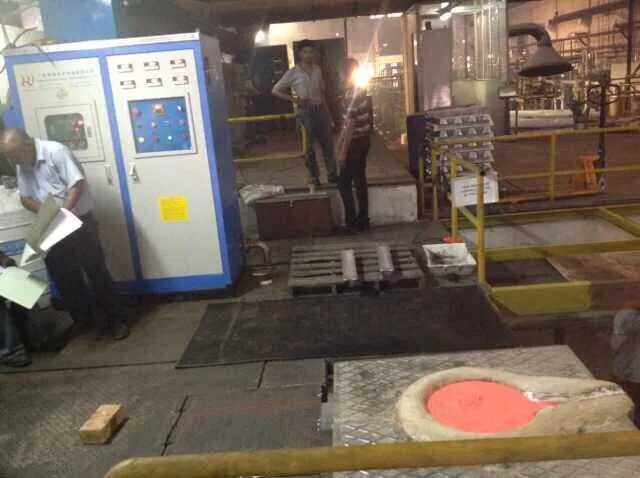

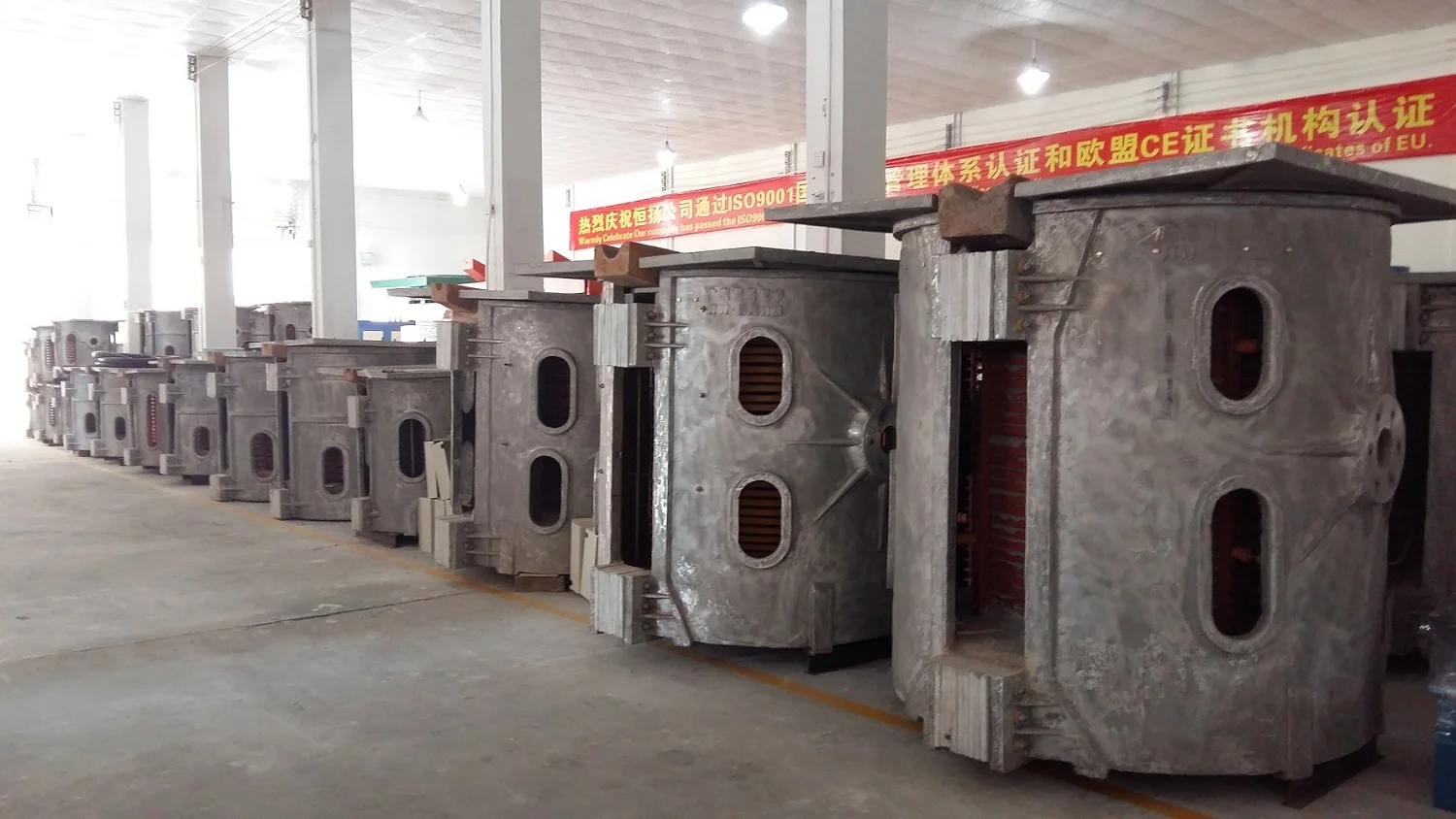

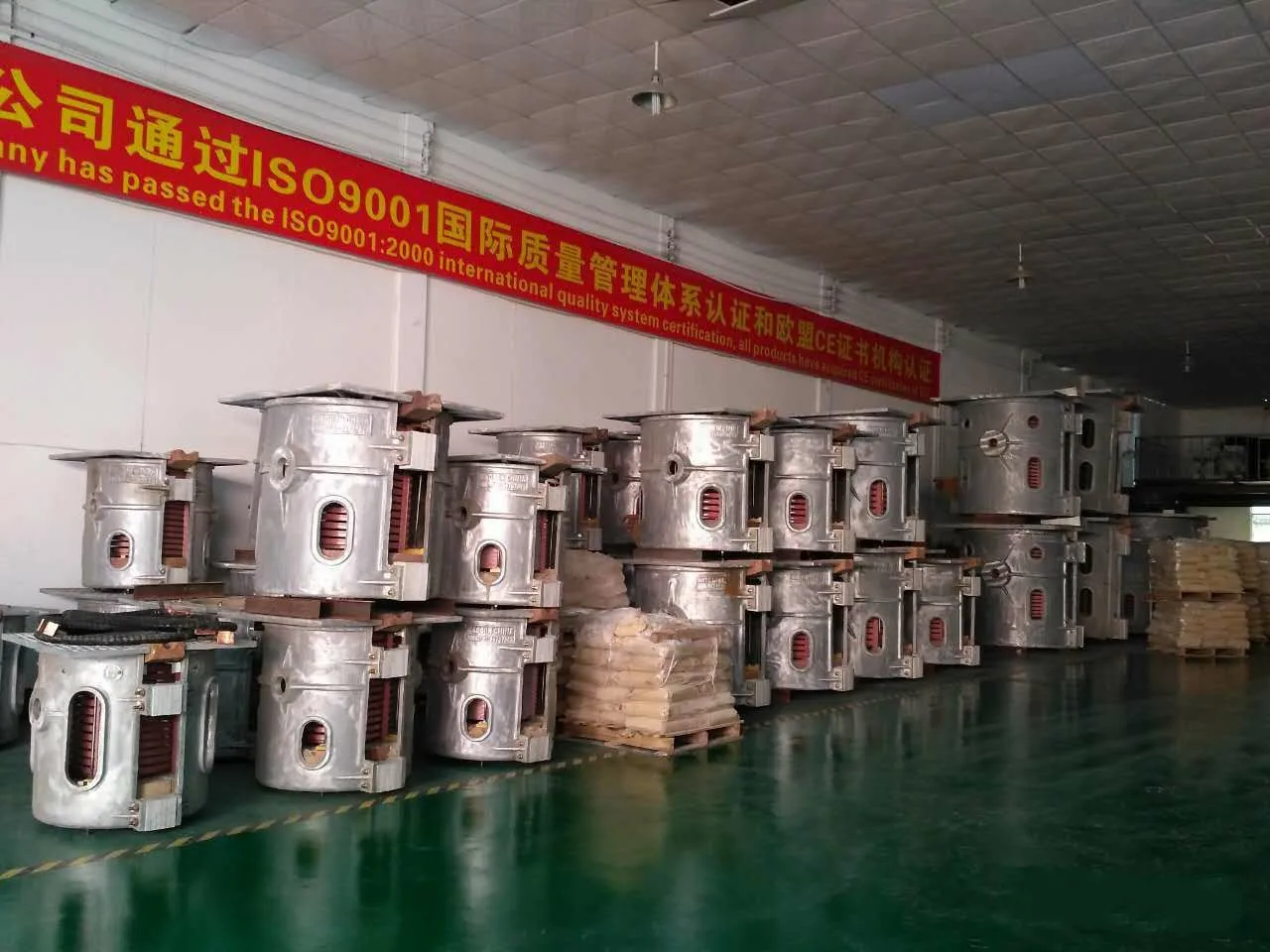

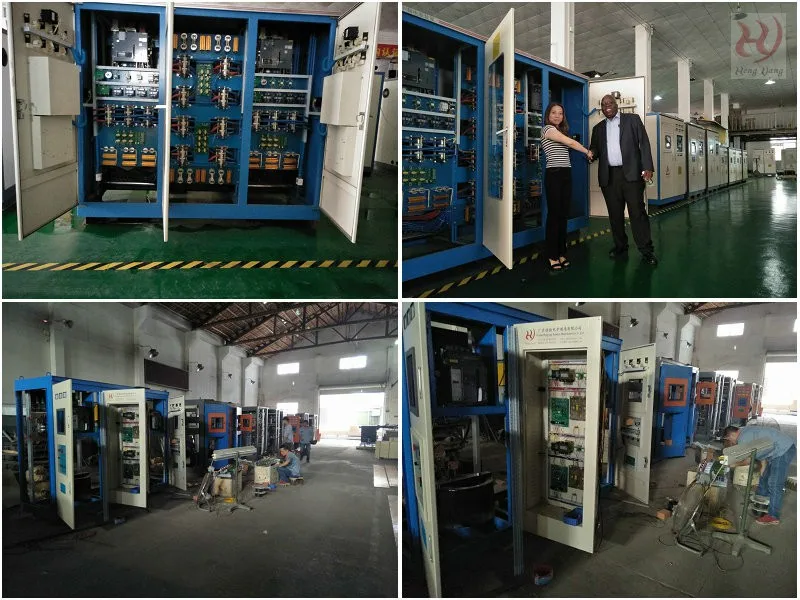

FACTORY VISITING

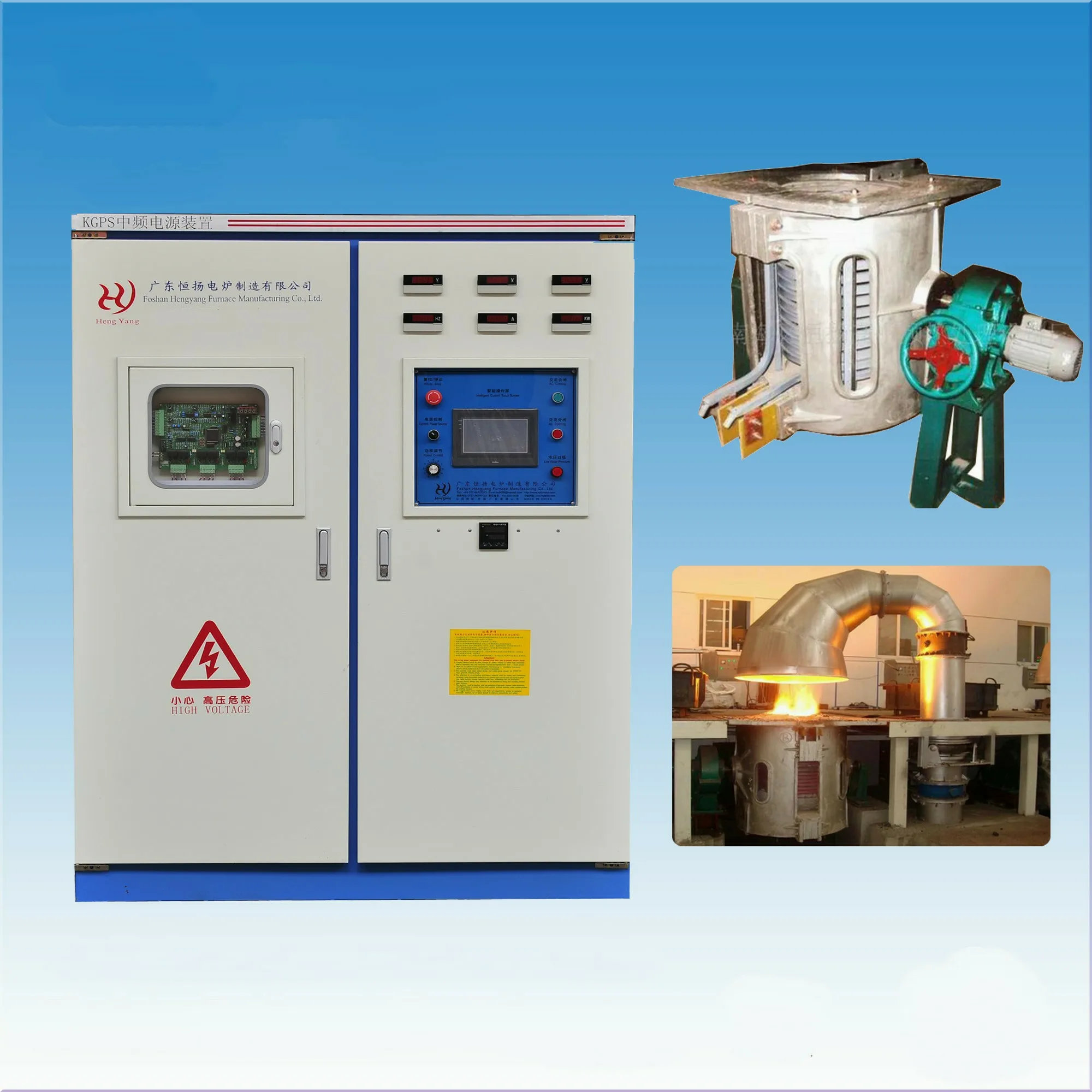

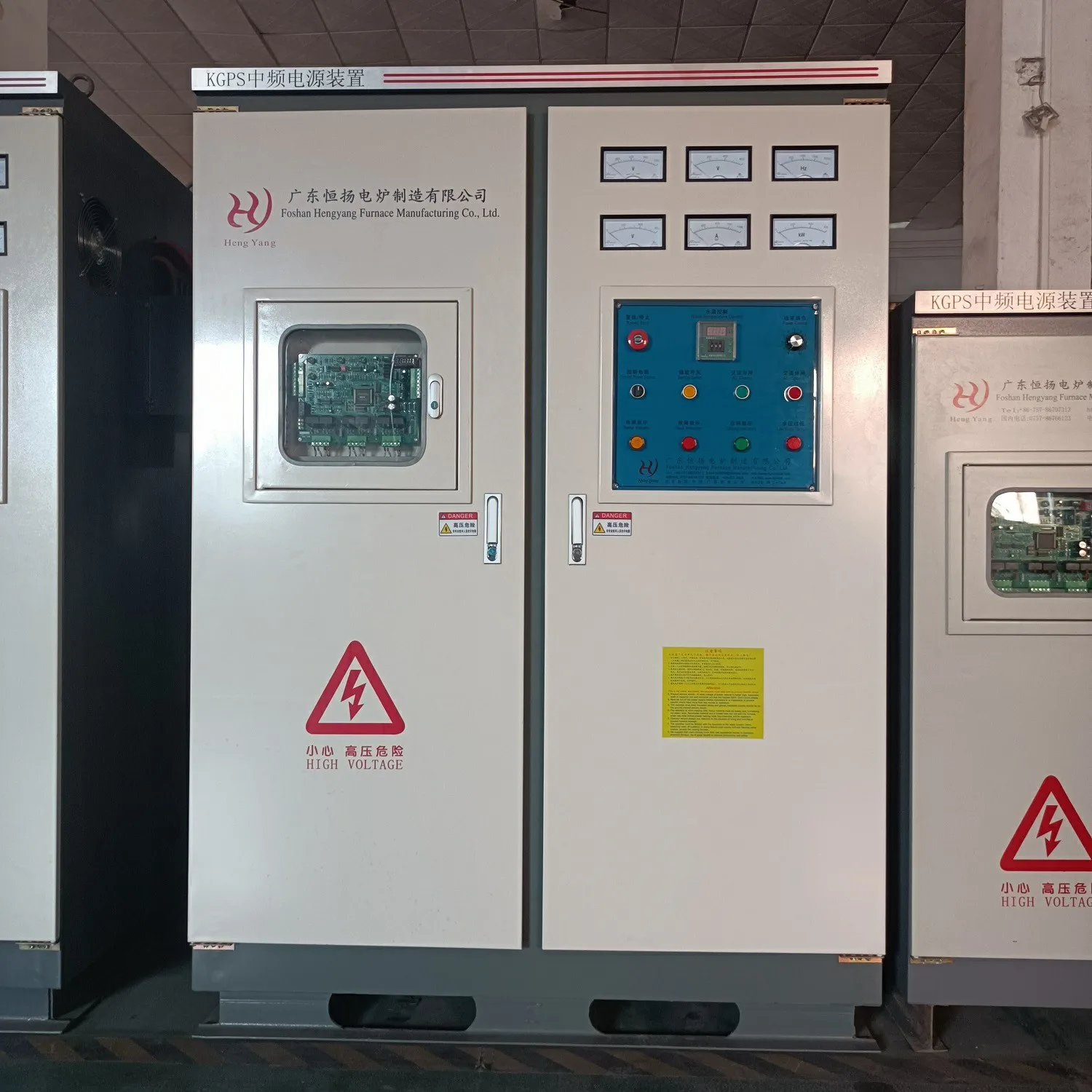

Detail-1 Power supply cabinet
KGPS parallel electric cabinet existed at the beginning of the factory in 1999, it have advantages of mature technology, stable performance, simple operation and convenient maintenance. It is still a hot sale type now. Recommended for customers who are new to the metal casting industry.
KGCL series electric cabinet is a newly developed electric cabinet in 2012, which is electrical energy-saving , without harmonics. One electric cabinet can run two or three furnaces at the same time, which can continuously supply metal solution, which is suitable for continuous casting industry. Recommended for customers who have high power requirements and urgently need to increase production and plan to establish a fully automatic production line.

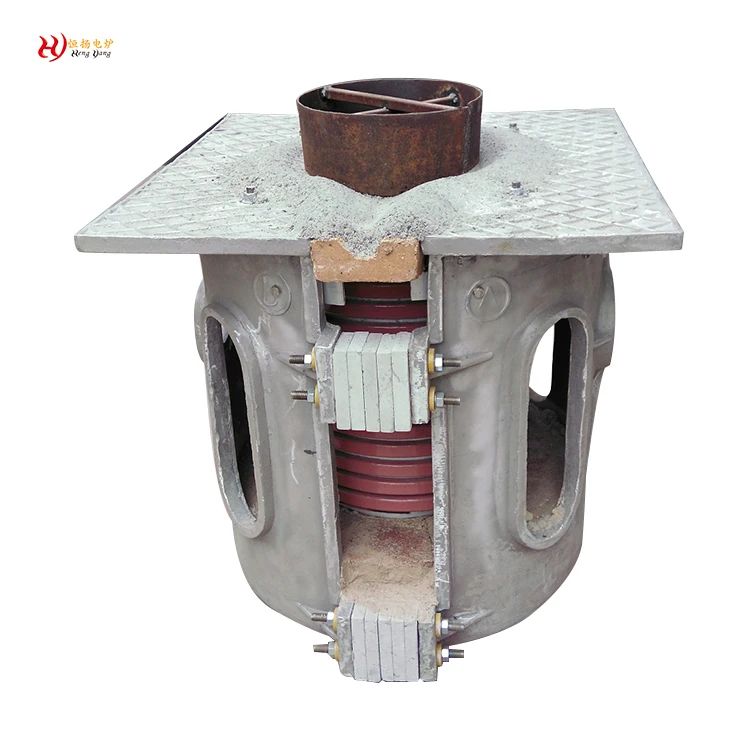

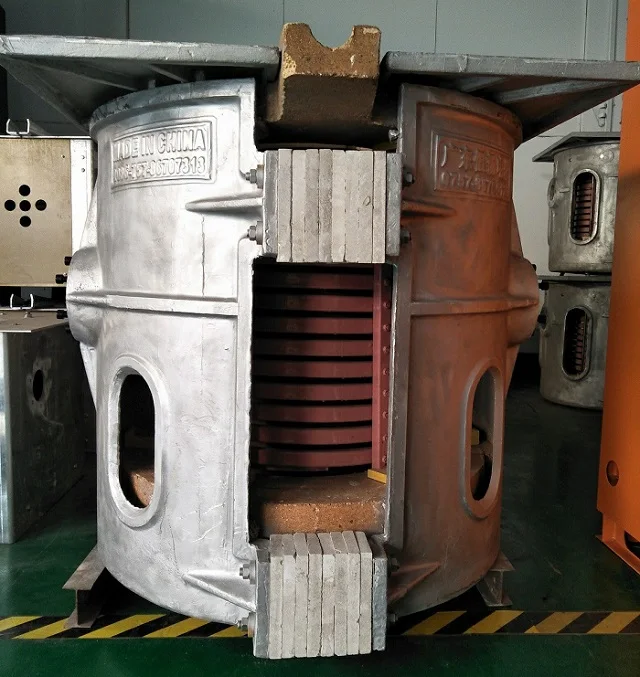

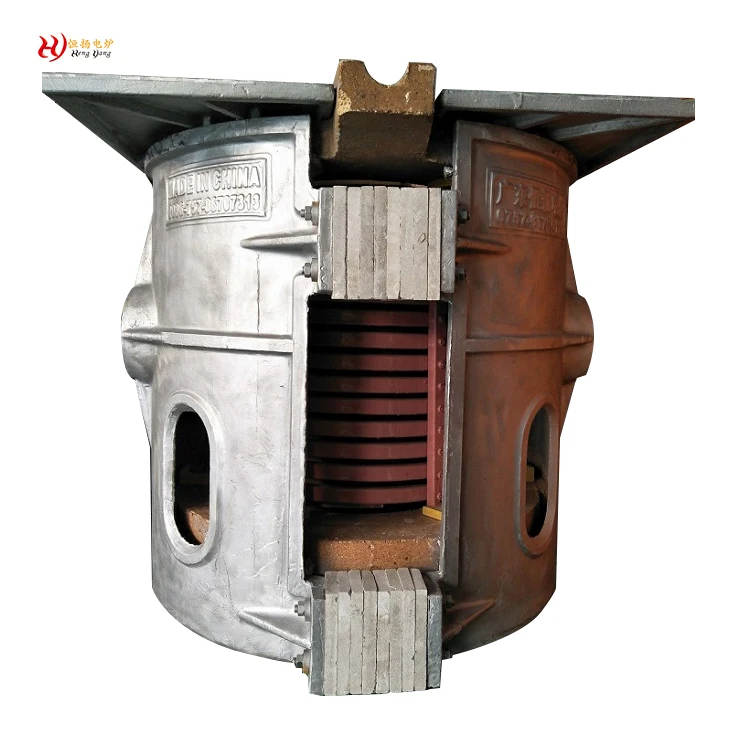

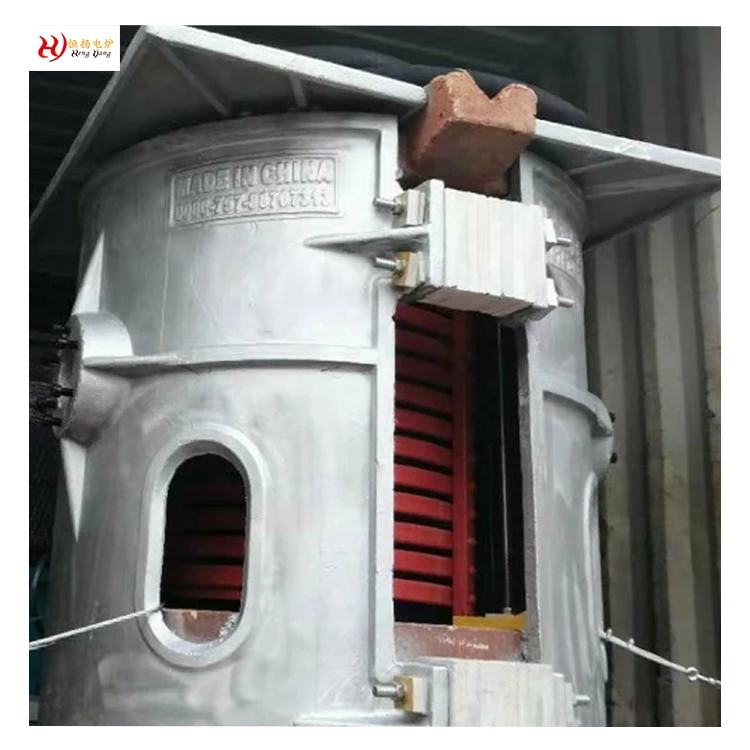

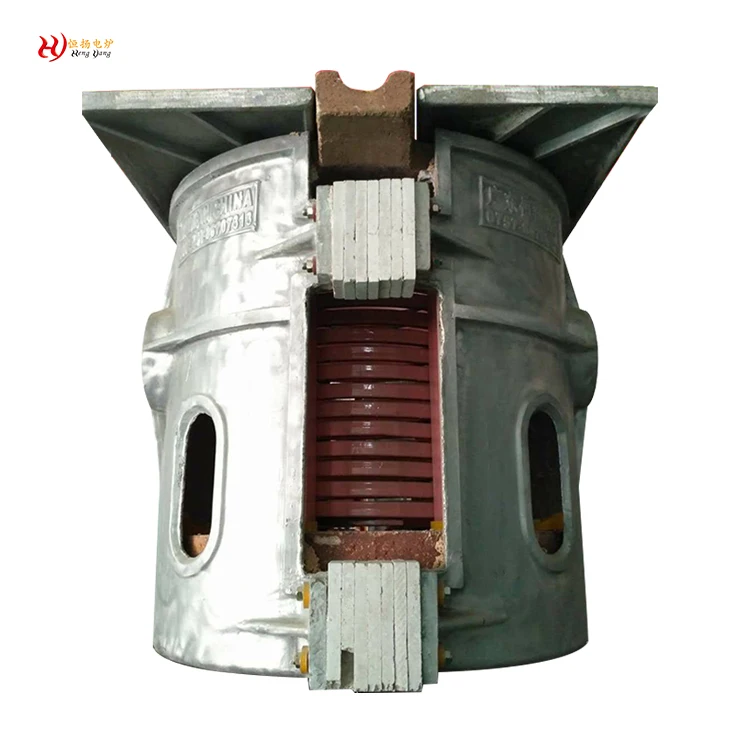

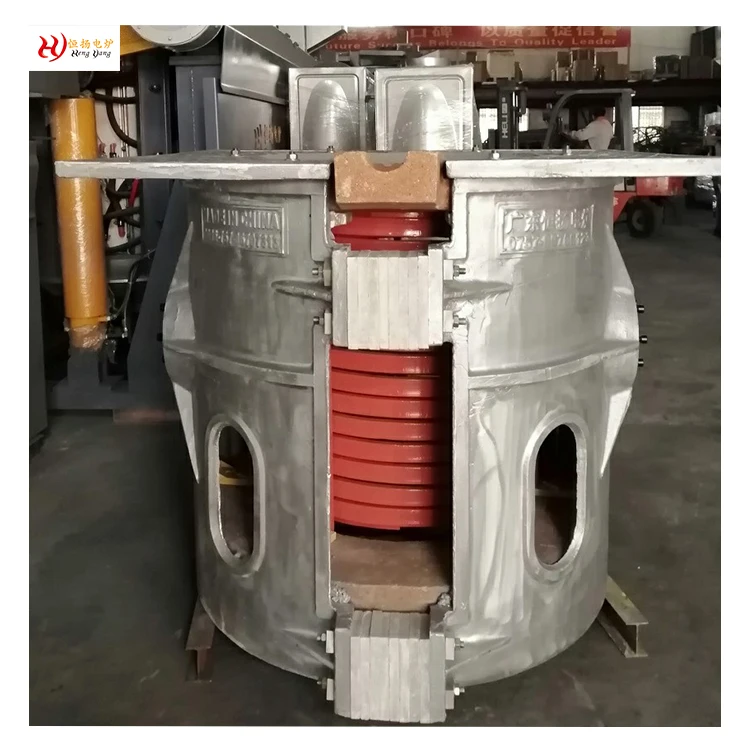

Detail 2 -aluminum shell furnace
1.Humanized design. Designed bigger than its rated capacity, so furnaces can work very well even in overload situation.
2. More durable. Induction coil made of ≥99.5% pure electrolytic copper coil. Aluminium shell made of high quality aluminum and
magnesium alloy casting.
3. Two pouring control way. Tilting controled by gear reducer, manual and electric control available.
2. More durable. Induction coil made of ≥99.5% pure electrolytic copper coil. Aluminium shell made of high quality aluminum and
magnesium alloy casting.
3. Two pouring control way. Tilting controled by gear reducer, manual and electric control available.
COMPANY PROFILE
Foshan Hengyang Furnace Manufacturing Co., Ltd
Foshan Hengyang Furnace Manufacturing Co., Ltd is a high-tech enterprise which mainly line in researching, designing, and manufacturing of industrial electric furnaces and industrial power supply source.Its headquarter is located in Foshan city, Guangdong province, China, where is only 20km away from Guangzhou Baiyun International airport, so it is very convenient for you to visit. It has sub-factory located in Cairo, Egypt, and have after-sale office in Zimbabwe and Russia. We got the right of inport and export in 2010 year. Up to new, thousands of melting and heating equipment have been exported to more than 70countries. Our product are exported to most countries in Africa and Asia, and some countries in South America and Europe. Such as Egypt, Algeria, Zimbabwe, South Africa, Ethiopia, Tanzania, Philippines, Vietnam, Malaysia, Thailand, Indonesia, Bangladesh, Pakistan, Kazakhstan, Uzbekistan, Georgia, Armenia, Saudi Arabia, Jordan, Turkey, Iraq, Syria, Lebanon, United Arab Emirates (UAE), ect.Turnkey project is our commitment.
