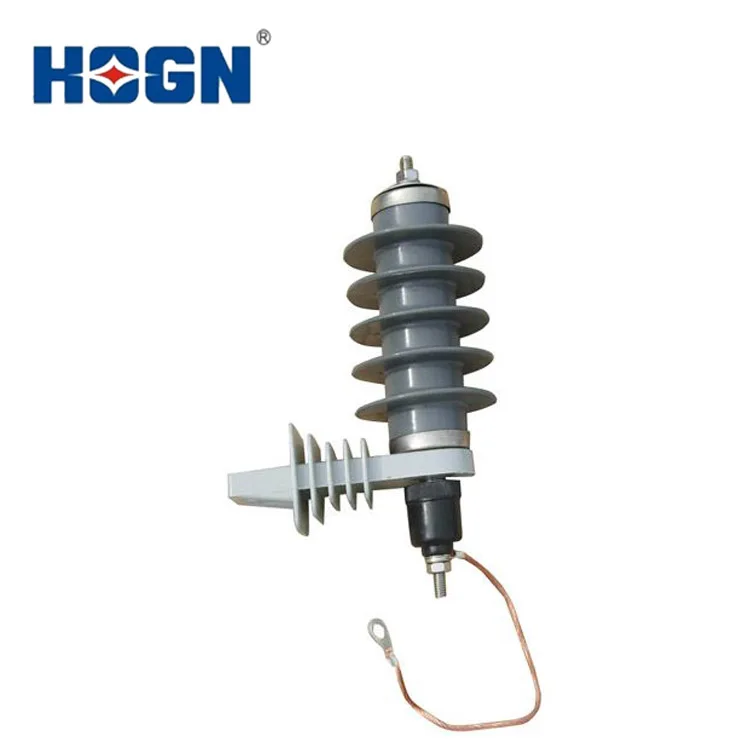

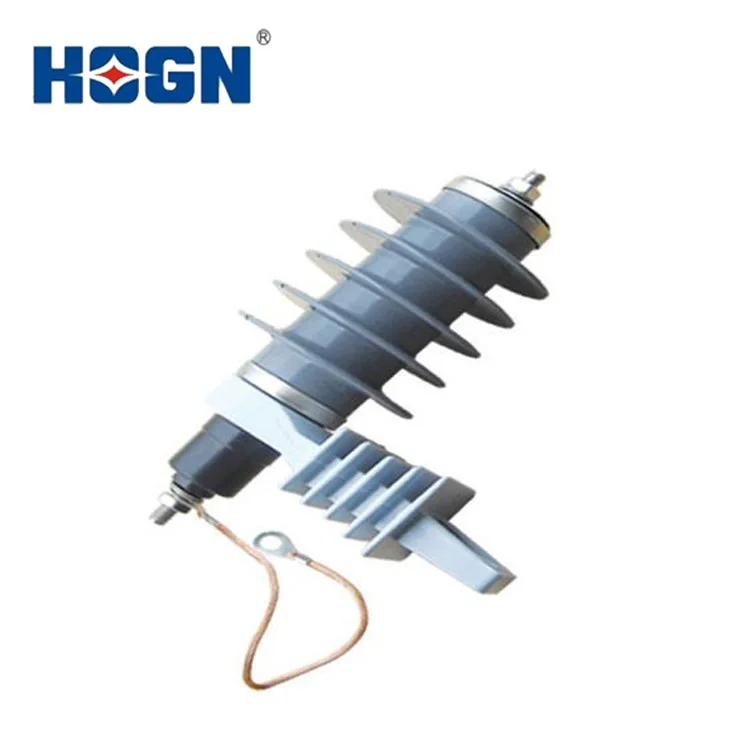

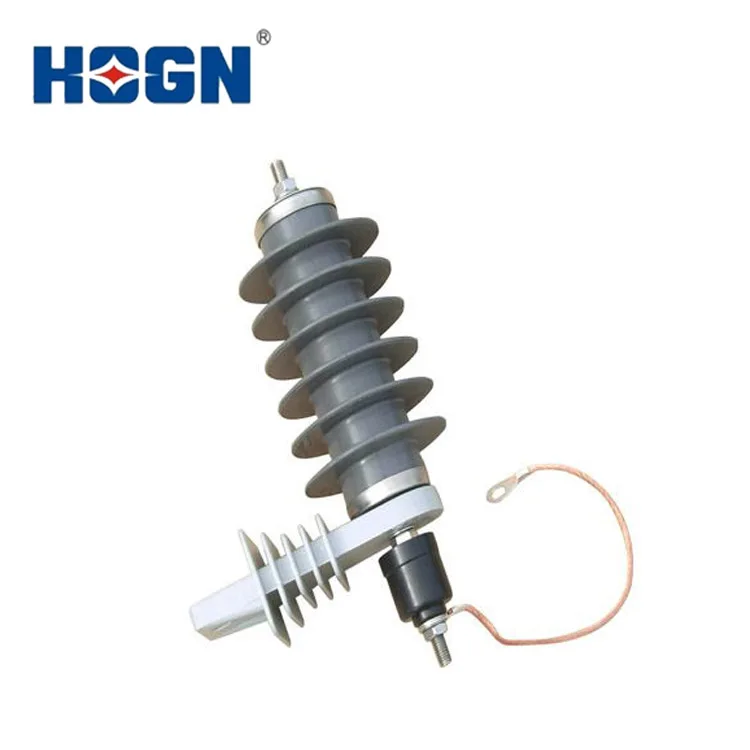

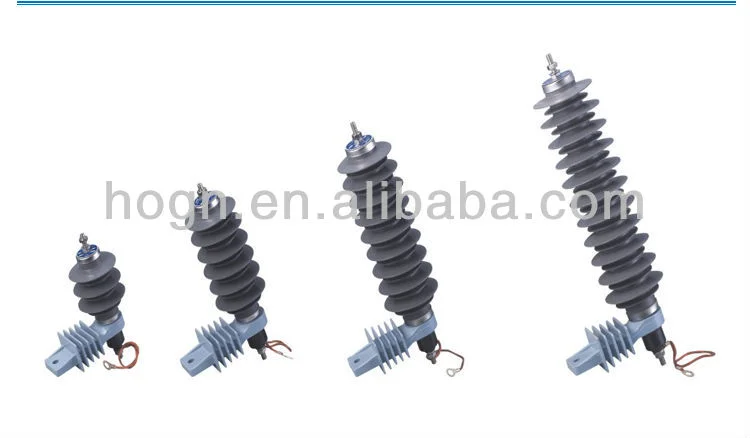

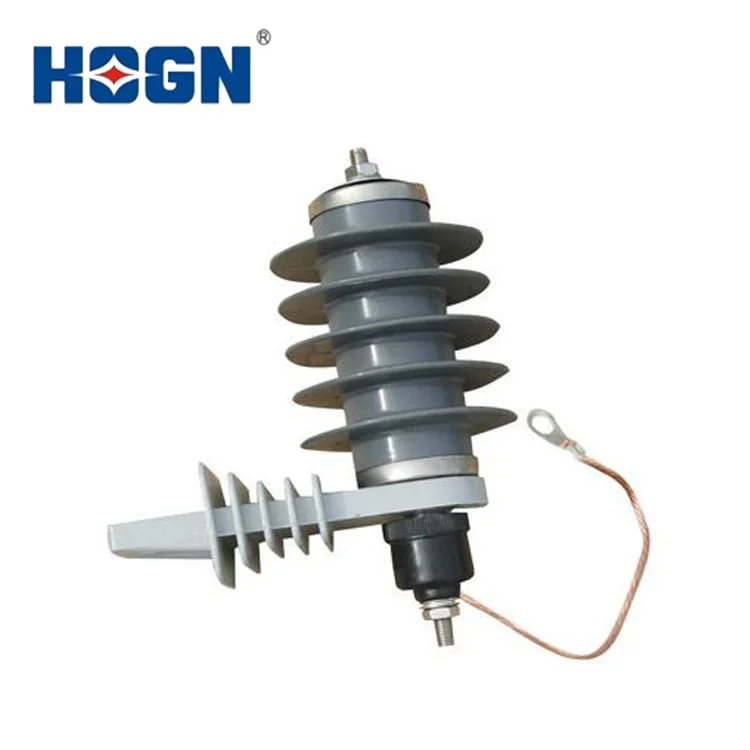

HOGN YH5W Polymeric Housed Metal oxide Surge Arrester Without Gaps Nominal Discharge Current Surge Arrester Lightning 3KV

Product Overview

Description

Feature:

Current: 5kA
Rated voltage: 3kV to 36 kV

Type: Polymeric Housed Metal-oxide Surge Arrester Without Gaps



Specificaion:

Type	Rated Volatge kV	Max Continuous Operating Voltage kV(rms)	Current Impulse Residual Voltage			2ms Rectangular Current Impulse Withstand	4/10μs High Current Impulse Withstand	The minium creepagge distance(mm)
YH5W-3	3	2.55	11.3	9	8.9	150	65	250
YH5W-6	6	5.1	22.6	18	16.8	150	65	250
YH5W-9	9	7.65	33.7	27	23.8	150	65	360
YH5W-10	10	8.4	36	30	23	150	65	360
YH5W-11	11	9.4	40	33	30	150	65	460
YH5W-12	12	10.2	42.2	36	27	150	65	460
YH5W-15	15	10.7	51	45	38.5	150	65	560
YH5W-18	18	15.3	61.5	54	46.2	150	65	660
YH5W-21	21	17.0	71.8	63	54.2	150	65	760
YH5W-24	24	19.5	82	72	62	150	65	860
YH5W-27	27	22.0	92	81	69.8	150	65	860
YH5W-30	30	24.4	102	90	79	150	65	960
YH5W-33	33	27.5	112	99	86.7	150	65	1070
YH5W-36	36	29.0	123	108	92.4	150	65	1170
