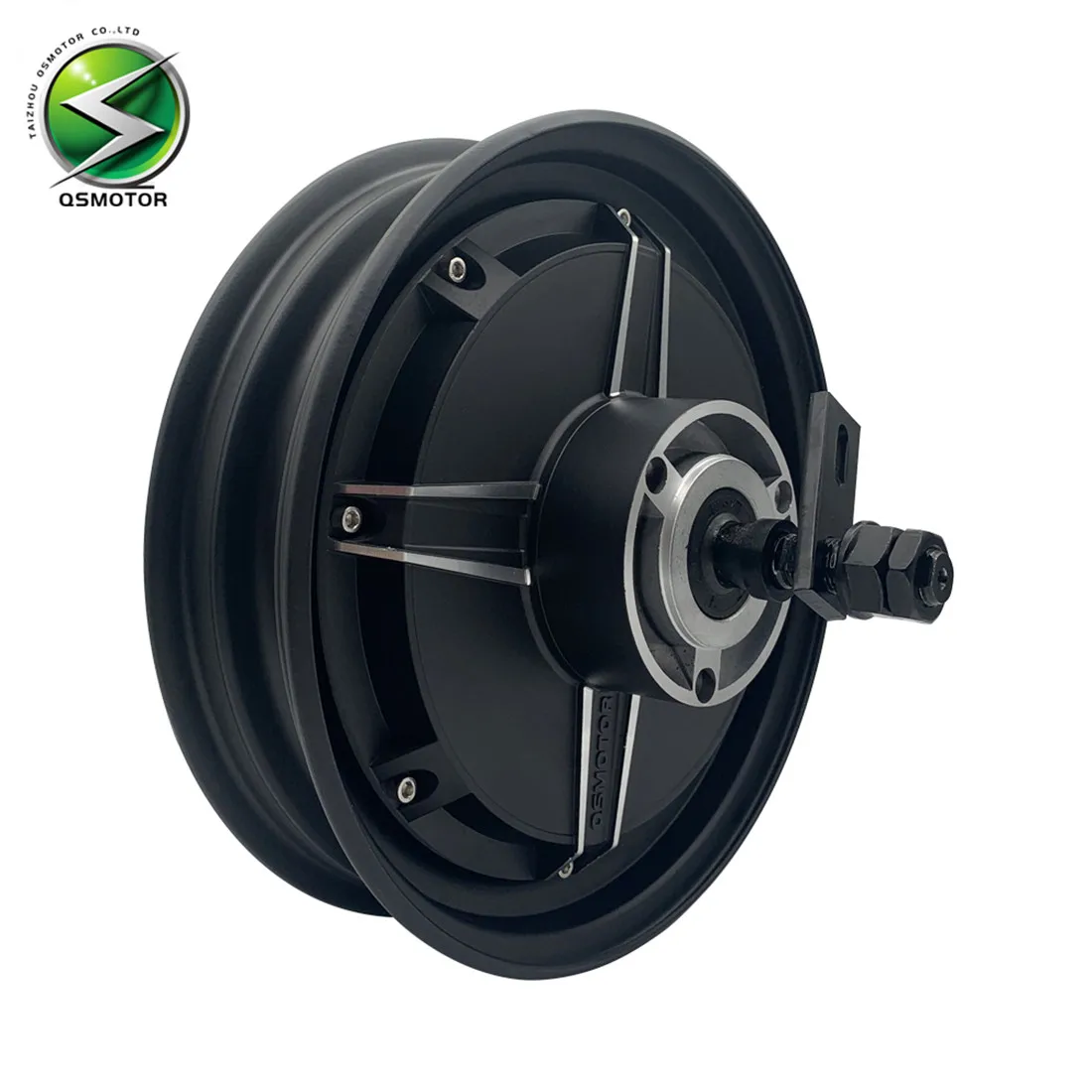

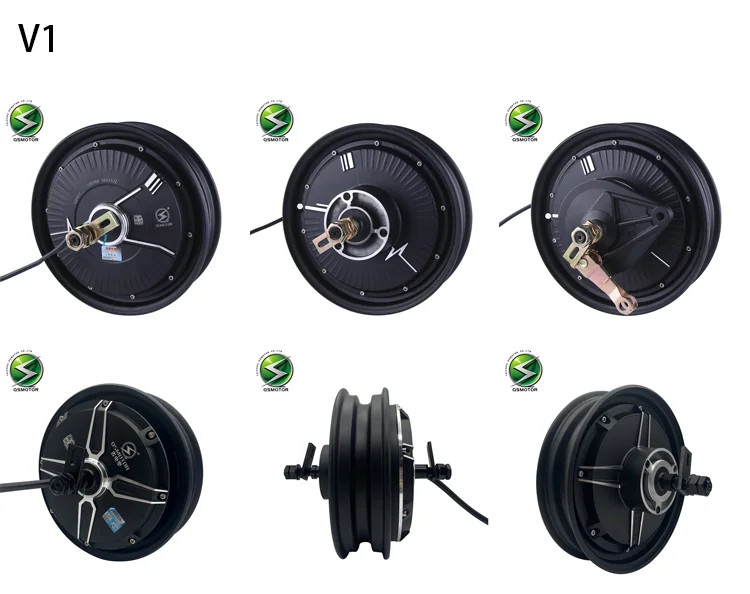

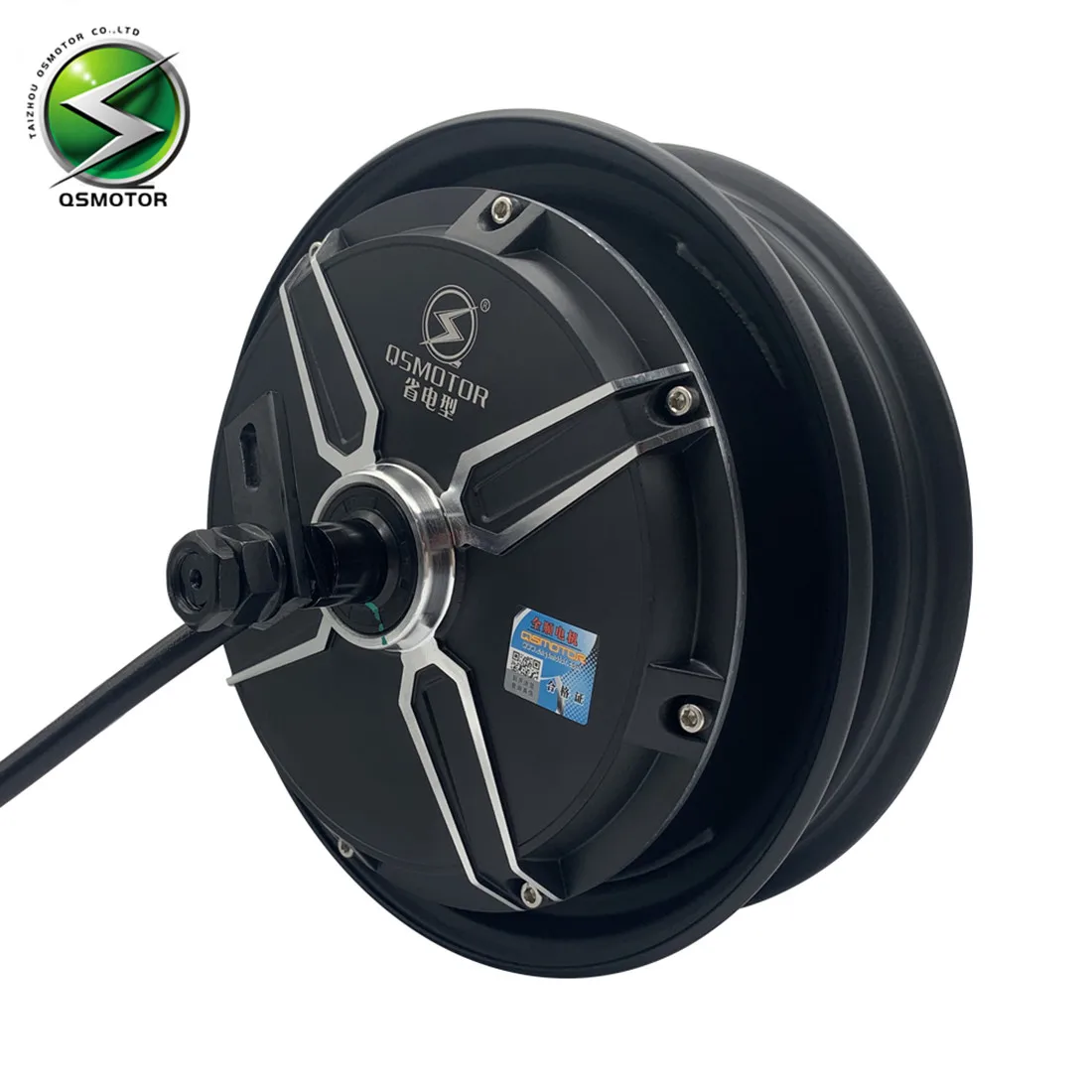

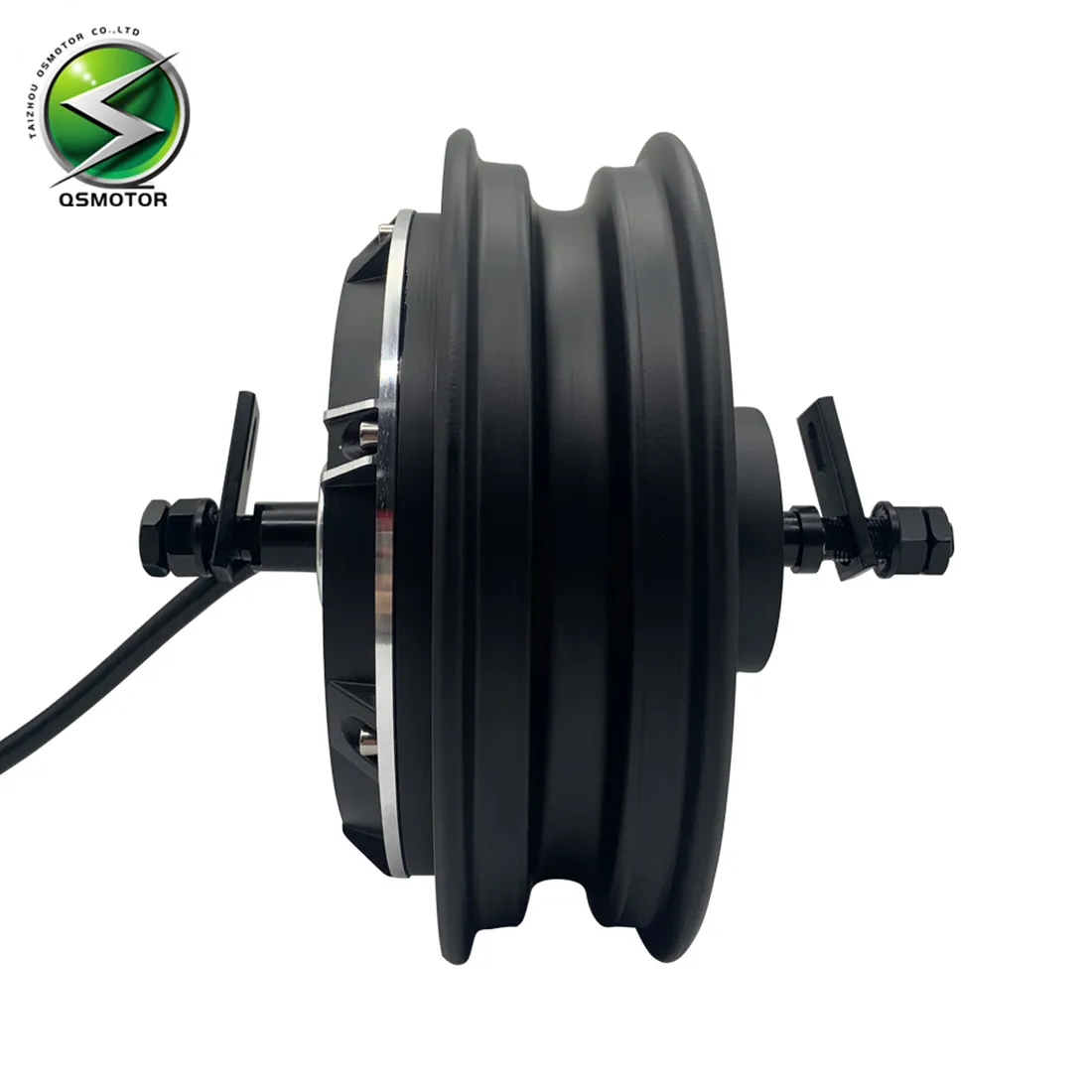

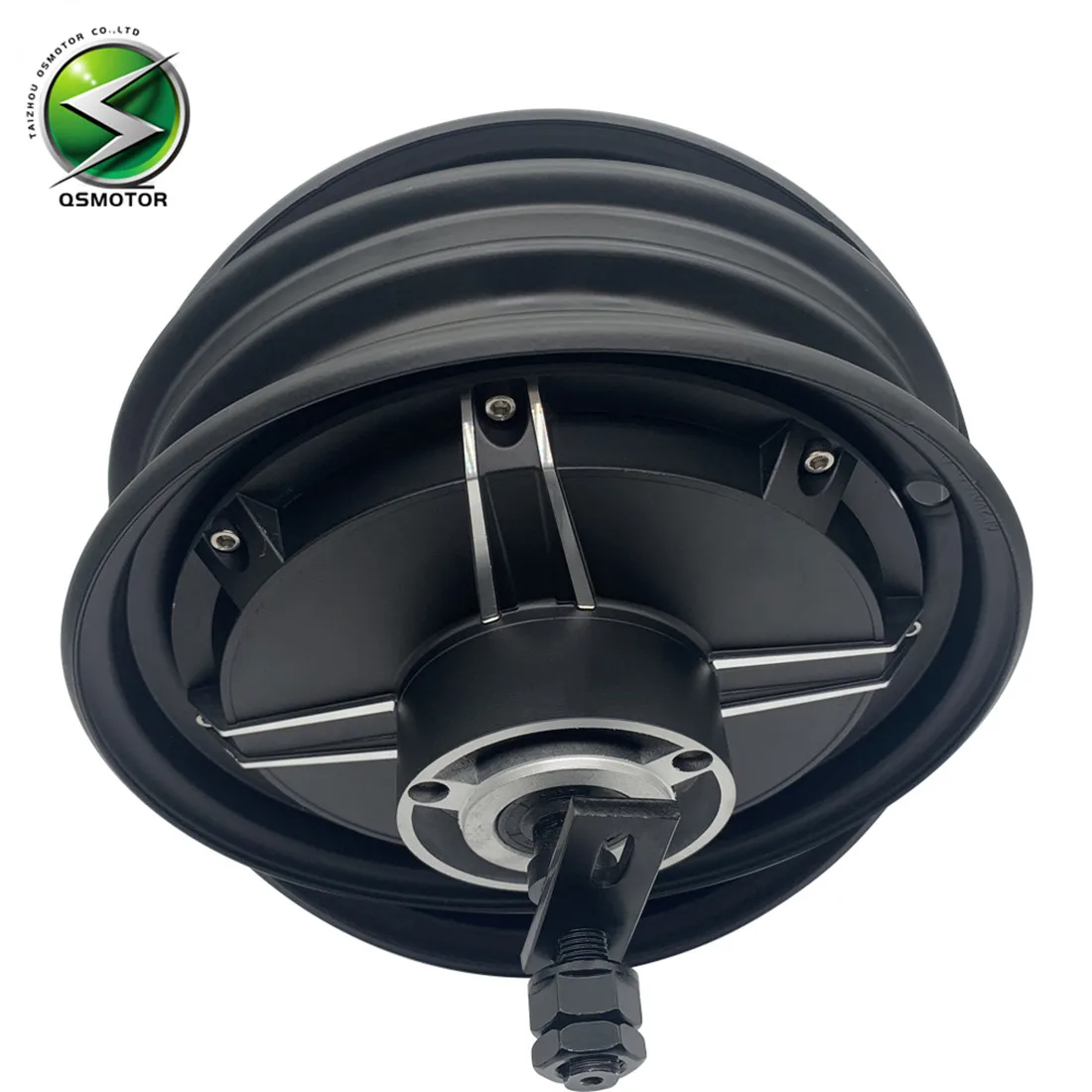

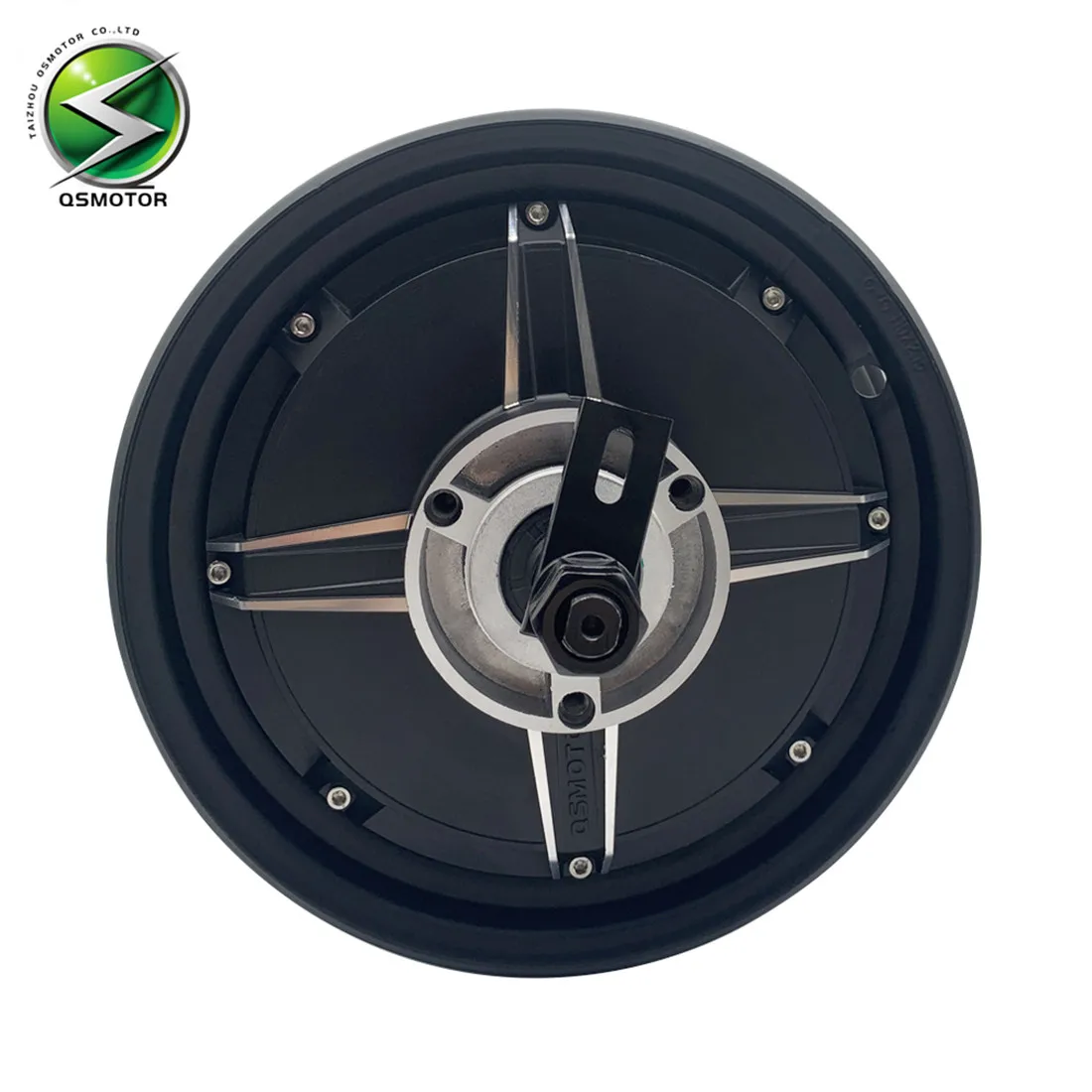

Professional Manufacturer QS 10inch 2000W 205 V1 48V 96V BLDC Electric Hub Motorcycle Motors
- Category: >>>
- Supplier: Hangzhou Reacher Technology Co. Ltd.
Share on (1600623799420):
Product Overview
Description
1. Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space. 2). It could
beinstalled in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
beinstalled in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
For 10inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle. There are three width of wheel,
10X2.15inch(500w-4000w),10X3.0inch(500w4000w) and 10x5.5inch(customized type, 1000w-4000w) for choice. We offer narrow tire,
10X2.15inch as default.
10X2.15inch(500w-4000w),10X3.0inch(500w4000w) and 10x5.5inch(customized type, 1000w-4000w) for choice. We offer narrow tire,
10X2.15inch as default.
Motor Type | BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor | |
Motor Design | Double axle with 10inch moped rim (integrated) | |
Rim size | 10x2.15inch(Narrow Tire as default), Matched tire:3.0-10,3.5-10 etc | |
Thermic Probe | KTY83-122 (as default, optional) | |
Brake type | Disc brake (as default), PCD3*80mm-M8, CB 58mm | |
Magnet Height | 55mm, 16 pole pairs | |
Drop-outs | 200mm | |
Rated Power | 2000W | |
Brake type | Disc brake (as default), PCD3*80mm-M8, CB 58mm | |
Waterproof Grade | IP54 | |
Stator: Aluminum Core | ||
Max Torque approx 201N.m | ||
Max Efficiency approx 88% | ||
Dual Halls with waterproof connectos(One for spare, in case of damage) | ||
10mm² Phase Wire | ||
