Automatic 18.9L 5 gallon 20 liter bottle extrusion blow molding machine price
- Category: >>>
- Supplier: Zhangjiagang Longsn Machine Co. Ltd.
Share on (1600623824477):
Product Overview
Description
Product Overview

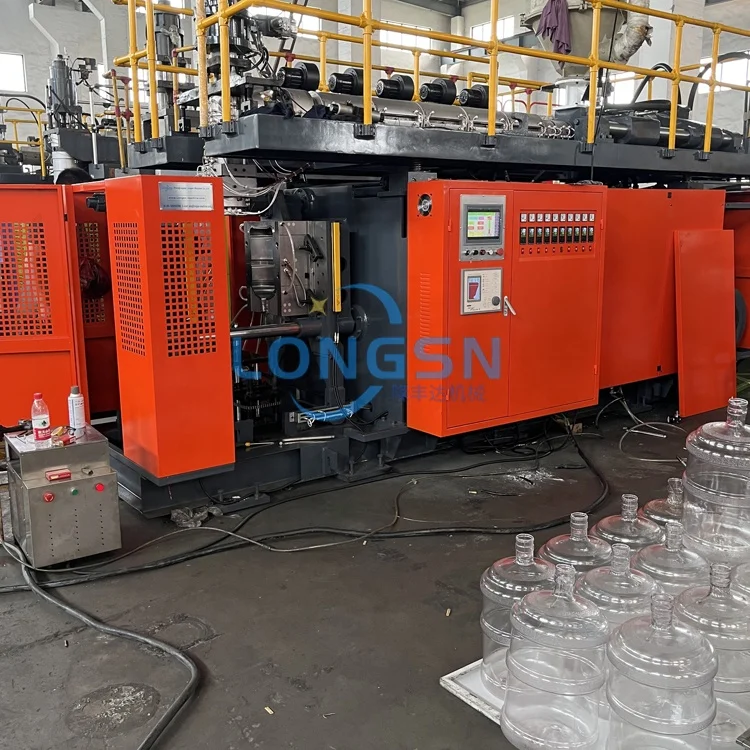

Automatic 18.9L 5 gallon 20 liter bottle extrusion blow molding machine price
The LSN series extrusion blow molding/moulding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines, chemical products, pesticides, detergents, etc with material of PE,PP,PVC from 5ml to 20L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
Features:
1.PLC+touch screen: making the operation easy.2.Automatic malfunction alarm: with self-diagnosis, making the malfunction clear at a glance.

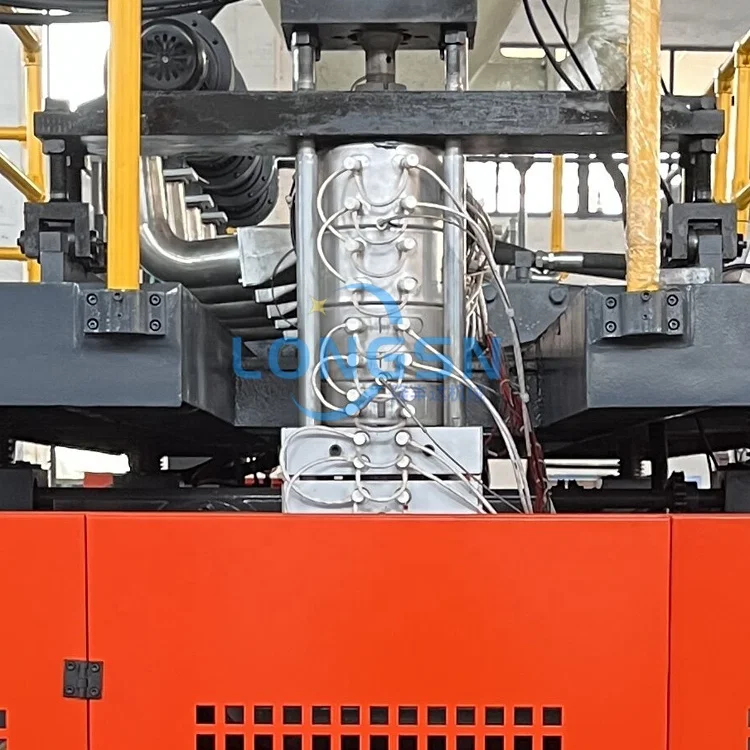

3. Center input die head: eliminating the knit line completely and making it easy to change the material and color.
4.Double linear guide rail: Unique “liner guide” to the clamping structure to ensure mold-lock uniform, knit line smoother, stable and quite working.
5. Mould locking system: adopts Crank arm-Center lock design to provide the strong clamping force.
PRODUCT SPECIFICATIONS
Parameters | Units | LSN90S | LSN100D |
Material | PE,PP,PV,PVC,PA | PE,PP,PV,PVC,PA | |
Number of die head | set | 1,2,3,4 | 1,2,3,4 |
Max Container capacity | 30L | 30L | |
Screw diameter | mm | 90 | 100 |
Screw L/D ratio | - | 28 | 28 |
(50HZ)Screw rpm(50hz) | r/min | 10-70 | 10-60 |
(PE)Extrusion capacity per hour | kg/h | 160 | 200 |
Number of heaters | - | 4 | 5 |
Opening stoke | mm | 900 | 900 |
Platen size | mm | 500*540 | 500*540 |
Clamping force | KN | 170 | 170 |
Dry cycle time | s | 6 | 9 |
Air pressure | Mpa | 0.8 | 0.8 |
Compressed air comsumption | m3/min | 4 | 6 |
Machine dimension(L*W*H) | mm | 5000*2900*3950 | 5200*4700*4000 |
Machine net weight | T | 9.5 | 16 |
Extruder heating power | kw | 22 | 27 |
Hydraulic motor | kw | 18.5 | 18.5 |
Total power | kw | 106 | 121 |
Details Images
Recommend Products
Certifications
Product packaging
Company Profile
Zhangjiagang Longsn Machine Co., Ltd.
Zhangjiagang Longsn Machine Co., Ltd. is a professional manufacturer which integrating development, research, design, manufacturing, technical service and marketing to manufacture complete sets of Packaging machines .
Zhangjiagang Longsn Machine Co., Ltd. factory covers an area of 8,000 square meters, has more than 10 professional design and development teams, and more than 30 professional production and installation commissioning engineers. We adhere to the policy of "market-oriented, quality-oriented, service-guaranteed and reputation-based". Longsn Machines follows the ISO 9001:2000 international quality management system, establishes and improves the quality assurance system to ensure the quality and performance of the company's products.
Zhangjiagang Longsn Machine Co., Ltd. factory covers an area of 8,000 square meters, has more than 10 professional design and development teams, and more than 30 professional production and installation commissioning engineers. We adhere to the policy of "market-oriented, quality-oriented, service-guaranteed and reputation-based". Longsn Machines follows the ISO 9001:2000 international quality management system, establishes and improves the quality assurance system to ensure the quality and performance of the company's products.
FAQ
Q1:Are you a trading company or a manufacturer ?
A1:We are the manufacturer ,we produce machines ourselves,we can assure the quality.
Q2:What is your advantage?
A2:Competitive price , Excellent technical support ,24h online service
Q3:When can I get my machines after I paid?
A3:We will arrange delivery on time,act according to the contract.
Q4:What's your guarantee or the warranty of the quality if we buy your machines?
A4:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q5:How can I install my machine when it arrives?
A5:We will provide 24 hours online service,if needed we will send our engineer to your side as soon as you get all your machines ready,for testing and teaching your technicians how to run the machines.
A1:We are the manufacturer ,we produce machines ourselves,we can assure the quality.
Q2:What is your advantage?
A2:Competitive price , Excellent technical support ,24h online service
Q3:When can I get my machines after I paid?
A3:We will arrange delivery on time,act according to the contract.
Q4:What's your guarantee or the warranty of the quality if we buy your machines?
A4:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q5:How can I install my machine when it arrives?
A5:We will provide 24 hours online service,if needed we will send our engineer to your side as soon as you get all your machines ready,for testing and teaching your technicians how to run the machines.
