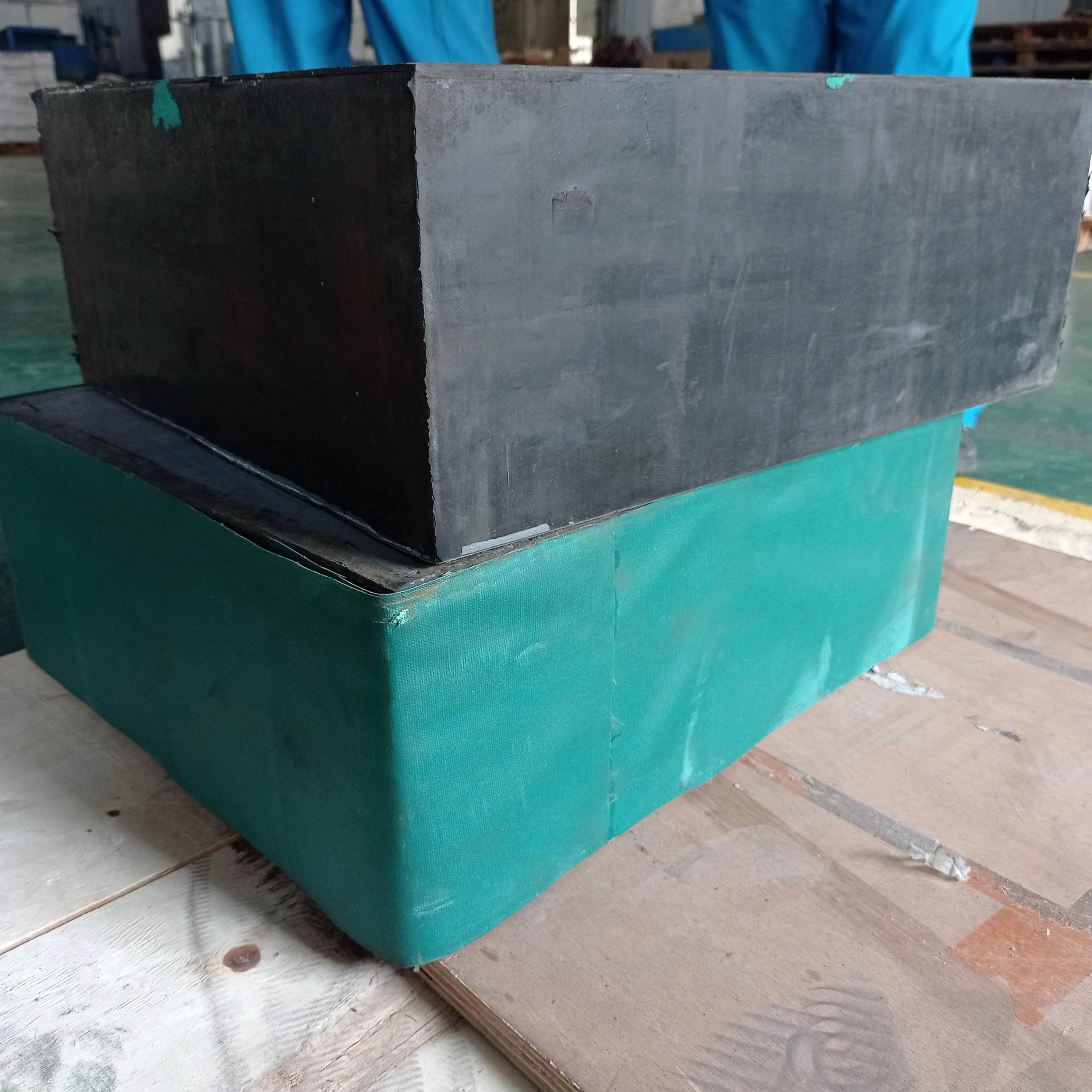

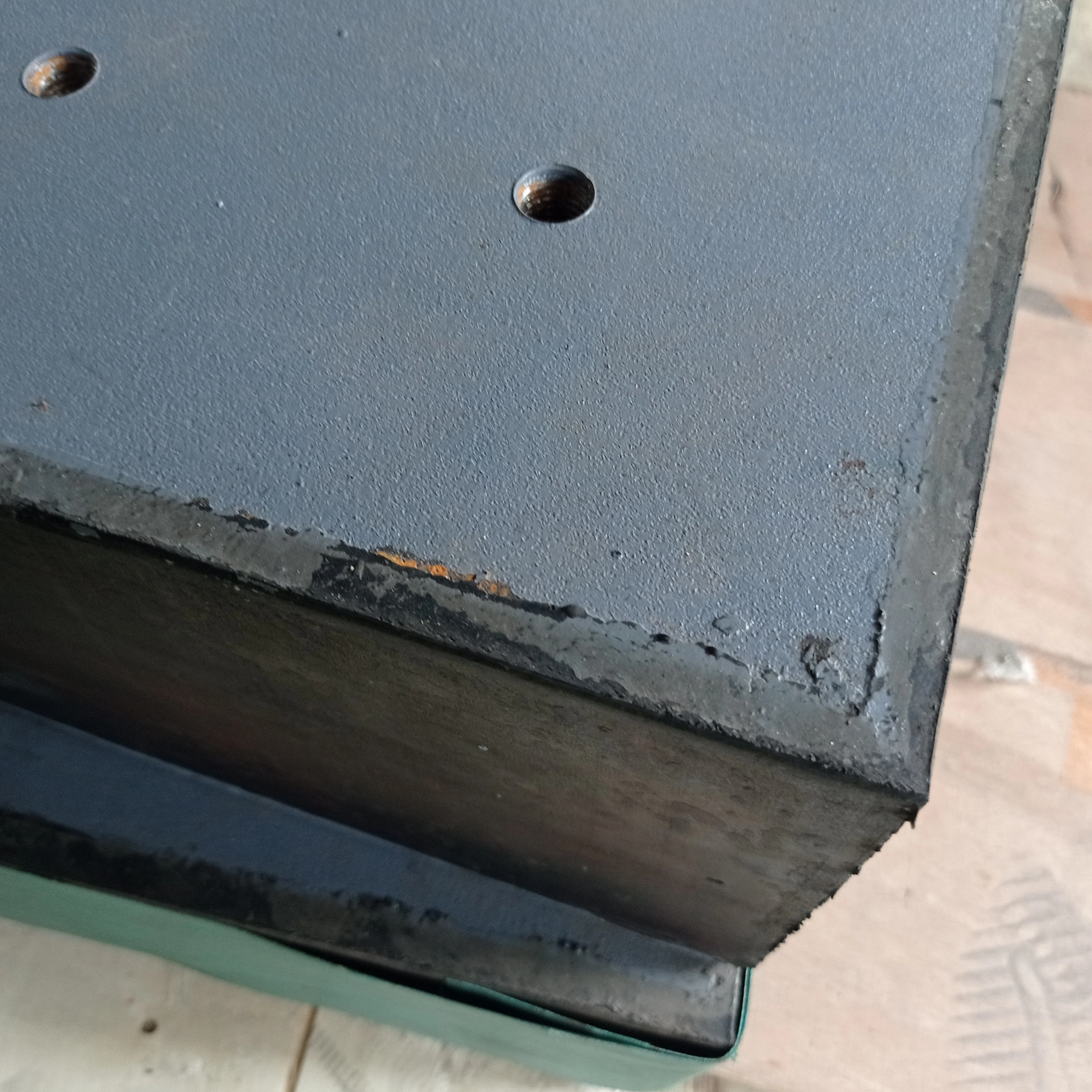

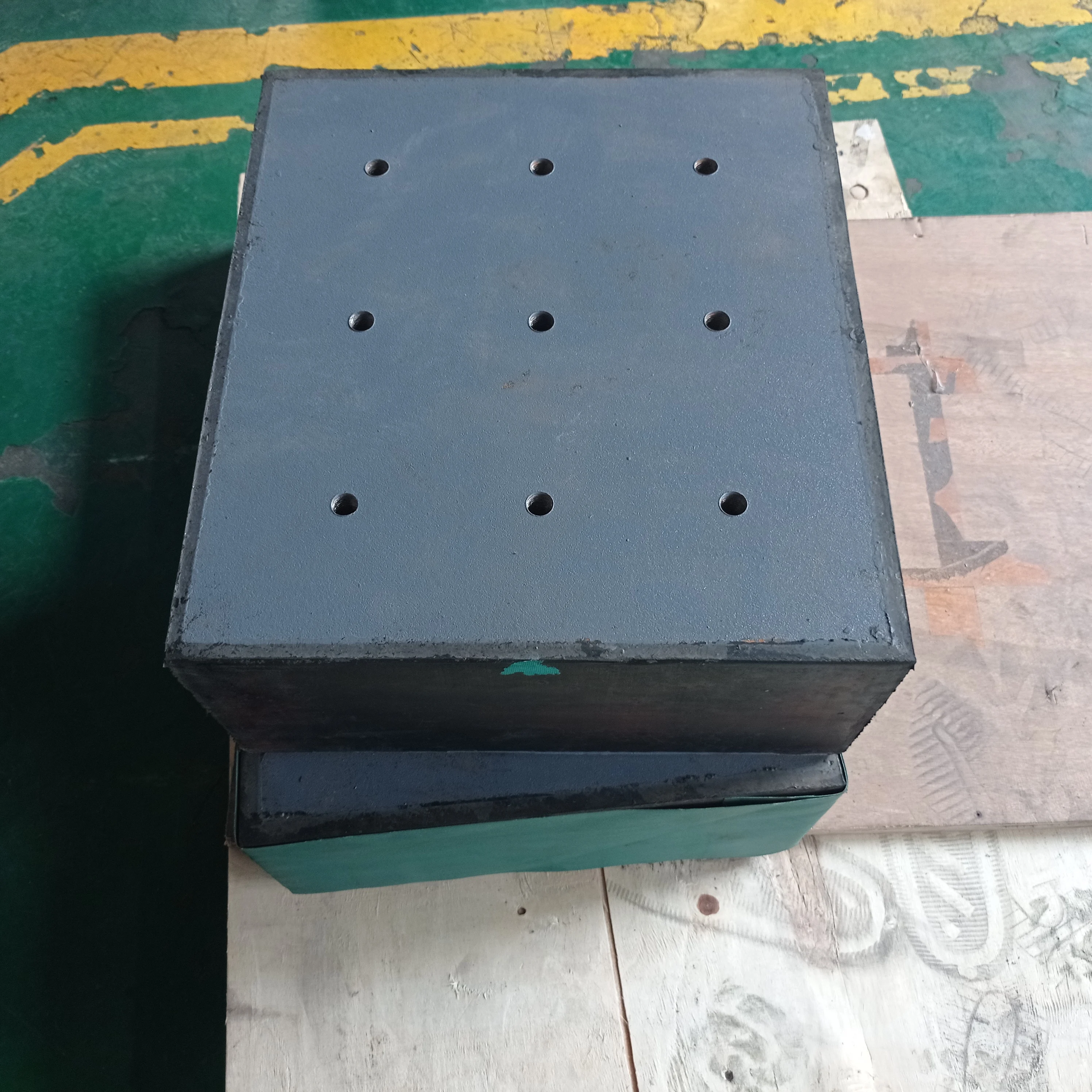

lead rubber bearing round/rectangular/ bridge use/
- Category: >>>
- Supplier: Zibo Torch Machine Co. Ltd.
Share on (1600623834261):
Product Overview
Description
Product Description
rubber bearing

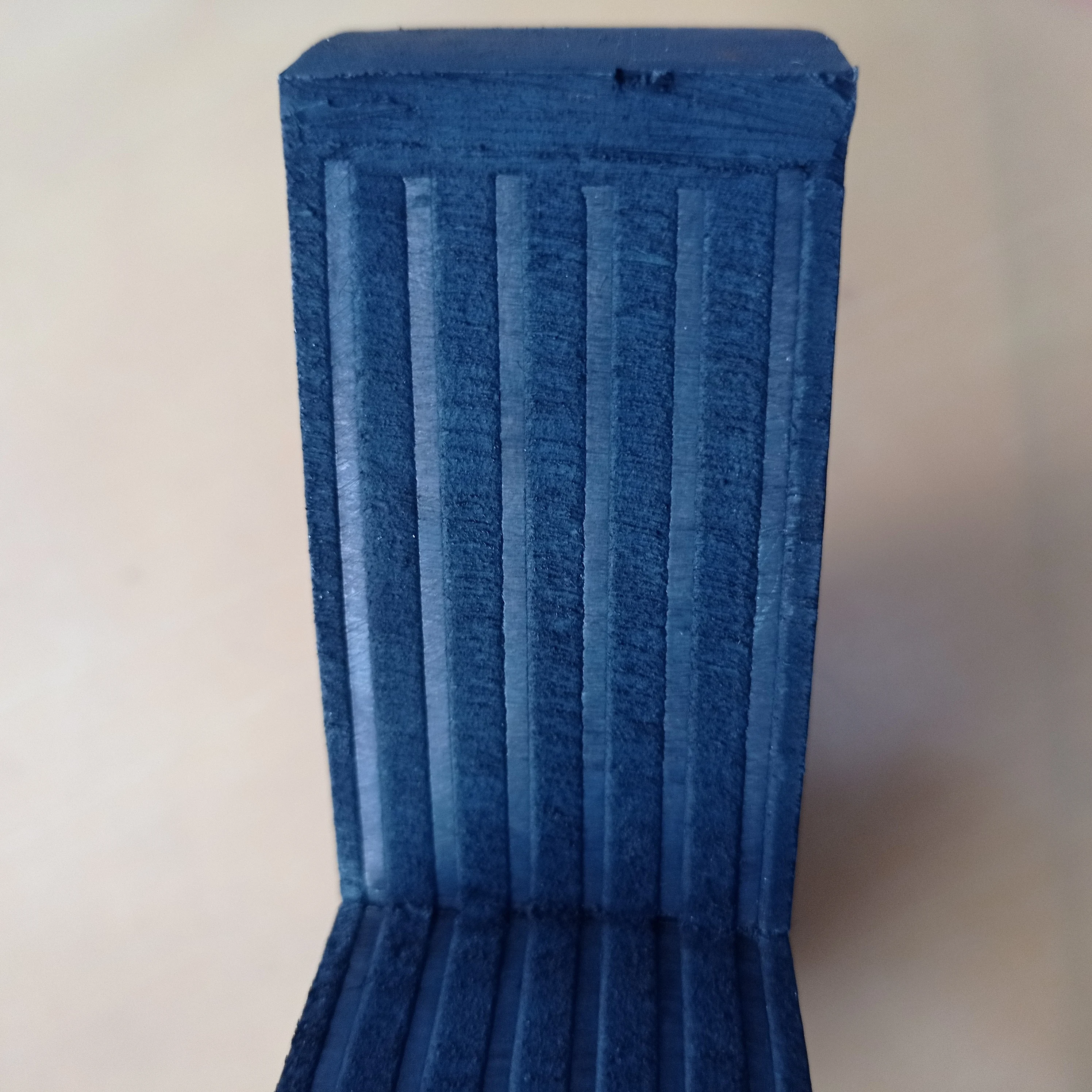

Composition: This product consists of multi-layer rubber sheet and thin steel plate inlaid, bonded and pressed.
Application: This product has been widely used in bridge construction, hydropower engineering and building seismic facilities.
Long span bridges, simply supported beam continuous slab bridges and multi span continuous beam bridges with spans greater than 30m can be used as movable bearings; It can be used as sliding blocks for Continuous beam jacking, T-beam transverse movement and large equipment sliding.
Rubber bearing products have good isolation effect, which can reduce the impact of live load and seismic force on buildings.
Advantages and Features: The rubber bearing product has simple structure and convenient installation; Saving steel and low price;
Simple maintenance and easy replacement.

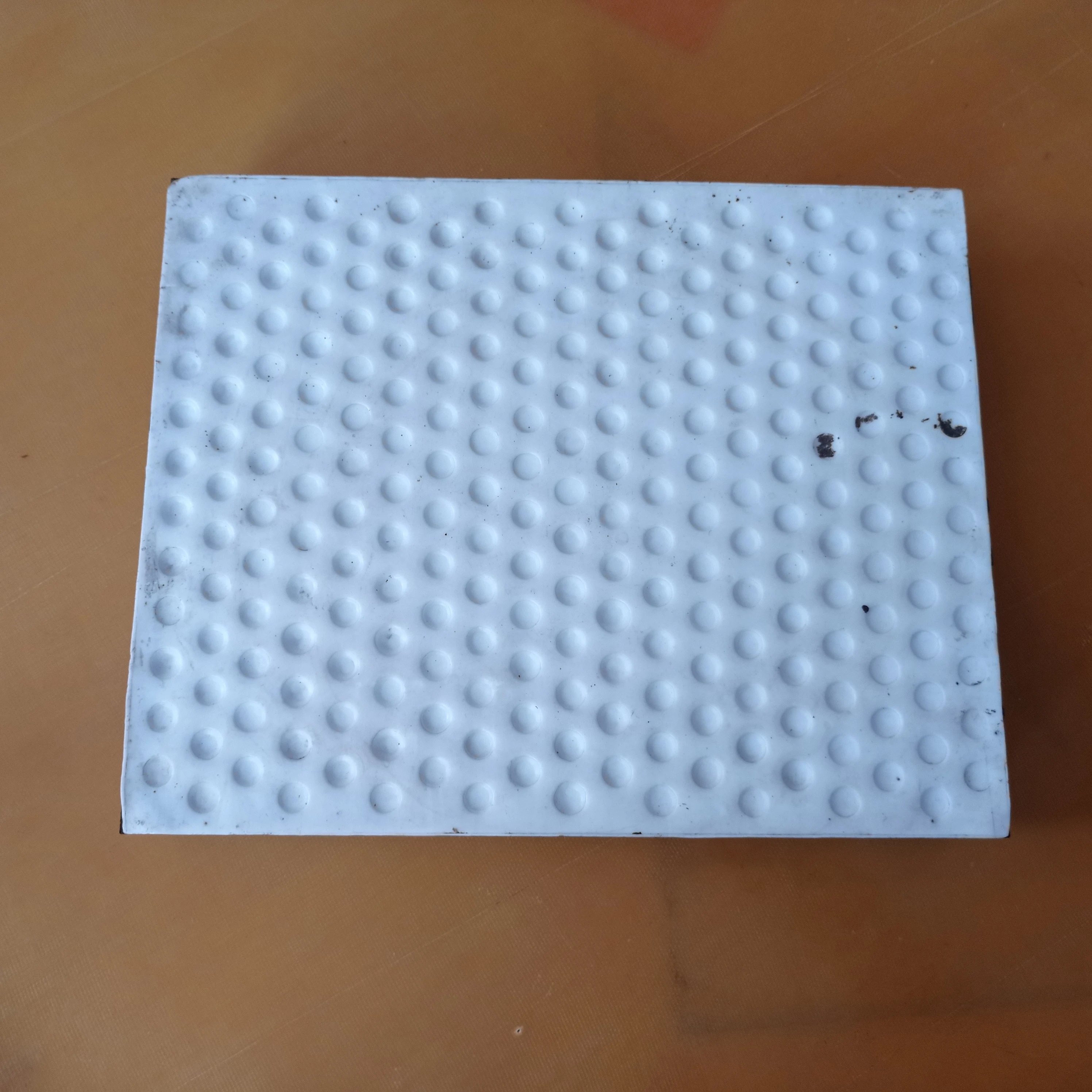

In addition to having the vertical rigidity and elastic deformation of ordinary plate rubber bearing, and being able to bear the vertical load and adapt to the rotation of the beam end, the PTFE sliding plate type rubber bearing uses the low friction
coefficient between the PTFE plate and the stainless steel plate（ μ F ≤ 0.08) can make the horizontal displacement of the bridge superstructure unrestricted.
PTFE plate rubber bearing is divided into two products according to function and shape: one is (GJZ) rectangular plate rubber bearing, and the other is (GYZ )circular plate rubber bearing.
Both GJZ bridge rubber bearing and gyz bearing belong to one type of plate rubber bearing. Their main function is to transmit load. In the process of use, they mainly bear the static pressure transmitted from the bridge, and also bear the live load generated when vehicles such as cars and trains pass through the bridge. As the bridge shakes up and down, the bearing must bear a certain rotating moment.
GJZ plate rubber bearing and GYZ bearing have the advantages of reliable performance, simple structure, convenient installation and replacement, long service life and low cost, which can adapt to the deformation of superstructure such as wide bridge, curved bridge and inclined bridge in all aspects, and can absorb part of vibration, translational movement, reduce the impact of live load on bridge structure and pier and abutment, and extend the service life of the bridge. Therefore, the plate rubber bearing is a kind of bearing used in highway and bridge engineering.
The shape parameters of GJZ rectangular rubber bearing are all 7.17, and the ultimate compressive strength is basically about 70MPa. The shape parameters of GYZ circular rubber bearing are all 9.5, and the ultimate compressive strength is basically about 76mpa. It shows that the increase of the shape parameters can improve the compressive strength.
Application: This product has been widely used in bridge construction, hydropower engineering and building seismic facilities.
Long span bridges, simply supported beam continuous slab bridges and multi span continuous beam bridges with spans greater than 30m can be used as movable bearings; It can be used as sliding blocks for Continuous beam jacking, T-beam transverse movement and large equipment sliding.
Rubber bearing products have good isolation effect, which can reduce the impact of live load and seismic force on buildings.
Advantages and Features: The rubber bearing product has simple structure and convenient installation; Saving steel and low price;
Simple maintenance and easy replacement.
In addition to having the vertical rigidity and elastic deformation of ordinary plate rubber bearing, and being able to bear the vertical load and adapt to the rotation of the beam end, the PTFE sliding plate type rubber bearing uses the low friction
coefficient between the PTFE plate and the stainless steel plate（ μ F ≤ 0.08) can make the horizontal displacement of the bridge superstructure unrestricted.
PTFE plate rubber bearing is divided into two products according to function and shape: one is (GJZ) rectangular plate rubber bearing, and the other is (GYZ )circular plate rubber bearing.
Both GJZ bridge rubber bearing and gyz bearing belong to one type of plate rubber bearing. Their main function is to transmit load. In the process of use, they mainly bear the static pressure transmitted from the bridge, and also bear the live load generated when vehicles such as cars and trains pass through the bridge. As the bridge shakes up and down, the bearing must bear a certain rotating moment.
GJZ plate rubber bearing and GYZ bearing have the advantages of reliable performance, simple structure, convenient installation and replacement, long service life and low cost, which can adapt to the deformation of superstructure such as wide bridge, curved bridge and inclined bridge in all aspects, and can absorb part of vibration, translational movement, reduce the impact of live load on bridge structure and pier and abutment, and extend the service life of the bridge. Therefore, the plate rubber bearing is a kind of bearing used in highway and bridge engineering.
The shape parameters of GJZ rectangular rubber bearing are all 7.17, and the ultimate compressive strength is basically about 70MPa. The shape parameters of GYZ circular rubber bearing are all 9.5, and the ultimate compressive strength is basically about 76mpa. It shows that the increase of the shape parameters can improve the compressive strength.
Specification
Technical Index | Natural Rubber (-40℃-60 ℃) | Neoprene Rubber(-25℃-60℃) | |||
Hardness(IRHD) | 60±5 | 60±5 | |||
Tensile Strength(MPa) | ≥18 | ≥17 | |||
Elongation at Break(%) | ≥450 | ≥400 | |||
Brittleness Temperature(℃) | ≤ -50 | ≤ -40 | |||
Compression Set(70℃×24h)（%） | ≤ 30 | ≤ 15 | |||
Ozone Aging Resistance(20% strain,40℃ × 96h) | 25 pphm | 100 pphm | |||
No Cracks | No Cracks | ||||
Hot Air Aging | Test Condition(℃ × h) | 70 × 168 | 100 × 70 | ||
Max Change in Tensile Strength(%) | - 15 | -15 | |||
Max Change in Elongation at Break(%) | - 20 | -40 | |||
Max Change in Hardness(IRHD) | -5 , +10 | 0 , +10 | |||
Bond Strength Between Elastomer and Steel Plate(KN/m) | ＞10 | ＞10 | |||
Bond Strength Between Elastomer and PTFE(KN/m) | ＞7 | ＞7 | |||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zibo Torch Machine Co., Ltd, which affiliates to Zibo Torch Energy of China State Shipbuilding Corporation ltd, is a wholly
state-owned modern enterprise for battery making equipments, charging and discharging equipments and industrial molding tools. The company has a strict system of standard production, quality control and staff management. The company has passed the Military Quality Management System Certification, ISO9001 Quality Management System Certification, Environmental Management and Occupational Safety and Health Management System Certification.
Company has strong R&D strength. After many years’ reformation and Innovation, our engineers have mastered the advanced Automatic Acid Recirculation Battery Formation Technology and the friendly-environment wet filling system which solves the pollution problem of traditional craft，improves the products quality greatly and fills the domestic market blank. The company independently developed the high-performance Grid Die Casting Machine which can produce two plates at one time and Hydraulic Die Casting Machine. At the same time our technicians are always updating the products such as Dry Filling System, Grid Casting Machine, Grid Pasting Machine and Paste Mixer.
Quality comes from strength, and Technology makes perfect. Based on the superb quality and our sincere service, our products have been sold to more than 20 provinces and municipalities and exported to India, Japan and some other countries and have won great praise from many famous battery companies in China and around the world, such as, Camel, Narada, Leoch, Base, Luminous, Gold Star, Southern Battery, JAY ACE, GS etc.
As in the future full of new opportunities and challenges, we will continue to provide qualified products and more faithful
service to meet your higher requirements to become a first-class power equipment supplier.
state-owned modern enterprise for battery making equipments, charging and discharging equipments and industrial molding tools. The company has a strict system of standard production, quality control and staff management. The company has passed the Military Quality Management System Certification, ISO9001 Quality Management System Certification, Environmental Management and Occupational Safety and Health Management System Certification.
Company has strong R&D strength. After many years’ reformation and Innovation, our engineers have mastered the advanced Automatic Acid Recirculation Battery Formation Technology and the friendly-environment wet filling system which solves the pollution problem of traditional craft，improves the products quality greatly and fills the domestic market blank. The company independently developed the high-performance Grid Die Casting Machine which can produce two plates at one time and Hydraulic Die Casting Machine. At the same time our technicians are always updating the products such as Dry Filling System, Grid Casting Machine, Grid Pasting Machine and Paste Mixer.
Quality comes from strength, and Technology makes perfect. Based on the superb quality and our sincere service, our products have been sold to more than 20 provinces and municipalities and exported to India, Japan and some other countries and have won great praise from many famous battery companies in China and around the world, such as, Camel, Narada, Leoch, Base, Luminous, Gold Star, Southern Battery, JAY ACE, GS etc.
As in the future full of new opportunities and challenges, we will continue to provide qualified products and more faithful
service to meet your higher requirements to become a first-class power equipment supplier.
FAQ
1. who are we?
We are based in Shandong, China, start from 2007,sell to South Asia(30.00%),Eastern Asia(30.00%),Southeast Asia(30.00%),Mid East(5.00%),Africa(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Grid Die Casting Machine,battery charger,laser marking machine,lithium battery,lead acid battery and lead, rubber products
4. why should you buy from us not from other suppliers?
75 years' Military Industrial Production Experience and Quality Control, belongs to group company with rich products varieties
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2007,sell to South Asia(30.00%),Eastern Asia(30.00%),Southeast Asia(30.00%),Mid East(5.00%),Africa(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Grid Die Casting Machine,battery charger,laser marking machine,lithium battery,lead acid battery and lead, rubber products
4. why should you buy from us not from other suppliers?
75 years' Military Industrial Production Experience and Quality Control, belongs to group company with rich products varieties
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
