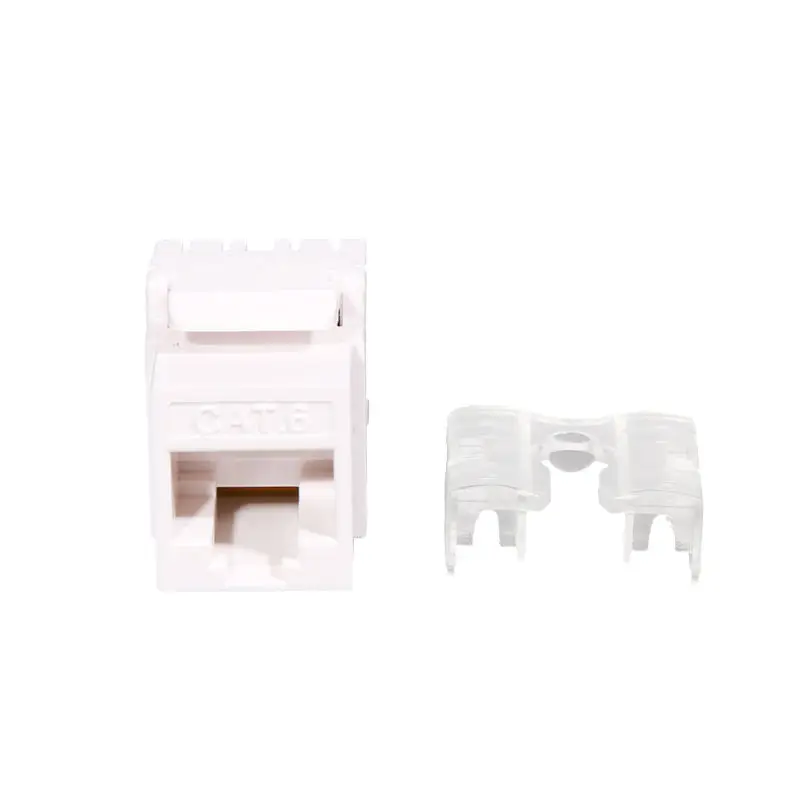

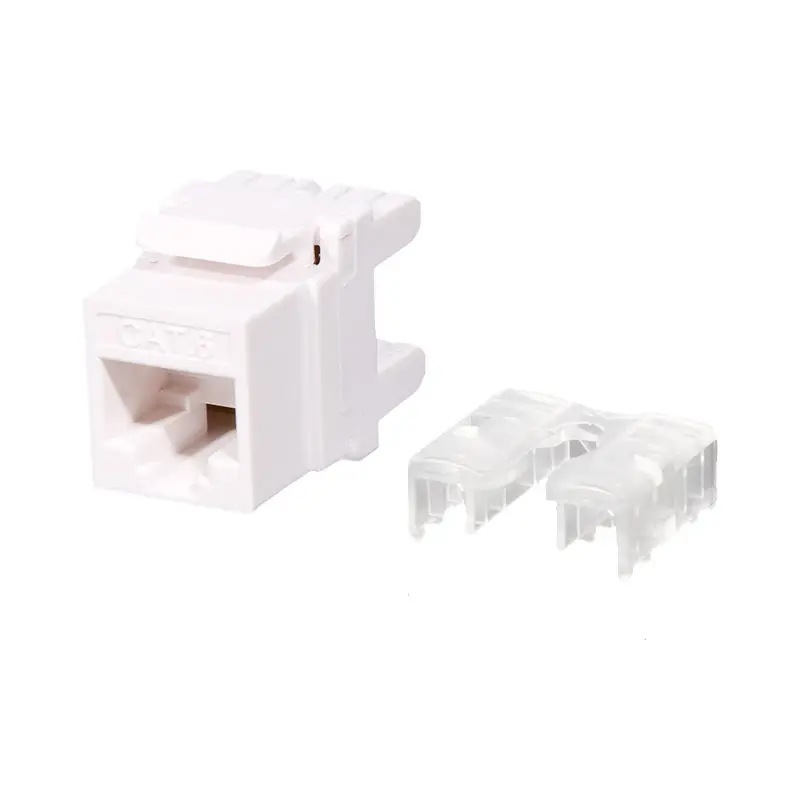

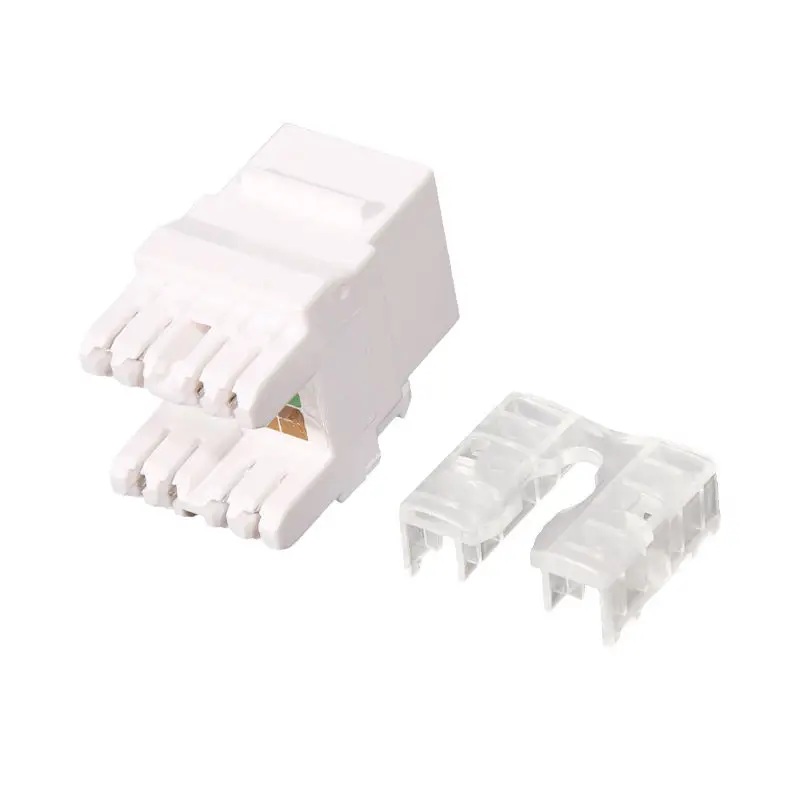

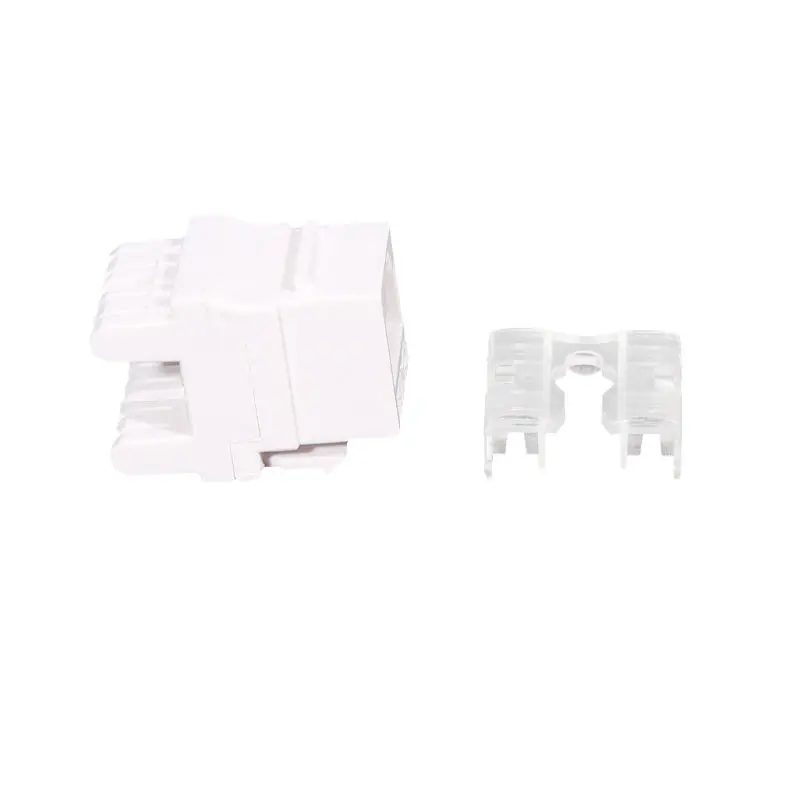

White RJ45 180 Degree UTP Short Body CAT6 8P8C Krone 110 Type Modular Network Keystone Jack
- Category: >>>
- Supplier: Cixi Shuai Ye Communication Equipment Co. Ltd.
Share on (1600623834540):
Product Overview
Description
Specification
Electrical:
1: Voltage rating: 125V AC rms
2: Current rating: 1.5Amp
3: Contact resistance: 100m Ohms (maximum)
4: Insulation resistance: 1,000M Ohms (minimum) at 500V DC
Environment:
1: Storage temperature: -40 to +85℃
2: Operating temperature: 0 to 70℃
Mechanical:
1: Housing material: PC UL94V-0
2: Inner material: flame-retardant ABS UL94V-0
3: PCB material: FR-4
4: Thickness: 1.6mm
5: Contact material: phosphor bronze stamp and PIN T=0.35mm
6: IDC contact material: phosphor bronze, T=0.50mm with nickel plating
7: Wire: 24 to 26AWG
8: Dielectric strength: 750V AC rms, 60Hz and one minute
1: Voltage rating: 125V AC rms
2: Current rating: 1.5Amp
3: Contact resistance: 100m Ohms (maximum)
4: Insulation resistance: 1,000M Ohms (minimum) at 500V DC
Environment:
1: Storage temperature: -40 to +85℃
2: Operating temperature: 0 to 70℃
Mechanical:
1: Housing material: PC UL94V-0
2: Inner material: flame-retardant ABS UL94V-0
3: PCB material: FR-4
4: Thickness: 1.6mm
5: Contact material: phosphor bronze stamp and PIN T=0.35mm
6: IDC contact material: phosphor bronze, T=0.50mm with nickel plating
7: Wire: 24 to 26AWG
8: Dielectric strength: 750V AC rms, 60Hz and one minute
Shell Material | PC |
Color | white |
Warranty | 1 Year Warranty |
Temperature | -20℃ to 70℃ |
Types | cat6 Unshielded |
Performance | Pass FLUKE |
Insertion life | ≥ 1000 Mating Cycles |
Scope of application | Network Cabling System |
Golden Needle | Phosphor Bronze, Gold-Plating |
Insulation resistance | No less than 500mΩ |
Contact resistance | No More than 20mΩ |
IDC | Phosphor Bronze, Tin Plating |
Product Description
Company Profile
Cixi shuaiye communication equipment Co., Ltd. is an enterprise specializing in the production and development of generic cabling products. The company has the right to import and export products. Moreover, we always adhere to the principle of "quality, price and service" and the enterprise spirit of "unity, pragmatism, development and innovation", and use advanced technology and scientific management to improve work efficiency and service quality. The company adheres to the concept of "integrity all over the world", adheres to the customer-centered policy, wholeheartedly provides customers with the most satisfactory solutions, and builds a win-win long-term cooperation platform. Welcome!
Our Advantage
1、The company takes the lead in passing the ISO9001:2000 certification, and has the right to import and export products
2、The company always adheres to the principle of "quality, price and service" and the enterprise spirit of "unity, pragmatism, development and innovation", and improves work efficiency and service quality with advanced technology and scientific management.
3、The company has nearly 10 years of product development and production experience
4、The company adheres to the concept of "integrity all over the world", adheres to the customer-centered policy, wholeheartedly provides customers with the most satisfactory solutions, and builds a win-win long-term cooperation platform
2、The company always adheres to the principle of "quality, price and service" and the enterprise spirit of "unity, pragmatism, development and innovation", and improves work efficiency and service quality with advanced technology and scientific management.
3、The company has nearly 10 years of product development and production experience
4、The company adheres to the concept of "integrity all over the world", adheres to the customer-centered policy, wholeheartedly provides customers with the most satisfactory solutions, and builds a win-win long-term cooperation platform
Packing & Delivery
FAQ
1. Q: What kind of cable do you produce?
We specialize in producing lan cable,patch cord,fiber cable,network cabinet,accessories etc.
2. Q:what's your MOQ?
A: Our MOQ is 100 pieces per item. Free samples can be sent for your quality evaluation.
3. Q: What’s your delivery time?
Normally, our delivery time is 7-15 days after receiving deposit. Base on the quantity of the order.
4. Q: What are your payment terms?
We accept T/T, L/C. Western Union,Other payments accept through negotiation.
5. Q: What is your manner of packing?
The color box and cartons,It can as the customers'requests.
6. Q: Can your factory customize cables based on customer’s samples?
Yes, we can. OEM is welcomed.
We specialize in producing lan cable,patch cord,fiber cable,network cabinet,accessories etc.
2. Q:what's your MOQ?
A: Our MOQ is 100 pieces per item. Free samples can be sent for your quality evaluation.
3. Q: What’s your delivery time?
Normally, our delivery time is 7-15 days after receiving deposit. Base on the quantity of the order.
4. Q: What are your payment terms?
We accept T/T, L/C. Western Union,Other payments accept through negotiation.
5. Q: What is your manner of packing?
The color box and cartons,It can as the customers'requests.
6. Q: Can your factory customize cables based on customer’s samples?
Yes, we can. OEM is welcomed.
