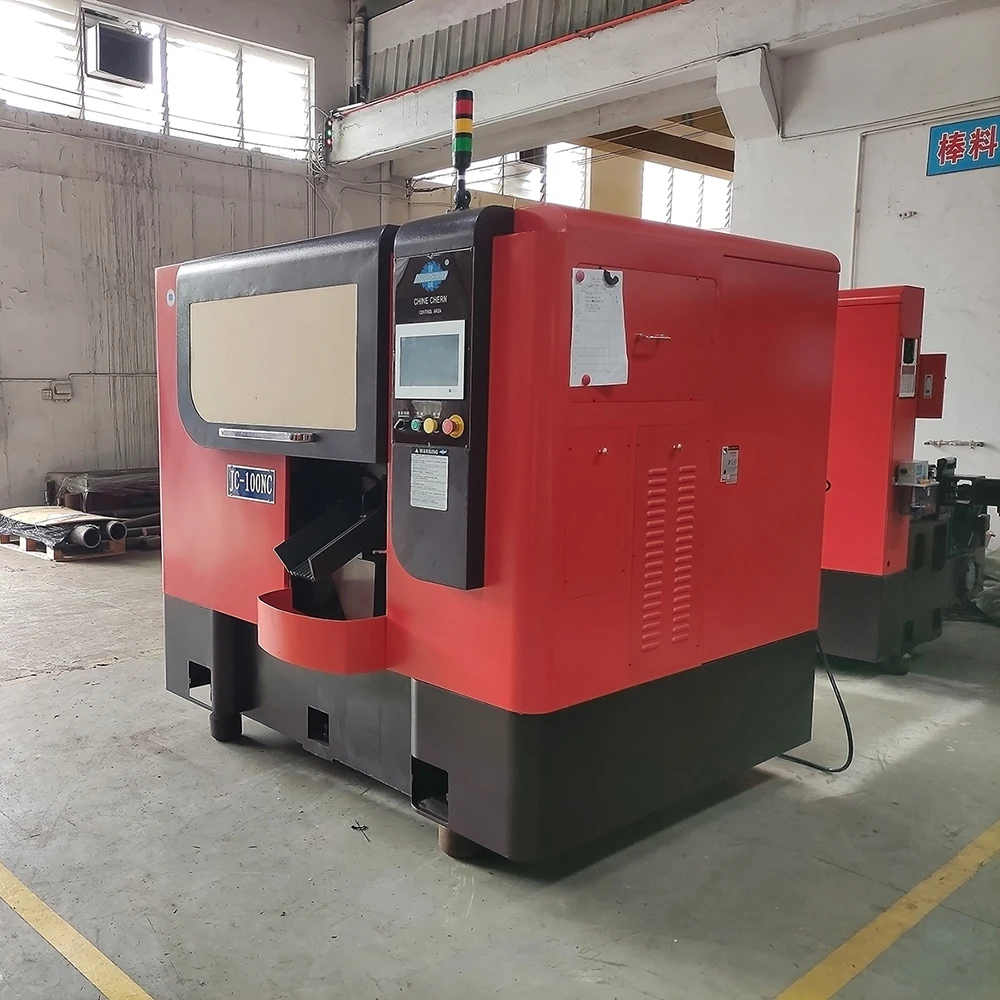

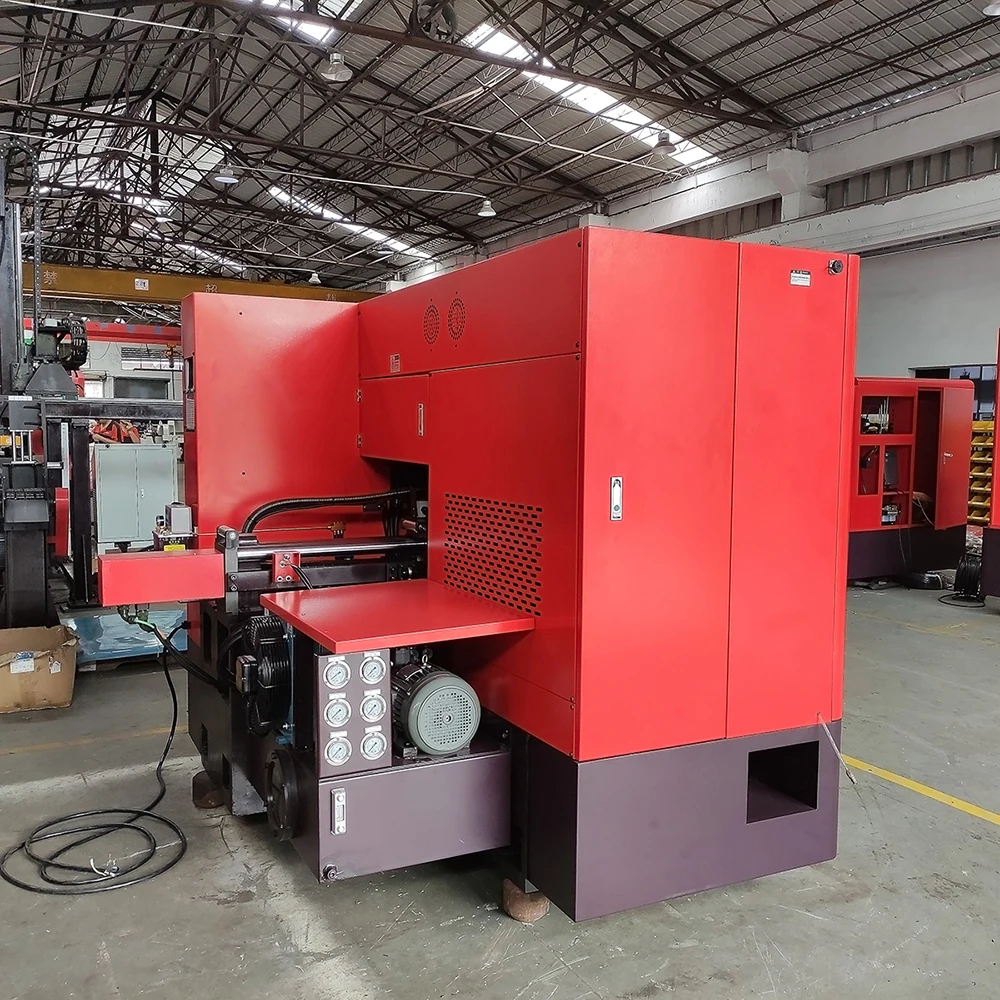

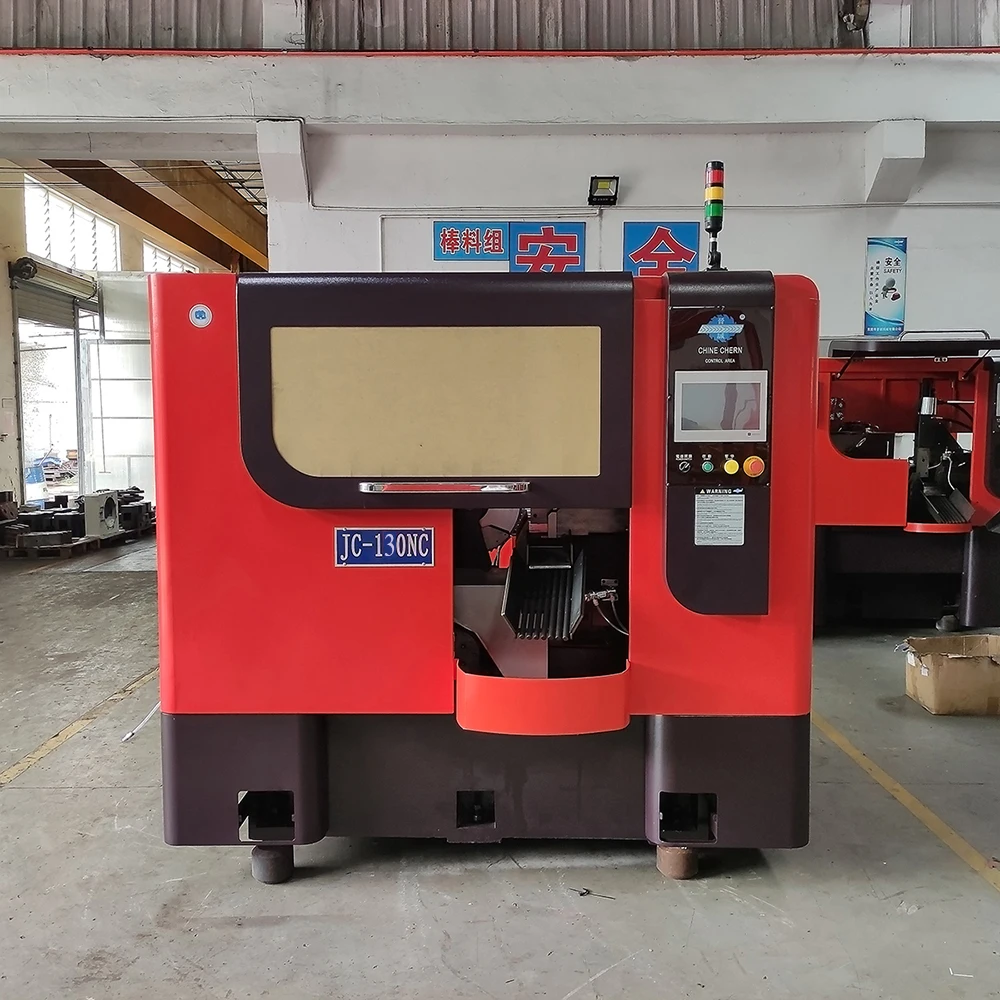

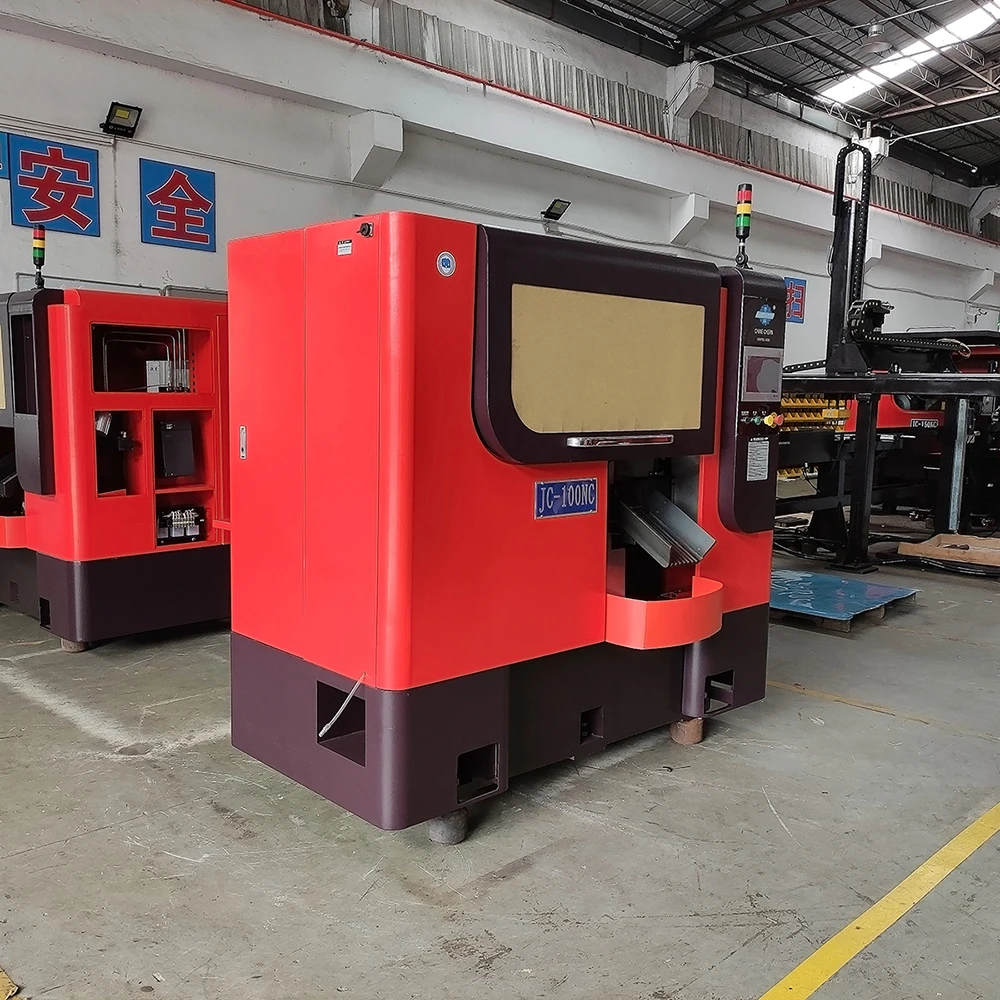

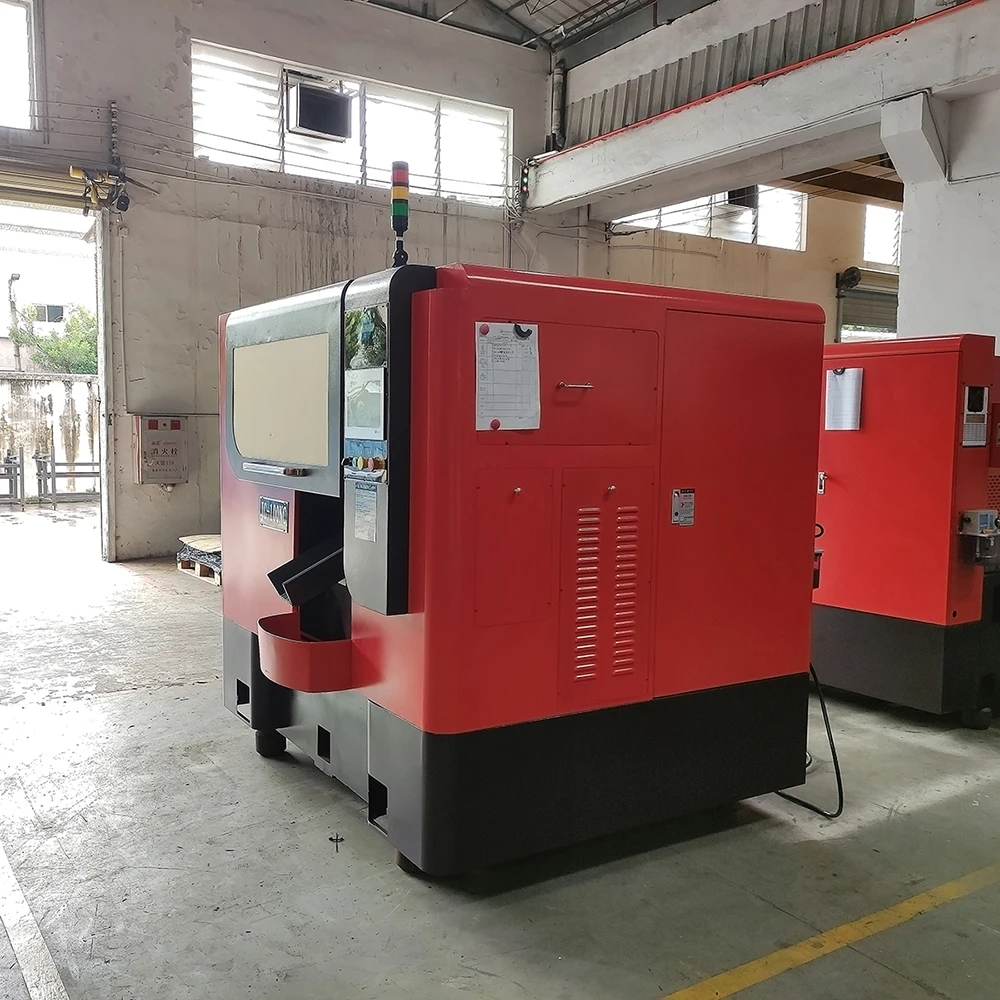

JC 130NC Fully Automatic High Speed Precision Circular Cold Saw Cutting Machinery for Super Hard Metal
- Category: >>>
- Supplier: Dongguan Chine Chern Machinery Manufacturing Co. Ltd.
Share on (1600623850951):
Product Overview
Description

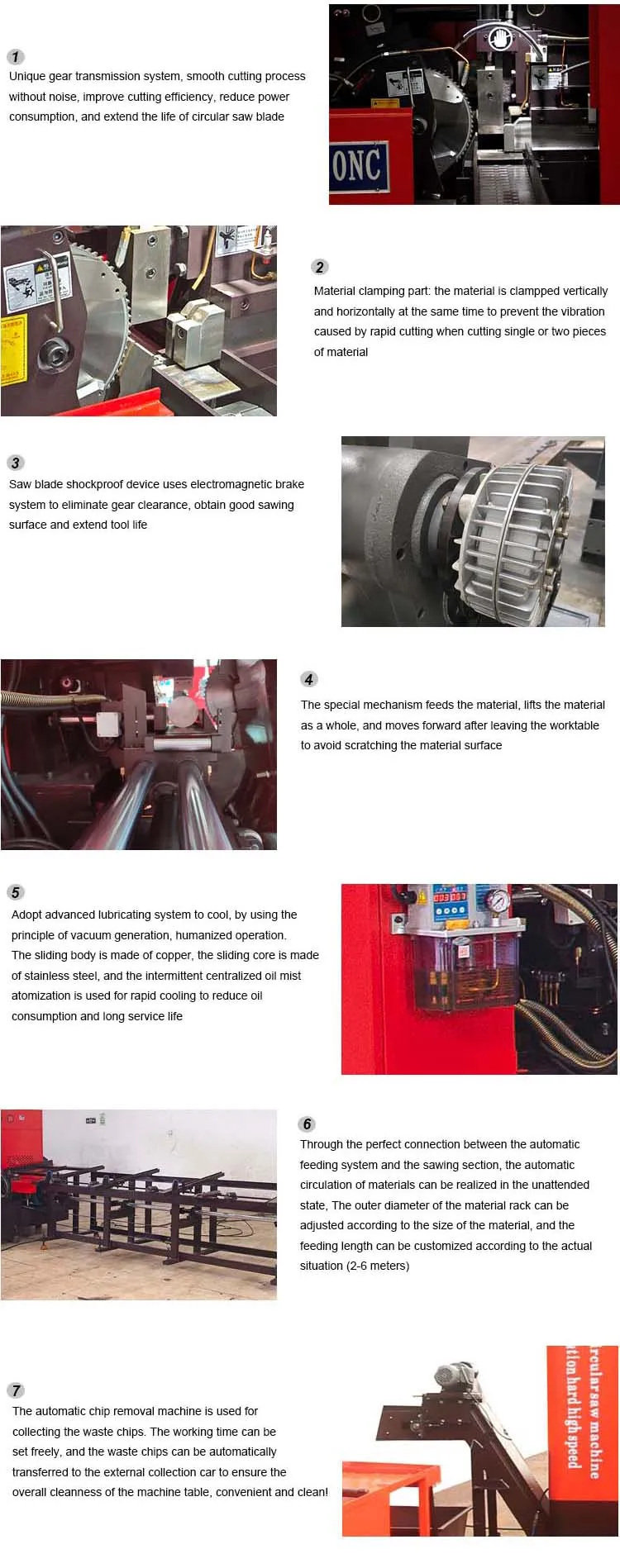

Circular Cold Saw Metal Cutting Machinery Features:
1. Fully automatic circular cold sawing machine is for long bar/ tube cutting
2. High speed Material feeding system with rollers, controlled by servo motor
3. The circular cold saw cutting machinery comes with Servo motor controlled bar/pipe length stopper system
4. Servo motor controlled swing cutting head with ball screw
5. Heavy duty, helical gear and worm gear sets in gearbox
6. 200 programs to save all cutting parameters
7. circular cold saw cutting machinery with tungsten pad for saw blade run-out
8. 50 rpm to 120 rpm blade rotation speed adjustment by inverter
9. circular cold saw cutting machinery includes PLC controlled touch screen display
10. Saw blade gap compensation device
11. circular cold saw cutting machinery includes micro sprey lubrication system for saw blade
12. Bundle auto-loading magazine
13. Only for straight cuts
14. Complete solution with “auto loading” and “unloading” systems.
15. Efficient in long cutting lengths.
16. Suitable for more than 600 mm cutting lengths.
17. circular sawing machine equipped with nitro chip removing steel brush wheel
18. automatic oil lubrication of all moving parts
19. equipped with material separator
20. heat exchanger of electrical cabinet
21. Variable vise pressure control
22. Status indicating LED
23. Chip conveyor
22. Status indicating LED
23. Chip conveyor
Optional Accessories for CNC Cold Cut Saw:
1. TCT/HSS saw blade
2. cutting fluid
3. angular steel sliding device
4. mist collector
5. unloading device (for long length workpieces)
| Automatic High Speed Circular Cold Saw Cutting Machinery for Super Hard Metal Bars and Pipes | |
| Model No. | JC-130NC |
| Cutting Capacity |  |
| Motor | spindle motor:15kw x 6P |
| oil pump motor: 3.75kw x4P | |
| blade drive servo: ball screw+AC servo motor(2.0) | |
| material feed servo: ball screw+AC servo motor(3.0) | |
| Saw Blade | Φ360mm x t2.25 x t2.6/425mm x t2.25 x t2.7 |
| Pin Hole+Aperture | 4 x Φ 11 XPCD90XΦ40/4xΦ15xPCD80xΦ40 |
| Auto Feed Length | single feed: 6~600mm, multiple feed: 600~9999mm |
| Blade Rotation Speed | 50-120rpm |
| Packing Weight | 4558kg |
| Packing Size(L*W*H) | 2200*2190*2250mm |
| Manually stack line-up loader capacity | Ø130 x 6000L x 7 pieces |
| Oil Tank Capacity | 125L |

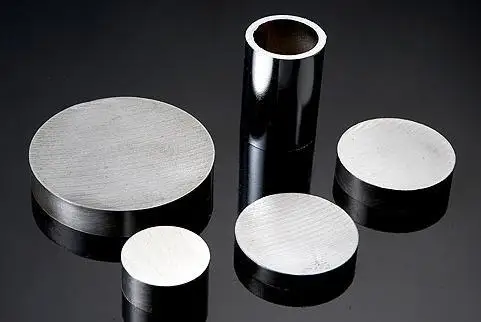

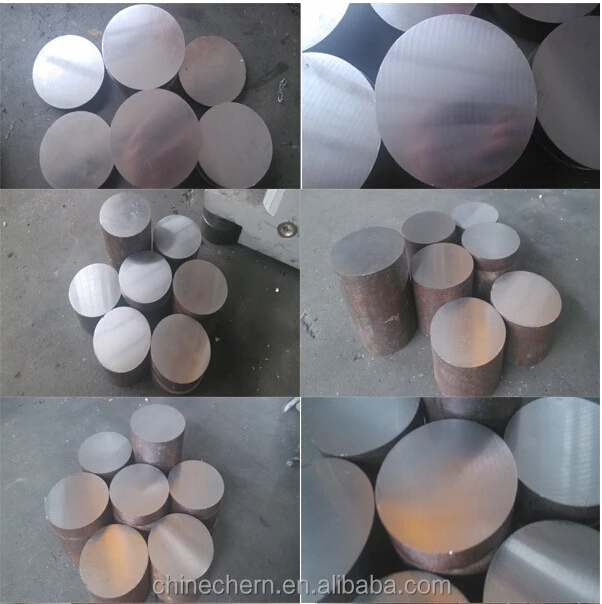

Automatic High Speed Circular Cold Saw Cutting Machinery for Super Hard Metal Bars and Pipes can be used to cut off all types of metal bars and pipes in high accuracy, the cutting surface is smooth and without any burrs.
Q1 What is the brand of your machine main component?
* PLC: Japan Mitsubishi
* Servo motor: Japan Yaskawa
* Hydraulic system: Taiwan CML
* Main motor: Taiwan FUKUTA
* PLC: Japan Mitsubishi
* Servo motor: Japan Yaskawa
* Hydraulic system: Taiwan CML
* Main motor: Taiwan FUKUTA
Q2 How to choose the machines? pls advise below details to save time:
* what is the material?
* The material size
* what is the material?
* The material size
Q3 What are your main machines?
* Copper/Aluminum metal high speed precision circular sawing machine
* Super hard metal bars cold sawing machine
* Metal pipe scrapless circular blade cutting off machine
* Pipe/Bar end chamfering machine
* Circular saw blade sharpening machine
* Automatic pipe bending machine. Tube end forming machine.
* HSS circular saw blade/ TCT cold saw blade/ Tipped tungsten carbide circular saw blade.
* Automatic lift, arrange, rack, feed and cut off, chamfer, get rid of burrs, measure, composite processing line.
Chine Chern Machinery are dedicated to providing the industry with the best machining equipment at the most ideal price, with its ability to enhance the overall industry quality.
MAINTENANCE
The whole machine is guaranteed with one year warranty, life time maintenance and after-sales maintenance. Solutions shall be provided within 12 hours and on-site technical solutions shall be sent within 48 hours.
TECHNICAL TRAINING
On-site installation, commissioning and sample testing, one-to-one demonstration and guidance.
24/7 CUSTOMER SUPPORT
We provide exclusive solutions and timely technical support to help you improve production efficiency and solve your problems.
ENTERPRISE CORE
Leading company scale, industry qualification, brand strength guarantee; Introduce advanced technology and accessories from Taiwan and Japan to strongly guarantee product quality; Long-term service to well-known brand customers have a good industry reputation; Full coverage of pre-sales, in-sales, and after-sales, quick response to customer needs.
Automatic High Speed Circular Cold Saw Cutting Machinery for Super Hard Metal Bars and Pipes
Automatic High Speed Circular Cold Saw Cutting Machinery for Super Hard Metal Bars and Pipes
Automatic High Speed Circular Cold Saw Cutting Machinery for Super Hard Metal Bars and Pipes
