115HP 85kw Weichai WP3N Marine Engine 4 Cylinders Diesel Inboard Engine for Surface drive system used for boats and yachts
- Category: >>>
- Supplier: Xiamen Tofoo Electronic Engineering Co. Ltd.
Share on (1600623872247):
Product Overview
Description
Products Description
Model | WP3NC115-30E220 | WP3NC130-30E220 | WP3NC150-30E220 | WP3NC160-30E220 | |||
Horsepower (Hp) | 115 | 130 | 150 | 160 | |||
Rated power (Kw/Ps) | 85 | 95 | 110 | 118 | |||
Rated speed（r/min） | 3000 | 2500 | 3200 | 3200 | |||
Intake method | supercharged Intercooled | supercharged Intercooled | supercharged Intercooled | supercharged Intercooled | |||
Fuel System | Electronic control common rail | Electronic control common rail | Electronic control common rail | Electronic control common rail | |||
Connection size | Flywheel SAE14, Flywheel Housing SAE1 | Flywheel SAE14, Flywheel Housing SAE1 | Flywheel SAE14, Flywheel Housing SAE1 | Flywheel SAE14, Flywheel Housing SAE1 | |||
Cylinders - Bore x Stroke (mm) | 94x107(mm) | 6-131x145 | 6-131x145 | 6-131x145 | |||
Weight（kg） | 390 | 1210 | 1210 | 1210 | |||
LxWxH（mm） | 937x690x775(mm) | 1702x1005x1063 | 1567x1015x1097 | 1567x1015x1097 | |||
Firing order | 1-3-4-2 | 1-5-3-6-2-4 | 1-5-3-6-2-4 | 1-5-3-6-2-4 | |||
Displacement (L) | 2.97 | 11.73 | 11.73 | 11.73 | |||
Min.specific fuel consumption (g/kWh) | 193 (g/kW h) | W198 | W198 | W198 | |||
Specific oil consumption (g/kWh) | 0.1(g/kW·h) | W0.5 | W0.5 | W0.5 | |||
Crankshaft rotation direction (see from power output | Counterclockwise (towards the power output) | Counterclockwise (towards the power output) | Counterclockwise (towards the power output) | Counterclockwise (towards the power output) | |||
Min.steady working speed (r/min) | 750 | 650 | 650 | 650 | |||
Starting mode | Electric start | Electric start | Electric start | Electric start | |||
Matched reduction gearbox | Hangchi HCV230, HCQ300, Jiangnan JS441, Jiangnan LQ200-1 | Hangchi HCV230, HCQ300, Jiangnan JS441, Jiangnan LQ200-1 | Hangchi HCV230, HCQ300, Jiangnan JS441, Jiangnan LQ200-1 | Hangchi HCV230, HCQ300, Jiangnan JS441, Jiangnan LQ200-1 | |||
Type | Vertical, inline, water-cooled, four-stroke | Vertical, inline, water-cooled, four-stroke | Vertical, inline, water-cooled, four-stroke | Vertical, inline, water-cooled, four-stroke | |||
Certificate/Emission | CCS,ZC/National II, EIAPP | CCS/National II, EIAPP | CCS/National II,EIAPP | CCS/National II, EIAPP | |||
Good factory manufacturer small boat yuchai outboard engine

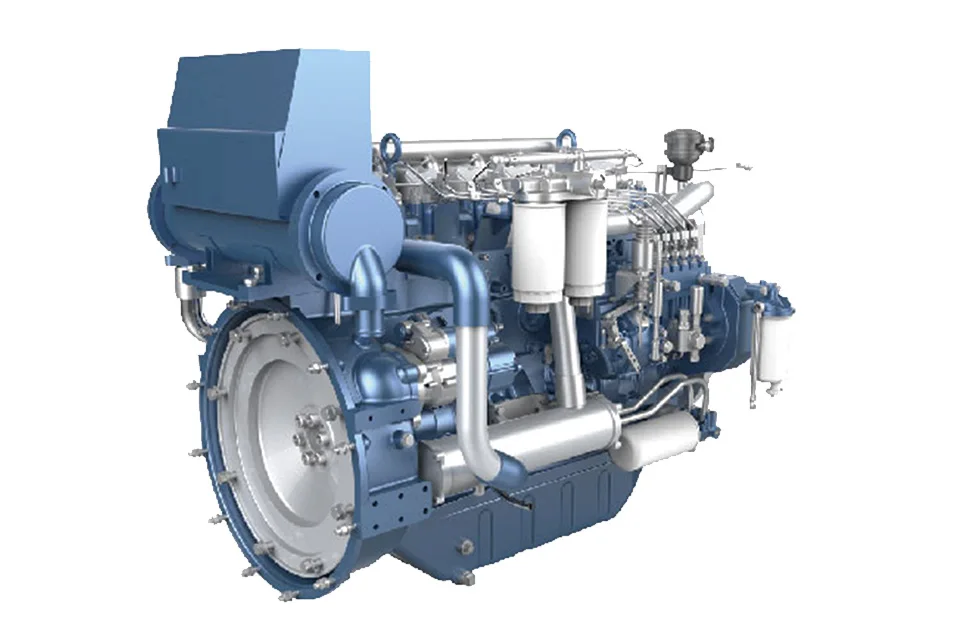

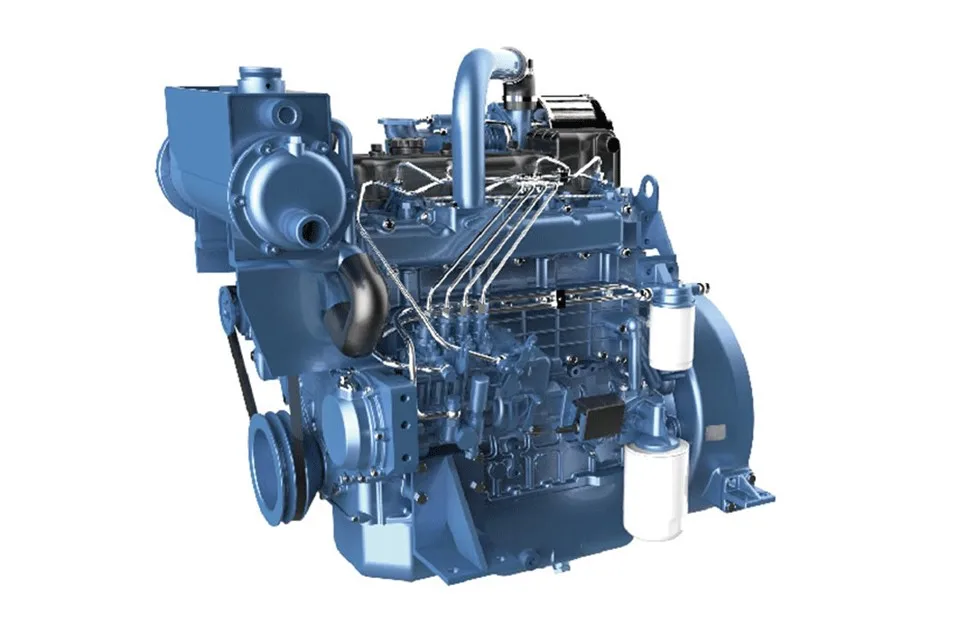

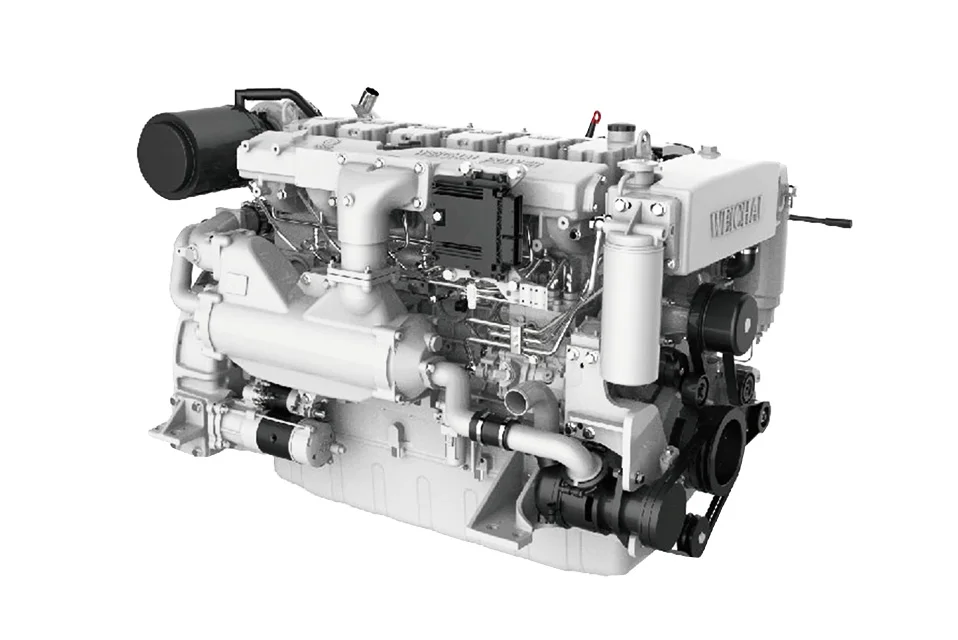

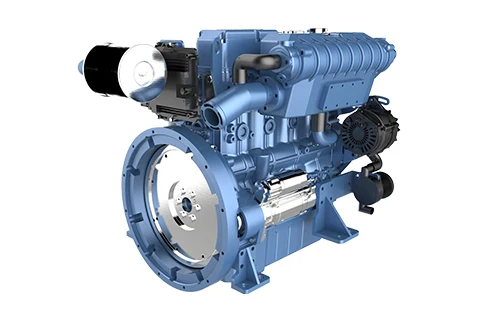

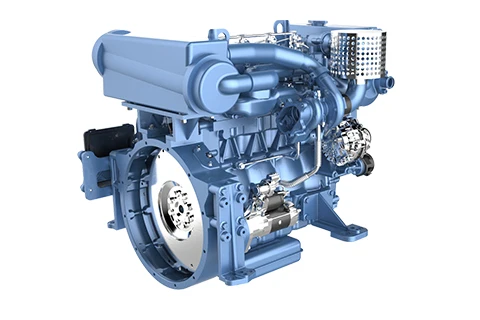

Detail pictures of Weichai engine
Our Advantages
Yuchai exclusive quality components are manufactured by the same line to keep their consistency.Precise fit dimension brings high reliability.Low fuel consumption/low noise/low emission and easy and fast maintenance of accessories.Which is time-saving and worry-saving.
The performance of yuchai diesel generator is introduced：
1.Strong power, can output nameplate rated power below 1000m above sea level, and can output 110% overload power rated power within less than 1 hour.
2.The consumption rate of fuel oil and lubricating oil is much better than that of similar domestic products，and it with low vibration noise and high reliability.
Details Images
Company Profile
FAQ
1. Q: Can the logo or company name to be printed on the products or package?
A: Sure. Customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
2. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
3. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production.Every product will be fully assembled and carefully tested before it's packed for shipment.
4. Q: What is your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Also you can check our Alibaba Site, there are several
importers' transation History.
6. Q: What's the payment you accept ?
A: As usual our payment is 70%T/T as deposit, and the 30% balance against the copy of B/L. Also we accept the payment such as L/C,Escrow Or PayPal .
A: Sure. Customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
2. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
3. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production.Every product will be fully assembled and carefully tested before it's packed for shipment.
4. Q: What is your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Also you can check our Alibaba Site, there are several
importers' transation History.
6. Q: What's the payment you accept ?
A: As usual our payment is 70%T/T as deposit, and the 30% balance against the copy of B/L. Also we accept the payment such as L/C,Escrow Or PayPal .
