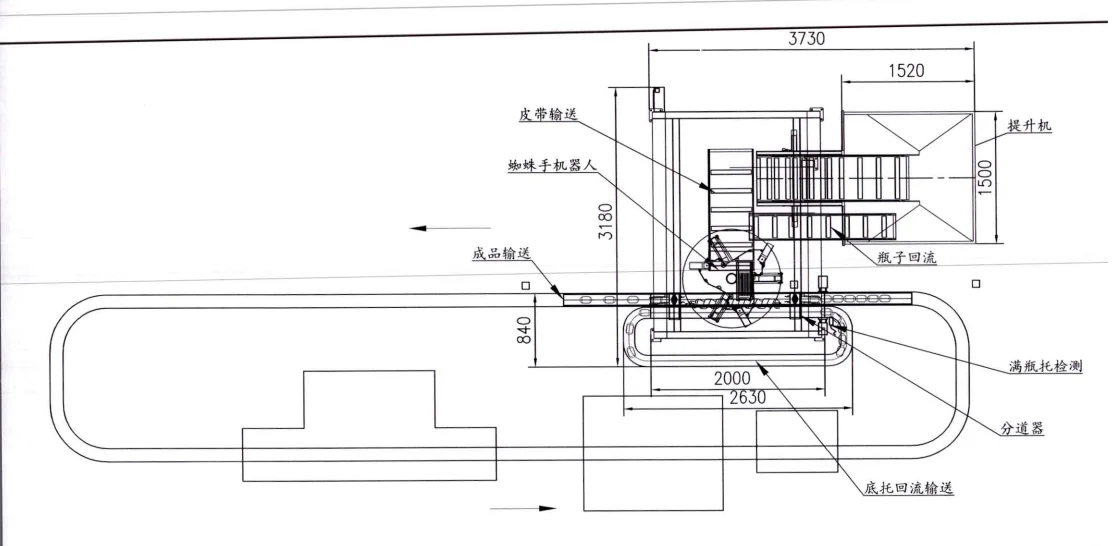

Automatic bottle unscrambler with robot
Automatic bottle unscrambler with robot

Automatic bottle unscrambler with robot

Share on (1600623922870):


Price:$69,800.00

Quantity:


Product Overview

Description





Automatic Lubricating Oil Filling Machine

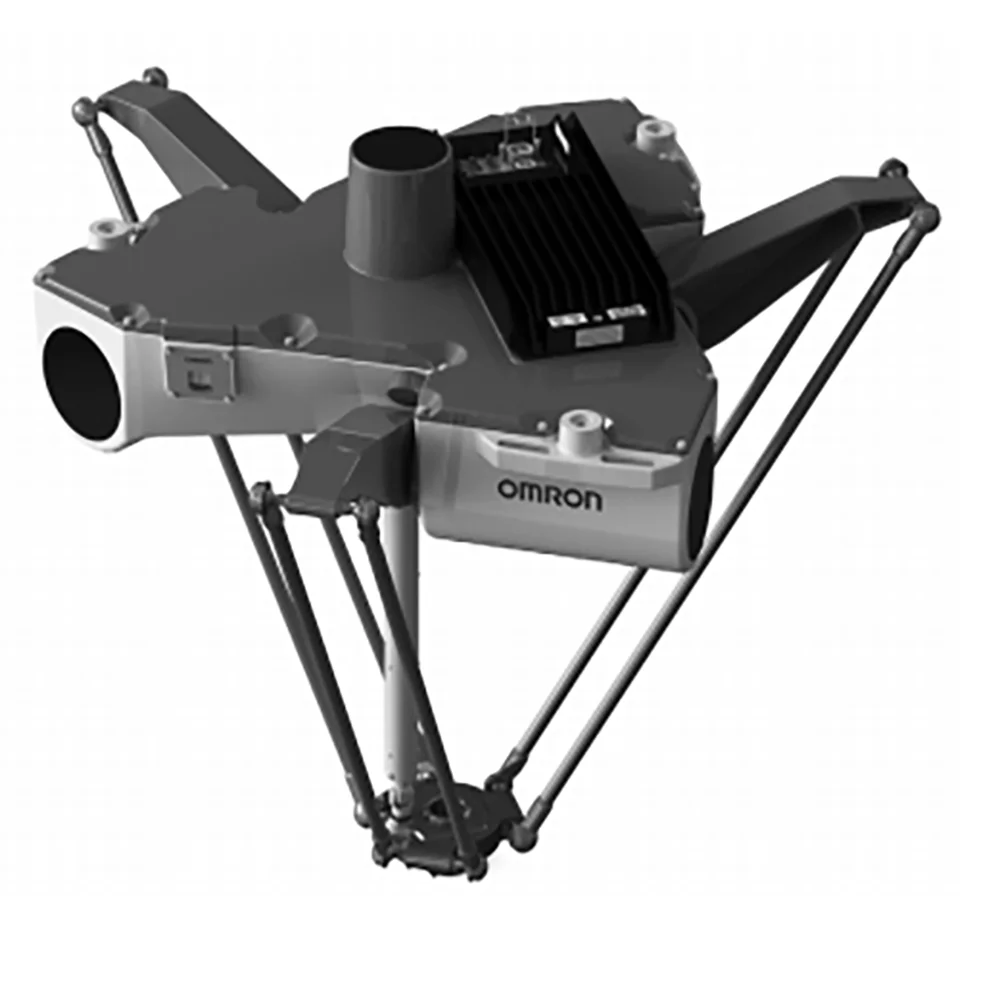

Parallel robots - suitable for food, pharmaceutical and daily chemical industries
• EtherCAT is connected to the OMRON NJ501-R controller and is
IEC 61131-3 programming language or scripting (eV+) programming.
• Conveyor tracking speed up to 1.4 m/s
• Designed with high load capacity to support various grippers (multiple grips)
• Enables quick pick and place on conveyor belts
• Effectively reduce installation cost and robot vibration
• Maximum working diameter 1130 mm
• Working height 425 mm
• Maximum payload up to 8 kg
• Weight 52 kg









Product name
iX3
size
565
number of axes
3 axes
4 axes
IP
Standard
IP65/67
Standard
IP65/67
Model
 RX3-2065600
 RX3-2065610
RX3-2065604
 RX3-2065614
Install
upside down
The scope of work
X, Y axis (stroke)
1130 mm
Z axis (stroke)
425 mm
Rotation axis (rotation angle)
-
±360
Repeatability
±0.10 mm
Continuous Takt Time (20°C test environment)*1
Payload 0.1 kg
0.32 s
 0.35 s
Payload 1.0 kg
0.34 s
0.37 s
Payload 3.0 kg
0.38 s
 0.42 s
Power requirements
DC 24V: 6A AC 200 to 240 V: 10 A, single phase




Basic configuration
controller
iCS-ECAT
Onboard I/O (input/output)
 12/8
Conveyor Tracking Input
2
RS-232C serial communication port
1
programming environment
Sysmac Studio 64-bit
ACE Sight
Have
ePLC connection
none
Connectable Controllers
NJ501-R series
