Hot Sale Lora Wireless RF Transceiver Transmitter Receiver Module E28-2G4M27S SX1280 2.4ghz 8km IPEX/PCB Antenna 27dBm
Product Description

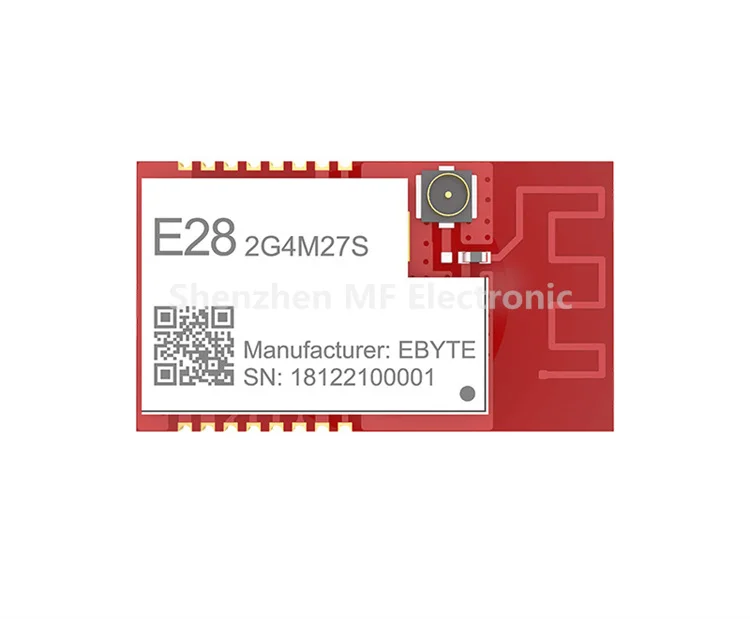

E28-2G4M27S is a 2.4GHz small SMD module (pin spacing 1.27mm) with built-in PCB antenna, SPI interface, it owns TX power of 500mW with power consumption.
Technical Parameters
Model | E28-2G4M27S |

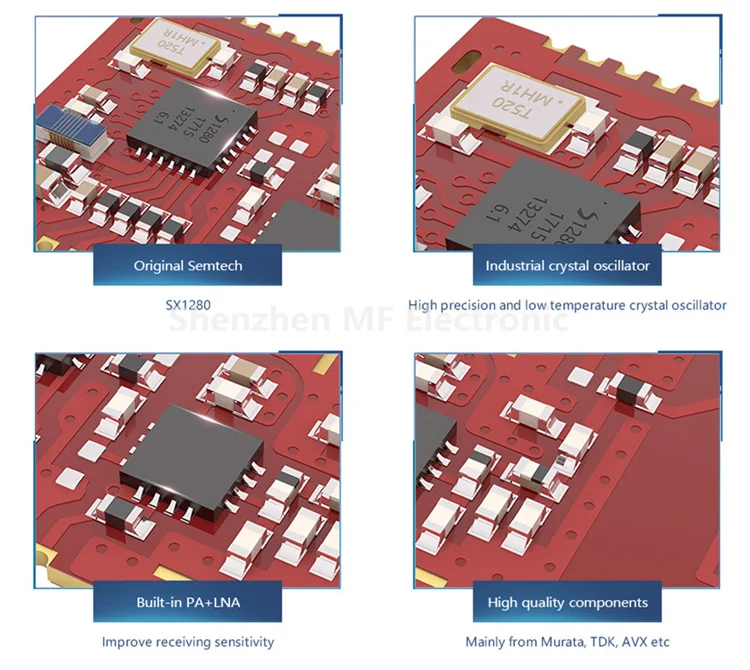

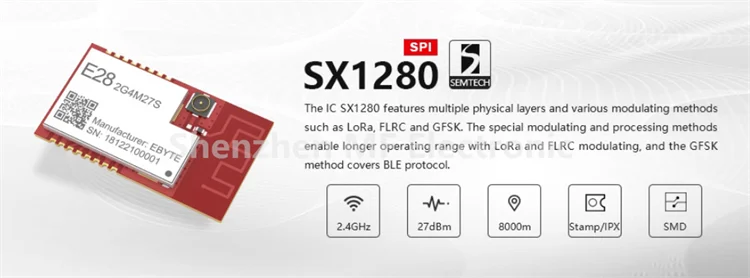

Chip | SX1280 |
Working Frequency | 2400~2500MHz |
Transmitting Power | 27dBm |
Receiving Sensitivity | -132dBm |
Air Data Rate | LoRa(bps):0.595k~253.9k FLRC(bps):260k~1.3M GFSK(bps):125k~2M |
Test Distance | 8000m |

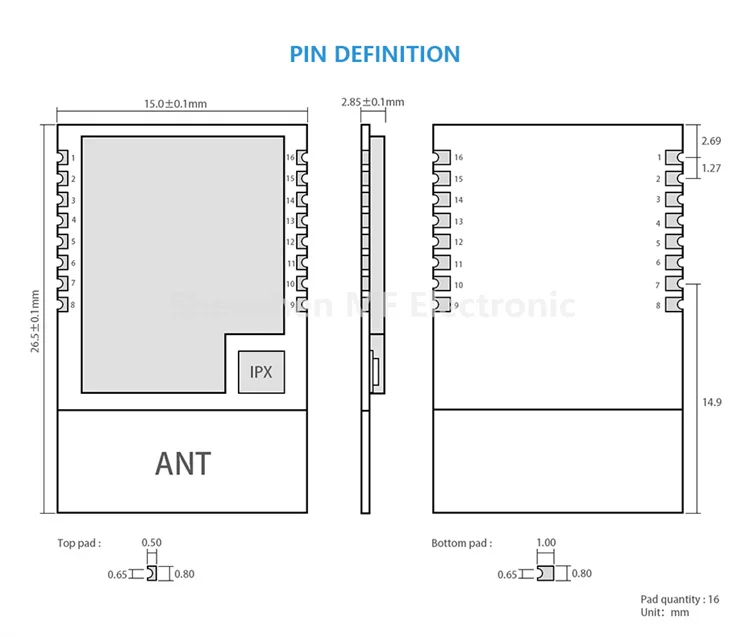

Size | 26.5 * 15 mm |
Antenna Type | IPEX/PCB |

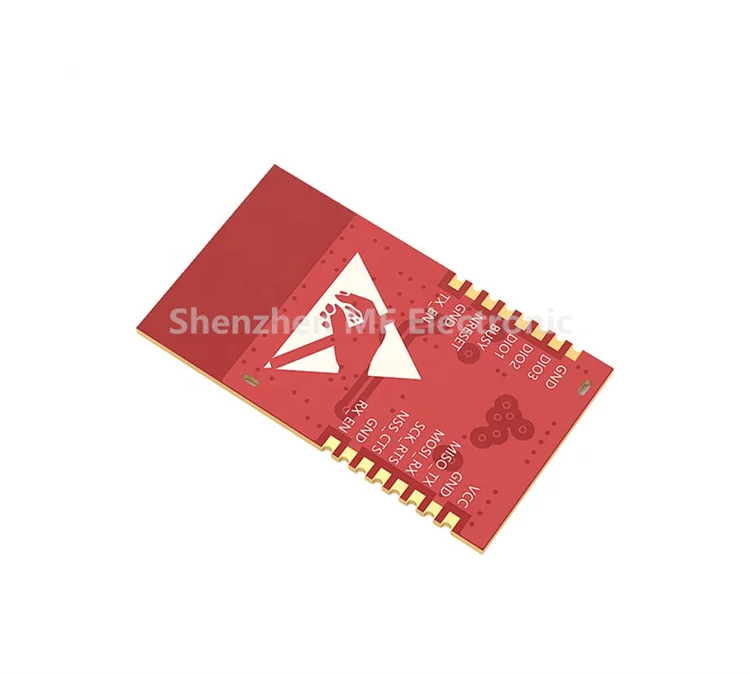

Communication Interface | SPI |
Package | SMD |
Power Supply | 2.5~3.6V |
Communication Level | 3.3V |
Transmitting Current | 580mA |
Receiving Current | 14.5mA |
Sleep Current | 2.0μA |
Operating Temperature | -40~+85℃ |
Operating Humidity | 10~90% |
Storage Temperature | -40~+125℃ |

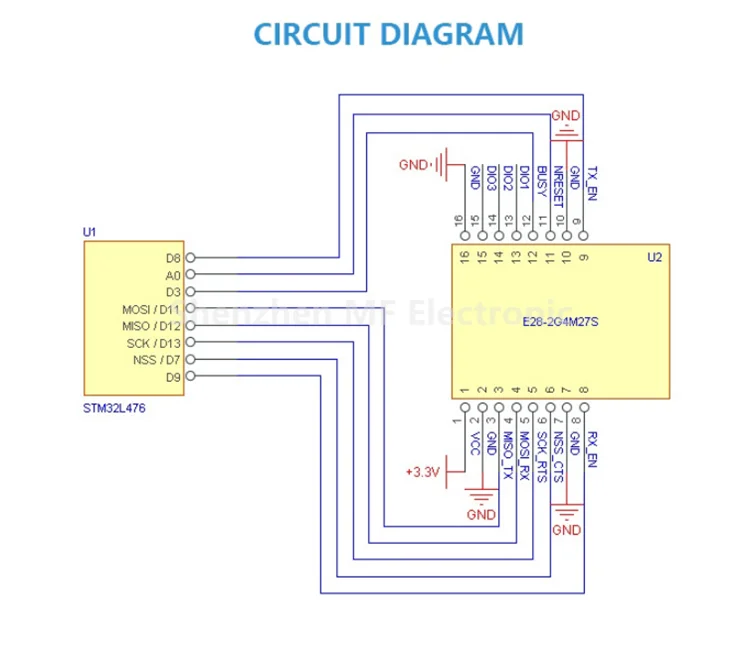

Detailed Images
