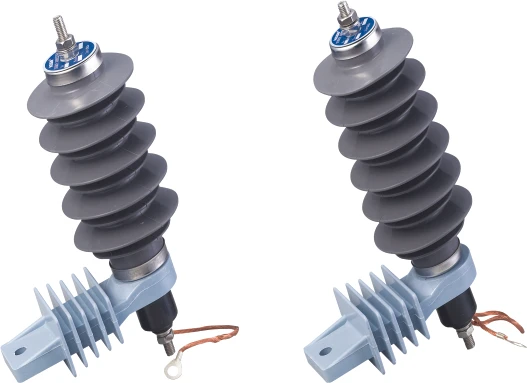

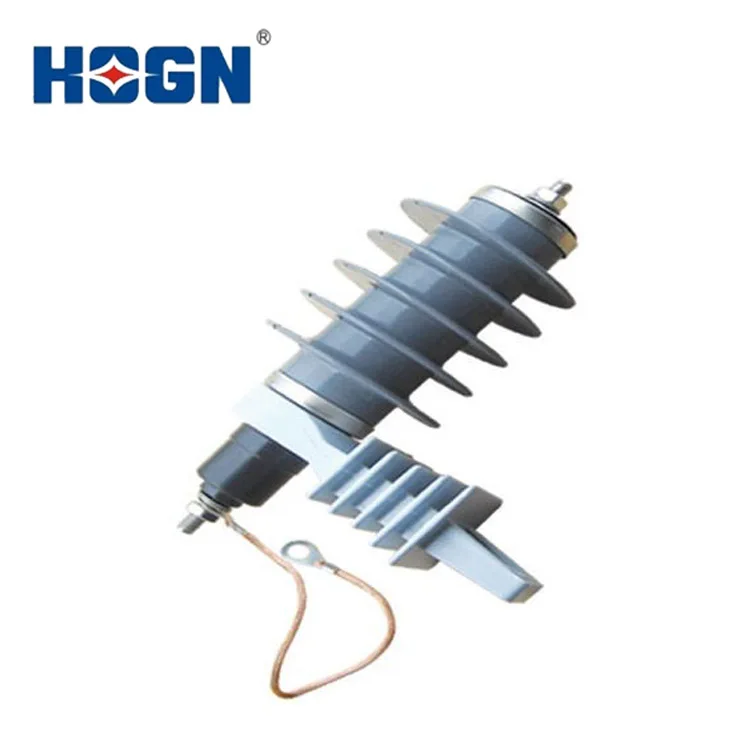

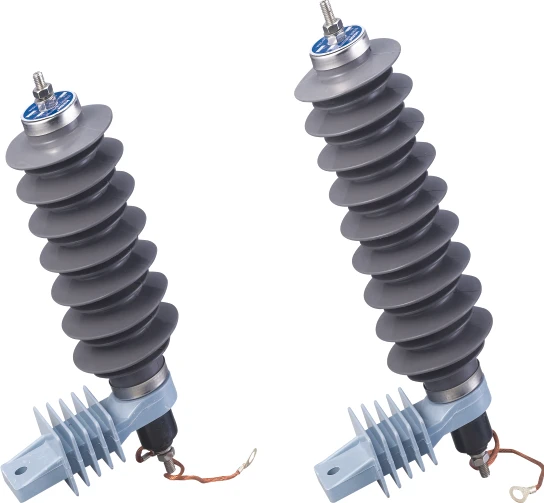

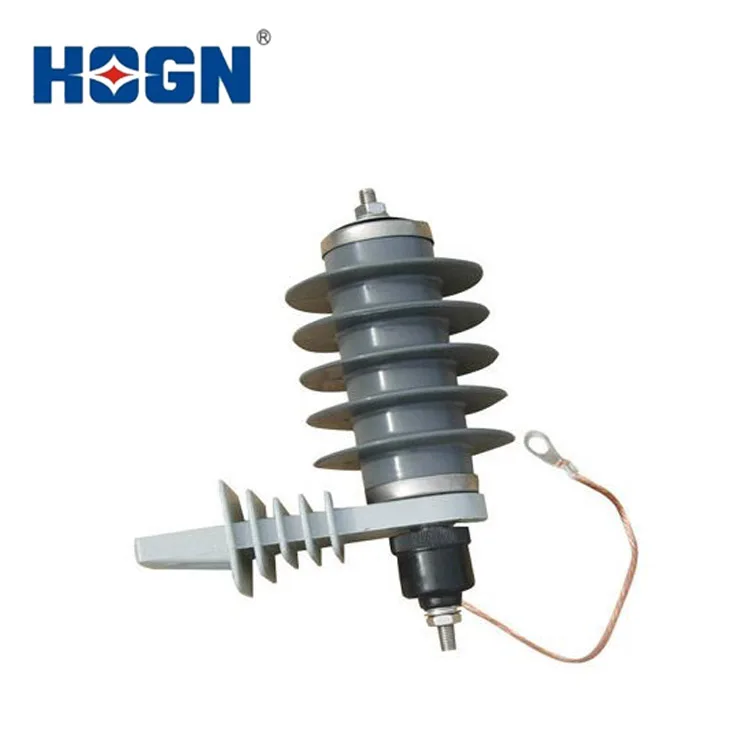

HOGN New Designed YH10W YH5W High VoltageYH5W Polymeric Housed Metal oxide Surge Arrester 3kV 15kV 24kV 33kV

Product Overview

Description

Feature:

Current: 10kA
Rated voltage: 3kV to 36 kV

Type: Polymeric Housed Metal-oxide Surge Arrester Without Gaps



Specificaion:

Type	Rated Volatge kV	Max Continuous Operating Voltage kV(rms)	Current Impulse Residual Voltage			2ms Rectangular Current Impulse Withstand	4/10μs High Current Impulse Withstand	The minium creepagge distance(mm)
YH10W-3	3	2.55	11.3	9	8.9	250	100	250
YH10W-6	6	5.1	22.6	18	16.8	250	100	250
YH10W-9	9	7.65	33.7	27	23.8	250	100	360
YH10W-10	10	8.4	36	30	23	250	100	360
YH10W-11	11	9.4	40	33	30	250	100	460
YH10W-12	12	10.2	42.2	36	27	250	100	460
YH10W-15	15	10.7	51	45	38.5	250	100	560
YH10W-18	18	15.3	61.5	54	46.2	250	100	660
YH10W-21	21	17.0	71.8	63	54.2	250	100	760
YH10W-24	24	19.5	82	72	62	250	100	860
YH10W-27	27	22.0	92	81	69.8	250	100	860
YH10W-30	30	24.4	102	90	79	250	100	960
YH10W-33	33	27.5	112	99	86.7	250	100	1170
YH10W-36	36	29.0	123	108	92.4	250	100	1170
