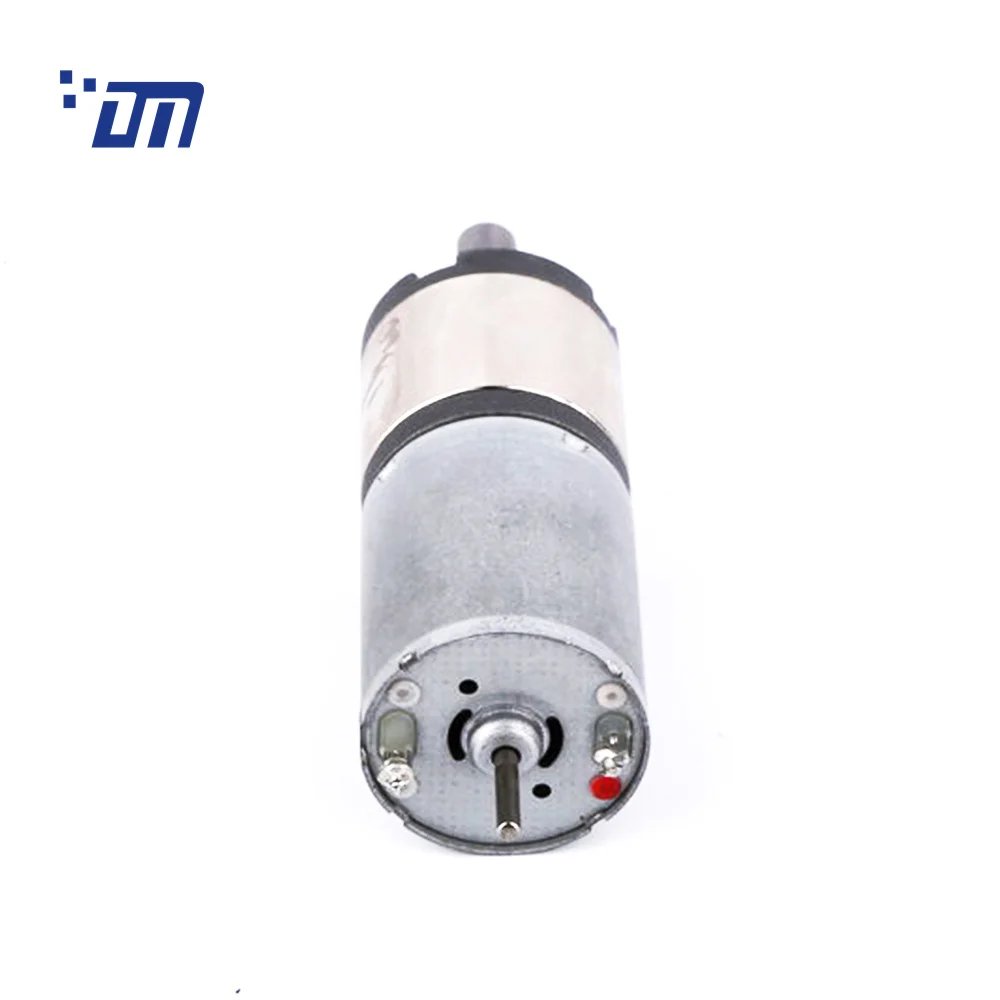

small planetary gearbox suppliers dc planet gear motor Electric Geared Motor 12v
- Category: >>>
- Supplier: Shenzhen Dongming Motor Co. Ltd.
Share on (1600623939002):
Product Overview
Description
Products Specification

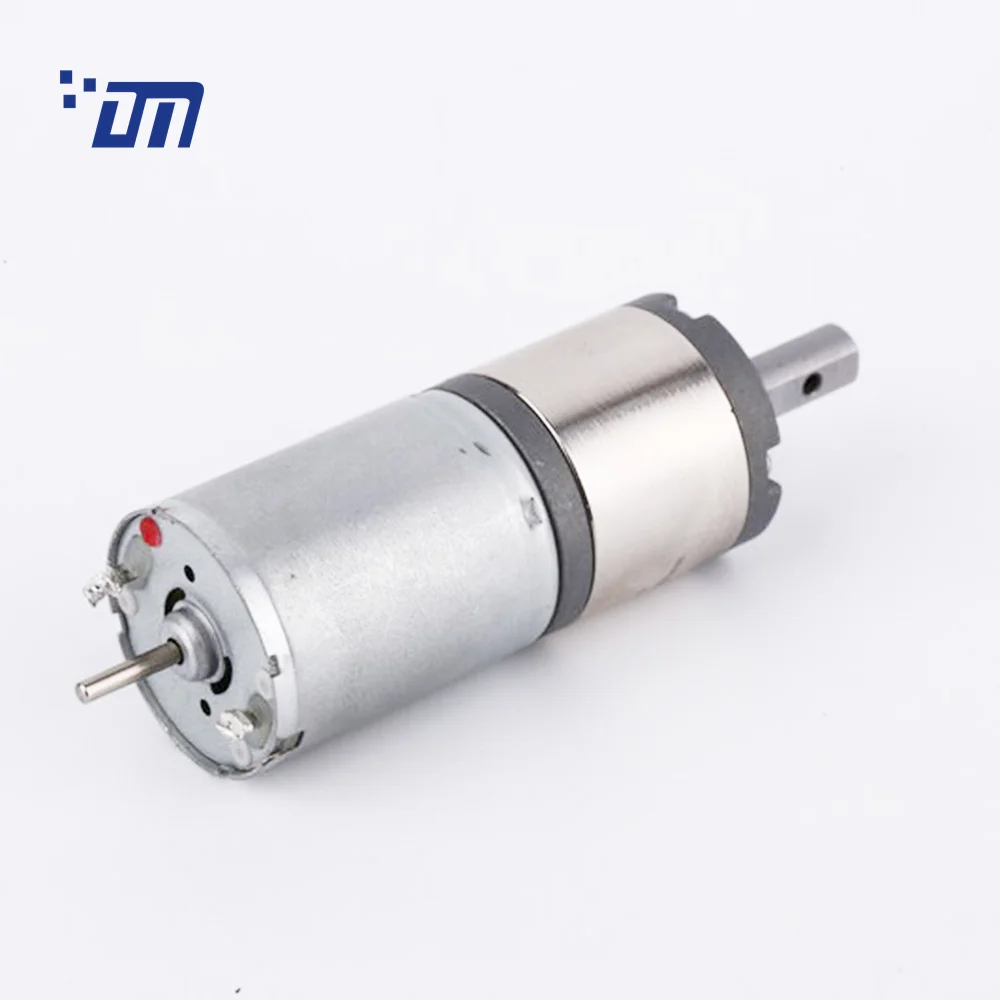

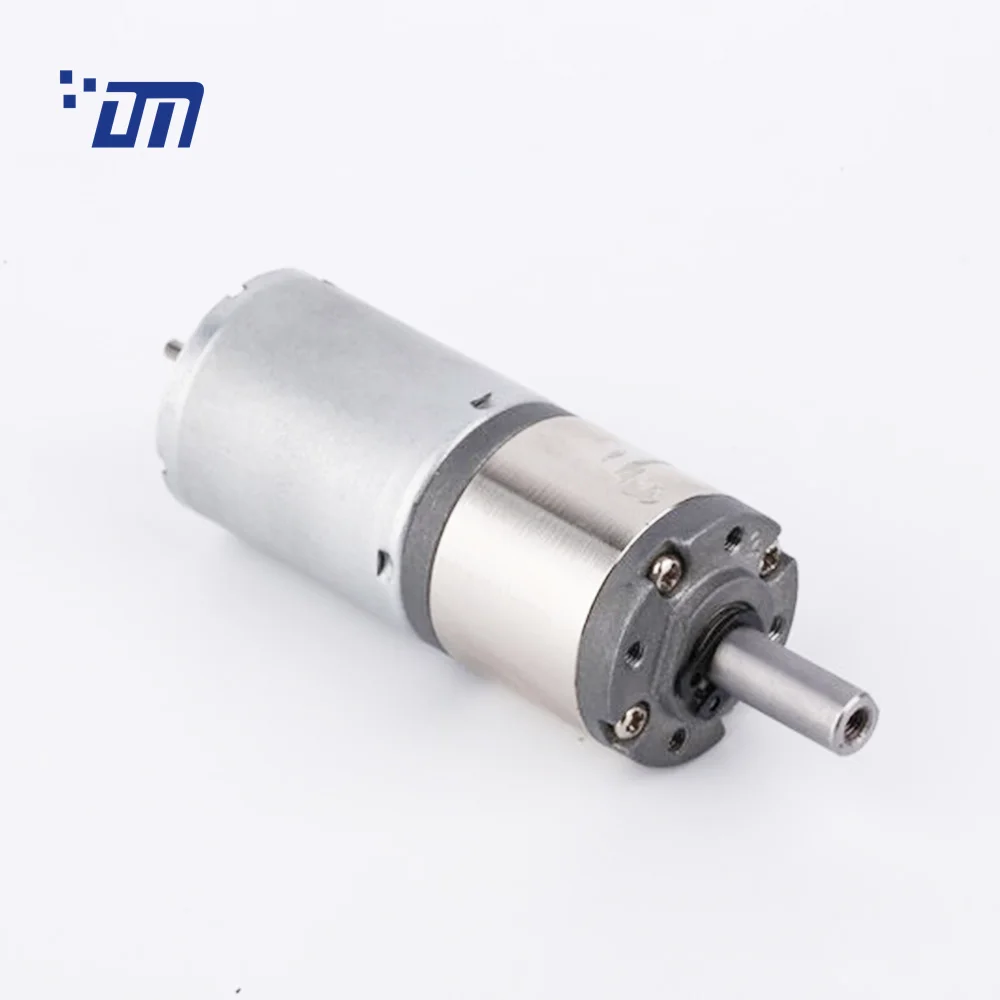

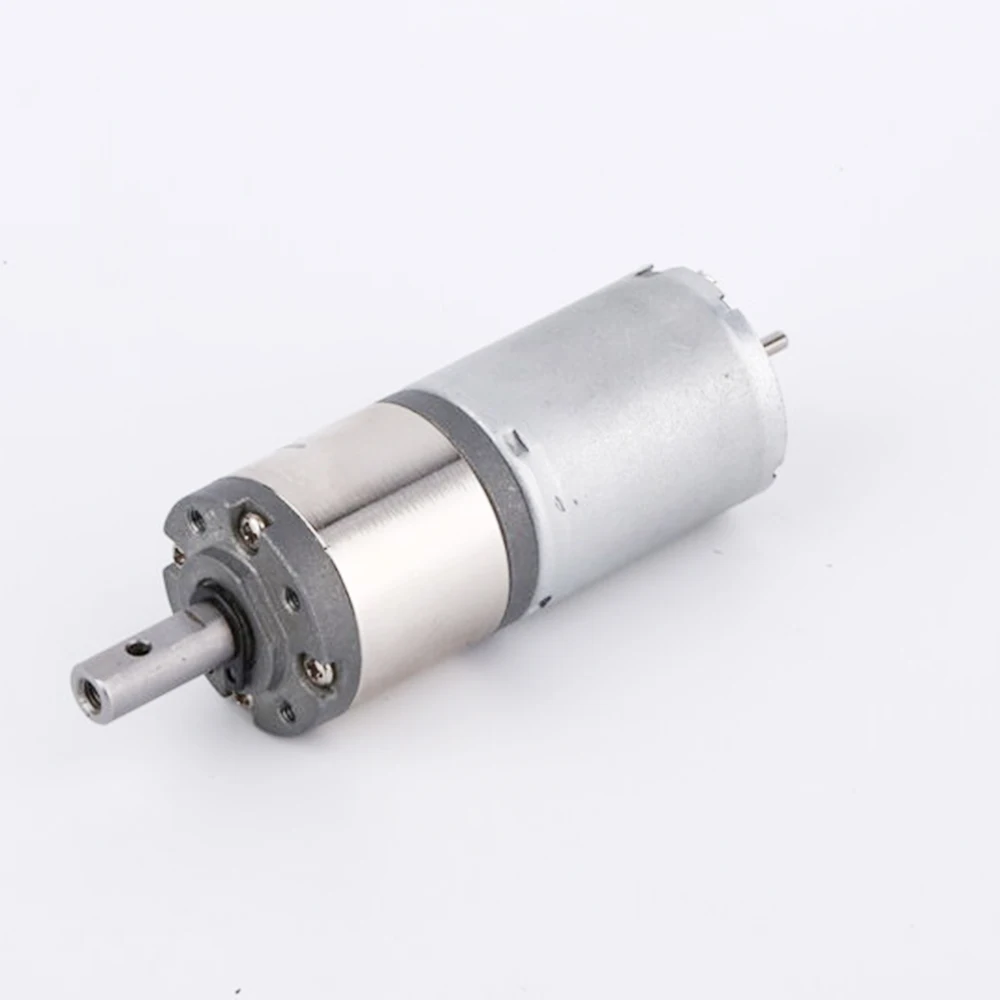

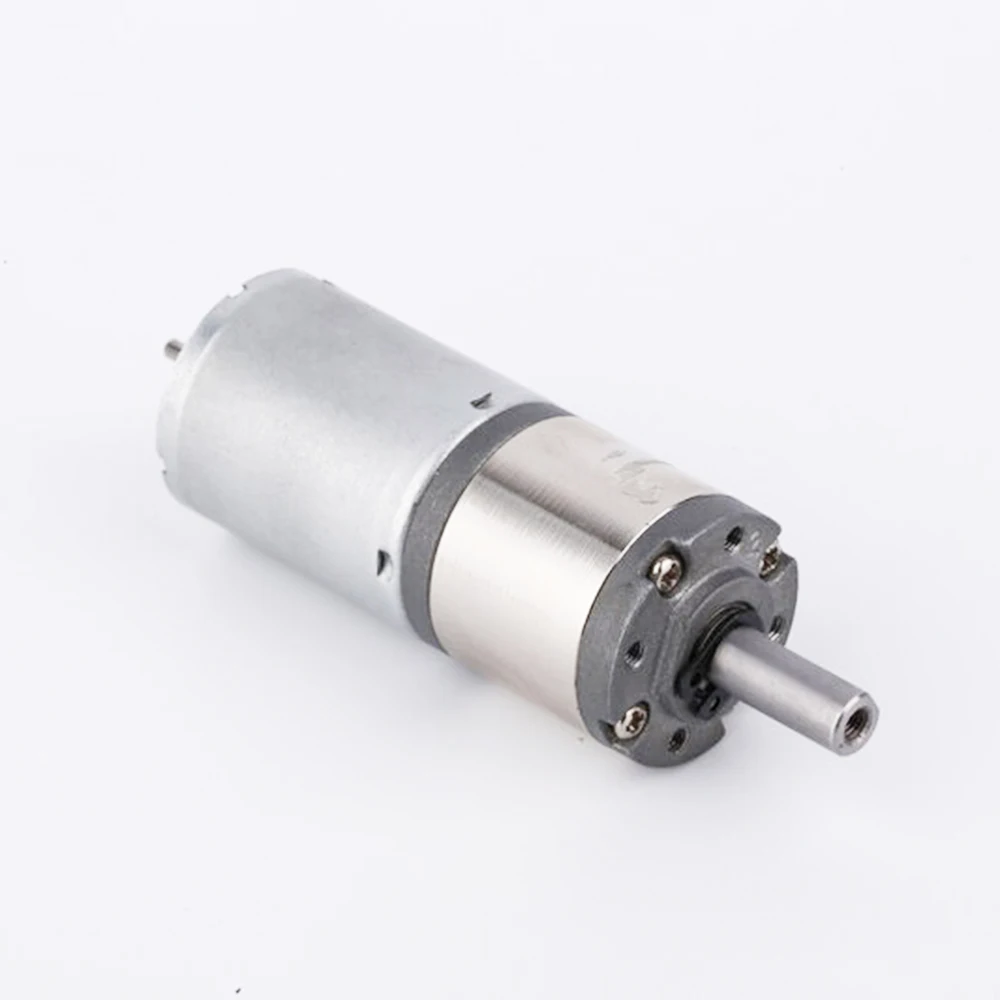

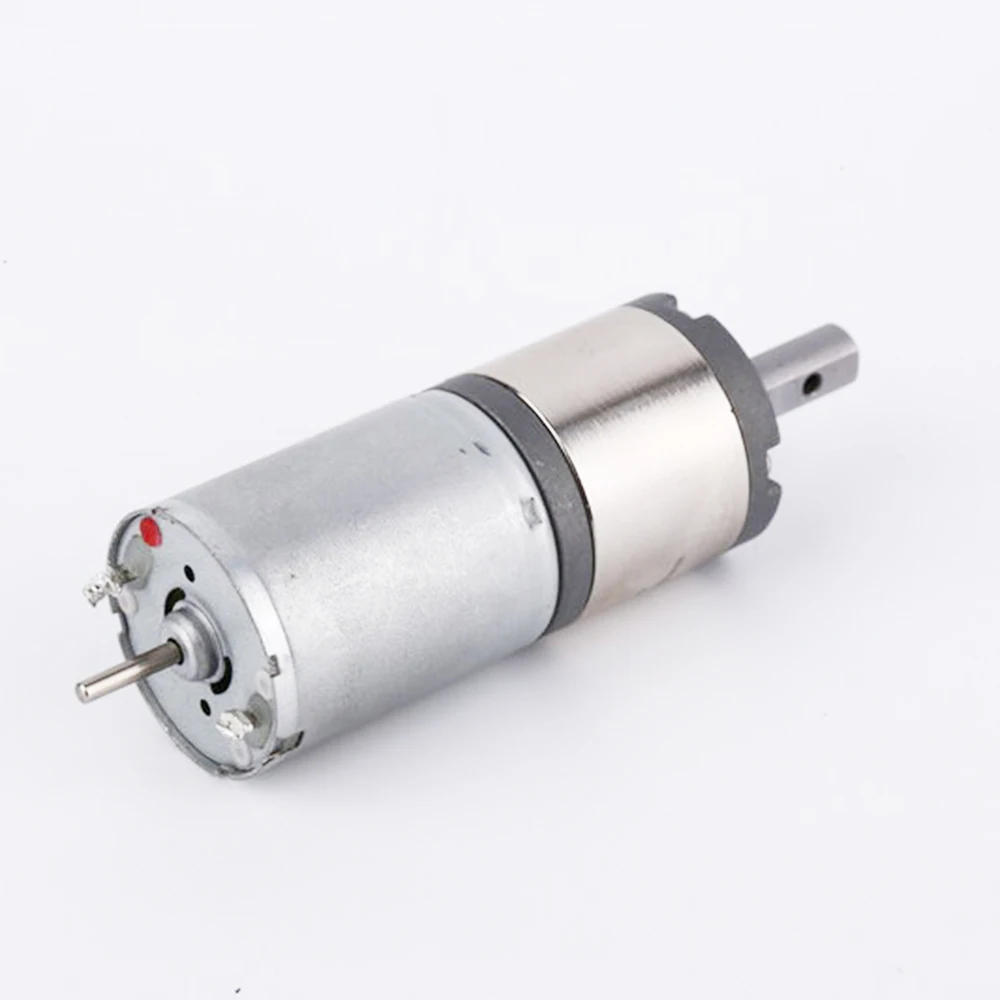

Product Name | 24mm Planetary Gear Motor |
Model | DM-24RP370 |
Voltage | 6V~24V |
Speed | 1RPM~1500RPM |
Torque | 0.1kgf.cm~5kgf.cm |
Materials | Metal |
Advantage | High torque, Low-noise, Durable and High efficiency, Impressive precision, Compact size, Longer gear life, |
Output Shaft | D-cut or Customization |
Certification | CE, ROHS, SGS, ISO9001 |
Application | Smart Home, Robotics, Health Medical Care, Valve&Meter, Vending Machine, Industrial&Commercial products, etc |
Output Shaft
Motor Back Cover

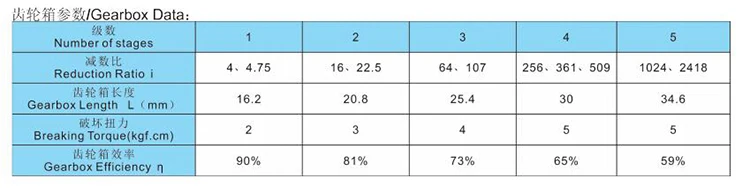

Gearbox
Applications
Advantages of Our DC Gear Motor
High torque
With more teeth in contact, the mechanism can transmit and withstand greater torque in a more uniform manner.
Low-noise
The multiple gears enable more surface contact. Rolling is much softer, and jumps are virtually nonexistent.
Durable and High efficiency
The bearing can reduce friction by connecting the shaft directly to the gearbox. It allows for better rolling and smooth running, simultaneously enhancing efficiency.
Impressive precision
The rotation angle is fixed, which improves the accuracy and stability of the rotation movement.
Compact size
The planetary gear motor can be compact and small due to the planetary structure, in which multiple gears mesh together and orbit around a sun gear.
Lifetime
Longer gear life at similar loads
Small Dimension
Small diameter with high torque, high speed
Customization
Shaft: D-cut, with hole, with screw hole, with ring-lot, etc
Geabox: DONGMING support customized gearbox as your special performance requirement
DC Motor: We can custom the motor's data as your requirement
Load Speed and Voltage: Customized Spee and voltage.
Encoder: We also provide encoder with DC gear motor to support you control the position for output shaft.
Our Services
Our Advantages
Company Profile
WHAT WE DO
Dongming Motor has 12 years experience in various kinds of dc gear motor designing and manufaturing. When a standard,"off-the-shelf" DC gear motor solution can not provide the optimal performance you need, please contact with us directly, we can provide OEM/ODM supports to work out an unique solution for your application.
In most cases, we are able to optimize and enhance existing “standard” DC gear motor designs, with little-to-no NRE or tooling expense. For the more specialized applications, we do offer customized DC motor and gearbox as well. Our engineering and sales staffs are available to discuss all of your project specifics, conveniently.
DC Motor Auto Assemly
Rotor Assembly Line
Production Line
Output Shaft Assembly
Mandrel Assembly
Gearbox Assembly
Quality Control
Quality Control Flow Chart
Two-dimensional projector
Thickness Inspecting
Components Dimension Microscope
Microscope Hardness Tester
Motor Wave form Inspect
Motor Integrated Tester
Noise Inspecting
Motor performance Test
Lifetime Cycle Test
