TWGY Starch jelly candy production line gummy candy making machine
- Category: >>>
- Supplier: Dujiangyan Tian Wang Food Industry Co. Ltd.
Share on (1600623945544):
Product Overview
Description
Products Description

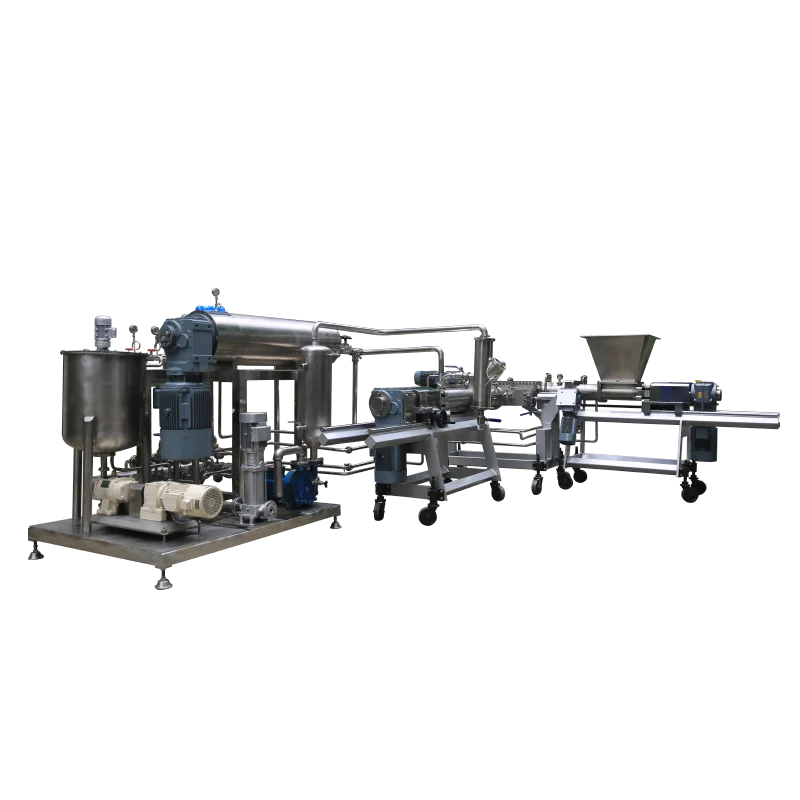

Licorice machine production line
The machine consists of two parts, one is extruding and mixing system and the other is continuous cooker.
Supply Votage： | 380VAC±10%, 3￠, 50Hz | Dimension: | (3200×1900×2100) mm |
Control Voltage: | 24VDC | Presssure: | 0.5~0.8Mpa |
Steam Consumption: | 70kg/h | Vacuum Water: | Consumption: approx 20L/Min |
Total Power Consumption | 22Kw | Weight: | approx 1540kg |

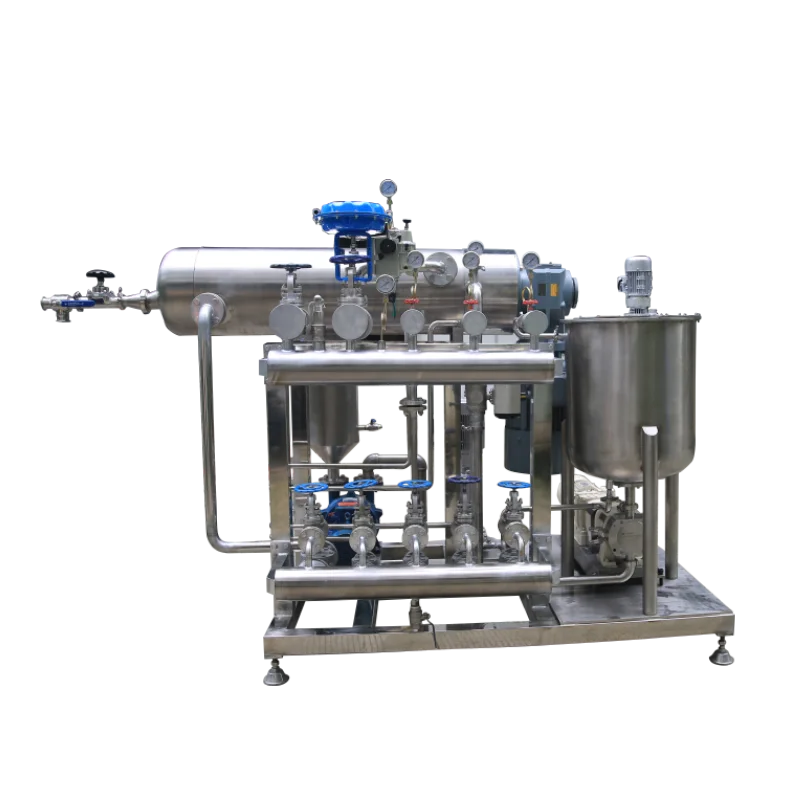

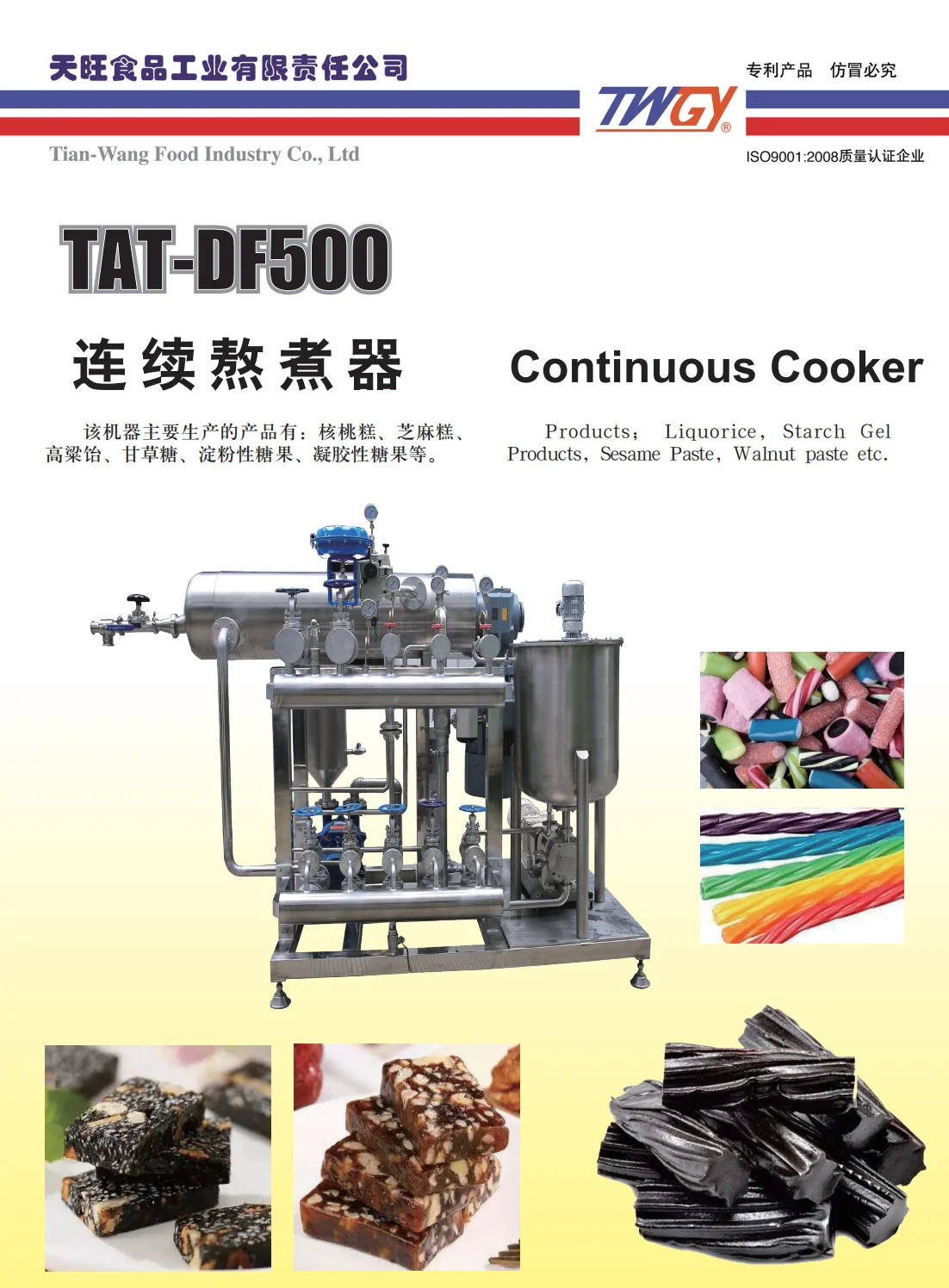

continuous cooker Feature：
Due to its superior heat transfer performance and the ability to handle a wide range of viscosities it can be employed in the continuous processing of any pumpable fluids or slurries.
◆All stainless steel construction
◆Self draining vertical or horizontal heat exchange tube mounting
◆Rotor directly driven by geared motor. Power and speed selected to match product ad process
◆Simple and safe rotor extraction with protective cartridge type mechanical seal
◆High thermal efficacy
◆The design ensures good product movement in the heat exchange area and minimise build up on the scraper blades
◆Jacket options designed to maximize heating medium flow efficiency
◆Rotor options to allow minimum shear for foods containing particulates
◆All stainless steel construction
◆Self draining vertical or horizontal heat exchange tube mounting
◆Rotor directly driven by geared motor. Power and speed selected to match product ad process
◆Simple and safe rotor extraction with protective cartridge type mechanical seal
◆High thermal efficacy
◆The design ensures good product movement in the heat exchange area and minimise build up on the scraper blades
◆Jacket options designed to maximize heating medium flow efficiency
◆Rotor options to allow minimum shear for foods containing particulates
Supply Votage: | 380VAC±10%, 3￠, 50Hz | Steam Consumption: | 5kg/h |
Control Voltage: | 24VDC | Presssure: | 0.05Mpa |
Total Power Consumption: | 10Kw | Dimension: | (3600×2200×1800) mm |
Weight: | approx 1600kg |

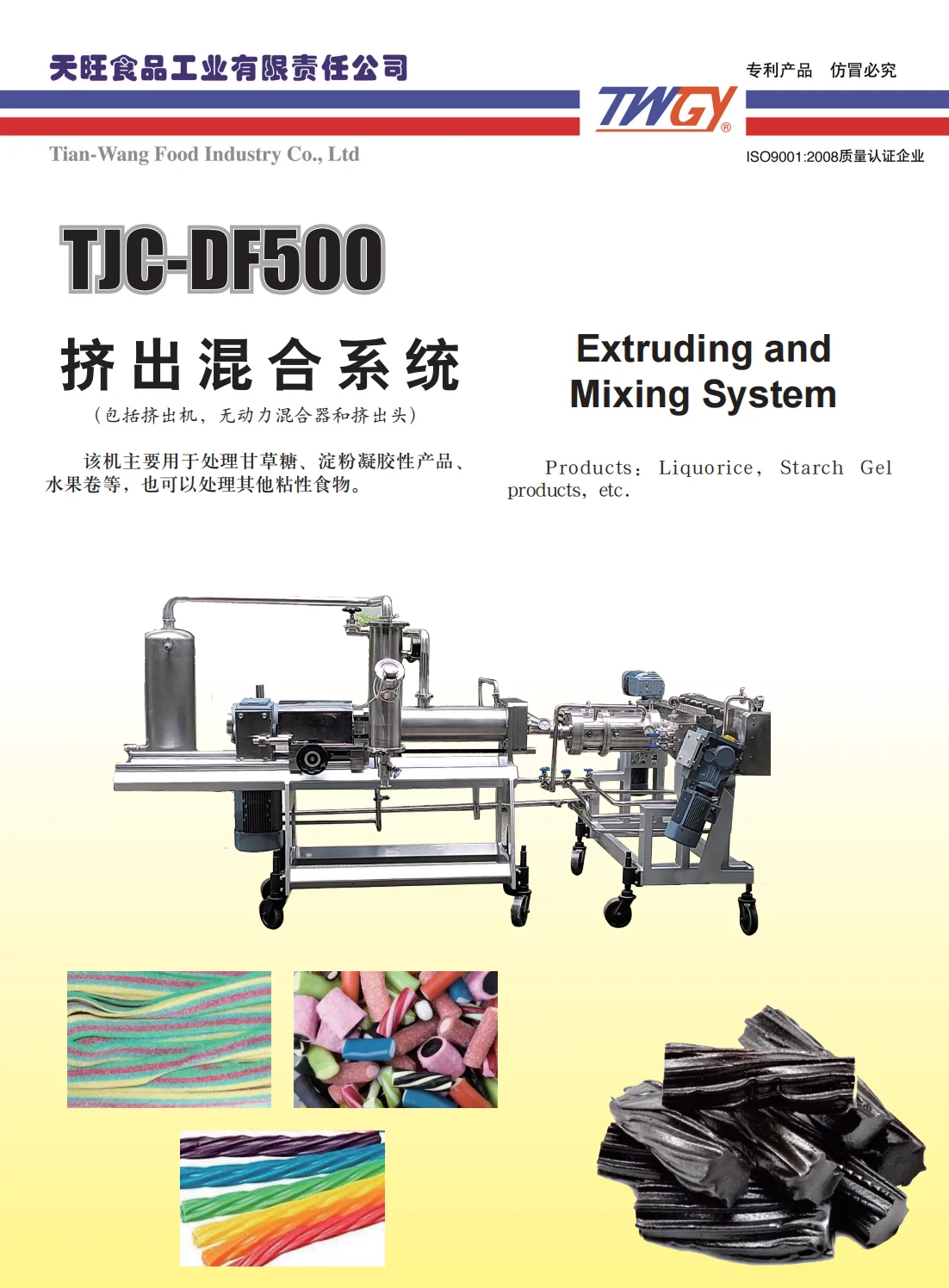

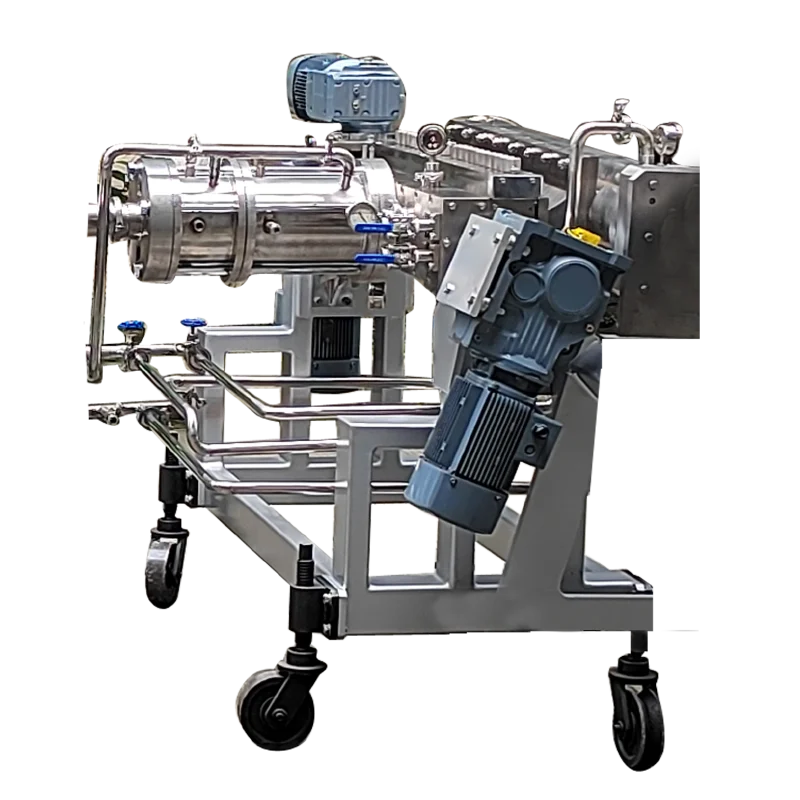

extruding and mixing system Feature:
1、It is manufactured in stainless steel to a simple hygienic and robust design.
Side Flow Extruder
The extruder is manufactured with 75mm, 130mm or 200mm diameter screws to achieve throughputs of 50 to 1500 kg/hour via a side
flow dye configuration.
2、Continuous or Batch Fed Extruder
The extruder is fitted with a small vacuum inlet hopper to receive liquorice directly from the Continuous Cooker. The vacuum
hopper enables the extrusion of a cooler, drier and firmer liquorice product. When fitted with a larger feed hopper, batch fed
products is possible.
Side Flow Extruder
The extruder is manufactured with 75mm, 130mm or 200mm diameter screws to achieve throughputs of 50 to 1500 kg/hour via a side
flow dye configuration.
2、Continuous or Batch Fed Extruder
The extruder is fitted with a small vacuum inlet hopper to receive liquorice directly from the Continuous Cooker. The vacuum
hopper enables the extrusion of a cooler, drier and firmer liquorice product. When fitted with a larger feed hopper, batch fed
products is possible.
3、Twist Screw Mixer Extruder
This type of extruder enables the mixing of colors, flavors and acid into a cooked liquorice base. Using this type of extruders, color and flavor contamination of the premix and cooking equipment is eliminated, enabling rapid color changes, minimal loss of flavor, minimal sugar inversion and starch gel breakdown. The extruder is fitted with a screw extraction system for the rapid and easy cleaning.
This type of extruder enables the mixing of colors, flavors and acid into a cooked liquorice base. Using this type of extruders, color and flavor contamination of the premix and cooking equipment is eliminated, enabling rapid color changes, minimal loss of flavor, minimal sugar inversion and starch gel breakdown. The extruder is fitted with a screw extraction system for the rapid and easy cleaning.
4、4 Color 4 Flavor Extrusion
The process begins with a neutral cooked products being fed into a high pressure, low shear extruder. The product is split into 4 channels, each of which can be individually colored and flavored. Up to 40 ropes can be extruded onto the Cooing Tunnel each of which contains the 4 colors in equal metered proportions.
The process begins with a neutral cooked products being fed into a high pressure, low shear extruder. The product is split into 4 channels, each of which can be individually colored and flavored. Up to 40 ropes can be extruded onto the Cooing Tunnel each of which contains the 4 colors in equal metered proportions.
We have a complete chocolate, candy, cookies and other small snack production line, with a complete supporting system, each production line is divided by different machines to complete the division of labor, or buy the machine alone or complete production line. We have a professional technical team, can go to overseas installation services, if you want to know more information please contact our sales!
Packaging & Delivery
Packaging Details:wooden package
Port:Shanghai,Shenzhen,Guangzhou,Chongqing port
Lead Time:30-90days.The specific delivery time is determined according to the product situation
Supply Ability
Supply Ability:15 Set/Sets per Month
Company Profile
Dujiangyan Tianwang Food Industry Co., Ltd.
Is a comprehensive enterprise controlled by Hong Kong Shihe Group, which specializes in food machinery manufacturing, food processing and production, and food machinery sales.
The company has more than 20 years of experience in food machinery and equipment manufacturing and food processing and production. The company introduces international advanced technology, researches and develops production equipment and process technology that meet the needs of the food industry. Its technology is at the leading level in the domestic and international food industry and has reached the international advanced level. We have provided hundreds of production lines to many domestic and foreign manufacturers, and the equipment is also exported to Southeast Asia, Central Asia, the Middle East, South America, Europe and other regions, and is very popular with domestic and foreign customers.
The organic unity of food processing production and food machinery manufacturing!
The perfect combination of traditional craftsmanship and modern technology.
The company has more than 20 years of experience in food machinery and equipment manufacturing and food processing and production. The company introduces international advanced technology, researches and develops production equipment and process technology that meet the needs of the food industry. Its technology is at the leading level in the domestic and international food industry and has reached the international advanced level. We have provided hundreds of production lines to many domestic and foreign manufacturers, and the equipment is also exported to Southeast Asia, Central Asia, the Middle East, South America, Europe and other regions, and is very popular with domestic and foreign customers.
The organic unity of food processing production and food machinery manufacturing!
The perfect combination of traditional craftsmanship and modern technology.
The equipment is also exported to Southeast Asia, Central Asia, the Middle East, South America, Europe and other regions, and is popular with customers at home and abroad
Finished Product Display
FAQ
Q:Are you a factory or trading comapny?
A: We are a factory and have more than 7 years manufacture and sales experience.
Q: What’s your MOQ?
A: 1set.
Q: What about the production time?
A:30-90days
Q:How to install and operate machine?
A:
1.All machines with U disk for English Language Manual ;
2.Each working unit installation and operation video
3.3D drawing for product shape and size.
4. 24h e-service online and on site operation live video for teaching.
5.Each machine working unit drawing provided
Q: How should i do if meet some trouble while using?
A: We can help you resolve the problems online or dispatch our worker to you factory.
Q: How can i contact with you?
A:You can send inquiry to me. Also can contact with me by wechat/cellphone.
Q:How could we know the machine quality after place order?
A:We have a product-specific certification.
Q: What’s your MOQ?
A: 1set.
Q: What about the production time?
A:30-90days
Q:How to install and operate machine?
A:
1.All machines with U disk for English Language Manual ;
2.Each working unit installation and operation video
3.3D drawing for product shape and size.
4. 24h e-service online and on site operation live video for teaching.
5.Each machine working unit drawing provided
Q: How should i do if meet some trouble while using?
A: We can help you resolve the problems online or dispatch our worker to you factory.
Q: How can i contact with you?
A:You can send inquiry to me. Also can contact with me by wechat/cellphone.
Q:How could we know the machine quality after place order?
A:We have a product-specific certification.
We have a complete set of candy, chocolate, snack production lines, for more information please contact us, our company's professional and technical staff to answer for you, Come and contact us!
