Product Overview
Description

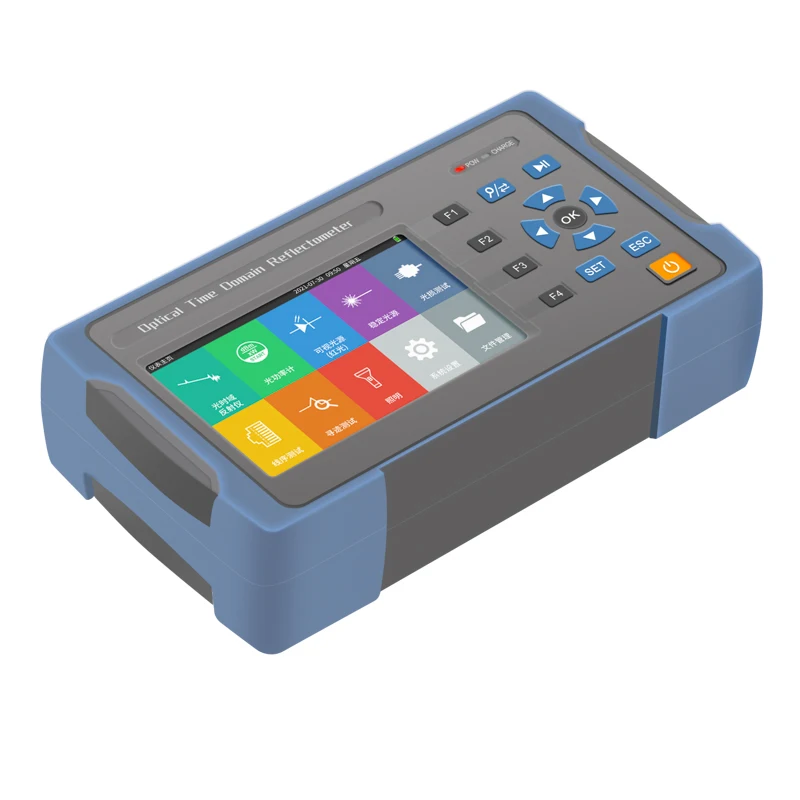

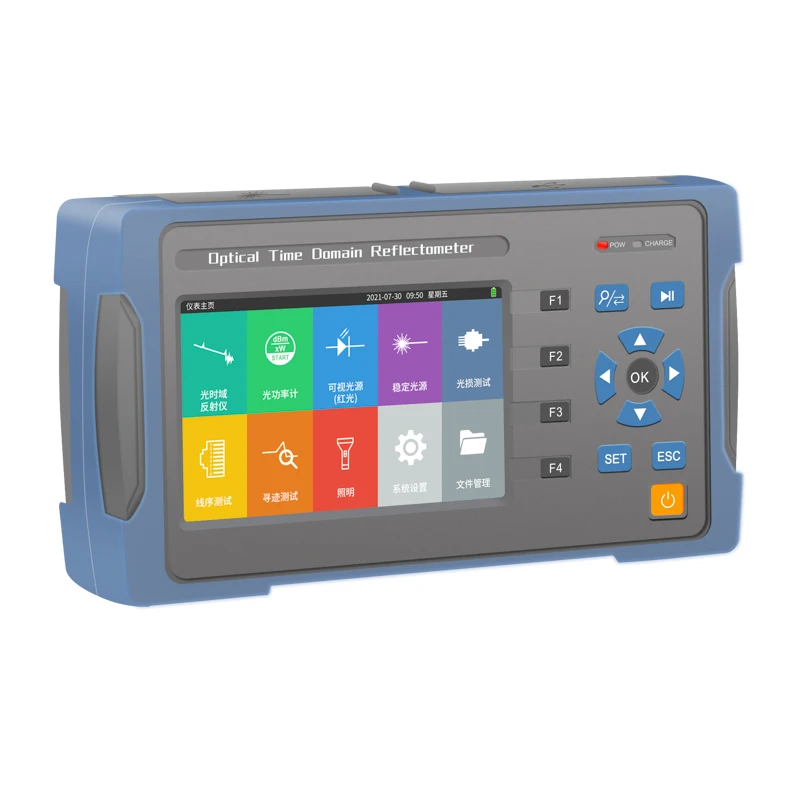

1610nm 22dB OTDR Handheld Fiber Optic Multi Tester With Cheap Price
Ordering Details
TM291D | 1310/1550nm, 24/22dB | Touching screen |
TM291D | 1310/1550nm, 26/24dB | Touching screen, |
TM291SF-15(with filter) | 1550nm, 22dB | Touching screen, support active test |

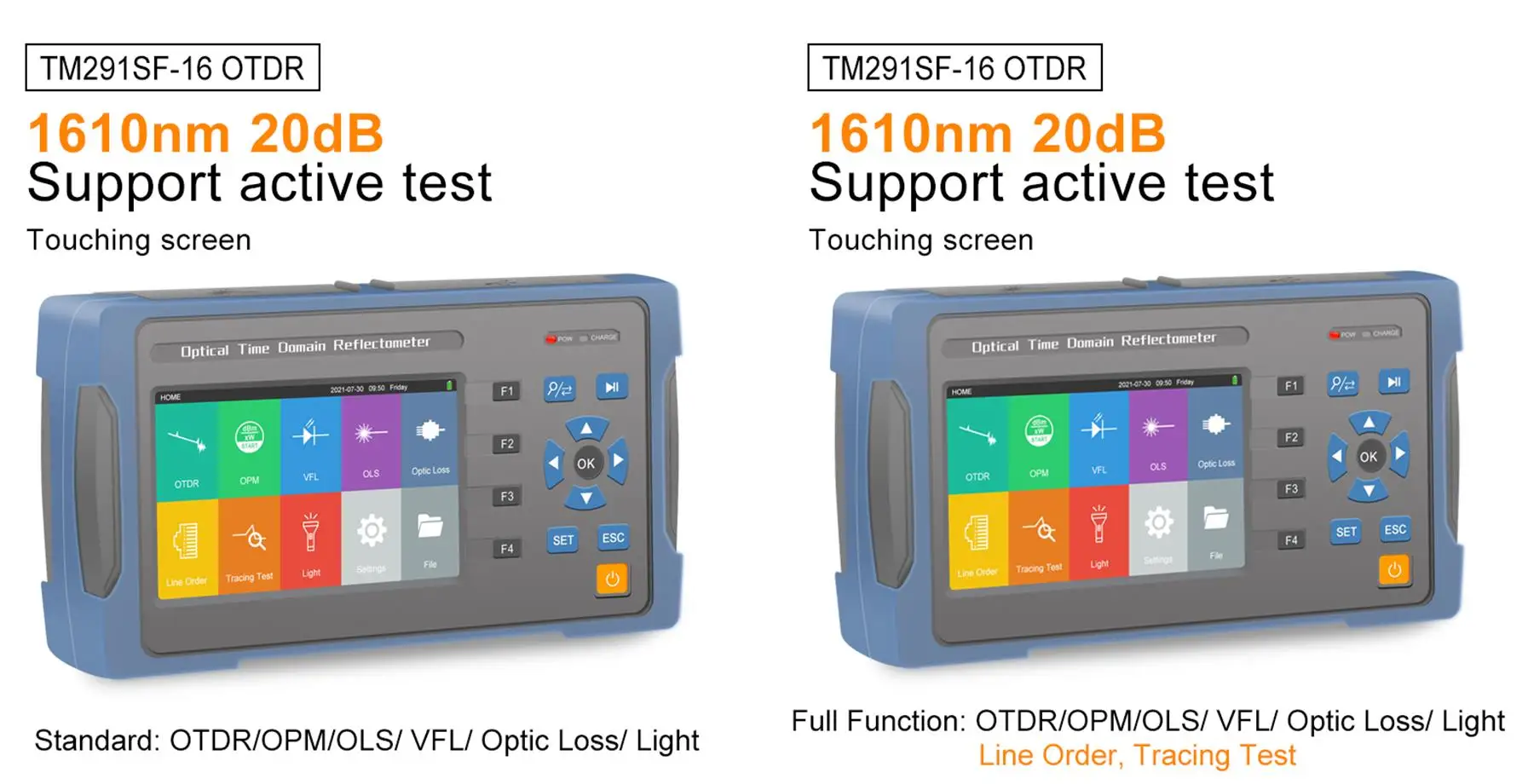

TM291SF-16(with filter) | 1610nm, 22dB | Touching screen, support active test |
Function
Standard Function | OTDR, OPM, OLS, VFL, Optic Loss,Light |
Optional Function | Line Order, Tracing Test |
![]()
Functions
1. OTDR: 0-60km
2. Optical Power Meter : -70~+10dbm or -50~+26dbm
3. Visual Fault Locator : >=10mw
4. Optical Light Source : 1310/1550nm ,>-5dBm
5. Optic Loss
6. Line Order (Optional)
7. Tracing Test (Optional): Can track the direction of the found line.
8. LED lighting function, dark environment construction is more convenient
![]()
Features
1. Measurement distance: 60km
2. Touching screen
3. Test record can be saved as so format
4. Standard Function: OTDR/Optical Power Meter/ Optical Light Source/ Visual Fault Locator/
Optic Loss/ Light
Optional Function: Line Order/ Tracing Test
5. Editable file name and lineNo.
6. Support upgrade
7. Quick boot, it takes only 2 seconds to test
Specifications

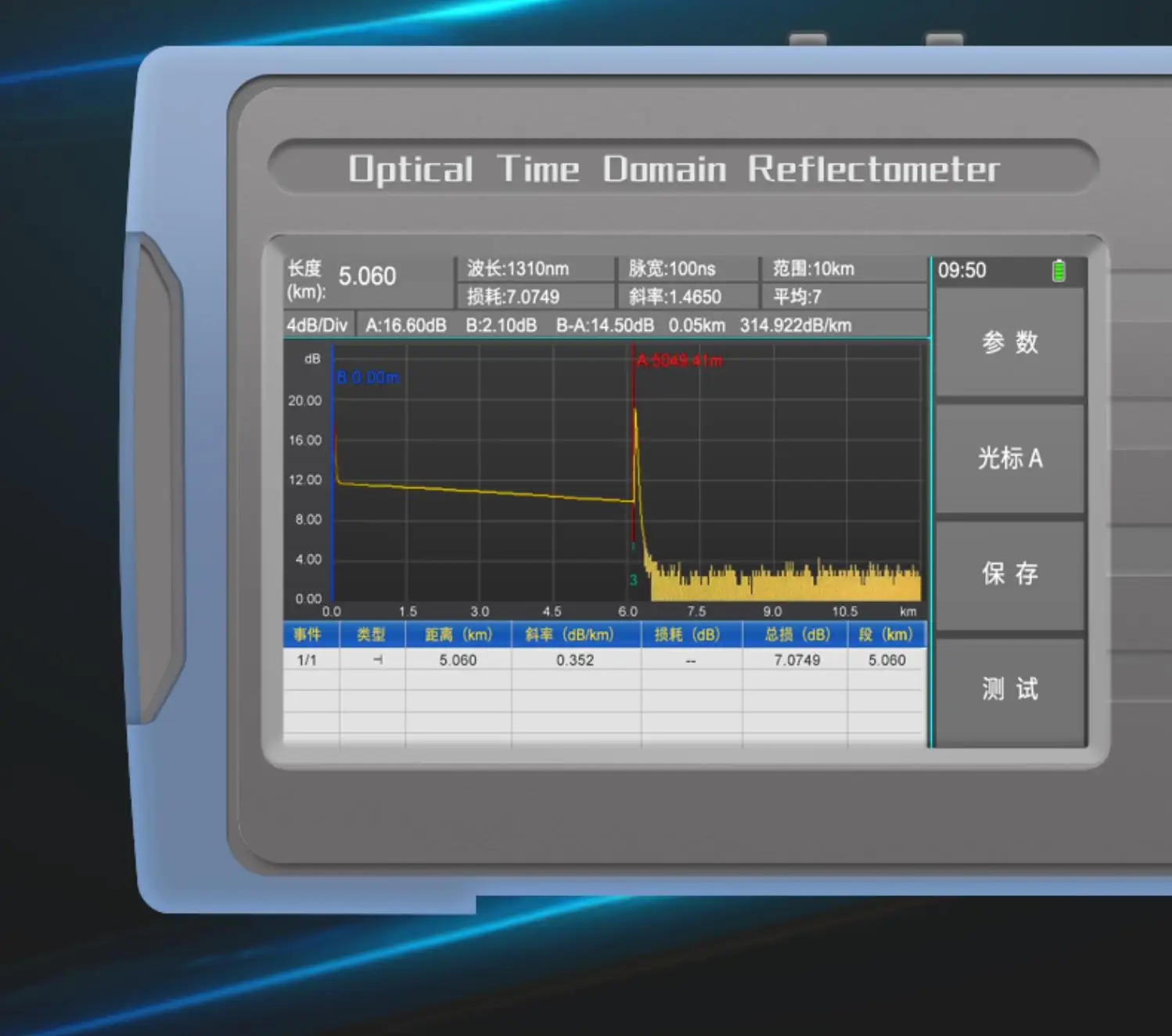

OTDR | |||||
Wavelength(nm) | 1310/1550nm | 1310/1550nm | 1550nm | 1610nm | |
Dynamic Range | 24/22dB | 26/24dB | 22dB | 22dB | |
Active Test | no | no | yes | yes | |
Measurement Distance | 0-60 km | ||||
Type of Fiber | 9/125um SM | ||||
Type of Connectors | FC/PC/; SC/PC (FC/APC SC/APC--Optional) | ||||
Peak Value of laser | >=30mW | ||||
Unit | Meter/ inch/ mile | ||||
Dead Zone of Reflection | 2m | ||||
Dead Zone of attenuation Event | 12m | ||||
Accuracy Distance (Reflection Event) | About ±(1m+2 *10(-4)* distance) | ||||
Storage of records | 200 groups | ||||

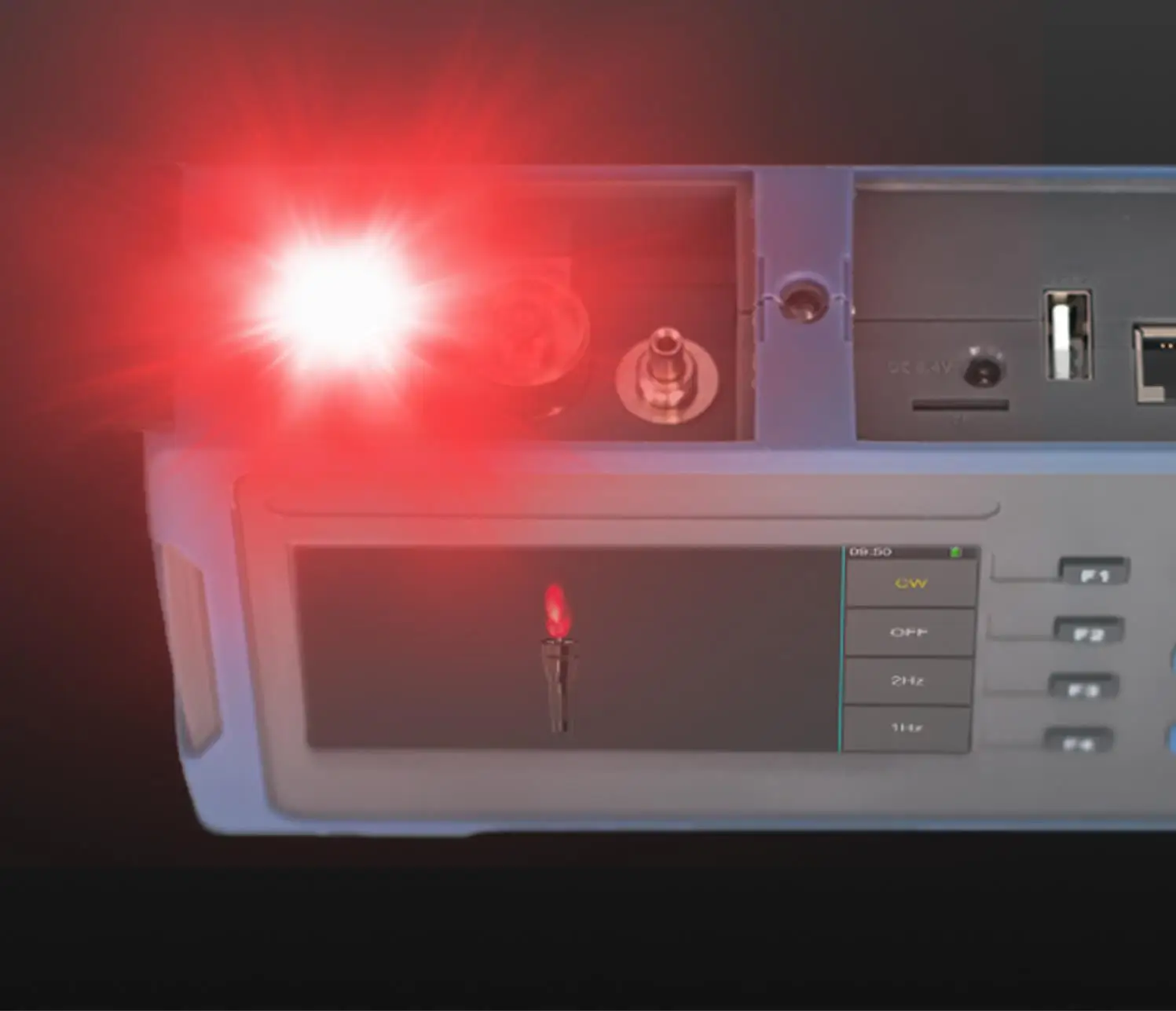

Visual Fault locator(VFL) | |||||
Wavelength (nm) | 650nm | ||||
Output power | >=10mW | ||||
Mode | CW,1Hz,2Hz | ||||
Fiber type | SM | ||||

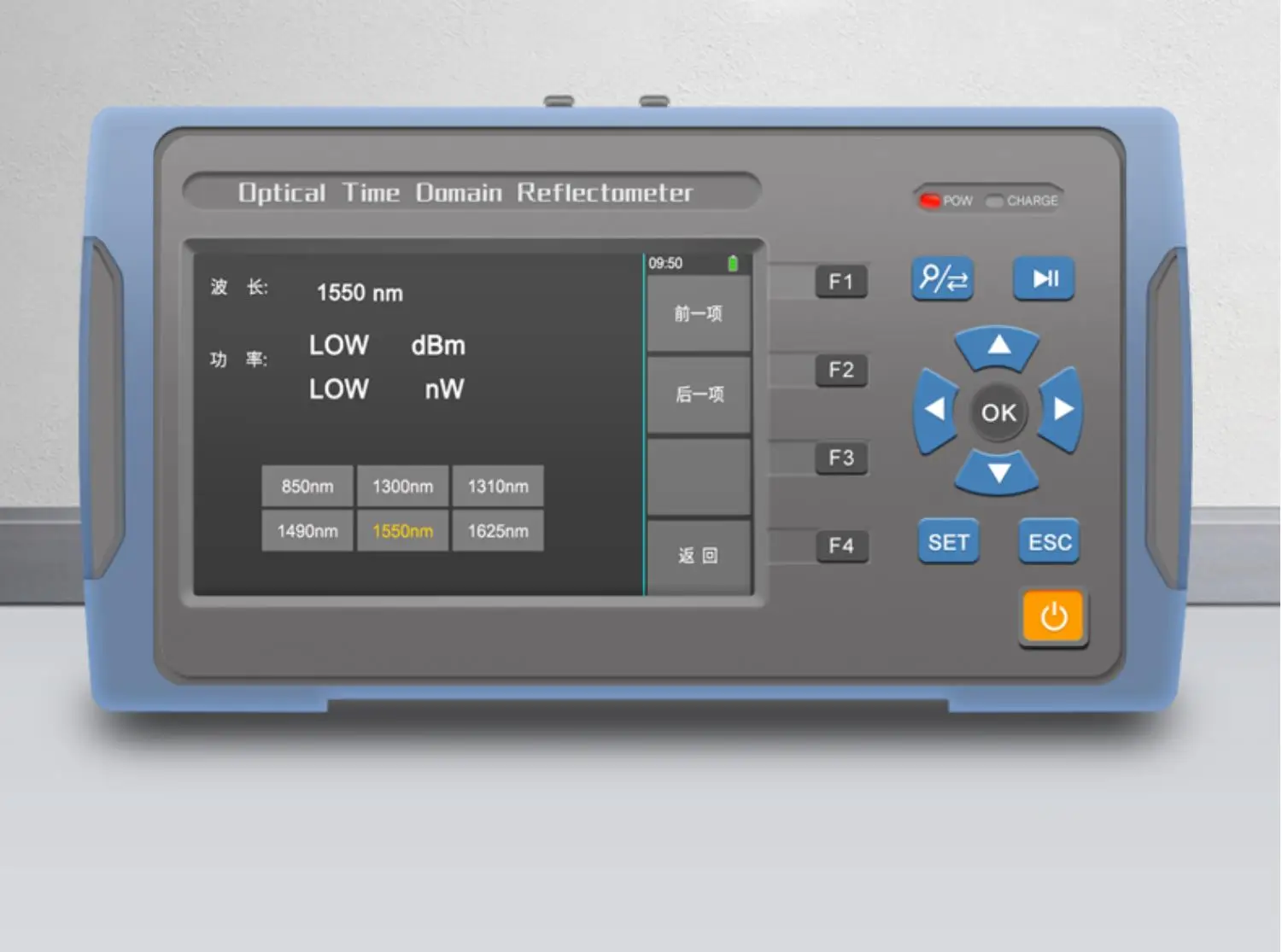

Optical Power Meter | |||||
Measurement range dBm | -70~+10 dBm | -50~+26 dBm | |||
Wavelength range(nm) | 800~1650 | ||||
Calibrated wavelength | 850,1300,1310,1490,1550,1625 | ||||
Detector | InGaAs | ||||
Accuracy | <±3% (-10dBm,22℃) | ||||
Resolution | Linearity:0.1%,Non-linearity:0.01dBm |
Connector | Changeable FC/PC SC/PC ( ST as Optional) |

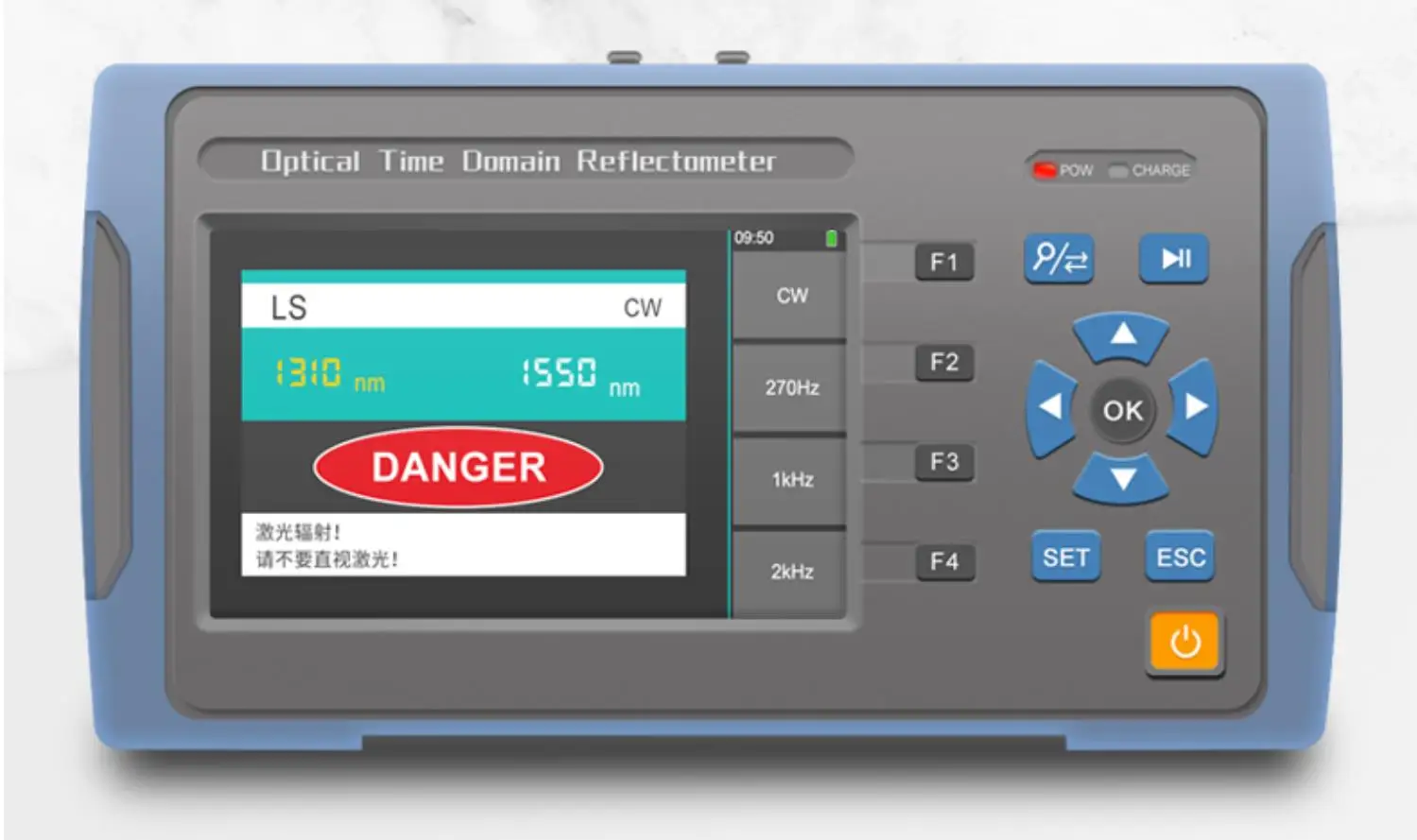

Optical Light Source | |
Emitter | FP-LD |
wavelength (nm) | 1310/1550nm |
Connector | FC/PC(SC/ST as optional) |
Output power | ≥-5dBm |
Output stability(dBm) | ±0.04@20℃@15min |
Modulation | CW/270Hz/1KHz/2KHz |
Fiber type | SM |
Optic Loss | |
Connector | FC/ SC |
Test Range | 0-30dB |
Accuracy | 10% |
Others | |
LCD | 3.97inch,800*480pixels, IPS screen |
Battery | 7.4V/4400mAH Lithium-ion battery, >5000 tests |
Temperature | Work temperature: -5 ~ 50 ° C, storage temperature: -10 ~ 60 ° C |
Humidity | 0~85%(Non-condensing) |
Dimensions(mm) | 180×100×45 |
Weight(g) | 480 |
Standard Function | OTDR, OPM, OLS, VFL, Optic Loss,Light |
Optional Function | Line Order, Tracing Test |
