BBO Crystal Beta Barium Borate Crystal
- Category: >>>
- Supplier: Zoolied Inc.
Share on (1600623964436):
Product Overview
Description
Products Parameters
Material | Crystal |
Chamfer | Protective Chamfer |
Dimension | 2-20mm |
Length | 10-200mm |
S/D | 20/10-40/20 |
Flatness | L/8-L/10 |
Parallelism | 10"-20" |
Bevel | Protective bevel as needed |
Shape | Cuboid/Rod/Cube |
Coating | AR |
Products Description
BBO specification: | 1.0% ~ 35% | |
Tolerance of cutting angle | Δθ≤±0.25°,Δφ≤±0.25° | |
Tolerance of dimension | Dimension+/-0.1 mm, L:±0.1mm | |
Flatness | λ/8 @ 632.8nm | |
Wavefront distortion | λ/8@ 632.8nm | |
Surface quality | 10/5 per MIL-O-13830A | |
Parallelism | 10″ | |
Perpendicularity | 5′ | |
Bevel/chamfer | <0.1mm@45deg. | |
Warranty | One year under proper use | |
Chips | <0.1mm | |
CA | >95% | |
Coating | AR/P-coating Upon customer’s request | |
Damage Threshold | 750MW/CM2 at 1064nm, TEM00, 10ns, 10Hz | |
BBO crystal is an important nonlinear optical crystals with combination of unique optical properties.Broad transmission and phase matching ranges, large nonlinear coefficient,high damage threshold and excellent optical homogeneity provide attractive possibilities for various nonlinear optical applicatios.
Advantages:
* Broad phase matching (SHG) range from 409.6nm to 3500nm
* Wide transmission region from 190nm to 3500nm
* Large effective SHG coefficient
* High damage threshold of 10 GW/cm2 for 100 ps pulse-widths at 1064nm
* High optical homogeneity with Dn 10-6/cm2
* Wide temperature bandwidth of about 55° (for type I SHG 1064nm)
* Good mechanical and physical properties
* Wide transmission region from 190nm to 3500nm
* Large effective SHG coefficient
* High damage threshold of 10 GW/cm2 for 100 ps pulse-widths at 1064nm
* High optical homogeneity with Dn 10-6/cm2
* Wide temperature bandwidth of about 55° (for type I SHG 1064nm)
* Good mechanical and physical properties
BBO’s main applications:
* SHG, THG, 4HG, 5HG of Nd lasers
* SHG, THG, 4HG of Ti:Al2O3 and Alexandrite lasers
* SHG, THG and Frequency-mixing of Dye lasers
* SHG of Argon ion, Cu-vapor and Ruby lasers
* OPA and OPO
* Pockels’ Cell
* SHG, THG, 4HG, 5HG of Nd lasers
* SHG, THG, 4HG of Ti:Al2O3 and Alexandrite lasers
* SHG, THG and Frequency-mixing of Dye lasers
* SHG of Argon ion, Cu-vapor and Ruby lasers
* OPA and OPO
* Pockels’ Cell
Zoolied Crystals Lists | ||||||||
ND:YAG | Pr∶YLF | Er:YAP | Tm∶YVO4 | Fe:LiNb03 | ||||
Cr:YAG | Yb∶KGW | LiF | GGG | RTP | ||||
YV04 | Sapphires | Er:YAG | Nd∶GSGG | KYW | ||||
MD:YV04 | YLF | Cr:LiCAF | KDP | TSAG | ||||
Yb:YAG | YAG | SrWO4 | Ti∶sapphire | KTA | ||||
ND∶GdV04 | Ce:LuAG | GdSc03 | YLF | GYSGG | ||||
Nd:YLF | Ho:LUGG | Cr:GSGG | Yb∶YLF | Cr:Nd:YAG | ||||
Ho∶YAG | Nd:LuAG | TGGG | Yb∶CaF2 | Yb:YAB | ||||
BBO | Tm:Ho:YLF | ADP | LYSO | Tb:YLF | ||||
LBO | Nd:YAP | LiSAF | LiGa02 | Ho∶YLF | ||||
KTP | V:YAG | Yb∶KYW | Tm∶YAP | YSGG | ||||
TGG | SGGG | Iceland crystal | KGW | MgF2 | ||||
LiNbO3 | LiL03 | Mg0∶LiNbO3 | Cr∶Er∶YSGG | PMN-PT | ||||
CaF2 | Nd:Ce:YAG | Ho∶YV04 | Cr∶LiSAF | Dy:YLF | ||||
LiTa03 | BLO | Nd∶YSAG | LiCAF | Nd:KGW | ||||
a-BB0 | Er:Yb:YAB | Er∶YLF | YIG | BiB0 | ||||
Co∶MgAl204 | Er:YSGG | Nd:GYSGG | DKDP | Er:Caf2 | ||||
JGS1 | Ho:YAP | Er∶KGW | YAB | Ce:YAG | ||||
GdV04 | YSGG | ND:GYSAG | Mg0:LiTa03 | CBN | ||||
Tm∶YLF | HGTR-KTP | Quartz | Tm:KYW | PPKTP | ||||
Company Profile
Zoolied Inc. was established in 2015, over the past years, Zoolied Brand products not only have been tested and put into trial operation and delivered for use in various divisions of the domestic market, but also exported to North America, Southeast Asia and Europe. The presence of positive reviews and the absence of complaints on their part confirms the high quality of Zoolied.
Exhibition
Customer Photos
Certifications

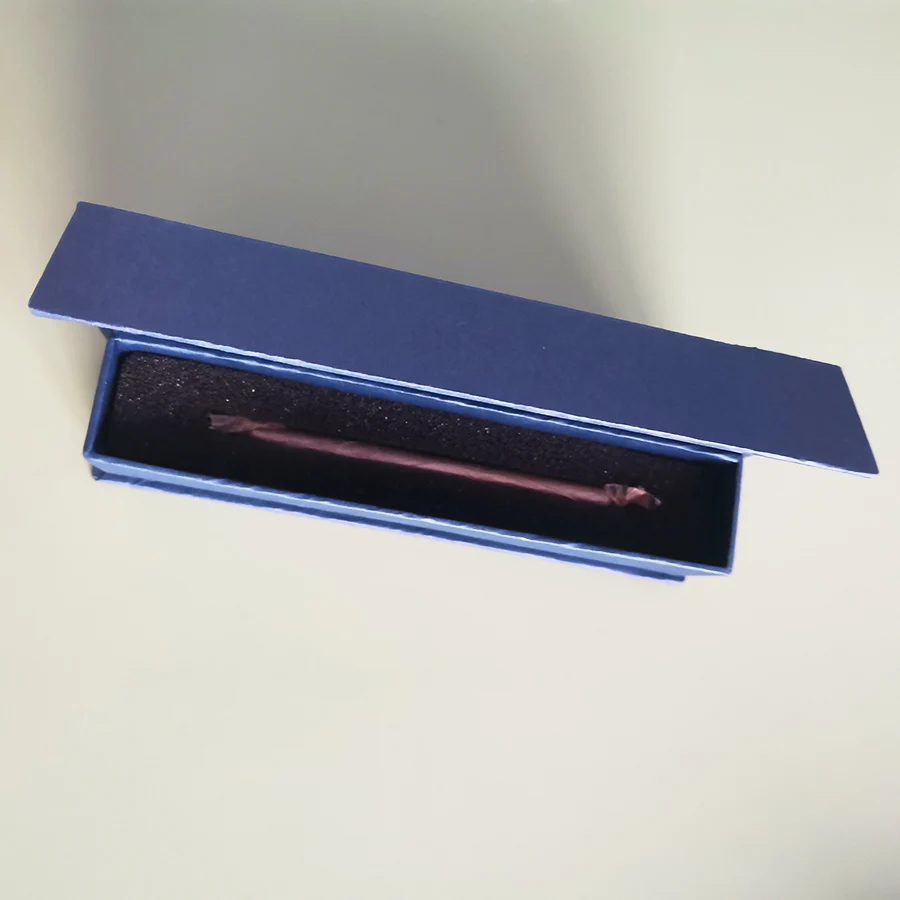

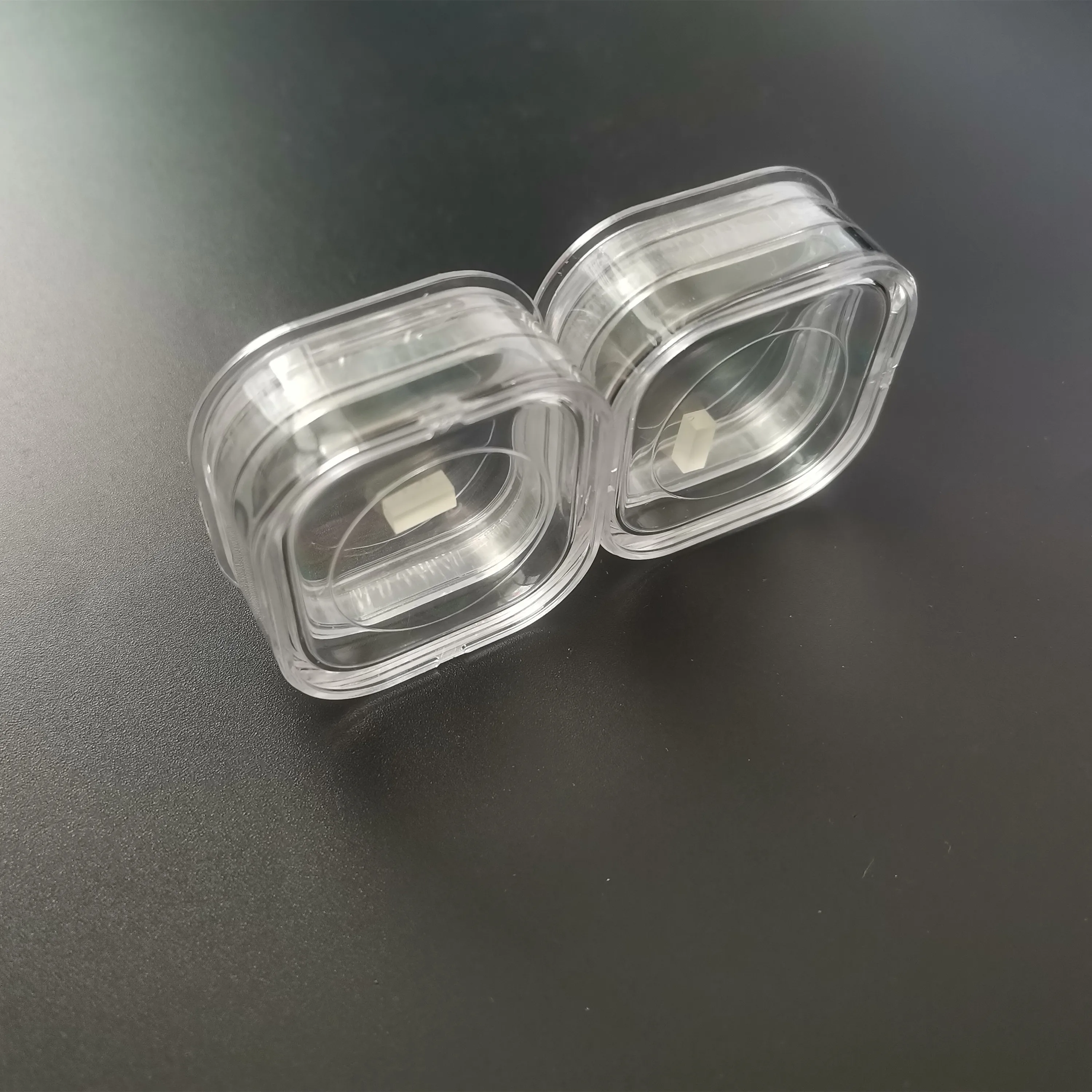

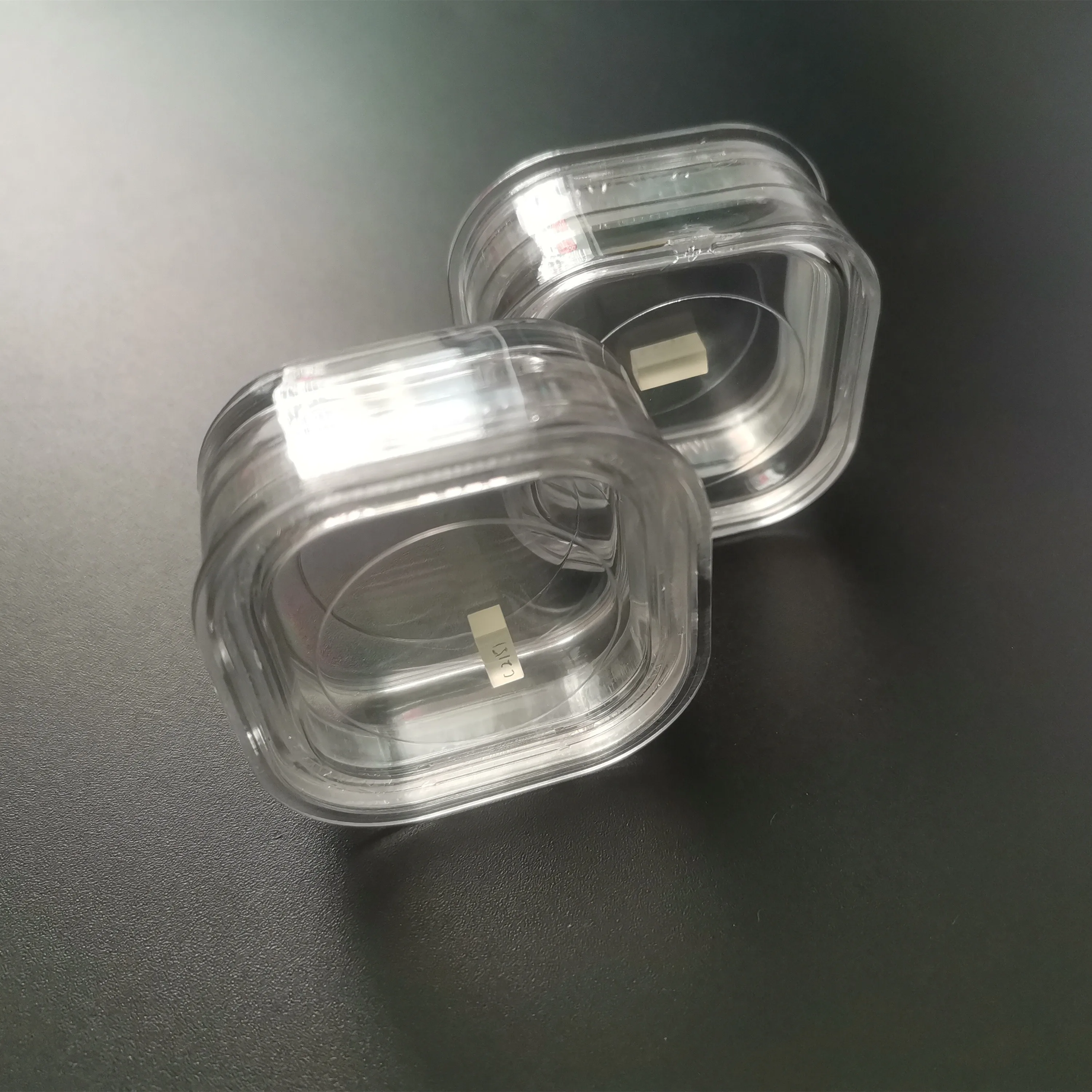

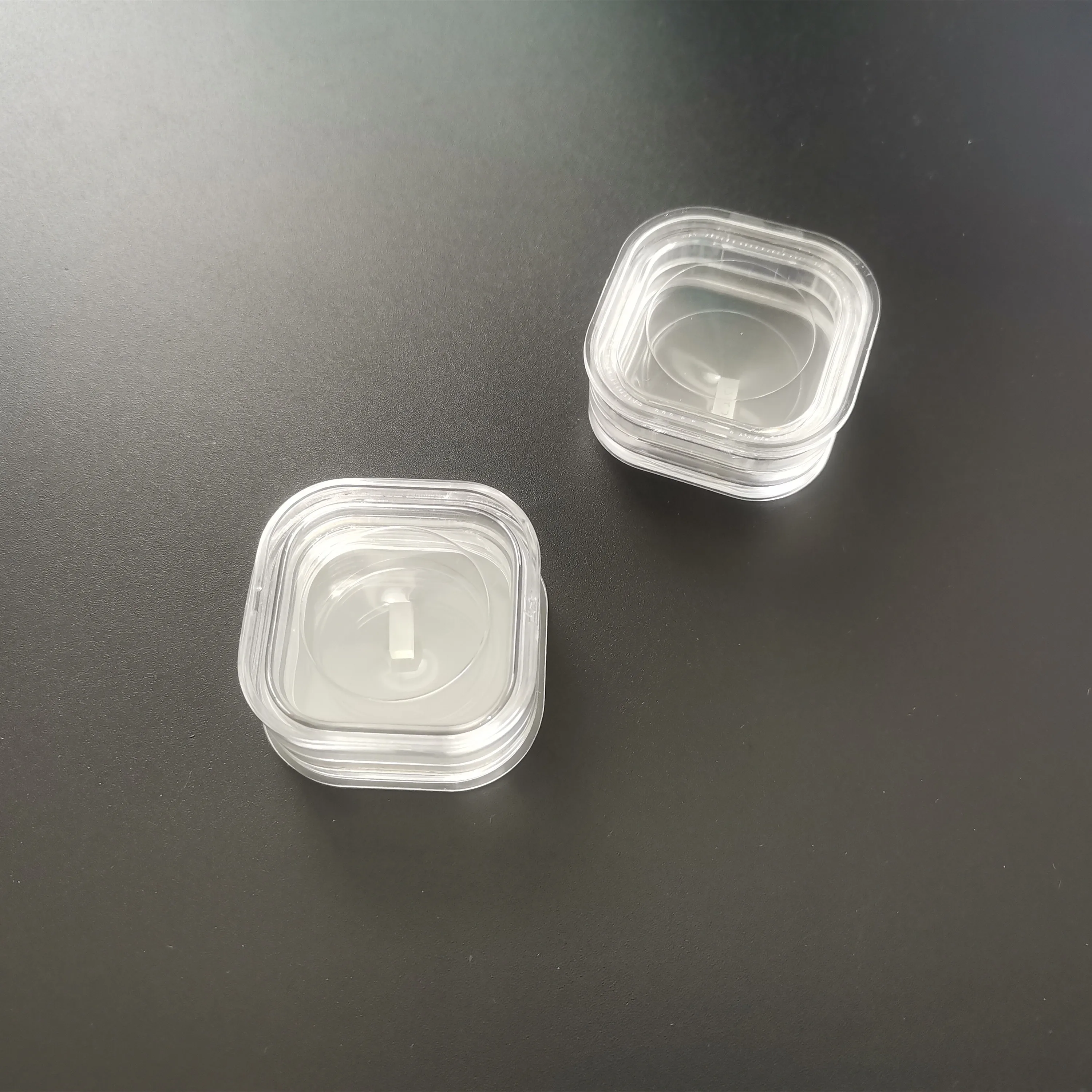

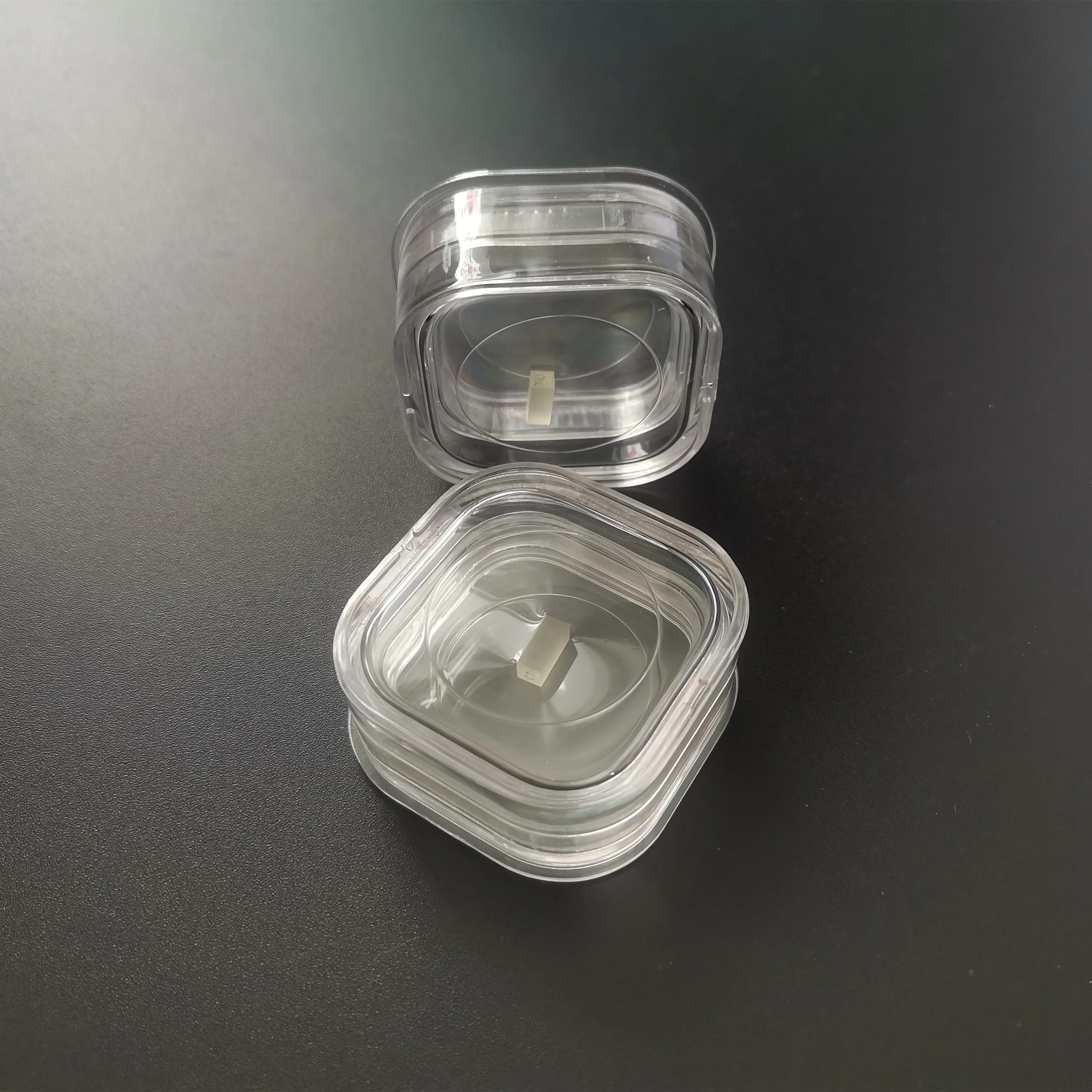

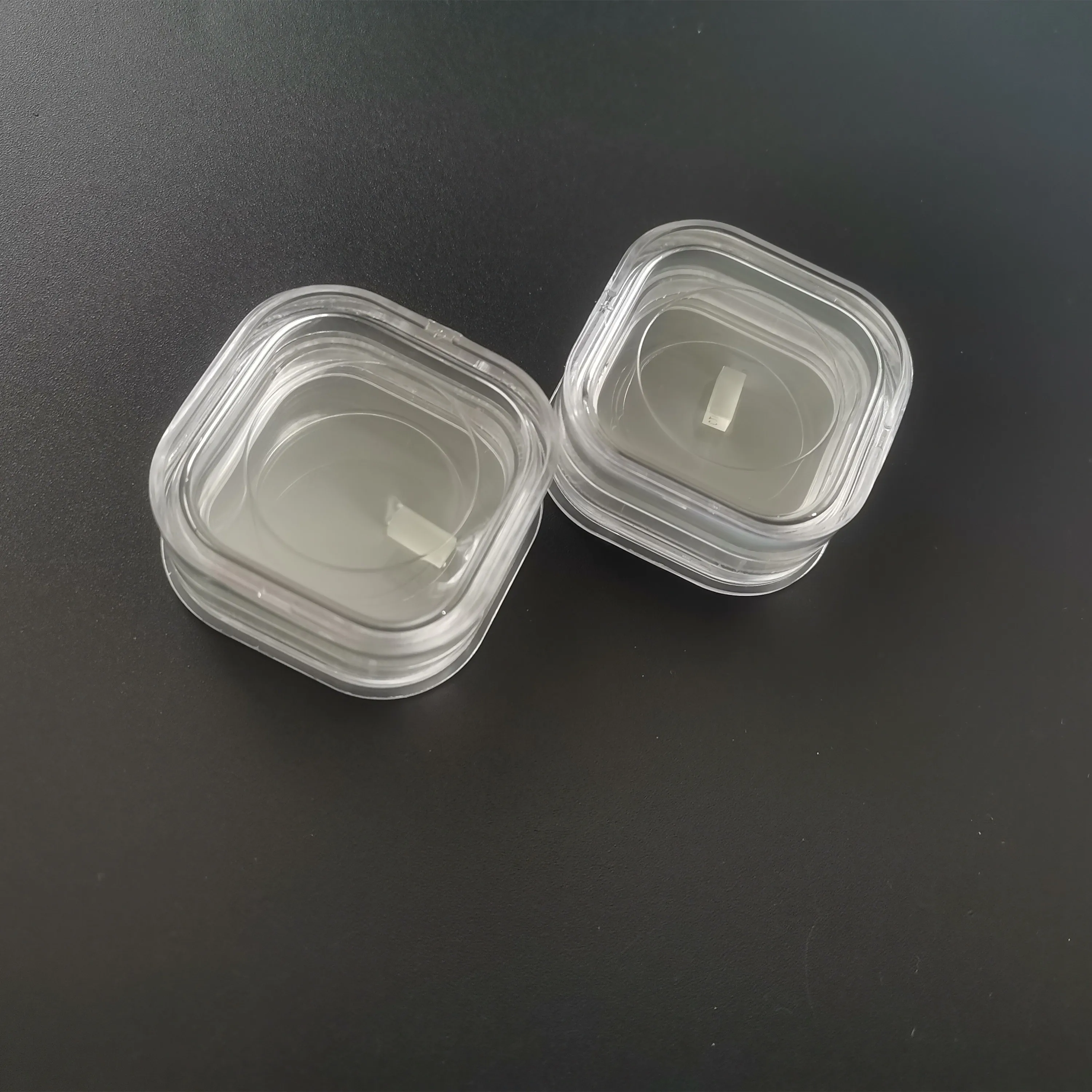

Product packaging
