Smart Parking System Sensor IoT LoRaWAN Surface mounted Parking Sensor
- Category: >>>
- Supplier: Shenzhen Moko Technology Ltd.
Share on (1600623973007):
Product Overview
Description
Products Description
LoRaWAN Parking Sensor for Smart Parking Solution
LW009 Series is Wireless is a LoRaWAN parking space status sensor with long communication range, has both Surface-Mounting and In-ground type. It integrates microwave radar and geomagnetic detection technology. It adopts advanced signal detection algorithm to accurately realize the functions of parking space occupancy detection and parking time statistics. The accuracy of dual-mode detection is over 99%.

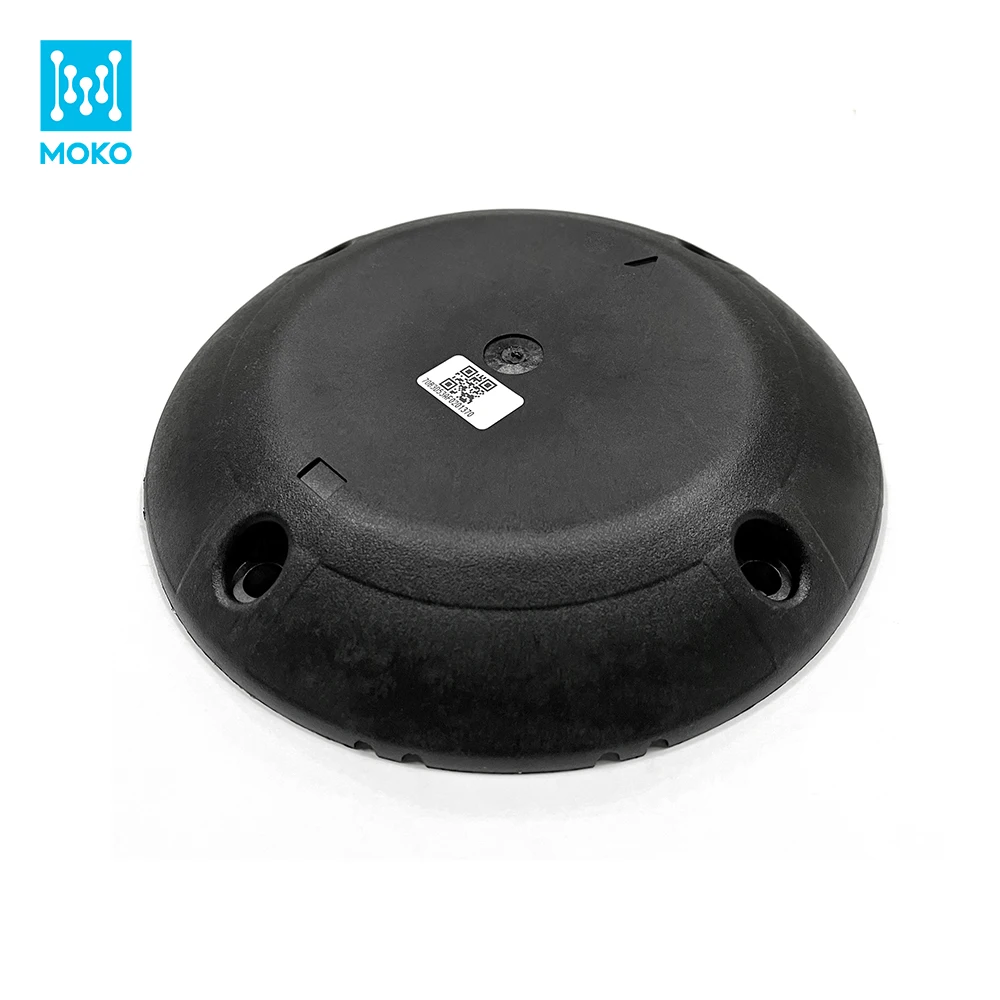

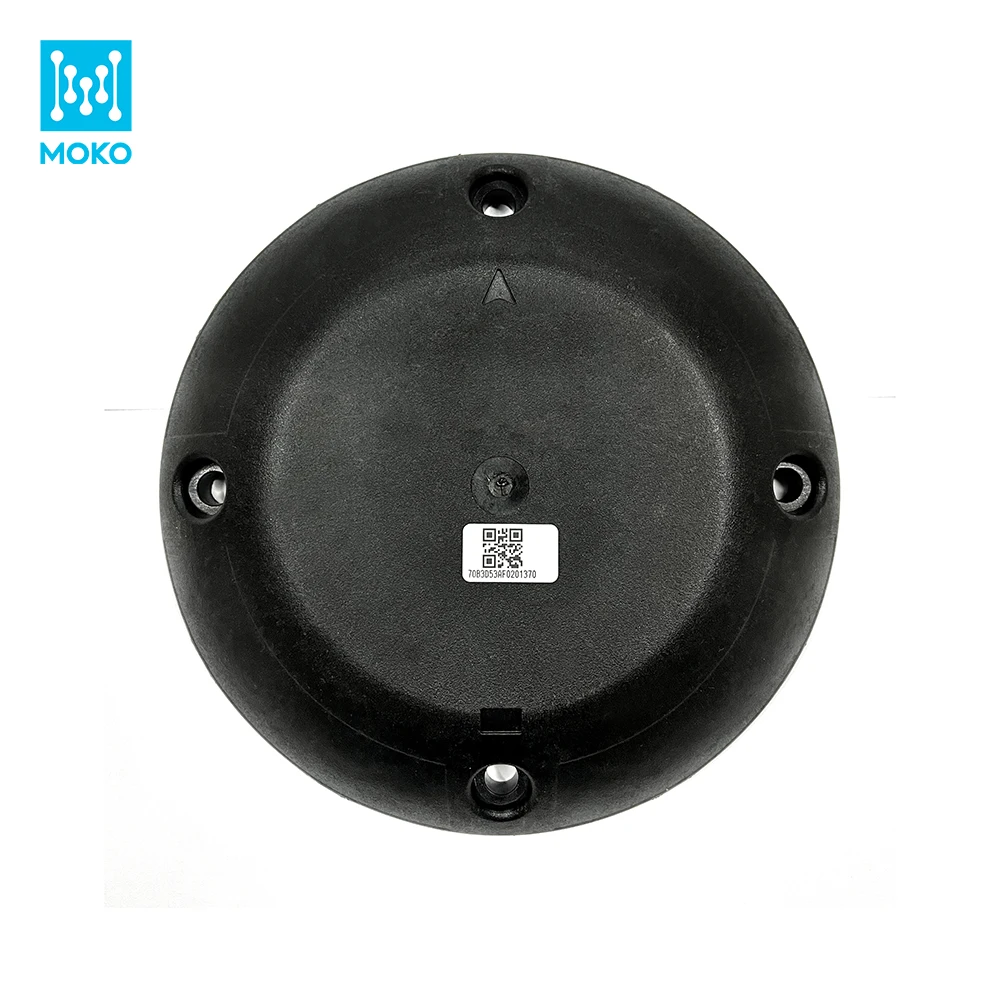

LW009-SM: Surface-Mounting Type

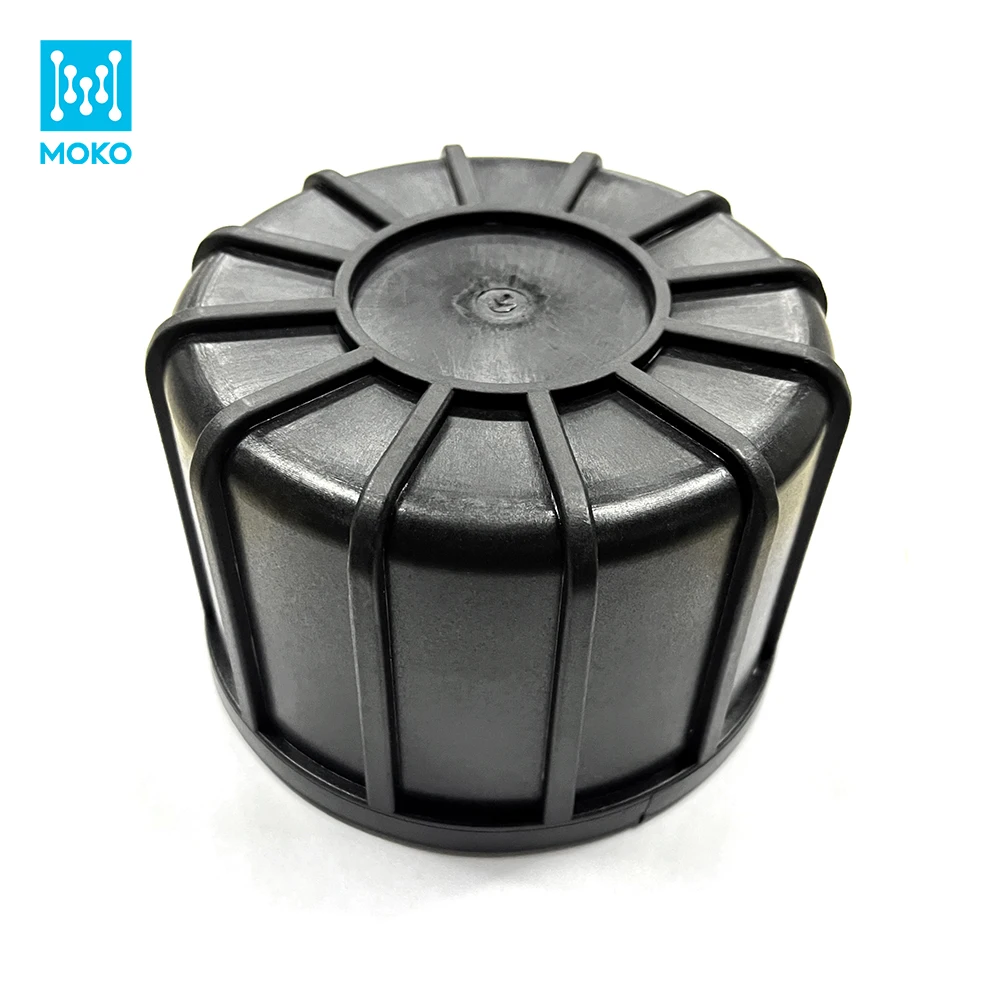

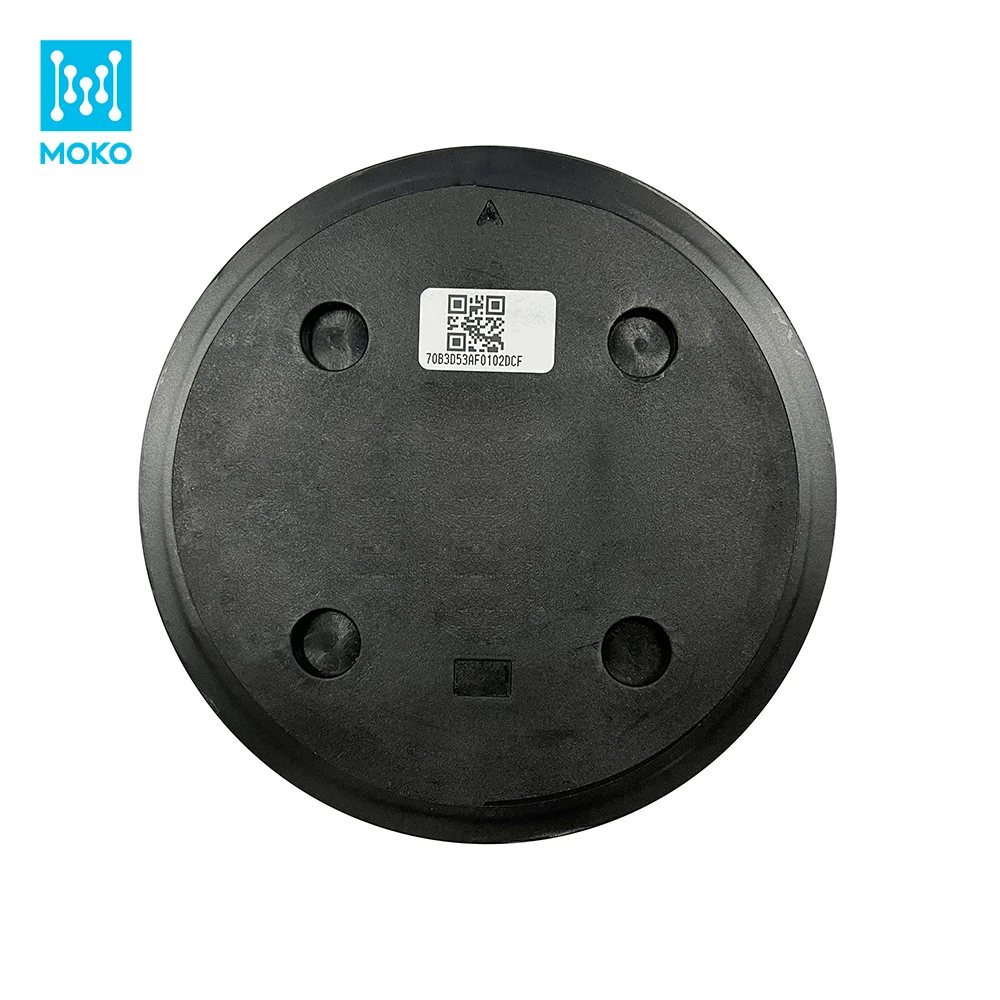

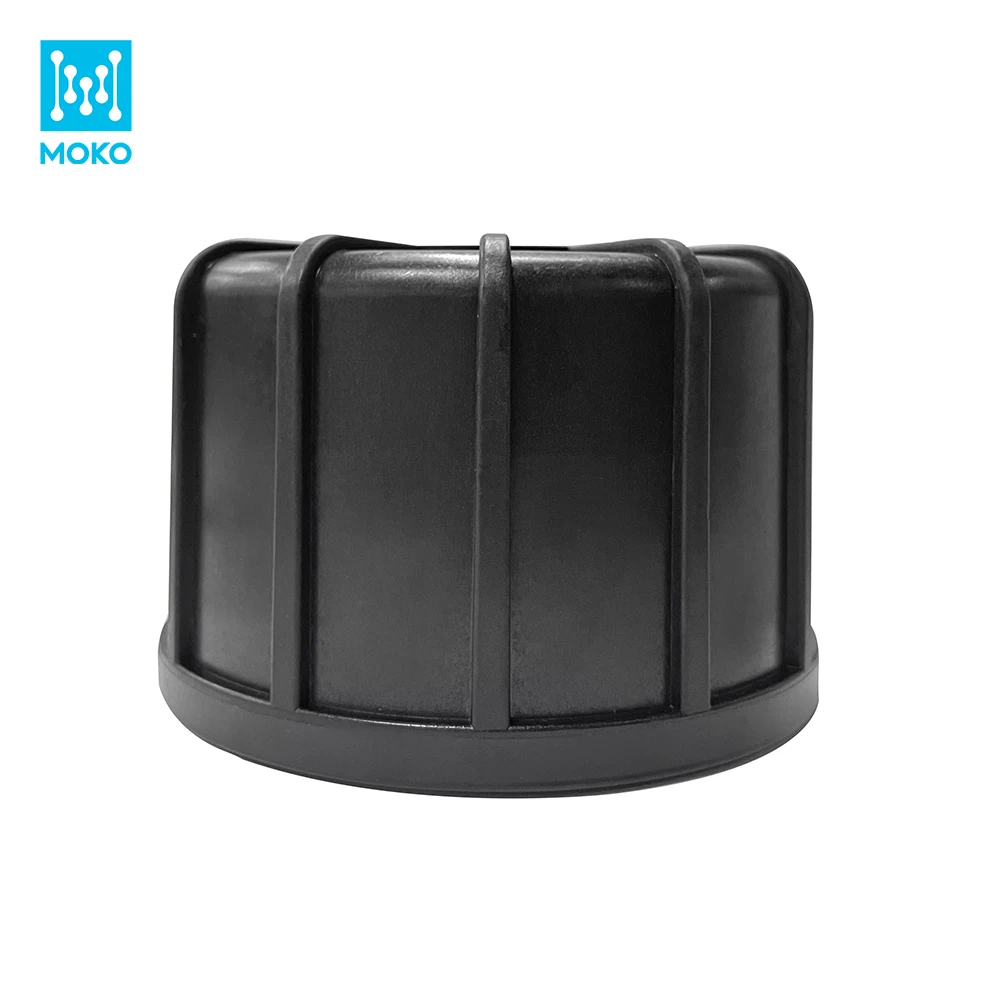

LW009-IG: In-ground Type
Technical Specifications
LoRa Protocol | LoRaWAN V1.0.3 Class A |
Dimensions | D:202mm, H: 30mm (LW009-SM) D:130mm, H: 87mm (LW009-IG) |
LoRa Frequency | EU868/US915/AS923 |
LoRa Communication Range | Up to 500m ~1000m (Depends on actual environment) |
Detection Algorithm | Dual mode -Three-axis joint detection algorithm and Radar |
Life Duration | >5 years under typical scenarios |
Tx Power | Max 17dBm |
Detection Accuracy | >99% |
Protection level | IP68 |
Operation Temperature | -40℃ ~ 85℃ |
Weight | 600g (LW009-SM) 800g (LW009-IG) |
State Monitor | Low voltage alarm, disturbance alarm |
Power Supply | Built-in 3.6V Lithium battery, 20Ah (LW009-SM) Built-in 3.6V Lithium battery, 38Ah (LW009-IG) |
Force Resistance | 10 tons |
Details Images
Product Features
➢High reliability: the accuracy of dual-mode detection is over 99%
➢ Long transmission distance (LoRaWAN): 500-1000m
➢ Easy installation: built-in battery, no wiring required, easy to install, shorten installation time
➢ Easy maintenance
➢ Ultra-low power consumption, more than 5 service years under typical scenarios
➢ Long transmission distance (LoRaWAN): 500-1000m
➢ Easy installation: built-in battery, no wiring required, easy to install, shorten installation time
➢ Easy maintenance
➢ Ultra-low power consumption, more than 5 service years under typical scenarios
➢ Wireless upgrade and calibration
➢ In built Temperature and Humidity sensor to measure if the road is frozen ➢ Optional - External mounting cradle available for using glue to mounting the unit on the road
to avoid drilling hole
➢ Optional - Reflective warning stickers to increase the visibility of the sensor to avoid any
inattention accident happen
The frame and shell of a car are made of ferromagnetic material (various types of steel), which will make disturbance to surrounding magnetic field. According to this characteristic, LW009-IG determines whether there is a car in the parking space. With build-in dual-sensors (geomagnetic sensor and microwave radar sensor), powerful signal analysis and processing algorithm. The product can work out redundant enhanced information, especially acquire complementary and optimization to the reverse sensitivity characteristic s of chassis with different height.
Compared to traditional parking sensor with single sensor, LW009 series greatly improved the detection accuracy and reduced information loss.
Product Application
Industrial Parks
On-road Parking Space
Commercial Parking Lot
Residential Parking Lot
Recommend products

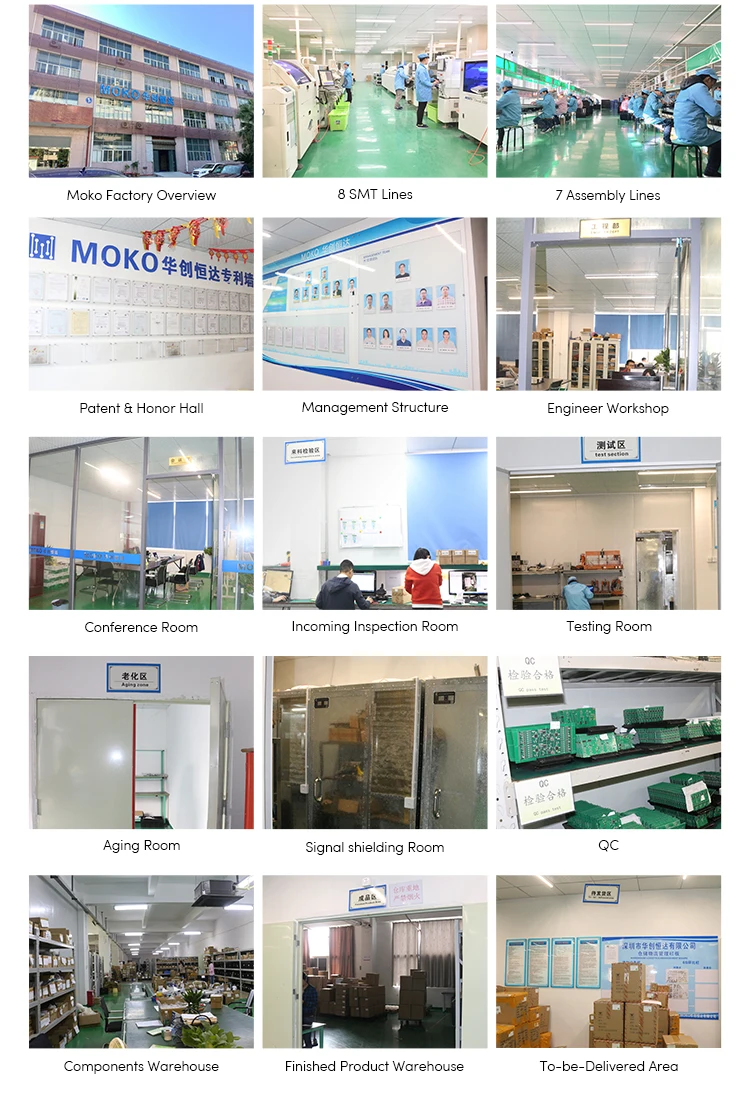

Company Profile
MOKOSmart is a professional and experienced manufacturer dedicated to the research, development and manufacturing of smart IOT devices. We offer a range of programs for our potential partners which include electronic engineering, firmware customized, wholesale program, white-label solution, EMS(Electronics Manufacturing Service) and ODM program. Basically, we can offer mature products for you to directly sell and additionally provide you with a custom-made service to meet your requirement. Currently, our company has over 400+ employees, of which over 70 engineers concentrate on LoRaWAN products, BLE beacon and smart plug switch, etc., with one-stop service includes design, development, production, and after-sales service. We have built sophisticated production lines which is equipped with advanced manufacturing technology to ensure high quality. So that We can also do OEM/contract manufacturing for high quality LoRaWAN products as you need.
FAQ
1.Are you a manufacturer or a trading company?
-We are the manufacturer with more than 15 years experience in Shenzhen, China.
2. Can you do ODM or OEM for us?
-We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.
3. Do you offer sample order?
-We are the manufacturer with more than 15 years experience in Shenzhen, China.
2. Can you do ODM or OEM for us?
-We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.
3. Do you offer sample order?
-Yes, we offer samples for testing.
4.What about the network architecture for device working?
-It would be composed of Lorawan sensor+Lorawan gateway+Lorawan server(Platform).
5.Can you provide the datasheet and user manual for LW009 series parking sensor?
-Yes we will provide them with PDF format if you need.
6.What's the lead time of your products?
-1-3 working days for sample order, around 15 days for mass production orders (based on different quantities).
7.How long is your products quality warranty?
-We offer one-year quality warranty.
8.Does it work with my loRaWAN gateway?
-Yes it is compatible.
4.What about the network architecture for device working?
-It would be composed of Lorawan sensor+Lorawan gateway+Lorawan server(Platform).
5.Can you provide the datasheet and user manual for LW009 series parking sensor?
-Yes we will provide them with PDF format if you need.
6.What's the lead time of your products?
-1-3 working days for sample order, around 15 days for mass production orders (based on different quantities).
7.How long is your products quality warranty?
-We offer one-year quality warranty.
8.Does it work with my loRaWAN gateway?
-Yes it is compatible.
