Product Overview
Description
AILUSI Machinery
Manufacturer of Cosmetic | Pharmaceutical | Food | Daily Chemical industrial | GMP Standard
Product Overview

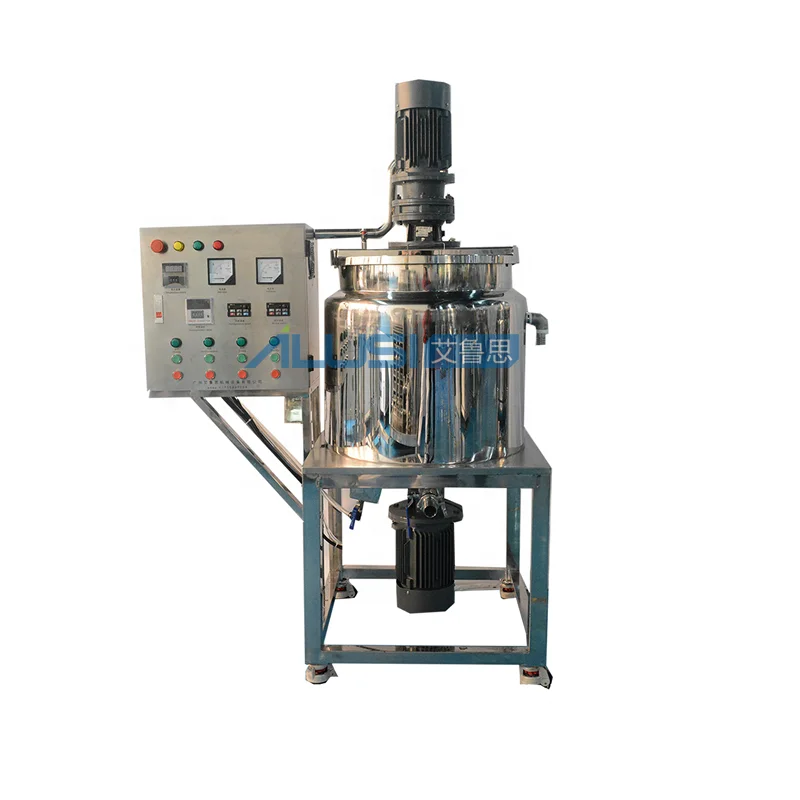

Small scale liquid bar soap making machine small soap making machine liquid washing mixer
Homogenizing mixer machine has high-speed disperser, mixing and disperse viscously, solid and liquid, etc. various kind of raw material will be dissolved which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production the and shorten production period. To produce liquid washing products, like shampoo, liquid soap, bath shower, dishwashing, hand washing, lubricating oil, etc.
This machine is the equipment commonly used by daily chemical companies such as cosmetic shampoo, shower gel, hand sanitizer and so on. Through the adjustable speed stirring of the paddle in the pot and the homogenizer at the bottom, the materials are fully mixed and blended and stirred evenly. According to the requirements of the production process, the materials can be heated or cooled by heating in the jacket. Set a specific temperature, when the temperature reaches the required requirements, the heating device automatically stops heating.
The mixing pot can also be equipped with a platform. The control cabinet is designed and installed on the platform. The heating, mixing speed control, and heating time are all completed on a unified operating platform, which is easy to operate and efficient.
FEATURES AT A GLANCE
1. The Omnidirectional wall scraping and mixing adopts a frequency converter to adjust the speed. At low temperatures and high
viscosity, it can reduce the formation of bubbles.
2. Jacket heating and cooling function (steam/electric heating)
3. The pot body is welded by three layers of stainless steel plates, mirror polished, in line with GMP requirements.
4. High-speed shearing homogenizer 3600rpm, strong mixing of solid and liquid raw materials.
5. Schneider switch control button, Delta inverter, Omron temperature control
3. The pot body is welded by three layers of stainless steel plates, mirror polished, in line with GMP requirements.
4. High-speed shearing homogenizer 3600rpm, strong mixing of solid and liquid raw materials.
5. Schneider switch control button, Delta inverter, Omron temperature control
Right elevation
Left elevation
Front elevation
Details Images
Lid
Pipe: All contact material parts adopt GMP hygiene standards SUS316L, Sanitation grade accessories & valves
Electric control system
Can be customized to PLC+ Touch screen
Outer layer material: adopt SUS304 Stainless steel plate, thickness:1.5mm
Meter: thermometer, Time digital display met, voltmeter, Homogenizer time reply
Button: Each function switch control button, emergency switch, light switch, start/stop buttons
Indicate Light: RYG 3 colors indicate light and all system working indicate
The electrical components: include various control relay
Outer layer material: adopt SUS304 Stainless steel plate, thickness:1.5mm
Meter: thermometer, Time digital display met, voltmeter, Homogenizer time reply
Button: Each function switch control button, emergency switch, light switch, start/stop buttons
Indicate Light: RYG 3 colors indicate light and all system working indicate
The electrical components: include various control relay
Homogenizer
Bottom Homogenizer (can be customized to upper homogenizer)
Material: SUS316L
Motor power: Depends on capacity
Speed: 0-3600rpm, DELTA inverter
Processing methods: Rotor and stator adopts wire-cutting finish machining, polishing treatment before assembly
Material: SUS316L
Motor power: Depends on capacity
Speed: 0-3600rpm, DELTA inverter
Processing methods: Rotor and stator adopts wire-cutting finish machining, polishing treatment before assembly
Stirrer paddle & scraper blade
Frame oar wall single way scrapping mixing (can be customized to double way mixing, circulation mixing etc.)
Stirrer paddle: SUS316L
Scraper blade: PTFE material, white
Motor power: Depends on capacity
Speed: 0-75rpm, DELTA inverter
Adopting Germany Bergman mechanical seal, NSK bearing made in Japan
Stirrer paddle: SUS316L
Scraper blade: PTFE material, white
Motor power: Depends on capacity
Speed: 0-75rpm, DELTA inverter
Adopting Germany Bergman mechanical seal, NSK bearing made in Japan
Heating element
Electric heating method Heat the thermal oil or water in the interlayer. Different powers are suitable for pots of different
capacities
capacities
Motor
Stirring motor
Homogeneous motor
Siemens BEIDE or ABB brand.
Homogeneous motor
Siemens BEIDE or ABB brand.
PRODUCT SPECIFICATIONS
Model | AHM-1000 |
Working capacity | 1000L |
Heating method | Steam/electric |
Mixing type | Upper frame oar scrape mixer |
Mixing motor power | 4KW |
Mixing frequency | 4KW |
Mixing Speed | 0-65rpm |
Homogenizer | Bottom homogenizer with frequency inverter |
Bottom Homogenizer power | 7.5KW |
Homogenizer frequency | 7.5KW |
Speed | 0-3600rpm (60Hz) |
Control method | Button control/ HMI |
Frequency converter | Delta/Panasonic/Mitsubishi |
Electrical components | Schneider/Delixi |
Jacket | Double jacket,3 layers |
Tank materials | Inner layer 5mm/SUS316 Middle layer 5mm/SUS304 Outer layer 3mm/SUS304 |
PRODUCT CONFIGURATION
Siemens Motor
Reducer
Delta Frequency inverter
Stator and rotor
Rotor
Materials SUS304&316L(TISCO)
Burgmann Mechanical seal
NSK Bearing
Omron temperature controller
Time Relay
Breaker
AC contactor
Indicator light, Schneider
Button , Schneider
Current Transformer,Delixi
Packing & Delivery
Packing
In strong wooden case(s), suitable for long-distance ocean/parcel post/air freight or land transportation and to change of climate, well protected against moisture and shocks.
