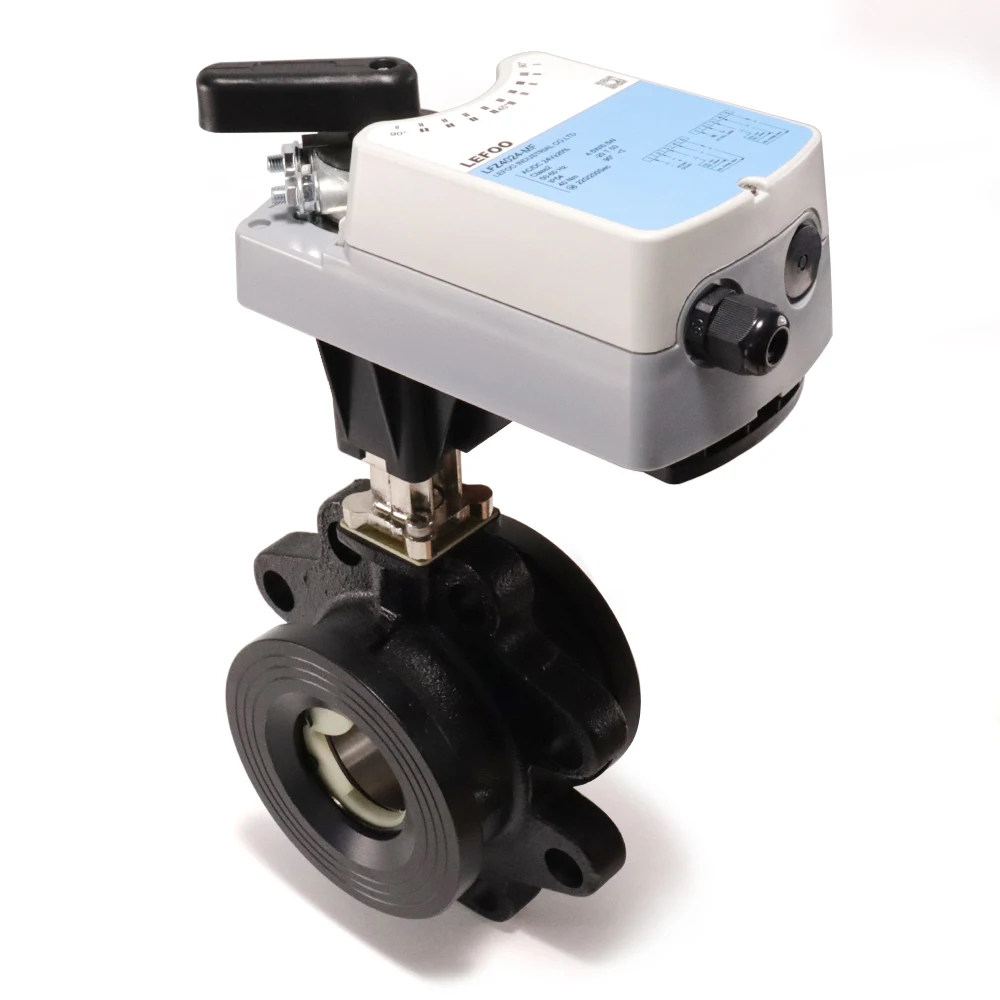

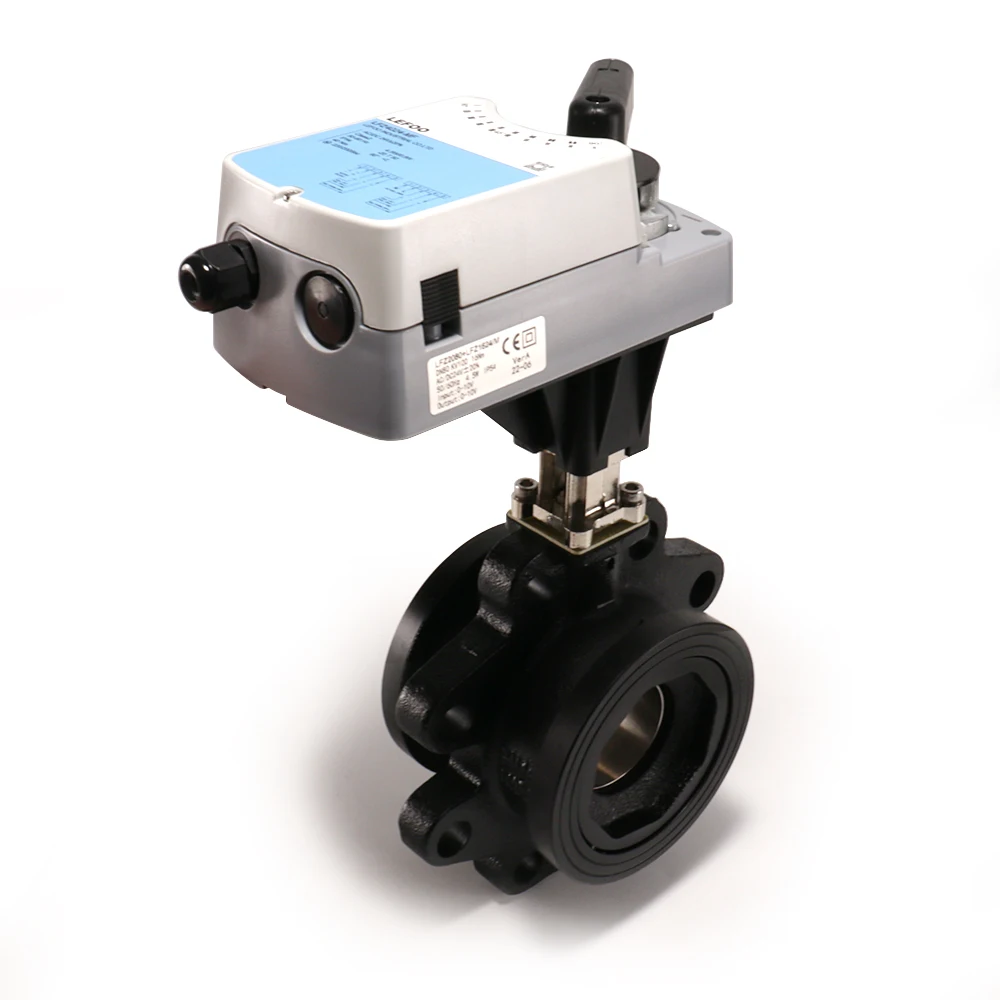

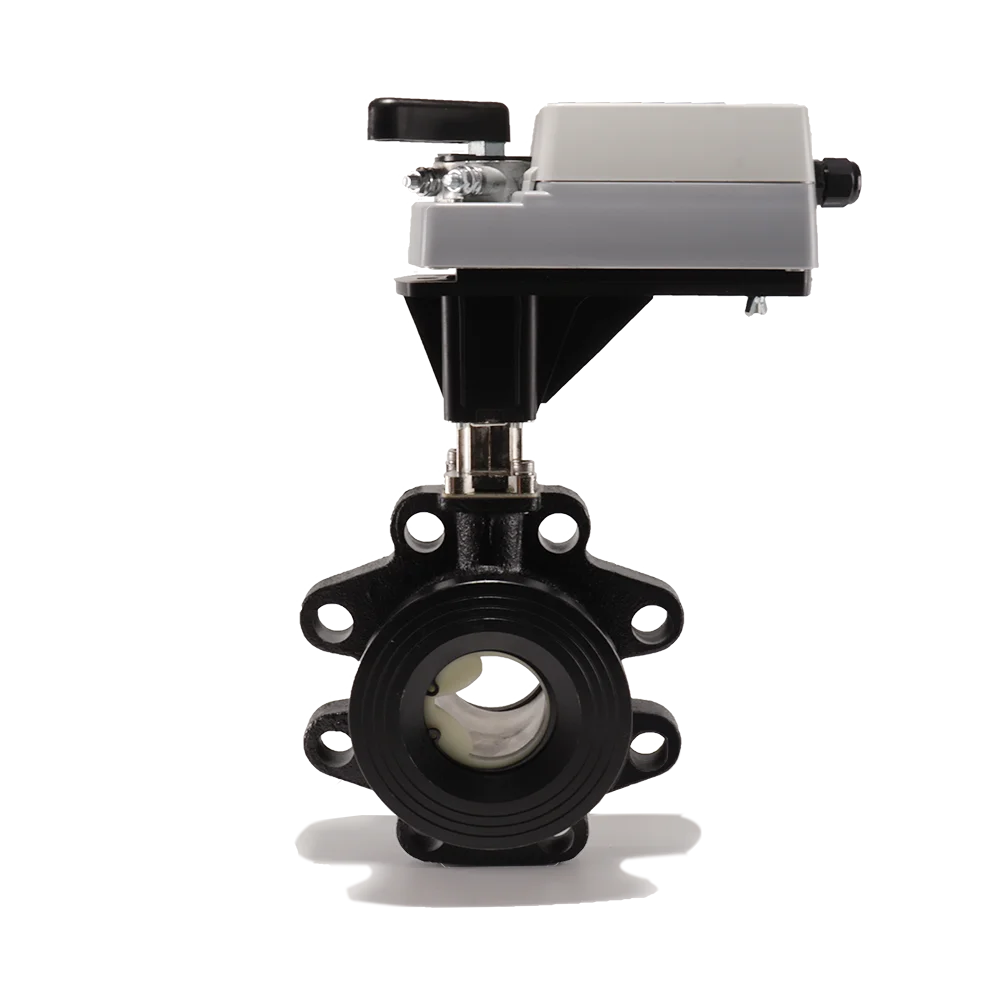

HVAC system 24v damper actuator with ball valve
- Category: Valves >>>
- Supplier: Zhejiang Lefoo Controls Co. Ltd.
Share on (1600624063152):
Product Overview
Description
Product Description
Products Description
In HVAC and water system, ball valves are used as automatic control valves.
It has adjustable flow ratio, high reliability and long ser vice life. It uses graphite to
strengthen the valve body sealing ring and double EPDM valve stem sealing ring.
It has integrated valve distribution butterfly inside and is not afraid of reverse pressure difference. It has the characteristic of equal percentage flow.
Its high turn-off pressure is 1.4MPa. The rated working pressure is PN20. The maximum working pressure difference is 0.35Mpa. It has a manual actuator short-circuit push button. Working temperature is -5 to 121 °C.
It is suitable for central air conditioning, hot and cold water supply system, steam humidification, etc.
It has adjustable flow ratio, high reliability and long ser vice life. It uses graphite to
strengthen the valve body sealing ring and double EPDM valve stem sealing ring.
It has integrated valve distribution butterfly inside and is not afraid of reverse pressure difference. It has the characteristic of equal percentage flow.
Its high turn-off pressure is 1.4MPa. The rated working pressure is PN20. The maximum working pressure difference is 0.35Mpa. It has a manual actuator short-circuit push button. Working temperature is -5 to 121 °C.
It is suitable for central air conditioning, hot and cold water supply system, steam humidification, etc.
Product Specification
Model | Diameter | two-way flow | three-way branch flow | power supply | control signal | F auxiliary switch |
LFZ-DQ 15 | DN 15 | 4.00 | 2.5 | AC/DC24V/230V | switch/adjust | one set |
LFZ-DQ 20 | DN 20 | 4.00 | 2.5 | AC/DC24V/231V | switch/adjust | one set |
LFZ-DQ 25 | DN 25 | 10.00 | 6.3 | AC/DC24V/232V | switch/adjust | two sets |
LFZ-DQ 32 | DN 32 | 16.00 | 10 | AC/DC24V/233V | switch/adjust | two sets |
LFZ-DQ 40 | DN 40 | 25.00 | 16 | AC/DC24V/234V | switch/adjust | two sets |
LFZ-DQ 50 | DN 50 | 40.00 | 25 | AC/DC24V/235V | switch/adjust | two sets |
LFZ-DQ 65 | DN 65 | 63.00 | / | AC/DC24V/236V | switch/adjust | two sets |
LFZ-DQ 80 | DN 80 | 100.00 | / | AC/DC24V/237V | switch/adjust | two sets |
LFZ-DQ 100 | DN 100 | 160.00 | / | AC/DC24V/238V | switch/adjust | two sets |
LFZ-DQ 125 | DN 125 | 250.00 | / | AC/DC24V/239V | switch/adjust | two sets |
LFZ-DQ 150 | DN 150 | 400.00 | / | AC/DC24V/240V | switch/adjust | two sets |
Technical Parameters
General | Value | General | Value |
Diameter range | DN15-DN150 | Rotation angle | 0-90° |
Connection mode | DN15-DN50(female thread connection) DN65-DN150(flanged connection) | Installation position | vertical installation |
medium | Hot and cold water, unsaturated steam, 50% ethanol water, etc. | Flow characteristics | Equal percentage |
Medium temperature range | -5℃-120℃ | Bearing pressure of valve body | 1.6Mpaflang2.0Mpa screw thread |
Adjustable ratio of valve | >100 | Material of valve body | Forged brass (thread) nodular cast iron (flange) |
Leakage rat | no leakage from the factory | Valve core material | 304 stainless steel |
Max.allowable pressure difference | 0.35Mpa | Valve stem material | 304 stainless steel |
Max. cut off pressure difference | 1.4Mpa | Sealing ring | EPDM |
