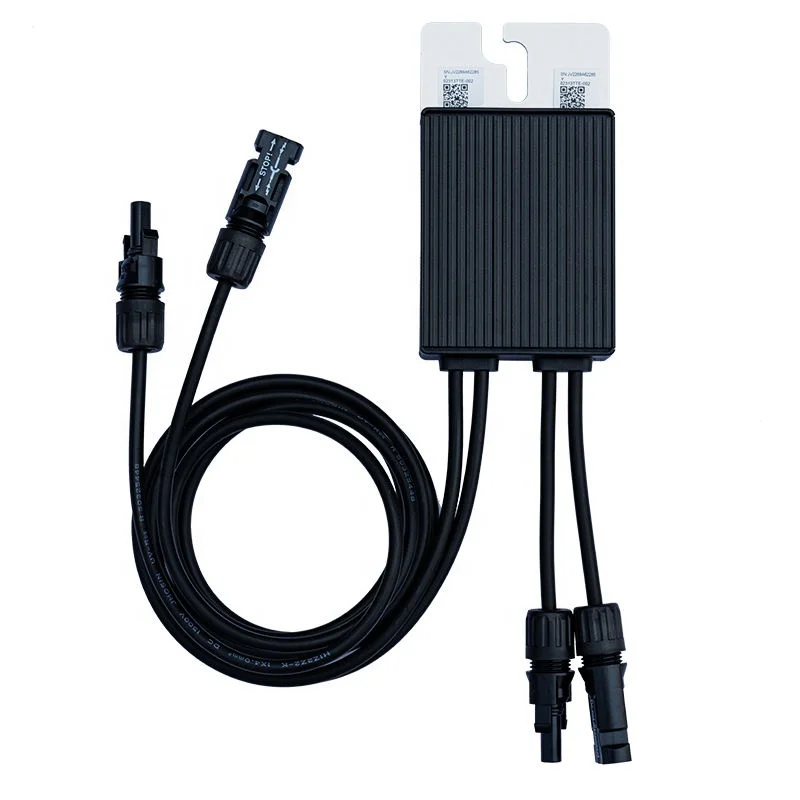

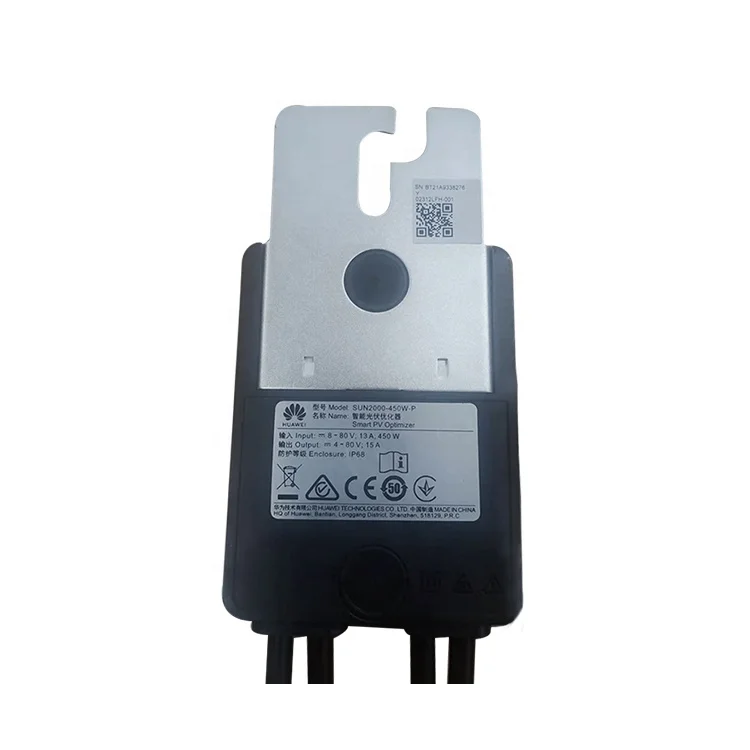

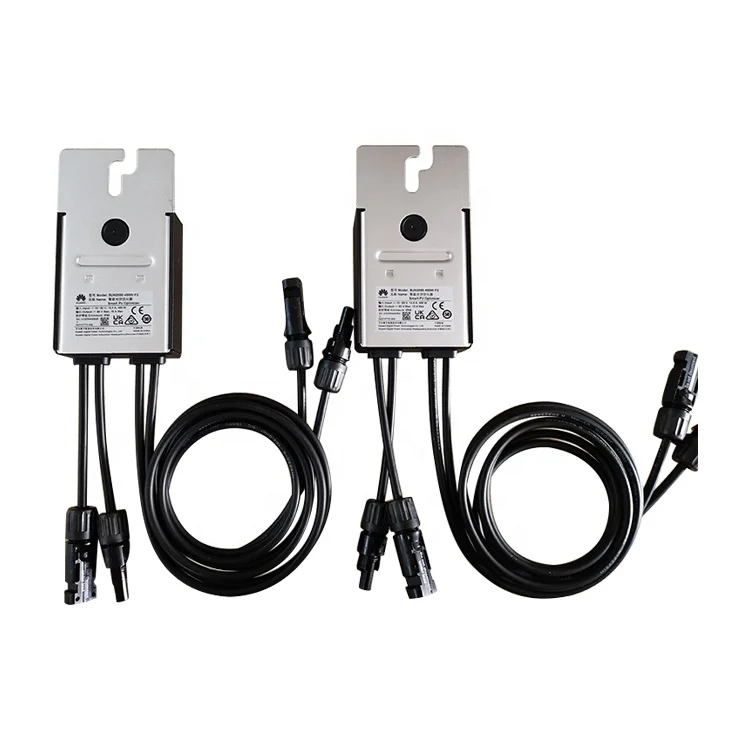

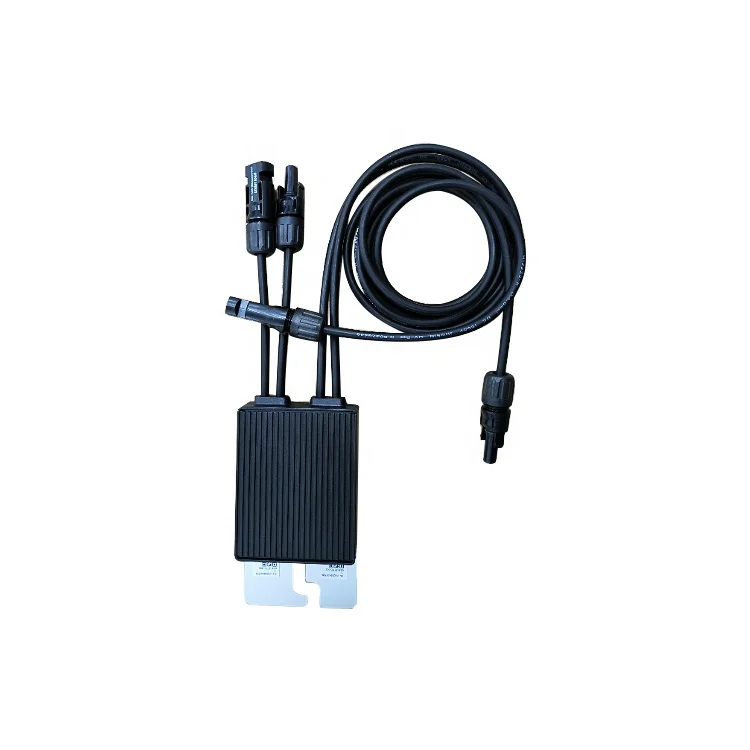

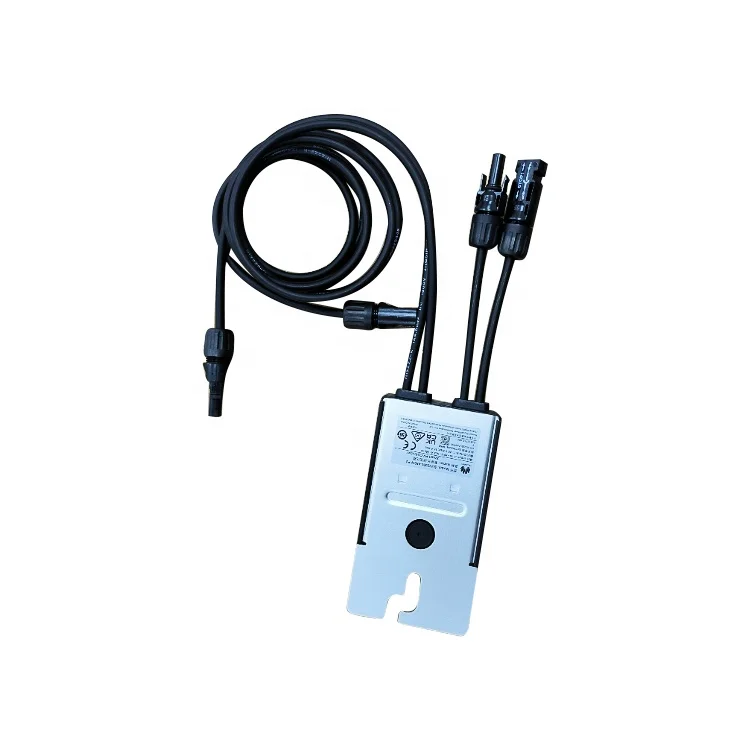

Solar SUN2000 600W P 6Optimizer 00W Smart Solar PV Optimizer for Huawei
- Category: >>>
- Supplier: Shenzhen Yifang Technology Co. Limited
Share on (1600624094479):
Product Overview
Description
Details Images
Technical Specification | SUN2000-450W-P | SUN2000-600W-P | ||
Input: | ||||
Rated Input DC Power | 450W | 600W | ||
Absolute maximum input voltage | 80 V | |||
MPPT operating voltage range | 10 - 80 V | |||
Maximum Short Circuit Current (Isc) | 14.5 A | |||
Max. efficiency | 99.5 % | |||
Weighted efficiency | 99.0 % | |||
Overvoltage category | II | |||
Output | ||||
Max. output voltage | 80V | |||
Max. output current | 15A | |||
Output bypass | YES | |||
Shutdown output voltage per optimizer | 0V | |||
Shutdown output impedance per optimizer | 1k Ω ± 10 % | |||
Standard Compliance | ||||
Safety | IEC62109-1 (class II safety) | |||
RoHS | Yes | |||
General Data | ||||
Dimension (W x H x D) | 71 x 138 x 25 mm (2.8 x 5.4 x 1.0 inch) | |||
Weight (including cables) | 0.55 kg (1.2 lb.) | |||
Installation part (optional) | Grounding Plate, Grounding Lug, PV Module Frame Plate | |||
Input connector | Staubli MC4 | |||
Output connector | Output connector | |||
Input wire length | 0.15 m (0.5 ft.) | |||
Output wire length | 1.2 m (3.9 ft.) | |||
Operating temperature / humidity range | -40 ℃～85 ℃ 5 / 0 %RH～100 %RH | |||
Degree of protection | IP68 | |||
Compatible product | SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20KTL-M2, SUN2000-30/36/40KTL-M3 | |||
