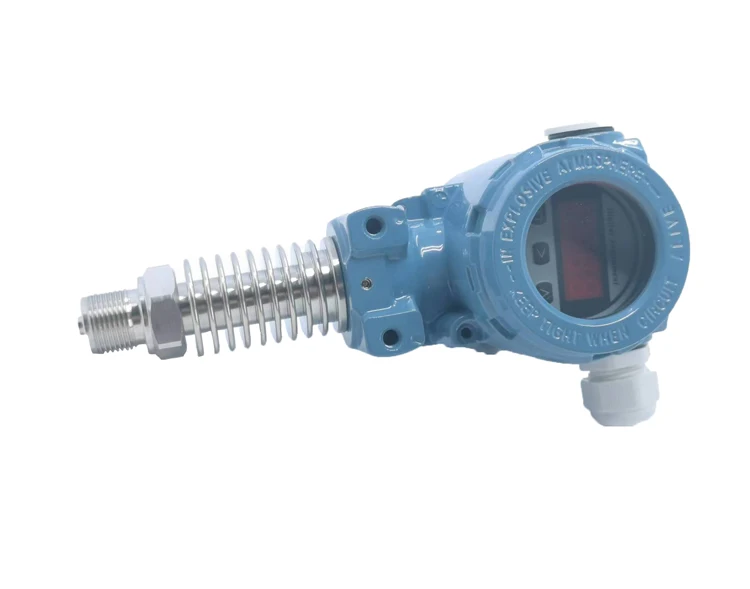

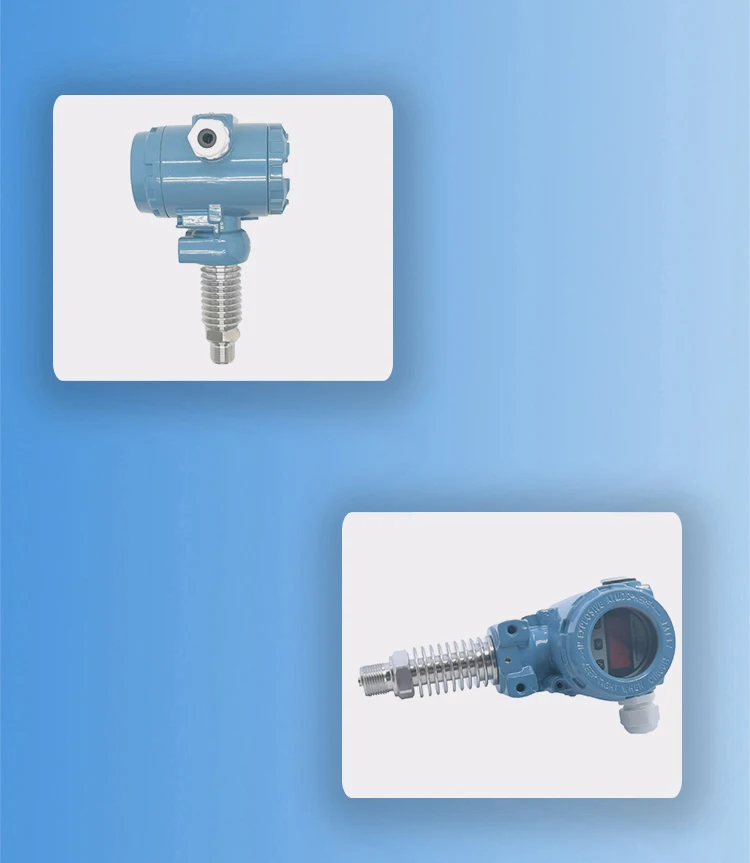

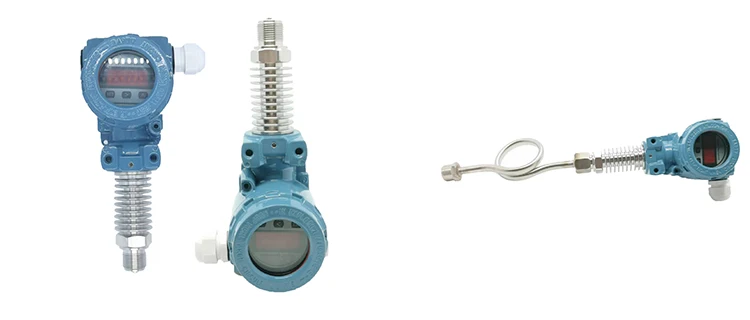

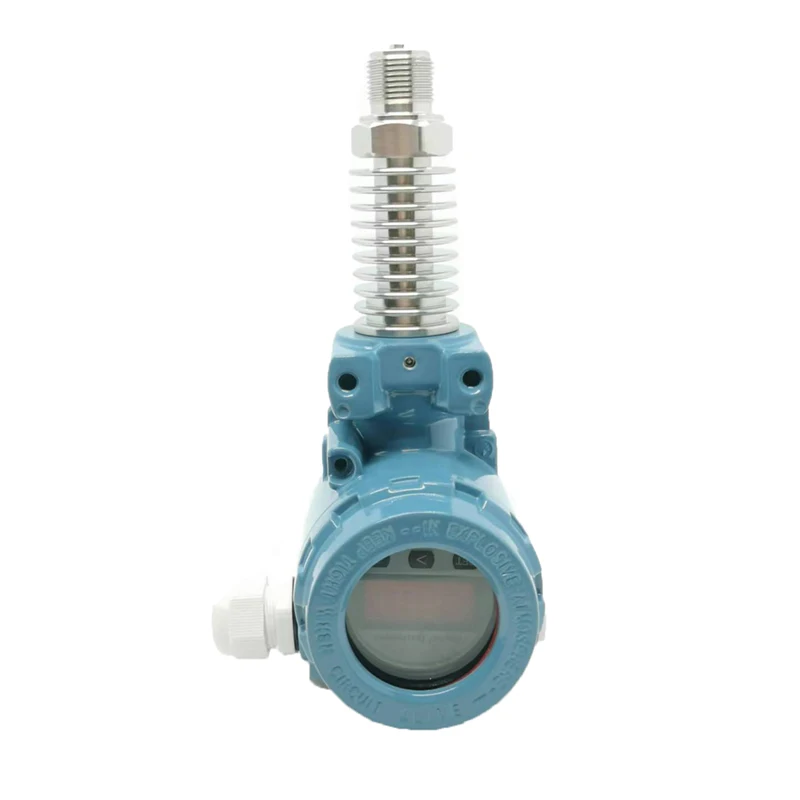

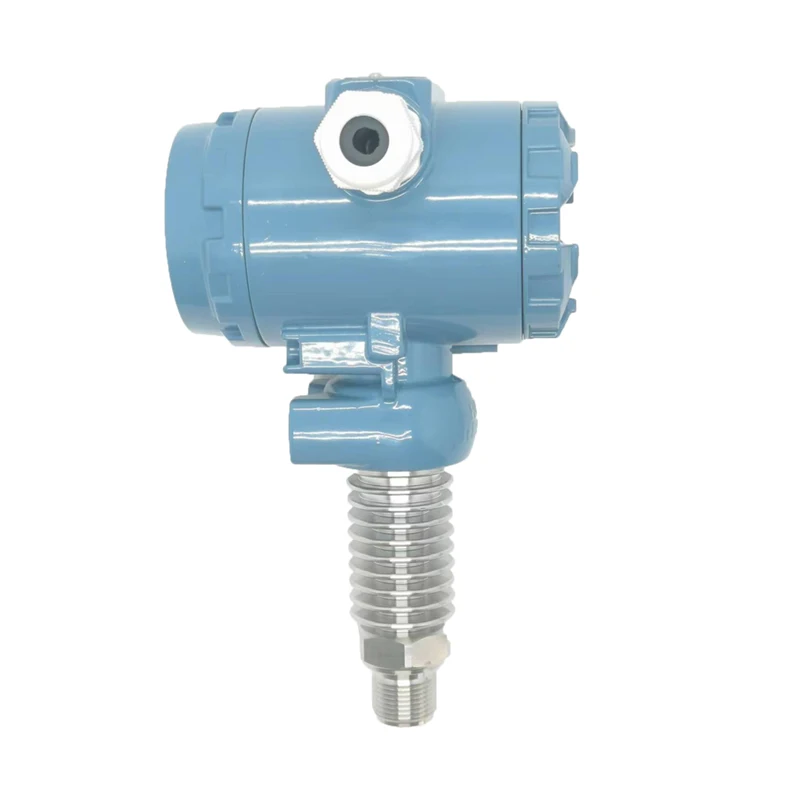

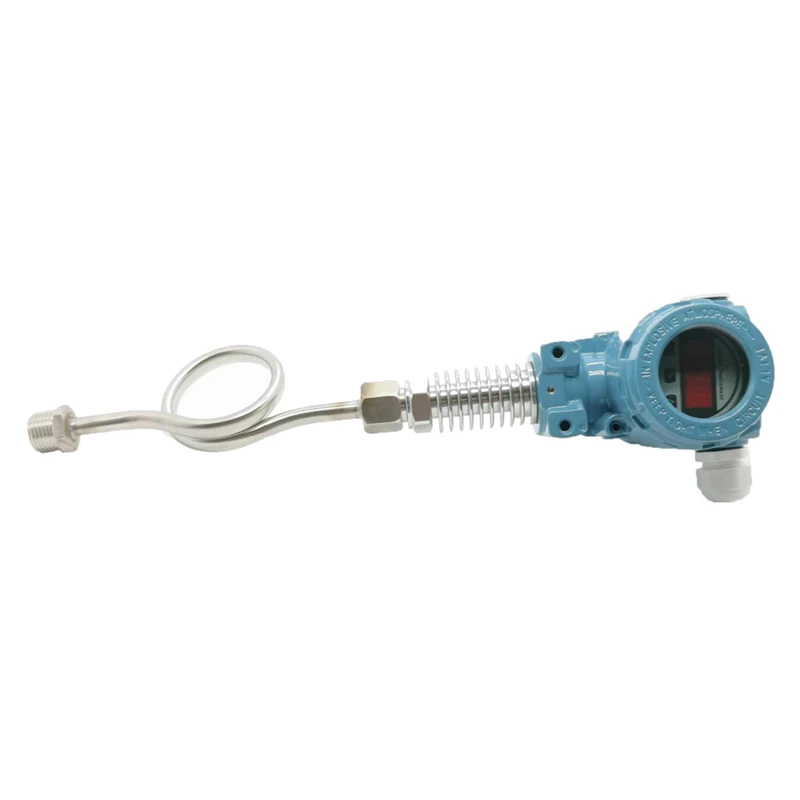

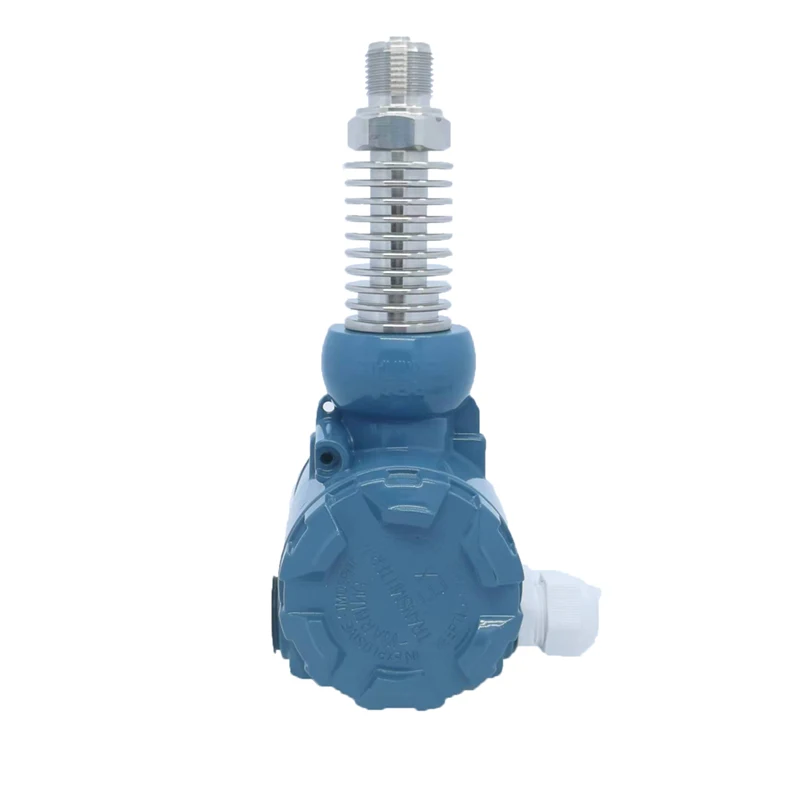

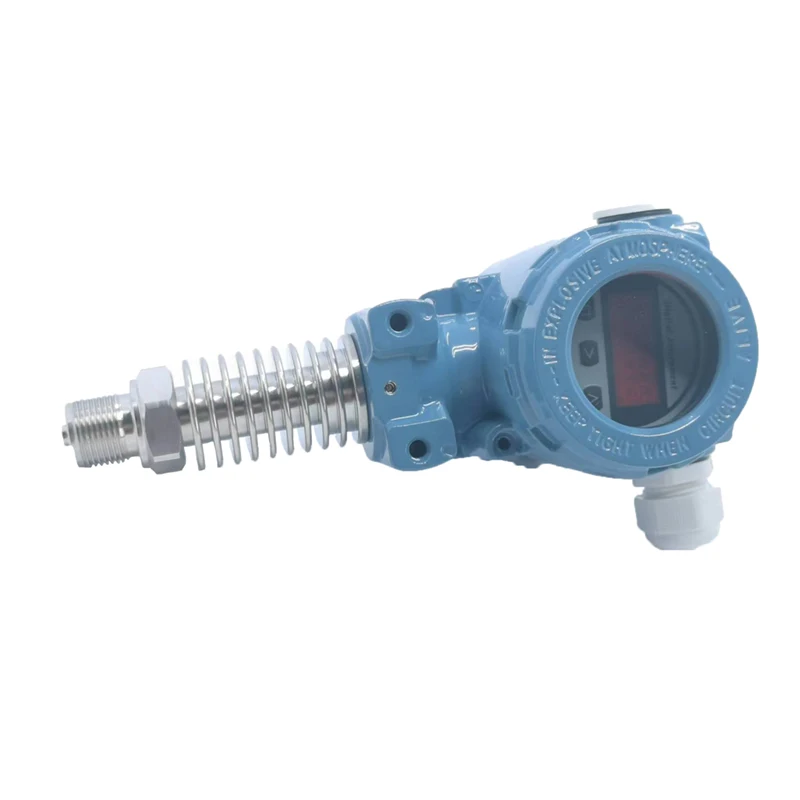

Model 2088 High Temperature Resistance LED Display Pressure Transmitter 4 20ma Vacuum Absolute Water Pipe Transducer 0~600Bar
- Category: >>>
- Supplier: Shanghai Zhixiang Sensor Technology Co. Ltd.
Share on (1600624101892):
Product Overview
Description
Model 2088 High Temperature Resistance LED Display Pressure Transmitter 4-20ma Vacuum Absolute Water Pipe Transducer 0~600Bar
Descriptions
XDB400-3 series pressure transmitter pressure sensitive core adopts high performance silicon piezoresistive pressure filling core. The internal ASIC converts the sensor millivolt signal into standard voltage, current or frequency signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC. Current output mode can be used for distance transmission. It has small volume, light weight, all stainless steel sealing structure and can work in corrosive environment. The product is easy to install and has high anti-vibration and anti-impact performance. It is widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC and other fields.
Model 2088 High Temperature Resistance LED Display Pressure Transmitter 4-20ma Vacuum Absolute Water Pipe Transducer 0~600Bar

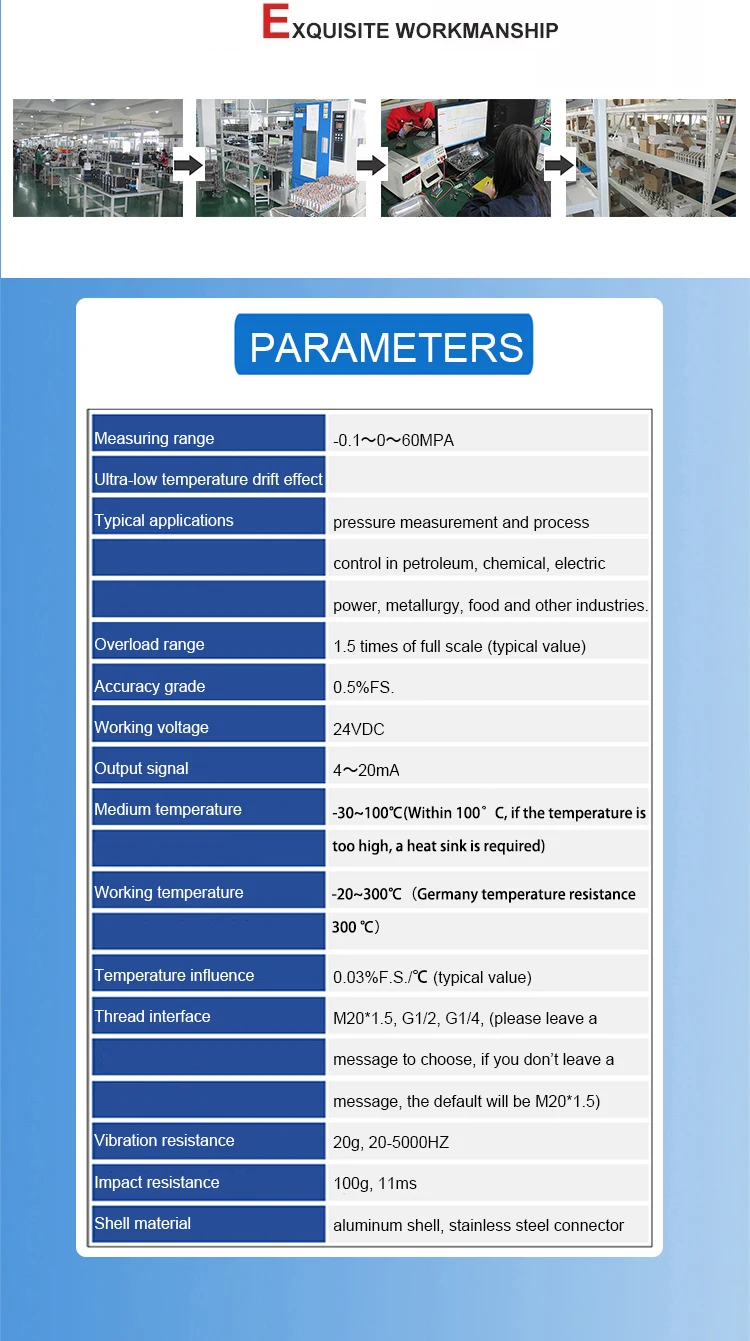

Parameters
Measuring range | -0.1~0~60MPA |
Ultra-low temperature drift effect | |
Typical applications | pressure measurement and process control in petroleum, chemical, electric power, metallurgy, food and other industries |
Overload range | 1.5 times of full scale (typical value) |
Accuracy grade | 0.5%FS |
Working voltage | 24VDC |

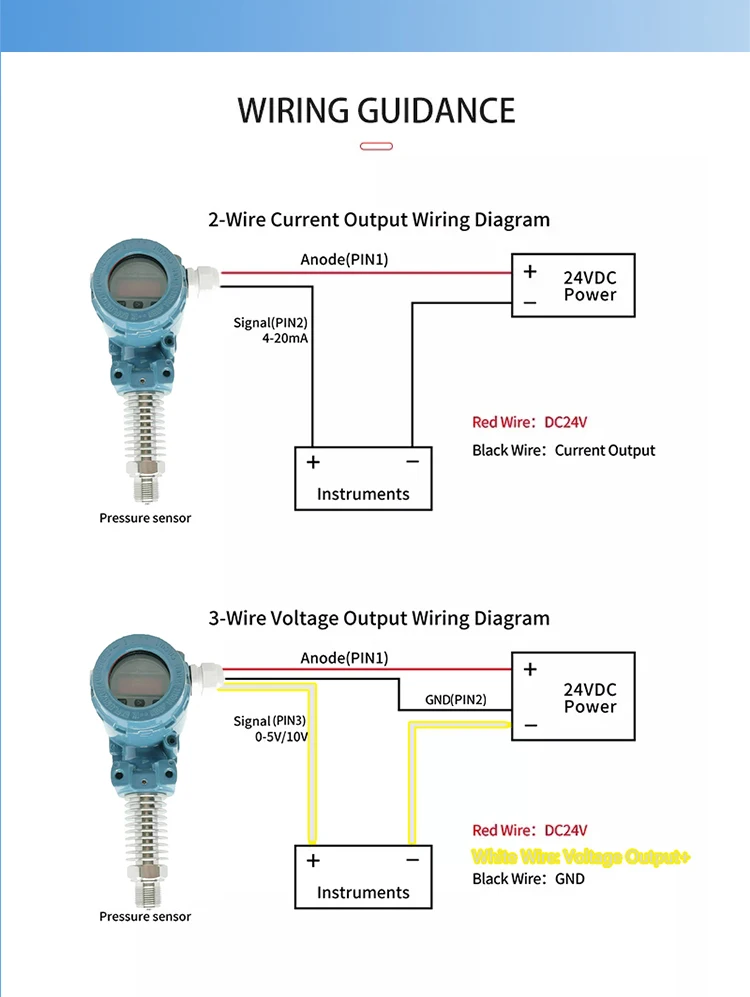

Output signal | 4~20mADC |
Medium temperature | -30~100℃(Within 100℃,if the temperature is too high,a heat sink is required) |
Working temperature | -20~300℃(Germany temperature resistance 300℃) |
Temperature influence | 0.03%F.S./℃ (typical value) |
Thread interface | M20*1.5, G1/2, G1/4, (please leave a message to choose, if you don’t leave a message, the default will be M20*1.5) |
Vibration resistance | 20g, 20-5000HZ |
Impact resistance | 100g, 11ms |
Shell material | aluminum shell, stainless steel connector |
Q1: What's your business range?
We have piezoresistive ceramic pressure sensor production lines and MEMS technology to provide customers with high-quality, low-price pressure sensors and transmitter products.
Q2: May I visit your factory?
Of course, welcome to Shanghai, China. Our factory and sales are two separate professional companies.
Q3: Why should I use Alibaba Trade Assurance orders?
Trade Assurance order is a guarantee to buyer by Alibaba,For after-sales, returns, claims etc.
Q4: Why choose us?
1. We have been engaged in the field of pressure sensors for more than 10 years.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.
Q5: Can you accept ODM & OEM service ?
We professional provide OEM &ODM service for all of items.
If you have other questions, please feel free to contact us, thank you!
