Unionwell new design sealed IP67 Waterproof Momentary Micro Switch G9A05
- Category: >>>
- Supplier: Huizhou Unionwell Sensing & Control Electronics Co. Ltd.
Share on (1600624103255):
Product Overview
Description

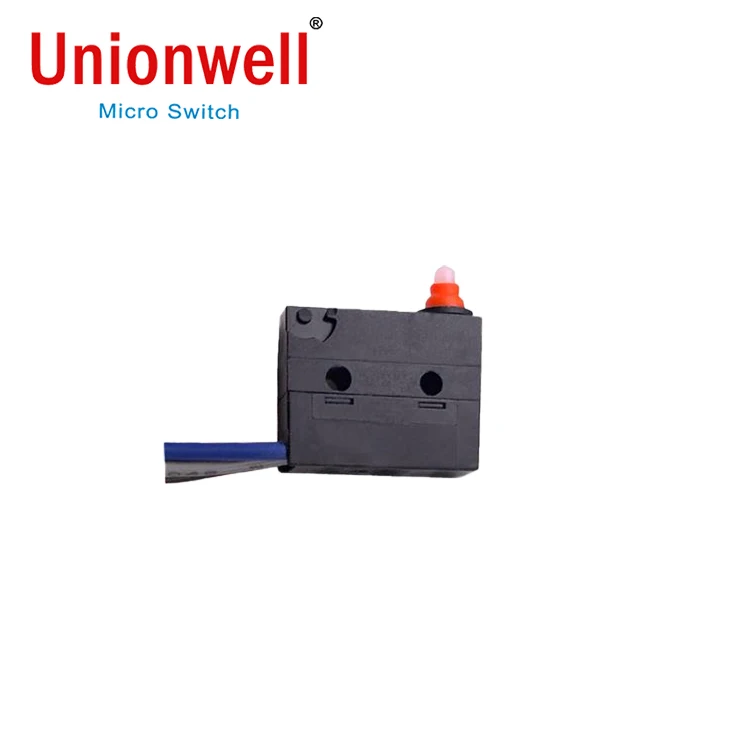

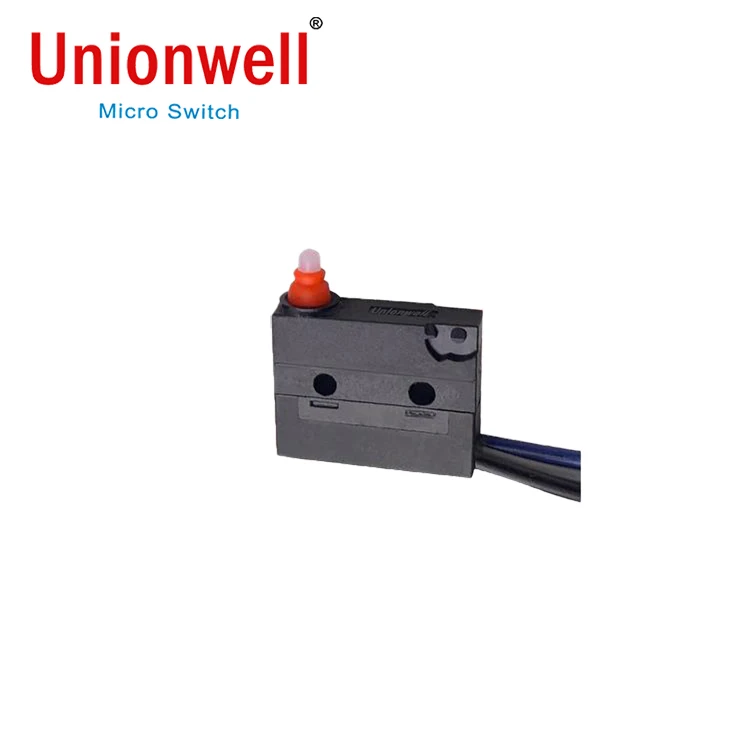

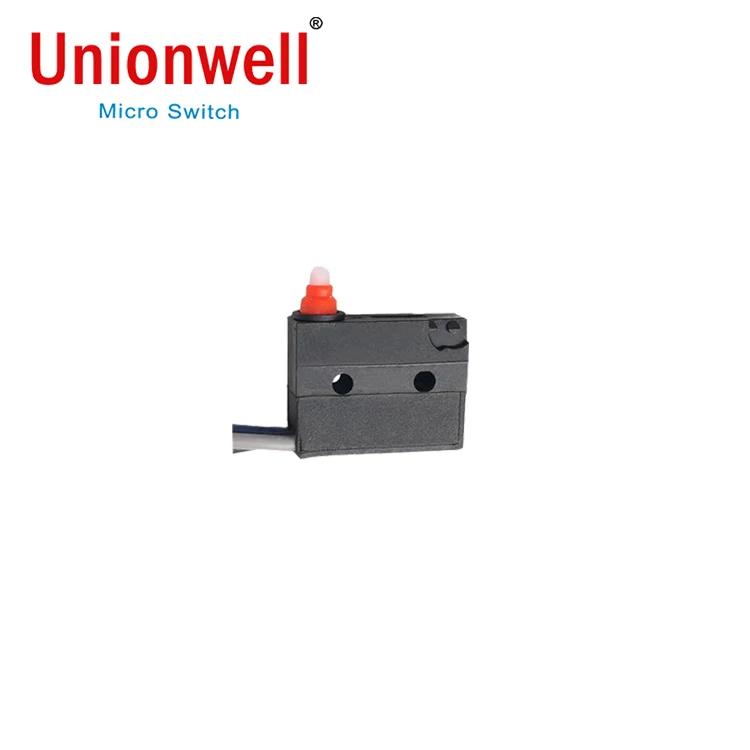

Unionwell G9A05 IP67 Waterproof Momentary Micro Switch
Product Description
Feature:
- Tight Configuration,Small Contact Gap,Snap Action
- Long Life,High Reliability
- Global Safety Approvals
- Variety Of Terminals
- Wide Range Operating Force
- Wide Range Temperature Grade
- With Optional PTI Grade
- Variety Of Levers
Parameters:
| Place of Origin | Guangdong, China (Mainland) |
| Brand Name | Unionwell |
| Model Number | G9A05-200F00AF-500U |
| Operation Force | 200gf Max |
| Terminal Style | Molded lead wires leads to right side(opposite to pin plunger side) |
| Lever Type | No lever pin plunger |
| Circuit Code | SPDT |
| Wires Length | 500mm length standard lead wires |
| Rating | p1 | 0.1A 125/250VAC,0.1A 30VDC |
| 05 | 5(2)A 125/250VAC,5A 30VDC | |
| Operating Frequency | Electrical | 10~30 cycles/minute |
| Mechanical | 120 cycles/minute | |
| Contact Resistance(Initiative) | With terminals type | 100mΩ Max |
| With wires type | 200mΩ Max | |
| Insulation Resistance (at 500VDC) | 100MΩ Min | |
| Voltage Resistance | Between terminals | AC 500V, 50/60HZ,1 Min |
| Between terminals and uncharged metal parts | AC 1000V, 50/60HZ,1 Min | |
| Service Life | Electrical | 50,000 cycles |
| Mechanical | 200,000 cycles(IP67) 2,000,000 cycles(IP40) | |
| Storage Temperature | —40°C~+85°C | |
| Storage Humidity | 95% RH Max | |
Certifications
company information
Unionwell Advantages
1. ISO9001 & IATF16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
Packaging & Shipping
Package List
Trade Records
Business Partners
FAQ
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A) Yes, free samples could be provided within 2-5 days.
Q5, What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series,
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
