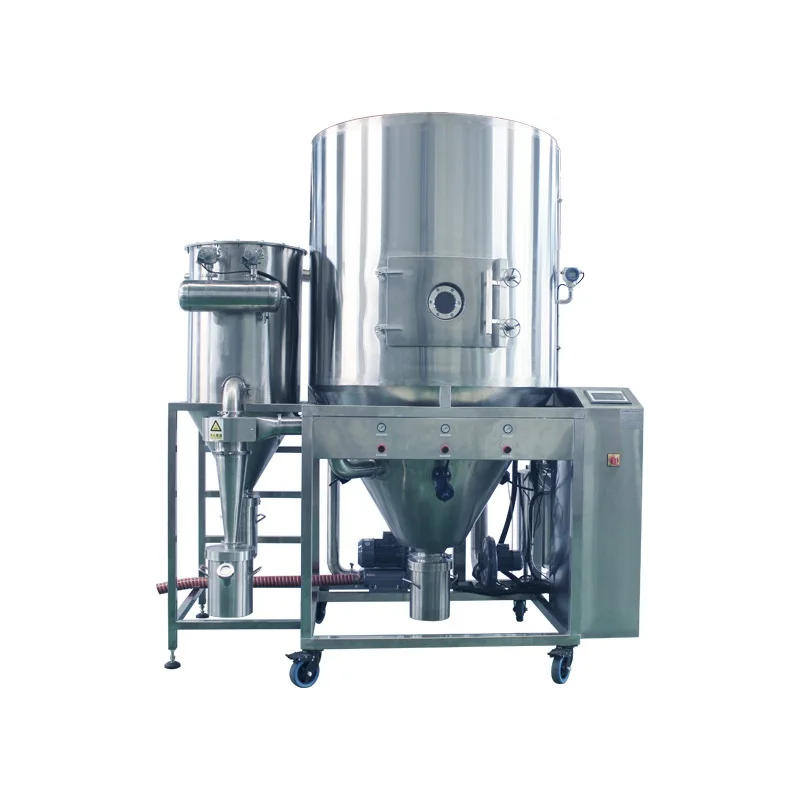

LPG industrial spray dryer price
- Category: >>>
- Supplier: Wuxi Nanwei Machinery Technology Co. Ltd.
Share on (1600624103583):
Product Overview
Description
Specification
Overview
1. Drying liquid or slurry materials into dry powder
1. Drying liquid or slurry materials into dry powder
2. Atomizing type: centrifugal atomizer
3. Evaporation capacity: 5-100 kg/h
4. Heat source: steam, electricity, thermal oil or gas/oil/coal fired hot air generator
4. Heat source: steam, electricity, thermal oil or gas/oil/coal fired hot air generator
Working Principle
Spray drying is a method of producing dry powder from liquid or slurry materials by rapidly drying with a hot gas. This is the preferred method of drying of many thermally-sensitive materials such as foods and pharmaceuticals.

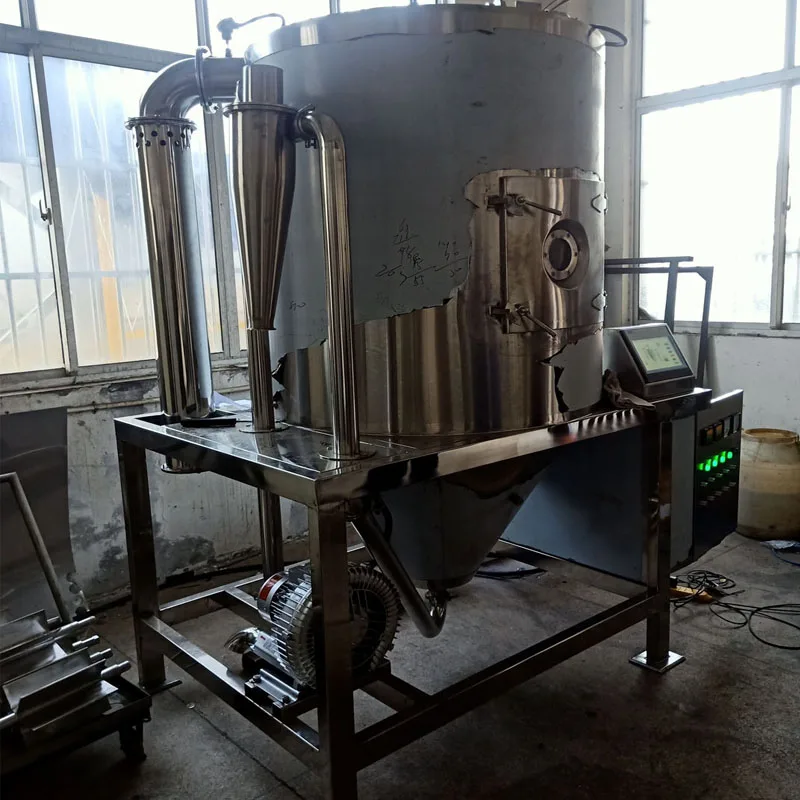

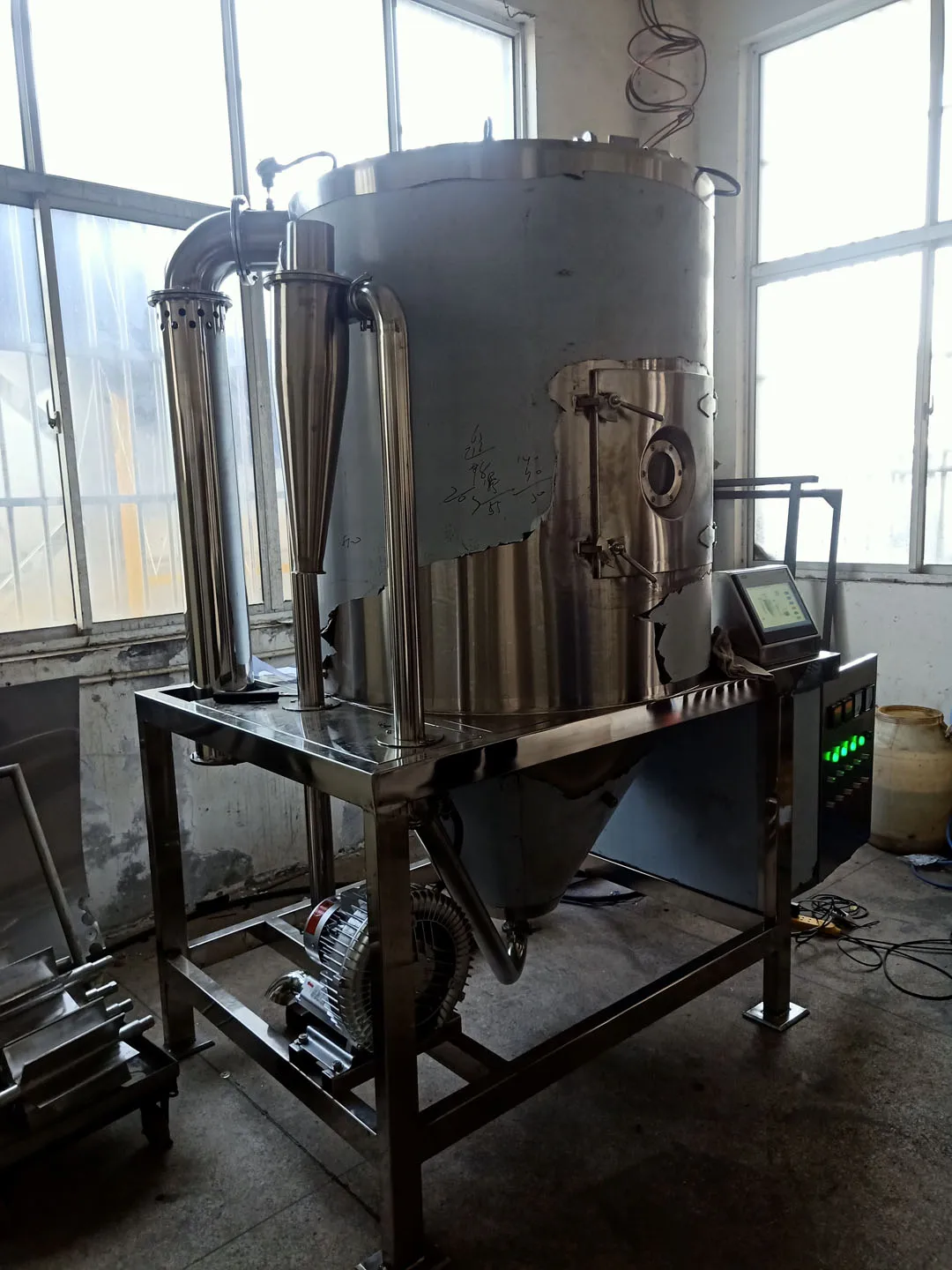

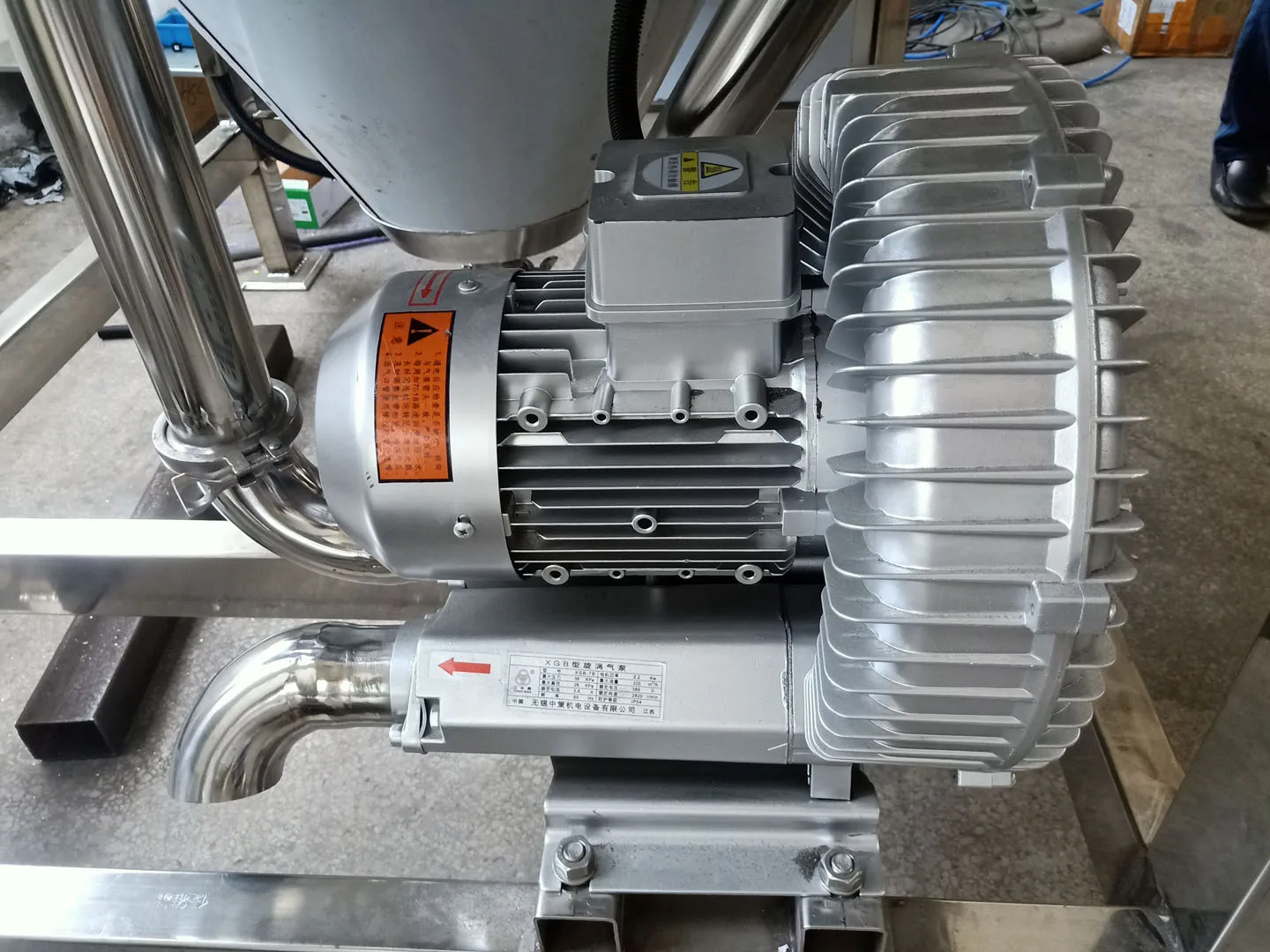

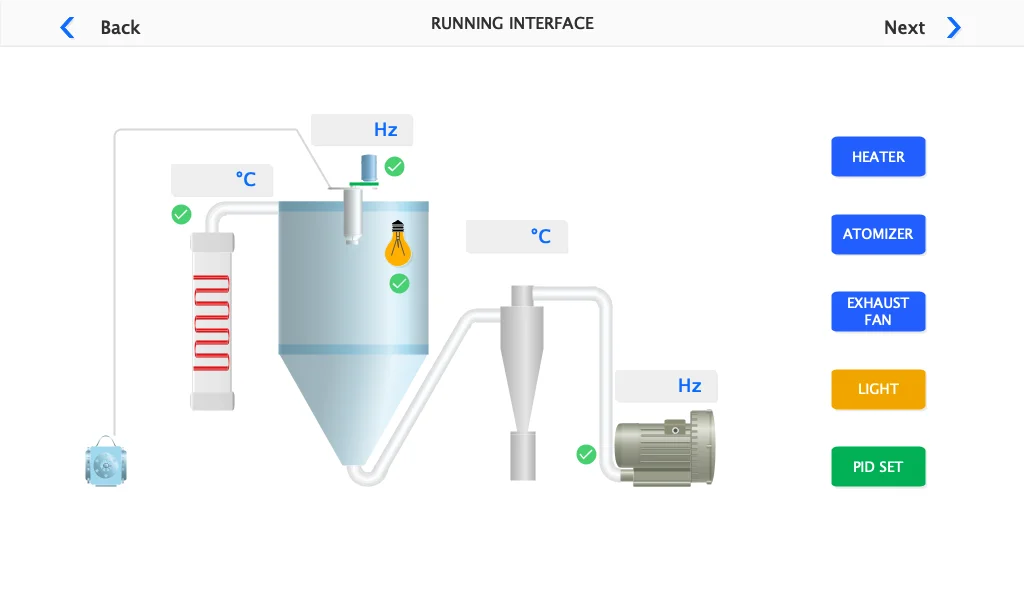

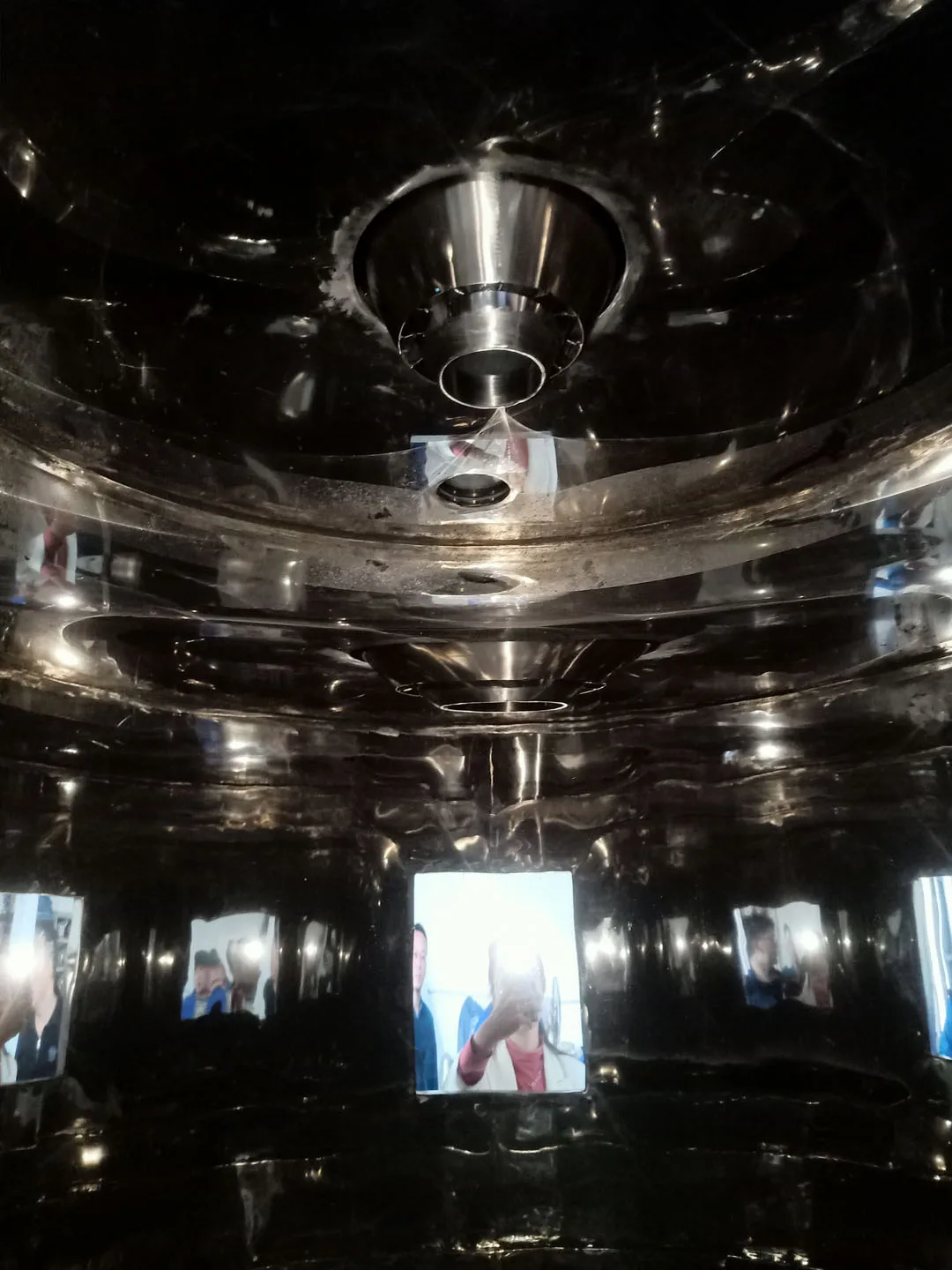

Liquid material is pumped into the top installed centrifugal disc atomizer by mono pump and atomized into fine droplets inside the drying chamber. Meanwhile, clean hot air is blown into the air distributor at the same time. The evenly and swirly distributed hot air completely contacts with droplets for heat transfer. The droplets are dried into powder in several seconds and sucked out into the cyclone for discharging via exhaust fan.

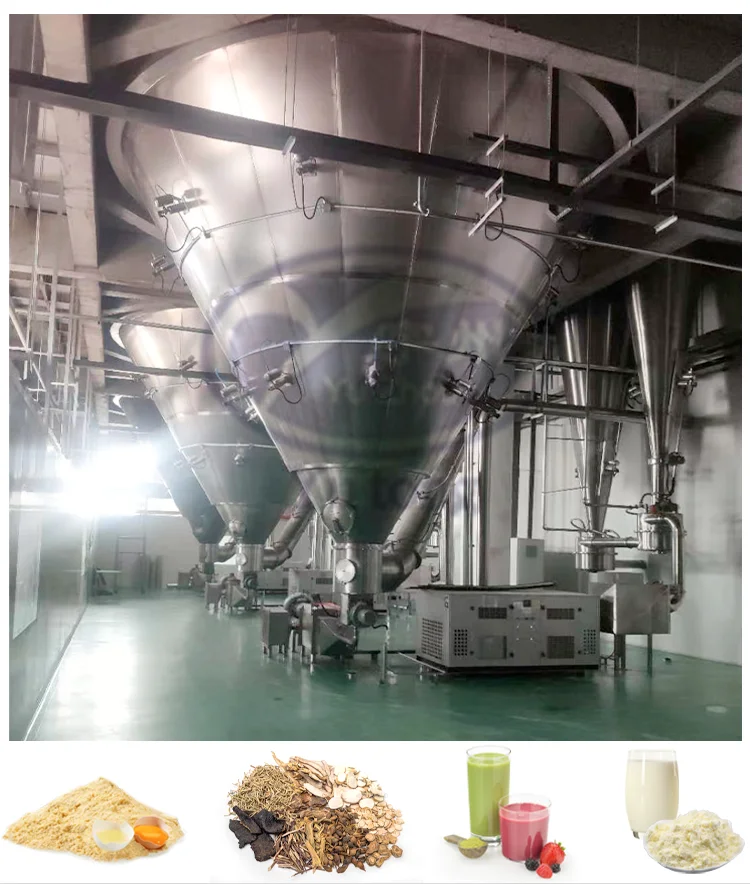

LPG series spray dryer has been widely used in pharmaceutical, chemical and foodstuff industry for drying liquid material into fine powder.
Liquid material is pumped into the top installed centrifugal disc atomizer by mono pump and atomized into fine droplets inside the drying chamber. Meanwhile, clean hot air is blown into the air distributor at the same time. The evenly and swirly distributed hot air completely contacts with droplets for heat transfer. The droplets are dried into powder in several seconds and sucked out into the cyclone for discharging via exhaust fan.
LPG series spray dryer has been widely used in pharmaceutical, chemical and foodstuff industry for drying liquid material into fine powder.
Main Features
distribution.
2) The evaporative cooling of product: The heat and mass transfer during drying occurs in the air and vapor films surrounding the droplet. This protective envelope of vapor keeps the particle at the saturation temperature. As long as the particle does not become "bone-dry", evaporation is still taking place and the temperature of the solids will not approach the dryer outlet temperature.
3) Short residence time: The surface area produced by atomization of the liquid feed enables a short gas residence time, ranging from 3-10 seconds depending upon the application, which permits spray drying without thermal degradation.
4) Flow properties of dry product: The shape of most spray dried particles is spherical, which provides for fluid-like flow
properties. This makes many downstream operations, such as packaging, pressing, filtering, and handling easier and less costly.
5) Size design of drying chamber: The size of drying chamber is specially designed to prevent droplets sticking to the inner wall, dried powder accumulating on the cone part and guarantee enough residence time.
Products Description
Recommend Products
Company Profile
Wuxi Nanwei Machinery Technology Co., LTD is a professional manufacturer with 12 years of manufacturing experience in evaporation equipment, pharmaceutical equipment, dairy equipment, juice and beverage equipment, drying equipment in China. Our factory covers an area of 4200 square meters and has 47 skilled workers. So far, we have produced and installed more than 140 projects at home and abroad. Such as Southeast Asia, India, Africa, Britain, Canada, Turkey, Germany, Honduras, Peru, Argentina, etc.
Our products are widely used in the pharmaceutical, dairy, beverage, juice, food and chemical industries. Nanwei company is responsible for the design, production, installation, commissioning, training, and thoughtful after-sales service.
Our products are widely used in the pharmaceutical, dairy, beverage, juice, food and chemical industries. Nanwei company is responsible for the design, production, installation, commissioning, training, and thoughtful after-sales service.
Our mission is to offer high quality machines with satisfactory prices. Welcome to visit our factory. We are happy to show you our machines and projects. We look forward to establishing business relationships with you and growing together.
