Industry Equipment 1kw 1.5 kw Single Pallet with Pipe Steel Fiber Sheet Metal Laser Cutting Machine
- Category: >>>
- Supplier: Wuhan BST LASER Machinery Co. Ltd
Share on (1600624203012):
Product Overview
Description
Industry Equipment 1kw 1.5 kw Single Pallet with Pipe Steel Fiber Sheet Metal Laser Cutting MachineI
Product Description

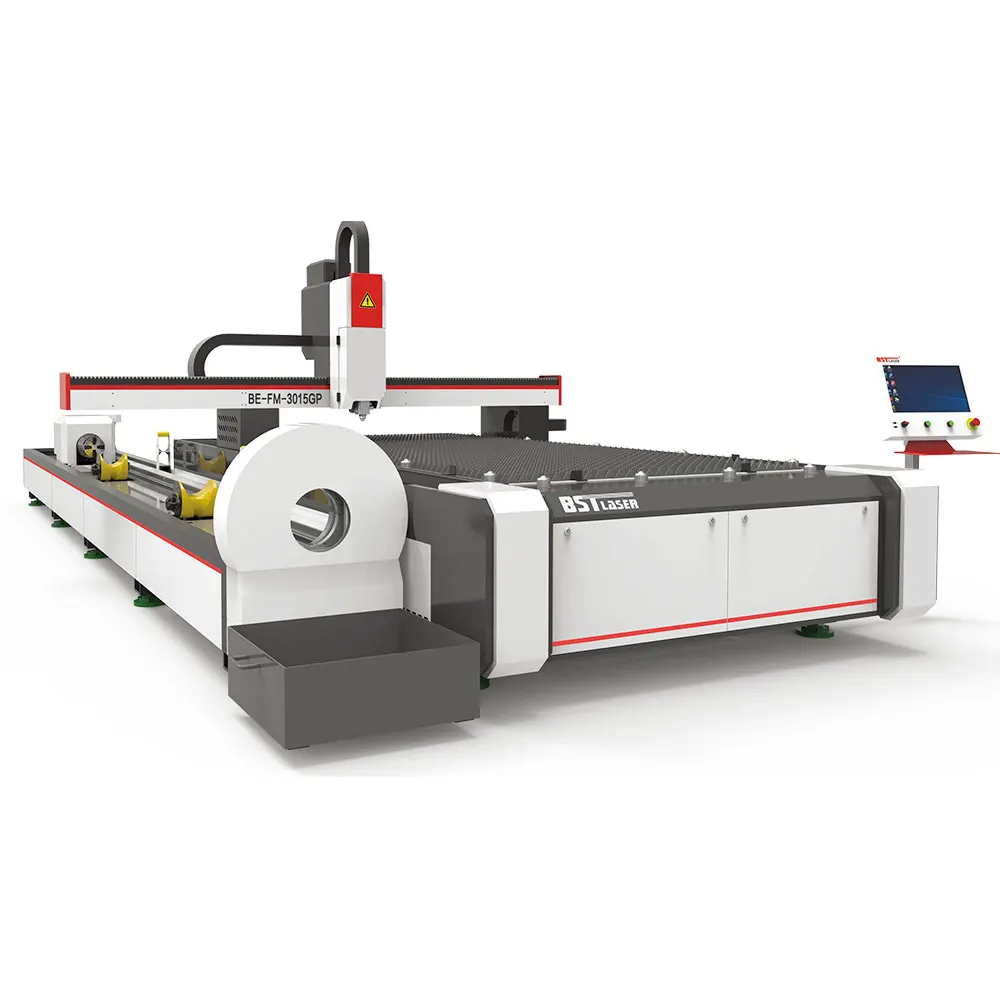

The plate and pipe fiber metal laser cutter is an upgraded model for both cutting sheet and tube,rich in equipment functions. Solve the cutting scheme of many kinds of workpiece,Safe and reliable switching sheet and tube cutting function.It adopts an electric clamp design on both sides and it can modulate the center automatically,the diagonal adjustable range is 20-200mm. (other size can be customized )
SATNDARD COMPONENTS

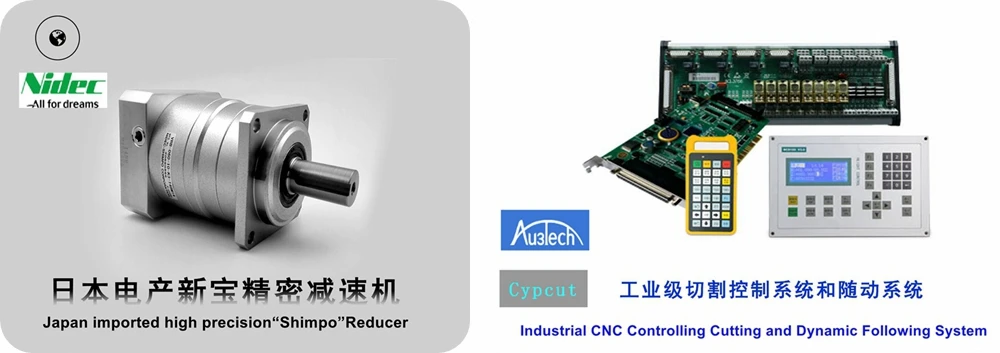

CYPCUT®FSCUT3000S CNC Control System
Fuji®High Dynamic EtherCAT servo drive
BSTLASER®Dynamic System 4.0:1.5g Acceleration
BSTLASER®Fast Piercing 2.0:Ultra Performation
Automatic Table Ezchanger 3015 (Optional 4015,4020,6015,6020)
Smoke Extraction Fan System
Fiber Laser Source Raycus 2000w 3000w 4000w 6000w
Class IV safety system and CE marking
CYPCUT®Embedded Pcs:Industrial PCs with direct ly integrated I/O level

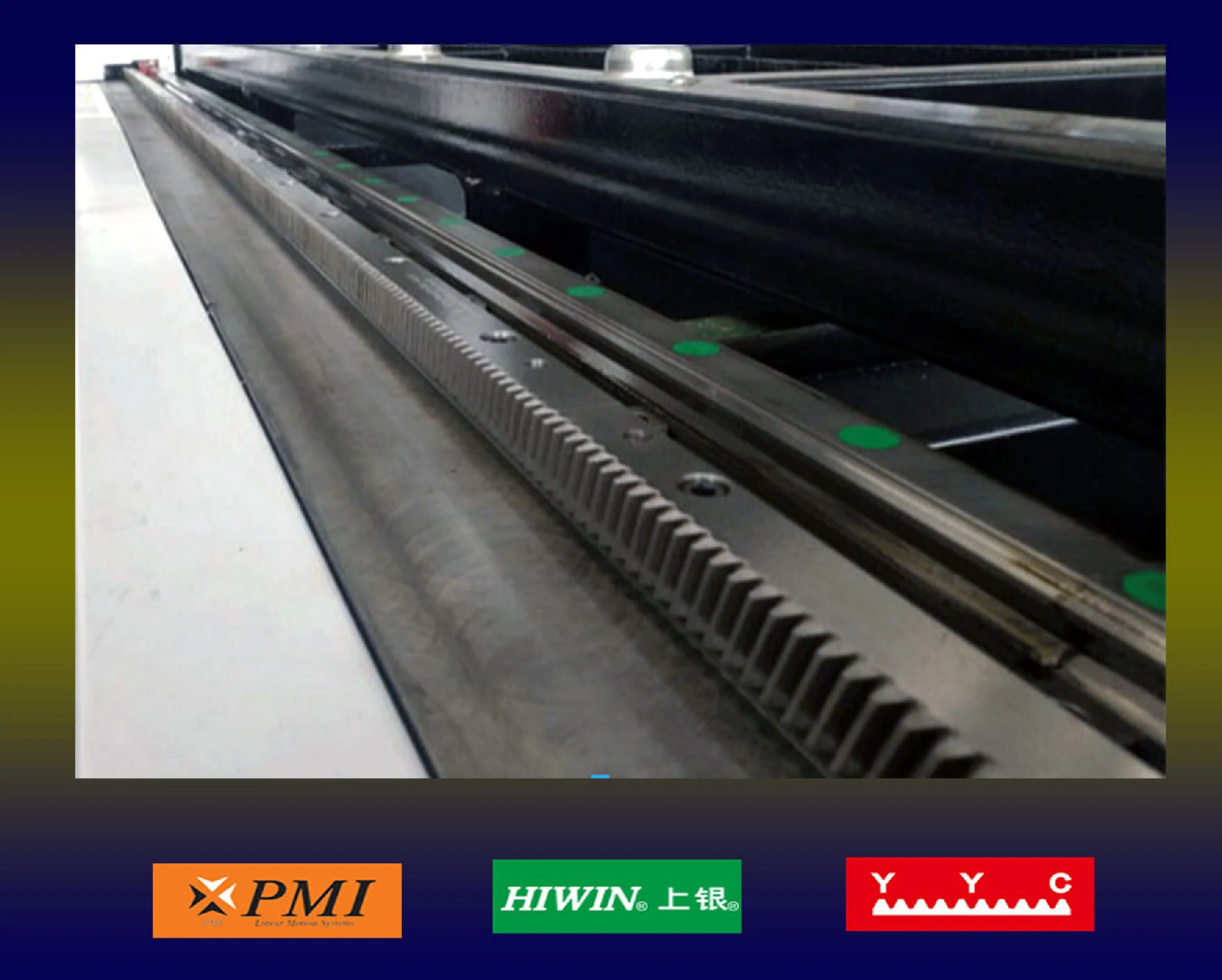

Hiwin®igh performance and high accuracy rack and pinion system

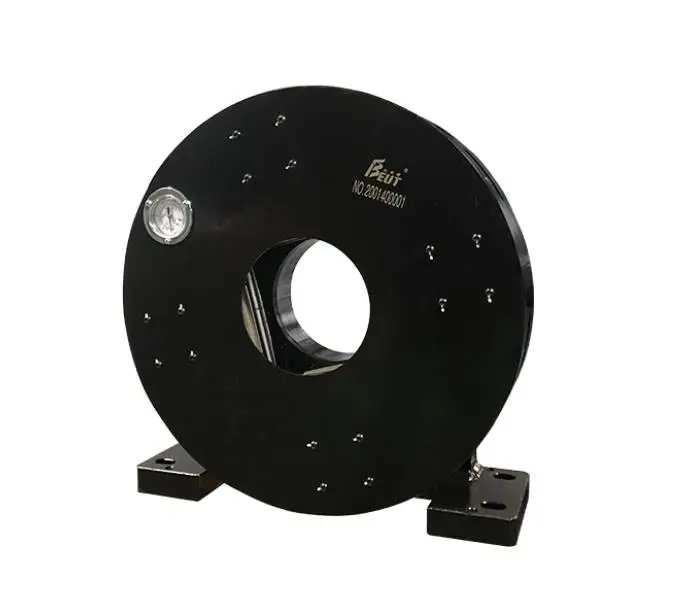

BSTLASER®Φ160/Φ220/Φ230/Φ350
BSTLASER®3 meters / 6 meters/12 meters
Metal Cutting Capacity
Laser Power |
| 2000W | 3000W | 4000W | 6000w |
Nominal power | kw | 2 | 3 | 4 | 6 |
Power requirement | kw | 7 | 10 | 13 | 19 |
Wavelength | nm | 1074 | 1074 | 1074 | 1074 |
Carbon steel | mm | 20 | 22 | 25 | 25 |
Stainless steel | mm | 8 | 10 | 12 | 20 |
Aluminum Alloys | mm | 6 | 8 | 10 | 16 |
Brass | mm | 5 | 6 | 8 | 12 |
Advantages
Unique Features
1.Industrial-grade machine bed design, all accessories are with high standards in laser machine industry . All accessories are geuine and could return if it's fake .

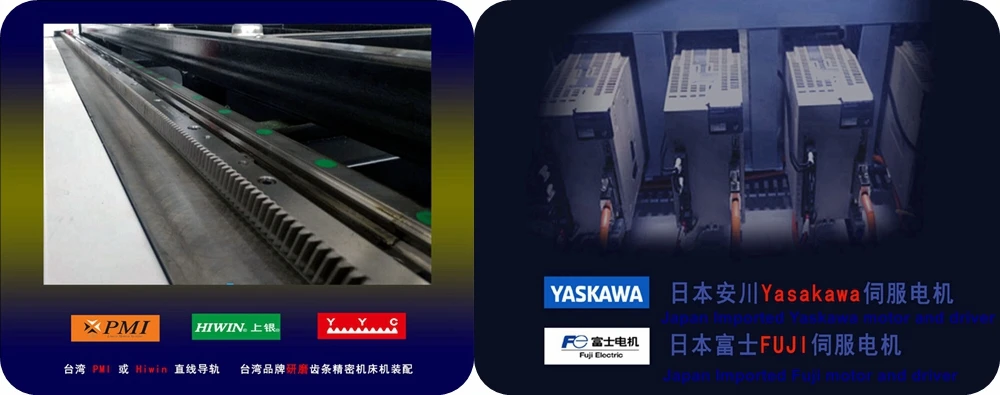

2. Adopt gantry-type mid-drive structure, rack double-servo drive structure, large torque Japanese Yaskawa servo motor. Taiwan precision rack, high precision precision reducer, the maximum acceleration can reach 1.5G. Ensure high-speed, high-precision operation.

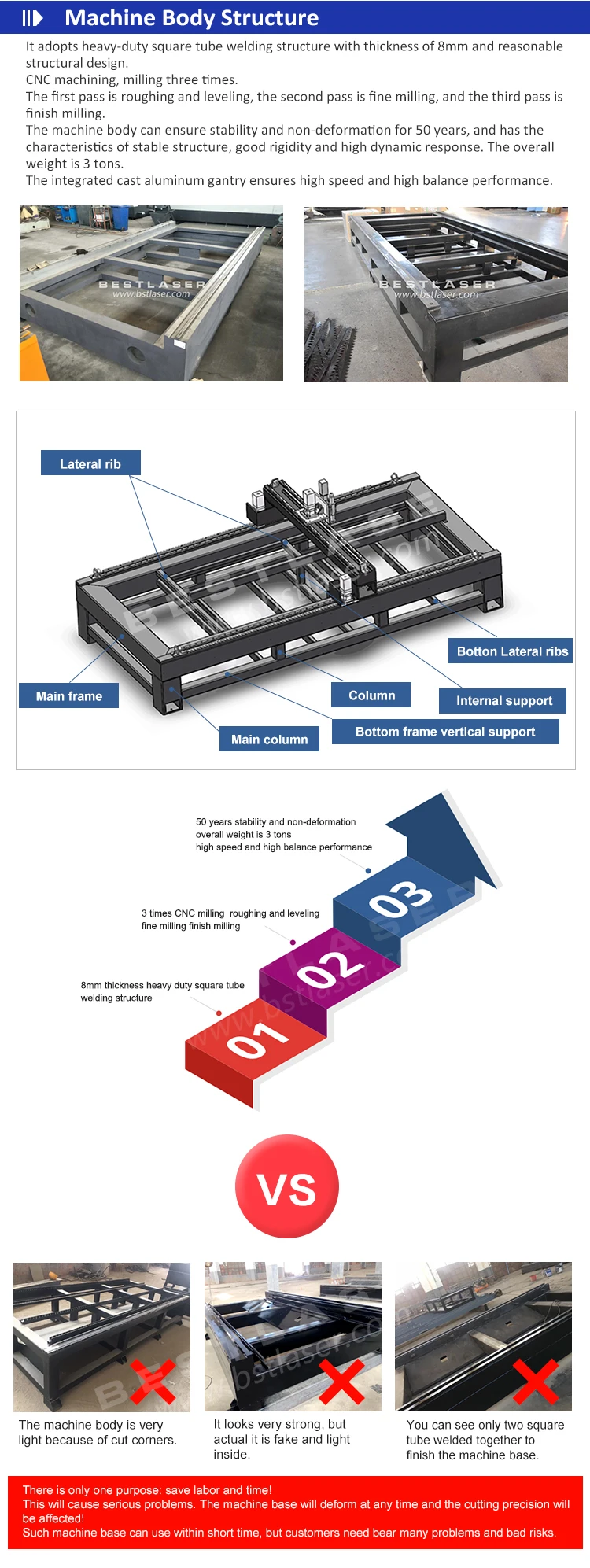

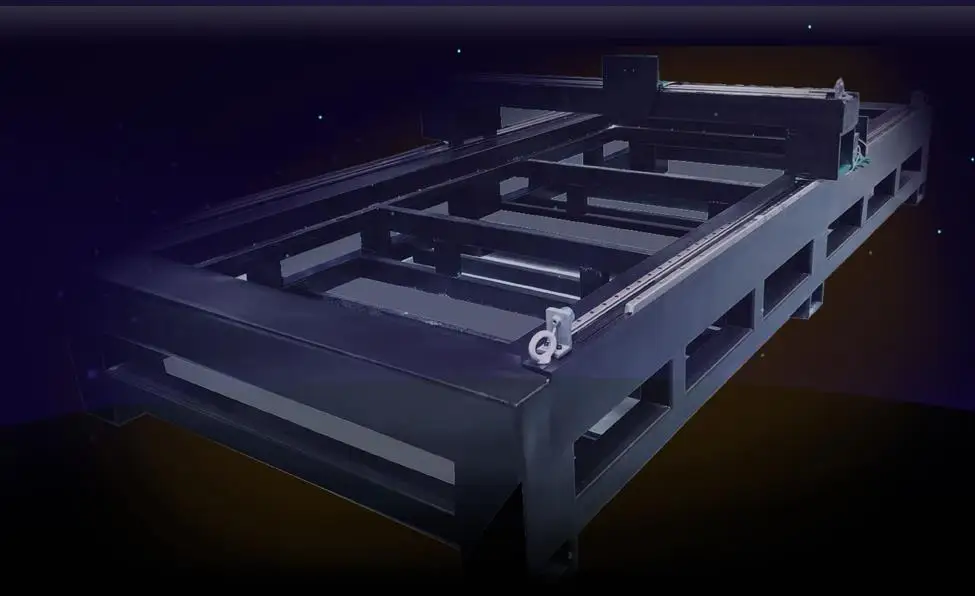

3.The machine bed is with heavy-duty plate sheet welded structure and integrated cast aluminum gantry. precessed by large gantry cnc lathe processing,twice annealing, effectively eliminate stress.

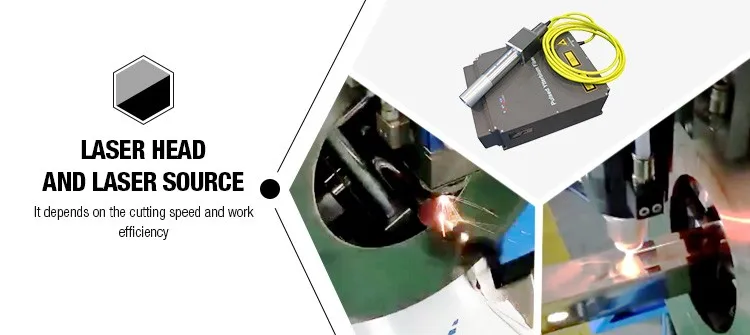

4.High-performance fiber laser and precision cutting head.
5.High-performance laser cutting control system, fully closed-loop control.

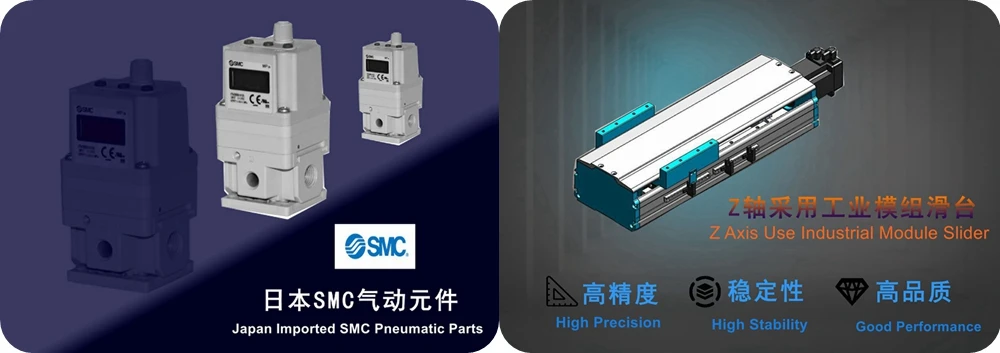

6.Z-axis precision industrial linear module system
7. Independent control cabinet and industrial standard foot tol, Yichu branddrag chain cable.
8. European electrical standard design, Schneider Electric components.
Technical Parameters
pipe laser cutting machine Technical Data :
Model | BE-F6022G | BE-F6011G | BE-F6016G |
Tube Pipe(Φ) | Φ=10-220mm | Φ=10-110mm | Φ=10-160mm |
Square Pipe (Φ) | Φ=15-220mm | Φ=15-110mm | Φ=15-160mm |
Pipe Length | 6m | 6m | 6m |
Laser Type | Fiber Laser Generator | ||
Y Axis Max Travel Speed | 60m/min | ||
Y Axis MAX Acceleration Speed | 0.6G | ||
Rotate speed (r/min) | 200 | ||
Cutting Precision | ±0.1mm | ||
W /Y/Z Repeat Position Accuracy | ±0.1mm | ||
Machine Weight | 1600kg | ||
Positioning Accuracy | 0.03mm | ||
Power Grade | 1000W, 1500W, etc | ||
Applied Material | Round, square, rectangular, oval, waist round, etc | ||
Cooling System | Water cooling | ||
CNC control | Cypcut / Germany PA HI8000 | ||
Power Supply Voltage | AC380V±5% 50/60Hz (3 phase) | ||
Support Format | BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF, PLT, AI, etc | ||
Machine Size | 8500*1000*1800mm | ||
Weight | 1.3-1.5T | ||

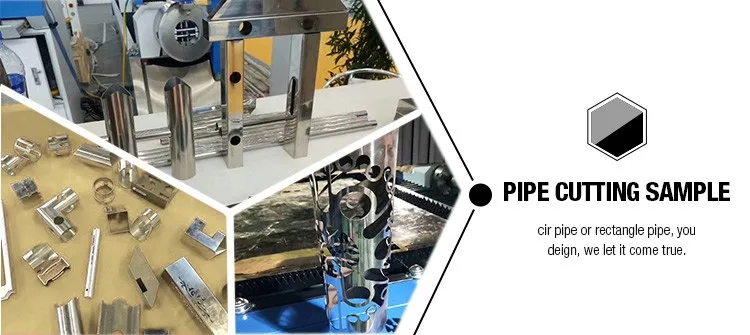

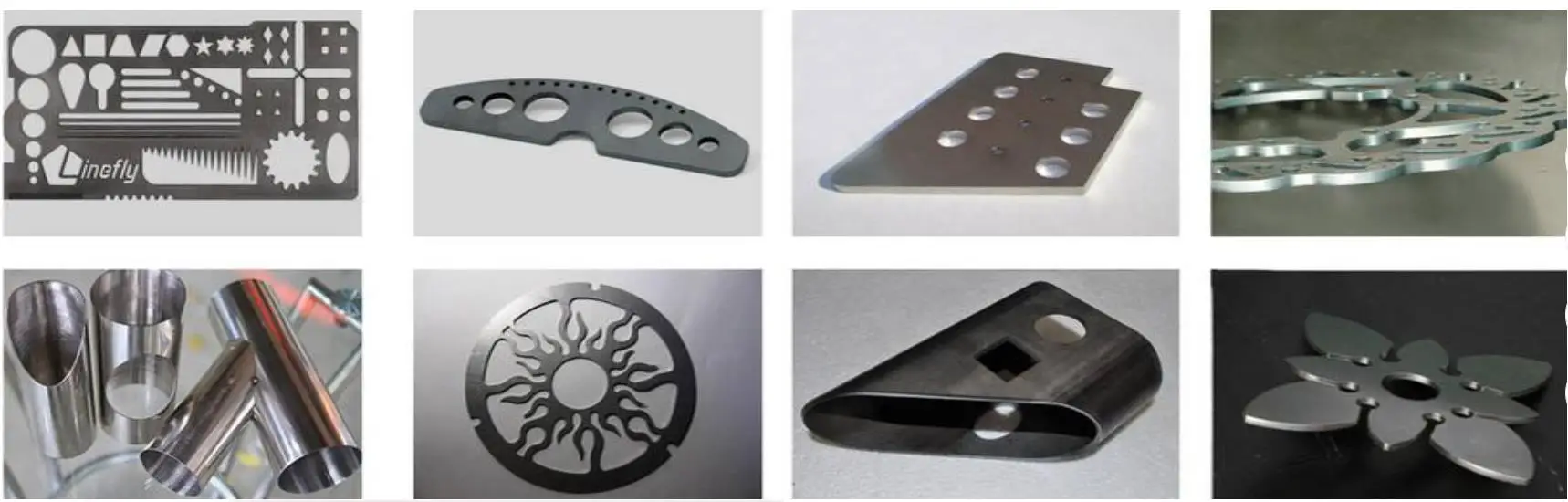

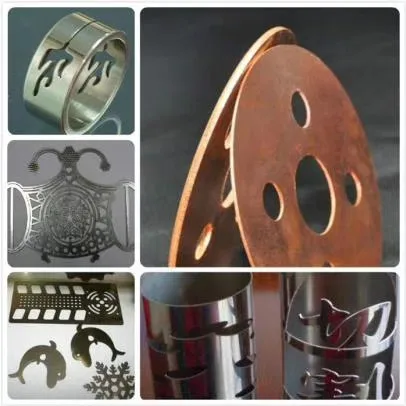

Application materials: This kind of machine is widely used high speed cutting for a variety of metal sheet or pipe , such as stainless steel, carbon steel, galvanized sheet, electrolytic plate, aluminum, steel, brass, alloy plate, rare metals and other materials.
Application industry: This kind of machine main used in kitchen appliances, electric control box, machinery and equipment, electrical equipment, lighting, posters, auto parts, metal processing.
Company Information
As 15 years laser machinery manufacturer, Best Laser is committed to providing customers with high-quality, reliable laser machines.

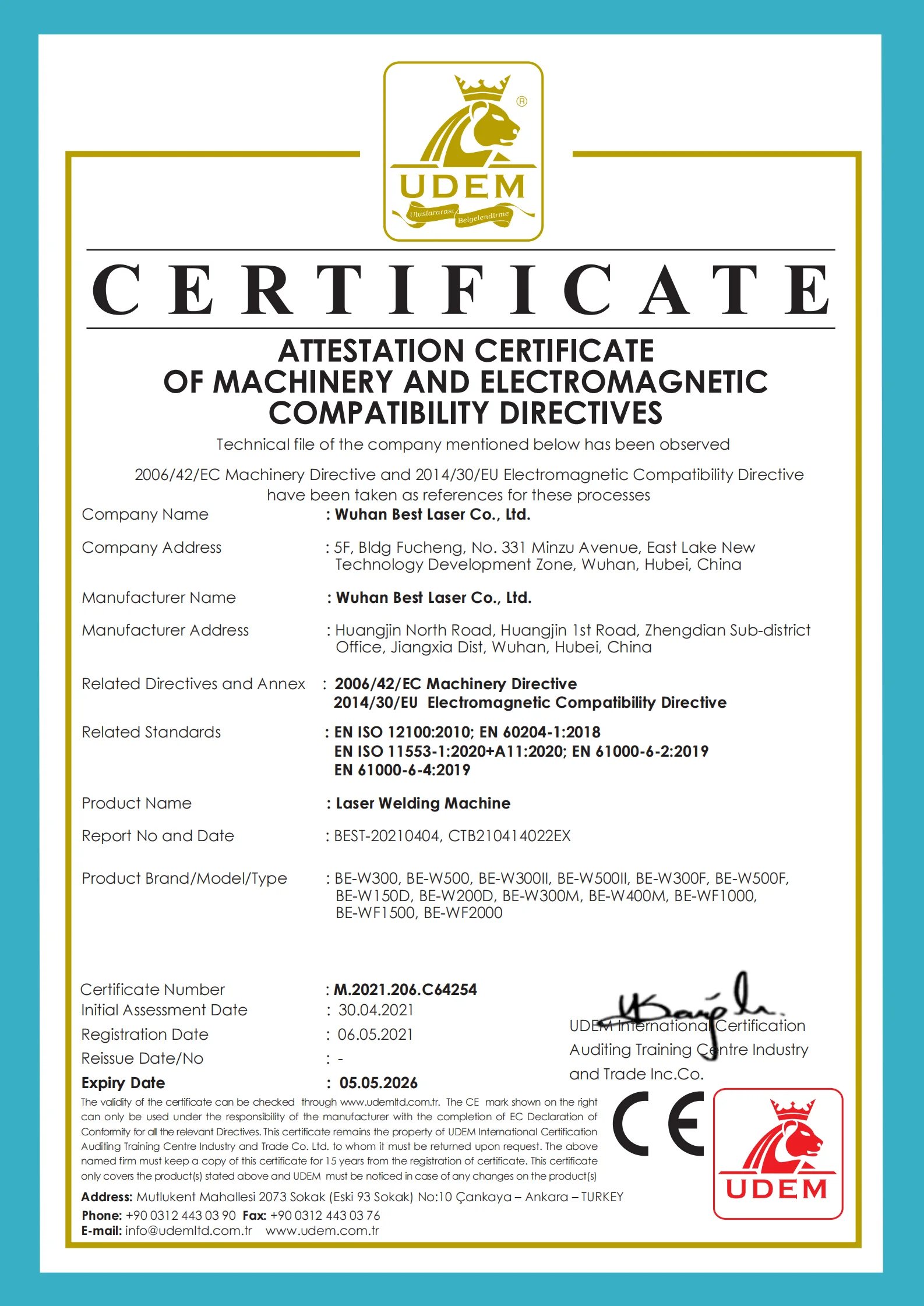

As a result of our quality control measures, our laser cutting machine, laser marking machine, laser engraving machine all have got CE certification. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
To be recognized as China's foremost manufacturer and supplier of laser marking, engraving, etching and cutting systems. Dedicated to providing the best-quality equipment and services all over the world. Looking for distributors and users globally!
Buying Guide
For fiber metal laser cutting machine we supply dozens of models and we can also customized the machine based on your special demand , pls kindly offer below info before inquiry :
1. What materials you want to process? (Stainless Steel, carbon steel ....)
2. What is the mostly used thickness and what is the maximum thickness? (0.5mm,1mm,2mm....)
3. What is the max dimension of your sheet metal? (1500 x 3000mm, 1300*2500mm....)
4. What will be the metal used for after processing? (Such as Electrical boxes, advertisement ...)
5. Are you an end user or reseller?
Best Laser Contact
The best way to get a good impression of the various machines is by
testing your products on our systems during a demonstration.
Interested? Let us know! Welcome your inquiry!
