HK2745 Mining Industrial Feldspar Ball Mill for Grinding Iron Ore Ball Mill Machine Stone Grinding


Product Overview



Ball mill machine stone grinding has dry ball mill and wet ball mill two types to choose, user could choose depend on the fact.

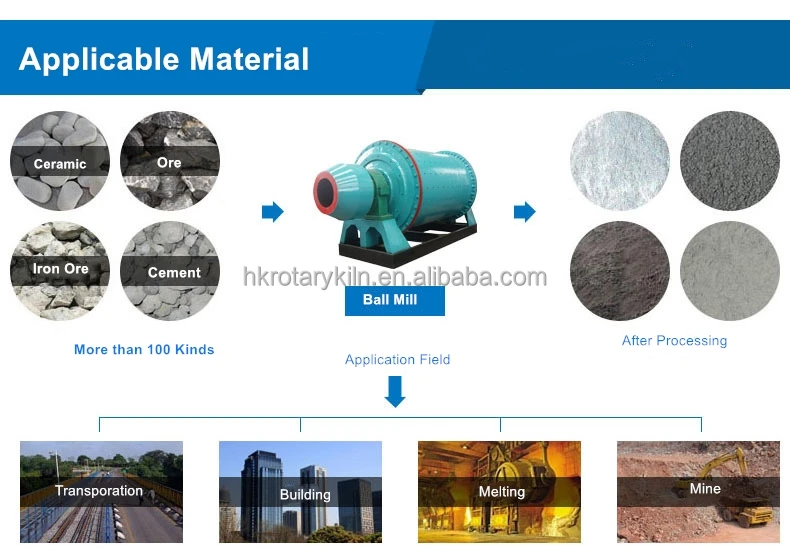

The discharging granularity of ball mill is very uniform with high output, which is widely used in the grinding process that has higher requirement for the uniformity of the final products in the industry of abrasive resistant material, chemistry, and metallurgy and glass.
It is also suitable for sand industry in recent year.














FEATURES AT A GLANCE

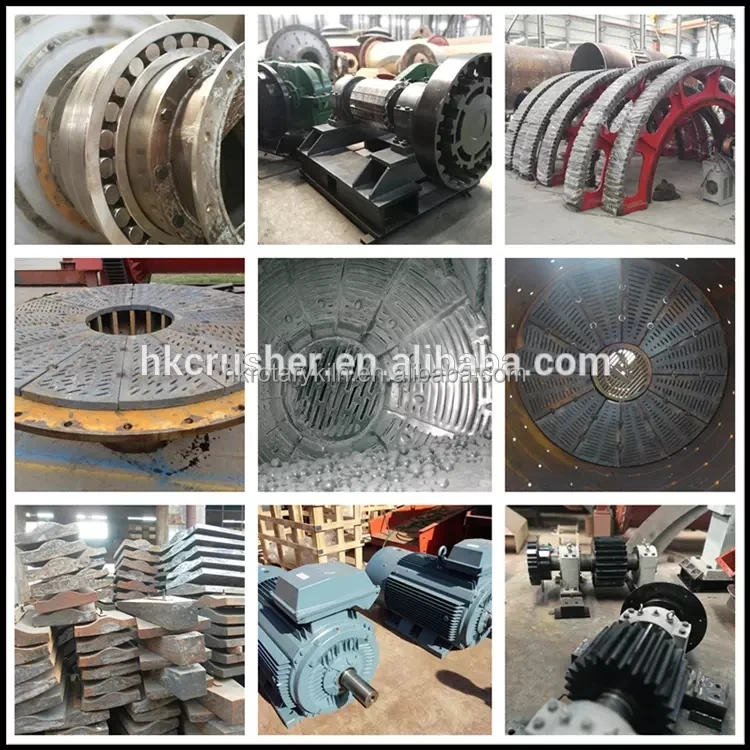

The hollow shaft adopts steel casting, and its inner lining is detachable and changeable while the rotary rack wheel uses casting gear hobbing and there is a wear-resisting lining board inside the cylinder with good abrasion performance. This machine is featured with stable operation and reliable performance.






WORKING PRINCIPLE

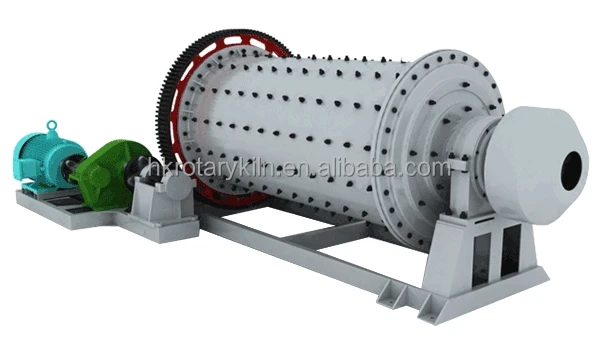

The electric motor drives the cylinder for rotation by reduction gears while wheel reducer with peripheral rack transmission or the low speed synchronous motor directly drives the cylinder to rotate by the peripheral rack wheel reducer transmission.
The crushed ore and steel rod inside the cylinder can be thrown and rushed down to a certain height under the eccentric force and frictional force as a result of action of gravity.
Crushed ores are discharged from cylinder through discharging part. The materials to be ground continuously go into the cylinder from the ore feeding mouth and crushed by the moving grinding media, and then discharged under the overflow and the force of continuous feeding to go to the next procedure.




PRODUCT SPECIFICATIONS


Specification
Rotational Speed
(r/min)
Balls Weight
(t)
Feeding
Size(mm)
Output
Size (mm)
Capacity
(t/h)
Motor Power
(kw)
Total Weight
(t)
900×1800
36-38
1.5
≤20
0.075-0.89
0.65-2
18.5
5.5
900×3000
36
2.7
≤20
0.075-0.89
1.5-3.5
22
6.7
1200×2400
36
3
≤25
0.075-0.4
1.5-4.8
30
12
1200×3000
36
3.5
≤25
0.074-0.4
1.6-5
37
12.8
1200×4500
32.4
5
≤25
0.074-0.4
1.6-5.8
55
13.8
1500×3000
29.7
7.5
≤25
0.074-0.4
2-5
75
16.8
1500×4500
27
11
≤25
0.074-0.4
3-6
110
21
1500×5700
28
12
≤25
0.074-0.4
3.5-6
130
25.8
1800×3000
25.4
11
≤25
0.074-0.4
4-10
130
29
1830×4500
25.4
15
≤25
0.074-0.4
4.5-12
155
35.5
1830×6400
24.1
21
≤25
0.074-0.4
6.5-15
210
43
1830×7000
24.1
23
≤25
0.074-0.4
7.5-17
245
43.8
2100×3000
23.7
15
≤25
0.074-0.4
6.5-36
155
34.8
2100×4500
23.7
24
≤25
0.074-0.4
8-43
245
38
2100×7000
23.7
26
≤25
0.074-0.4
8-48
280
56.6
2200×4500
21.5
35
≤25
0.074-0.4
9-45
280
51.8
2200×6500
21.7
35
≤25
0.074-0.4
14-26
280
60

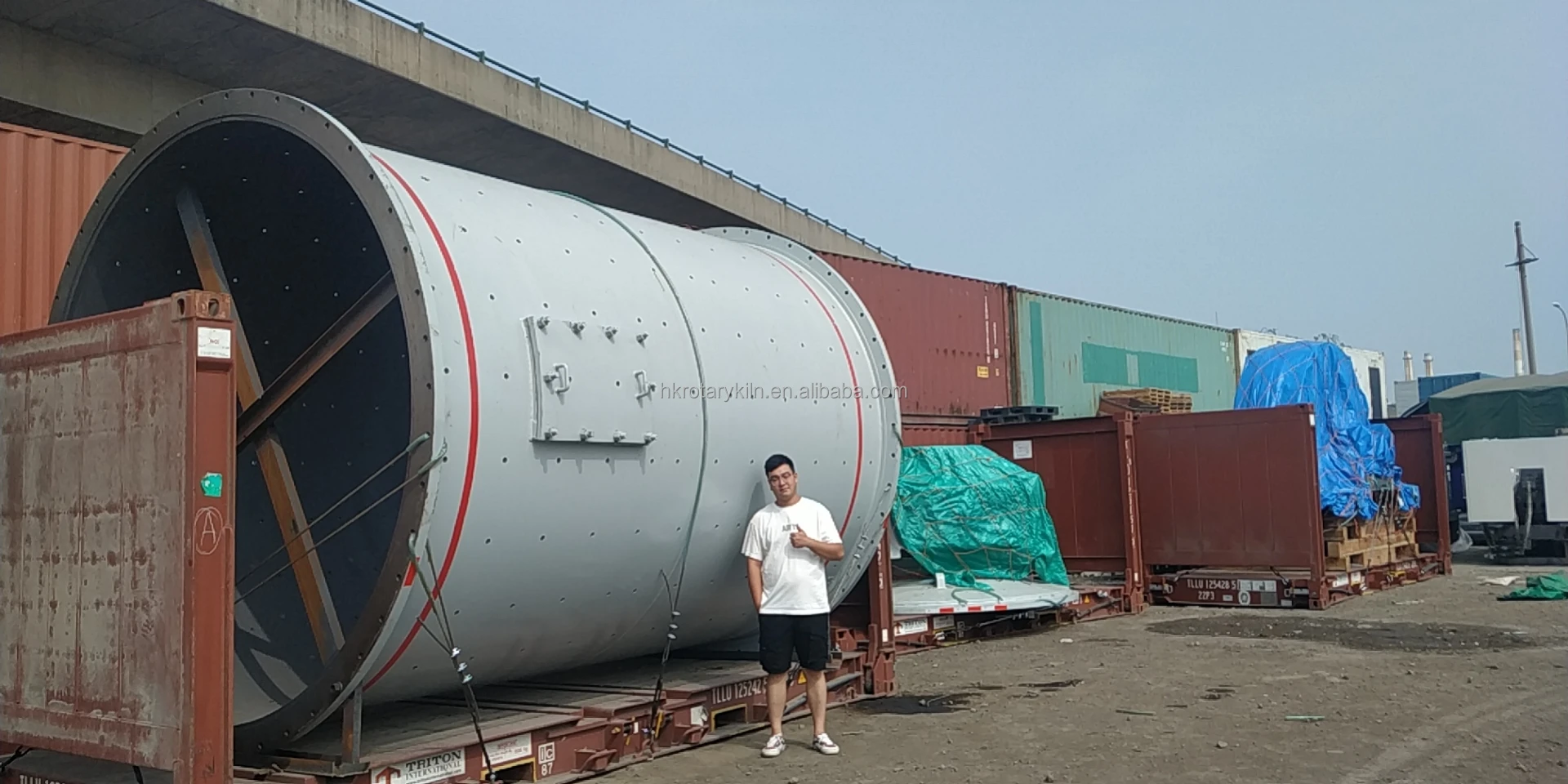

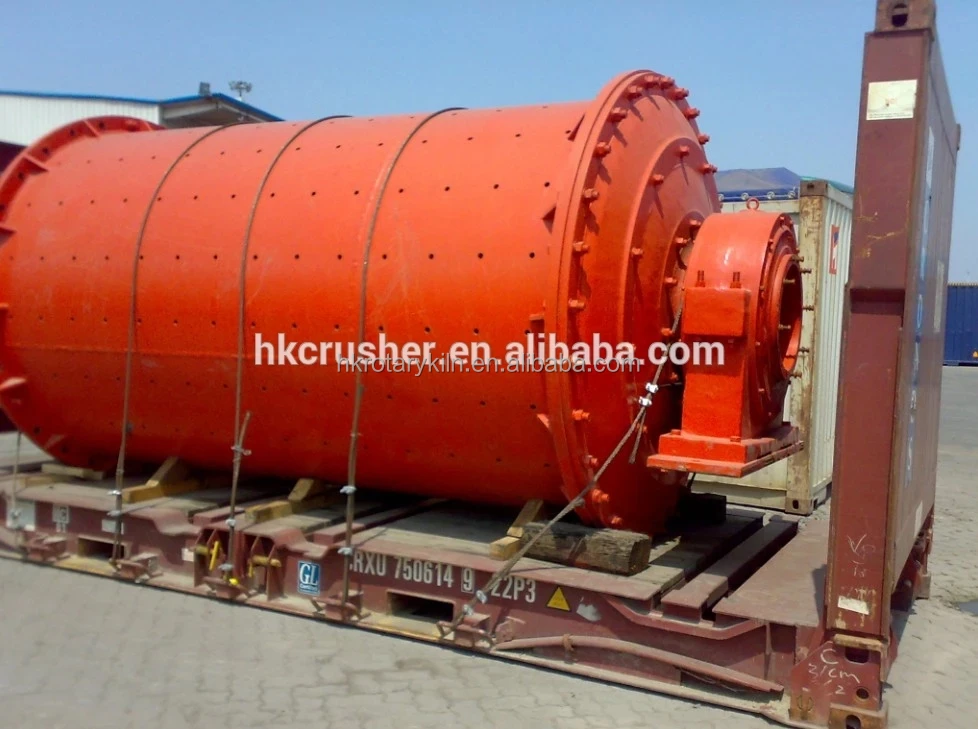

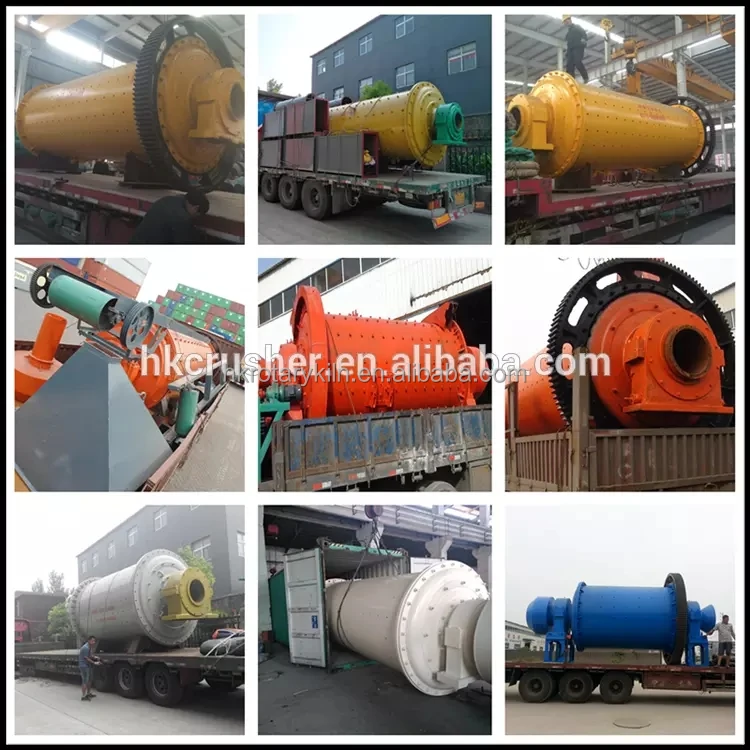

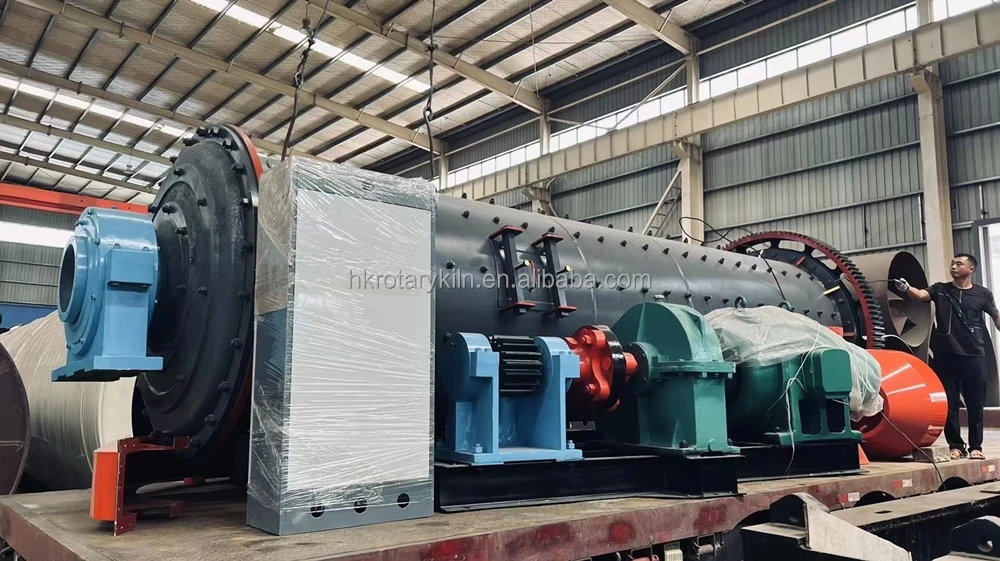

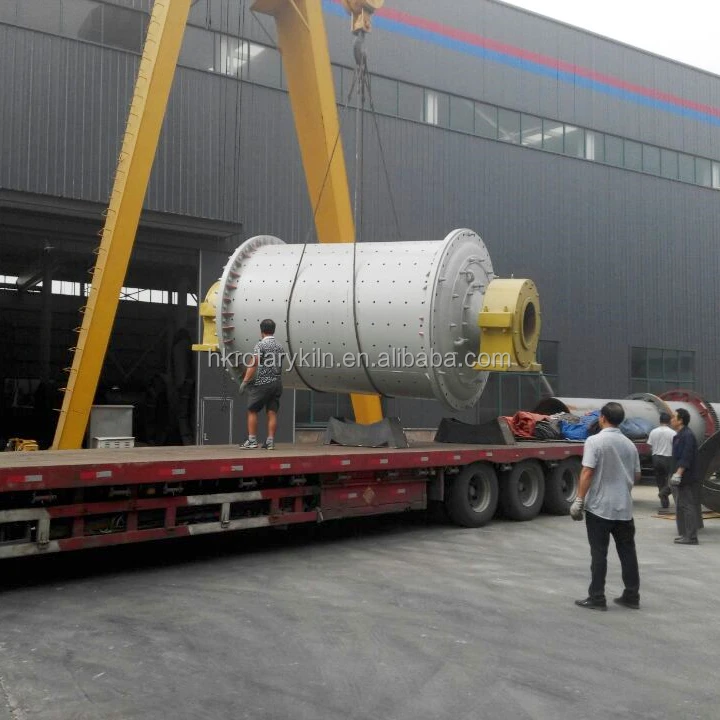

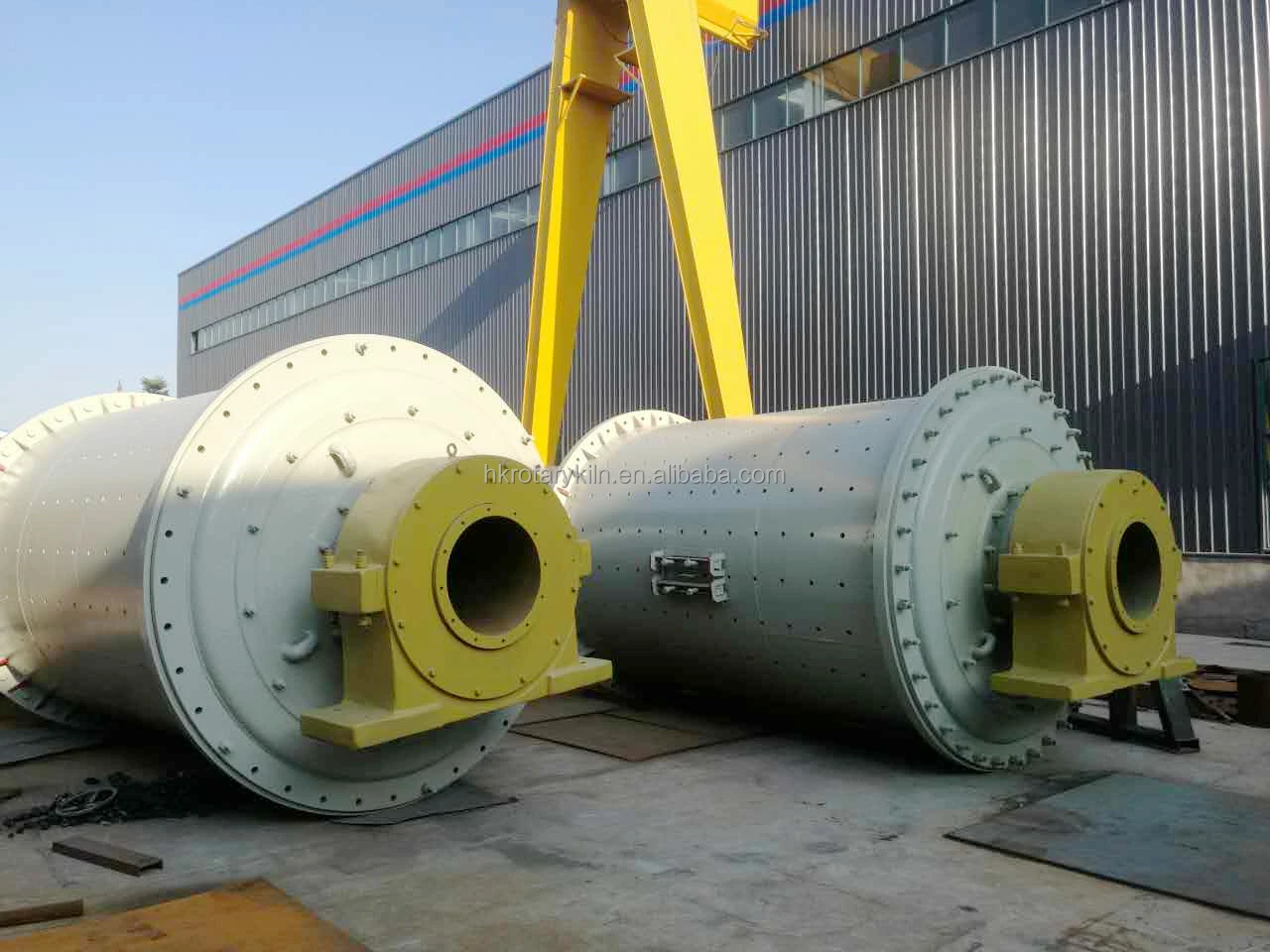

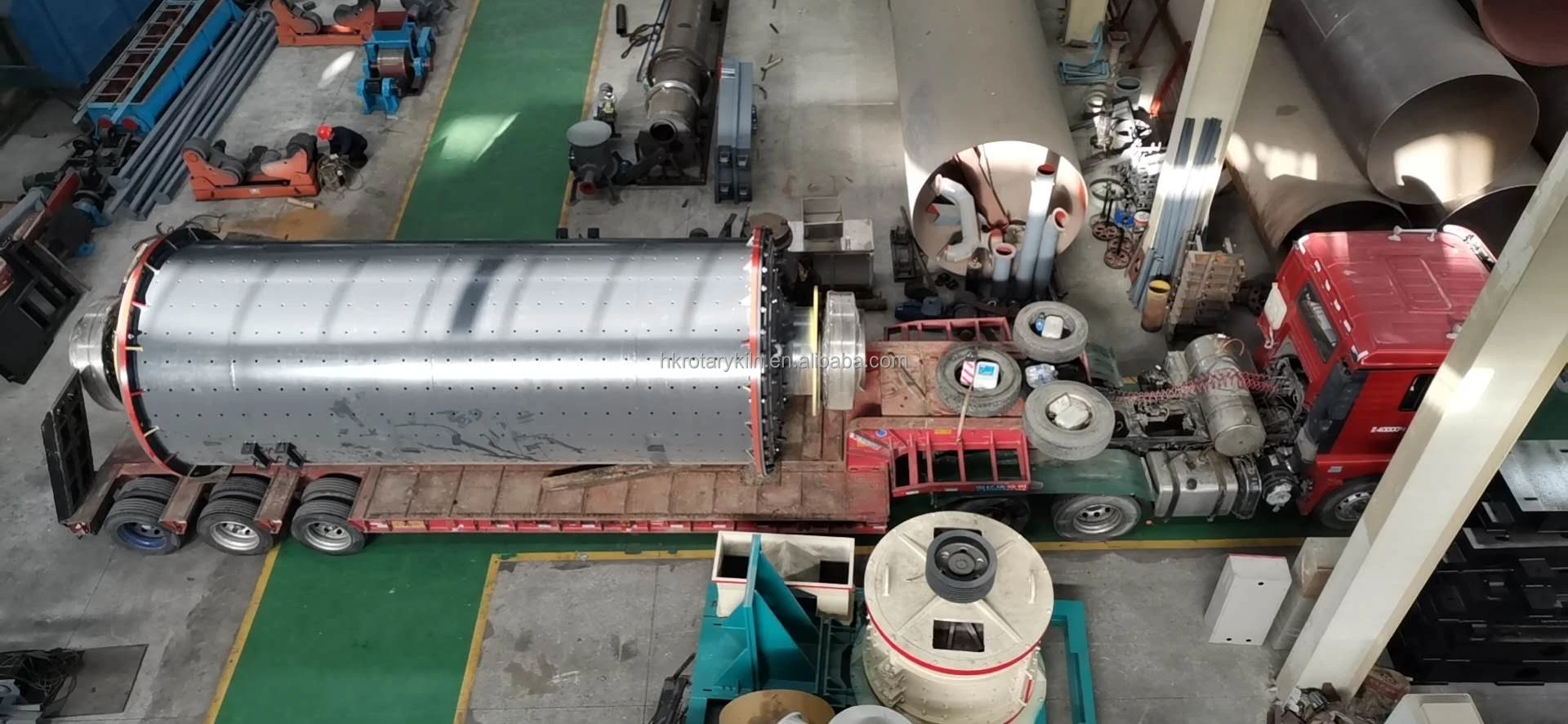

Successful Project

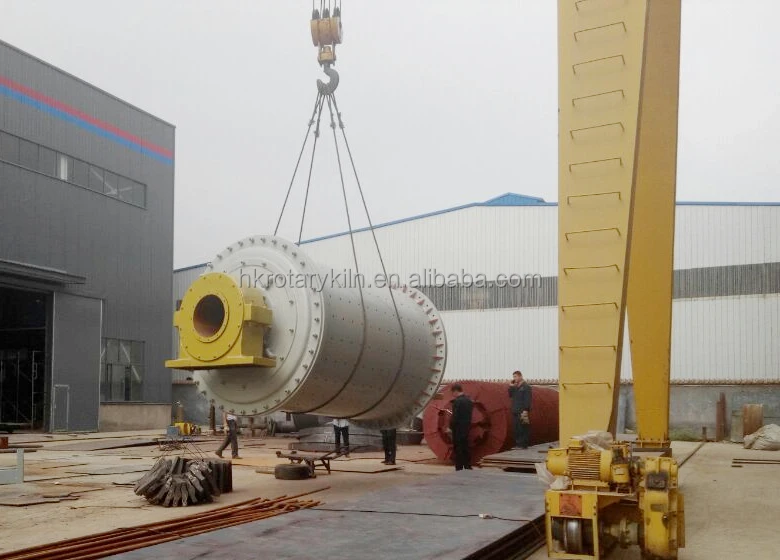

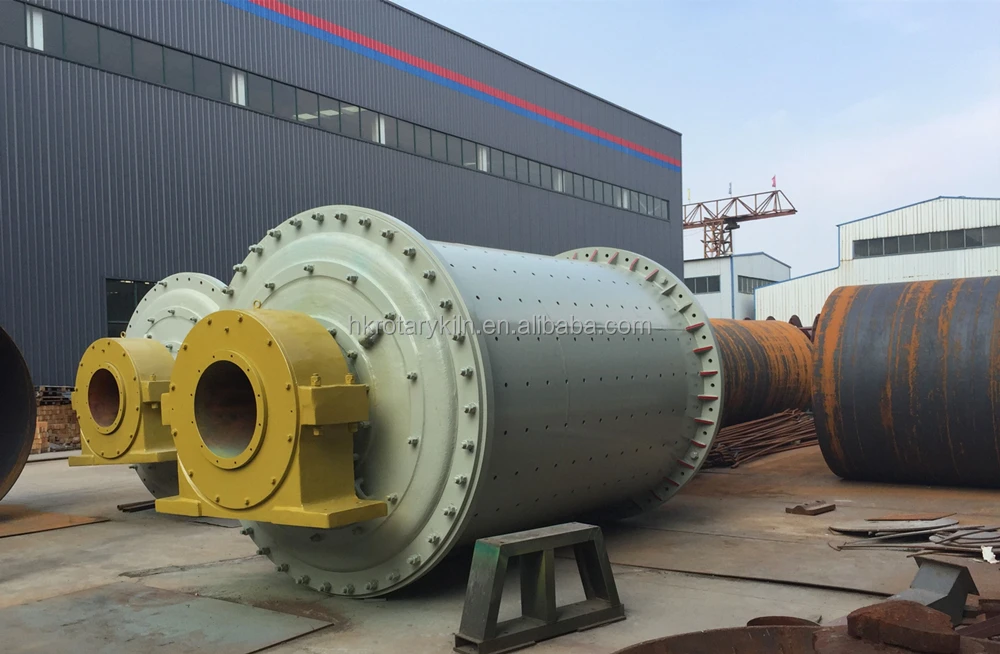

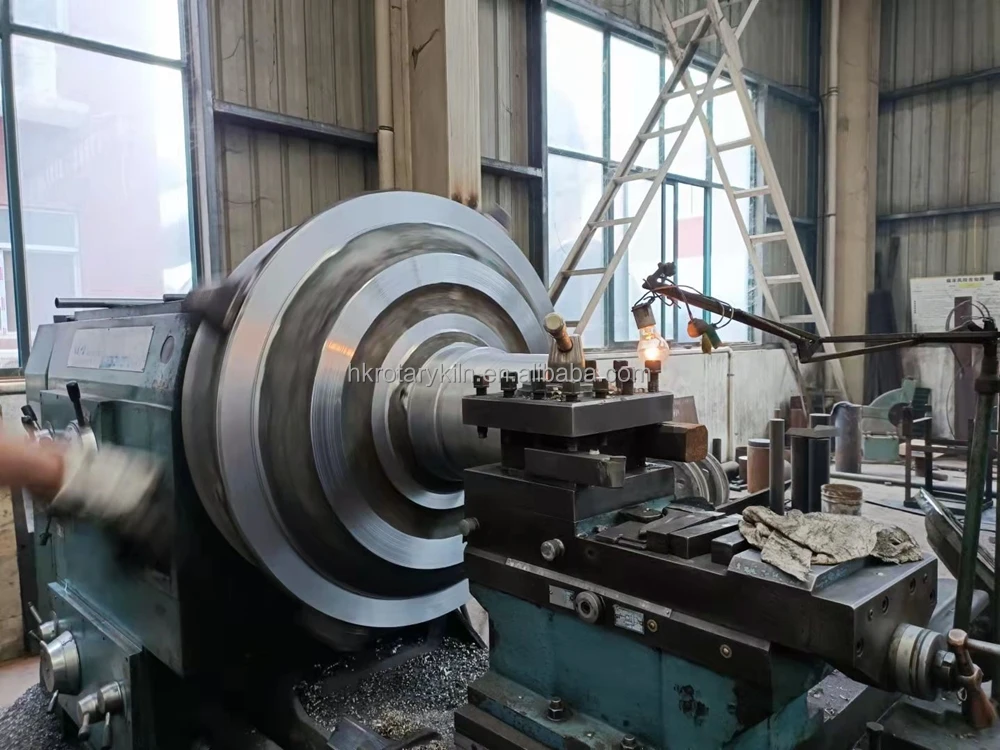

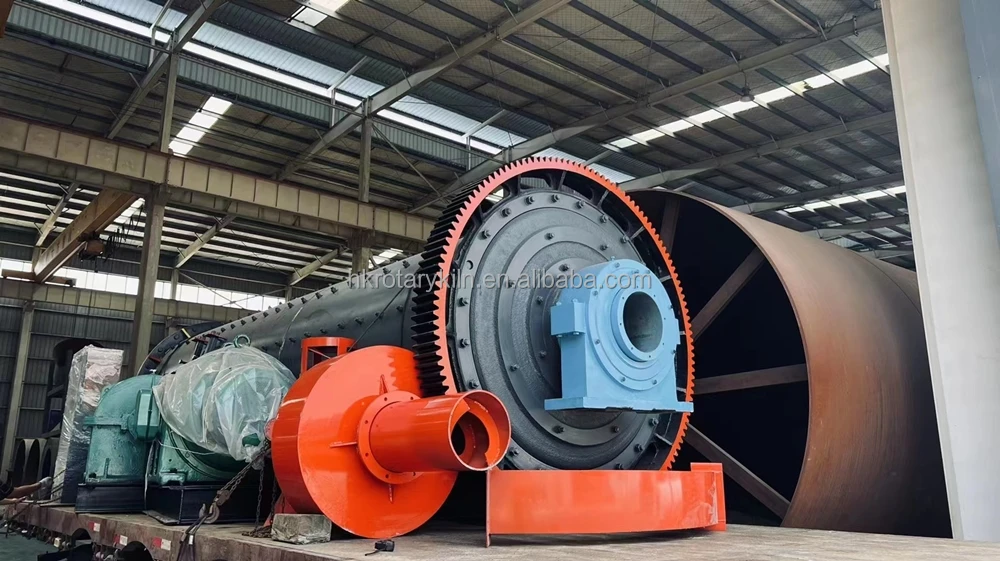

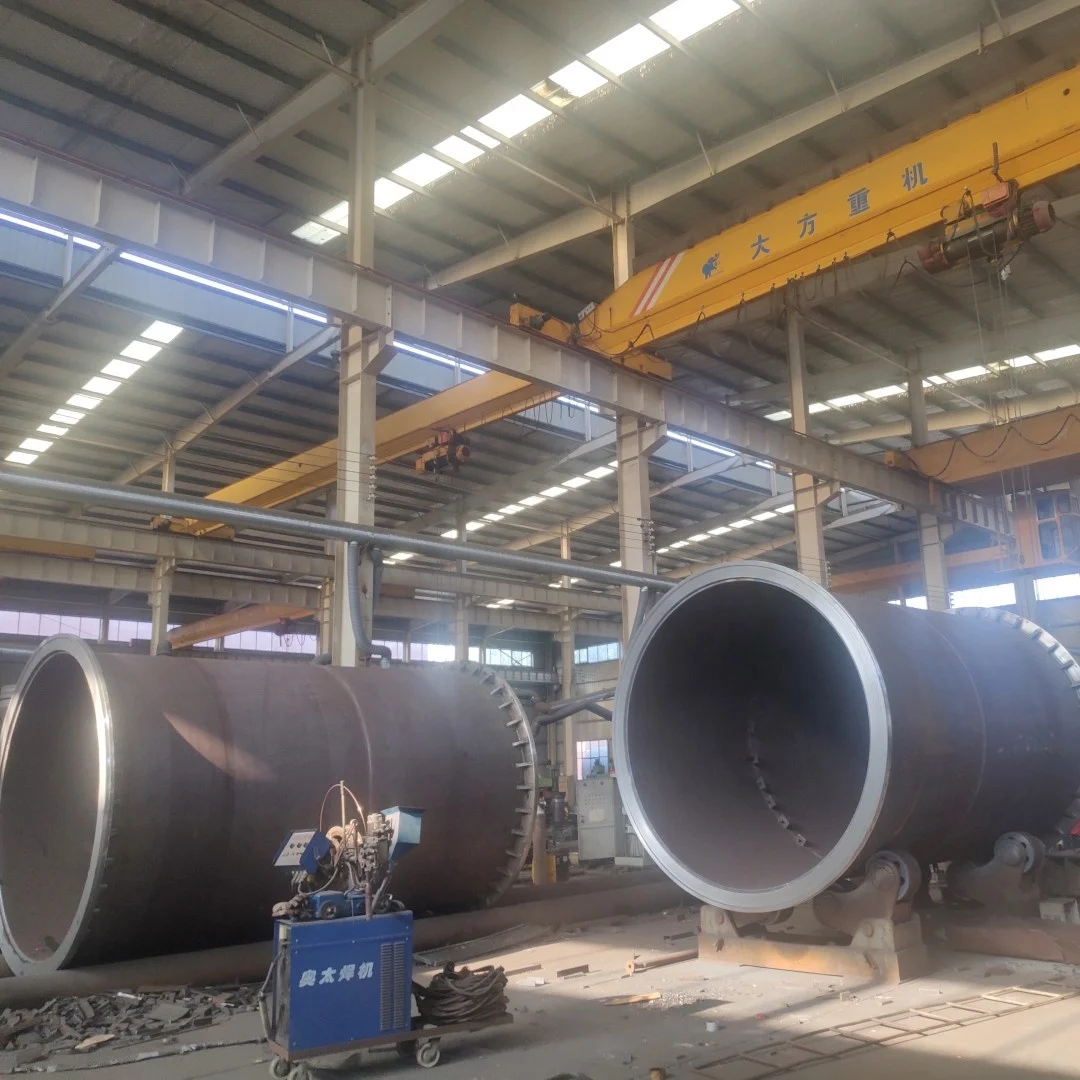

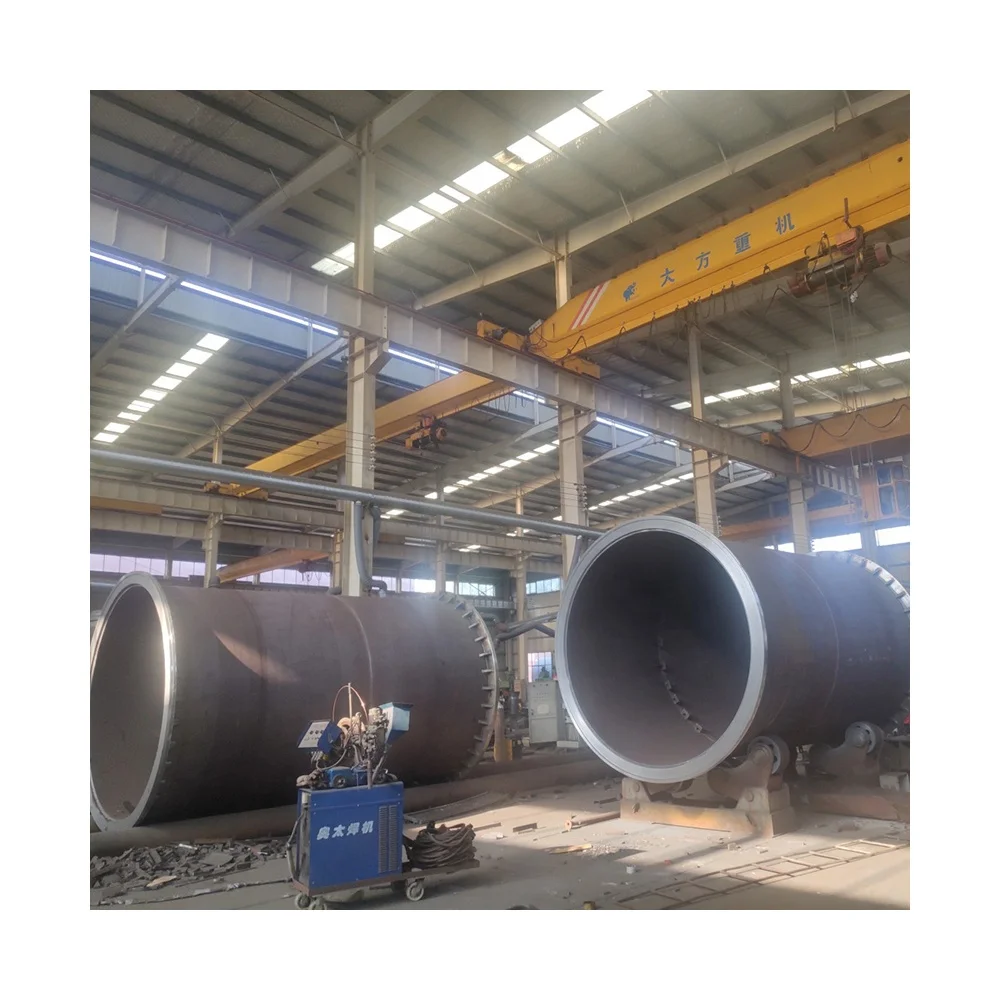

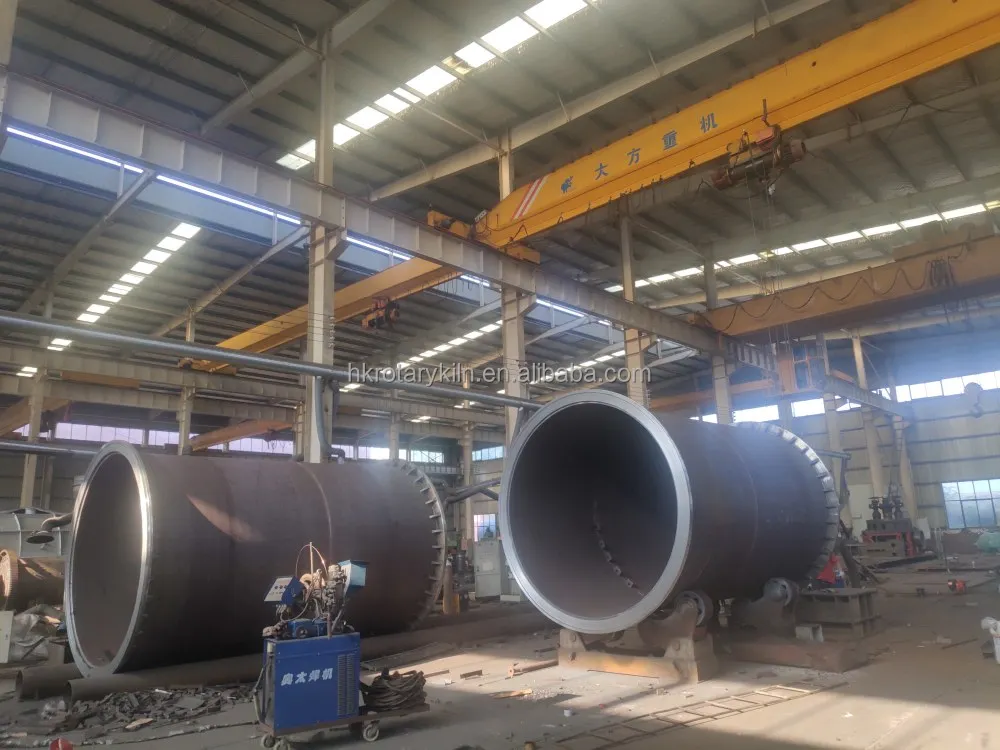

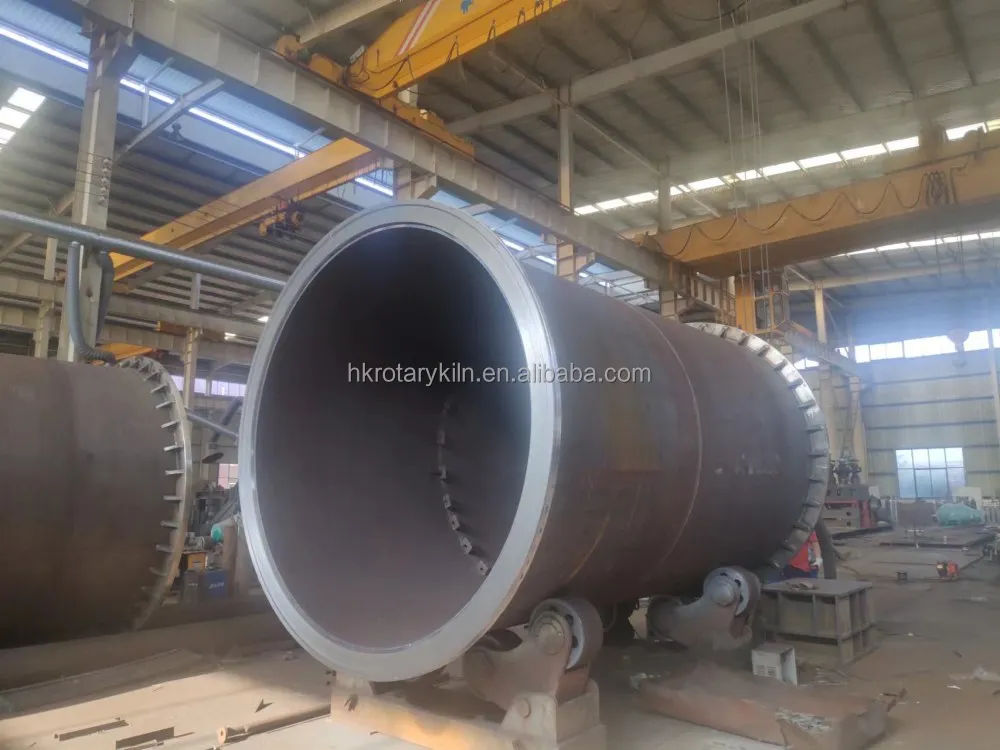

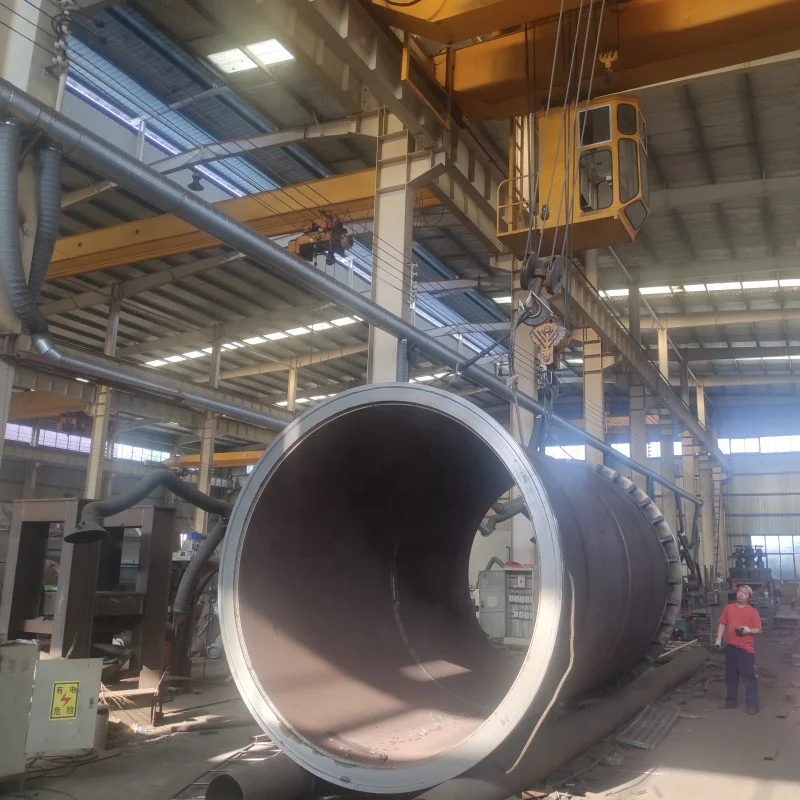

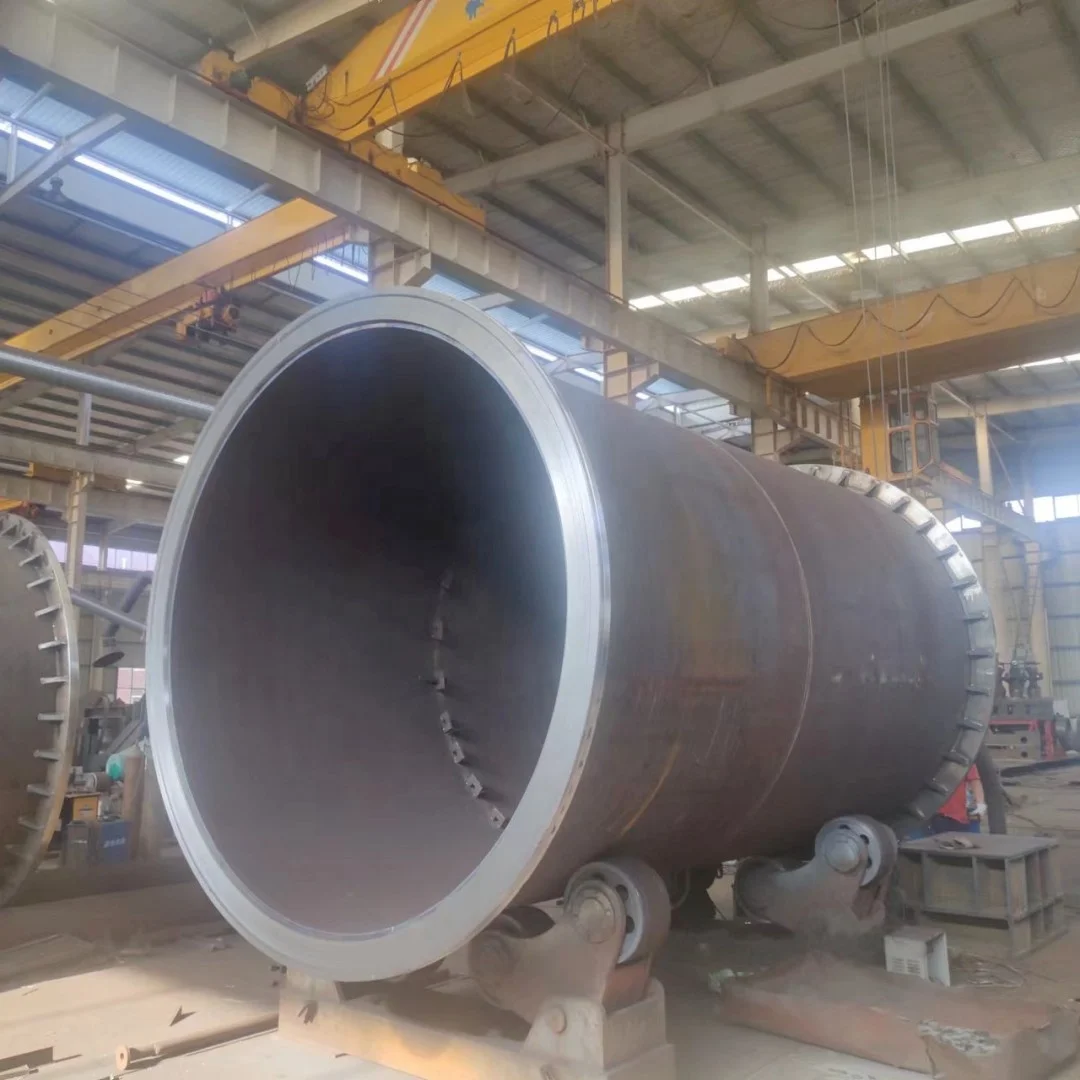

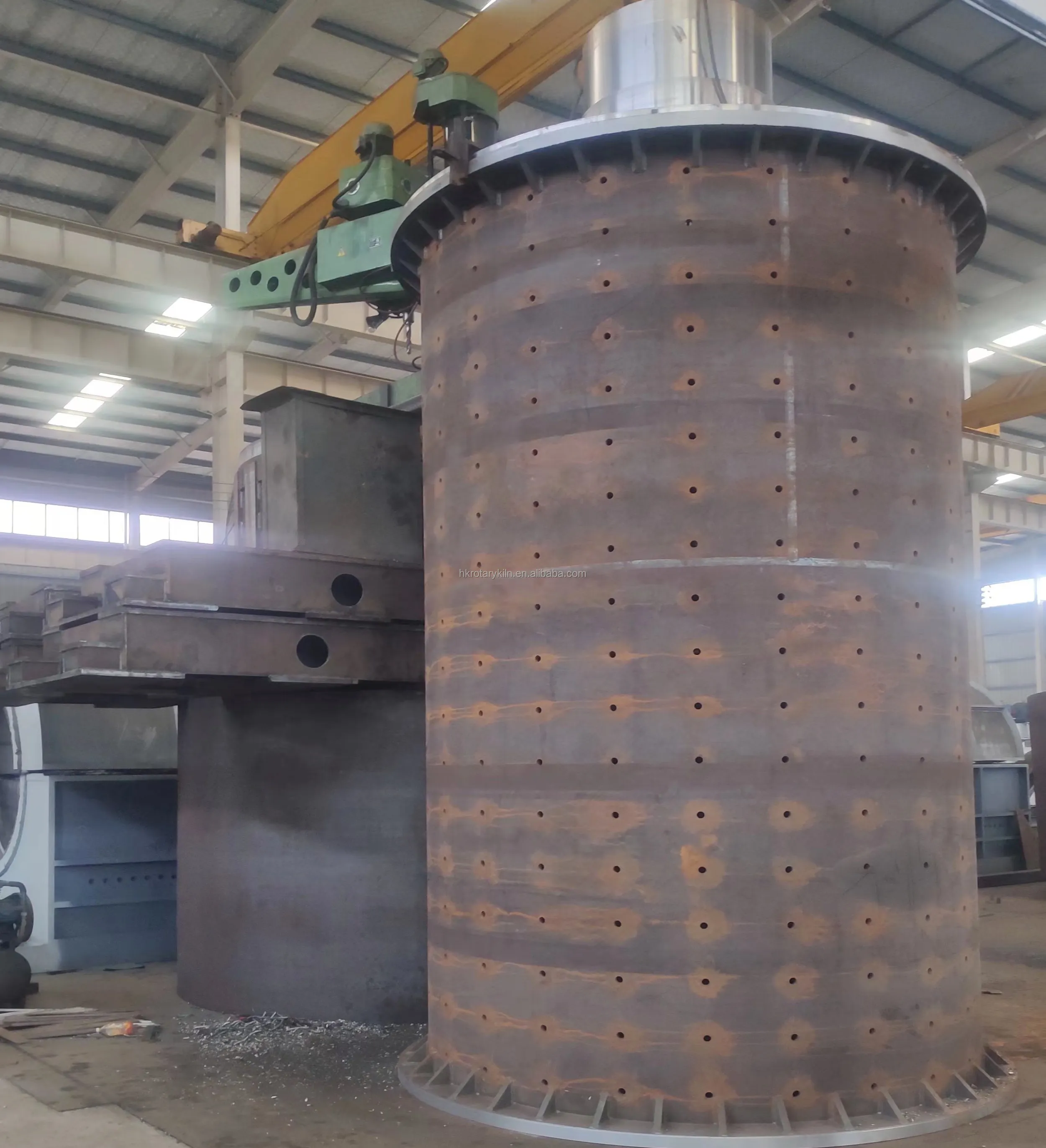

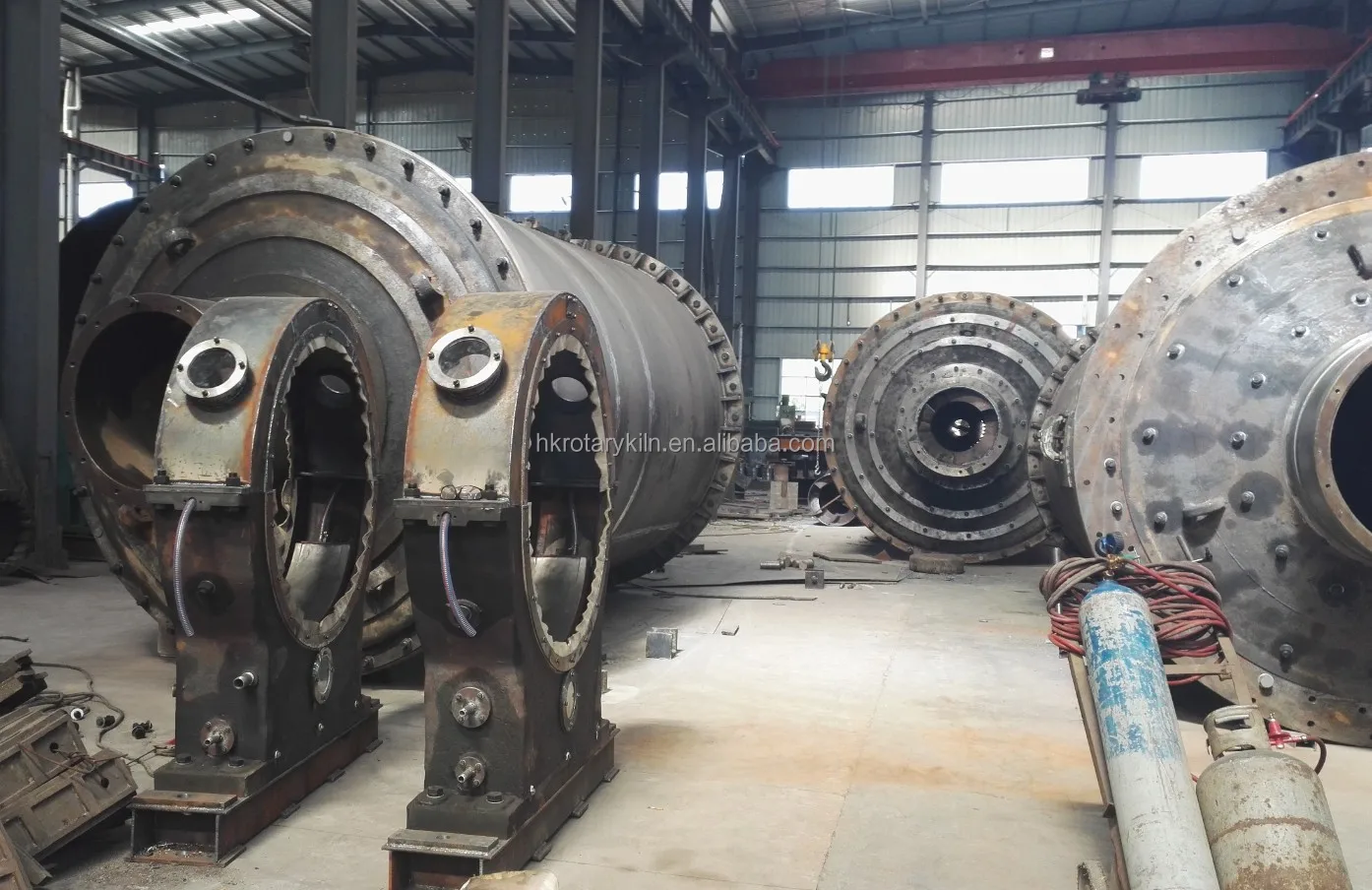

Factory Workshop Pictures












COMPANY PROFILE


Henan Hongke Heavy Machinery Co., Ltd. is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing.
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on, such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill,stone production line, mineral processing equipment, wood crusher and pellet making machine and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you!


















FAQ


1. What is the minium order quantity?
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foudation drawing, installation service, work training as well as other service according to the
customer's requirements.
4.How long is the delivery time?
About 15 days after we receive the payment.
5. What are the payment terms?
T/T, L/C are the best, it can be adjustable according to different situations.
--------------------------------------------------------------------------------------
Kindly Note:
1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1). Raw material
2) Initial size and final size
3). Capacity ( t/h)
Upon we got your message we shall give you our favorable offer in short time.
