Customized 18650 Ebike Battery Pack 72V 32Ah 20S10P NCM Lithium Ion Battery Pack for Electric Bus Electric Truck
- Category: >>>
- Supplier: Aoyouji Electronics (huizhou) Co. Ltd.
Share on (1600624232309):
Product Overview
Description

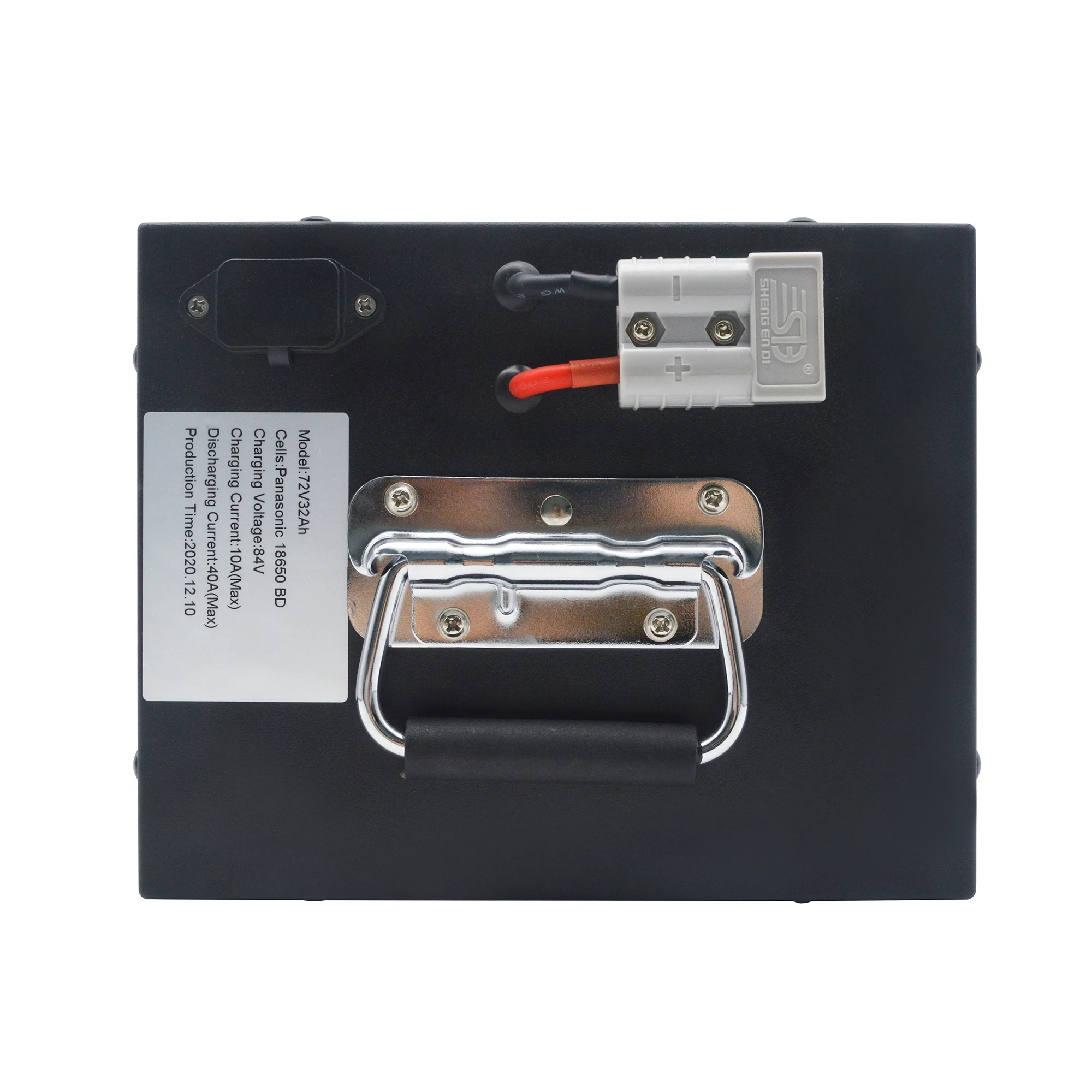

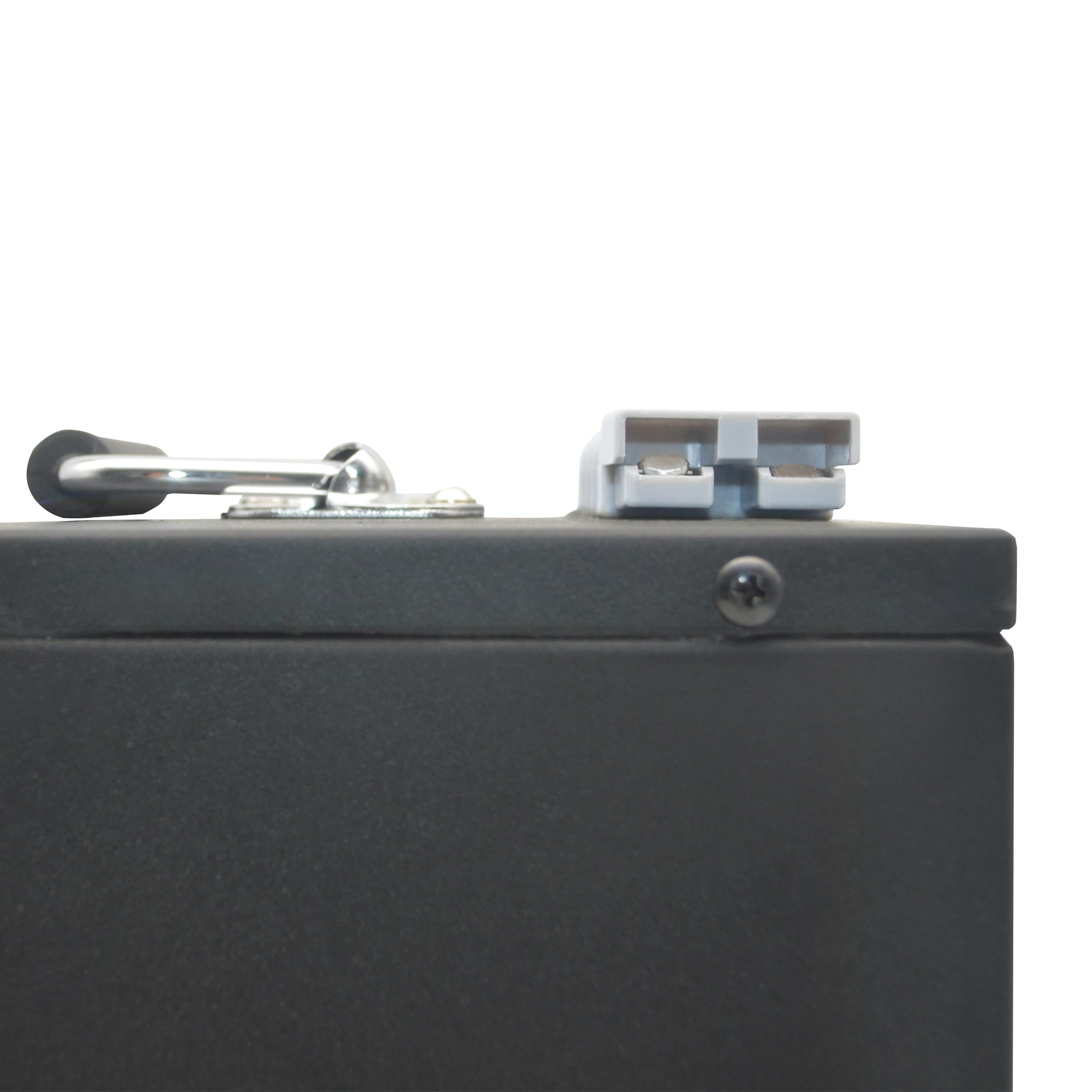

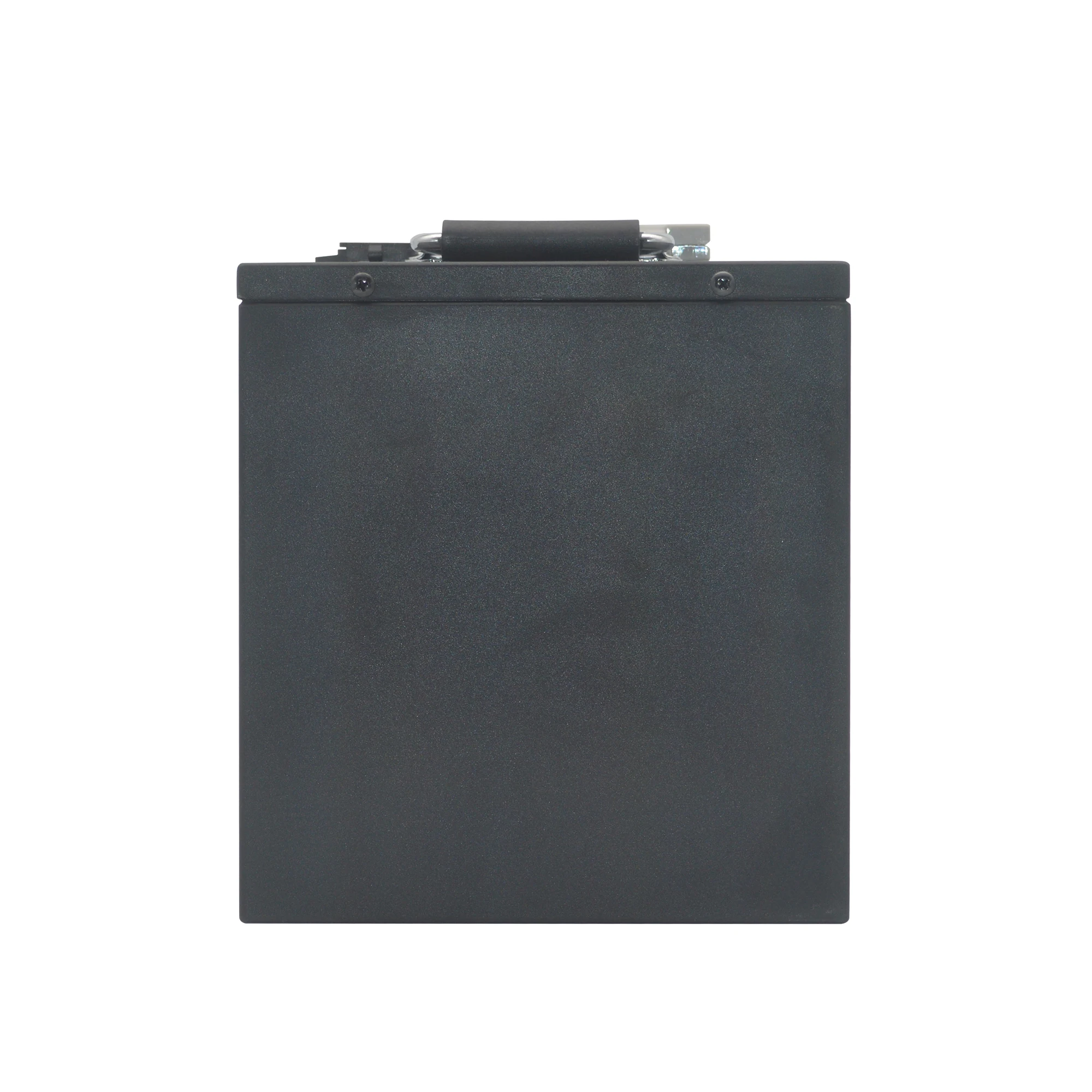

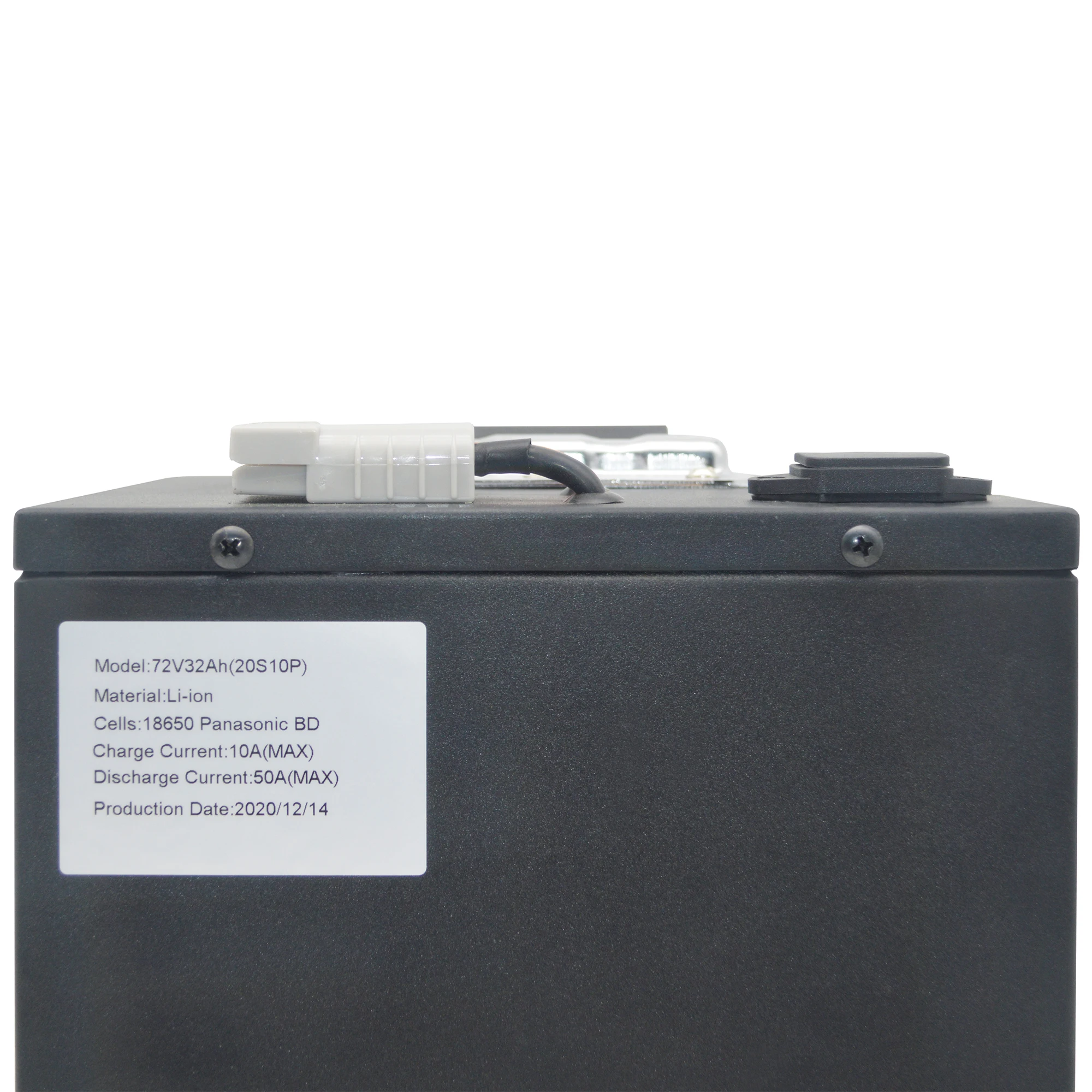

Customized 18650 Ebike Battery Pack 72V 32Ah 20S10P NCM Lithium Ion Battery Pack for Electric Bus Electric Truck
Product Description
* Brand new grade A lithium battery cells
* Smart BMS included
* Light weight and high performance
* Small internal resistance
* High energy density, low self-discharge
* Pollution free, long cycle life
* No memory effect
* Professional design and quality control
* OEM, ODM are available
* Smart BMS included
* Light weight and high performance
* Small internal resistance
* High energy density, low self-discharge
* Pollution free, long cycle life
* No memory effect
* Professional design and quality control
* OEM, ODM are available
Specification
Paremeter | value |
Battery cell type | 18650 cylindrical cell |
Battery cell material | NCM |
Product code | AU7232NB |
Nominal Voltage | 72V |
Nominal Voltage | 32Ah |
Series and parallel | 20S10P |
Charging cut-off voltage | 84V |
Discharging cut-off voltage | 55V |
Charge mode | CC/CV |
Standard Charge Current | 7A |
Max Charge Current | 20A |
Standard Discharge Current | 20A |
Max Discharge Current | 50A |
Connector | ANDERSON |
Cycle life(80% DOD) | ≥500Times |

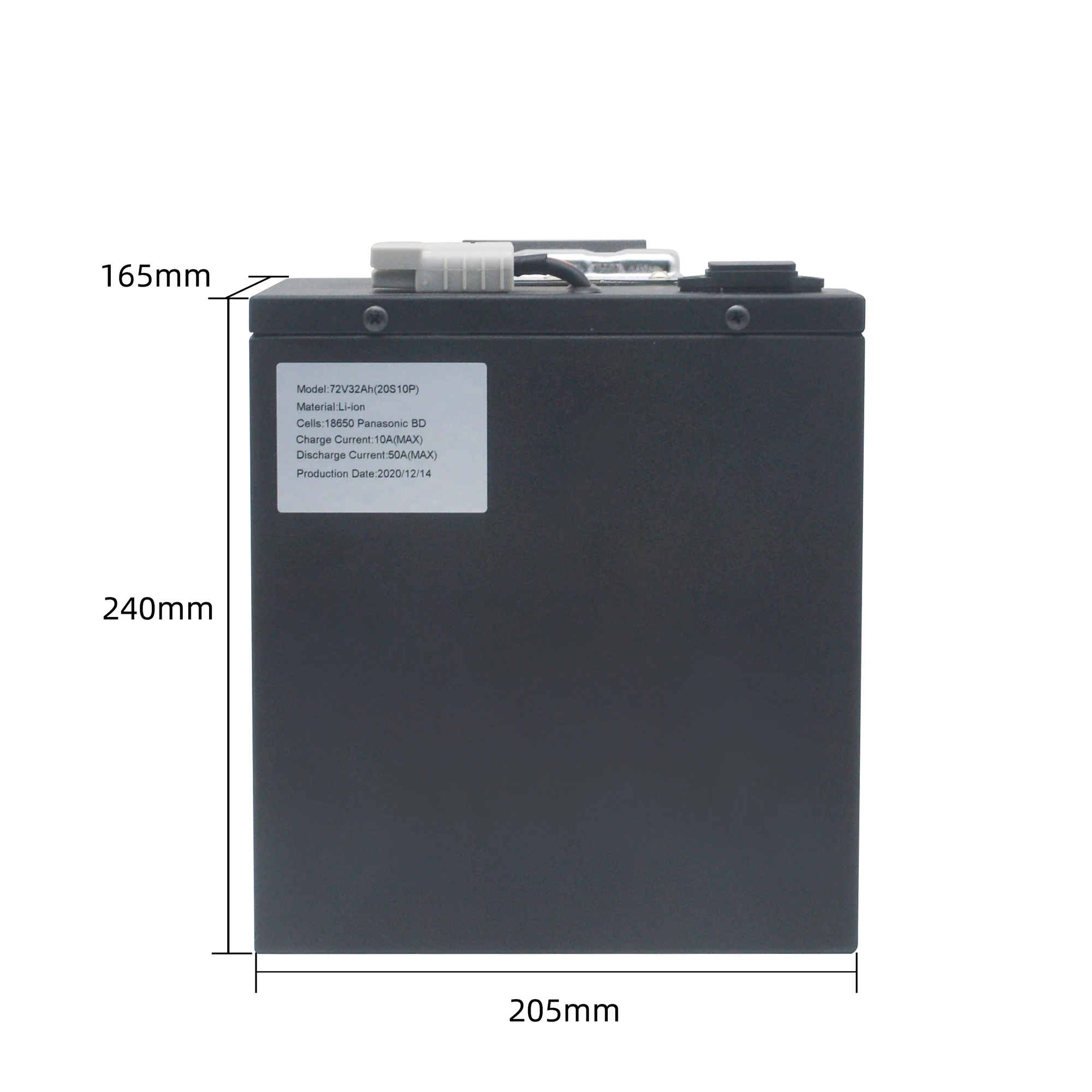

Dimension | 205*165*240mm |
Weight | 10kg |
Shell material | Metal |
Communication method | / |
Warranty | 1 years |
Safety instructions
* Stop charging the battery if charging isn't completed within the specified time.
* Stop using the battery if abnormal conditions aer detected during using, charging, or storage, such as abnormal hot,
discoloration, deformation and so on.
* Keep away from fire immediately when leakage or foul odors are detected.
* If any liquid from the battery leaks onto your cloths, wash well with fresh water immediately. If the leakage onto your skin or into your eyes, don't rub and wash them with clean water at once, then go to see a doctor immediately.
* If the terminals of the battery become dirty, wipe with a dry cloth before using the battery.
* The battery can be used within specified temperature ranges according to the specification. Don't exceed limited ranges.
* The operating temperature is based on the hottest position of the cell surface in the battery pack.
* Cover terminals with proper insulating tape before disposal.
* Stop using the battery if abnormal conditions aer detected during using, charging, or storage, such as abnormal hot,
discoloration, deformation and so on.
* Keep away from fire immediately when leakage or foul odors are detected.
* If any liquid from the battery leaks onto your cloths, wash well with fresh water immediately. If the leakage onto your skin or into your eyes, don't rub and wash them with clean water at once, then go to see a doctor immediately.
* If the terminals of the battery become dirty, wipe with a dry cloth before using the battery.
* The battery can be used within specified temperature ranges according to the specification. Don't exceed limited ranges.
* The operating temperature is based on the hottest position of the cell surface in the battery pack.
* Cover terminals with proper insulating tape before disposal.
Applications
Company Profile
AUG ENERGY ELECTRONICS CO.,LTD was founded in HongKong 2009,Passing 12 years hard-working and growth.AUG has became a leader in the lithium battery fields who concentrate on R&D,Manufacture,Market,Services in one of advanced company.Through these rich experience,AUG not only can provide high-quality standard products but also can make use of our advantages above to provide OEM&ODM services to our clients,thus it will help customers bring their products get to market faster.
By 2020,AUG have passed ISO9001-2008 quality management system for 8 years,AUG have passed CE,ROSH,MSDS,UN38.3,UL1642,IEC62133 etc.. certifications. AUG's lithium battery&battery pack have been trusted by customers from more than 40 countries and regions.
At present,AUG's products widely use on "Protable Electronics Equipments,E-Bike,E-Scooter,Solar storage system,Medical Equipment,Electric Golf Cart,Electric Vehicle Electric Forklift etc...".
By 2020,AUG have passed ISO9001-2008 quality management system for 8 years,AUG have passed CE,ROSH,MSDS,UN38.3,UL1642,IEC62133 etc.. certifications. AUG's lithium battery&battery pack have been trusted by customers from more than 40 countries and regions.
At present,AUG's products widely use on "Protable Electronics Equipments,E-Bike,E-Scooter,Solar storage system,Medical Equipment,Electric Golf Cart,Electric Vehicle Electric Forklift etc...".
Certification
Exhibition
Packing & Delivery
Air shipping, Sea shipping, Land shipping, Express are all available
FAQ
Q1: Are you a factory or a trading company?
We are a professional lithium battery manufacture and trade factory, established in 2011. Until now, our product have been exported to more than 60 countries and regions. The Factory are is about 3000 squire meter,there are about 80 production technician and our annual output value is 5 million US dollar.
Q2: How can we guarantee quality?
Our company has passed the ISO9001 quality management system for 8 year consecutively. We strictly control the product quality. There will be an inspection report before shipping and each product has 1-3 years warranty.
Q3: Do you have MOQ ?
There is different MOQ for different product, please contact our sales for the specific MOQ.
Q4: what is your lead time if I placed an order?
The lead time for battery cells is 3-7 days, and 7-15 days for special models; 15-20 days for customized battery pack, and 20-40 days for special models; Please contact our sales for details.
Q5: Can you make customized battery?
Yes,please contact our sales and explain your requirements of customization. Our sales will provide specific solutions for you. Q6: Is the battery BMS included? Yes,every one of our battery packs includes single reliable BMS to protect customer's safety of use.
Q7: What is the output power?
We can customize the output capacity of the battery according to your actual situation, please contact our sales to inform your needs.
Q8: What kind of the package of the battery?
Q8: What kind of the package of the battery?
Normally,we will package the batteries according to battery type and shipping methods. For battery cells, we usually use individual carton box to pack them. For battery packs, we will use stronger package like wooden boxes to pack.
Q9: How about warranty?
We offer 1-3 years warranty based on different product
Q10: How should I place
an order? Please contact our sales,they will help you confirm the technical requirement and place the order.
an order? Please contact our sales,they will help you confirm the technical requirement and place the order.
