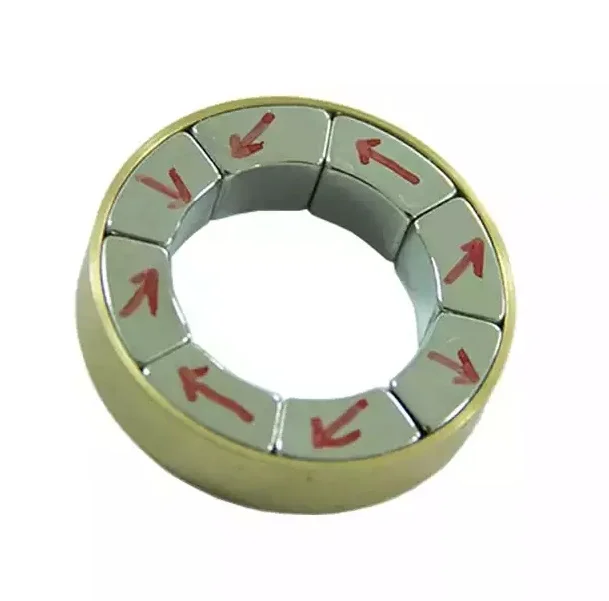

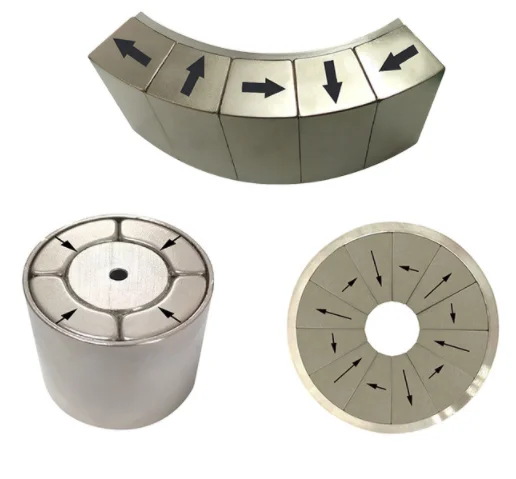

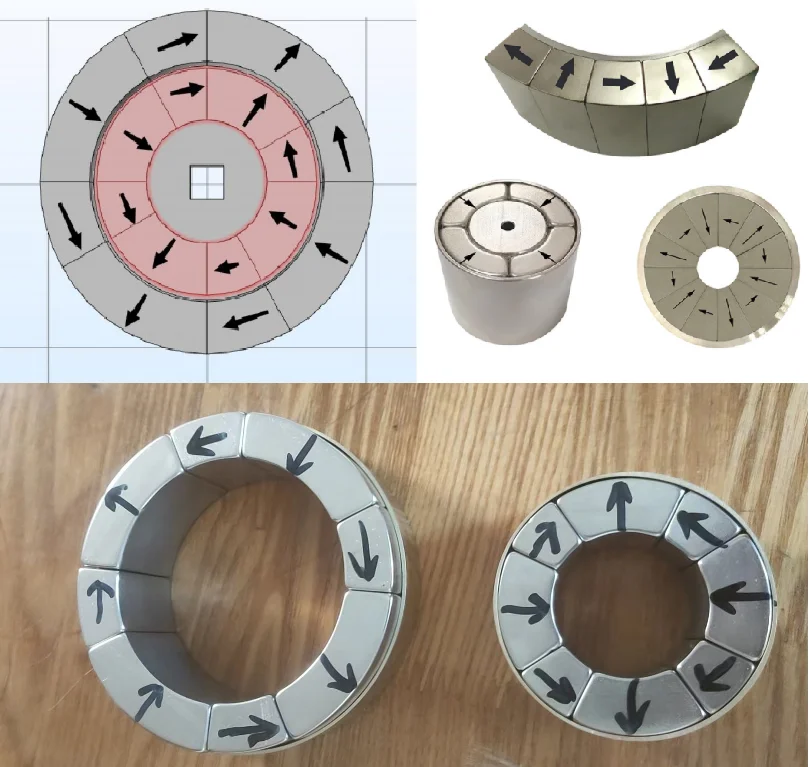

Strong permanent Neodymium Halbach Array Magnet Ndfeb Arc Magnet assembly

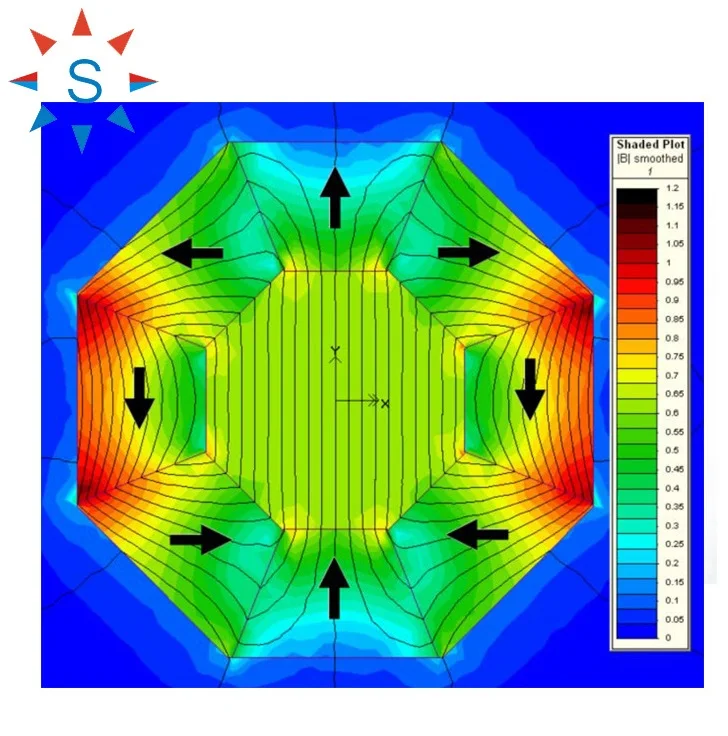

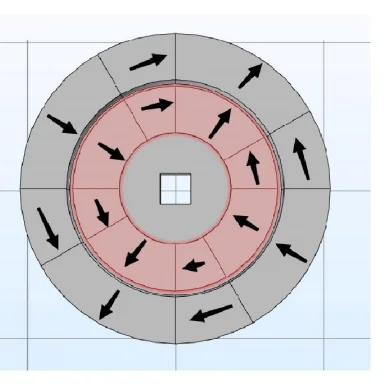

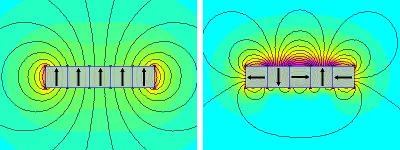

             Halbach Array is completely composed of rare earth permanent magnetic materials. By arranging permanent magnets with different magnetizing directions according to certain rules, it is possible to converge magnetic lines on one side of the magnet and weaken magnetic lines on the other side, so as to obtain an ideal unilateral magnetic field. This is of great significance in engineering. Halbach Array is widely used in industrial fields such as nuclear magnetic resonance, magnetic levitation, permanent magnet special motors, etc. due to its excellent magnetic field distribution characteristics.

Sintered Ndfeb Magnet

Speciation:

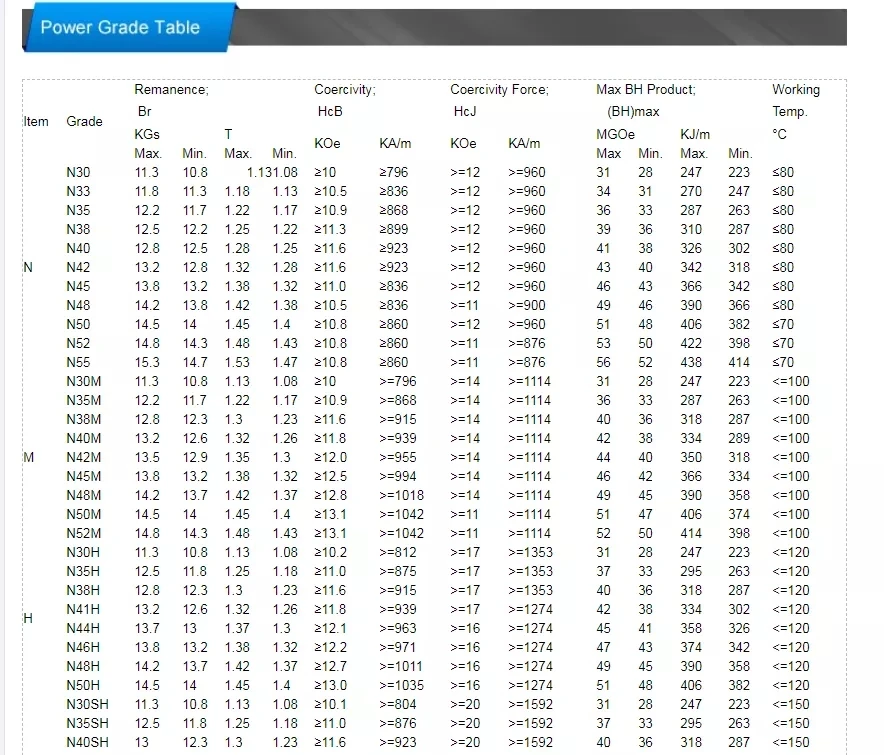

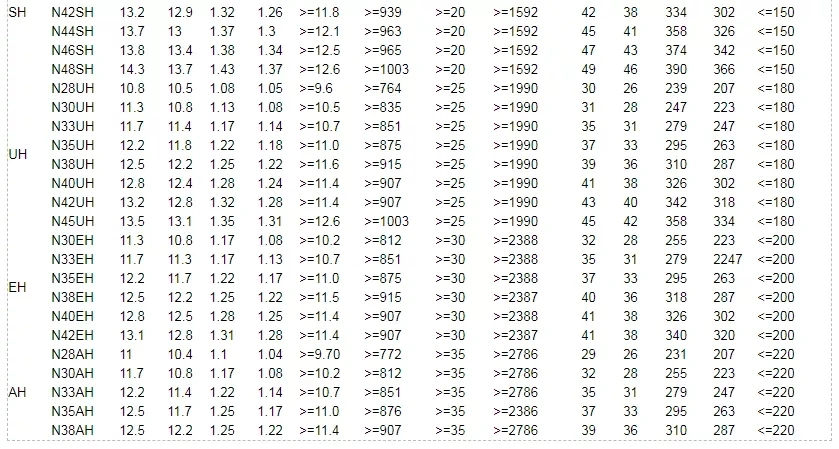

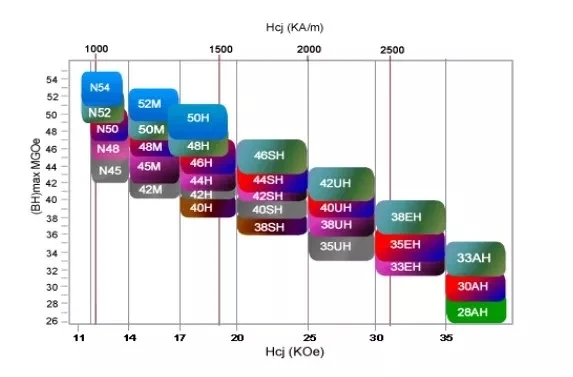

1. Grade: N33-N52,33M-48M,33H-48H,30SH-45SH,30UH-38UH and 30EH-35EH;
2. Maximum Working temperature: 60°C to 250°C

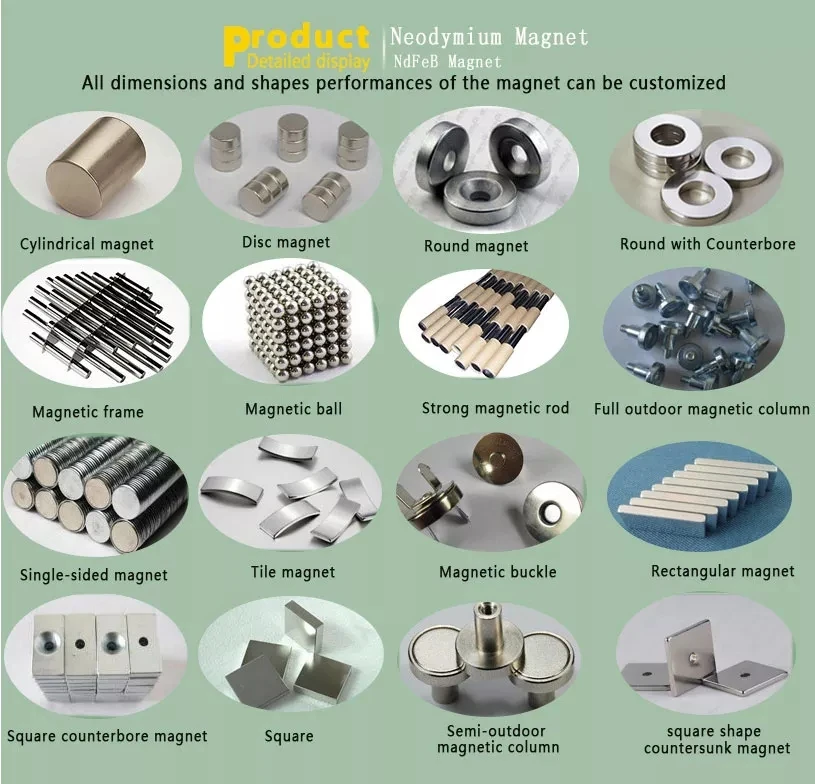

3. Shape: Disc,Ball, Ring,round, Block, Bar ,Triangle,Segment/tile/Arc , Cylinder

              Trapezoid, bowl,cone, pyramid shape,fan-shape,groove shape,irregular shape customize  etc
4. Application: Computer, automobile, electric machinary, electro-sound devices, automatic control, magnetic force mechanism, microwave communication, petrochemical industry, medical apparatus and equipment
 5, Tolerance:  +- 0.05  ,    +- 0.02,  0.01mm

Characteristics:
 * Higher unit magnetic properties than other magnet
* Lower temperature coefficient of magnetic properties than ceramic but higher than SmCo type rare earth magnet

Type:
Sintered NdFeB magnet
Bonded NdFeB magnet

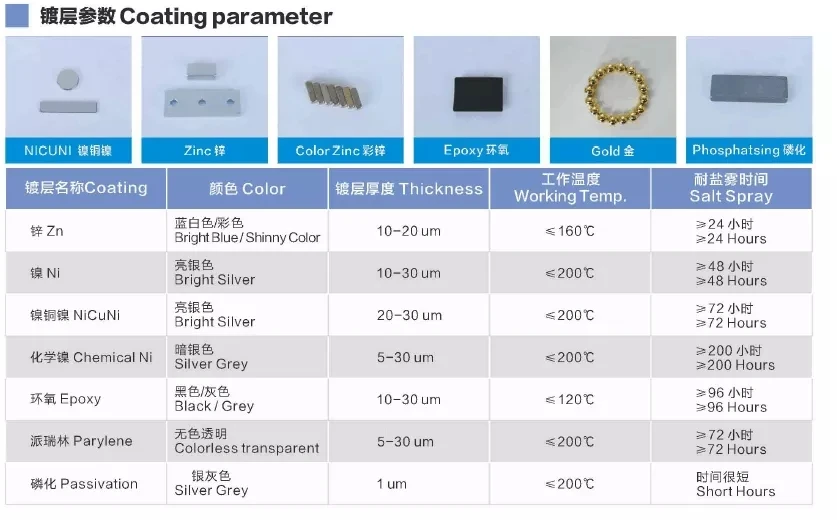

Surface Treatment Method:
 Metallic :Zinc, Nickel, Nickel+Nickel, Copper+Nickel, Nickel+Copper+Nickel, Gold, Sliver
Organic :Epoxy, Nickel+Epoxy coating
Temporary :Surface Passivation

Amoeba Magnetic provide all type Magnets Solution.

Our advantage is high tech, high standard,special magnet,

customize magnet etc

Below is a small part of our Technical Advantages Magnet

(normal simple magnet not in below list).

Permanent type magnet :

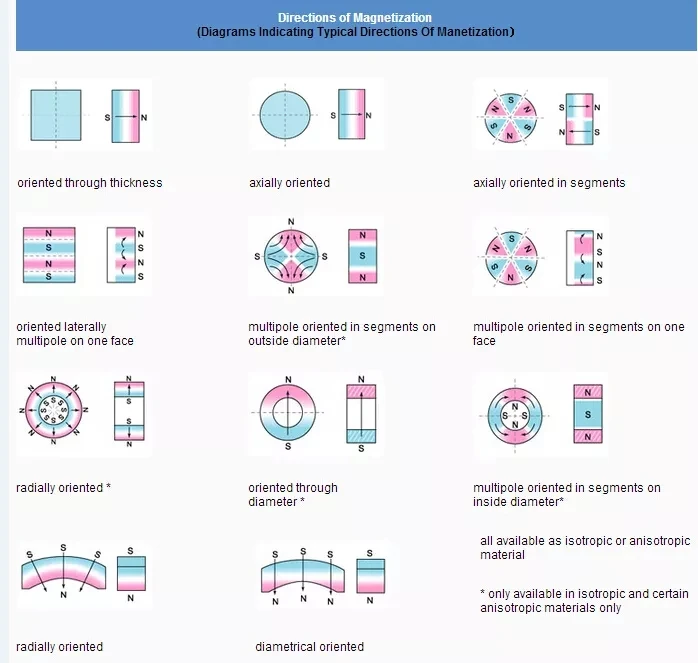

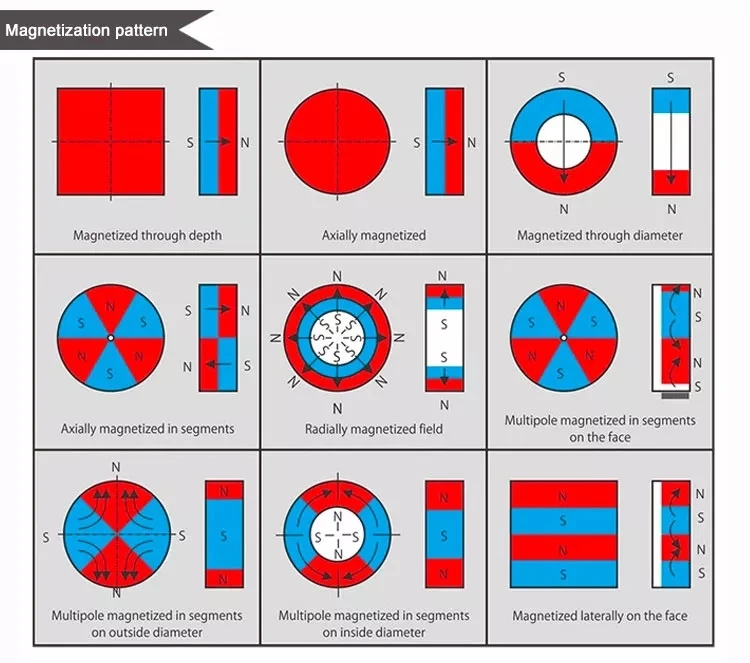

Single pole/ 1 pole magnetization/ 3 poles magnet

Oblique magnetization

Multi Poles magnetization

Diametrically magnetized

Magnetic drive

Mn Zn Ferrite Magnet processing

Magnet Gear (replace traditional gear)

Large Size magnet / Tiny size magnet

Special shape irregular magnet

Magnetic separator rod plate 12000gs 17000 gauss

5 ton 5000kg lifting magnet(rated lifting strength)

450mm suspension height(conveyor belt suspension magnet)

All kinds of Magnet Powder

Magnetized water

550 C high temperature resistance magnet

Dielectric magnet

Strict and precision tolerance

NdFeB sintered magnet tolerance can meet +-0.01mm

(industrial average tolerance is +-0.05)

N35-N56 grade

5400 gauss NdFeB Magnet

Y30-Y46 grade ferrite magnet

C8-C15 ceramic magnet

All kinds of shape

Magnetic Assembly equipment tool

High power magnet,alnico magnet,bonded ndfeb Magnet Price is Competitive

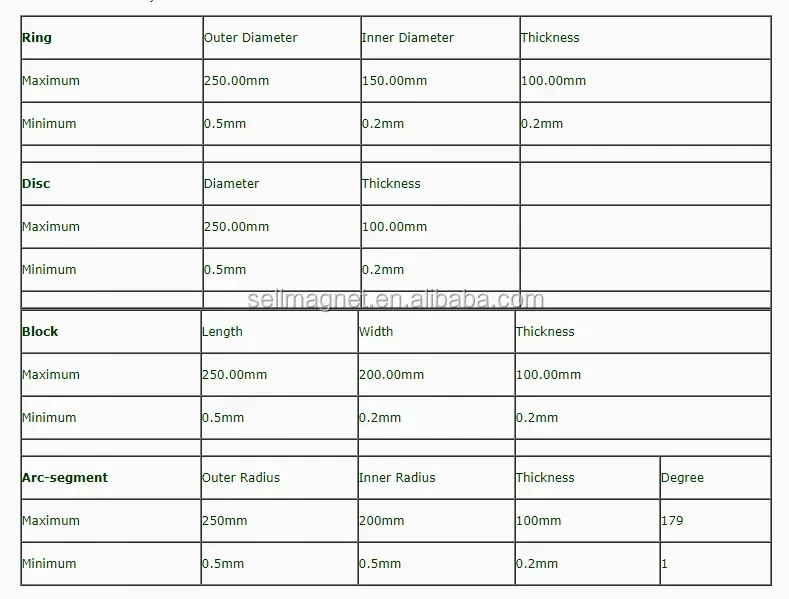

Basic Dimension(can customize and enlarge if you need):

Professional Manufacturer of Magnets:Chengdu Amoeba Magnetic Co., Ltd. (AMOEBA) is a factory established in 1990 and has assets of RMB250,000,000. Our company covers an area of 16,440 square meters and has more than 2,000 employees, 8 producing factories, 2 branch companies and 1 professional testing center. We have passed ISO9001:2000, QS900 quality system certification and TS16949 quality control system.

We mainly produce sintered and bonded NdFeB, Smco, Alnico and Ferrite magnet. The annual capacity of our company is-- Sintered NdFeB: 2,000 tons, Bonded NdFeB: 800 tons, Alnico magnet: 500 tons, Ferrite: 10000 tons and 4500 tons of magnetic core. We can make high energy products up to N55, N52, N48H, N46SH, N45, 42M, 42H, etc. We have got the license to export to America.

We have the technique team to develop the mould following customers' requests. Our R&D Center also could design different magnetic product according to customers' applications. Branch factory in Chongqing is professional in soft ferrite magnets: Mn-Zn, Ni-Cu-Zn, Mg-Zn, Nizn series and the magnetic elements such as E, U, G, RM, PQ, LP. The material for soft ferrite including RM2.3KD, RM2.4KD, RM10K, BF, etc. Among these materials, the RM2.3KD, RM2.4KD has the same standard with PC40, PC44, which is the material of TDK Company of Japan. We have an annual production capacity of 2,000 tons and more than 1000 magnets of different sizes. More than 80% of Amoeba magnetic products are exported  to the USA, Europe and Southeast Asia with an annual export volume of 80,000,000 CNY. With the efficient and fast e-commerce services and matching systems of serial production, quality assurance and after-sales service, we will provide the best services for the clients.

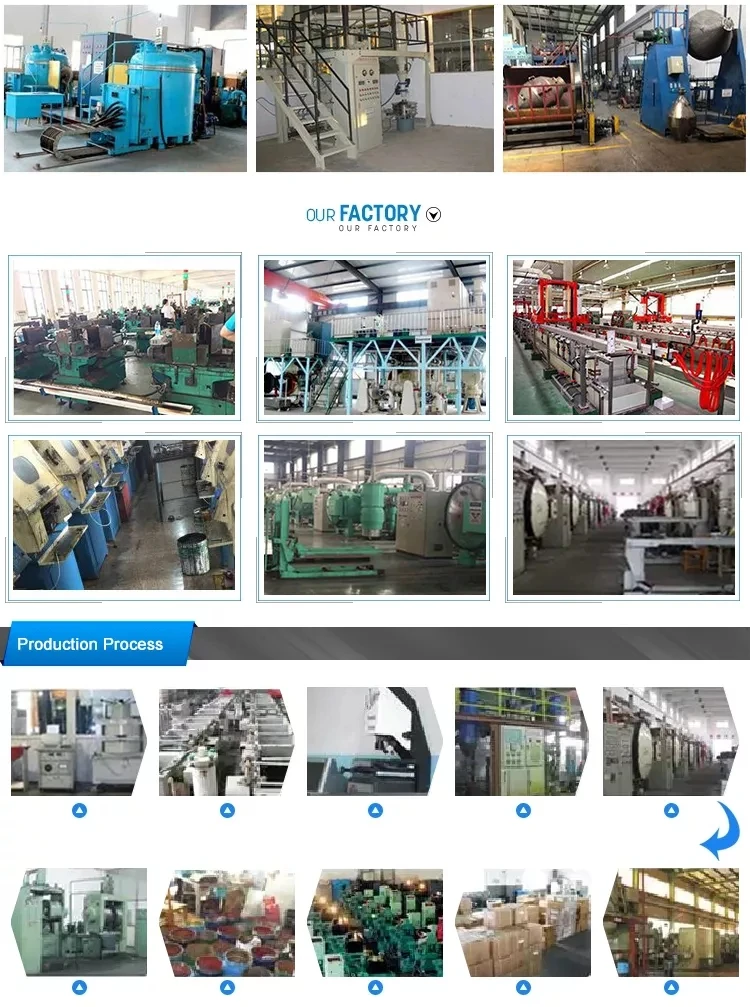

Our factory is located in Sichuan province, which is one of the most professional magnetic material manufacture bases in China. Based on convenient and complete matching services for magnetic material in Sichuan, our factory could supply top quality products with the most competitive price and lead time to the customers all over the world!

1.  We provide high preceision magnet like Smco,NdFeB,Alnico,FeCrCo and Ferrite.

and also soft magnetism core,magnet plate,pot magnet,lifting machine,magnetic coupling,Iron silicon aluminum magnet,rubber magnet ,Injection molding magnets etc..

2.  Reply your inquiry and email within 18 hours. Please feel free to call us at any time for urgent matter.

3.  Custom & design and manufactuering all kinds of magnet with reasonable price.

4.  We deliver goods in time and full-way tracking the cargos until the goods  arrived.

5.  Samples are always available , try our best to provide mould by ourselves.
6.  Always provide excellent and friendly service.
